Raspberry Pi Case-LTRIG

X708 UPS & Power Management Board with Cooling Fan ,AC Power Loss Detection, Auto On & Safe Shutdown Function for Raspberry Pi customize

X708 UPS & Power Management Board with Cooling Fan ,AC Power Loss Detection, Auto On & Safe Shutdown Function for Raspberry Pi customize

Regular price $26.99 USD
Regular price $0.00 USD Sale price $26.99 USD
Sale Sold out
Color
Note:
Not include Raspberry Pi Board & Batteries.

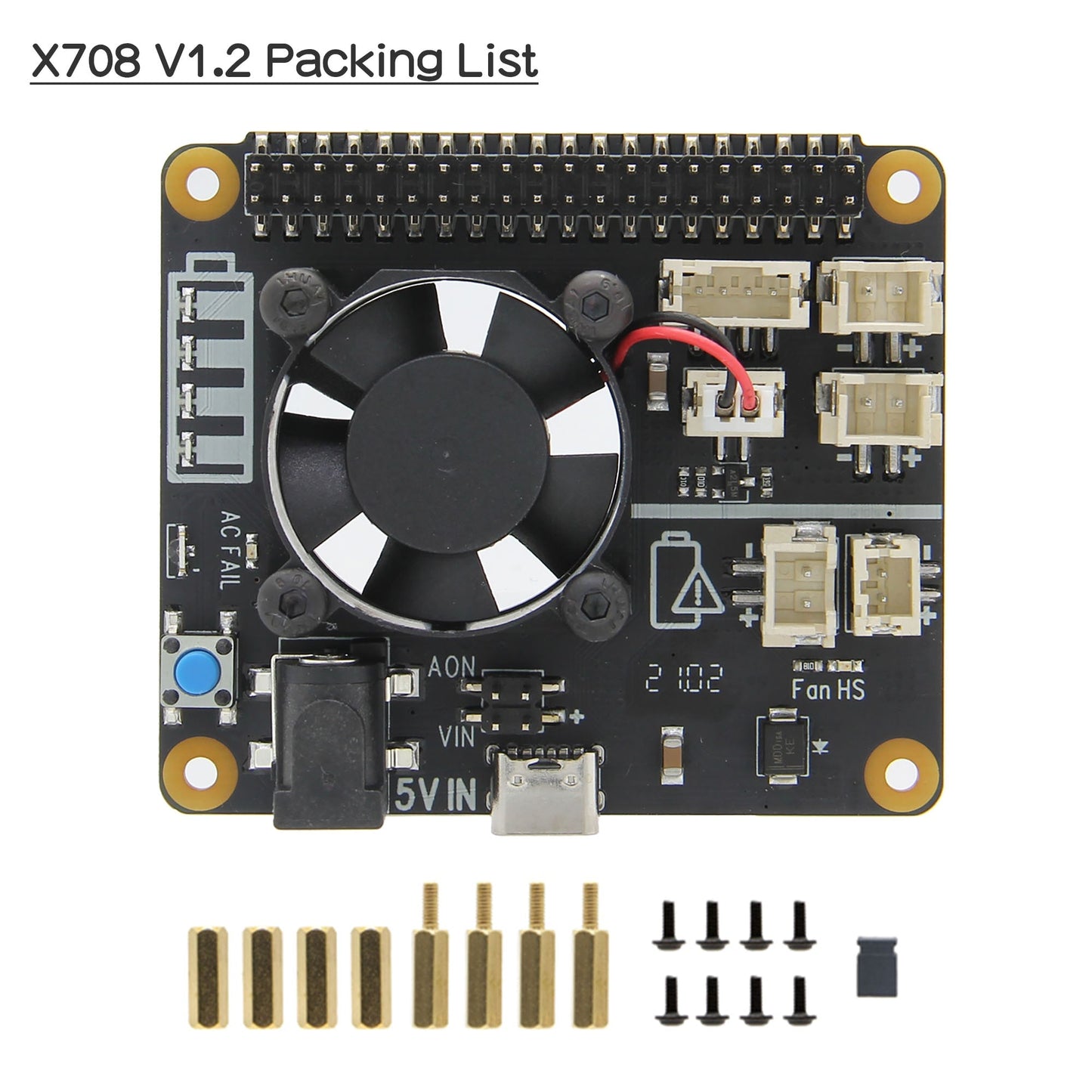

Packing List:

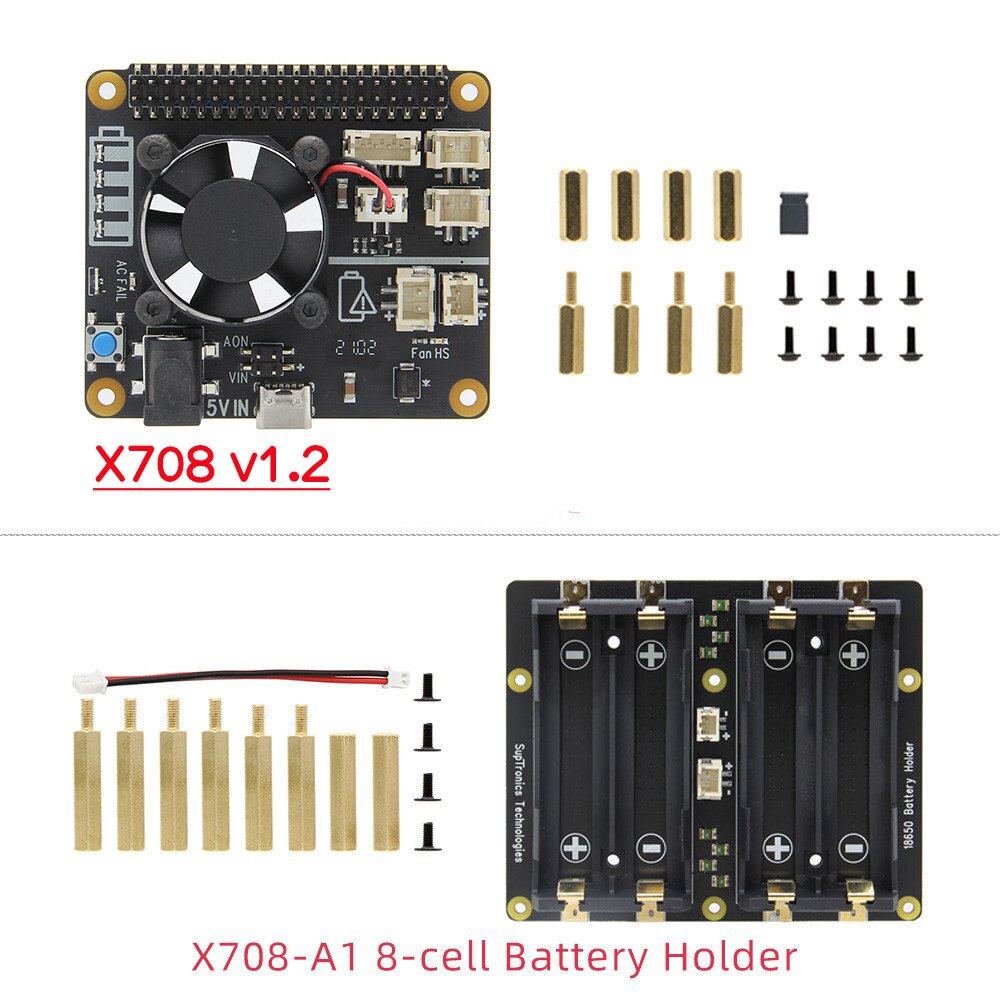

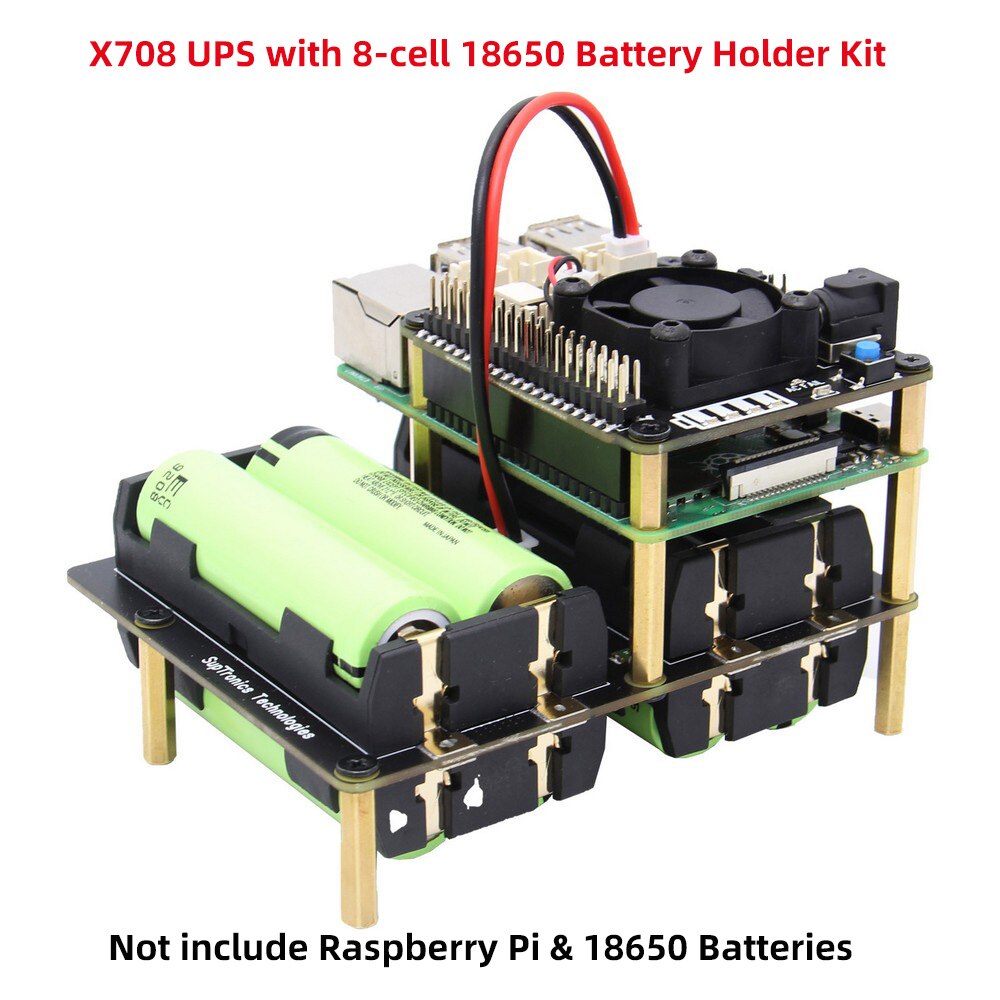

Bundle1: X708 Board withX708-A18-cell 18650 Battery Holder
  • 1 x  X708 Expansion Board

  • 8 x  M2.5 *5mm Screws

  • 4 x  M2.5 *12+6mm Spacers

  • 4 x  M2.5 *12mm Spacers

  • 1 x  Jumper link Pitch 2.54mm

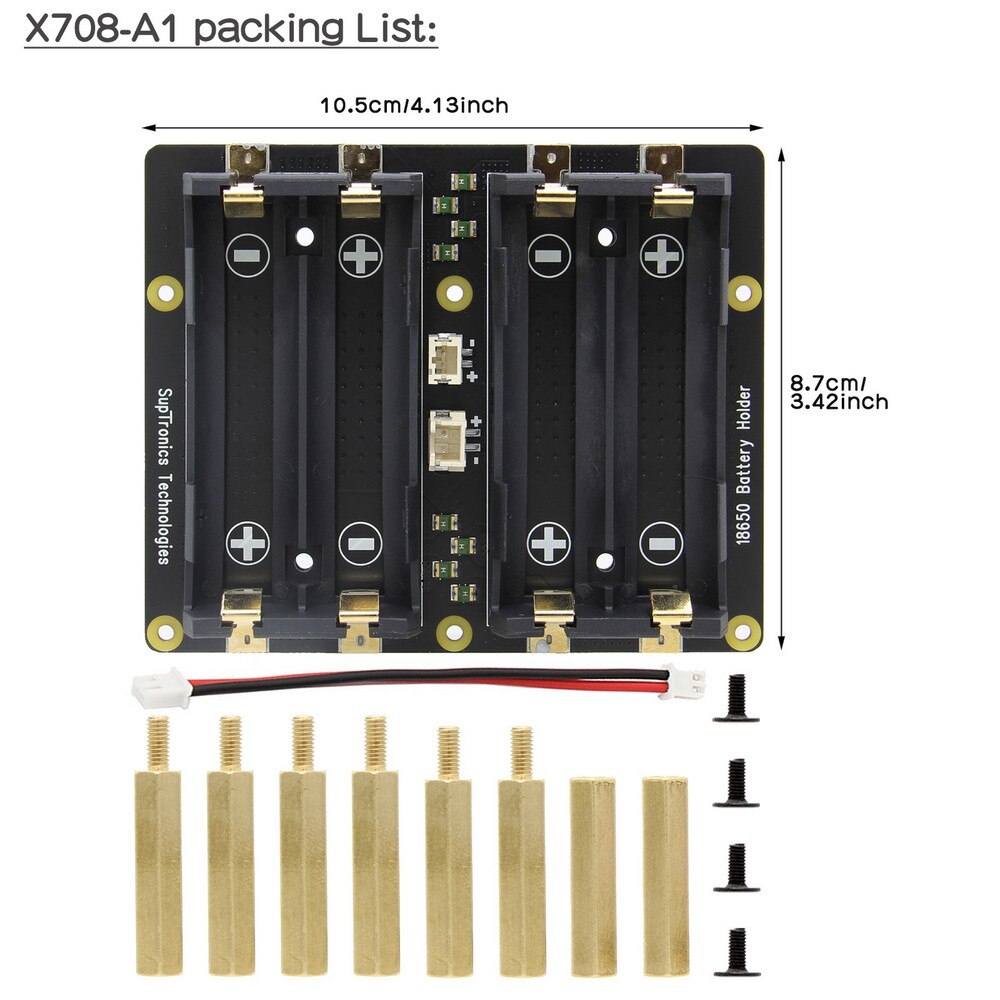

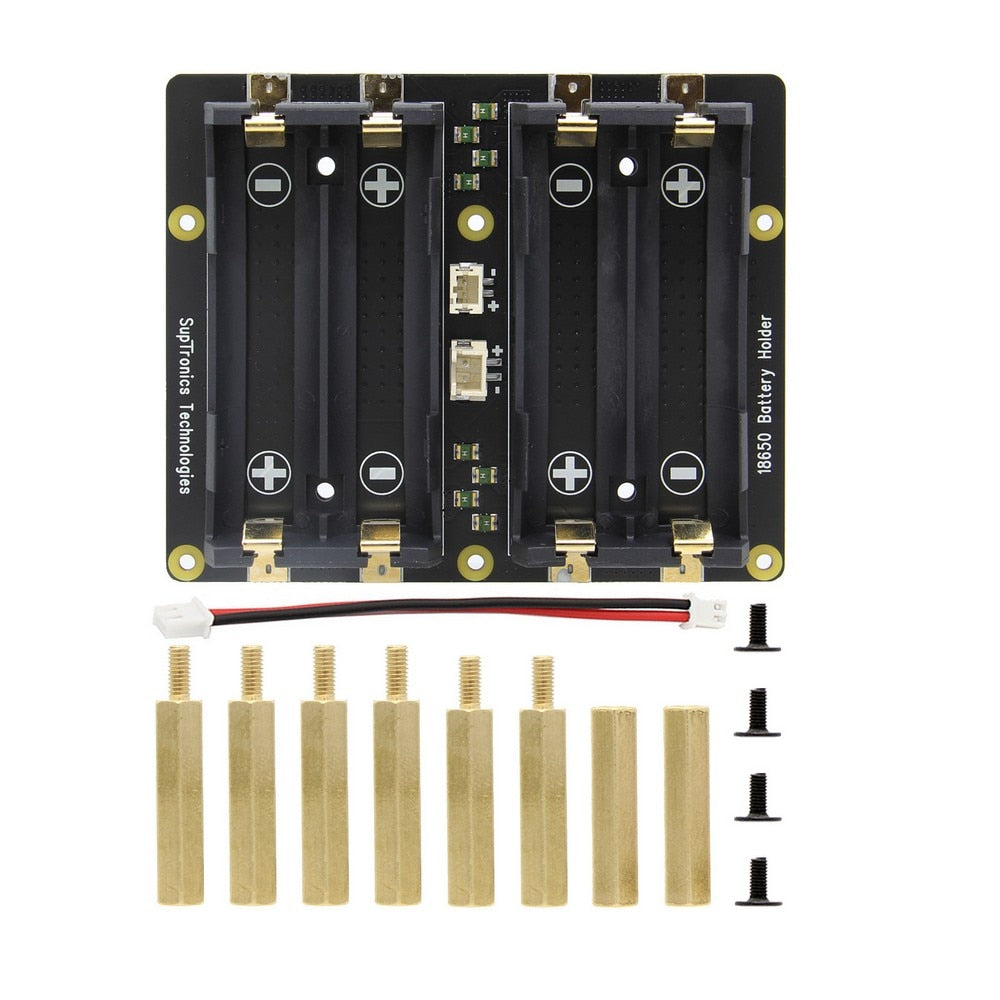

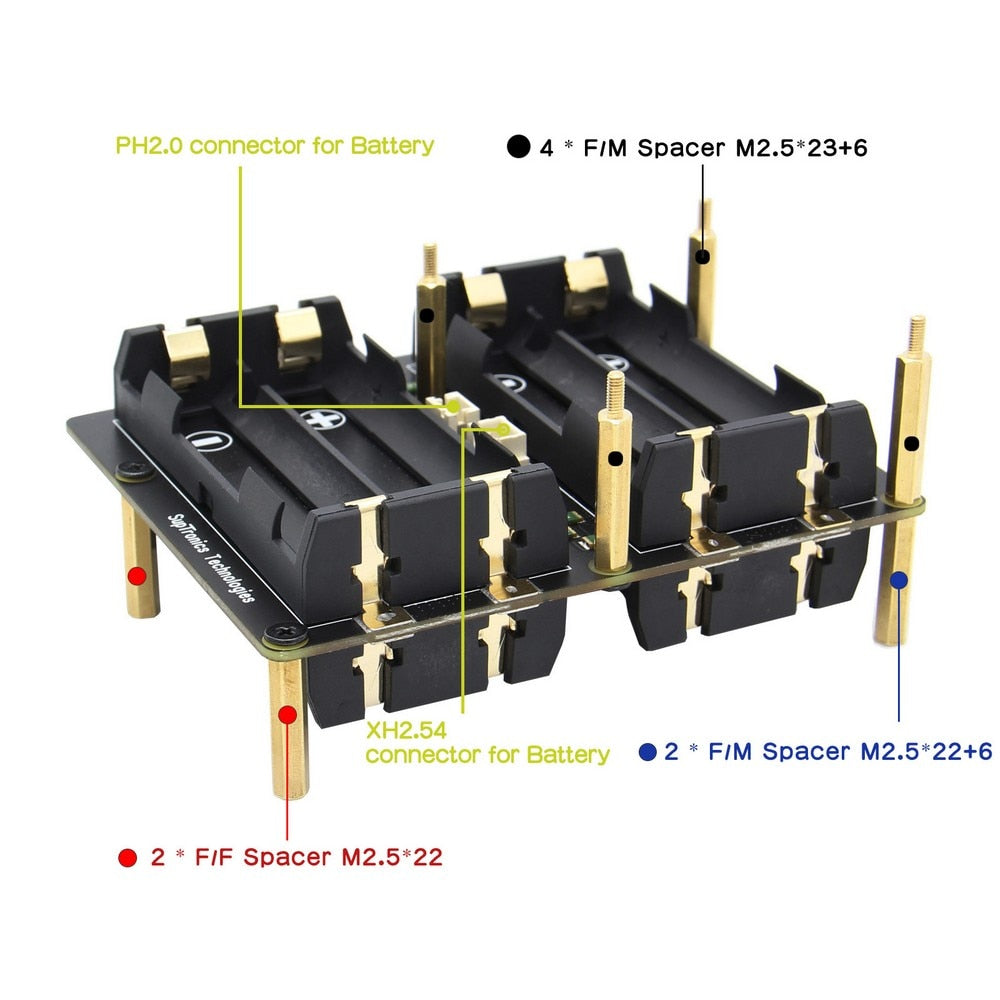

  • 1xX708-A1 8-cell 18650 Battery Holder

Bundle2:

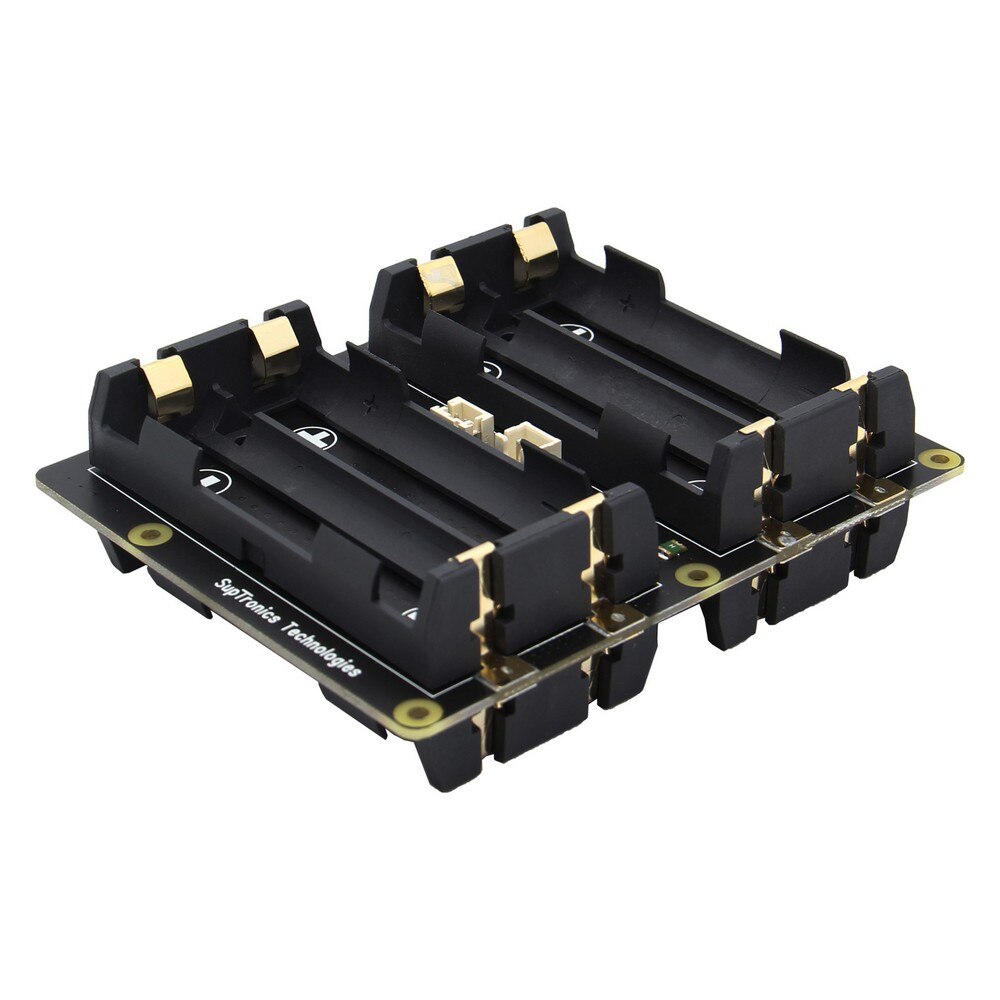

  • 1xX708-A18-cell 18650 Battery Holder

Bundle3:

  • 1xX708 Expansion Board

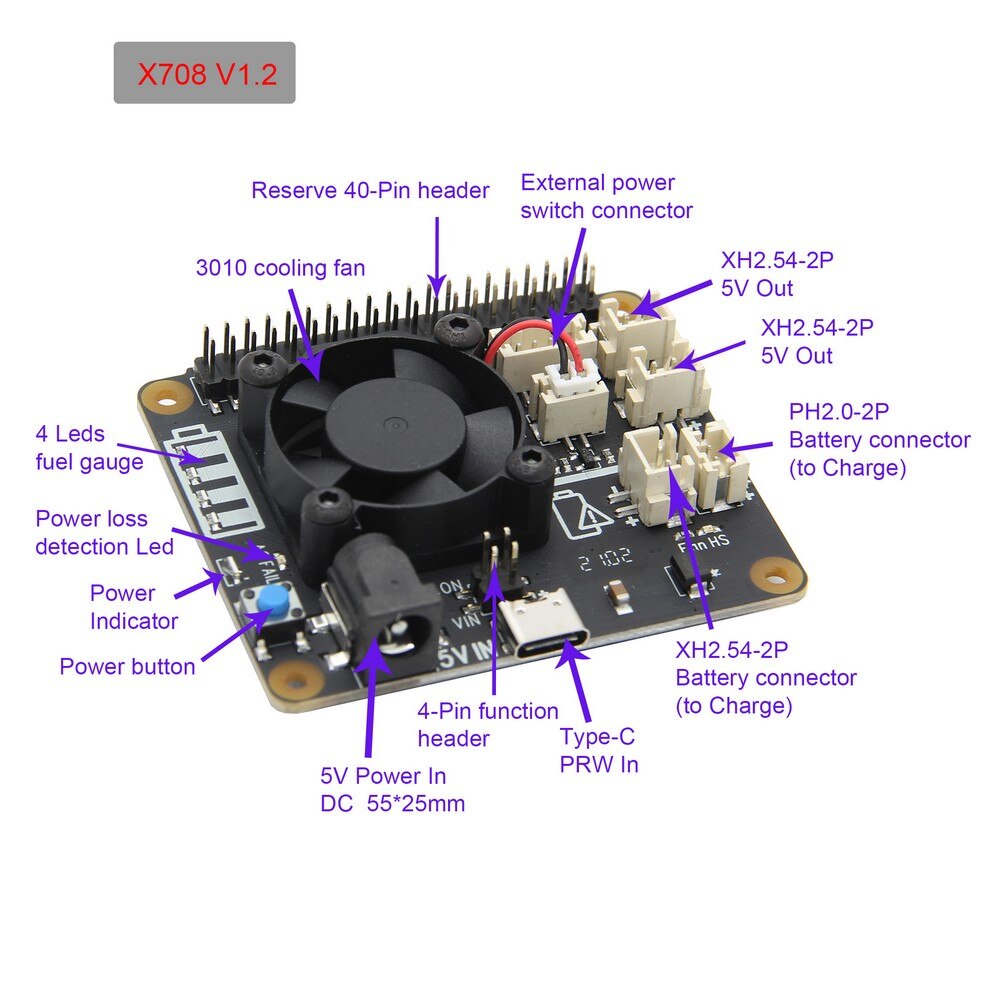

Overview:
  • The X708 is an advanced uninterruptible power supply expansion board for all current models of the Raspberry Pi using a 40 pin header. It provides 5.1V Max. 8000mA Power Backup for even the most demanding Raspberry Pi set ups, intelligent and safe power management, safe shutdown,AC power loss/ power adapter failure detection , auto power-on, full poweroff from software, and a cooling fan

  • Some key fectures:

  • Excellent UPS function (PLD, ASD, AON etc.).

  • With cooling fan, no extra cooling solution.

  • HAT size. Separate the battery from the expansion board, which can save a lot of space, which will bring more flexibility.

  • Reseved two kind battery port (XH2.54 and PH2.0), supports 3.7V 18650 lithium battery and 3.7V lithium polymer battery, No capacity limit, only request 3.7V lithium battery (No include lithium battery)

Features:
Operating System
  • Raspbian Stretch

  • Safe shutdown function tested for Raspbian, other operating systems to be tested and advised

Smart and powerful Uninterruptible Power Supply (UPS)
  • Provides continuous operations for up to 10~30hours (depending on battery type and qty used)

  • Max 5.1V 8000mA Power Backup for even the most demanding RPi set ups

  • Supports 2A/3A fast battery charging

  • Integrated over current protection and over voltage protection

  • Integrated Maxim's fuel-gauge systems (Reading battery voltage and percentage via i2c)

  • Integrated 10-A fully-integrated synchronous boost converter

  • Intelligent automatic charging and discharging

  • Operate in both charge mode and boost mode to allow full system management and battery power mgt

  • Integrated IN-to-SYS pass-through path to pass the input voltage to the system

  • Advanced system power-path management avoids batteries frequent charging and discharging

  • Advanced system power-path management allows 3A fast charging and powering Raspberry Pi at the same time

  • On-board 4 green LEDs indicate battery charging and discharging levels of 25%, 50% , 75% and 100%

  • Batteries attach via PH2.0-2P or XH2.54-2P

  • Intelligent and safe power management

Equipped with momentary button for easy power control
  • Press the button to turn on

  • Press the button and hold for 1~2seconds to reboot

  • Press the button and hold for 3~7seconds to implement safe shutdown

  • Press the button and hold for >8seconds to force shutdown

  • Supports safe shutdown and full poweroff from software

  • On-board blue LED shows the status of power on, reboot and shutdown

  • AC power loss or power adapter failure detection (LED and GPIO indication)

  • Optional to enable Auto power on when power applied or restored

  • Automatic safe shutdown when battery low (voltage <3.0V)

  • Ultra-low standby power consumption to maximize battery life

Integrated cooling fan that allows the heat from your Raspberry Pi to dissipate!

  • Completely solve the overheating problem of your Raspberry Pi

  • Efficient drop temp of Raspberry Pi CPU

Misc
  • Powers the Raspberry Pi via the 40-pin header - no additional cabling required

  • Standard Raspberry Pi extension interface, compatible with other expansion boards

  • DC power jack (5.5*2.5mm) and Type-C socket convenient for power input

  • On-board PH2.0 connector allows to connect external power switch and DIY your perfect case

  • On-board XH2.54 power output connector allows to power other devices

  • Mounting holes and standoffs provide mechanical stability of the Raspberry Pi and X708 assembly

SPECIFICATION
  • Power supply via Type-C socket: 5Vdc ±5%, ≥3A; Via DC power jack: 5Vdc ±5%, ≥4A

  • UPS output : 5.1V ±5% Max 8A

  • UPS charging current: 1.8~2.2A / 2.3~3.2A

  • Terminal Battery Voltage : 4.24V

  • Recharge Threshold : 4.1V

  • Battery: 3.7 Lithium Battery
