Raspberry Pi Case-LTRIG

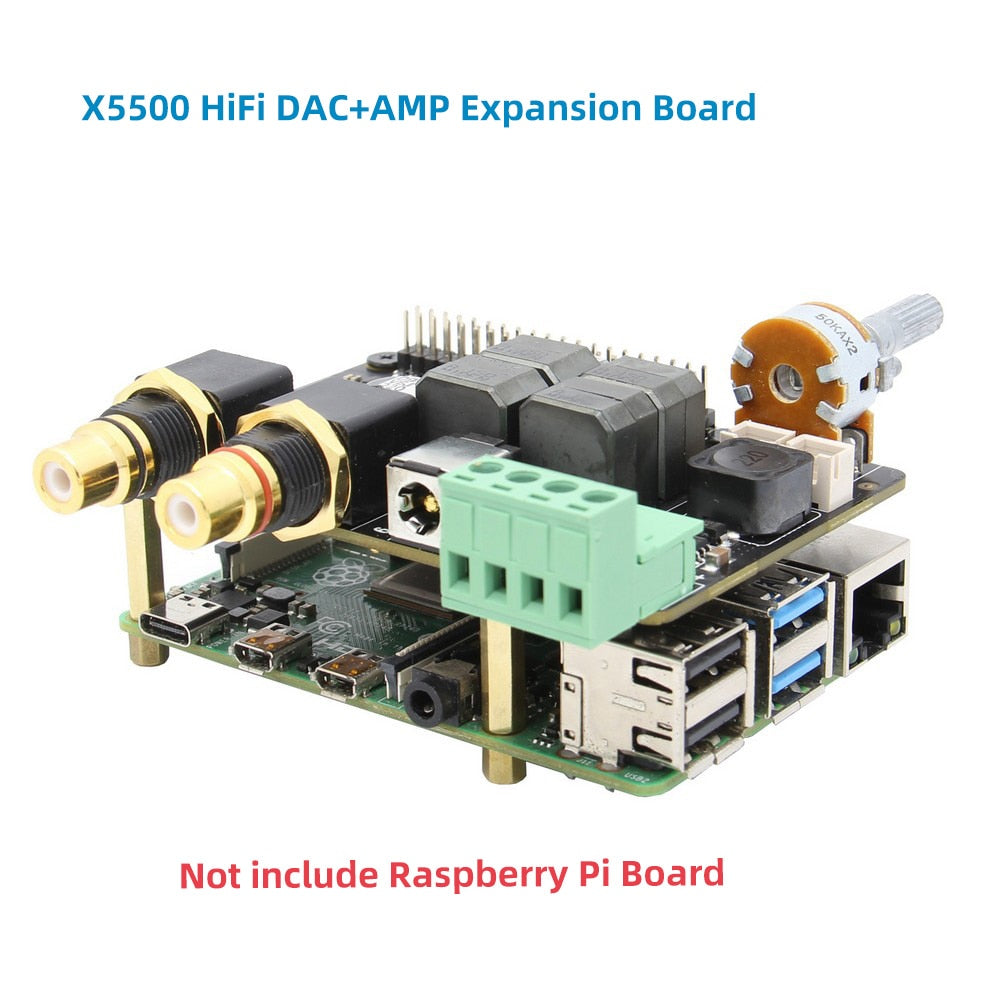

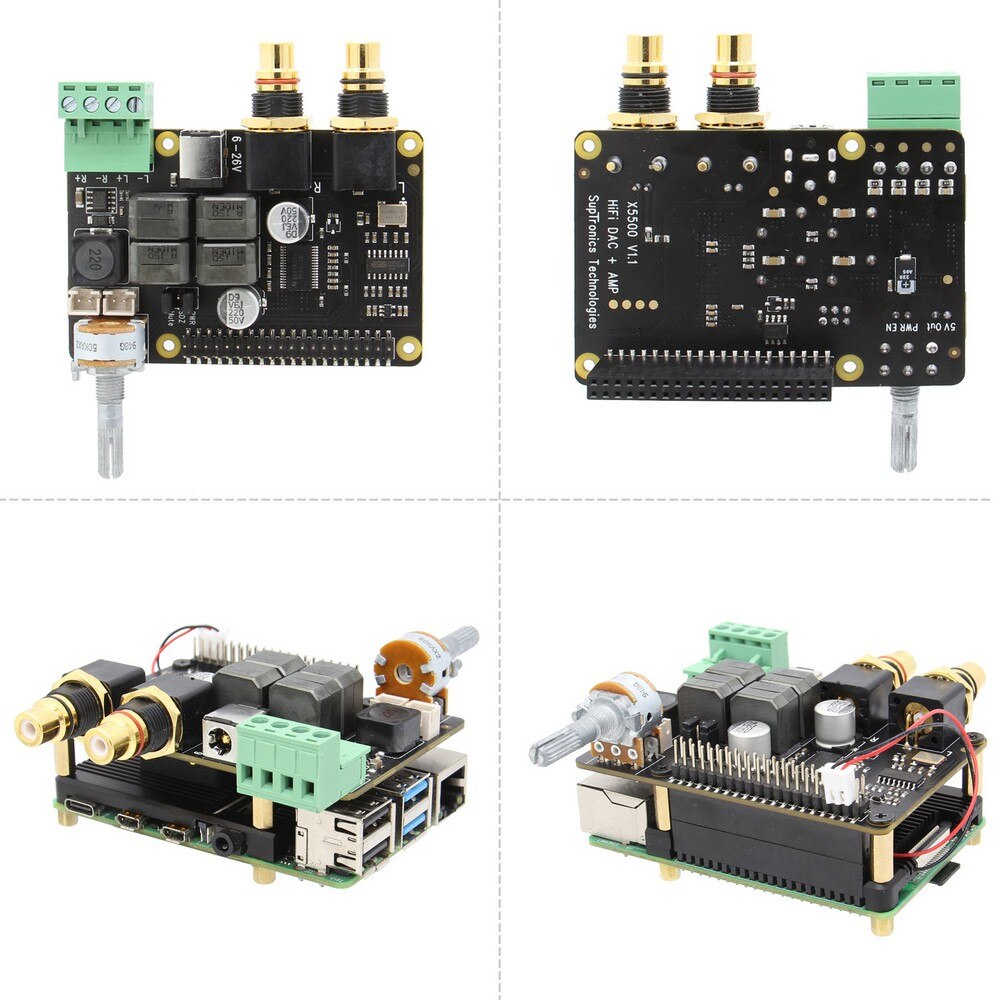

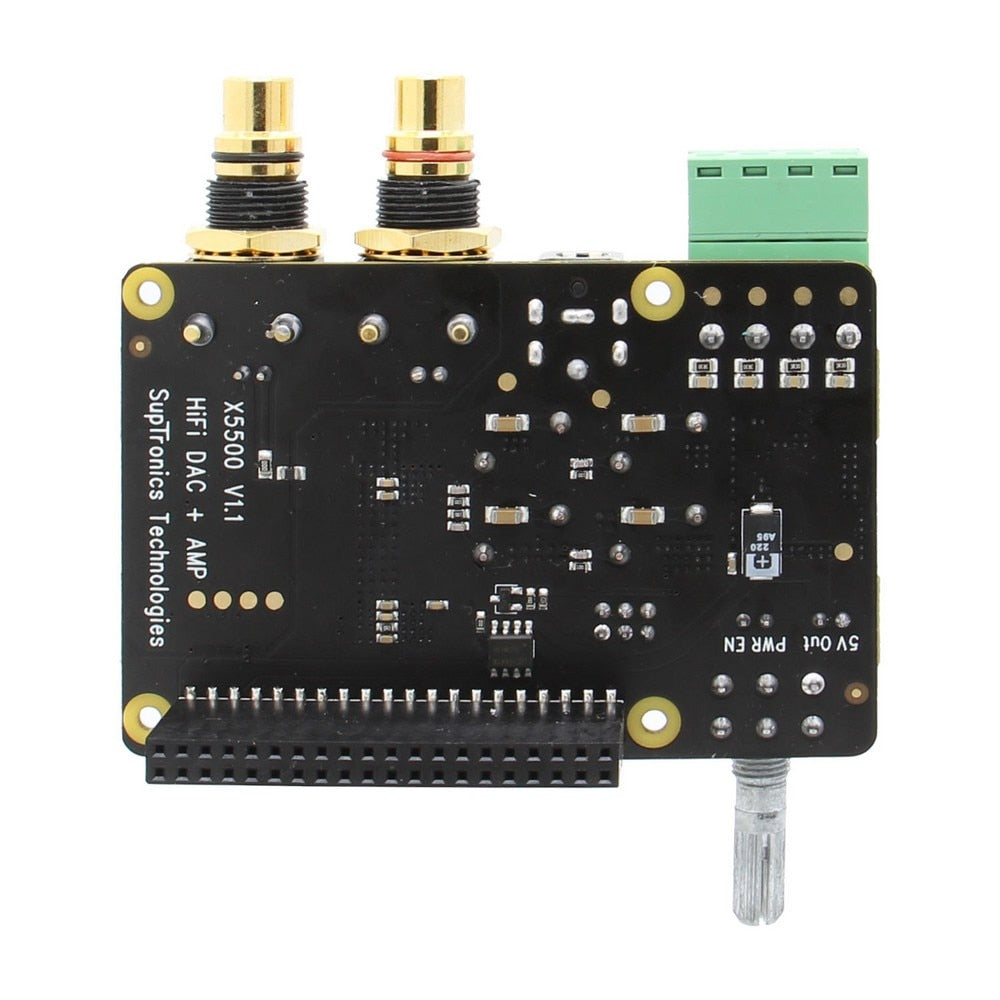

X5500 HiFi DAC+AMP Expansion Board Support X872/X710/X850/X860 Compatible with Raspberry Pi 4B/3B+/3B customize

X5500 HiFi DAC+AMP Expansion Board Support X872/X710/X850/X860 Compatible with Raspberry Pi 4B/3B+/3B customize

Regular price $67.49 USD
Regular price $0.00 USD Sale price $67.49 USD
Sale Sold out
Color
Note:
  • Not include Raspberry Pi Board;
  • Don't power your Raspberry Pi via the Pi's 40-pin header and Type-C or Micro USB socket at the same time;
Application:
  • Compatible with X710 for intelligent power mgmt and cooling your amplifier (See notes1)
  • Compatible with X850 for mSATA SSD storage expansion (See notes 2)
  • Compatible with X872 for M.2 NVME SSD storage expansion (See notes2)
  • Compatible with X860 for M.2 SATA SSD storage expansion (See notes2)
NOTES:

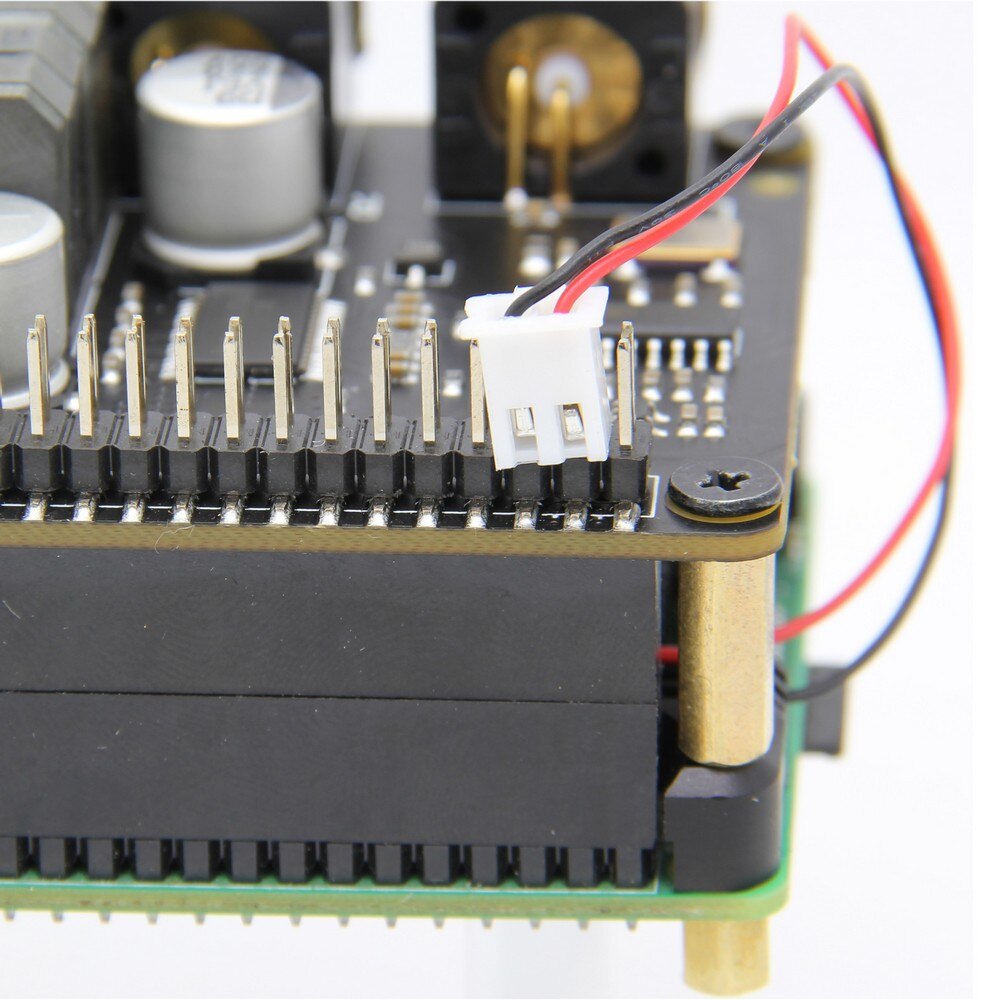

  • 1) Additional M2.5*20 M/F spacers & 2-pin XH2.54 cable required (not supplied)
  • 2) Additional M2.5*8 M/F spacers required (not supplied)

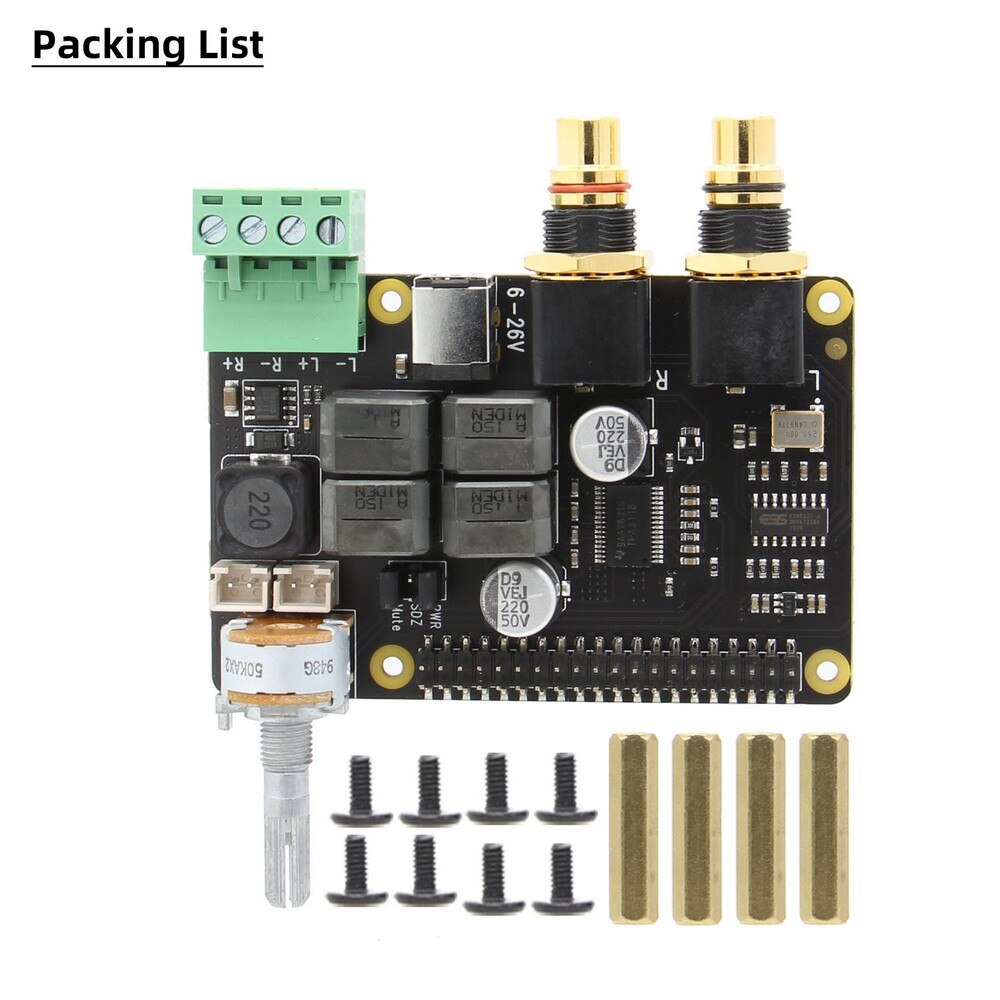

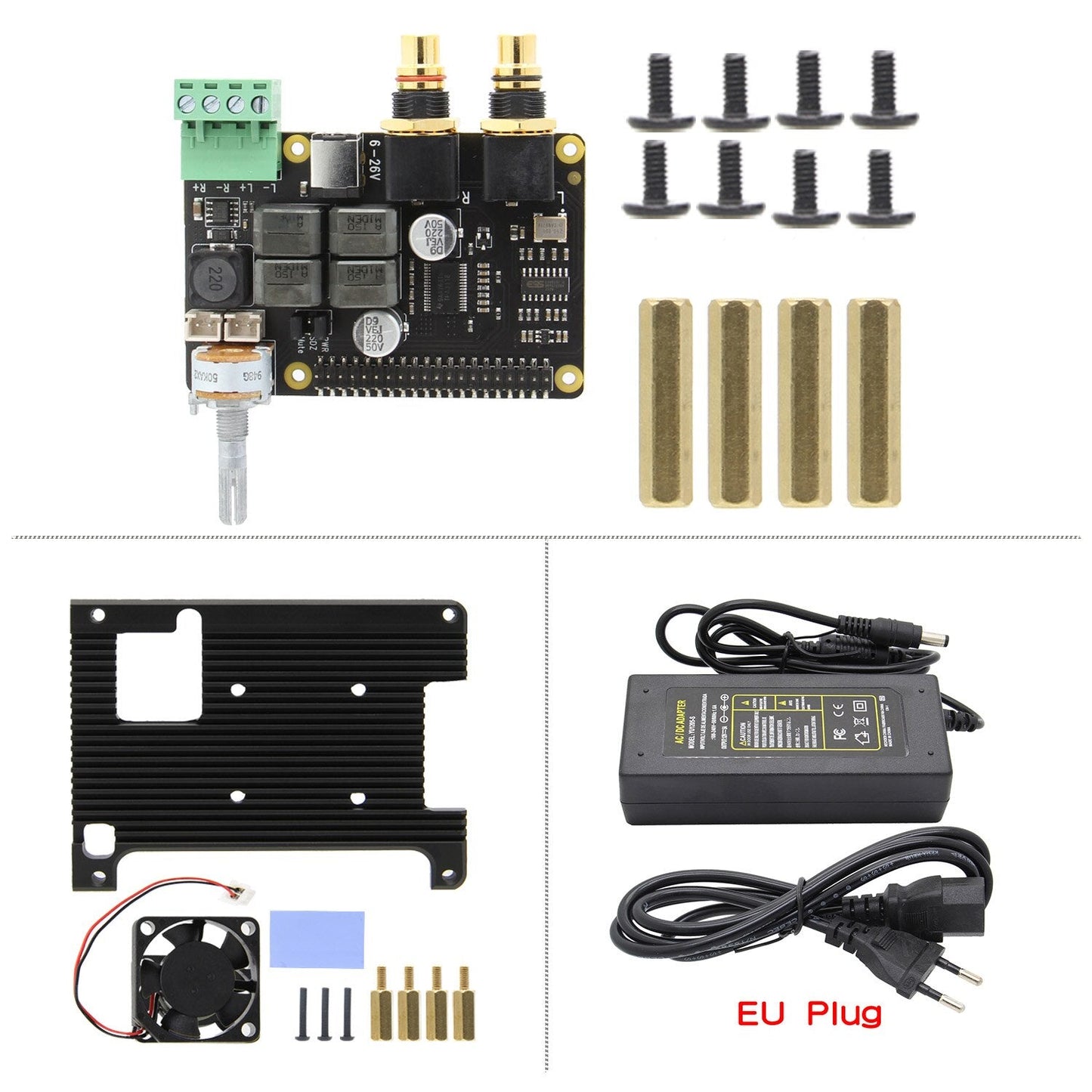

Packing List:

Bundle1:

  • X5500 Expansion Board x 1
  • Screw M2.5 *6mm x 8
  • Spacer F/F M2.5 *20mm x 4

Bundle2

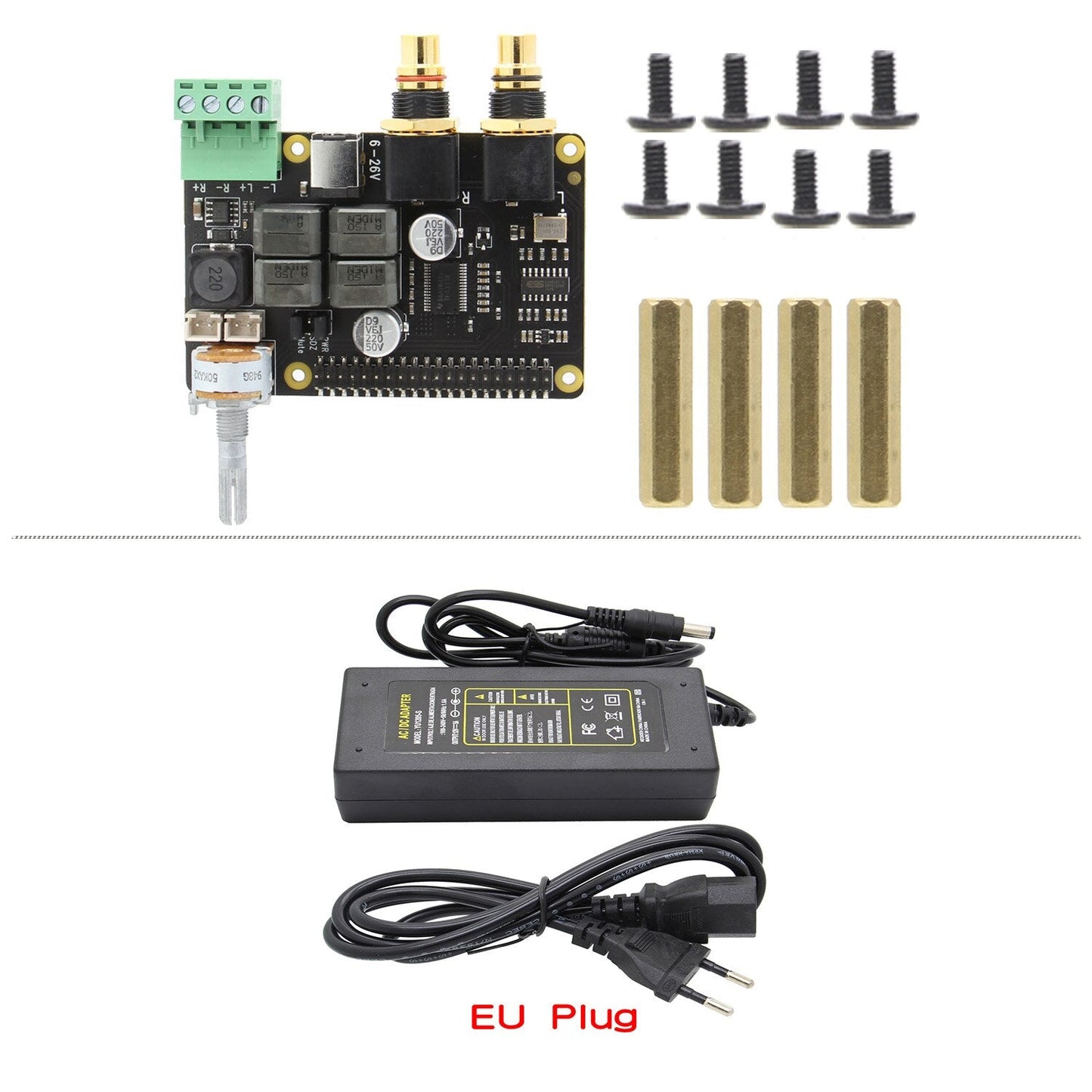

  • Bundle1+Plug(EU)
Bundle3

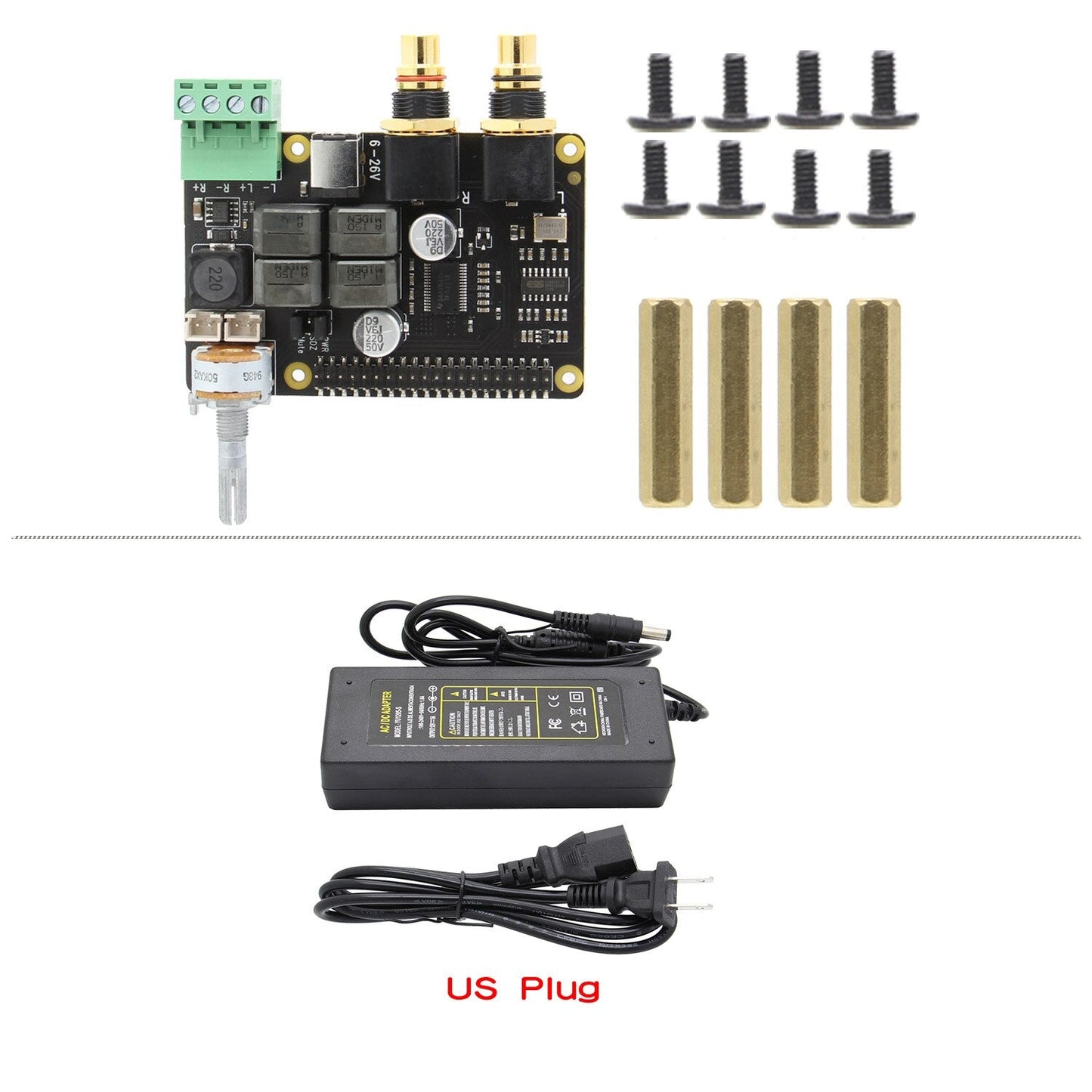

  • Bundle1+ Plug(US)
Bundle4
  • Bundle2+ Heatsink

Bundle5

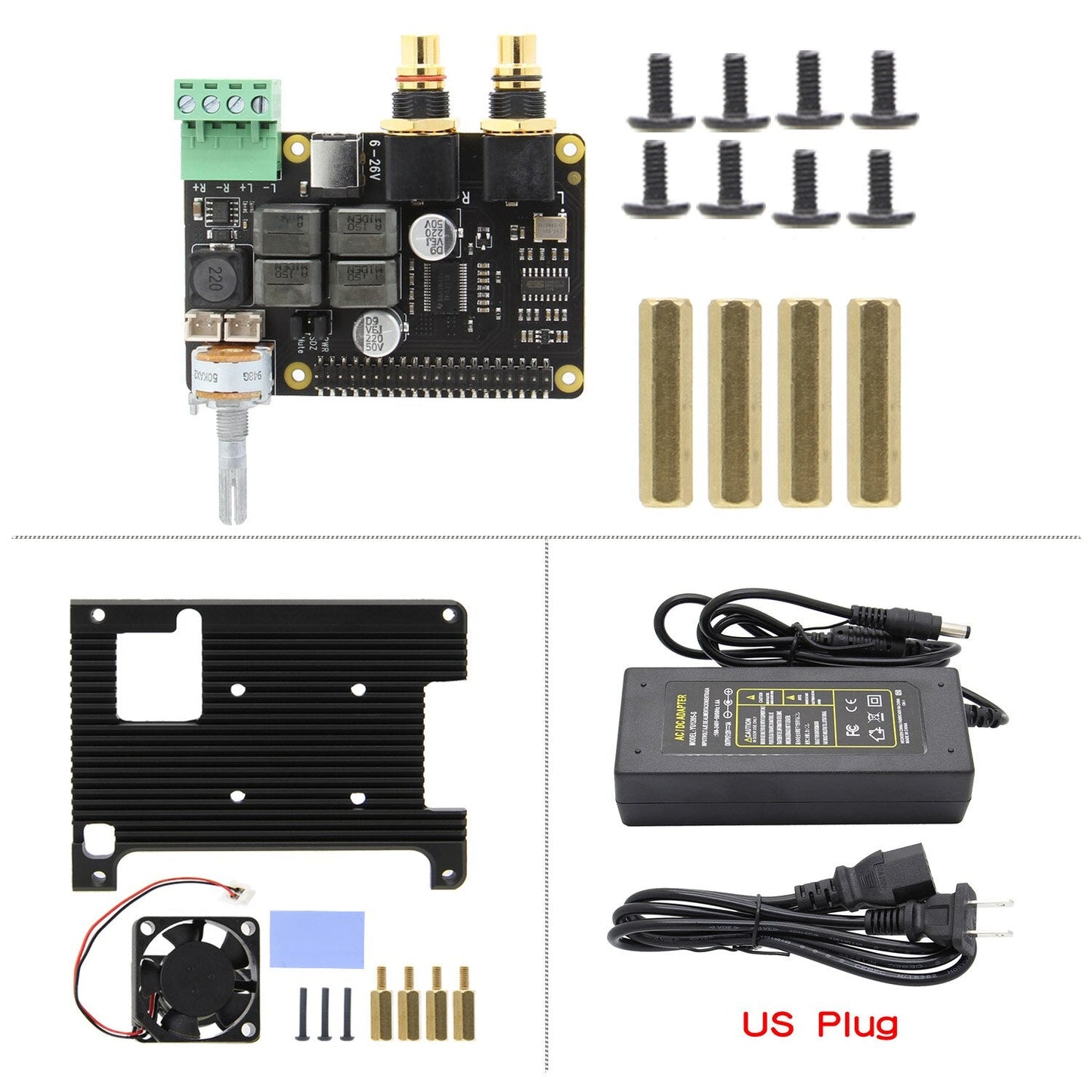

  • Bundle3+ Heatsink

WiKi:
  • raspberrypiwiki.com/X5500
FOR USE WITH:
  • Raspberry Pi 1 Model B+/ 2 Model B / 3 Model B / 3 Model B+ / 4 Model B
OPERATING SYSTEM:
  • Moode Audio Player
  • OSMC
  • Openelec
  • Raspbian Jessie
  • Volumio
  • Pi Core Player

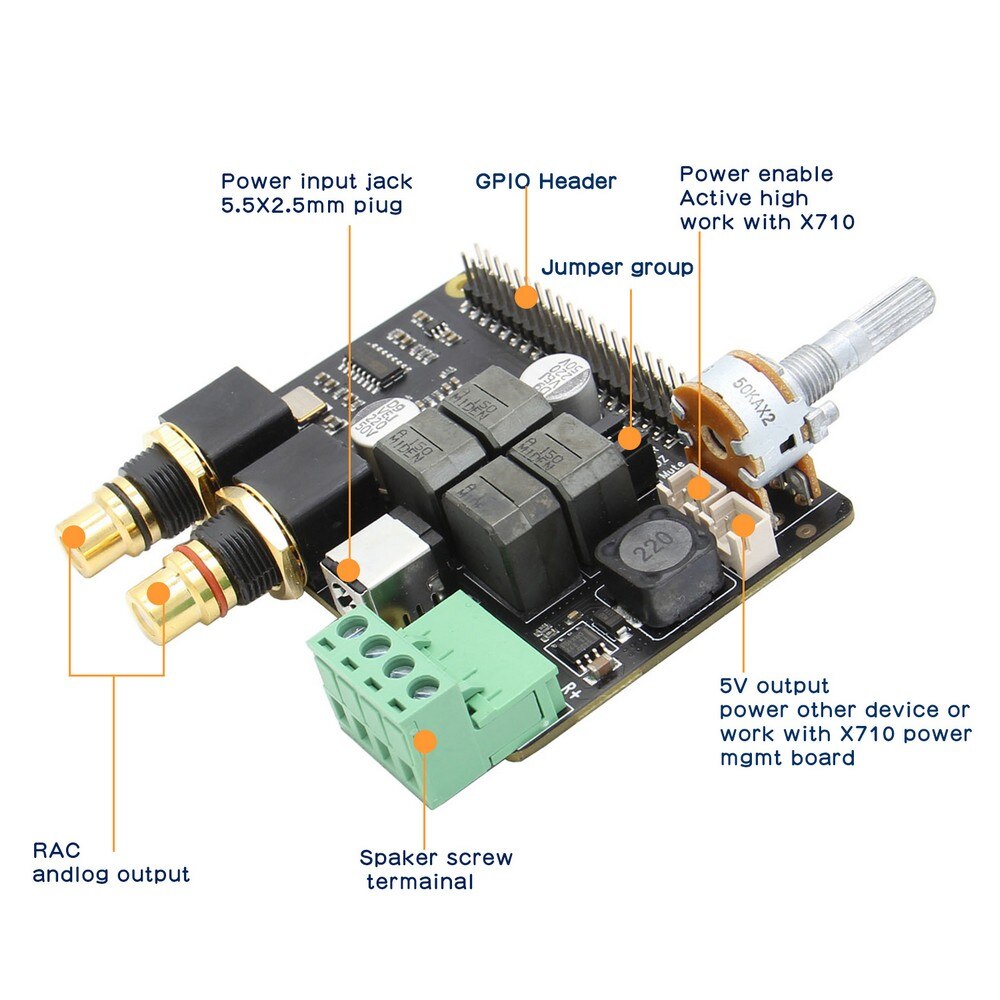

KEY FEATURES:
  • Full-HD audio – up to 24-bit/192kHz playback
  • Audiophile ESS Technology Sabre premier stereo DAC ES9023
  • ES9023 delivers jitter-free studio quality audio with 112dB DNR
  • Built in High quality Class-D stereo audio amplifiers (TI TPA3118D2)
  • Up to 2×30W Into a 8-Ω BTL Load at 24Vdc
  • Capable of driving 4 Ohm speakers (also works with higher impedance speakers)
  • Uses the Texas Instruments ultra-low-noise voltage regulator (output noise< 10μVRMS)
  • Uses the Texas Instruments high efficiency step-Down DC converter (up to 95%)
  • 6V~26Vdc converted to 5.1V, 3A to power the Raspberry Pi
  • Uses the genuine ALPS RK163 series potentiometer for smooth volume adjustment
  • Onboard pluggable speaker screw terminals
  • Onboard XH2.54 connector providing 5V output to power other devices
  • Uses the digital I2S audio signals to reduce CPU load over USB audio solutions
  • Pop-noise can be improved by enabling GPIO control
  • AMP can be enabled / disabled with jumper link

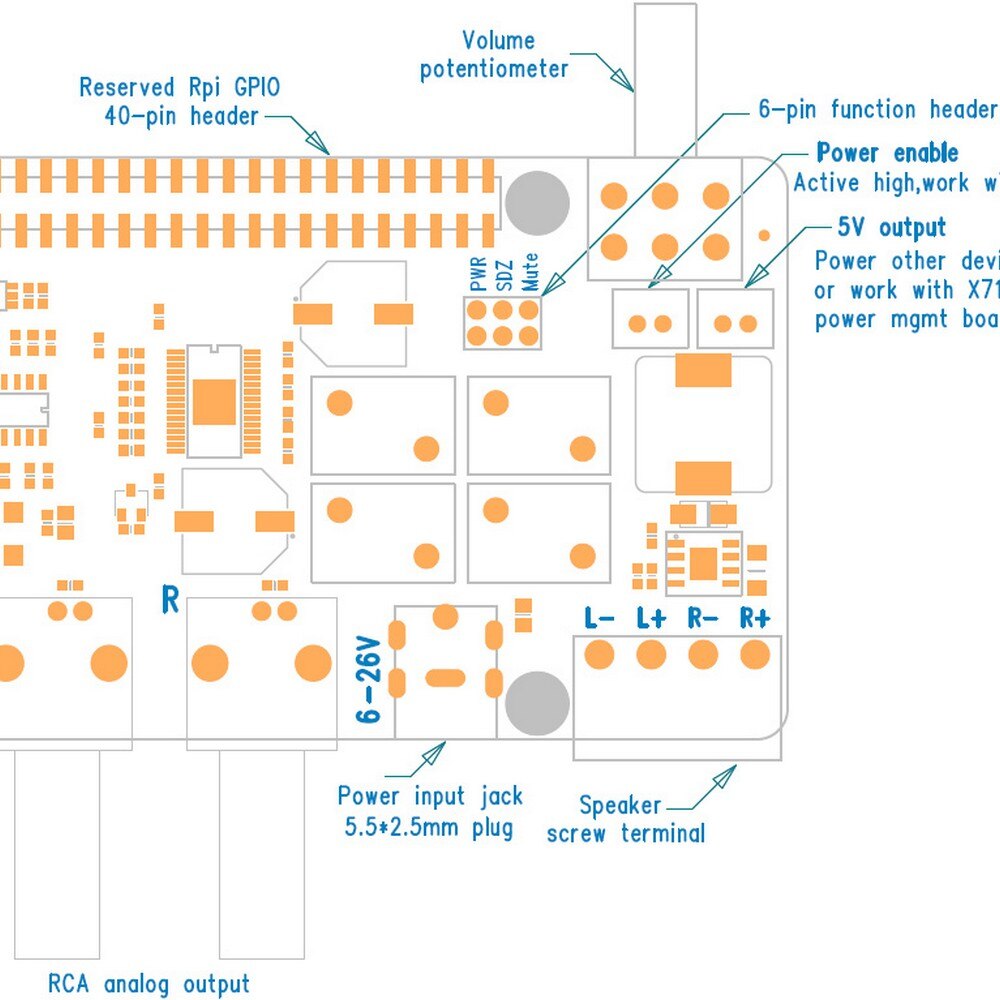

SPECIFICATION:
  • Power supply: 6-26Vdc,≥3A recommended
  • GPIO used : LRCK - IO19, BCK - IO18, DATA - IO21, IR - IO26, AMP mute - IO22
  • RCA Analog audio output level : 2V RMS
  • Amplifier max output power: 2×30W at 4Ω BTL Load at 24Vdc
  • Resolution/Sampling Rate: upto 24bit / 192KHz (Raspberry Pi I2S)
  • PCB size 85 x 57mm






 Welcome Customize Order!
