X1004 Dual 2280 NVMe SSD Shield for Raspberry Pi 5

[Note]

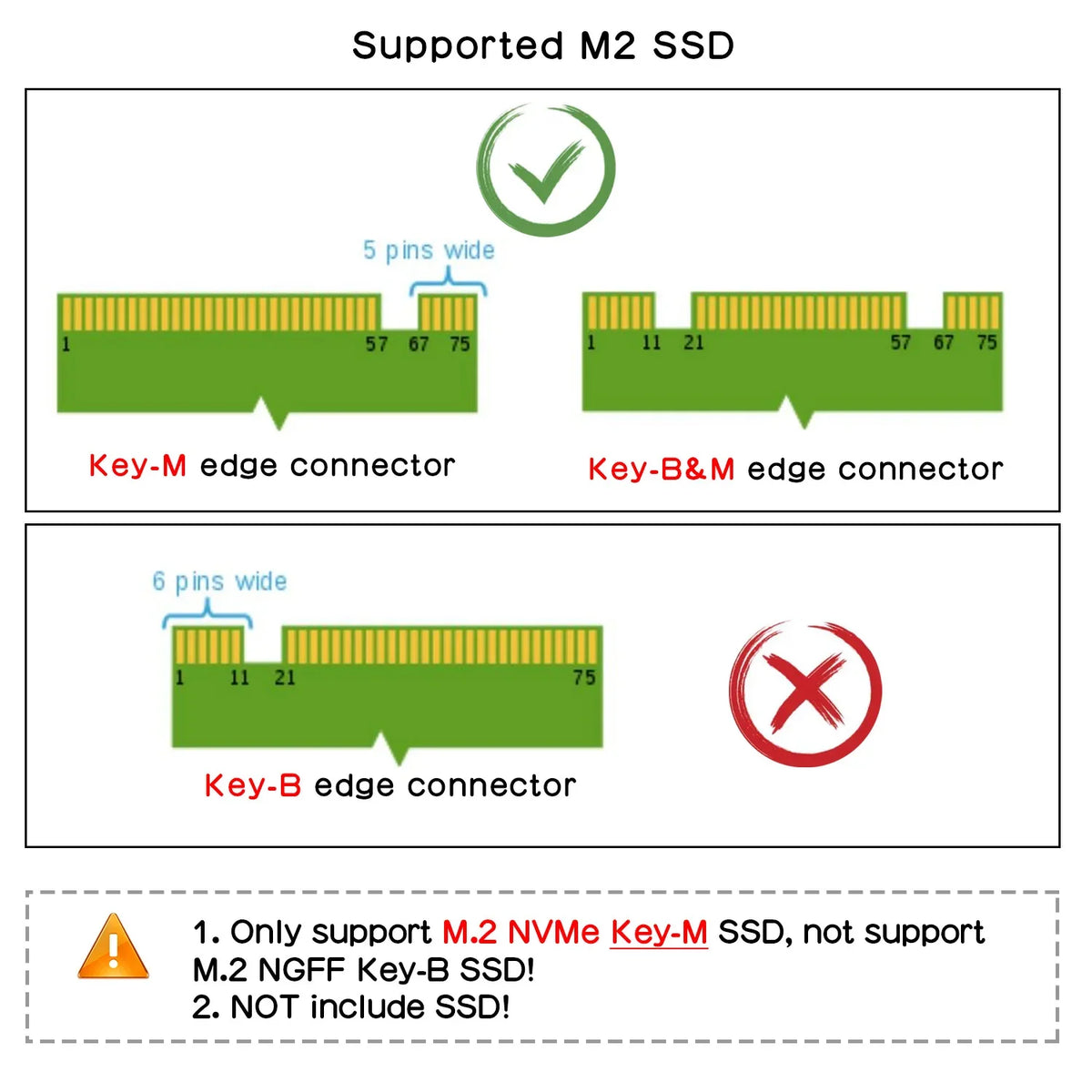

Compatible with
Raspberry Pi 5
and
NVMe M2 2280 SSD
Only
(Not include RPi 5 & SSD & metal case!!!)
Older NVMe drives with less efficient flash media may not perform as well as newer drives.
Not support
PCIe Gen 3
speed.
[Overview]
X1004

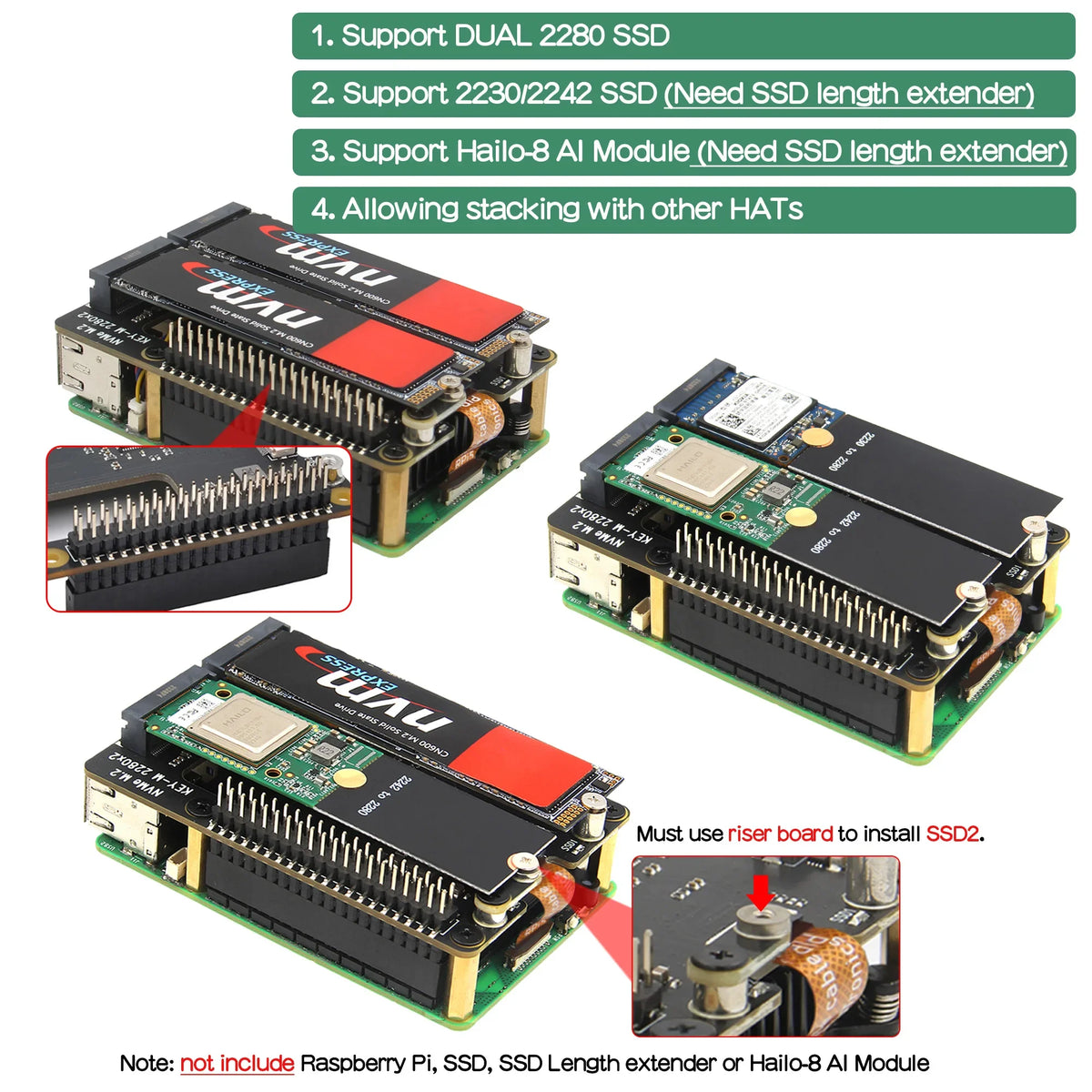

NVMe dual SSD shield, designed to provide a seamless and high-speed storage solution for your Raspberry Pi 5. Its sleek and compact design enables easy attachment of two full-size M.2 2280 SSDs to your Raspberry Pi 5.
[Features]

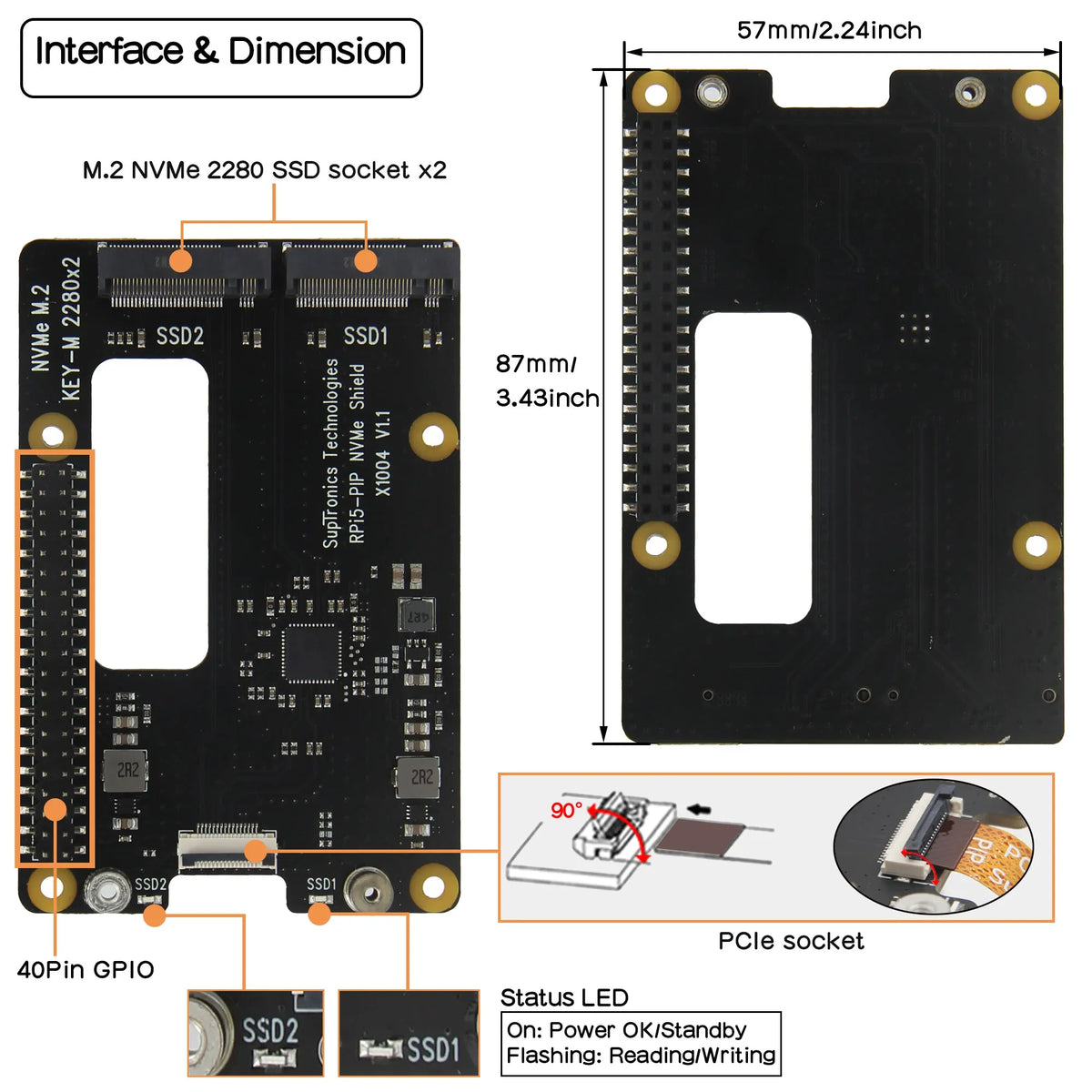

M.2 NVMe dual SSD Shield
Supports a total of 8TB storage capacity (4TB+4TB) with M.2 NVMe solid-state drives

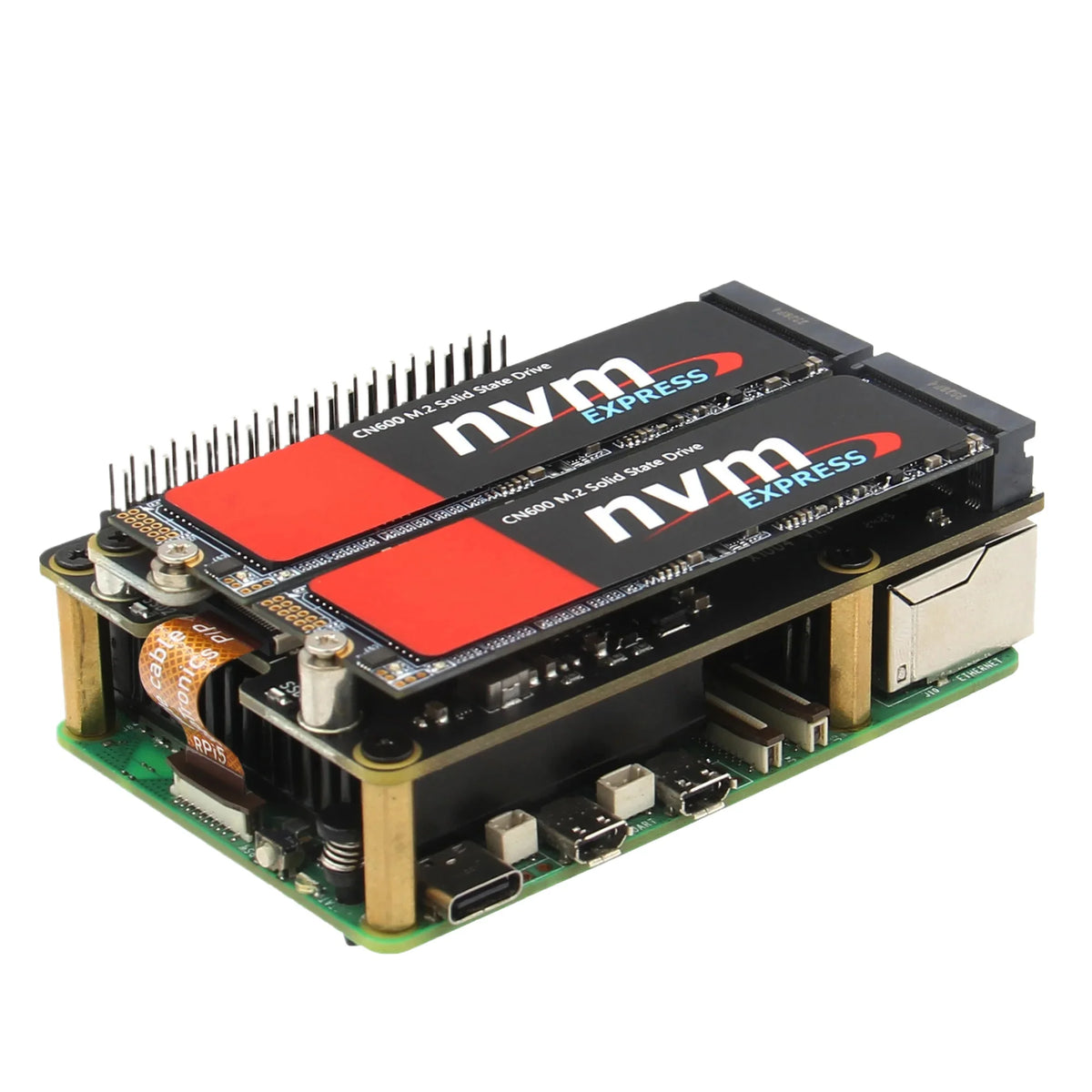

Accommodates two full-size 2280 NVMe SSDs
Provides speedy data transfer with PCIe 2.0 5Gbps
Fully compatible with the Raspberry Pi official active cooler
LED indicators in blue display power and drive status
Features an integrated high-performance PCIe packet switch

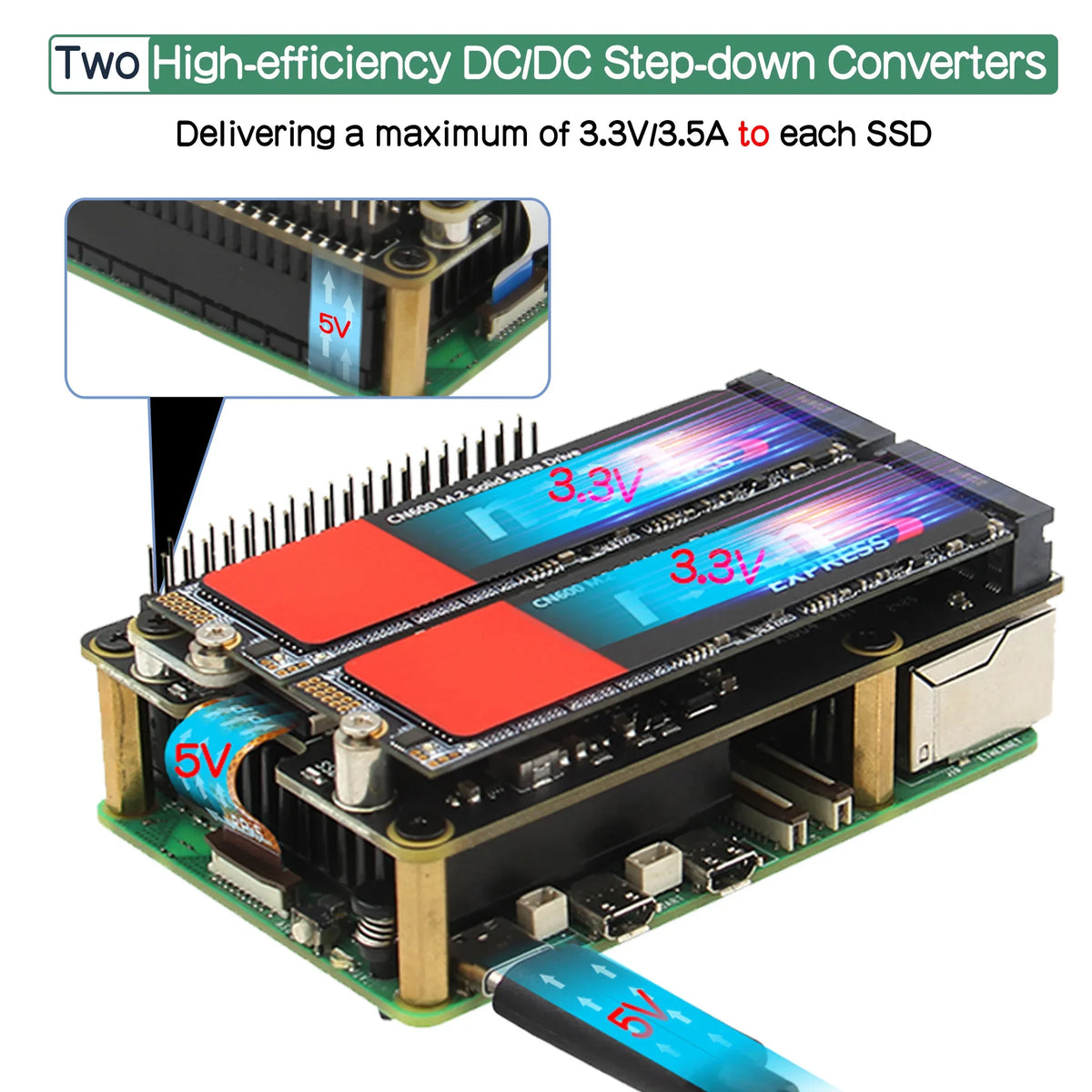

Equipped with two high-efficiency DC/DC step-down converters, delivering a maximum of 3.5A+3.5A to power your SSDs
Designed to be attached on top, allowing stacking with other HATs
Powered via the 40-pin GPIO header & PCIe FFC
Compatible with the HAT+ STANDBY power state, automatically turning off when the Pi 5 shuts down.

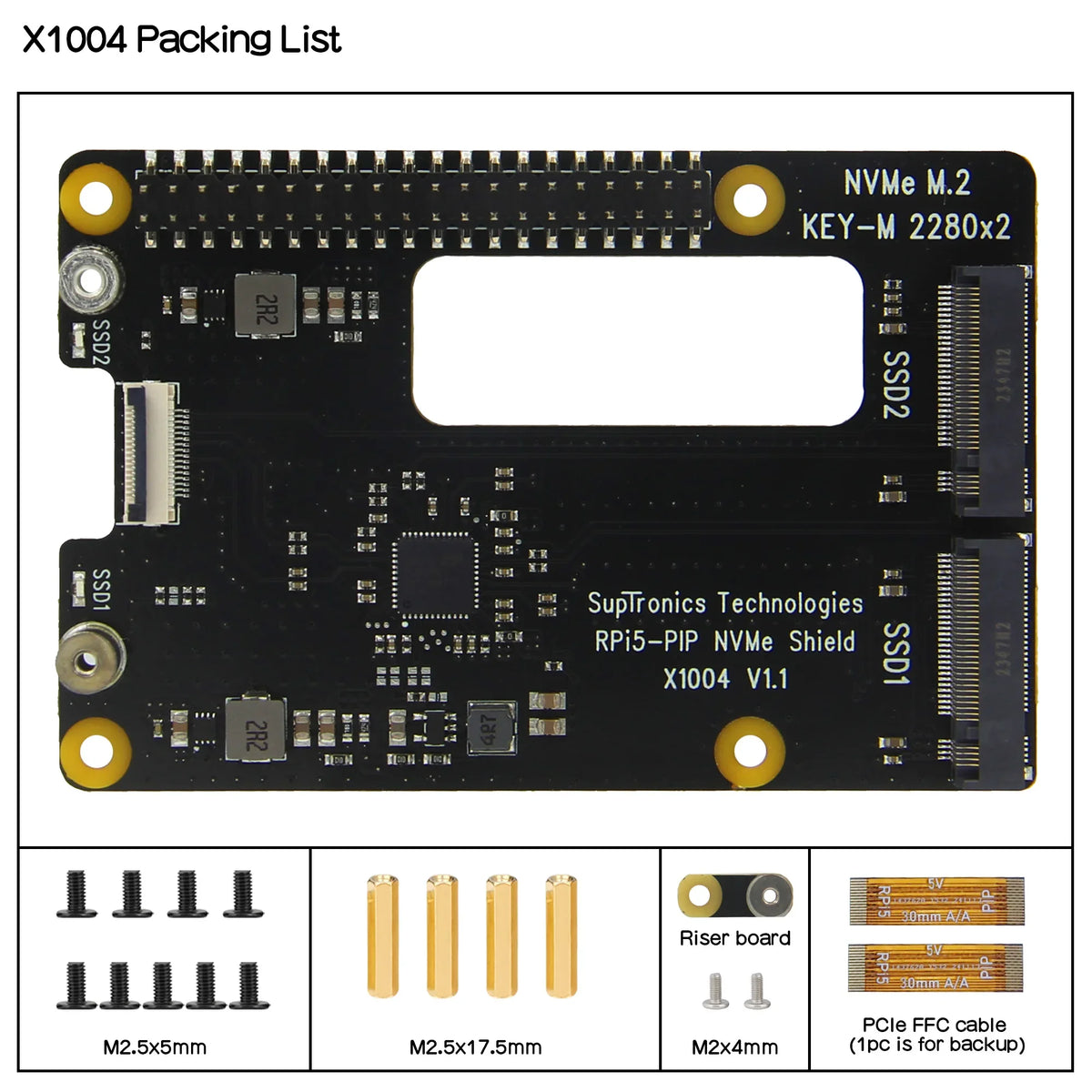

[Packing List]
1 x X1004 Dual 2280 NVMe SSD Shield
1 x PCIe FPC Cable
4 x Screw Pack
[Matching Case P579]
