X1001 V1.1 pcie M.2 NVMe SSD 2280 PIP PCIe Peripheral Board Shield for Raspberry Pi 5 Custom

[Note]

The Raspberry Pi 5 & M.2 NVMe SSD & Active Cooler is not included in the packing list!!!

[Overview]

1. The X1001 V1.1 shield is an NVME M2 SSD PIP (PCIe Peripheral Board) for the Raspberry Pi 5 that uses the new PCIE interface of the Raspberry Pi 5 to utilise the NVME M2 SSDs for fast data transfers and ultra-fast booting.

2. Maximum current for pcie connector is 1A, and voltage is 5V.

3. The X1001 hardware has no limit on NVME SSD capacity, which is dependent on the Raspberry Pi OS.

[Features]

• Minimalist design, easy to install

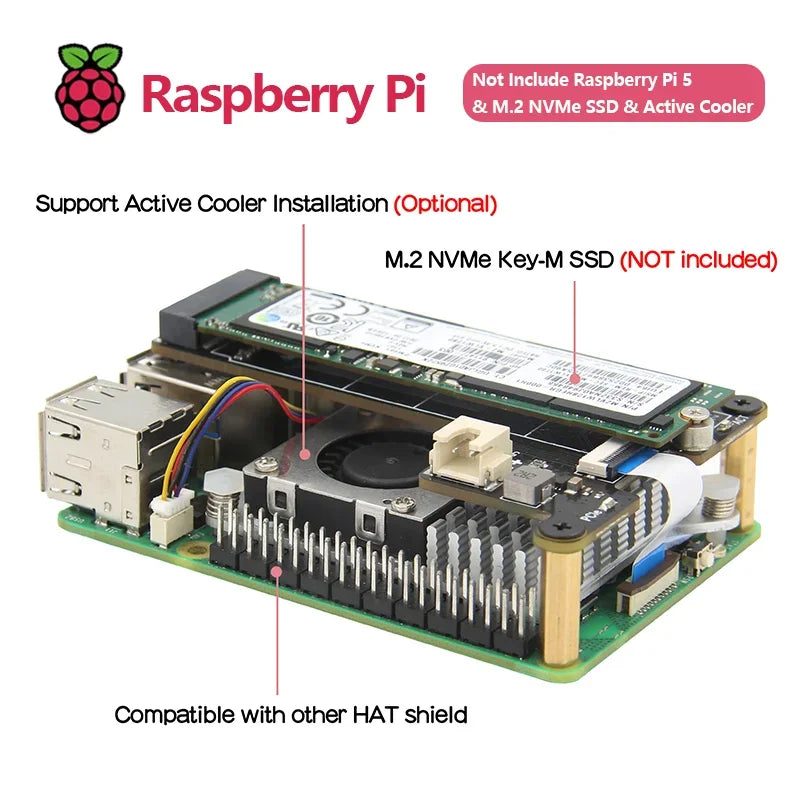

• Compatible with other HAT shield;

• Supports installation of official active coolers;

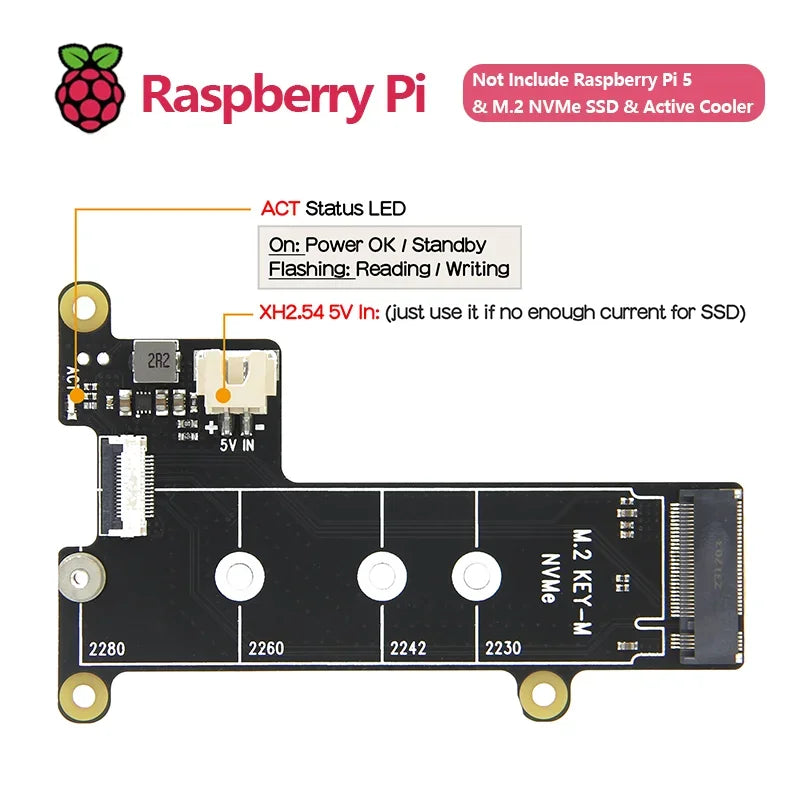

• With M.2 SSD ACT LED Indicators;

• Supports 2230/2242/2260/2280 NVME M2 SSD

• Can Power the X1001 shield directly from the FFC PCIe ribbon (providing maximum 5W of continuous power)

• Integrated with XH2.54 5V power connector, just use it if you are using a ultra large capacity SSD if the current is not enough.

[User Manual]

https://wiki.geekworm.com/X1001

[Packing List]

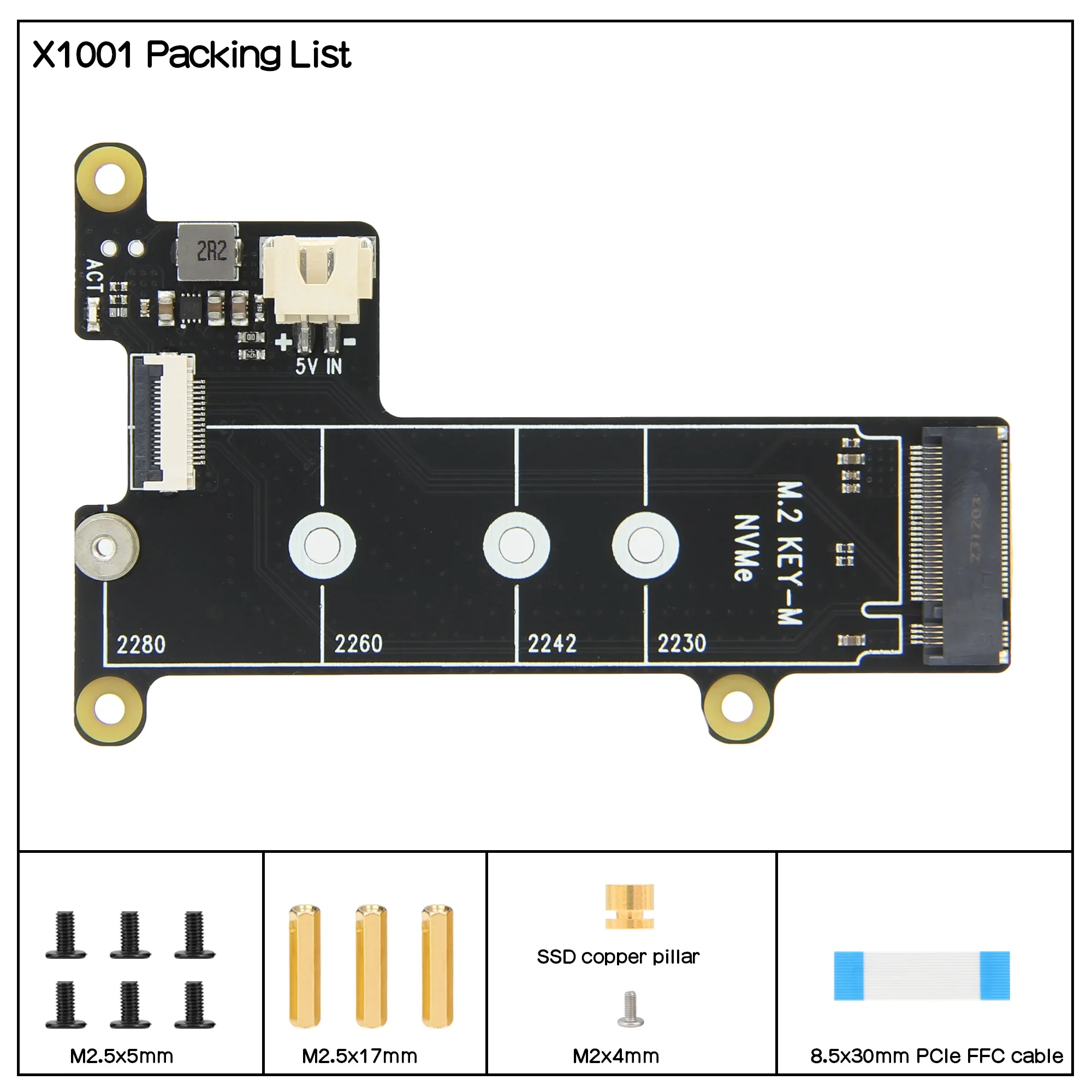

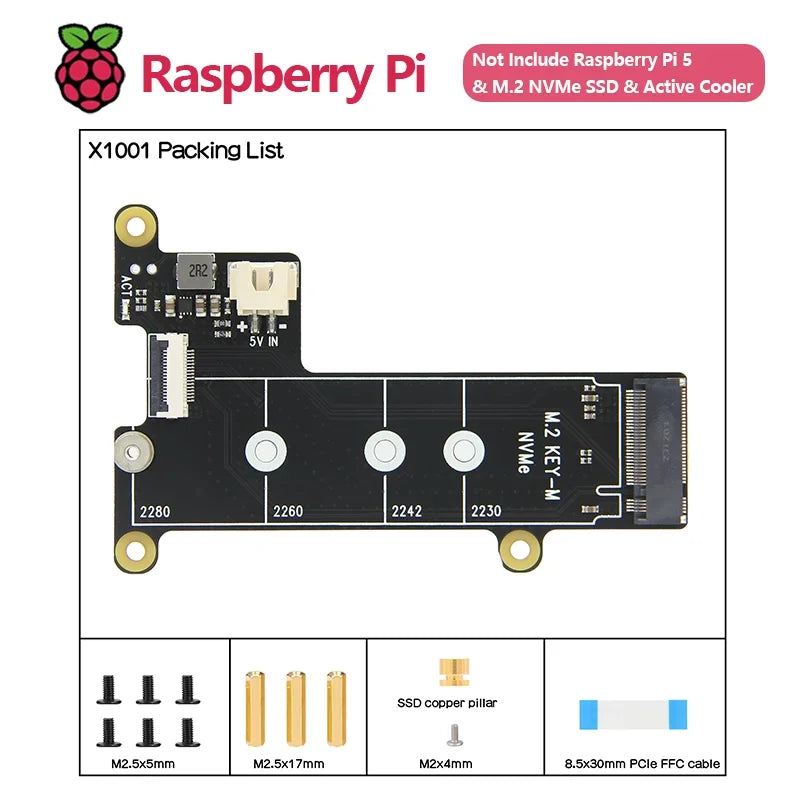

• 1x X1001 V1.1 NVMe SSD Shield

• 1x PCIe FFC Cable(30mm length)

• 3x M2.5x17mm F/F Spacers

• 6x M2.5x5mm Screws

• 1x M2x4mm Screws (to fix NVME M2 SSD)

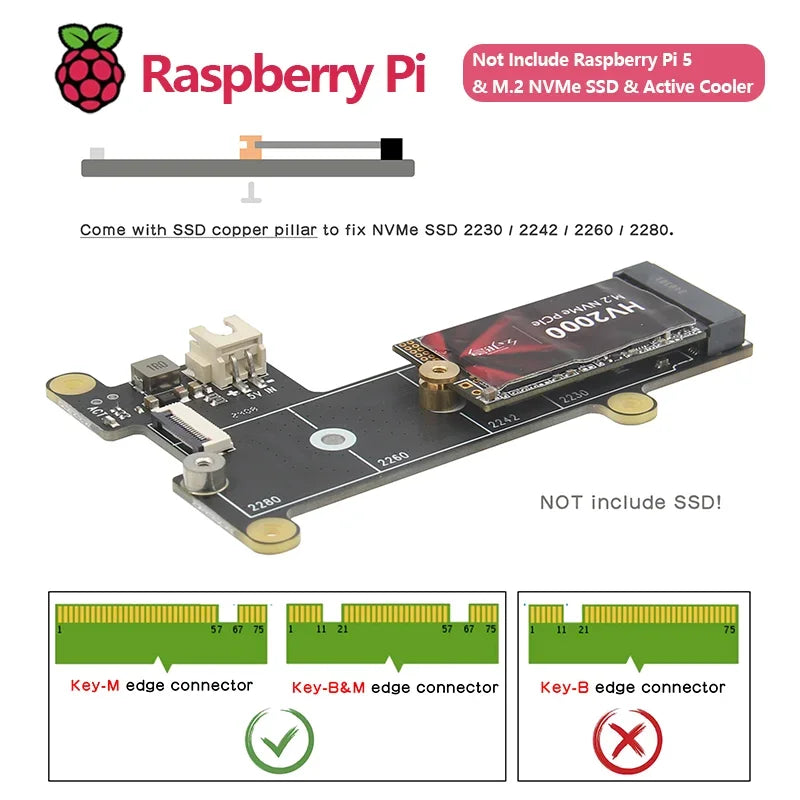

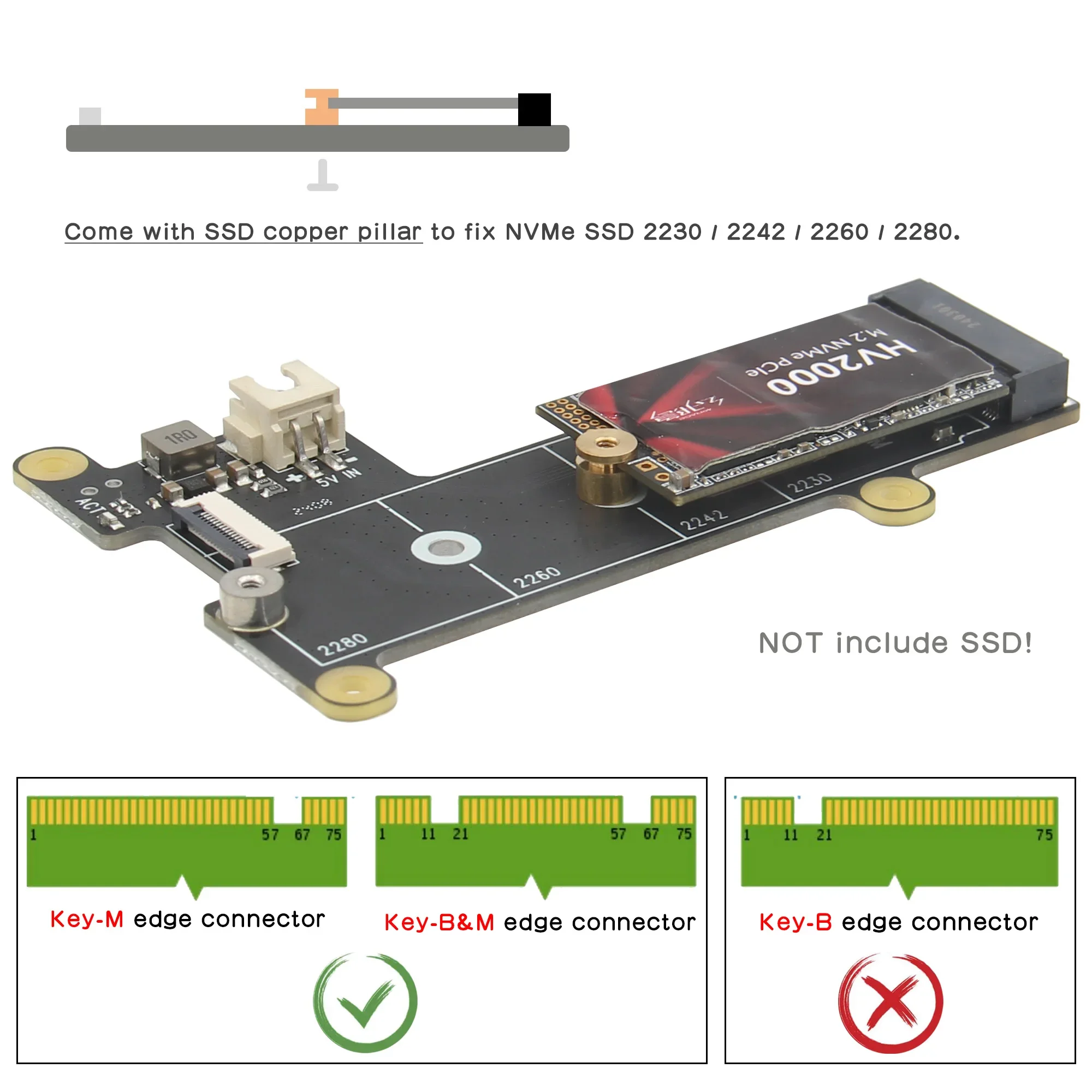

[How to fix 2230/2242/2260 NVME M2 SSD?]
