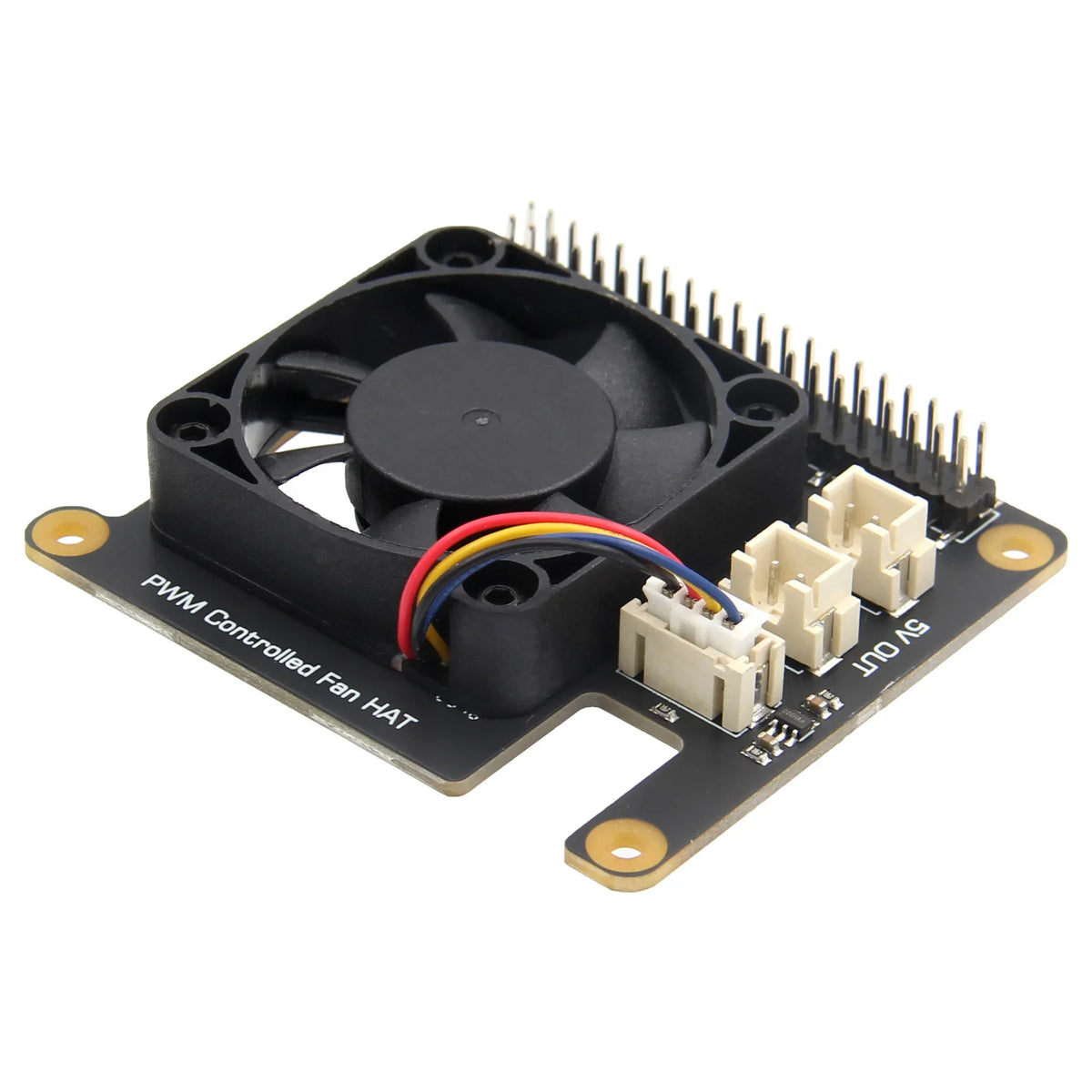

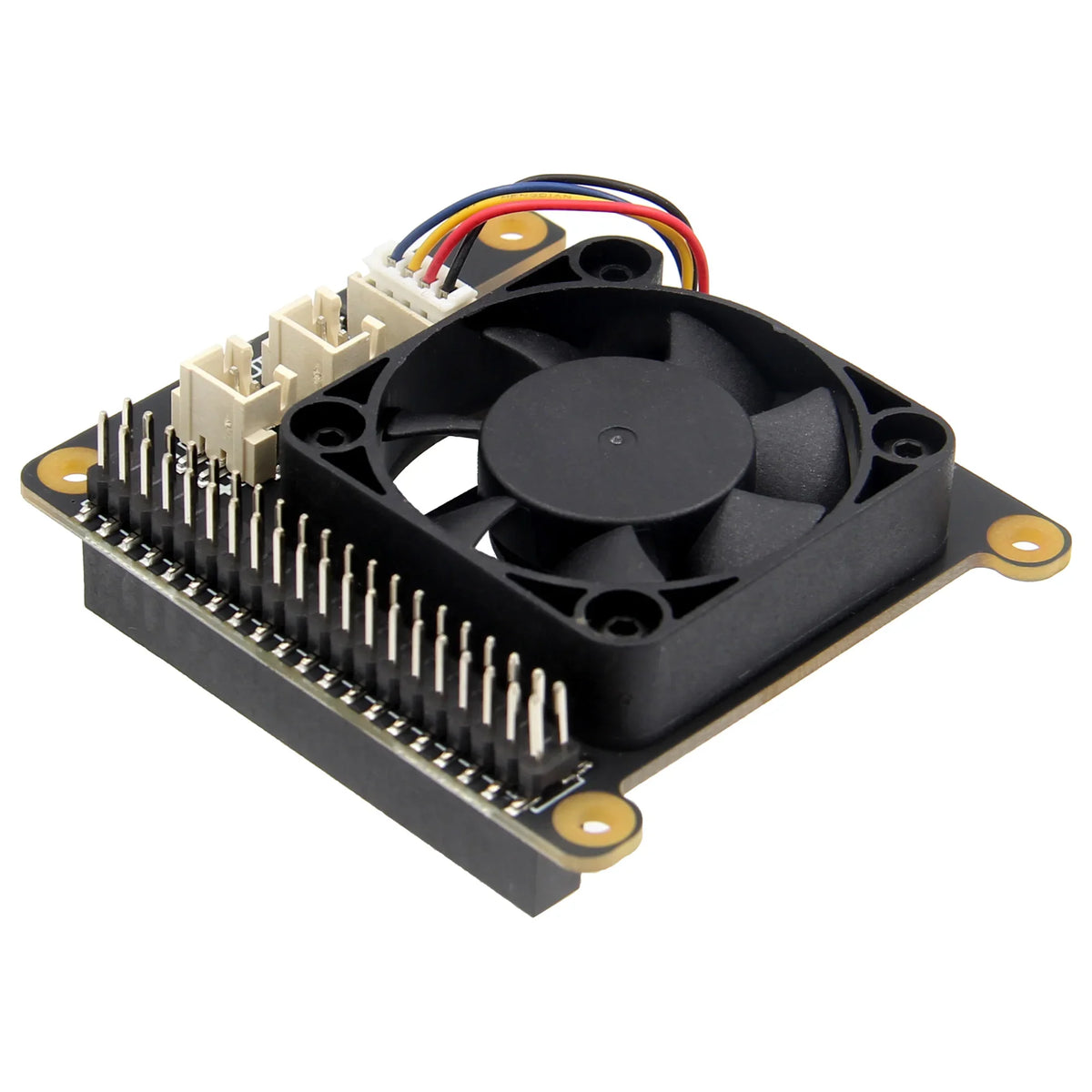

X-FAN40 PWM Cooling Fan HAT for Raspberry Pi 5 / X1001-Max / X1004 M.2 NVMe SSD Hat

[Overview]
The
X-FAN40

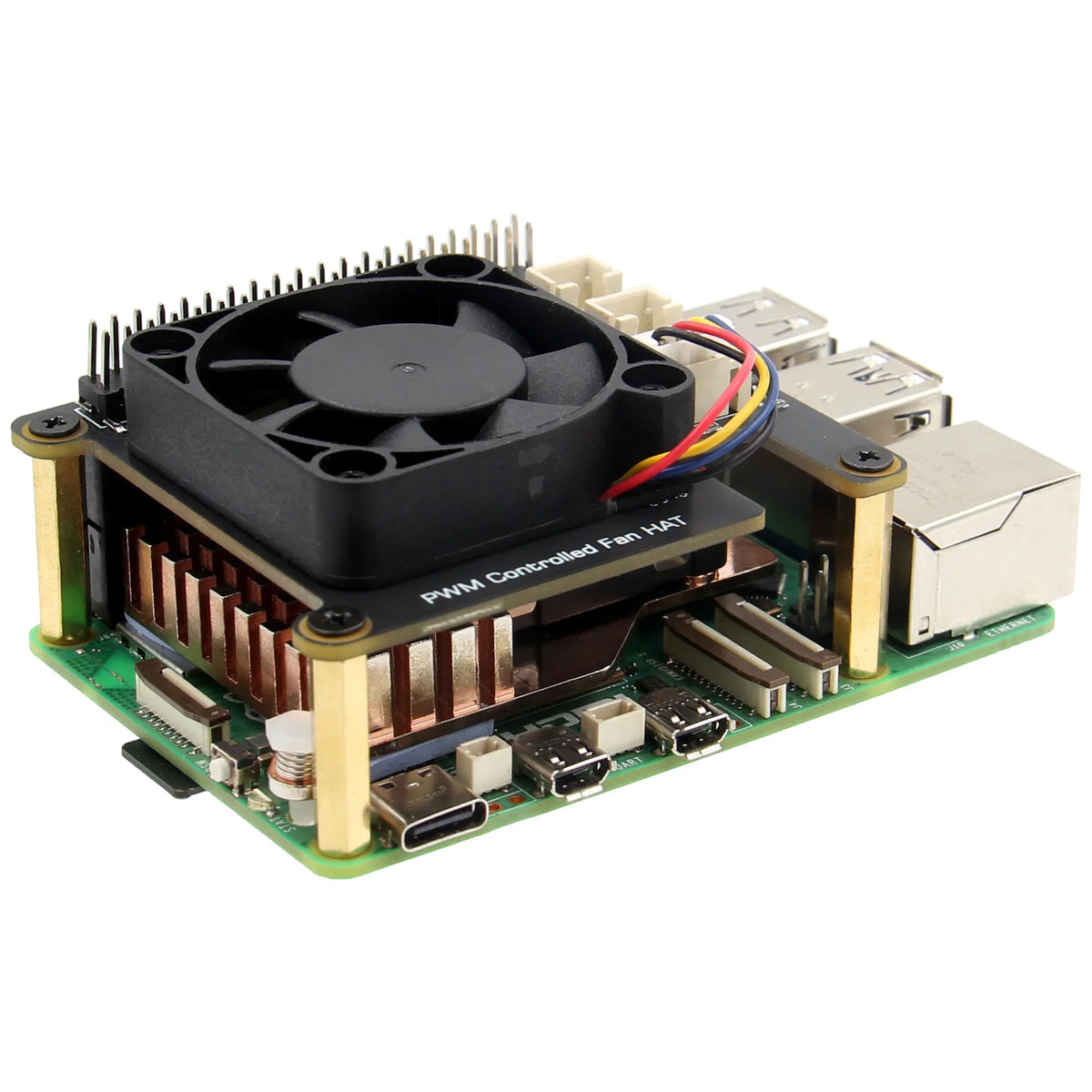

is a PWM fan HAT designed for active cooling of M.2 devices or dual cooling on the Raspberry Pi 5. It integrates seamlessly with the
X1001-Max
,
X1004
, and similar NVMe expansion boards while remaining compatible with standard Pi cooling solutions.
Its 40mm PWM fan delivers up to 6.01 CFM - over five times the airflow of the official Pi active cooler - providing reliable thermal management for sustained high-load operations. It is the ideal cooling solution for power-intensive devices like AI accelerator cards and high-performance SSDs.
[Features]
Dual-Cooling Versatility:
Dedicated cooling for M.2 devices or supplemental cooling for Raspberry Pi 5.
Seamless Compatibility:
Designed to fit perfectly with X1001-Max/X1004 NVMe expansion boards.
High-Performance Airflow:
40mm PWM fan delivers 6.01 CFM – over 5x the airflow of the official Pi active cooler.
Sustained Performance:
Maintains stable temperatures under continuous high load.
Built for Demanding Workloads:
Ideal cooling solution for power-intensive applications, including AI accelerator cards and high-performance SSDs.
Stackable Top-Mount Form:

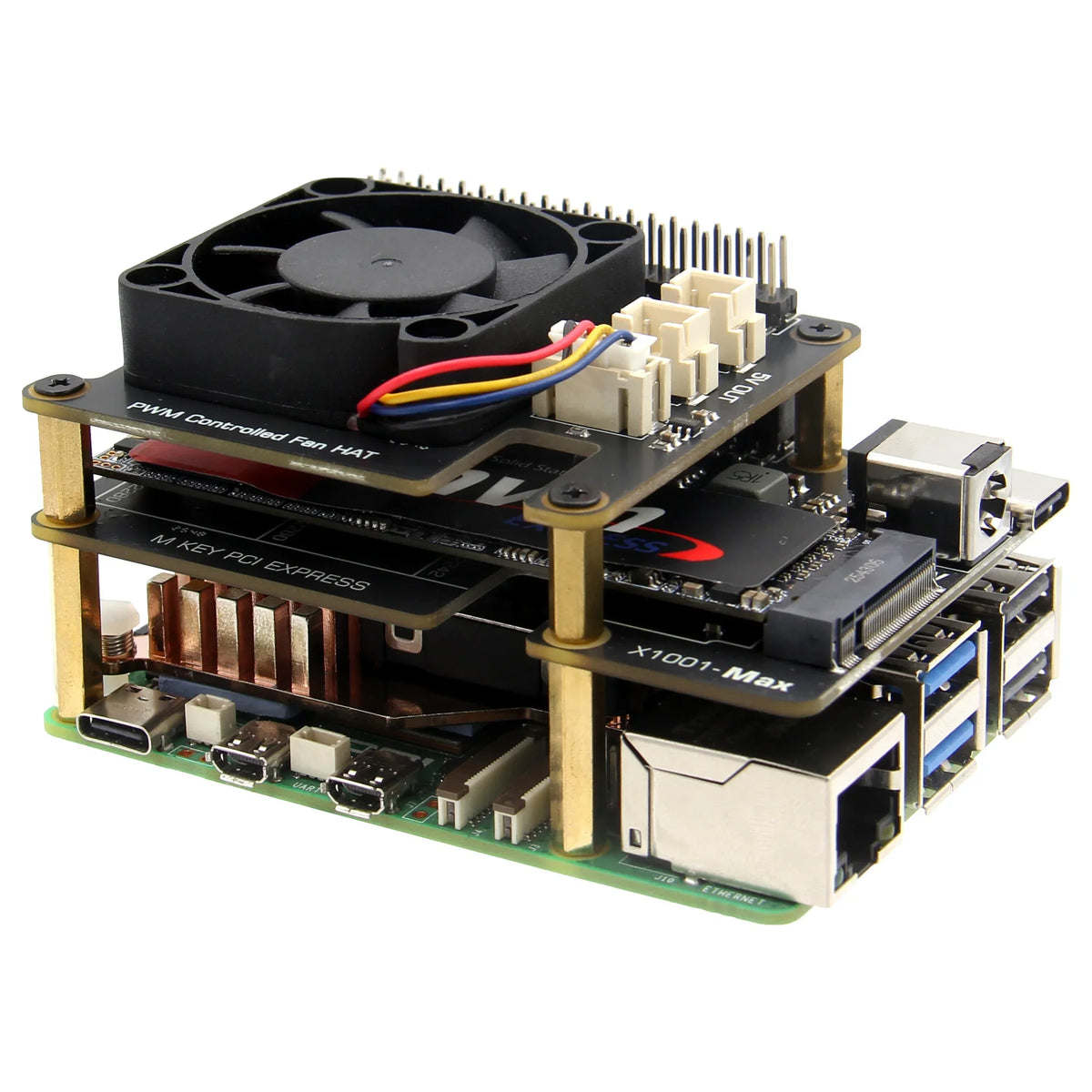

Mounts on top of the M.2 HAT or Pi 5, allowing seamless stacking with other HATs.
XH2.54 Power Output:
Equipped with 5V power output connectors for expanded functionality.
[Technical specification]
[User Manual]
wiki.geekworm.com/X-FAN40

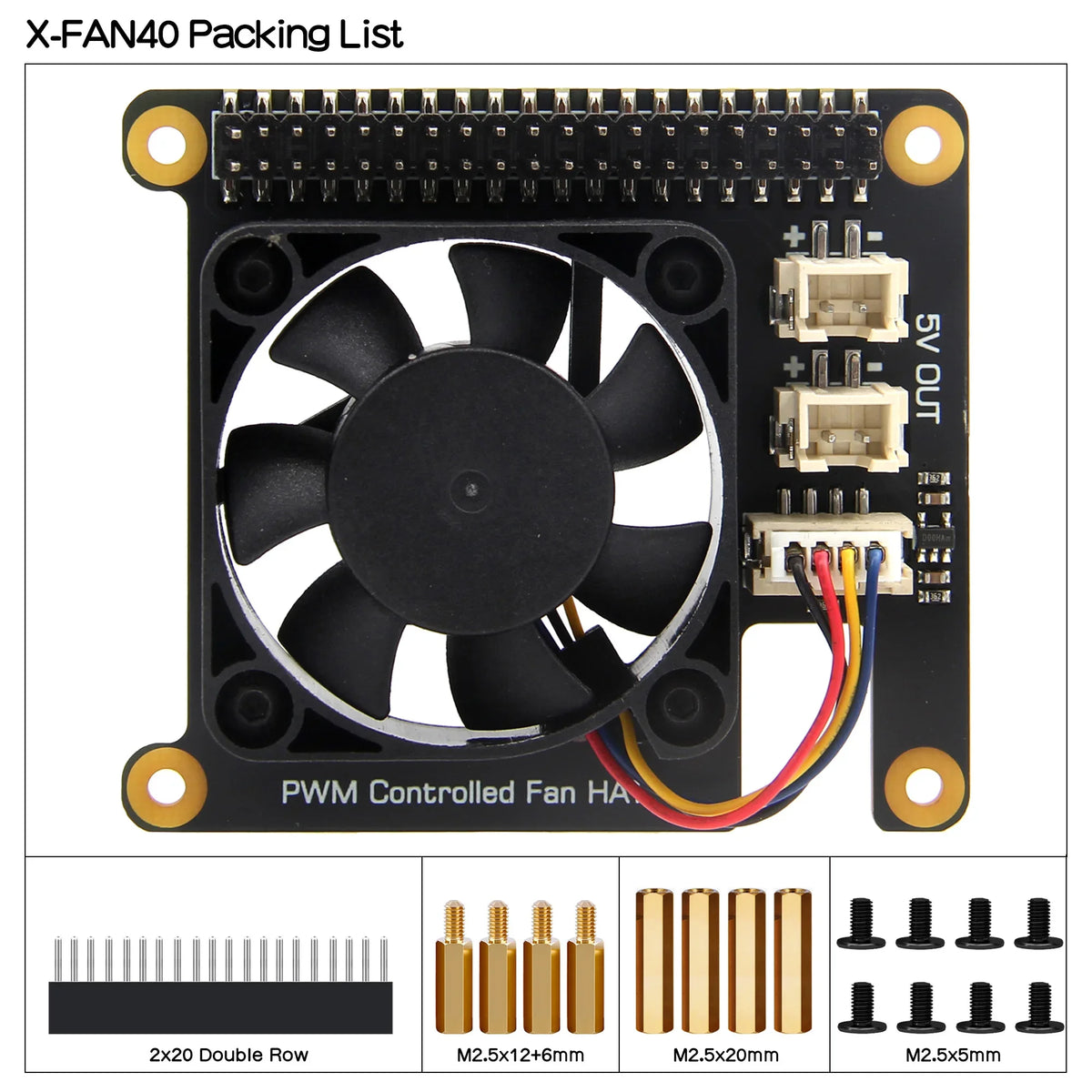

[Packing List]

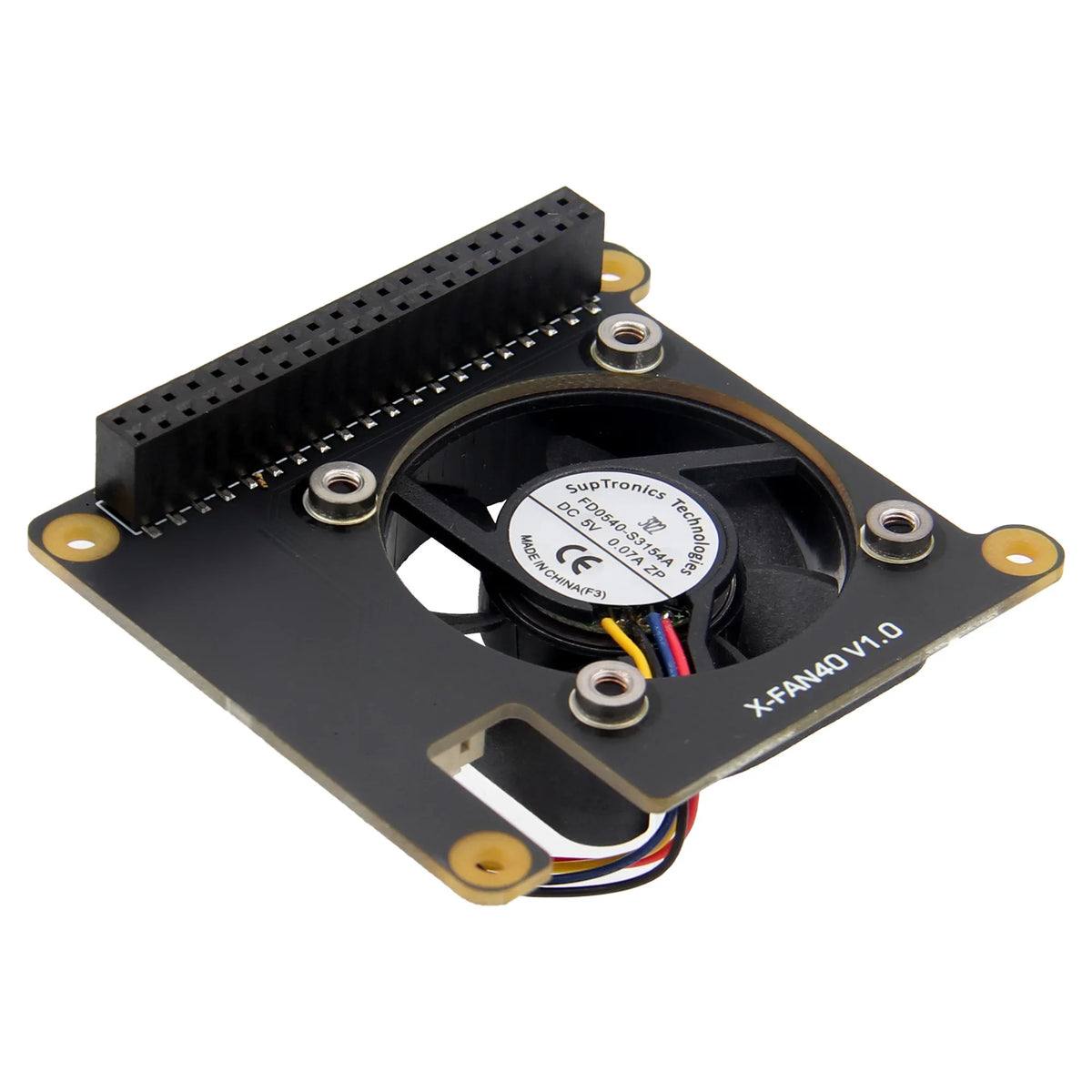

1 x X-FAN40 V1.0 PWM Controlled Fan HAT
4 x Spacer M2.5x12+6mm
4 x Spacer M2.5x20mm
8 x Screw M2.5x5mm
