Lonten Technology

Wio RP2040 Module - Build-in Wireless 2.4G Custom PCB maquina de circuito pcba qi power bank pcba customize

Wio RP2040 Module - Build-in Wireless 2.4G Custom PCB maquina de circuito pcba qi power bank pcba customize

Regular price $15.00 USD
Regular price $55.00 USD Sale price $15.00 USD
Sale Sold out


Feature

  • Powerful CPU: dual-core 133MHZ RP2040 processor and 264KB SRAM, 2MB Flash

  • Reliable wireless connection: using powerful wifi chip, supporting 2.4~2.4835 GHz frequency and Ap&Station mode

  • Flexibility: compatible with Thonny editor

  • Extremely compact size: 18.0x 28.2x 1.0mm 32 pins SMT

  • Multiple certifications: FCC and CE Certified

Description

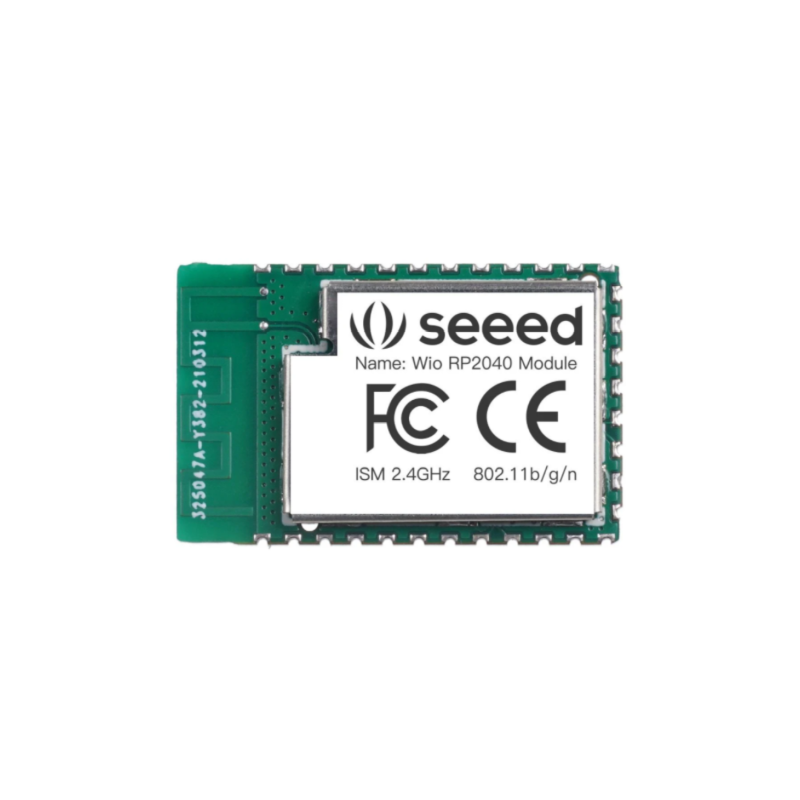

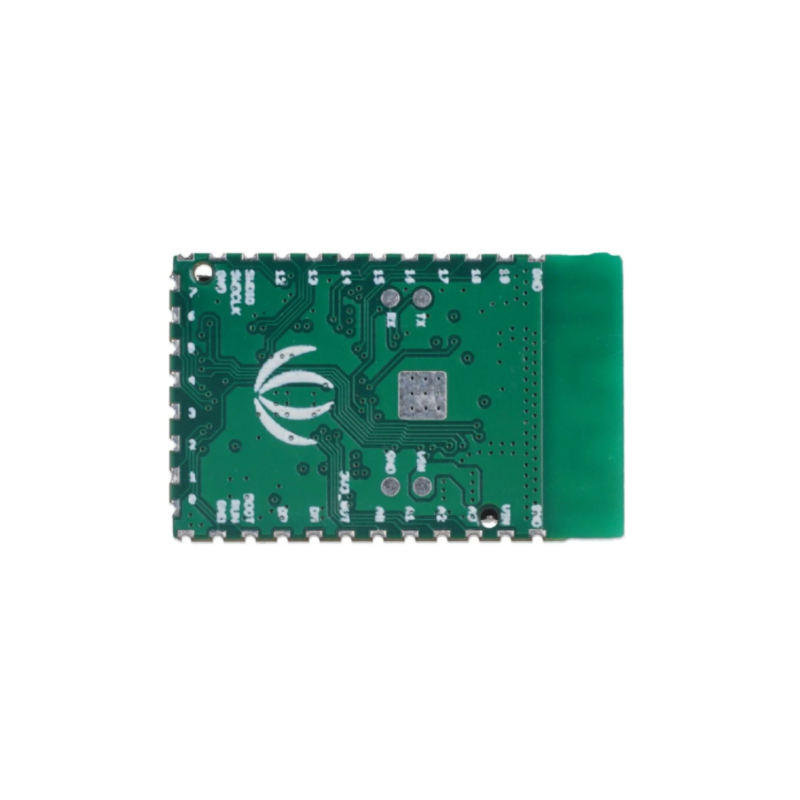

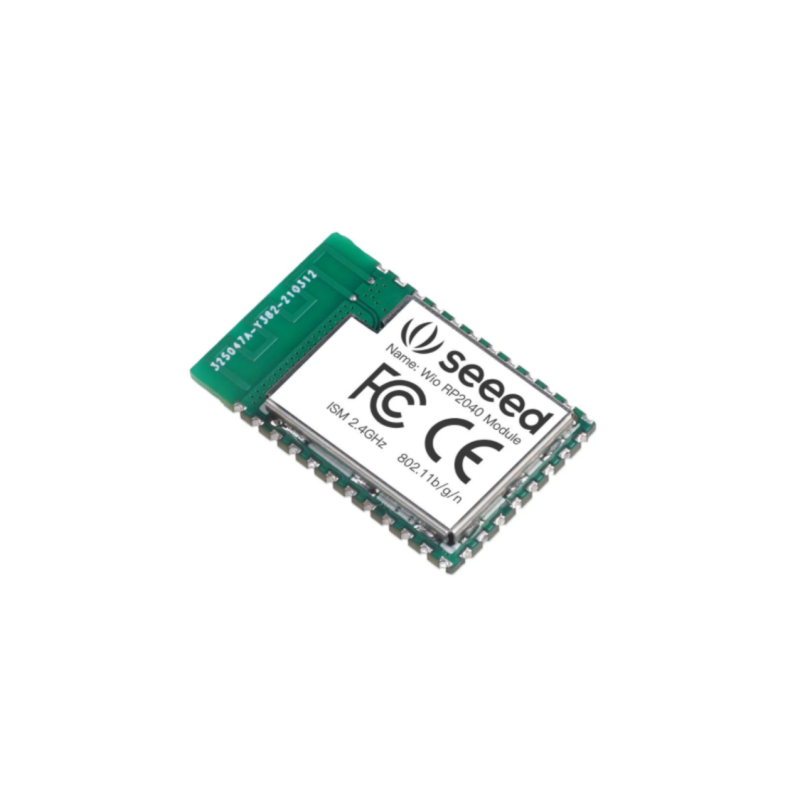

Wio RP2040 module is designed with the RP2040 + wifi chip. The onboard wifi chip can provide stable wireless functions. The module supports the Thonny code editor used by Raspberry Pi Pico. With a few simple lines of code, you can upgrade your original Pico project to Pico IOT project! And the module adopts the stamp hole package form and small size, you can solder the module on various PCB boards more conveniently.



In addition to the RP2040+wifi chip combination, the board has rich interfaces, including 32 GPIO PINs (20 PINs support PIO and PWM), 2 UART, 4 ADC, 2 SPI, 2 I2C. Some pins can be multiplexed, such as GP12 and GP13 with I2C, SPI, UART functions. This is why 28 GPIO PINs can achieve more I/O PINs and interfaces. The Wio RP2040 module also has a USB PIN, which can be designed and connected to the USB interface.

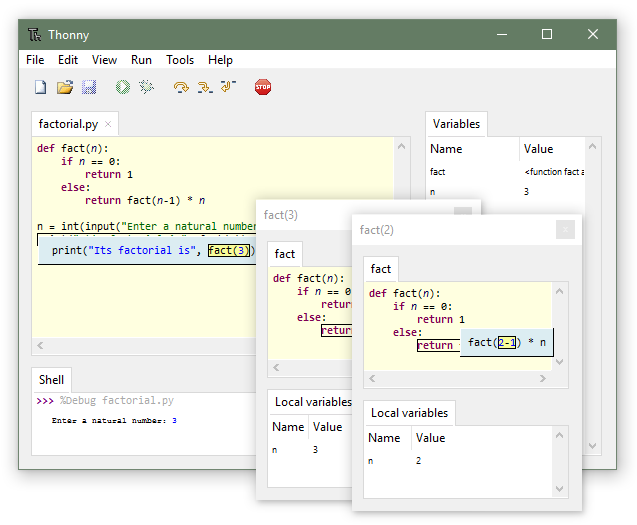

The Wio RP2040 module is fully compatible with Thonny code editor, which means that you do not need professional electronic engineering related knowledge, and you can control hardware devices just by using a simple MicroPython language!



Specification

  • Raspberry Pi RP2040 32-bit Cortex M0+ dual-core, flexible clock running up to 133Mhz

  • 264KB of SRAM, and 2MB of onboard Flash memory

  • 2.4GHz Wireless connectivity
    • Support IEEE802.11 b/g/n

    • Support 2.4 ~ 2.4835 GHz

    • Support Ap & Station mode

  • Support for user-programmable GPIO control

  • VIN: 5V~3.6V

  • Onboard PCB antenna

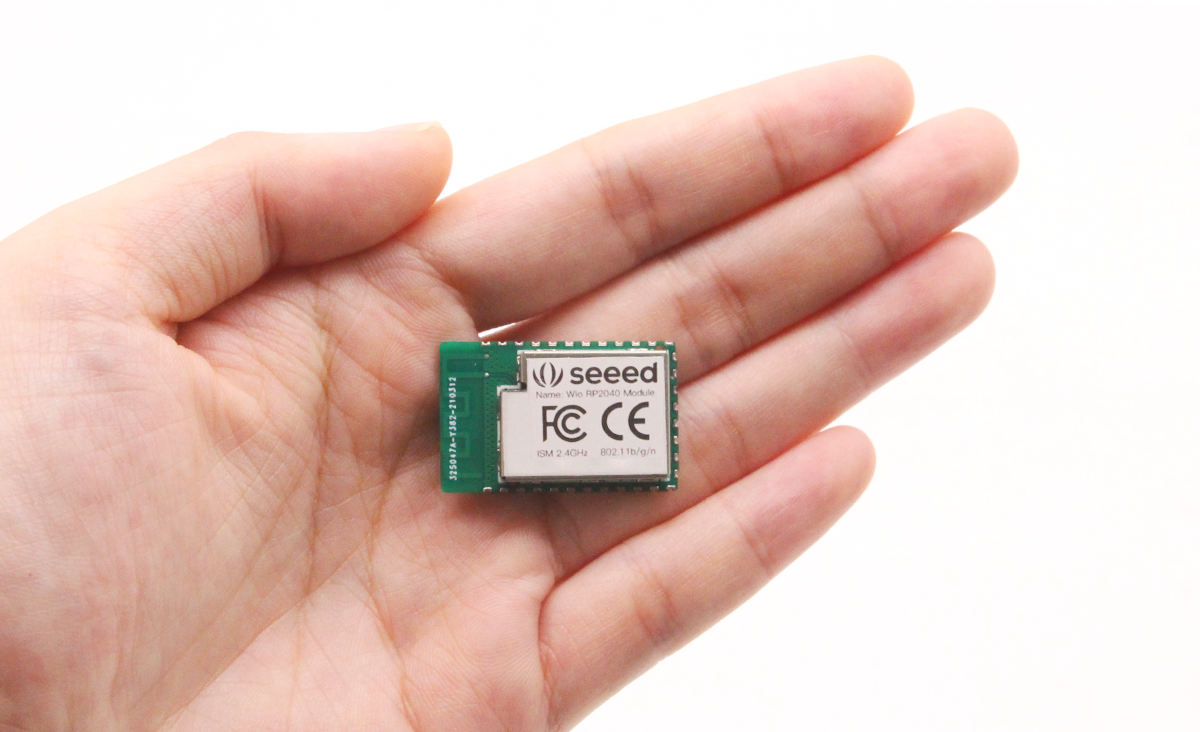

  • Small size 18.0x 28.2x 1.0mm

  • Supported programming languages
    • MicroPython

    • C/C++



Pinout
