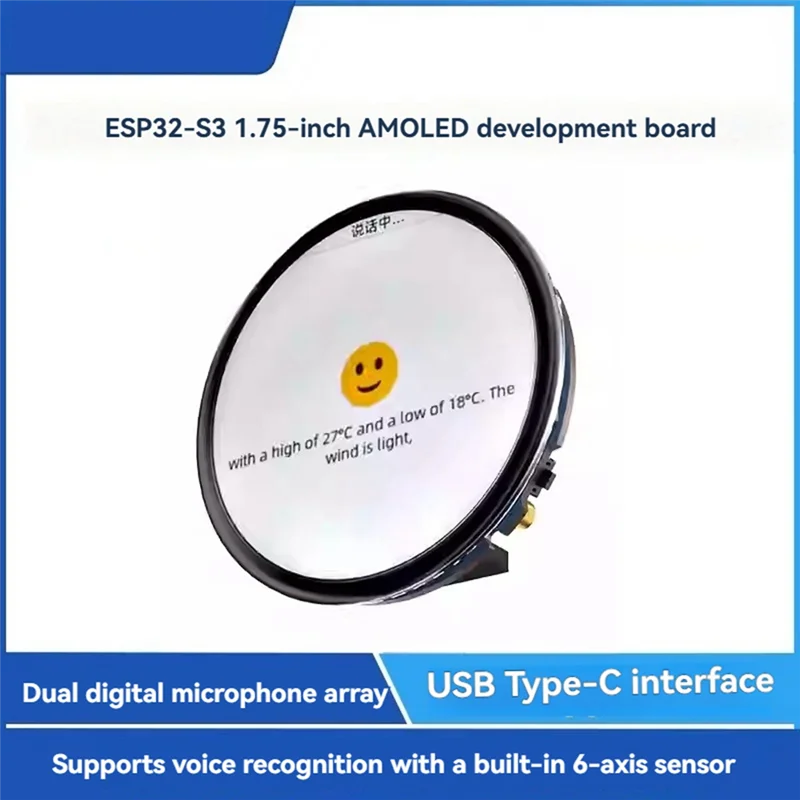

Well Made-ESP32-S3 Development Board 1.75Inch AMOLED Touchscreen With GPS Support Deepseek Xiaozhi AI Voice Interaction

Advanced AI Voice Interaction: This AI voice chatbot is equipped with ESP32-S3 DeepSeek XiaoZhi technology, providing seamless interaction and intelligent response, enhancing your daily life with advanced artificial intelligence.
Vivid Display: Equipped with a 1.75-inch LCD display, it provides clear and vivid visual effects, making it not only fully functional, but also a pleasing desktop decoration.

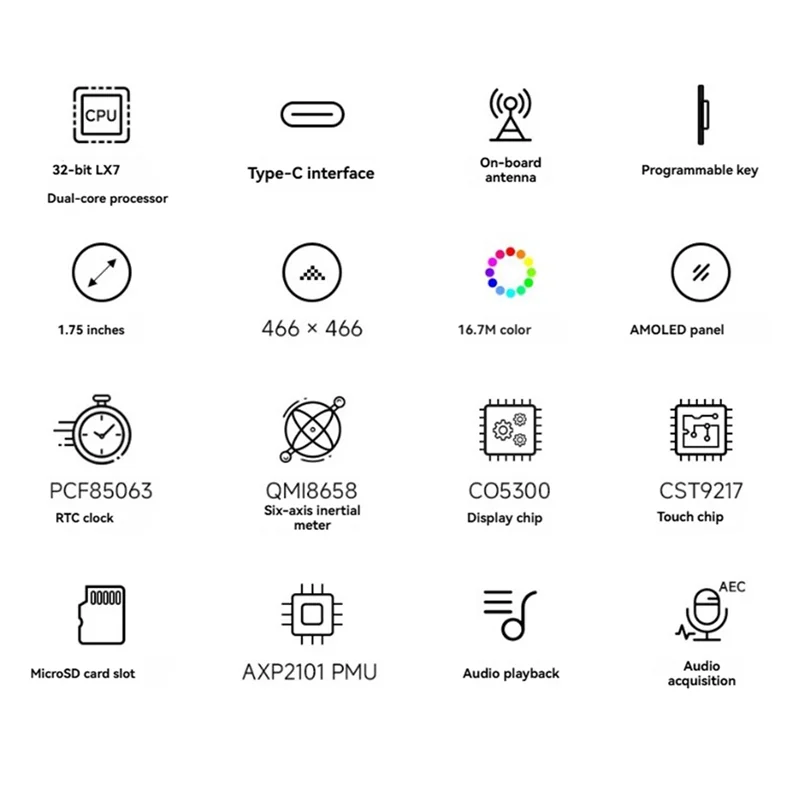

High Performance: In a smaller board, it is equipped with a 1.75-inch capacitive high-definition AMOLED screen, a highly integrated power management chip, a six-axis sensor (three-axis accelerometer and three-axis gyroscope), RTC, a low-power audio codec chip, and an echo cancellation circuit and other peripherals, which are easy to develop and embed into products.
Processor: Equipped with ESP32-S3R8 high-performance Xtensa 32-bit LX7 dual-core processor with a main frequency of up to 240MHz.
Versatile Development Board: The ESP32 development board can be used for various DIY projects and applications, suitable for hobbyists and developers.

Built-in 512KB SRAM and 384KBROM, stacked with 8MB PSRAM and external 16MB Flash
Using Type-C interface, it improves user convenience and device compatibility
Onboard 1.75-inch capacitive touch HD AMOLED screen, 466x466 resolution, 16.7M color

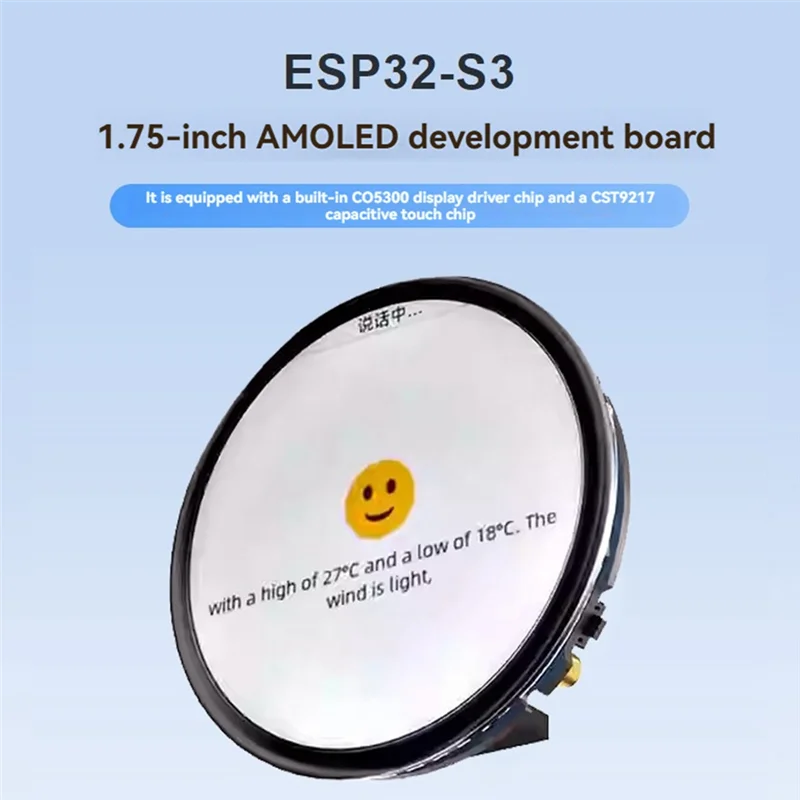

Built-in CO5300 driver chip and CST9217 capacitive touch chip, using QSPI and I2C interface communication respectively
Onboard QMI8658 six-axis inertial measurement unit (3-axis acceleration, 3-axis gyroscope), can detect motion posture, step counting and other functions
Onboard PCF85063RTC chip, connected to the battery through AXP2101 to achieve uninterrupted power supply
(The product appearance and printed words may vary depending on the batch, but this does not affect use)
Color:As Shown
Material:Plastic+LED

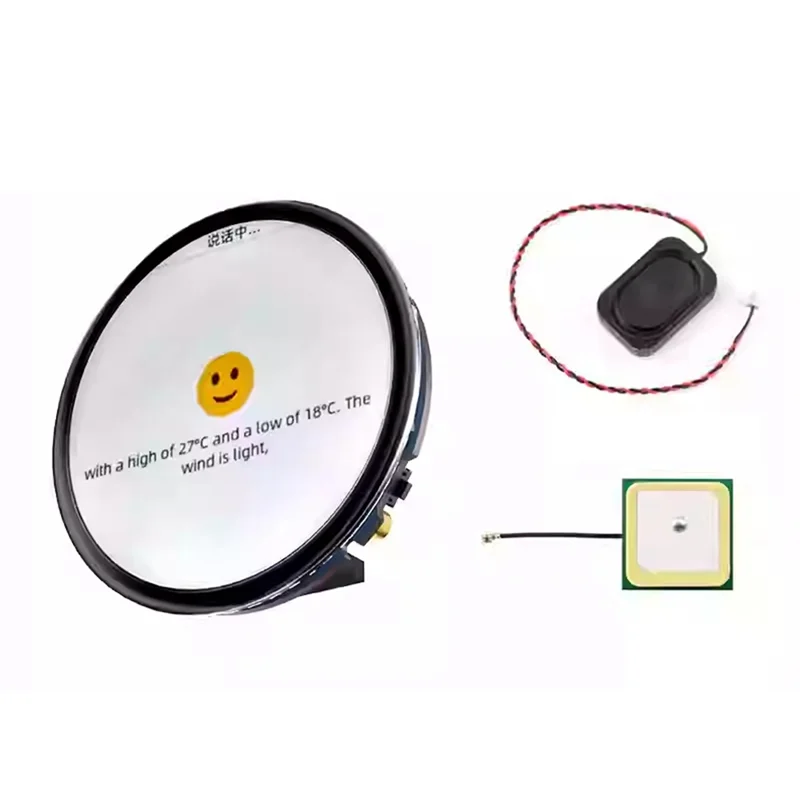

Package Contents:
1 * Touchscreen
1 * Speaker
1 * GNSS Antenna

Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
