Custom Waveshare Dual Gigabit Ethernet Base Board Designed for Raspberry Pi Compute Module 4, Powerful Ethernet Capability Manufacturer

Custom Waveshare Dual Gigabit Ethernet Base Board Designed for Raspberry Pi Compute Module 4, Powerful Ethernet Capability Manufacturer

Regular price $100.00 USD
Regular price $0.00 USD Sale price $100.00 USD
Sale Sold out

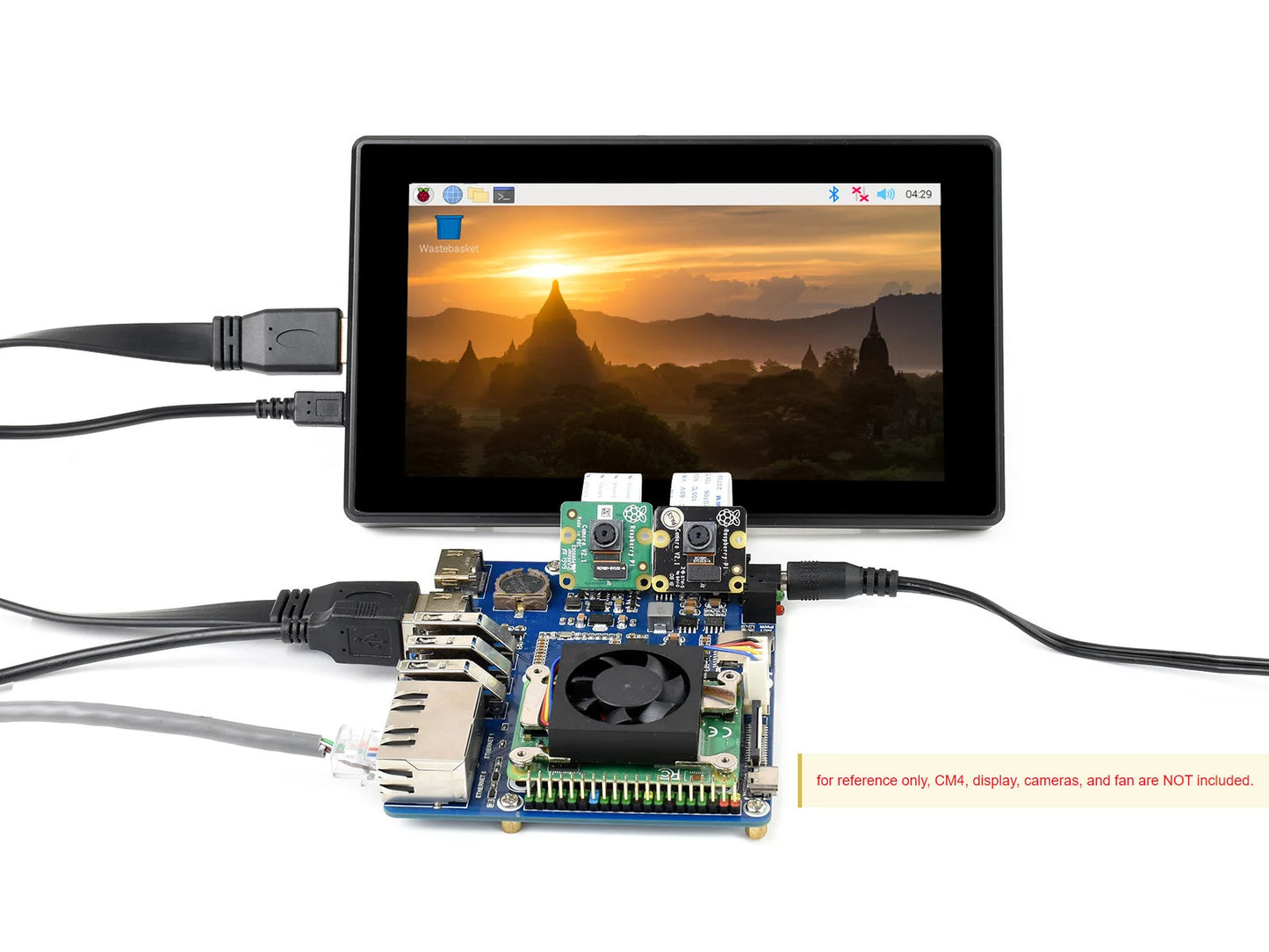

for reference only, CM4, display, cameras, and fan are NOT included.

DESCRIPTION



Dual Gigabit Ethernet Base Board Designed For Raspberry Pi Compute Module 4
Dual Gigabit Ethernet Base For CM4

Suitable For Evaluating The Raspberry Pi CM4 Or Being Integrated Into End Products

Powerful Ethernet Capability


Specifications

CM4 SOCKET

suitable for all variants of Compute Module 4

ETHERNET

Dual Gigabit Ethernet RJ45

USB

USB 3.2 Gen1 × 3

PIN HEADER

40PIN GPIO header × 1

HDMI

HDMI × 2, supports 4K 30fps output

DSI DISPLAY

MIPI DSI display port × 1, 15pin 1.0mm FPC connector

CSI CAMERA

MIPI CSI-2 camera port × 2, 15pin 1.0mm FPC connector

POWER INPUT

7V-36V

FAN

5V/12V, allows speed adjustment and measurement

RTC

Real-time clock with battery socket and ability to wake Compute Module 4

SD CARD SLOT

MicroSD card socket for Compute Module 4 Lite (without eMMC) variants

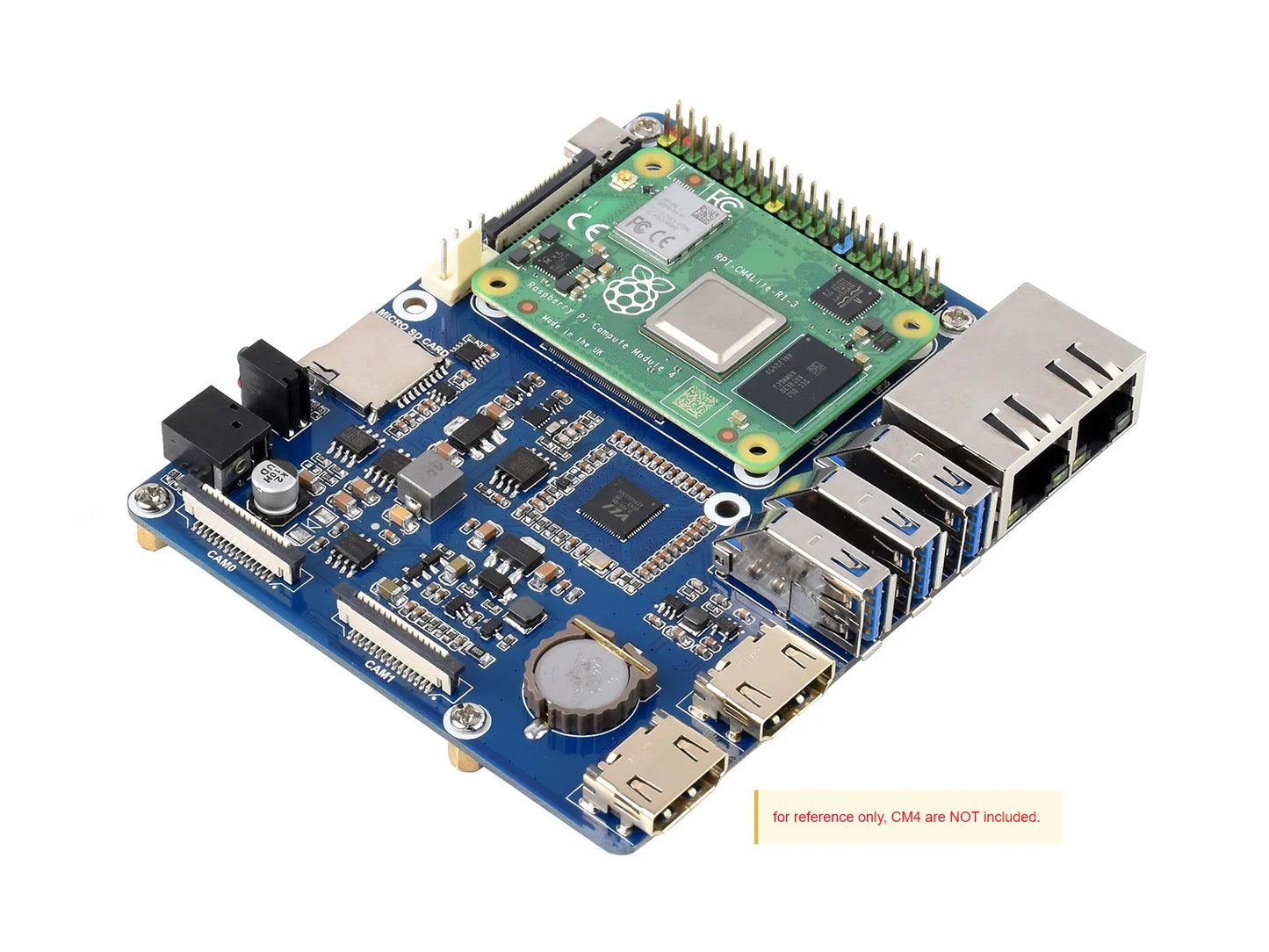

Connecting With Compute Module 4

Standard CM4 Socket And Color-Coded Raspberry Pi 40PIN GPIO Header
Suitable For Compute Module 4 Lite/EMMC Series Module


Rich Interfaces

Providing Interfaces Including: ETH/CSI/DSI/RTC/HDMI/Micro SD/USB

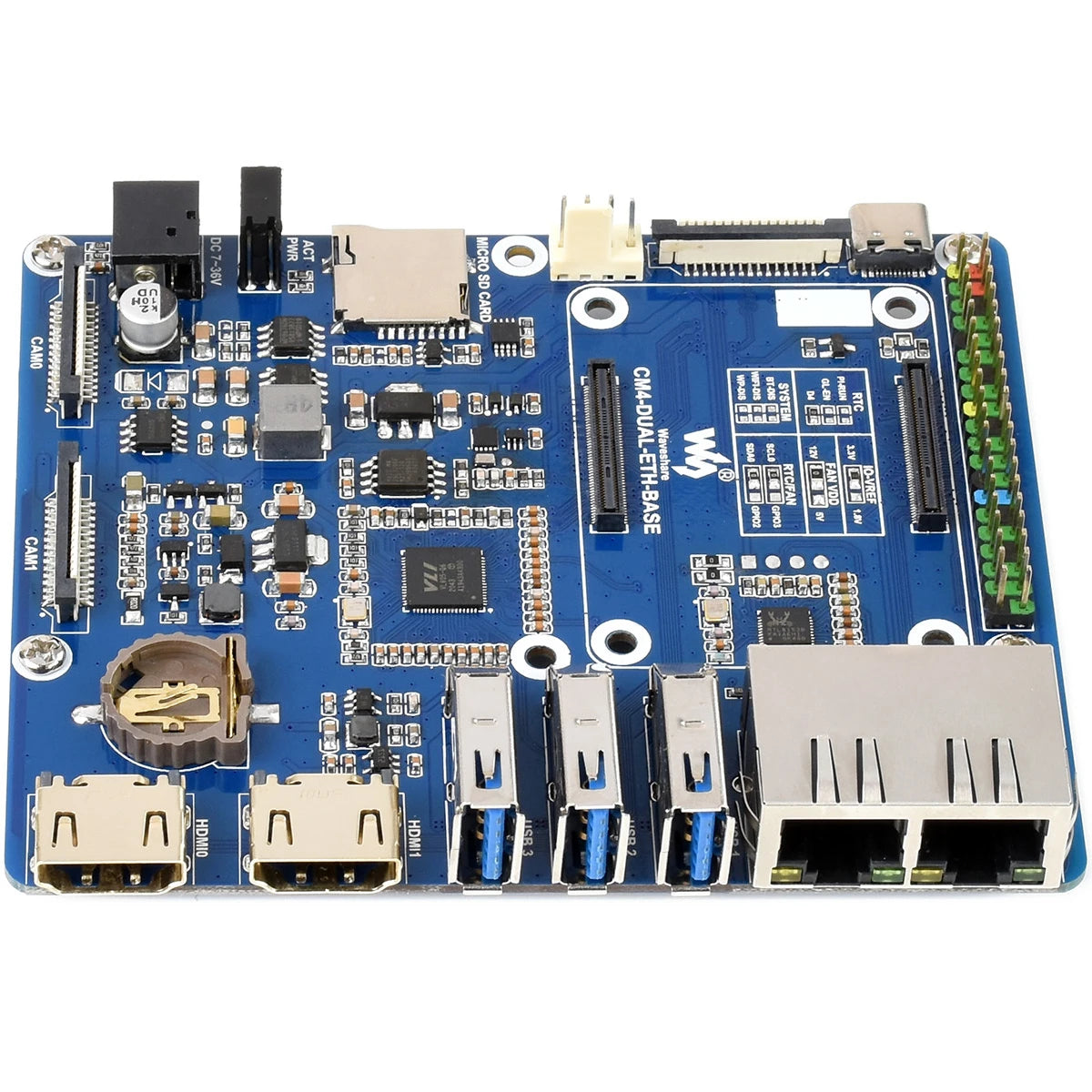

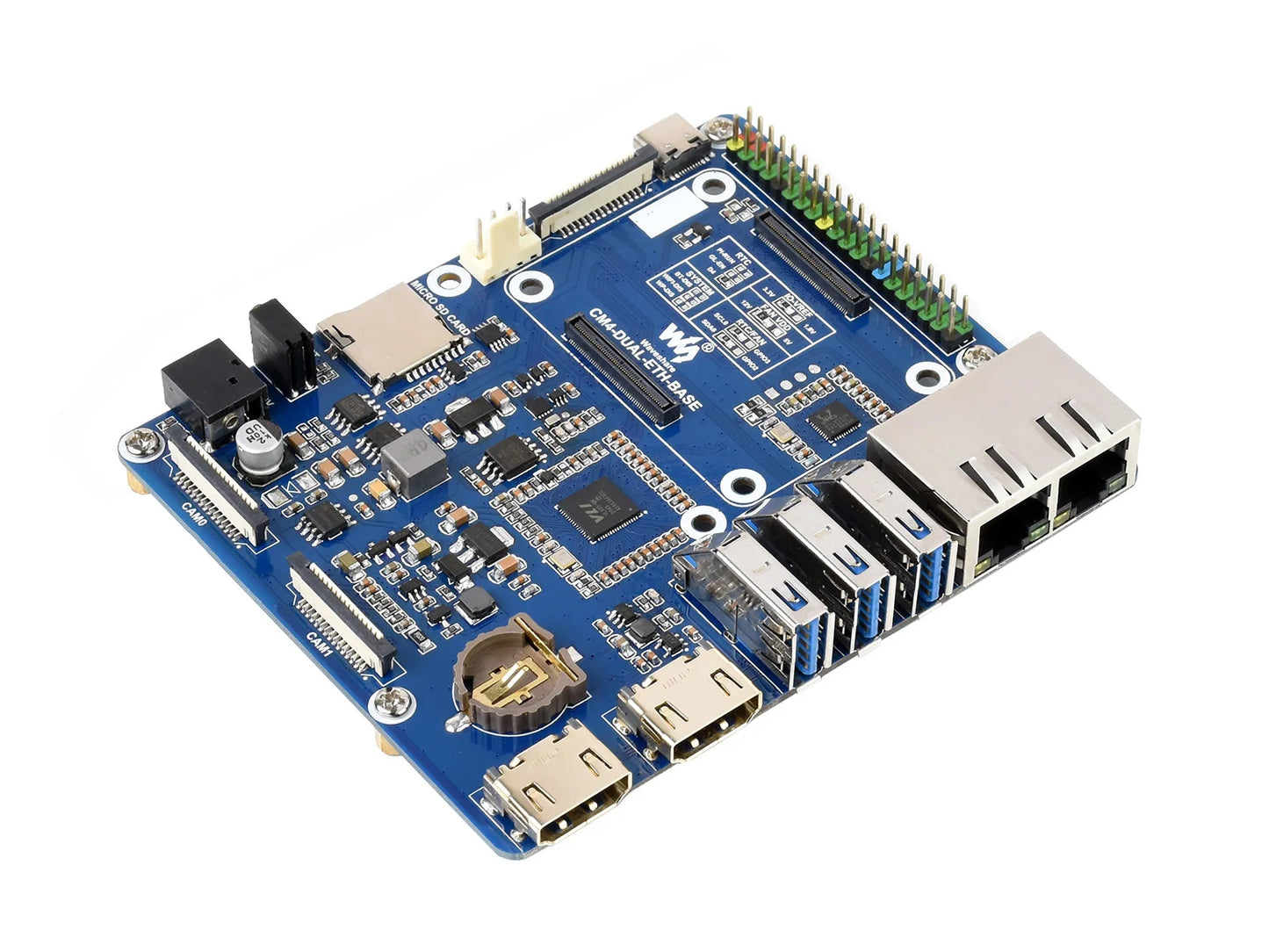

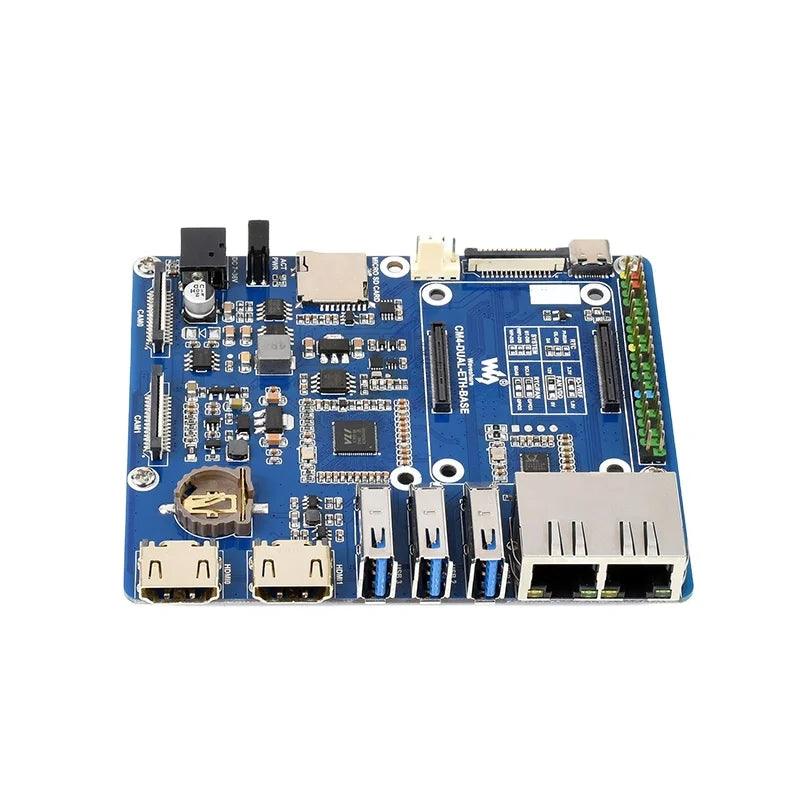

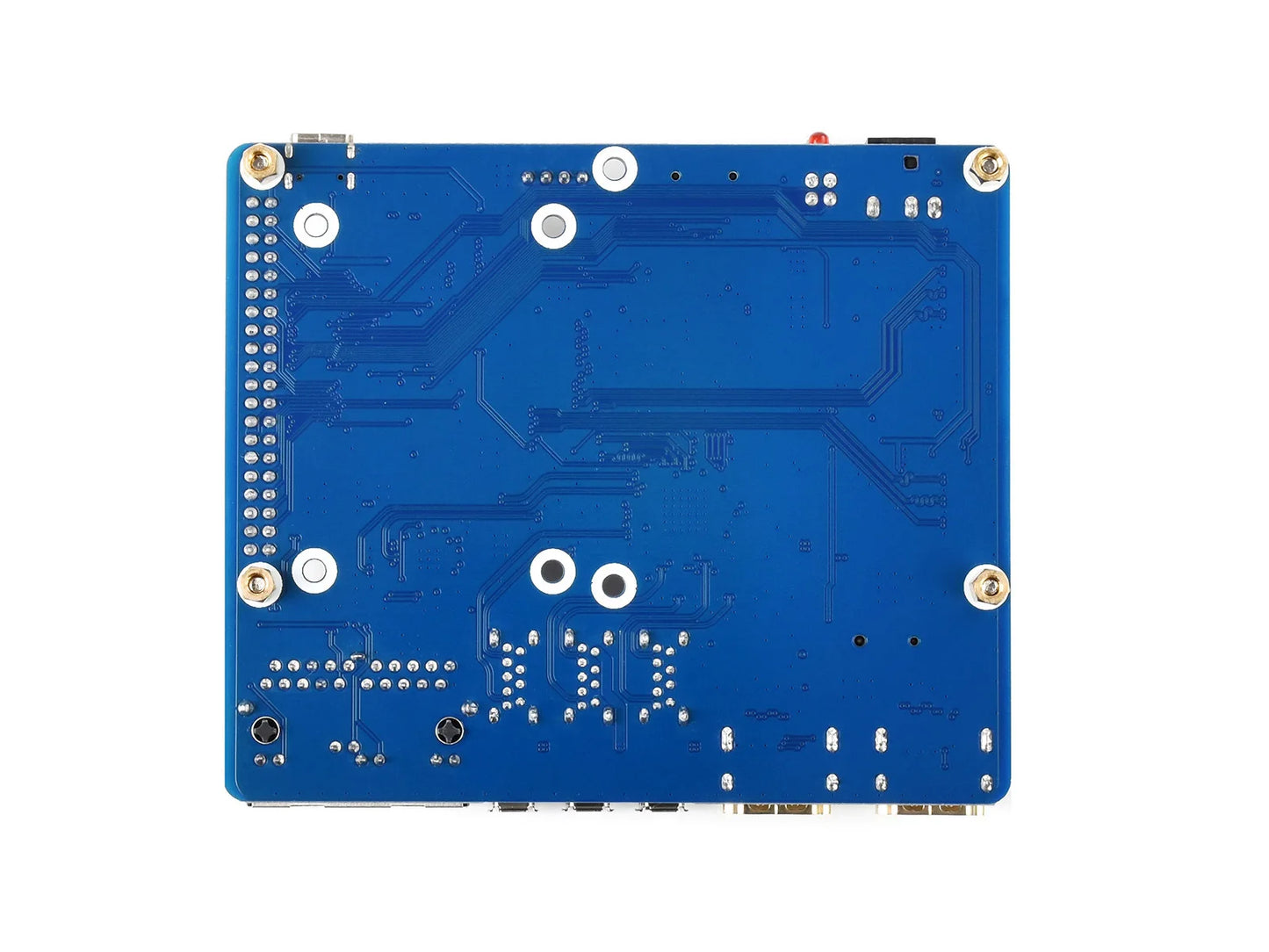

What's On Board

  1. CM4 socket
    suitable for all variants of Compute Module 4

  2. 40PIN GPIO header
    for connecting sorts of HATs

  3. RJ45 Gigabit Ethernet
    dual RJ45 Gigabit Ethernet, 10/100/1000M compatible
    ETHERNET 0: CM4 original ETH
    ETHERNET 1: USB extended ETH

  4. USB 3.2 ports
    3x USB 3.2 Gen1, for connecting sorts of USB devices

  5. HDMI connectors
    2x HDMI, supports 4K 30fps output

  6. CAM
    2x MIPI CSI camera ports

  7. DC power supply
    7~36V DC wide voltage range power input

  8. Dual LED indicators
    red: Raspberry Pi power indicator
    green: Raspberry Pi operating status indicator

  9. Micro SD card slot
    for connecting a Micro SD card with pre-burnt image (Lite variant ONLY)

  10. FAN header
    for connecting cooling fan, allows speed adjustment and measurement

  11. DISP0
    MIPI DSI display port

  12. USB SLAVE port
    for burning system image into Compute Module 4 eMMC variants

  13. RTC battery holder
    supports CR1220 button cell

  14. RTC interruption configuration
    PI-RUN: CM4 will reboot on RTC interruption
    GN-EN: CM4 powerdown on RTC interruption
    D4: D4 pin is triggered on RTC interruption

  15. IO-VREF selection
    set the CM4 IO logic level as 3.3V or 1.8V

  16. FAN power supply selection
    select 5V or 12V power to drive the fan

  17. System function configuration
    BT_DIS: BT disabled, for CM4 with antenna variant ONLY
    WiFi_DIS: WiFi disabled, for CM4 with antenna variant ONLY
    WP_DIS: boot mode switch, ONLY be used when NOT booted from eMMC or SD card

  18. RTC/FAN I2C bus selection
    SDA0/SCL0: I2C-10 is shared with CSI/DSI
    GPIO3/2: I2C-1 is shared with 40PIN header

  19. RTL8153
    USB Gigabit Ethernet chip

  20. EMC2301
    fan controller, allows fan speed adjustment and measurement

  21. VL805
    USB 3.0 HUB




* Resources for different product may vary, please check the wiki page to confirm the actually provided resources.

PACKAGE CONTENT



Weight:0.077 kg

  1. CM4-DUAL-ETH-BASE x1
