Lonten Technology

Waveshare 3.7inch e-Paper e-Ink Raw Display, 480*280, Black / White, 4 Grey Scales, SPI, Without PCB Custom PCB wall charger pcb customize

Waveshare 3.7inch e-Paper e-Ink Raw Display, 480*280, Black / White, 4 Grey Scales, SPI, Without PCB Custom PCB wall charger pcb customize

Regular price $25.00 USD
Regular price $65.00 USD Sale price $25.00 USD
Sale Sold out


DESCRIPTION

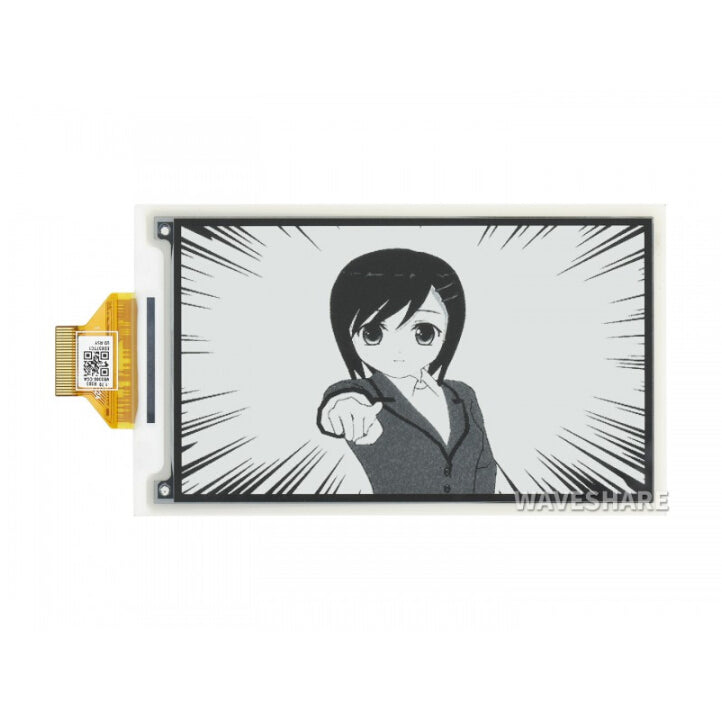

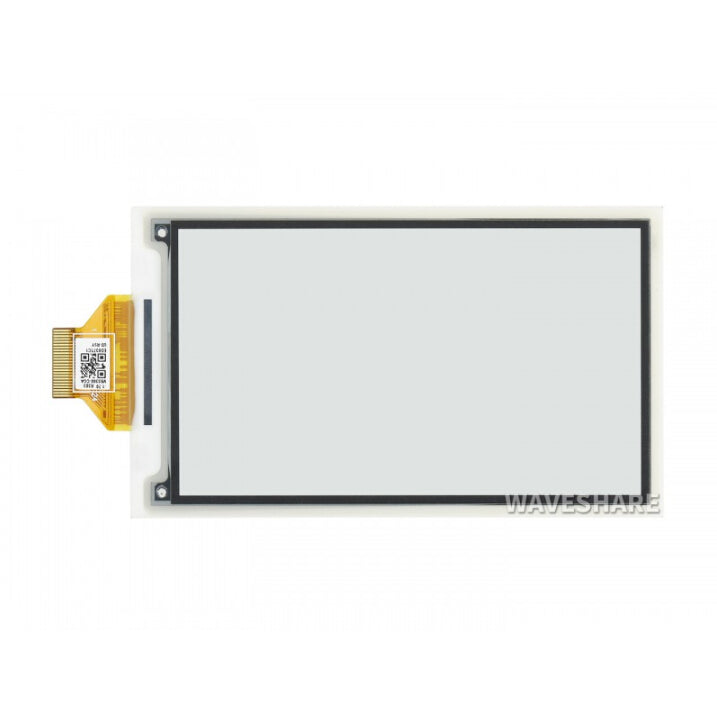

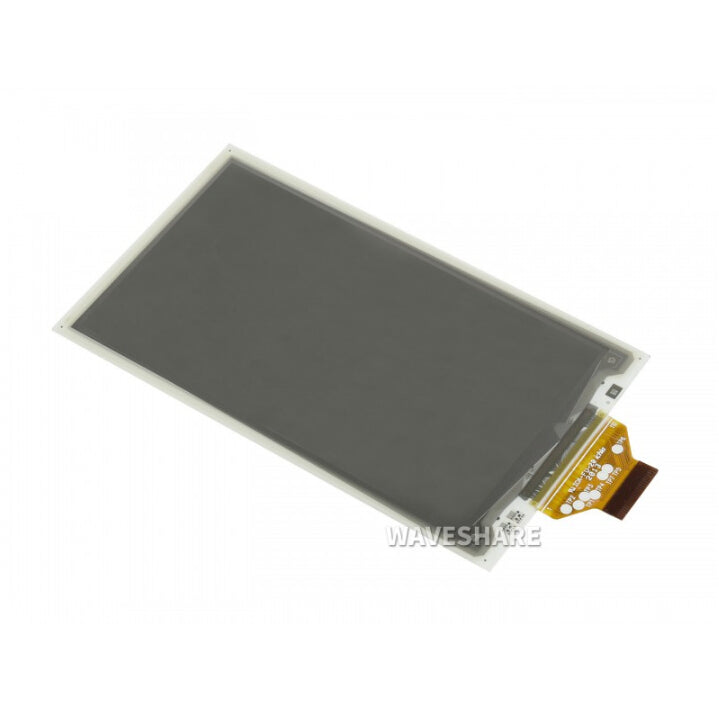

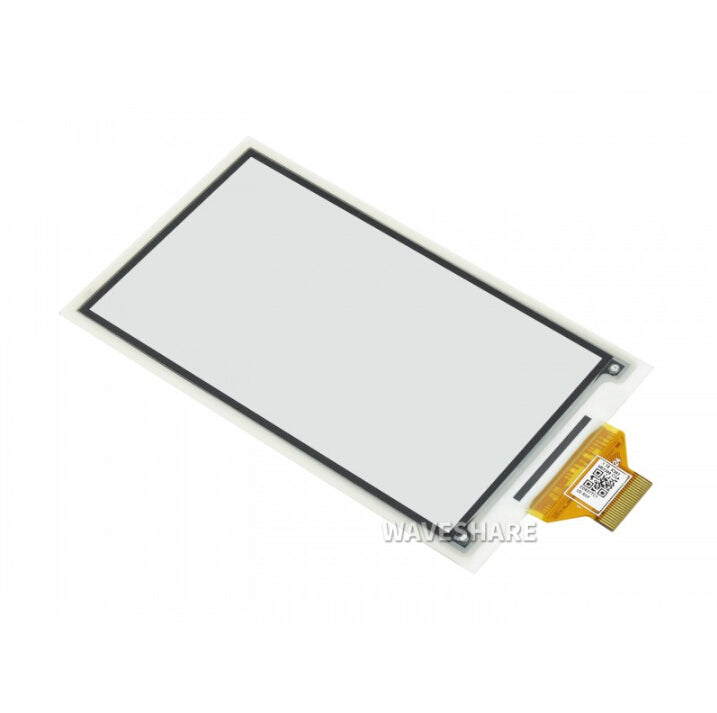

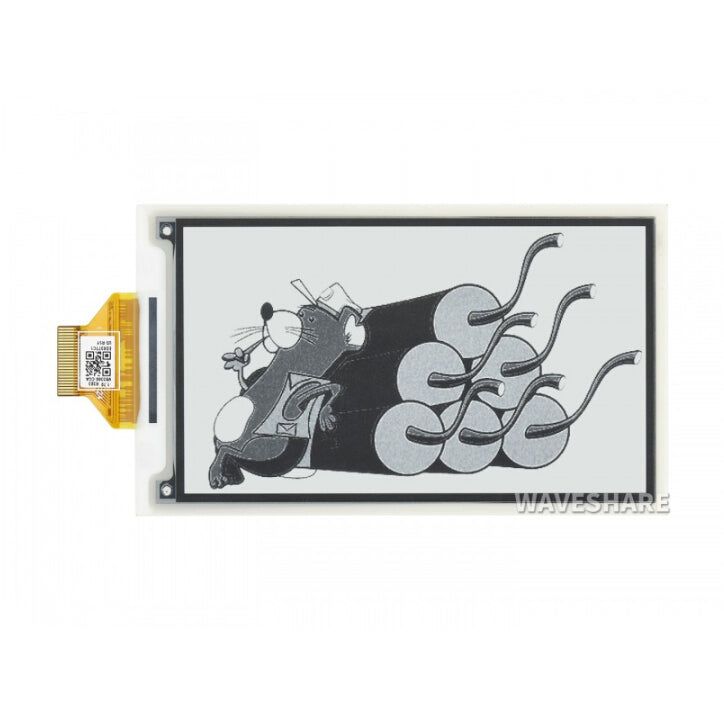

3.7inch E-Paper E-Ink Raw Display, 480×280 Pixels, Black / White, 4 Grey Scales, SPI Interface, Without PCB
3.7" E-PAPER

Partial Refresh Support, Low Power, Wide Viewing Angle, Paper-Like Effect

Ideal for price tags, shelf labels, industrial instruments...



  • Size3.7"
  • Resolution480×280
  • Viewing Angle>170°
  • Display ColorBlack and White
  • Grey Scale4
  • CommunicationSPI
  • Display PanelE-paper
  • ExperiencePaper-like
  • EnvironmentAmbient Light Required
  • Display TypePassively Reflective
  • RefreshingPartial Refresh Support

Features At A Glance
  • No backlight, keeps displaying last content for a long time even when power down
  • Ultra low power consumption, basically power is only required for refreshing
  • Comes with development resources and manual (driver board circuit diagram, examples for Raspberry Pi/Jetson Nano/Ard/STM32)
Specifications
OPERATING VOLTAGE 3.3V GREY SCALE 4
INTERFACE 3-wire SPI, 4-wire SPI PARTIAL REFRESH TIME 0.3s
OUTLINE DIMENSIONS 54.9 × 93.3 × 0.78mm FULL REFRESH TIME 3s
DISPLAY SIZE 47.32 × 81.12mm REFRESH POWER 50mW (typ.)
DOT PITCH 0.169 × 0.169mm STANDBY CURRENT <0.01uA (almost none)
RESOLUTION 480 × 280 pixels VIEWING ANGLE >170°
DISPLAY COLOR black, white
Advantages Of EINK

E-paper display utilizes microcapsule electrophoretic technology for displaying, the principle is: charged particles suspended in clear fluid will move to sides of microcapsule when electric field is applied, making the microcapsule become visible by reflecting ambient light, just as traditional printed paper.
E-paper display will clearly display images/texts under lamplight or natural light, requires no backlight, and features nearly up to 180° viewing angle. It is usually used as e-reader due to its paper-like effect.

Application Examples

Suitable For Price Tags, Asset/Equipment Tags, Shelf Labels, Conference Name Tags...

Outline Dimensions
Resources & Services

WIKI: 3.7inch_e-Paper_HAT

* Resources for different product may vary, please check the wiki page to confirm the actually provided resources.

Recommended

To fastly get started with this raw display, please consider the following driver boards:

  • e-Paper Driver HAT (Universal)
  • e-Paper Shield (Ard/NUCLEO)
  • e-Paper ESP8266 Driver Board (WiFi)
  • e-Paper ESP32 Driver Board (WiFi / Bth)

PACKAGE CONTENT

Weight: 0.009 kg

This is a raw display, for easy testing and comparing, please consider the one with driver board: 3.7inch e-Paper HAT
  1. 3.7inch e-Paper x1
1
