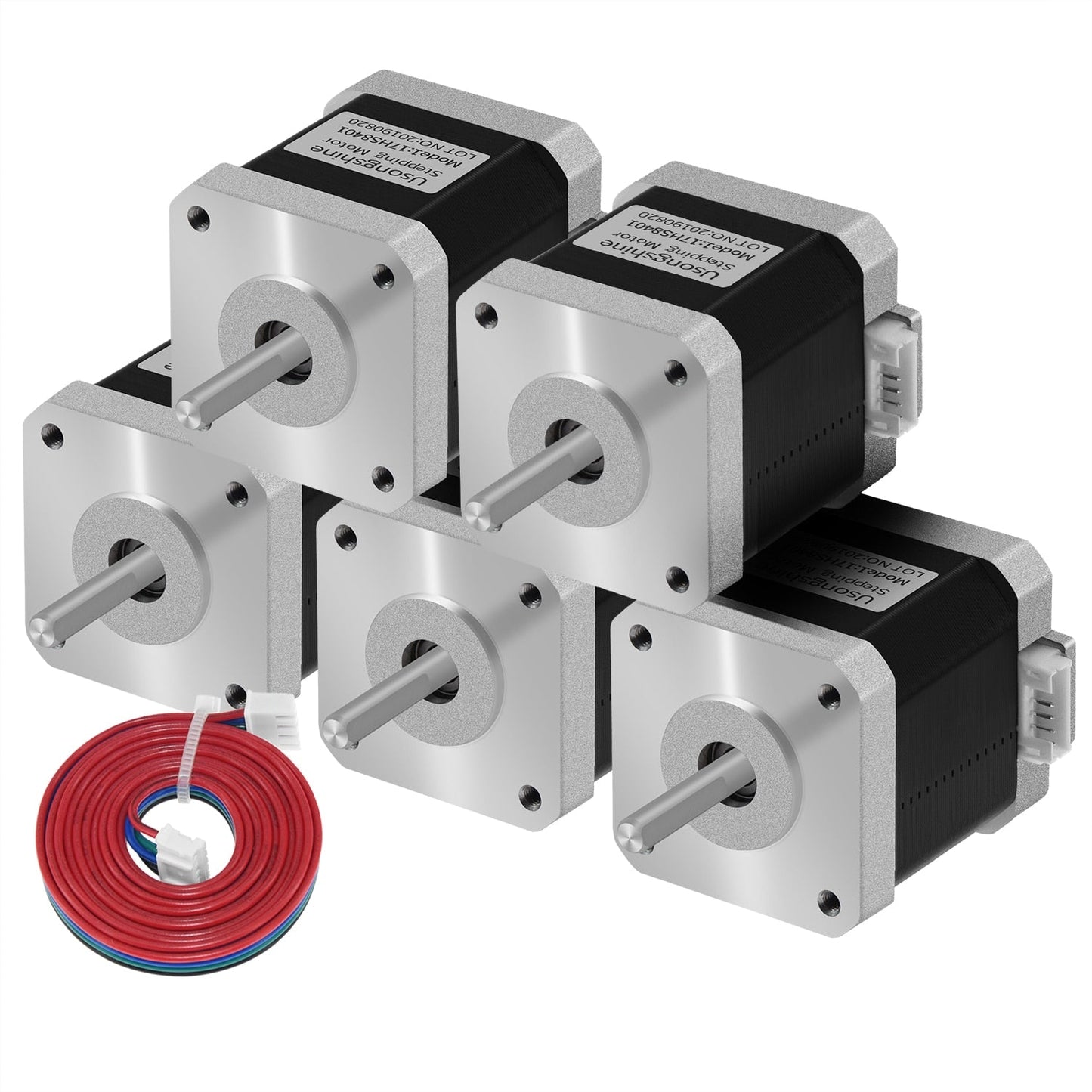

Usongshine 5Pcs/Lot Nema17 Stepper Motor 42 Motor 48Mm Nema 17 Motor 42Bygh 1.5A (17Hs8401) Motor 4-Lead For 3D Printer Cnc Xyz customize

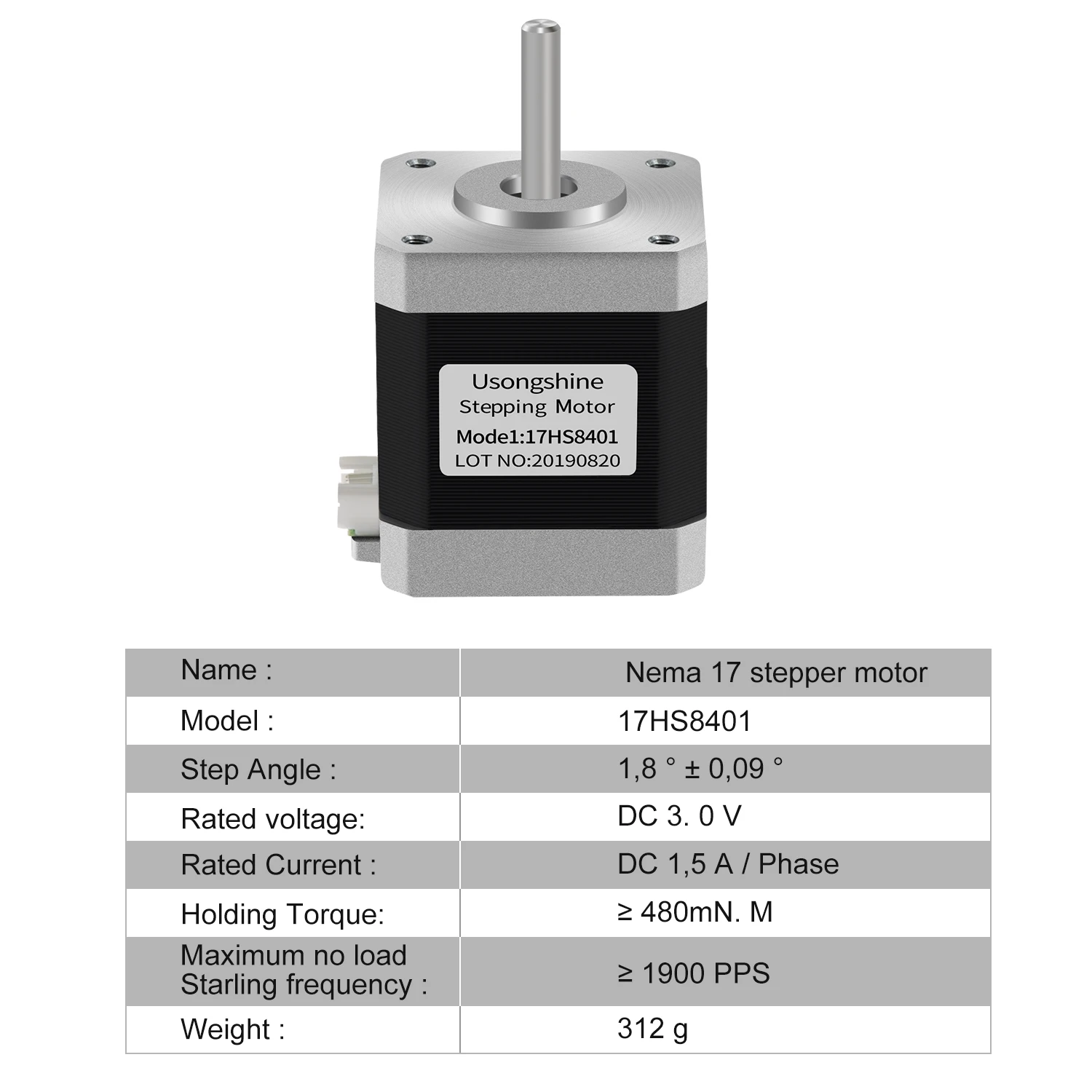

Model : 17HS8401

Step Angle :1.7

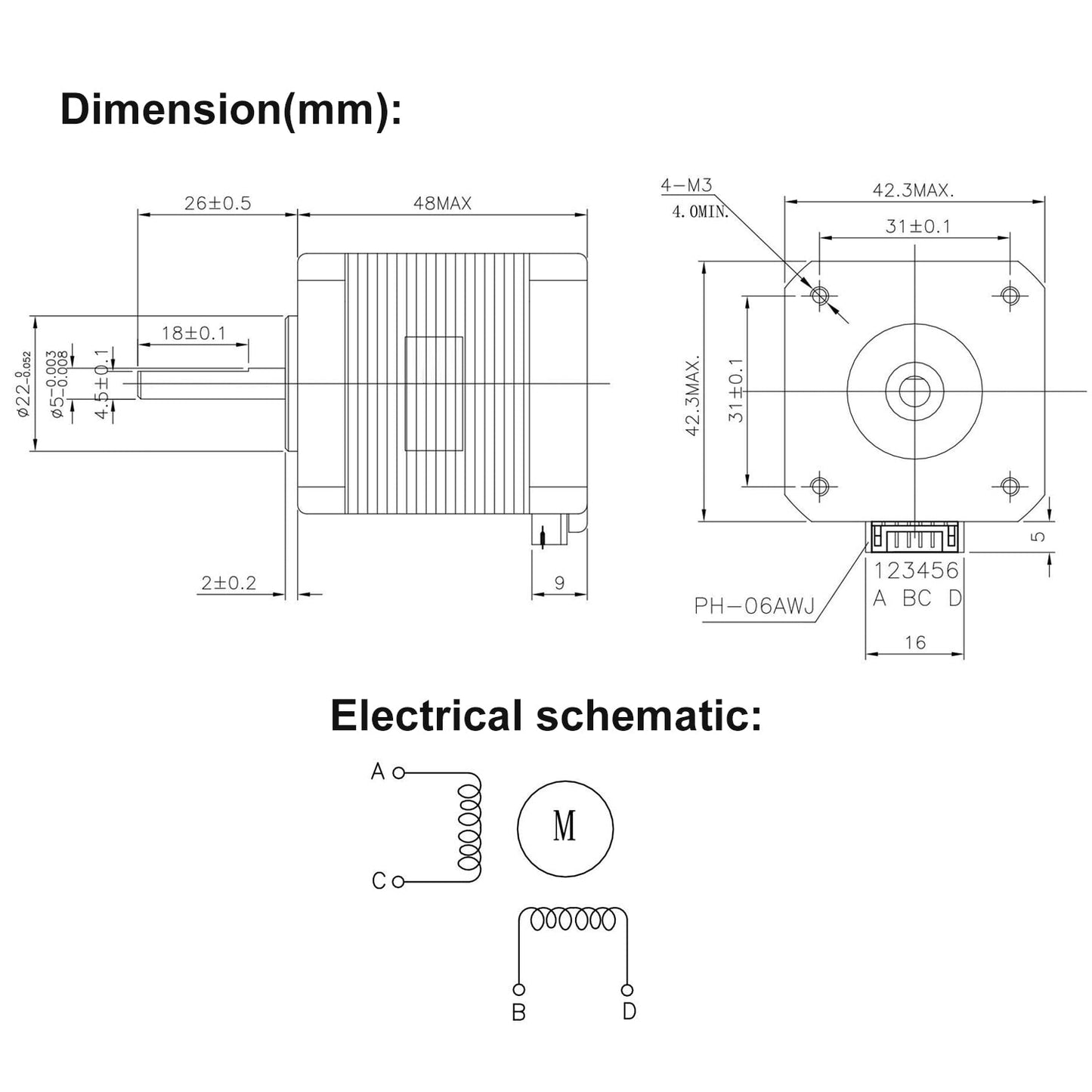

Motor Frame Size : 41.5mm * 41.5mm * 47mm  (Length*Width *Height )

Shaft : 22mm(Lenght)  5mm(Diameter)

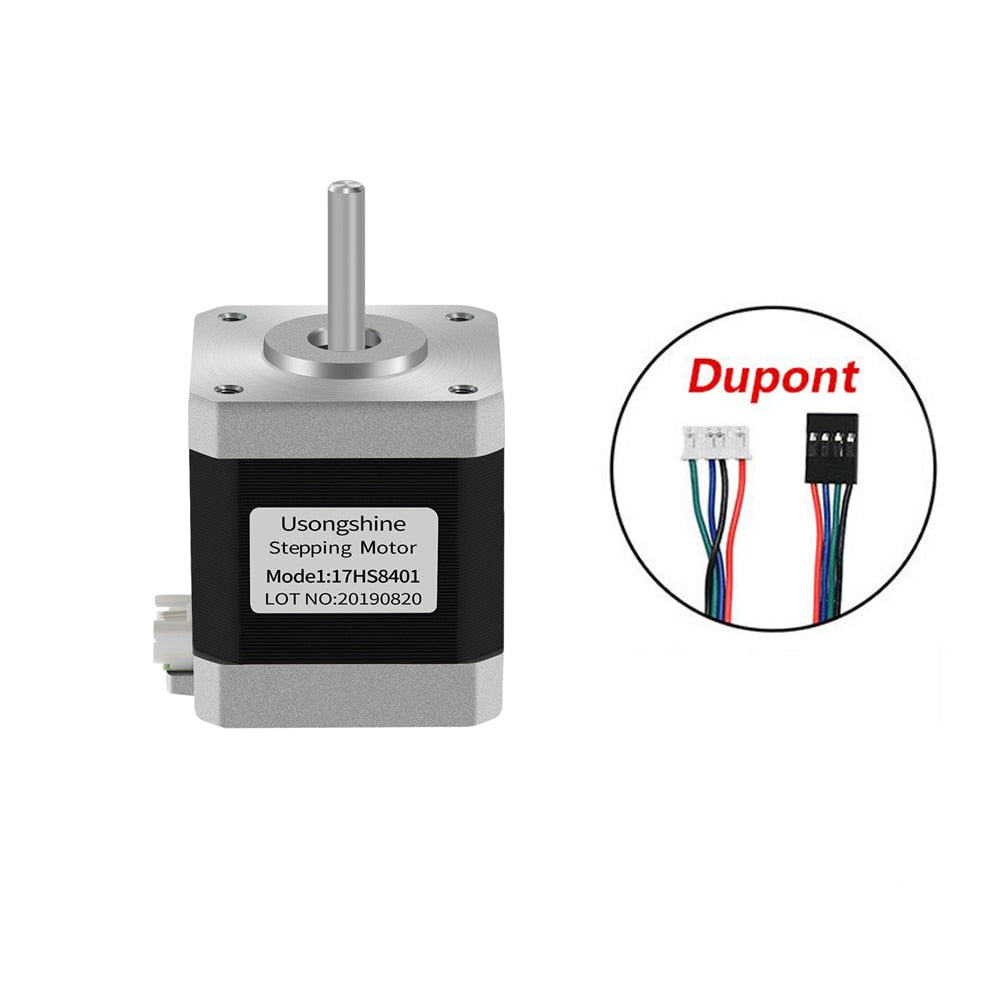

Outlet way : 4Pin plug line

General Specification:

Step angle accuracy: +/ - 5%(full step,not load)

Resistance accuracy: +/ - 10%

Inductance accuracy: +/ - 20%

Temperature rise: 80deg Max(rated current,2 phase on)

Ambient temperature ----------—20deg ~+50deg

Insulation resistance:100MΩ Min,500VDC

Insultion Strength--------500VAC for one minute
