Raspberry Pi Case-LTRIG

Two-way 5V relay module with optocoupler isolation protection low-level trigger two-way relay module expansion board customize

Two-way 5V relay module with optocoupler isolation protection low-level trigger two-way relay module expansion board customize

Regular price $0.74 USD
Regular price $2.74 USD Sale price $0.74 USD
Sale Sold out


Tips:Because of the meager profit in our shop, most modules only provide description or send information, and there is no technical consultation support. Please take caution when you are a beginner!

Module parameters:

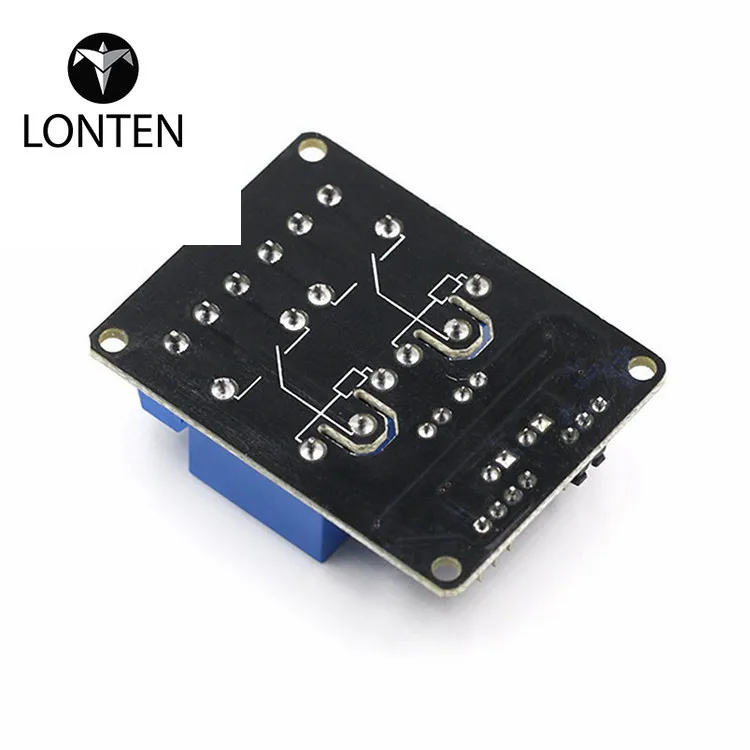

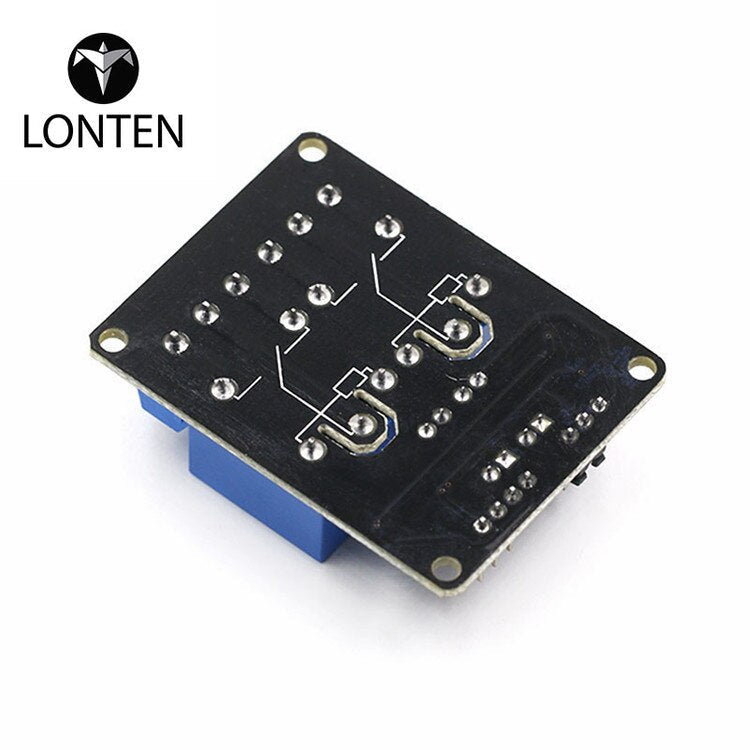

1. dimensions: 50.5mm (length) *38.5mm (width) *18.5 (height)

2. Weight: 31g

3. PCB color: Black

4. There are 4 fixing screw holes around the board with a diameter of 3.1mm, which is convenient for installation and fixation

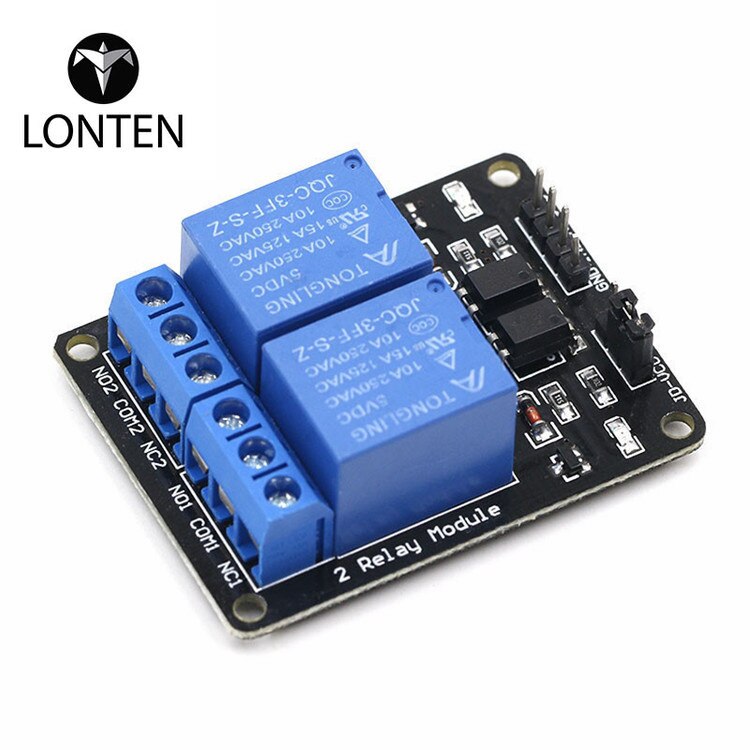

5. The relay is Songle relay, single pole and double throw. A common terminal, a normally open terminal and a normally closed terminal

6. Optocoupler isolation, good anti-interference



7. Pull-in at low level and release at high level. The status indicator lights up when pulling in and goes out when releasing

8.VCC is the system power supply, JD_VCC is the relay power supply. Just plug in the jumper cap

Electrical parameters:
Power supply voltage: 5VDC
Current: Greater than 100mA
Load: 250V 10A AC or 30V 10A DC



Wiring instructions:

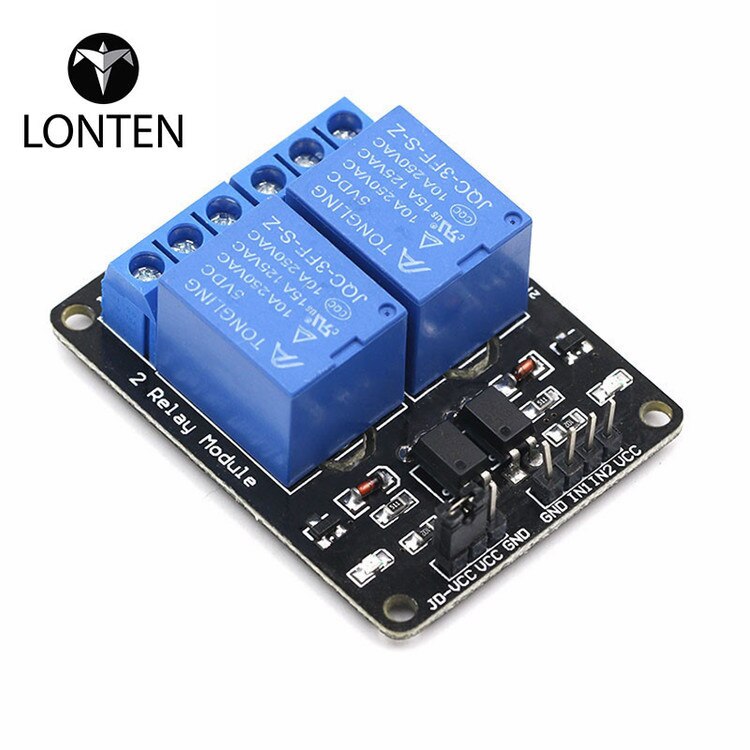

VCC: the system power supply is positive

GND: The system power supply is negative

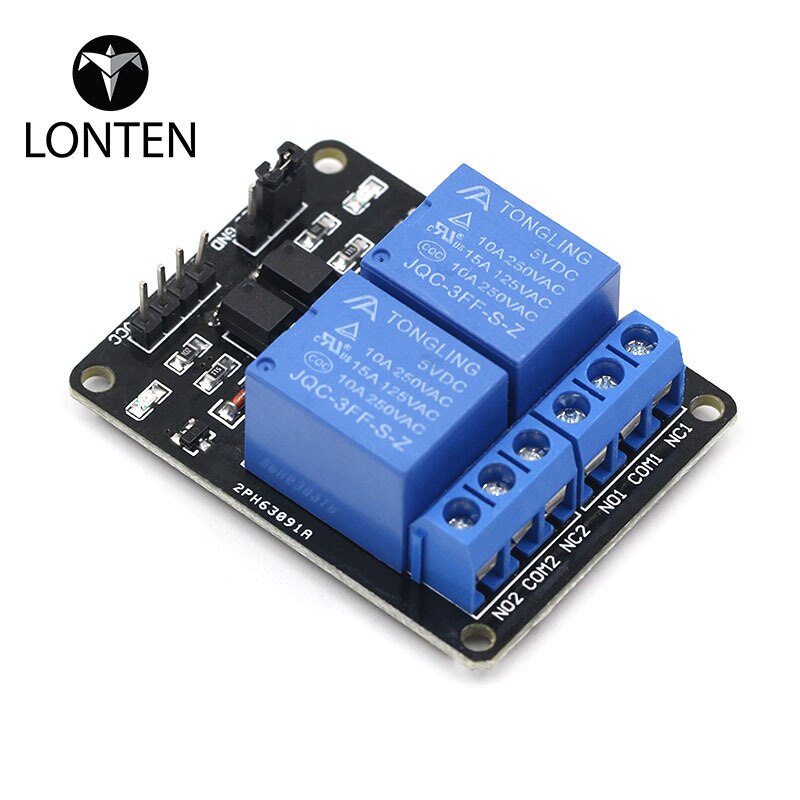

IN1--IN2: relay control port

(Do not reverse, causing the module to burn out we do not give back.) )





Shipping list:

One of 2 relay modules with optocoupler









 Welcome Customize Order!
