LILYGO® TTGO T5 V2.4 Wifi And Blth Basis ESP-32 Esp32 1.54/2.13/2.9 EPaper SPEAKER
Overview

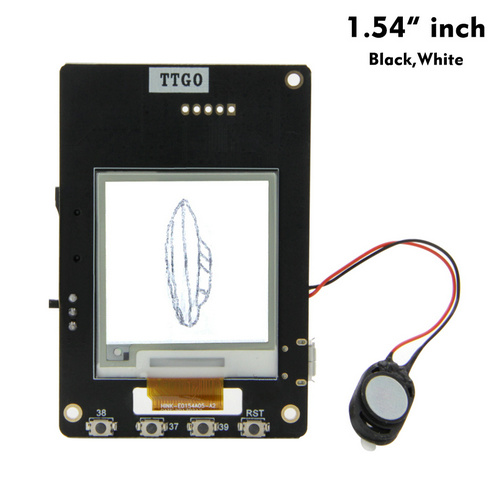

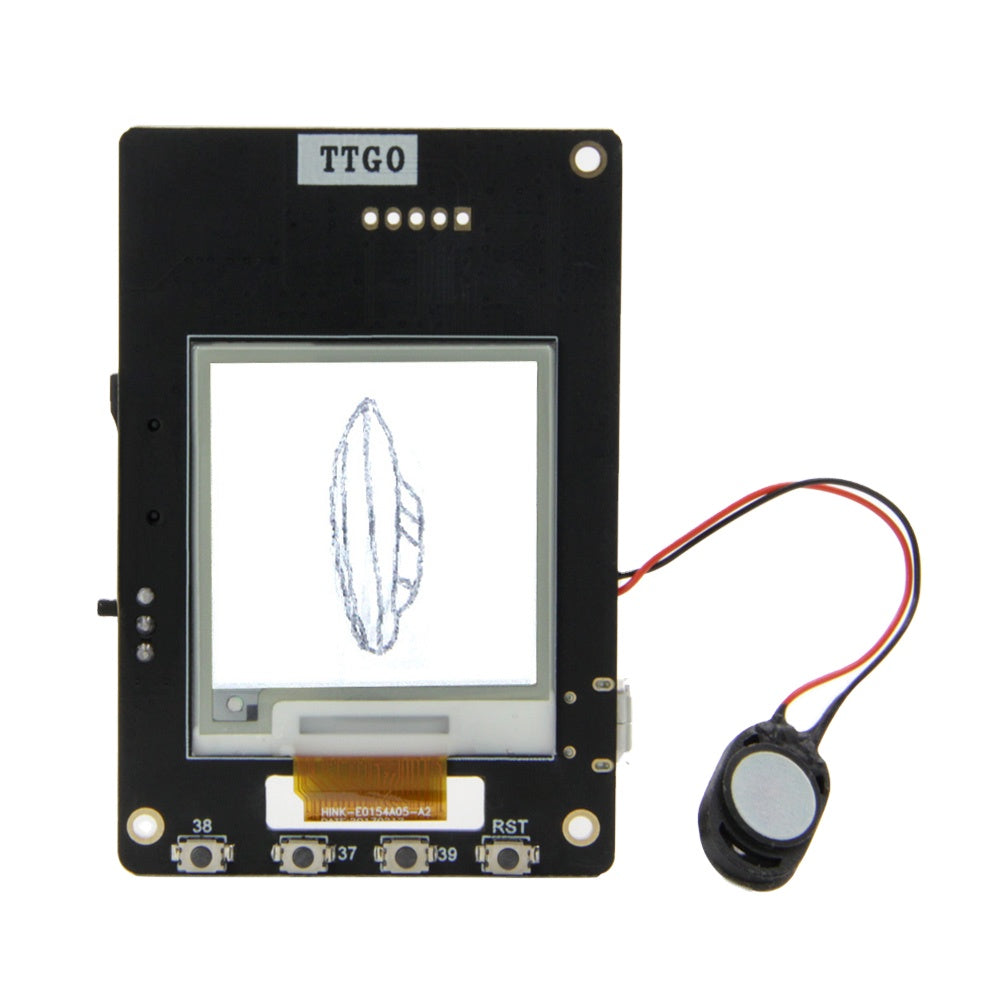

This is an E-paper display module, 1.54inch, 200x200 resolution, with embedded controller, communicating via SPI interface, supports black, and white color display.

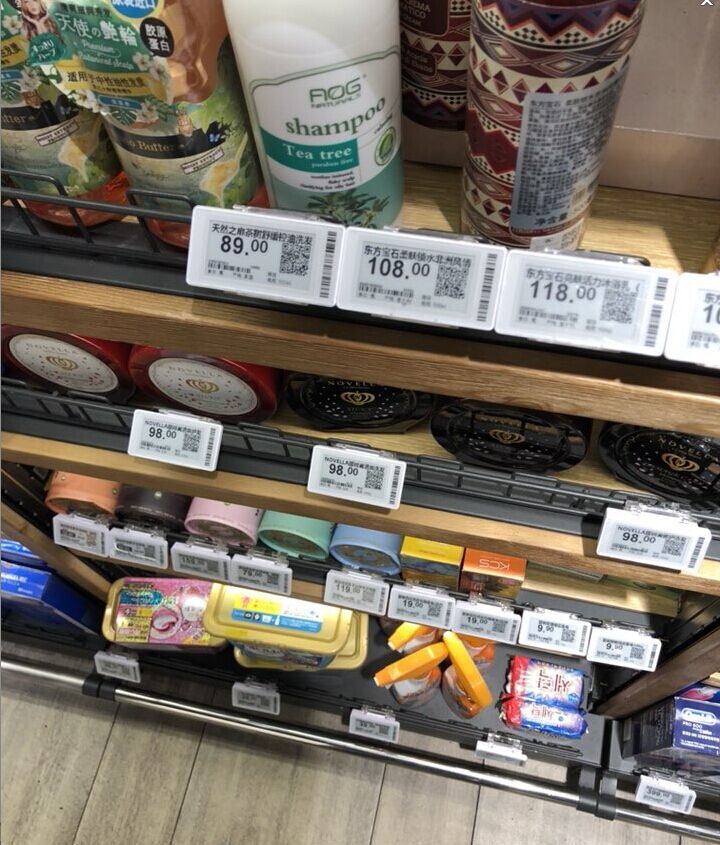

Due to the advantages like ultra low power consumption, wide viewing angle, clear display without electricity, it is an ideal choice for applications such as shelf label, industrial instrument, and so on.
Features
· No backlight, keeps displaying last content for a long time even when power down
· Ultra low power consumption, basically power is only required for refreshing
· Comes with development resources and manual (examples for Arduin-esp32)
Specifications
· Operating voltage: 3.3V
· Interface: 3-wire SPI, 4-wire SPI
· Display color: black, white
· Grey level: 2
· Full refresh time: 8s
· Refresh power: 26.4mW(typ.)
· Standby power: <0.017mW
· Viewing angle: >170°
Test the firmware:https://github.com/Xinyuan-LilyGO/LilyGO_T5_V24/tree/master/firmware
https://github.com/Xinyuan-LilyGO/LilyGo-T5-ink-series

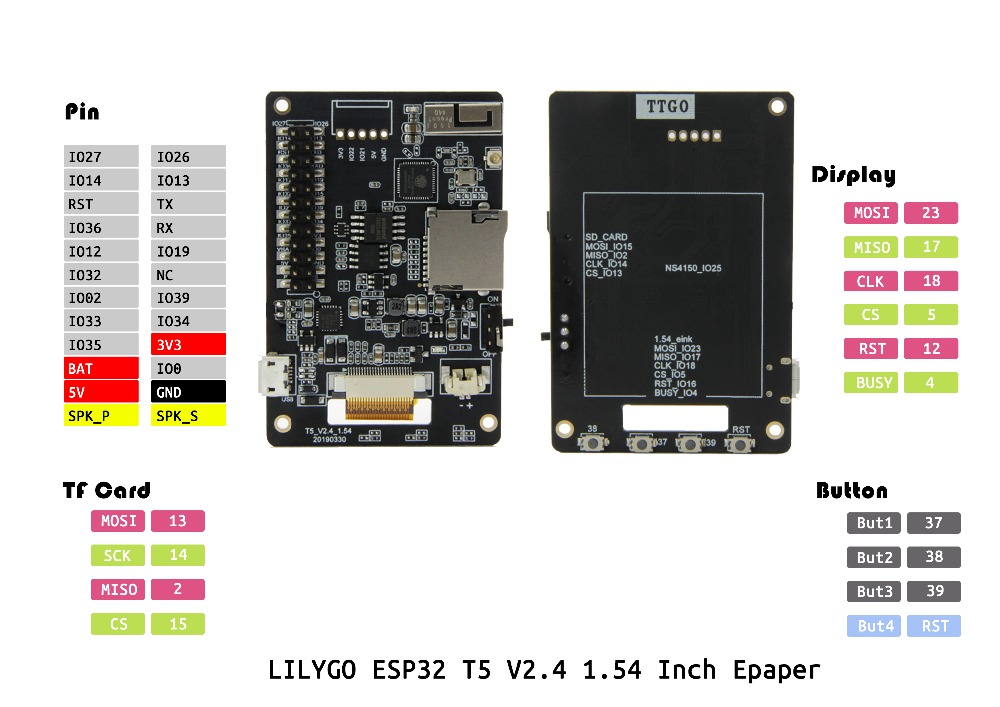

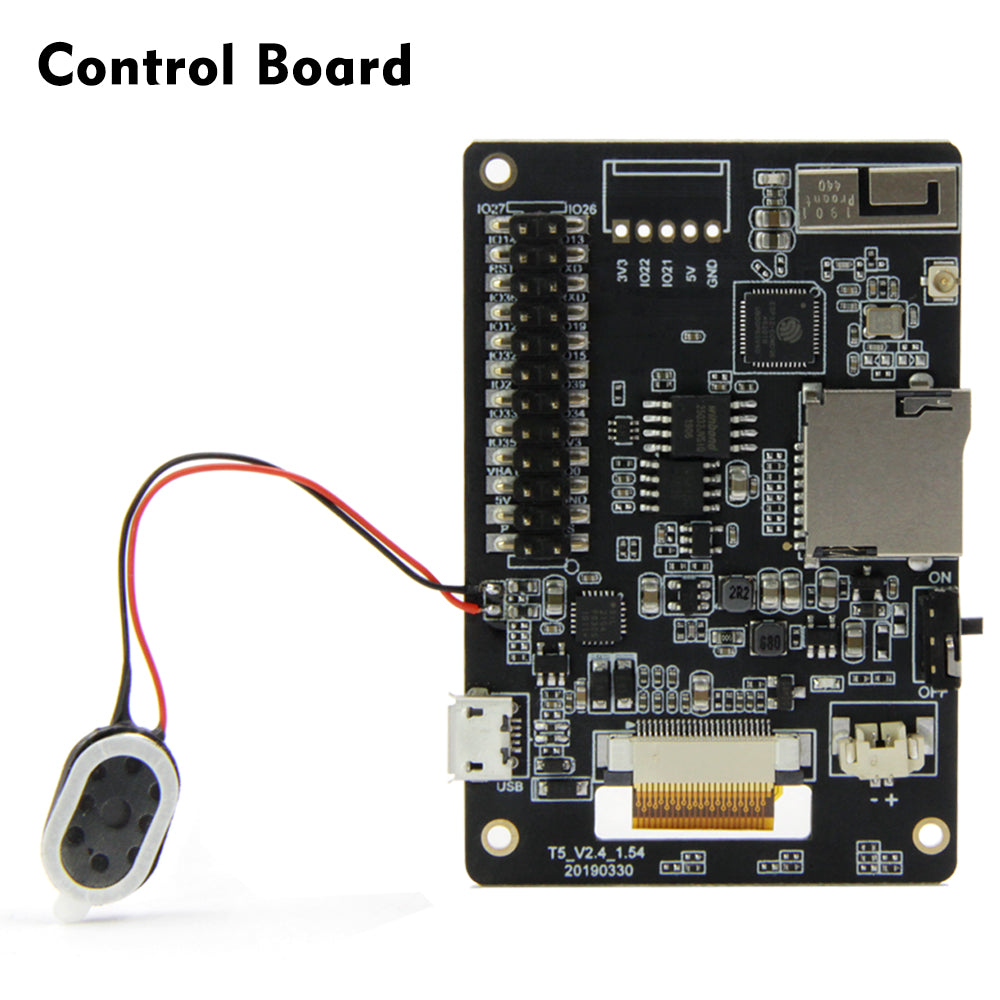

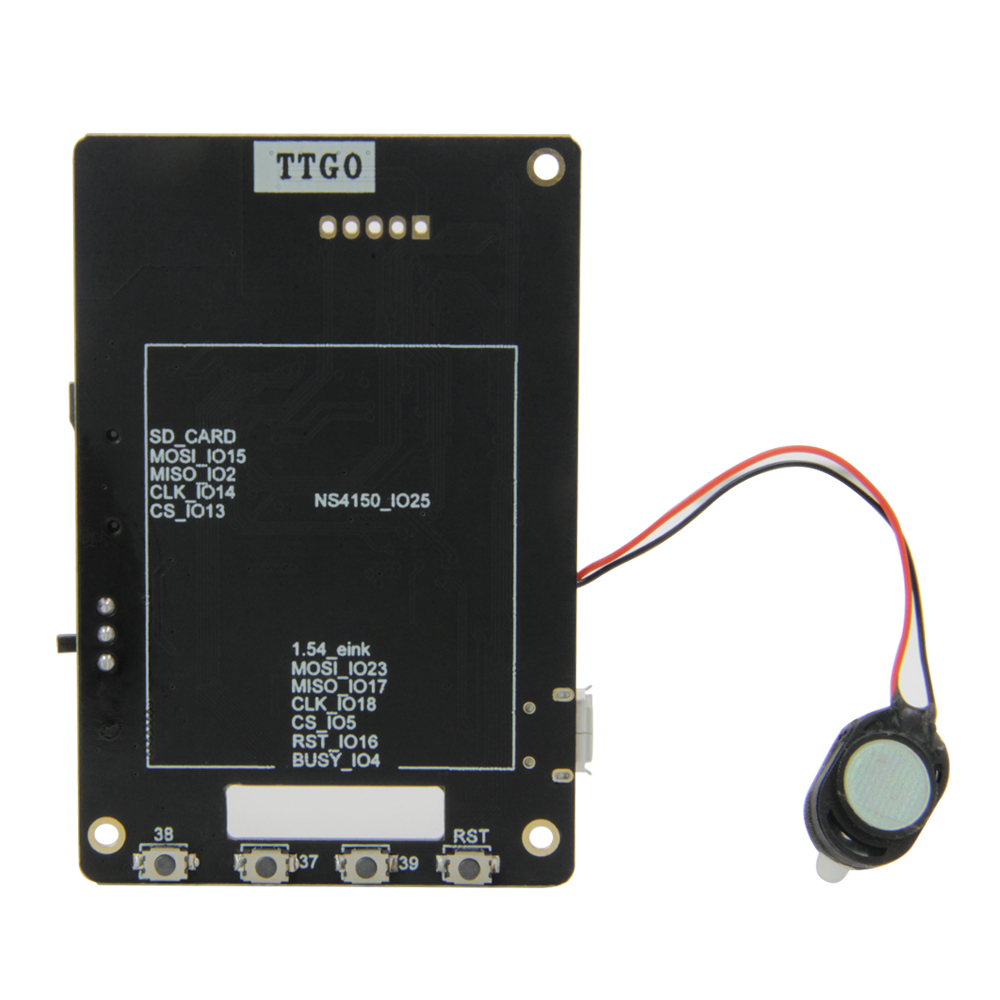

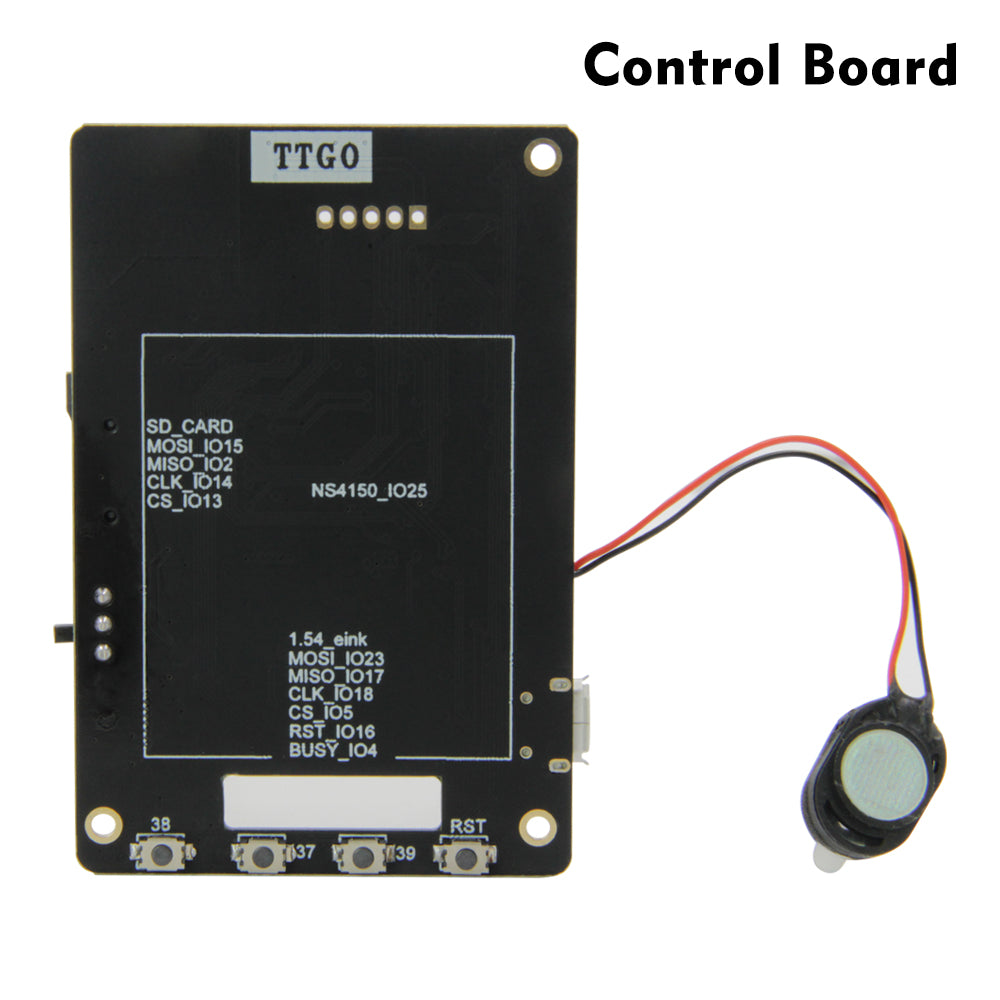

Product Diagram

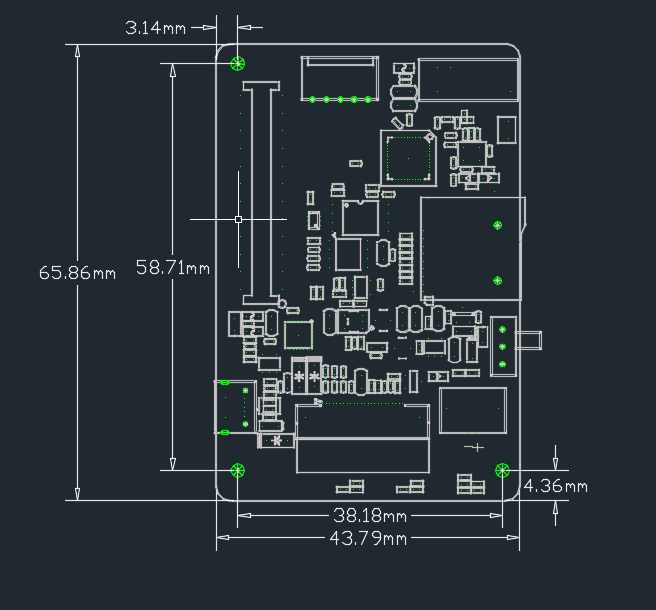

Product Size

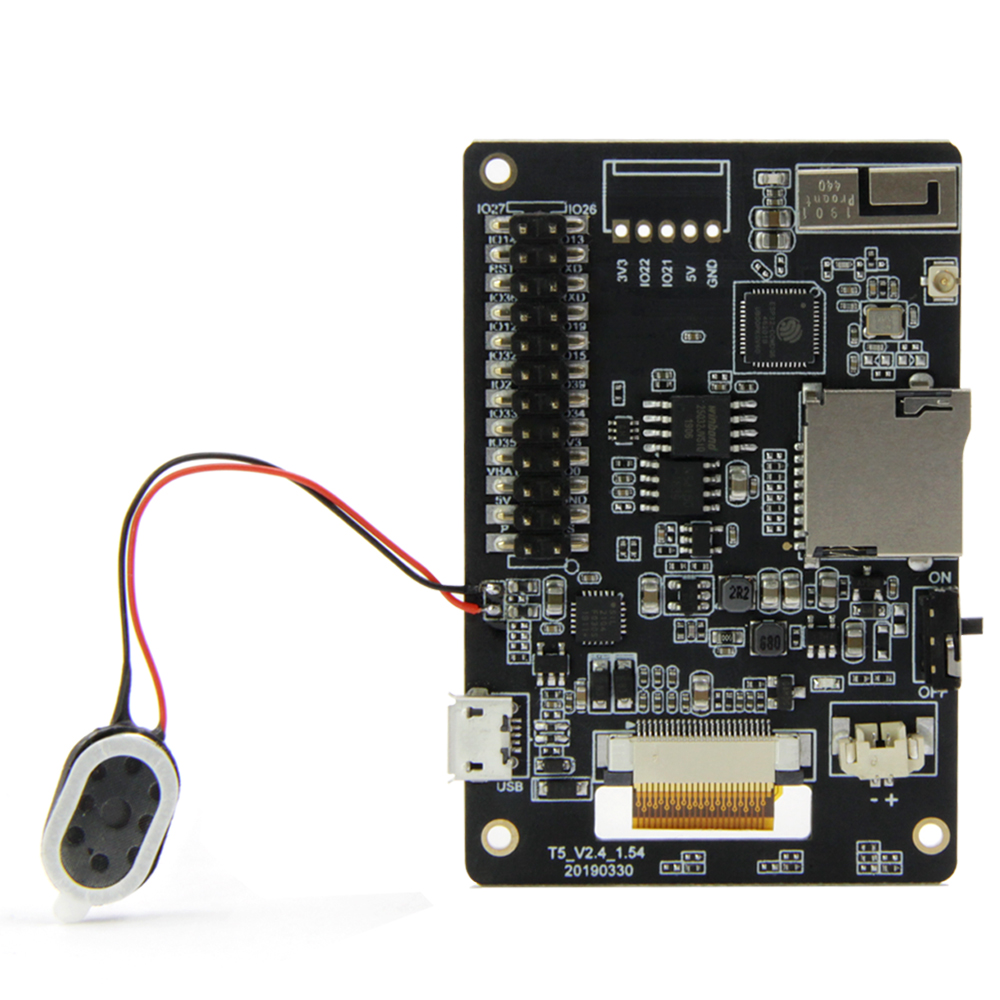

Use Demonstration

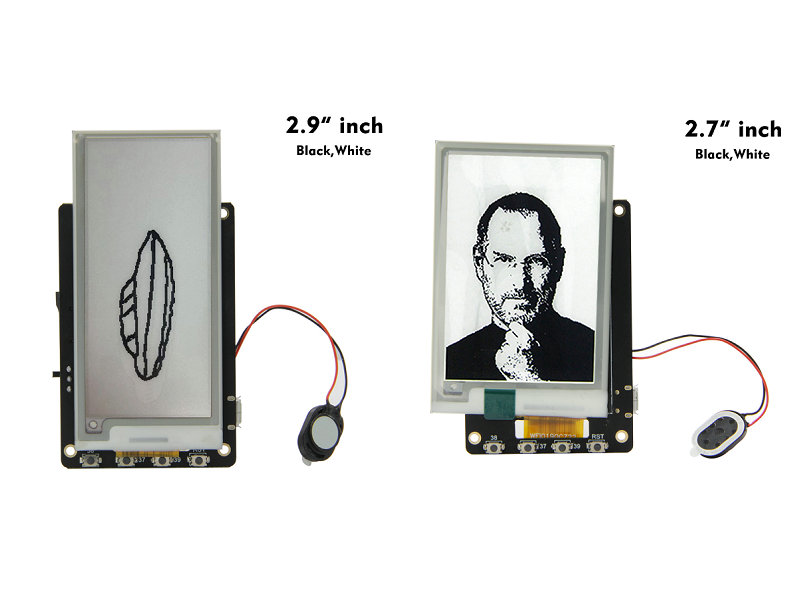

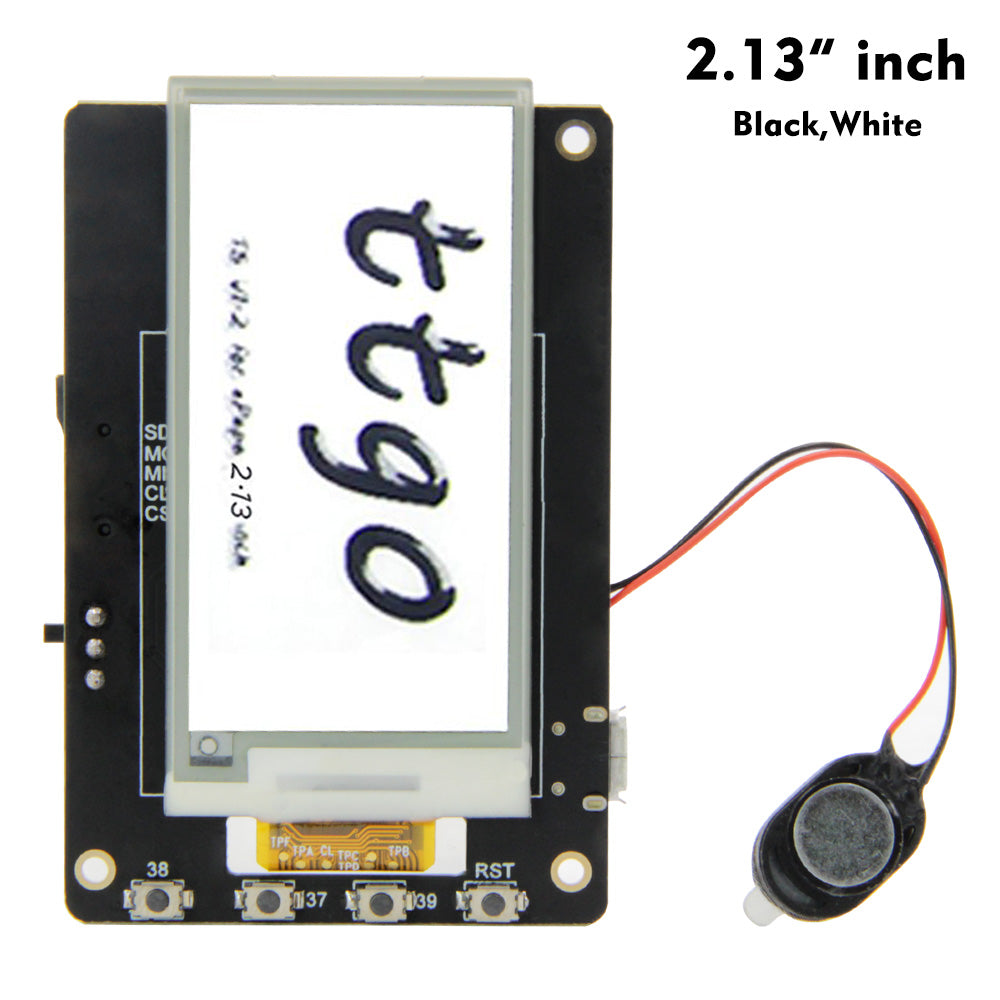

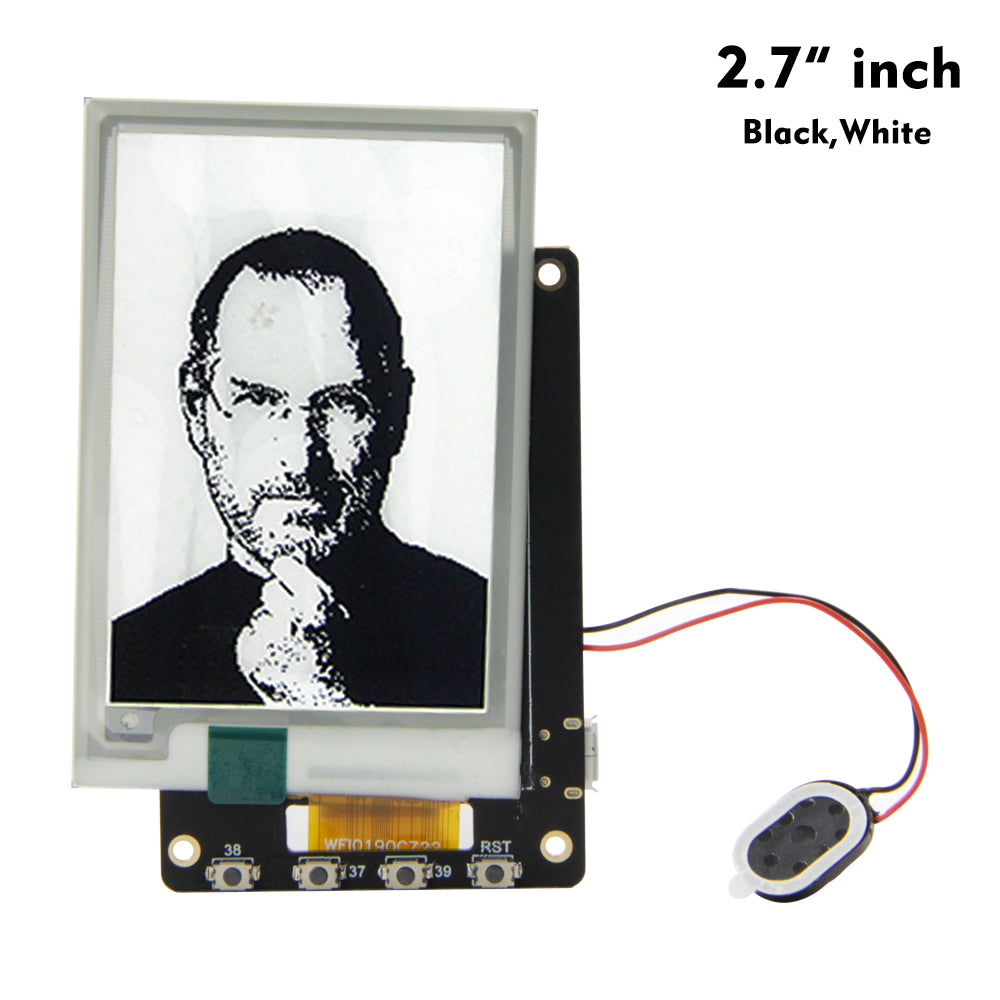

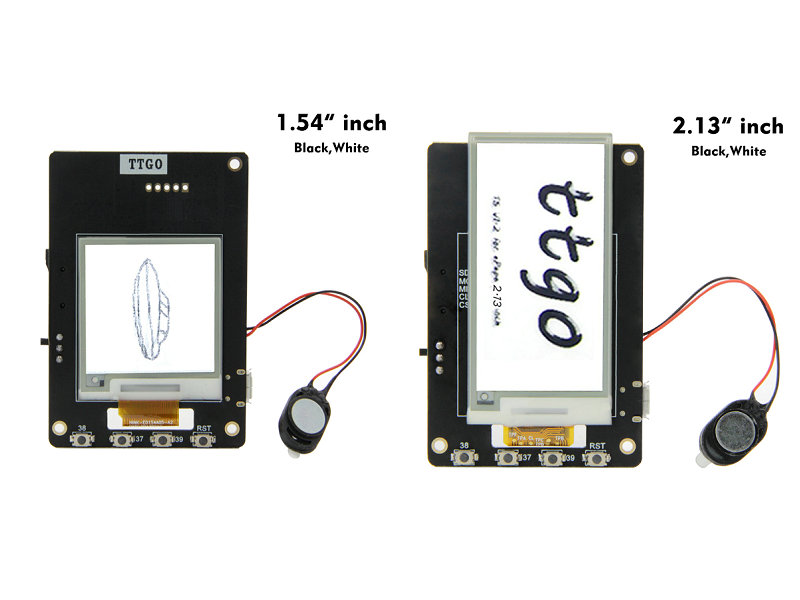

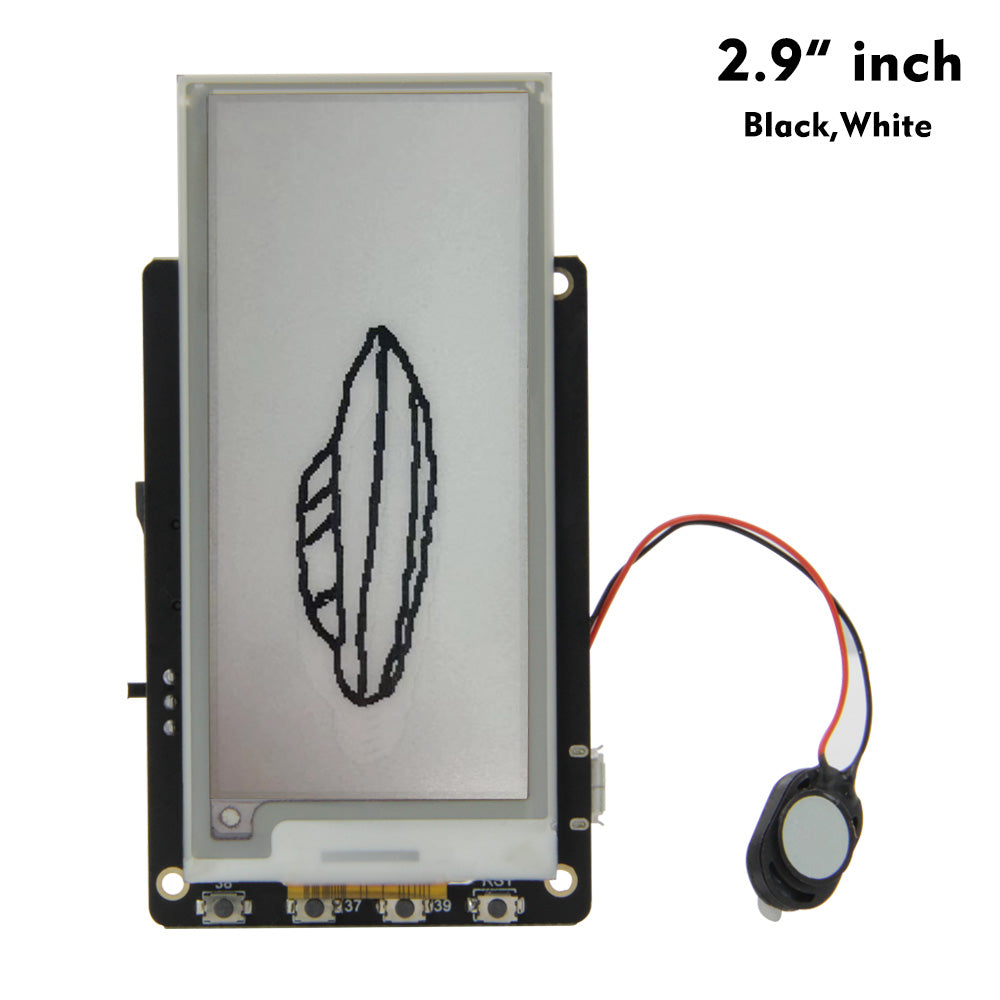

More Display
