LILYGO® TTGO T5 V2.3 2.13 Inch E-Paper Screen New Driver Chip
Overview
Due to the advantages like ultra low power consumption, wide viewing angle, clear display without electricity, it is an ideal choice for applications such as shelf label, industrial instrument, and so on.
Features
· No backlight, keeps displaying last content for a long time even when power down
· Ultra low power consumption, basically power is only required for refreshing
· Comes with development resources and manual (examples for Arduin-esp32)
Specifications
· Operating voltage: 3.3V
· Interface: 3-wire SPI, 4-wire SPI
· Display color: black, white
· Grey level: 2
· Full refresh time: 8s
· Refresh power: 26.4mW(typ.)
· Standby power: <0.017mW
· Viewing angle: >170°
Driver chip:GDEH0213B72
Dimensions
Pin Out
Product Details
Use Demonstration
Product Details
Part Number | Colors | Grey Level | Resolution | Display size (mm) | Outline Dimension (mm) | Full Refresh Time (s) | Partial Refresh Time (s) | Interface |
| | | | |||||
2.13inch e-Paper | black, white | 2 | 250x122 | 48.55 × 23.71 | 59.2 × 29.2 | 2 | 0.3 | SPI |
| | |||||||
|

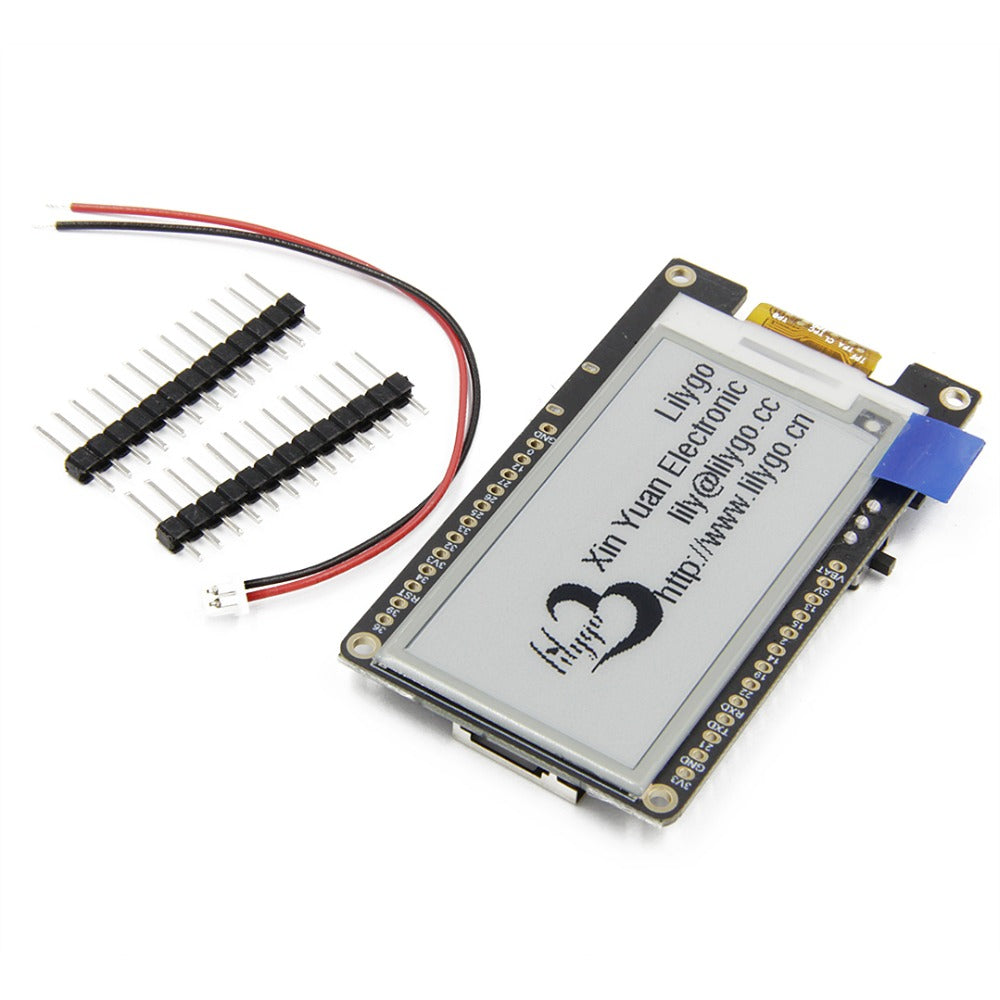

Shipping List
1 X T5 V2.13 ESP-32 Module
1 X Power Cable
1 X Free Box
2 X Pin
