TTGO T-SIM7000G Module ESP32-WROVER-B Chip WiFi 18560 Battery Holder Solar Charge Development Board Custom PCB customize
TTGO T-SIM7000G Module ESP32-WROVER-B Chip WiFi 18560 Battery Holder Solar Charge Development Board Custom PCB customize
Regular price
$44.30 USD
Regular price
$84.30 USD
Sale price
$44.30 USD
Unit price
per
Couldn't load pickup availability
LILYGO® TTGO T-SIM7000G Module ESP32-WROVER-B Chip WiFi Blth 18560 Battery Holder Solar Charge Development Board
Product Description
| Hardware Specifications |
| Main chip: ESP32 |
| Module: ESP32-WROVER-B,SIM7000G |
| Interface:USB,SD Card,Solar Input interface |
| Flash Memory: 4M Flash / 8M PSRAM |
| Button: Reset,Power switch |
| USB to TTL: CP2104 |
| Car Clock: 40MHz |
| SIM Card Size: Nano SIM Card |
| SIM Antenna |
| GPS Antenna |
| Operating Temperature Range: -40-85 degrees |
| Product Size: 111mm * 37mm * 20mm |
| Product Weight: 50g |
| Power Specifications |
| Working Voltage: 5v input |
| Working Curent: About 200mA |
| Sleep Current:1. With GPS antenna, the sleep current is about 15mA 2.Without GPS antenna, sleep current is about 750uA |
| Charging Current: 780mA |
| Battery Model: 18650 |
| Battery Holder Model: 18650 battery holder |
| JST Connector: 2pin 2mm |
| USB: TYPE-C 3.0 |
| Wi-Fi |
| Standard ：FCC/CE-RED/IC/TELEC/KCC/SRRC/NCC |
| Protocol ：802.11 b/g/n(802.11n，speed up to150Mbps)A-MPDU and A-MSDU polymerization，support 0.4μS Protection interval |
| Frequency ：range 2.4GHz~2.5GHz(2400M~2483.5M) |
| Transmit Power ：22dBm |
| Communication distance : 300m |
| Bth |
| Protocol meet Bth : v4.2BR/EDR and BLE standard |
| Radio Frequency : with -97dBm sensitivity NZIF receiver Class-1,Class-2&Class-3 emitter AFH |
| Audio Frequency : CVSD&SBC audio frequency |
| Software Specification |
| Wi-Fi Mode : Station/SoftAP/SoftAP+Station/P2P |
| Security Mechanism : WPA/WPA2/WPA2-Enterprise/WPS |
| Encryption Type : AES/RSA/ECC/SHA |
| Firmware Upgrade :UART download/OTA（Through network/host to download and write firmware） |
| Software Development : Support cloud server development /SDK for user firmware development |
| Networking Protocol : IPv4、IPv6、SSL、TCP/UDP/HTTP/FTP/MQTT |
| User Configuration : AT + Instruction set, cloud server, android/iOSapp |
| OS : FreeRTOS |
Version update function:
1. Battery positive and negative pole wrong connection protection
2. Strengthen GPS, Lora control, reduce product power consumption
3. Replace 2.0MM IC
4. Solar charging
More Information
https://github.com/Xinyuan-LilyGO/T-SIM

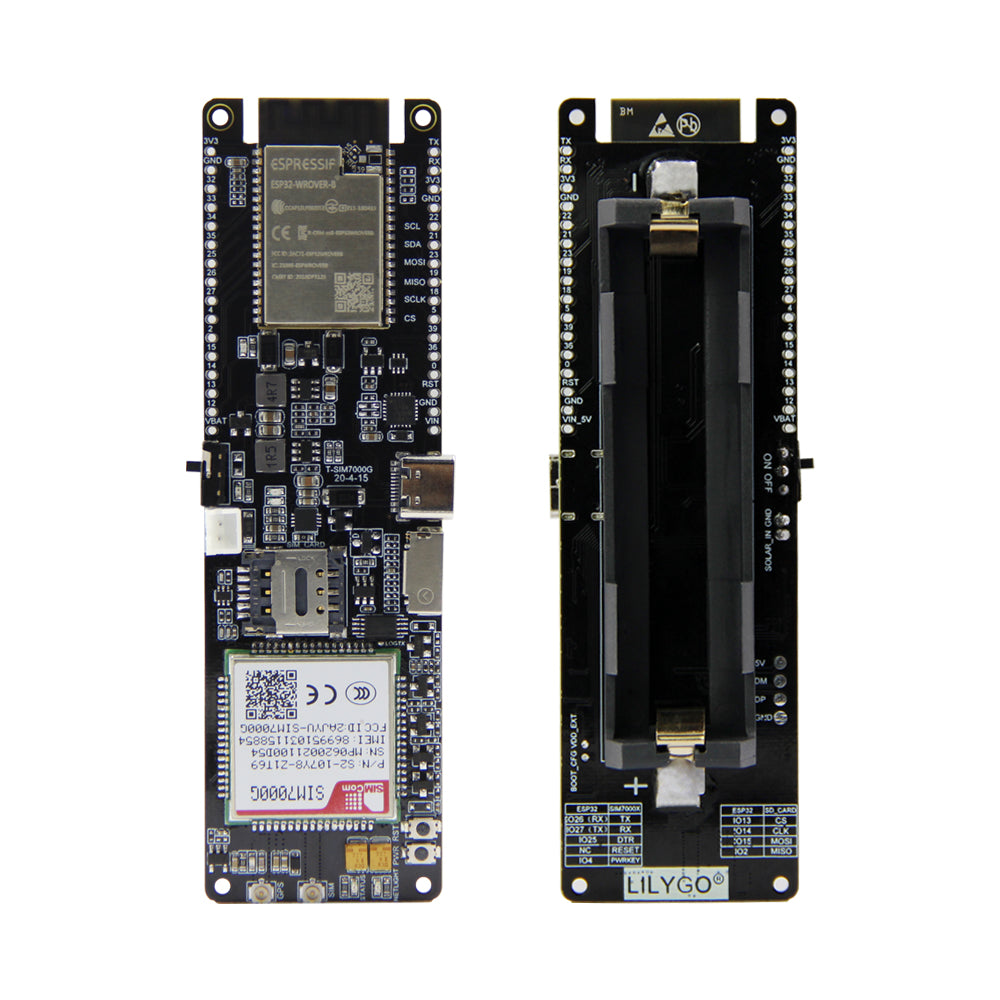

Product Pin
Product Size
Product Detail

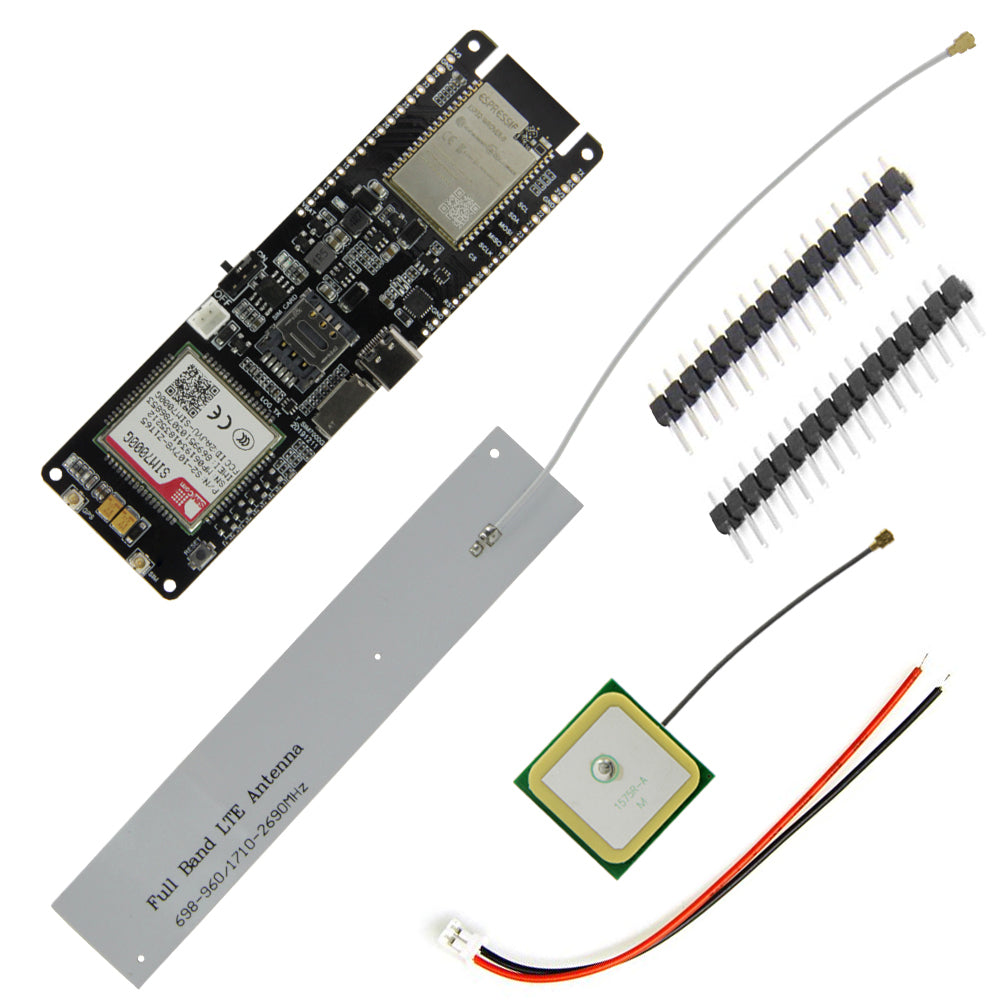

Shipping List
1 X T-SIM7000G
1 X SIM antenna
1 X GPS antenna
1 X Power cable
2 X Pin
