LILYGO® TTGO T-PCIE Module ESP32 Chip Support WIFI Blth Nano Card SIM Series Composable Development Board
Note:TF card deck is upgraded to self-popping deck
Product Description
Hardware Specifications |
|
Chipset | ESP32-WROVER-B,AXP192 Power Management Chip |
FLASH | 4MB |
PSRAM | 8MB |
SRAM | 520 kB SRAM |
Button | PWR Power Switch,Reset |

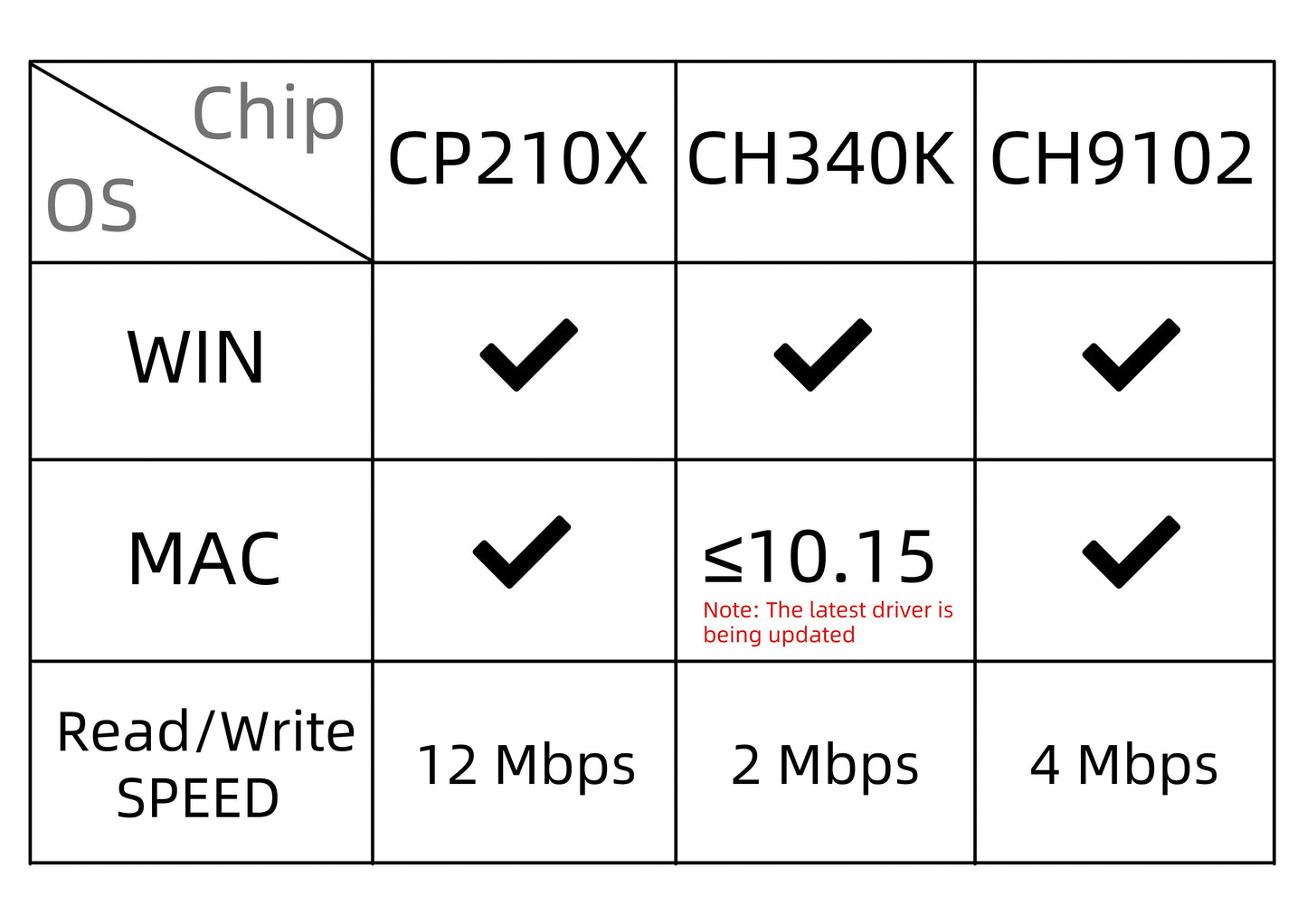

USB to TTL | CP2104 or CH9102F or CH340K |
On-board clock | 40MHz crystal oscillator |
Peripherals | SIM Nano Card Slot,Mini PCIE Card Slot |
Antenna | Onboard antenna(Default) |
Working voltage | 2.7V-3.6V |
Working current |
|
Sleep current | About 700uA |
Working temperature range | -40℃ ~ +85℃ |
Size | 75*33*10.5mm |
Weight | 14.5g |
Power Supply Specifications |
|
Power Supply Input | USB 5V/1A |
Charging current | 500mA |
Battery Input | 3.7-4.2V |
Charge IC | AXP192 |
JST Connector | 2Pin 2.0mm |
USB | Type-C |
Wi-Fi |
|
Standard | FCC/CE-RED/IC/TELEC/KCC/SRRC/NCC (ESP32 Chip) |
Protocol | 802.11 b/g/n(802.11n,speed up to150Mbps)A-MPDU and A-MSDU polymerization,support 0.4μS Protection interval |
Frequency range | 2.4GHz~2.5GHz(2400M~2483.5M) |
Transmit Power | 22dBm |
Communication distance | 300m |
Blth |
|
Protocol | Meet bth v4.2BR/EDR and BLE standard |
Radio frequency | With -97dBm sensitivity NZIF receiver Class-1,Class-2&Class-3 emitter AFH |
Audio frequency | CVSD&SBC audio frequency |
Software specification |
|
Wi-Fi Mode | Station/SoftAP/SoftAP+Station/P2P |
Security mechanism | WPA/WPA2/WPA2-Enterprise/WPS |
Encryption Type | AES/RSA/ECC/SHA |
Firmware upgrade | UART download/OTA(Through network/host to download and write firmware) |
Software Development | Support cloud server development /SDK for user firmware development |
Networking protocol | IPv4、IPv6、SSL、TCP/UDP/HTTP/FTP/MQTT |
User Configuration | AT + Instruction set, cloud server, android/iOSapp |
OS | FreeRTOS |
Product Size
Shipping List

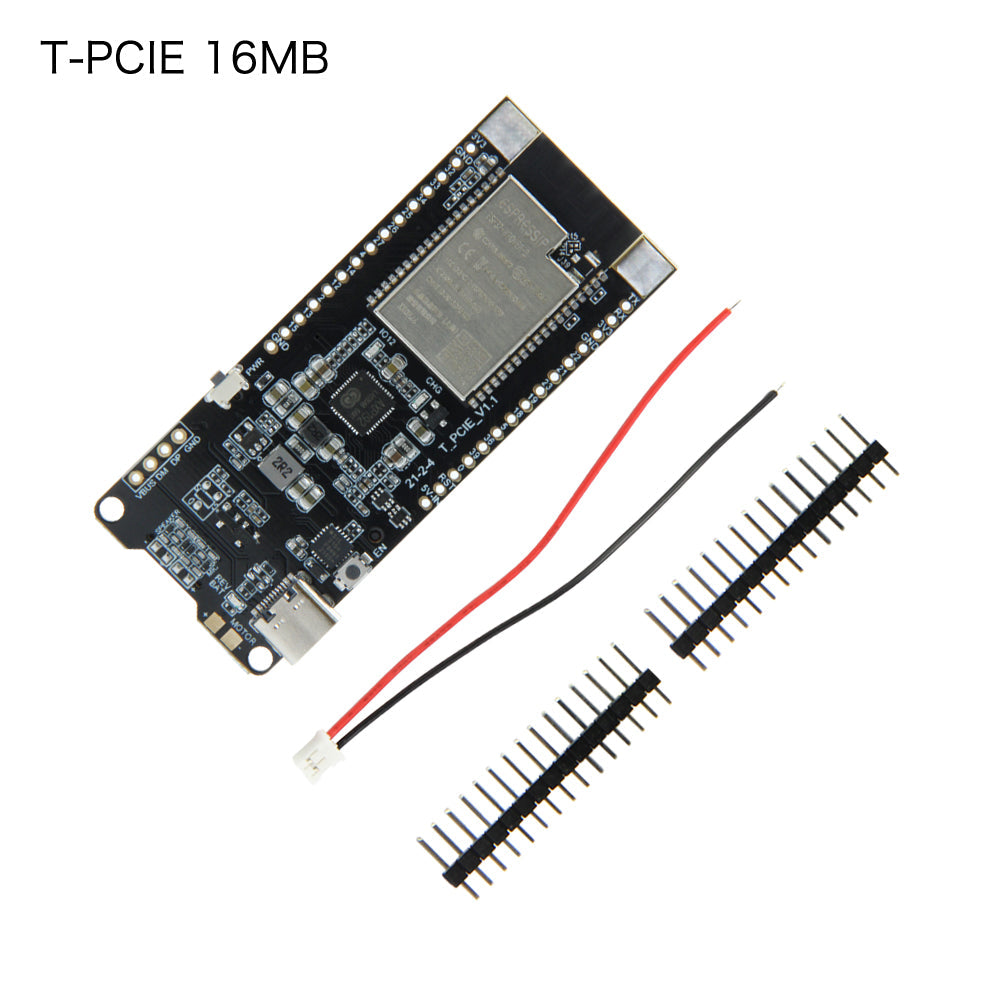

T-PCIE CP2104 4MB
T-PCIE CP2104 16MB
1 X T-PCIE CP210416MB
T-PCIE CH340K 4MB
1 X T-PCIE CH340K 4MB
T-PCIE CH340K 16MB
1 X T-PCIE CH340K 16MB
T-PCIE CH9102F 4MB
1 X T-PCIE CH9102F 4MB
T-PCIE CH9102F 16MB
1 X T-PCIE CH9102F 16MB

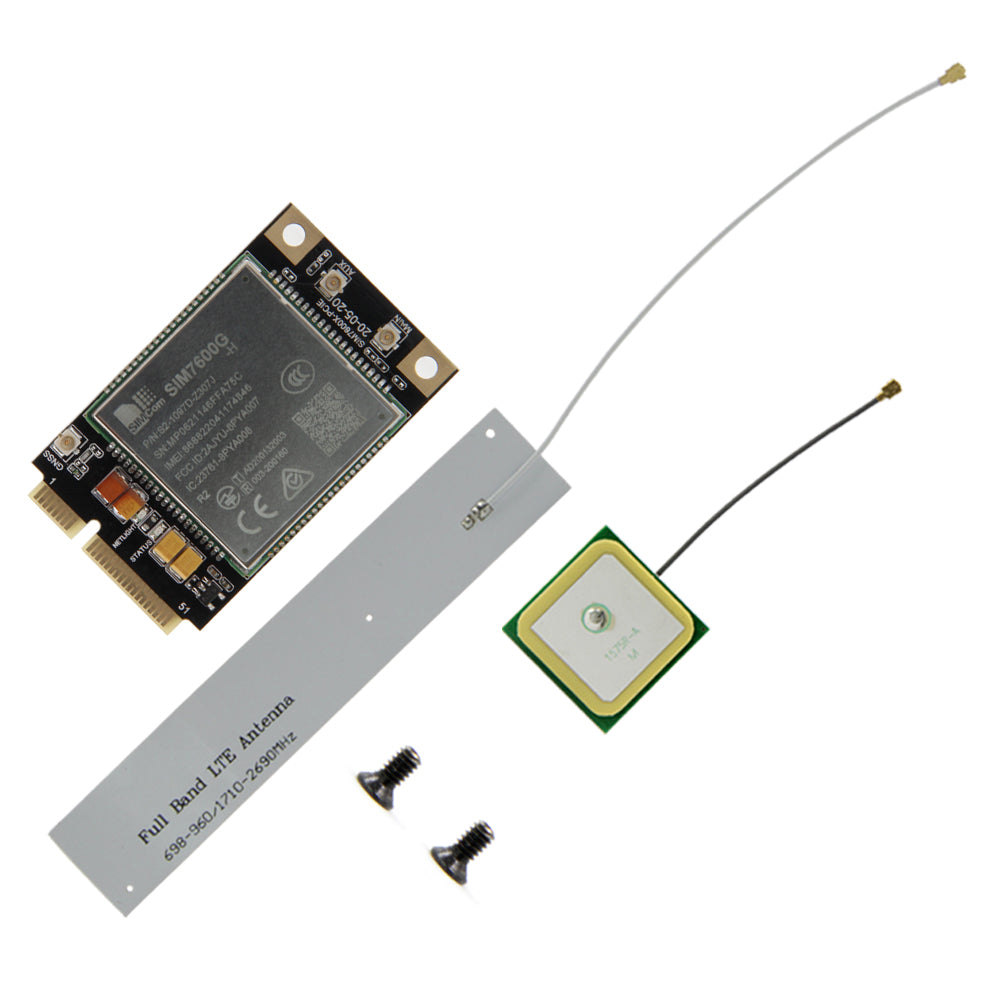

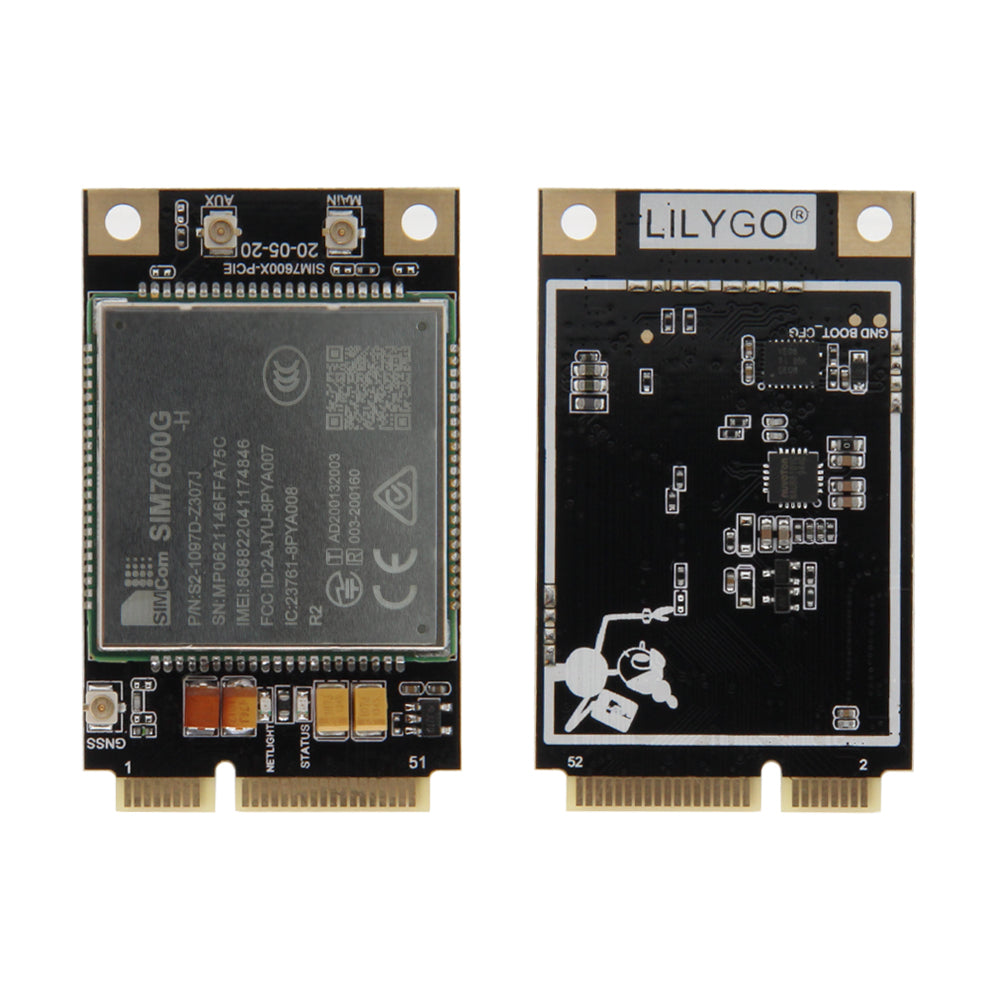

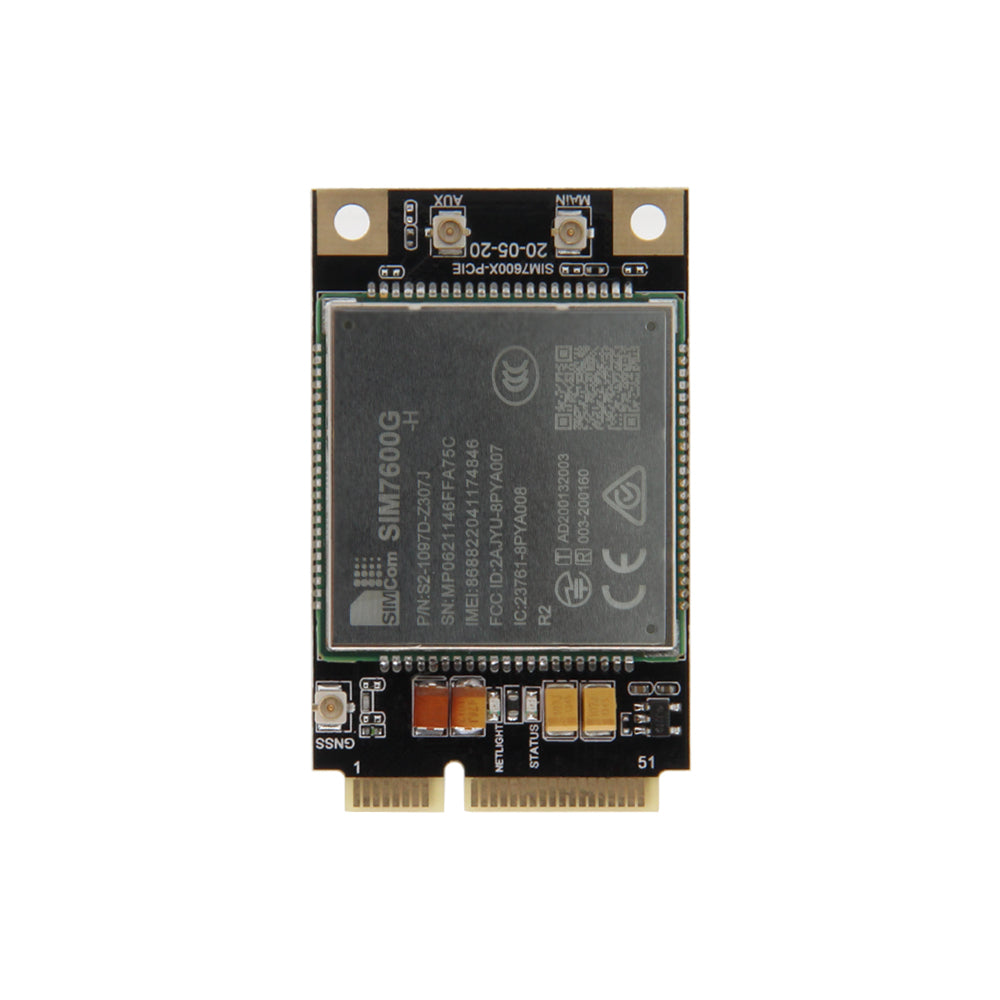

PCIE-SIM7600G-H Module Option

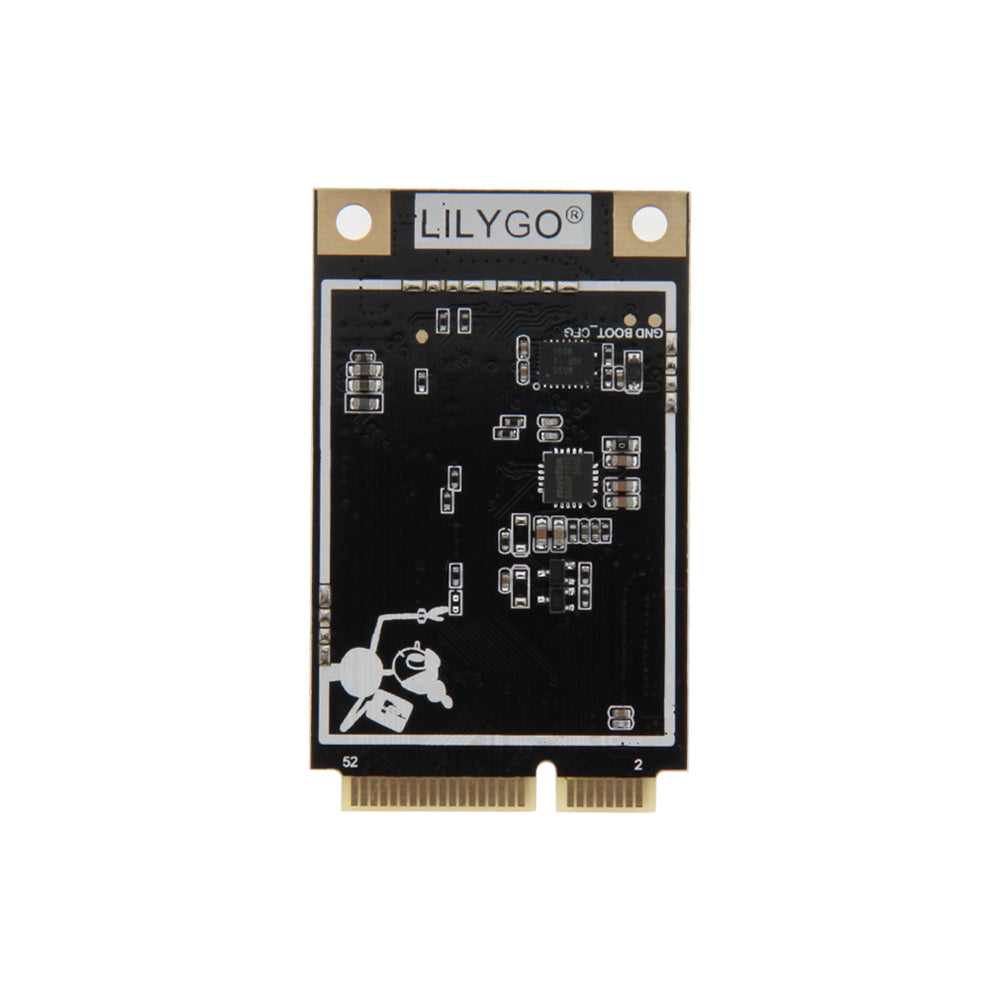

PCIE-7600SA-H Module Option
