TTGO T-Motion S76G Lora Chip LORA 868/915/923Mhz Antenna GPS Antenna USB Connector Development Board tig ac dc pcba customize

TTGO T-Motion S76G Lora Chip LORA 868/915/923Mhz Antenna GPS Antenna USB Connector Development Board tig ac dc pcba customize

$26.71 USD
$66.71 USD $26.71 USD
Sale Sold out
Specification

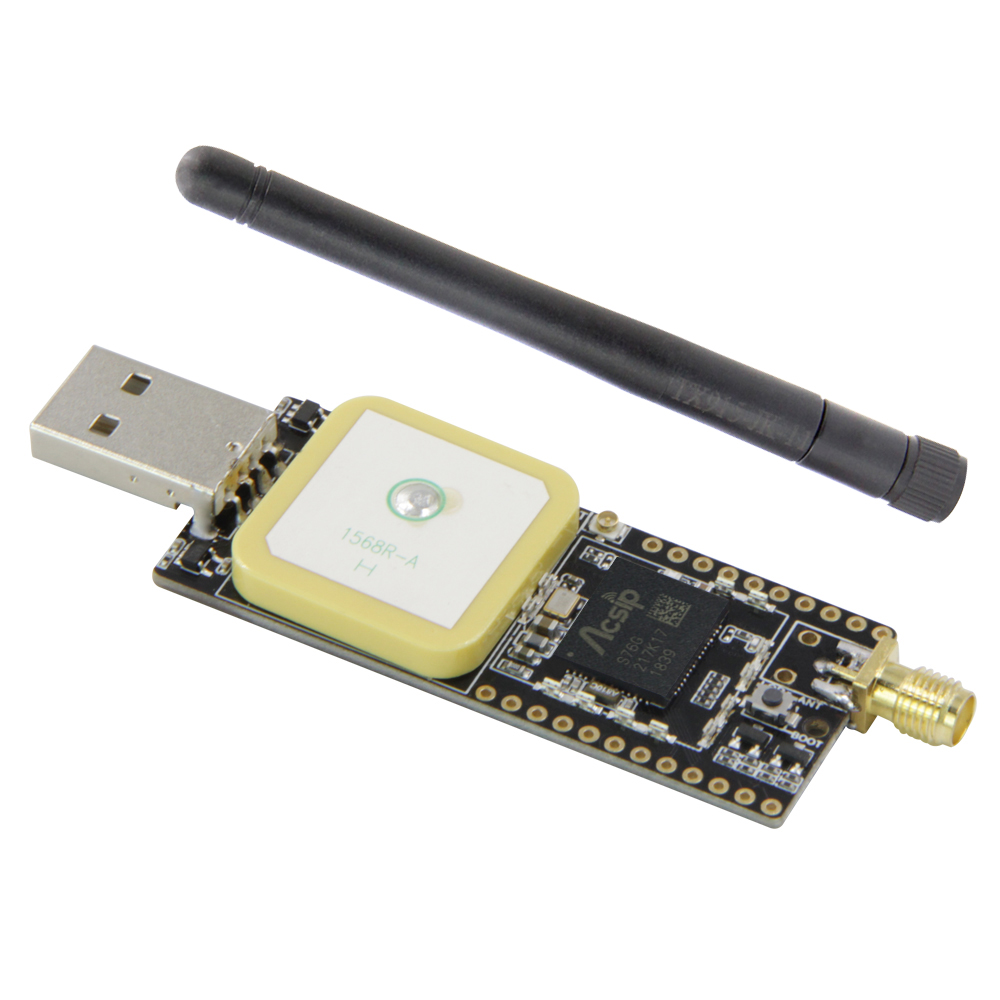

LILYGO®&SoftRF TTGO T-Motion S76G Lora Chip LORA 868/915/923Mhz Antenna GPS Antenna USB Connector Development Board

Product Description

Hardware specifications

Main chip: S76G Lora Chip
Button: BOOT
Car clock: 26MHz active crystal
Antenna Model: LORA 868MHZ GPS Antenna
Operating temperature range: -45-80 ℃
Size: 78.12mm * 25.40mm * 62.67mm
Weight: 30g

Power Specifications

Working voltage: 5v input
Working current: About 18mA
USB: USB male


More information:

https://github.com/lyusupov/SoftRF/tree/master/software/firmware/binaries/STM32/S76G

https://github.com/lyusupov/SoftRF/wiki/AcSiP-S7xG-flashing-instructions

https://github.com/Xinyuan-LilyGO/LilyGO-T-Motion

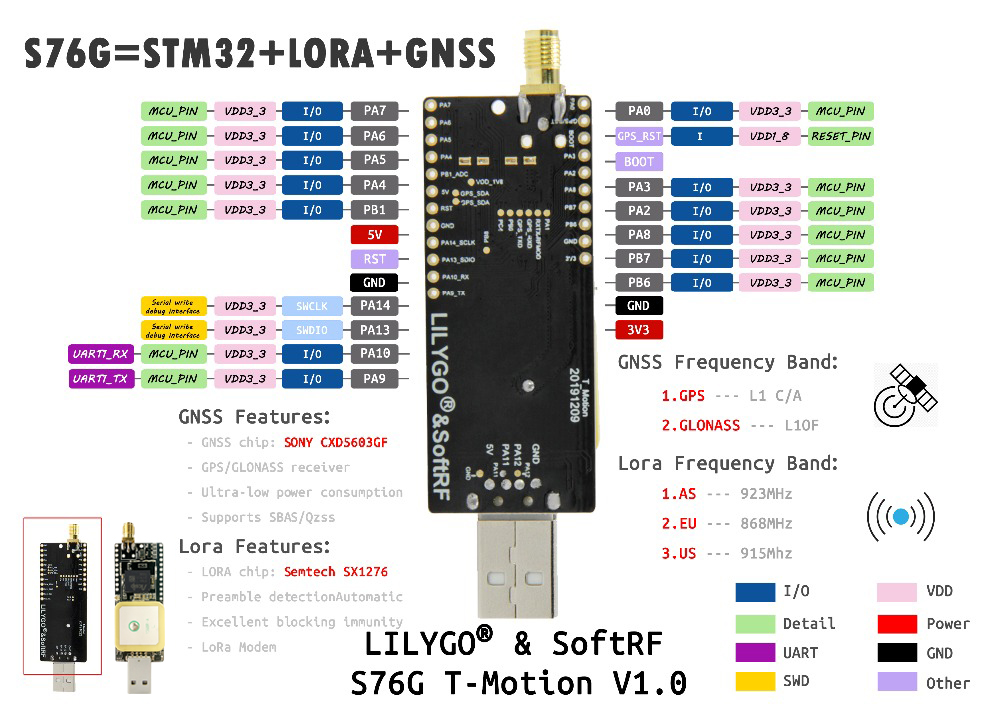

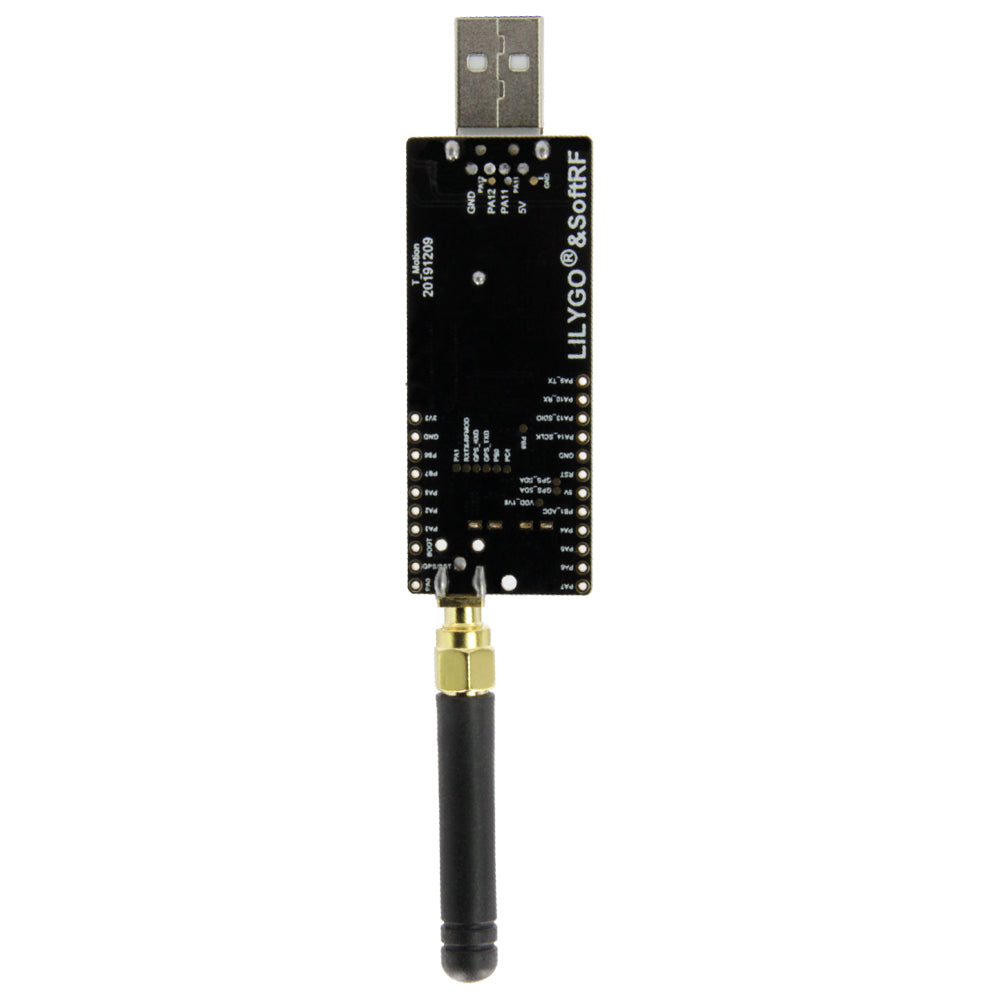

Product PIN Diagram

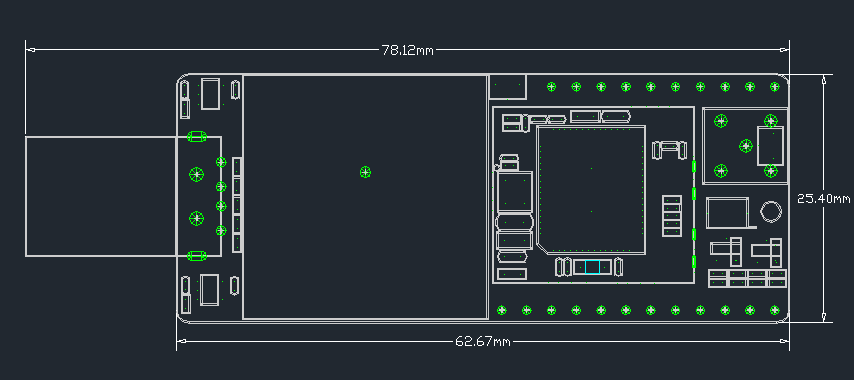

Size Chart

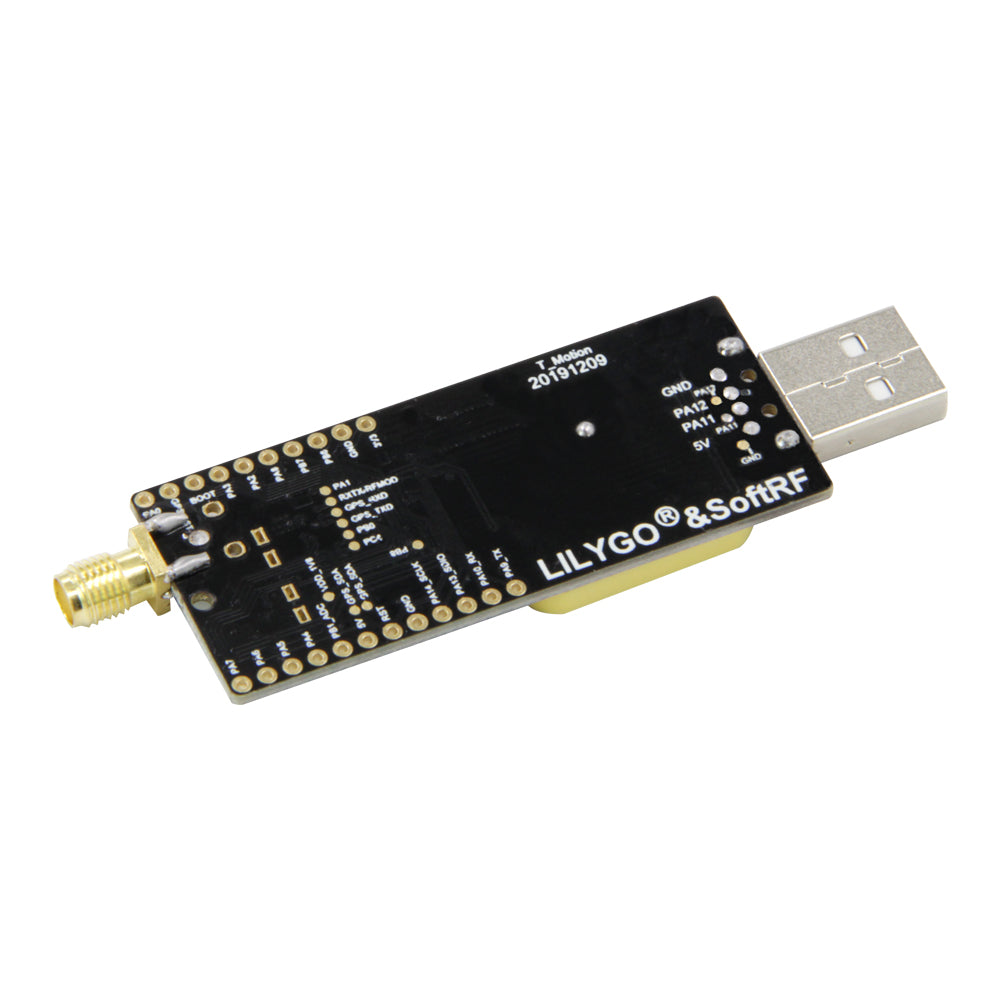

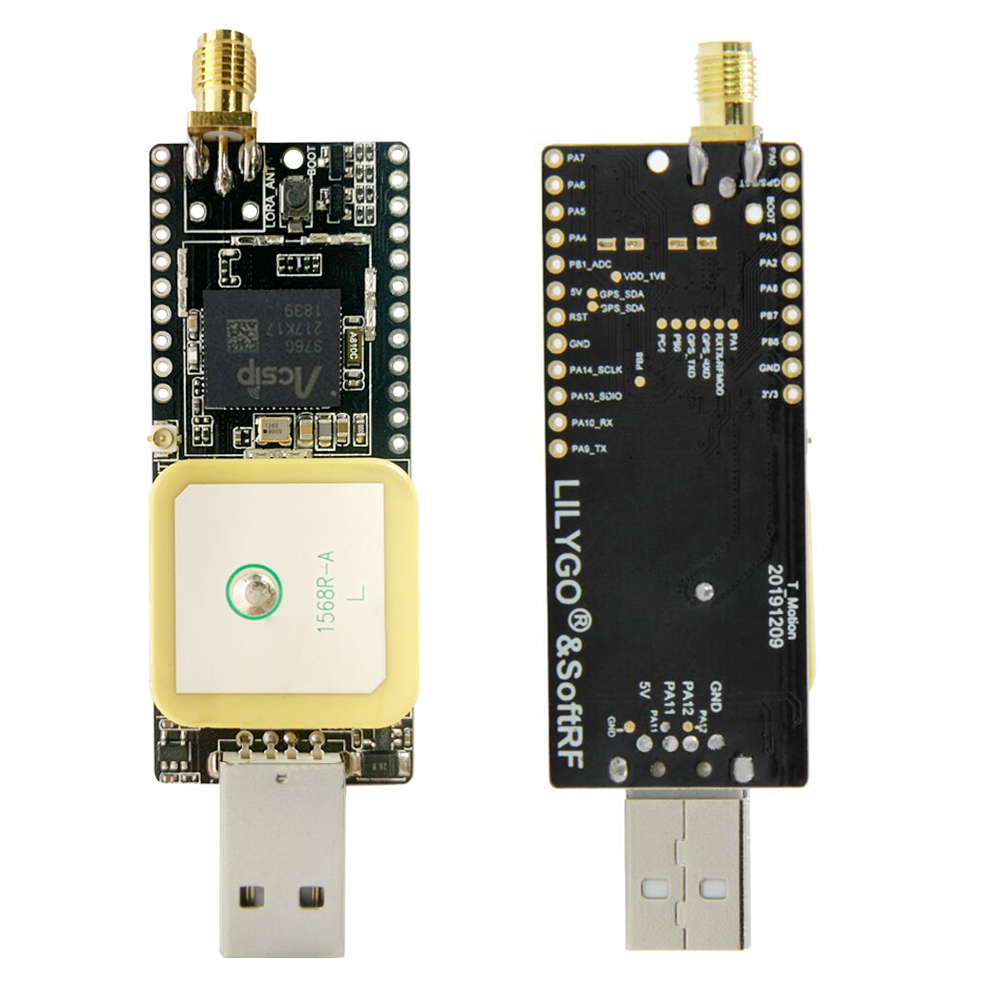

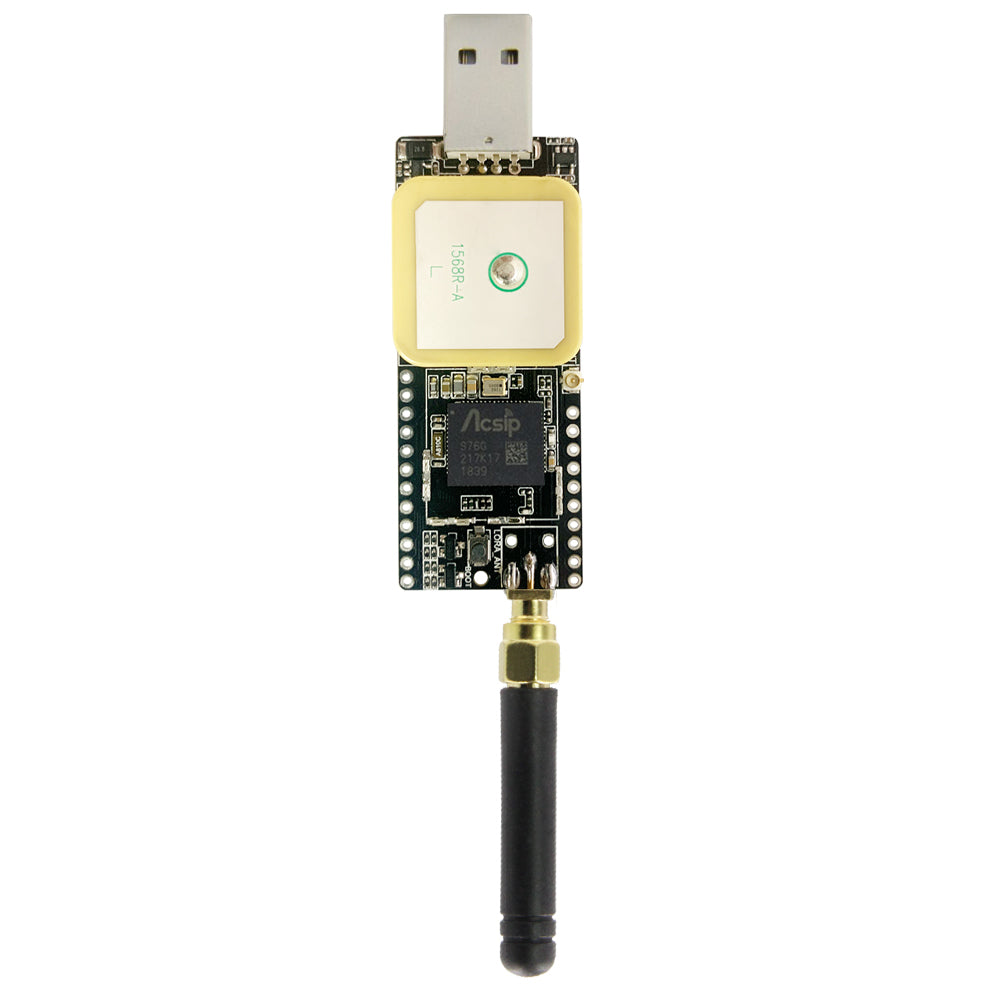

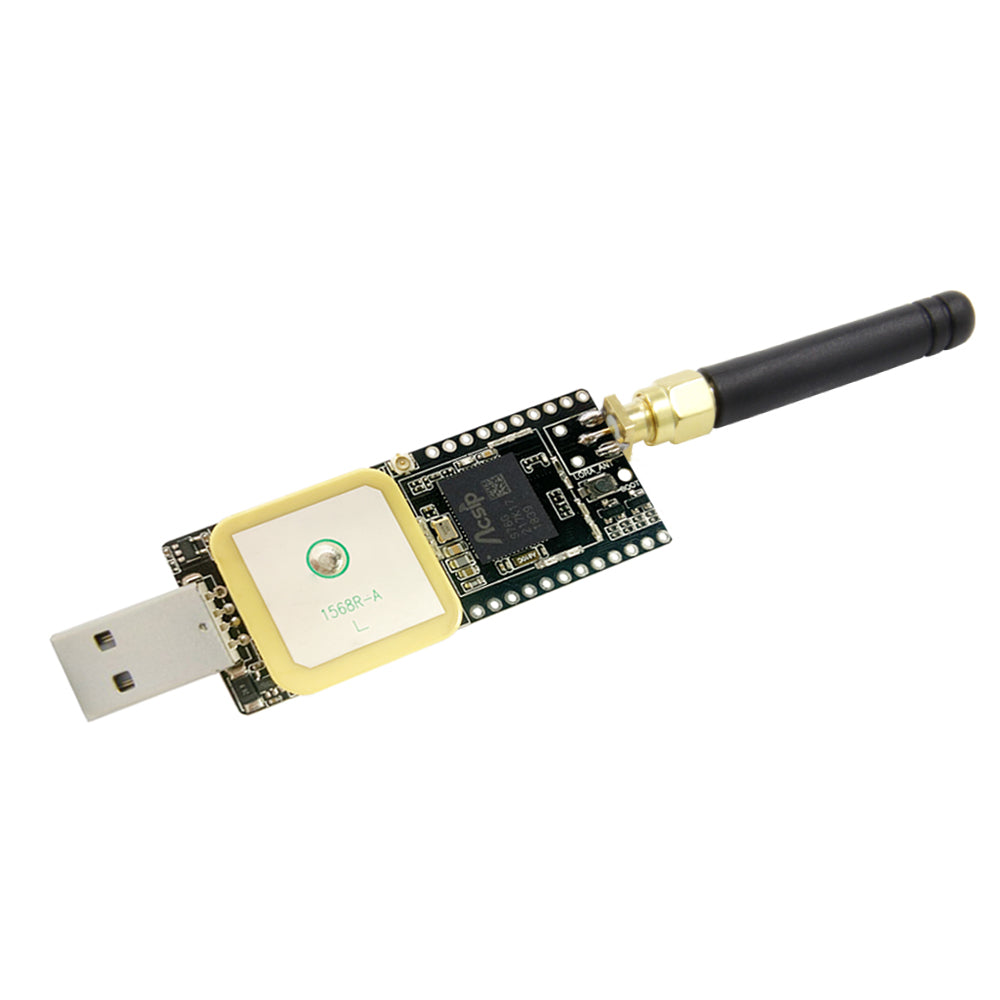

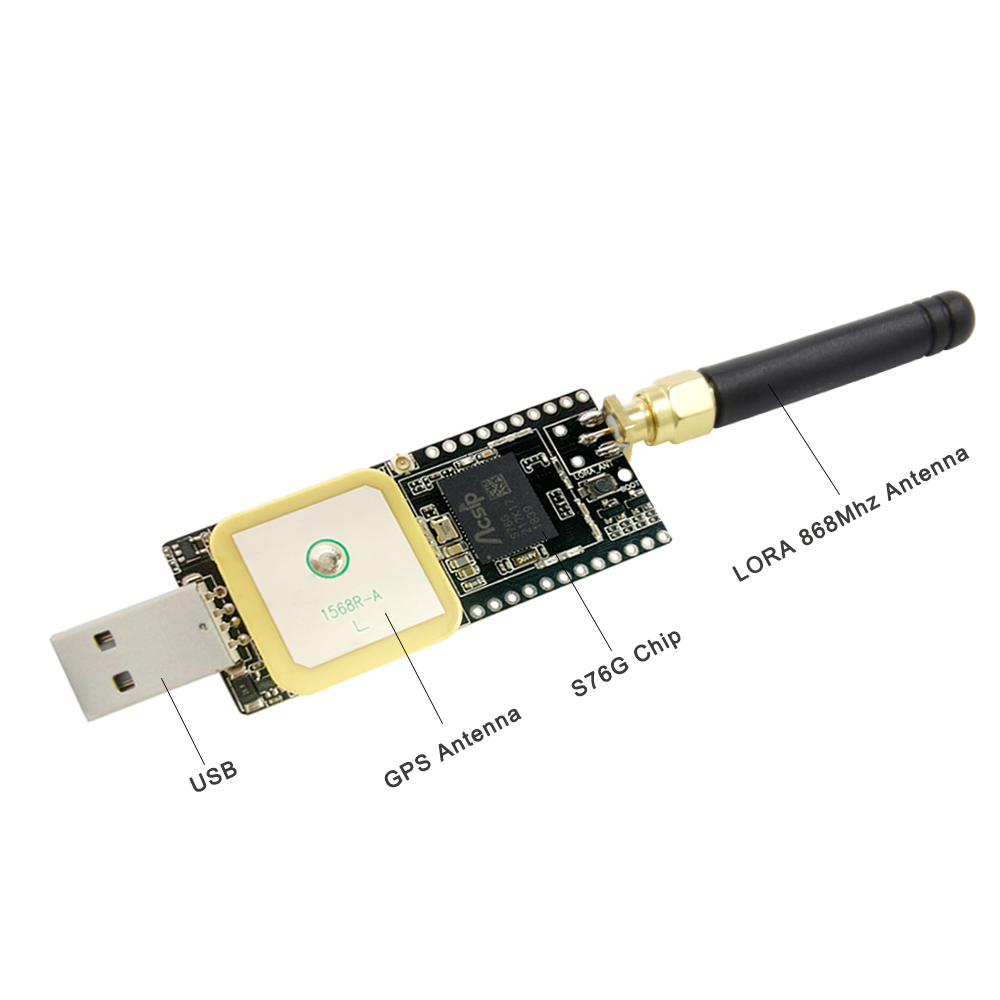

Product Detail

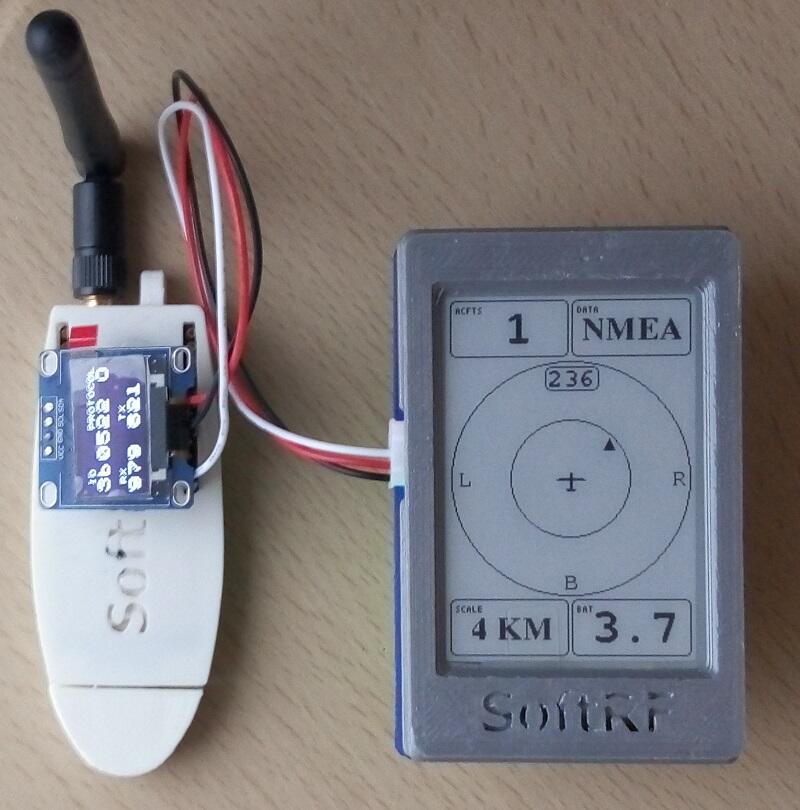

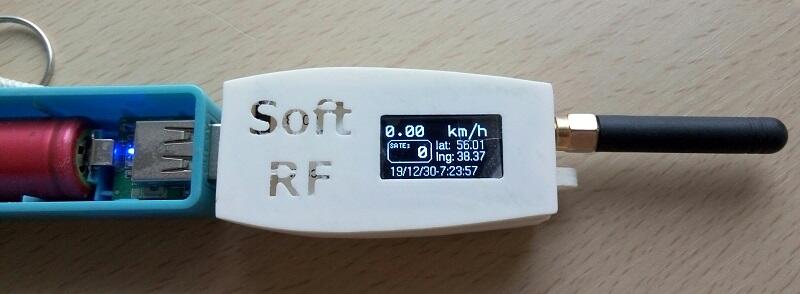

Product Usage Display

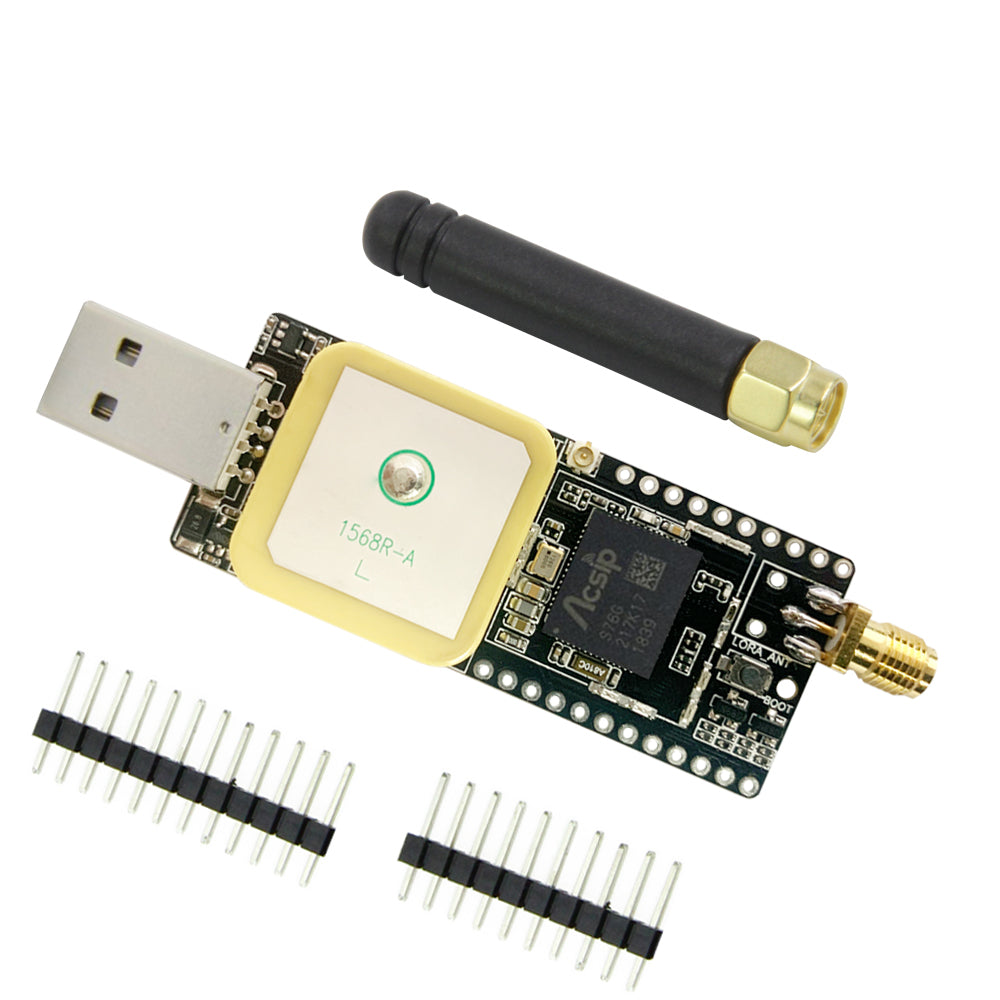

Shipping List

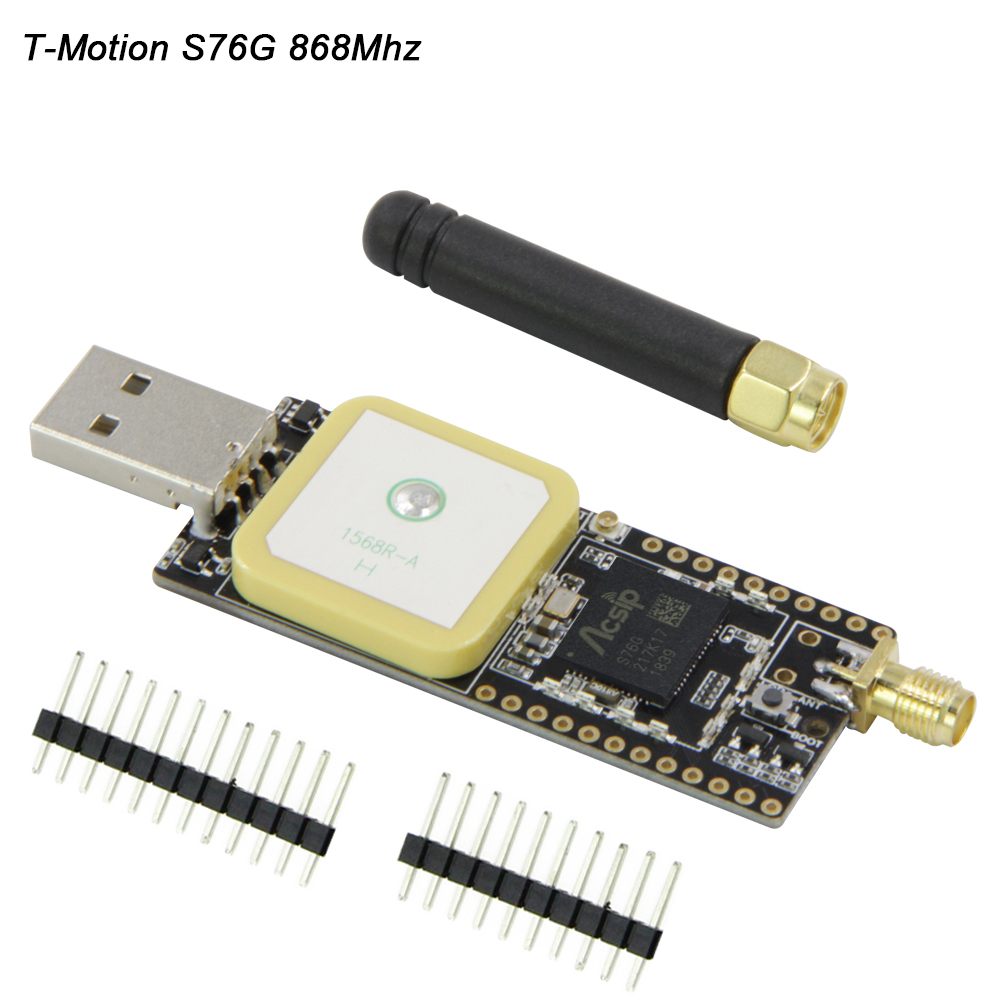

1.T-Motion 868Mhz

1 X T-Motion(Notice:SoftRF writer firmware is installed by default)

1 X LORA 868MHZ Antenna

2 X Pin

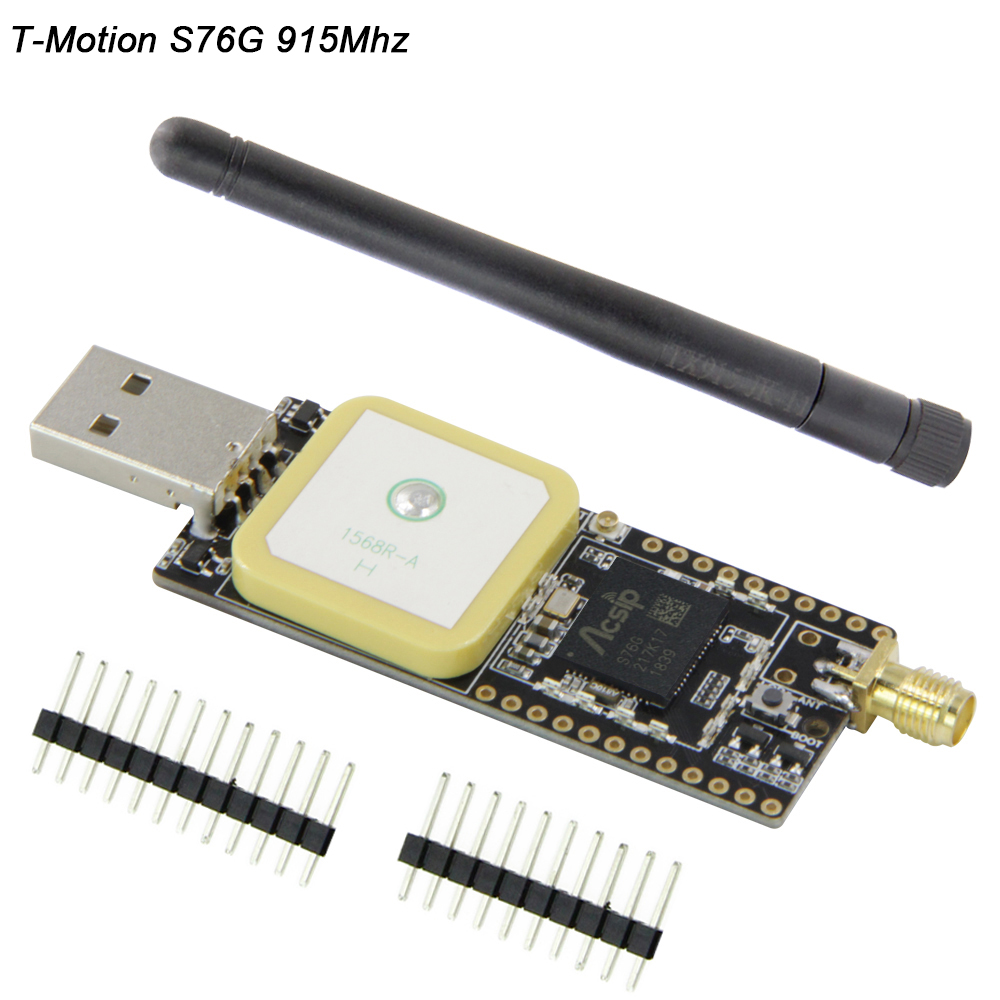

2.T-Motion 915Mhz

1 X T-Motion(Notice:SoftRF writer firmware is installed by default)

1 X LORA 915MHZ Antenna

2 X Pin



2.T-Motion 923Mhz

1 X T-Motion(Notice:SoftRF writer firmware is installed by default)

1 X LORA 923MHZ Antenna

2 X Pin


 Welcome Customize Order!
