TTGO T-Lite W5500 ESP32 Main Chip SSD1306 0.96 Inch Oled Type-C USB Programming Development Board Custom PCB electrical customize
TTGO T-Lite W5500 ESP32 Main Chip SSD1306 0.96 Inch Oled Type-C USB Programming Development Board Custom PCB electrical customize
Regular price
$11.03 USD
Regular price
$51.03 USD
Sale price
$11.03 USD
Unit price
per
Couldn't load pickup availability

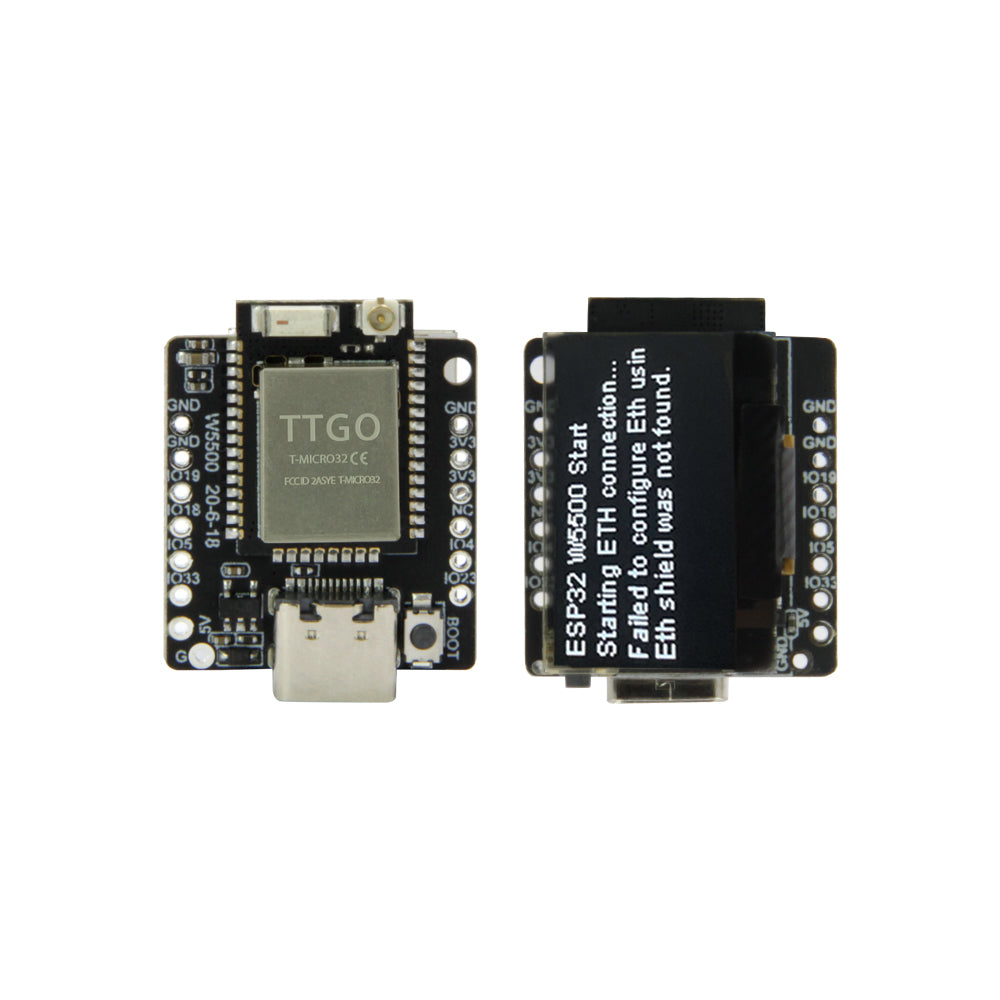

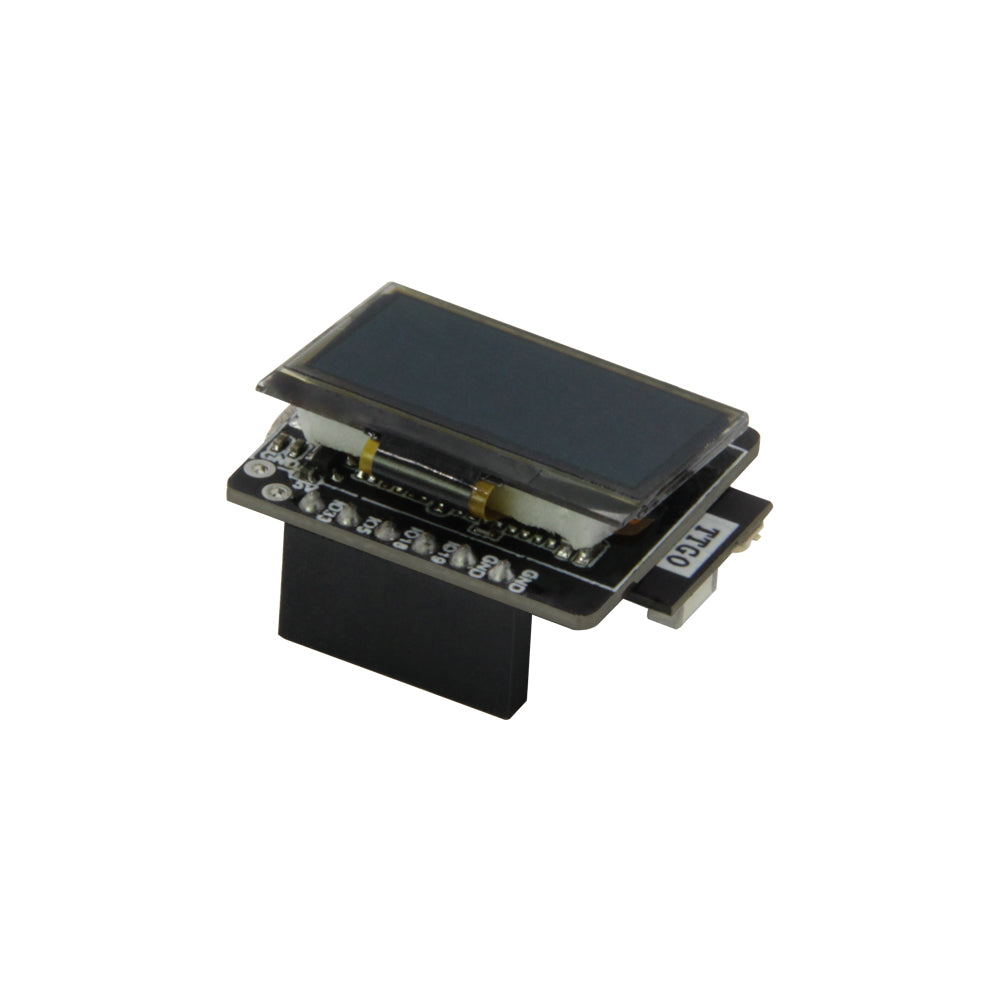

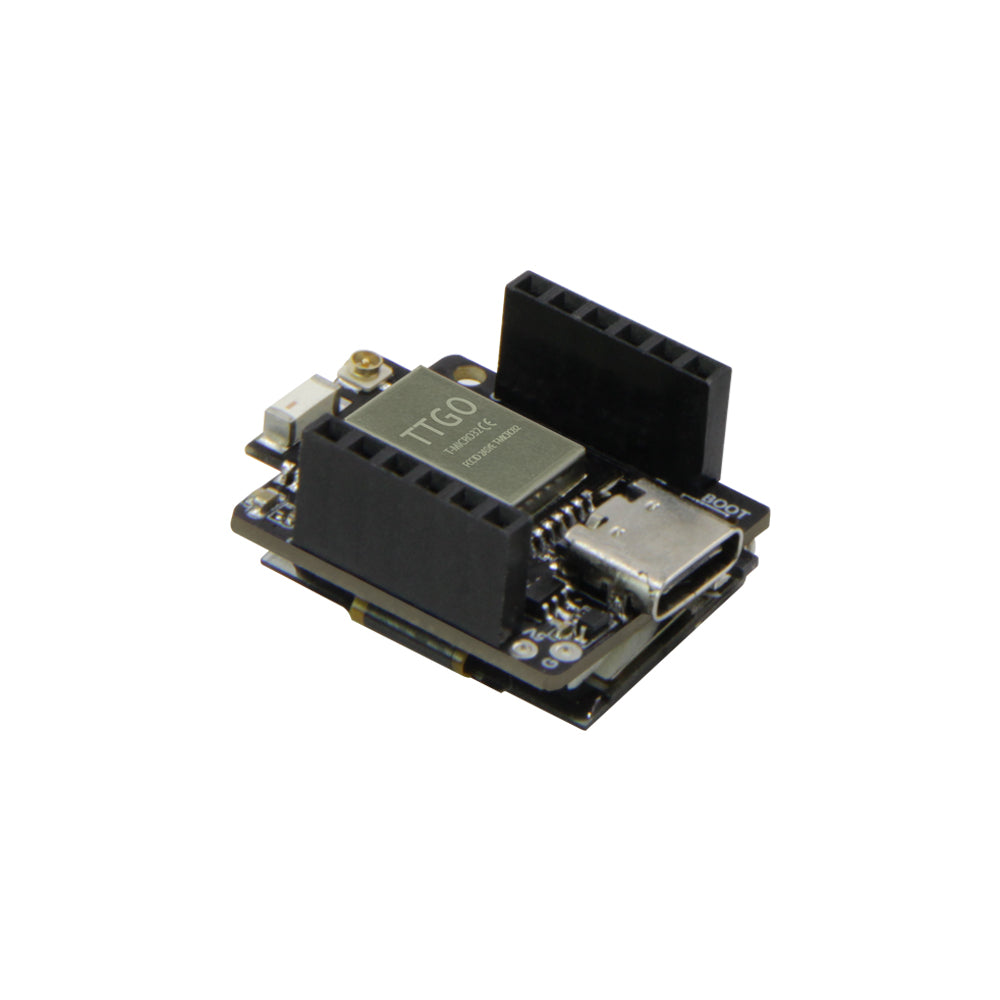

LILYGO® TTGO T-Lite W5500 ESP32 Main Chip SSD1306 0.96 Inch Oled Type-C USB Programming Development Board
Product Description
| Hardware Specifications | |
| Chipset | ESP32 |
| FLASH | 4MB |
| SRAM | 520 kB SRAM |
| Button | Boot,Reset |
| USB to TTL | CP2104 |
| On-board clock | 40MHz crystal oscillator |
| Display | SSD1306 / 0.96 Inch Oled |
| Antenna | Onboard ceramic antenna / Expandable antenna interface |
| Working voltage | 2.7V-3.6V |
| Working temperature range | -40℃ ~ +85℃ |
| Size | 29.5*23*8MM |
| Weight | 4.5g |
|
Power Supply Specifications | |
| Power Supply Input | USB 5V/1A |
| USB | Type-C |
| Wi-Fi | Description |
| Standard | FCC/CE-RED/IC/TELEC/KCC/SRRC/NCC (esp32 chip) |
| Protocol | 802.11 b/g/n(802.11n，speed up to150Mbps)A-MPDU and A-MSDU polymerization，support 0.4μS Protection interval |
| Frequency range | 2.4GHz~2.5GHz(2400M~2483.5M) |
| Transmit Power | 22dBm |
| Communication distance | 300m |
|
Blth | |
| Protocol | Meet blth v4.2BR/EDR and BLE standard |
| Radio frequency | With -97dBm sensitivity NZIF receiver Class-1,Class-2&Class-3 emitter AFH |
| Audio frequency | CVSD&SBC audio frequency |
|
Software specification | |
| Wi-Fi Mode | Station/SoftAP/SoftAP+Station/P2P |
| Security mechanism | WPA/WPA2/WPA2-Enterprise/WPS |
| Encryption Type | AES/RSA/ECC/SHA |
| Firmware upgrade | UART download/OTA（Through network/host to download and write firmware） |
| Software Development | Support cloud server development /SDK for user firmware development |
| Networking protocol | IPv4、IPv6、SSL、TCP/UDP/HTTP/FTP/MQTT |
| User Configuration | AT + Instruction set, cloud server, android/iOSapp |
| OS | FreeRTOS |
More Information
https://github.com/Xinyuan-LilyGO/LilyGo-W5500-Lite
Product Pin
Product Size
Product Detail

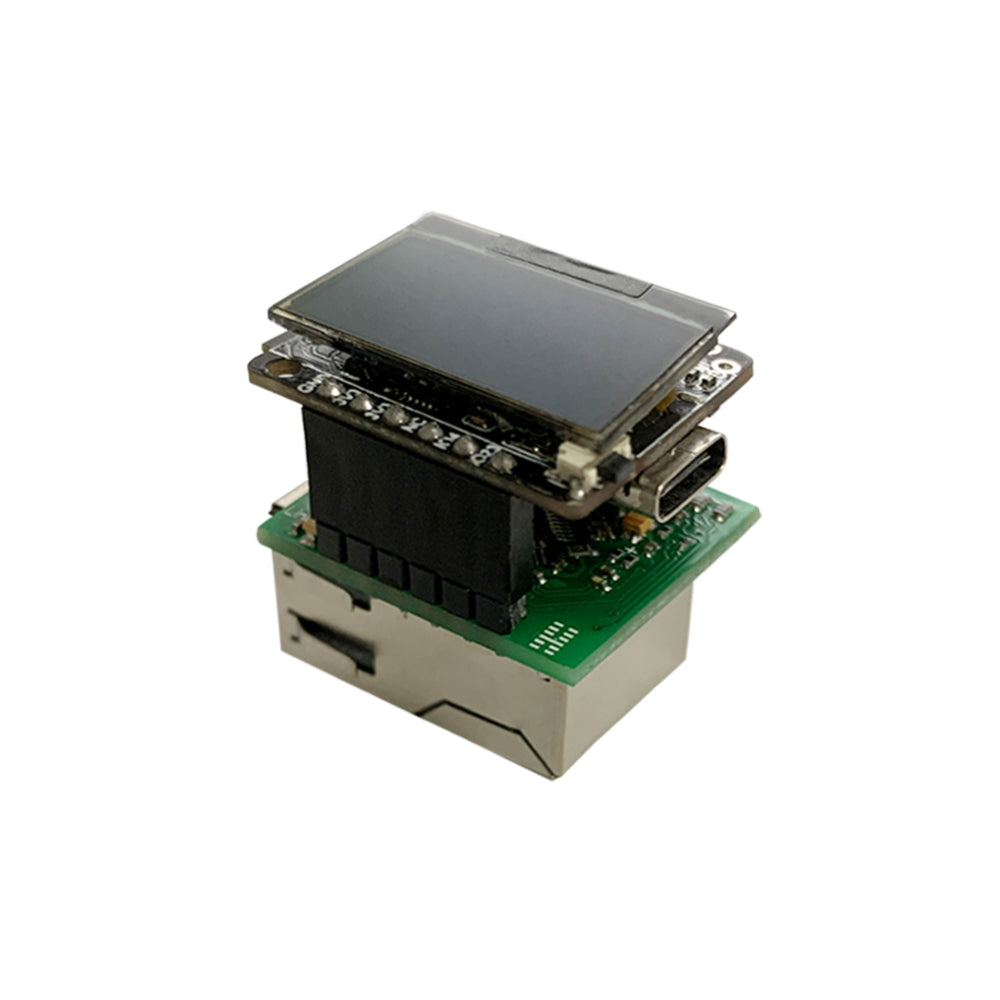

It can be used in conjunction with IOT gateway products. In the picture, the busbar soldering is only for display on the product. The actual shipment is not soldered by default. If you need to solder, please note before placing an order
Shipping List
T-Lite W5500 Option

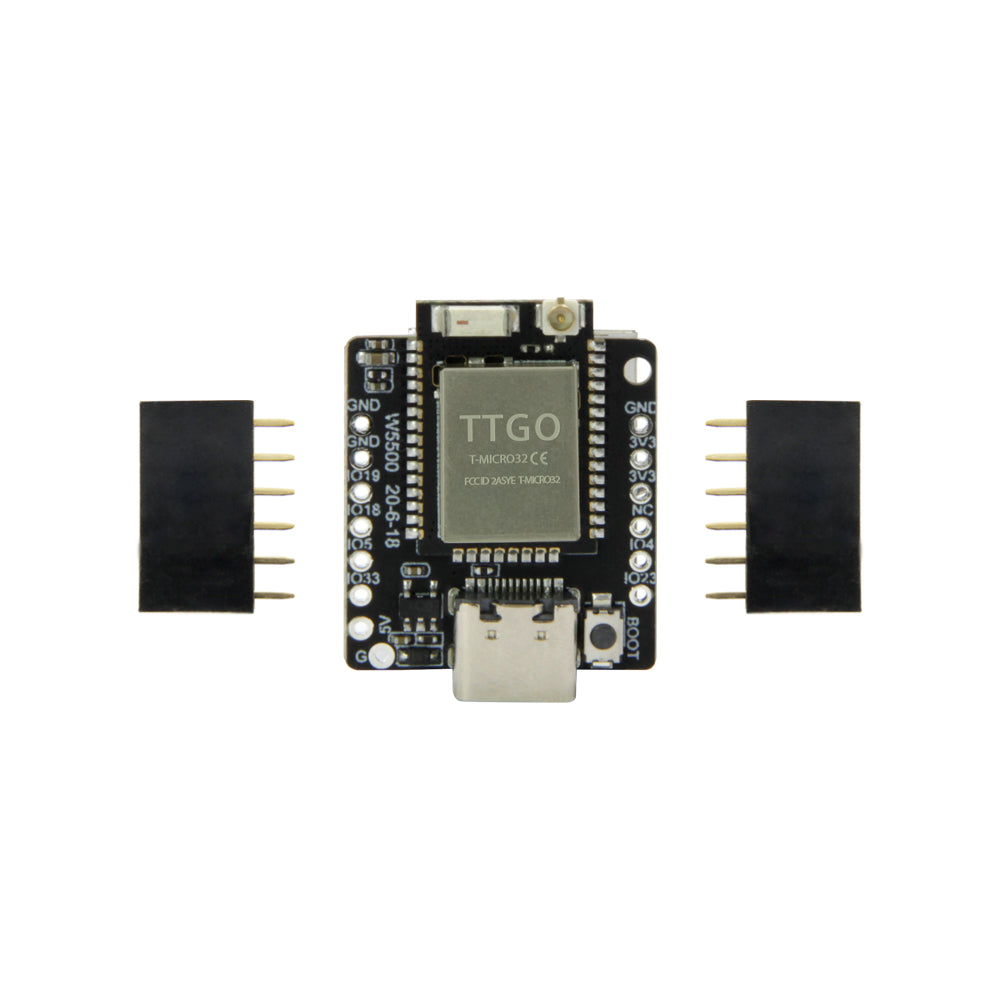

1 X T-Lite W5500
2 x Female Pin

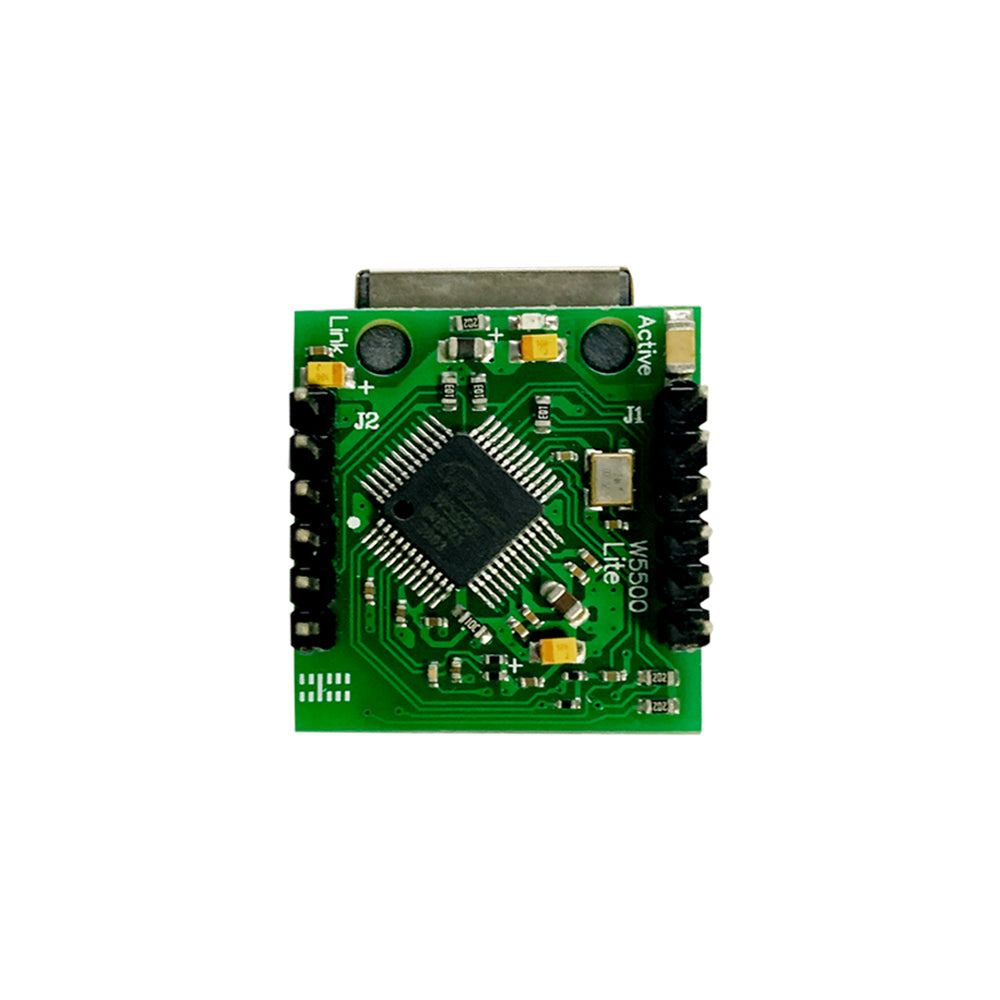

W5500 Gateway Module Option
1 X W5500 Gateway Module(Default solder header)
