TTGO T-Camera ESP32 WROVER & PSRAM Camera Module ESP32-WROVER-B OV2640 Camera Module 0.96 OLED Custom PCB customize

TTGO T-Camera ESP32 WROVER & PSRAM Camera Module ESP32-WROVER-B OV2640 Camera Module 0.96 OLED Custom PCB customize

Regular price $20.10 USD
Regular price $60.10 USD Sale price $20.10 USD
Sale Sold out

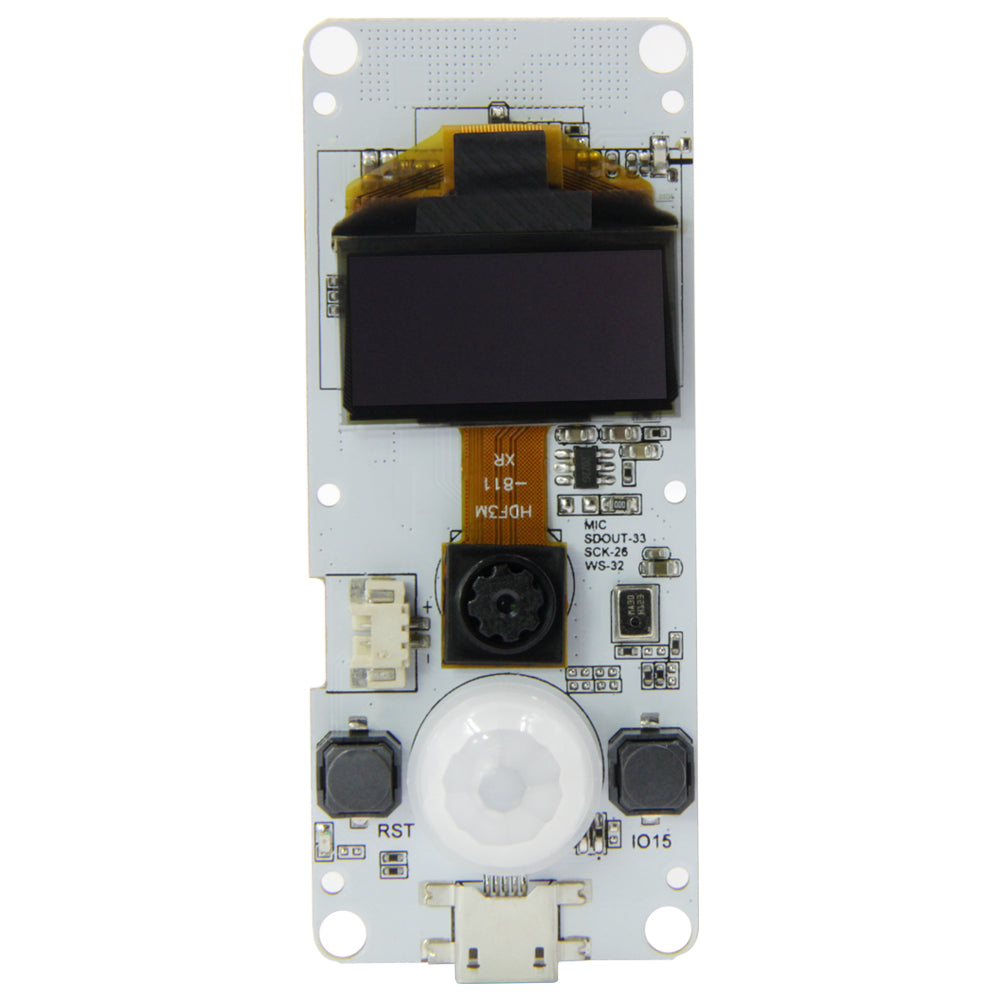

 TTGO T-Camera ESP32 WROVER & PSRAM Camera Module ESP32-WROVER-B OV2640 Camera Module 0.96 OLED

T-Camera Specification

Master Chip: esp32 dual-core
Protocol: Wi-Fi 802.11 b/g/n & Blth 4.2 BLE & BR/EDR
Flash: 4MBytes
PSRAM: 8MBytes
Display chip: SSD1306 I2C
Display type: OLED
Display resolution: 128x64
PIR: AS312
Uart Chip: CP2104
Charging chip: IP5306 I2C(Mic T-Camera without I2C)
Camera: OV2640
Camera Resolution: 2Megapixel

Data download link:

https://github.com/Xinyuan-LilyGo/esp32-face-recognition

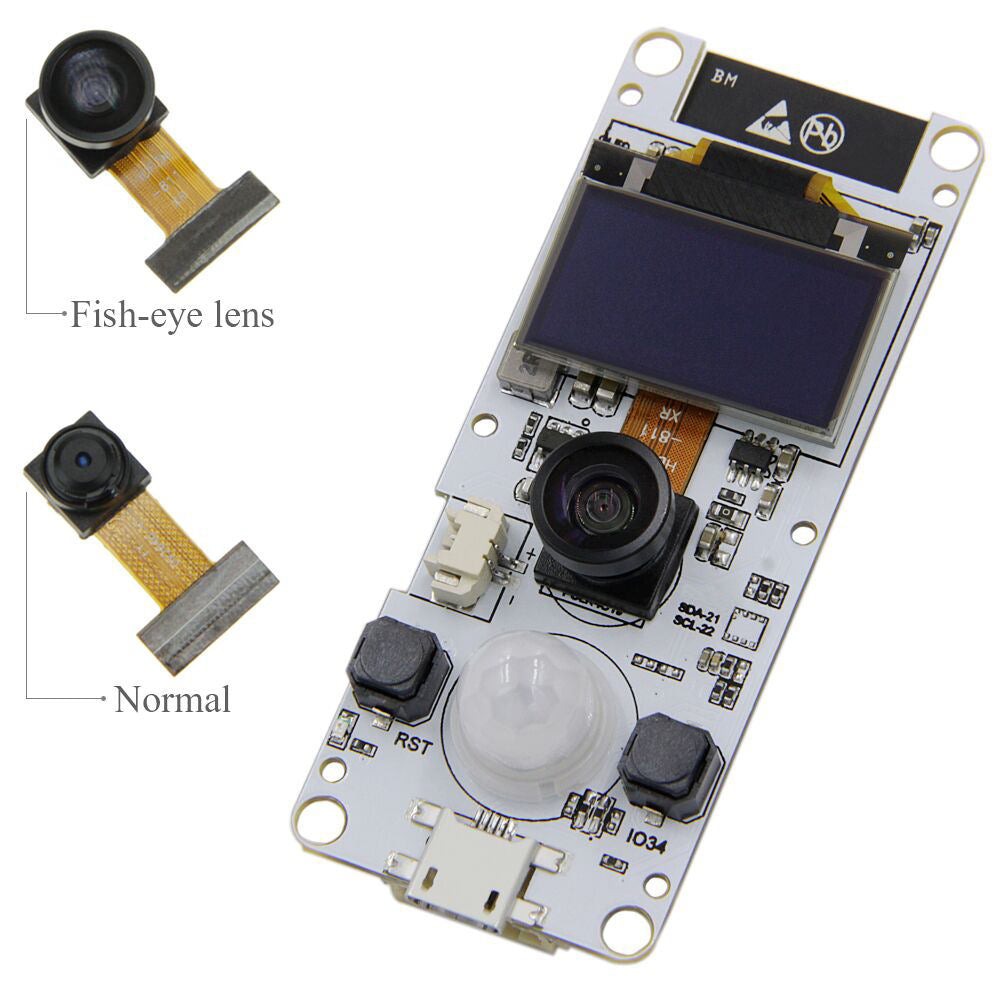

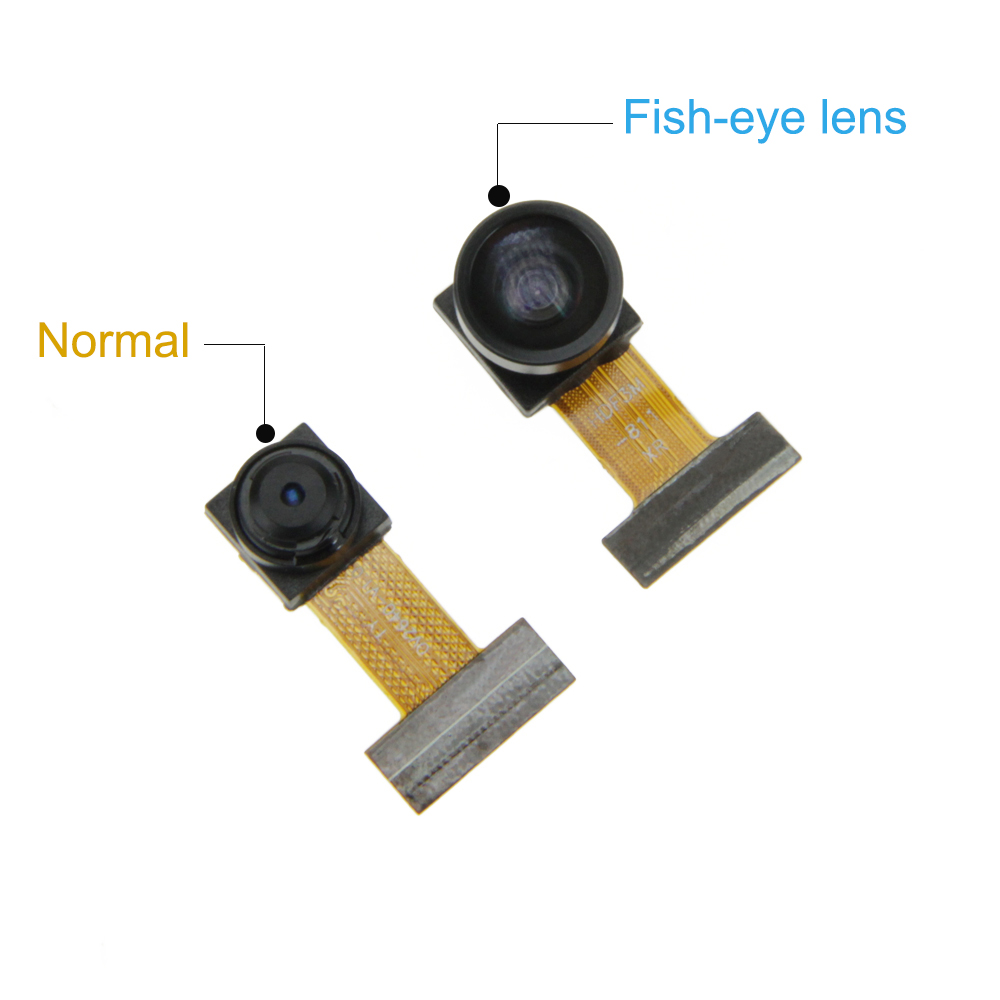

The difference between Fish-eye lens and normal



T-Camera related protection accessories

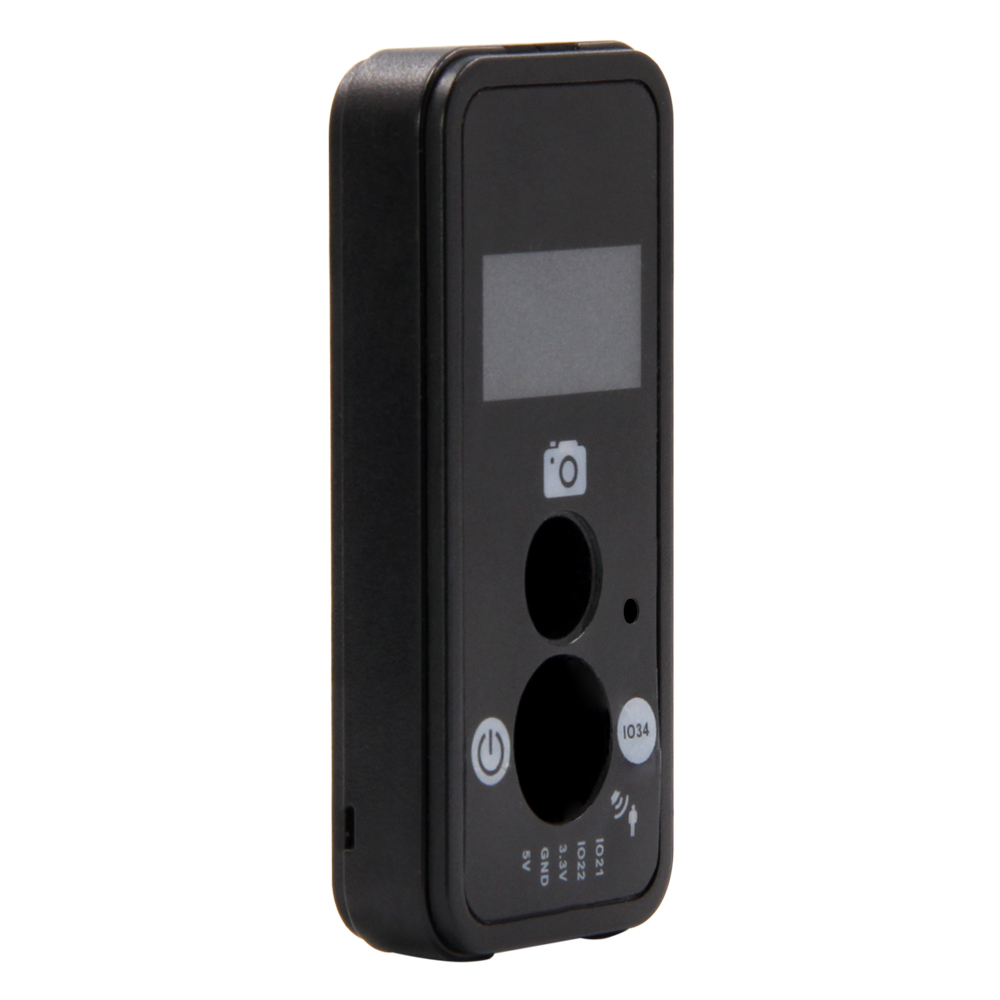

1.Black PVC Case

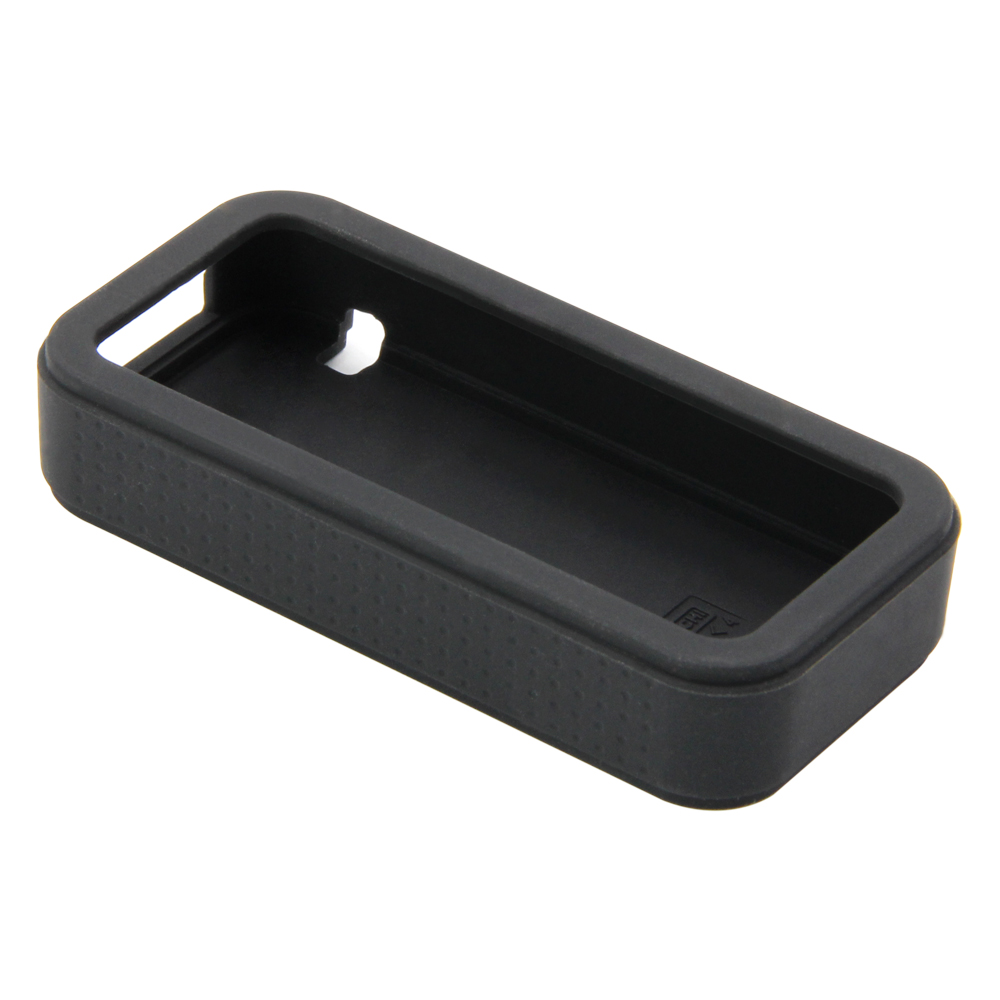

2.Soft Rubber Sleeve

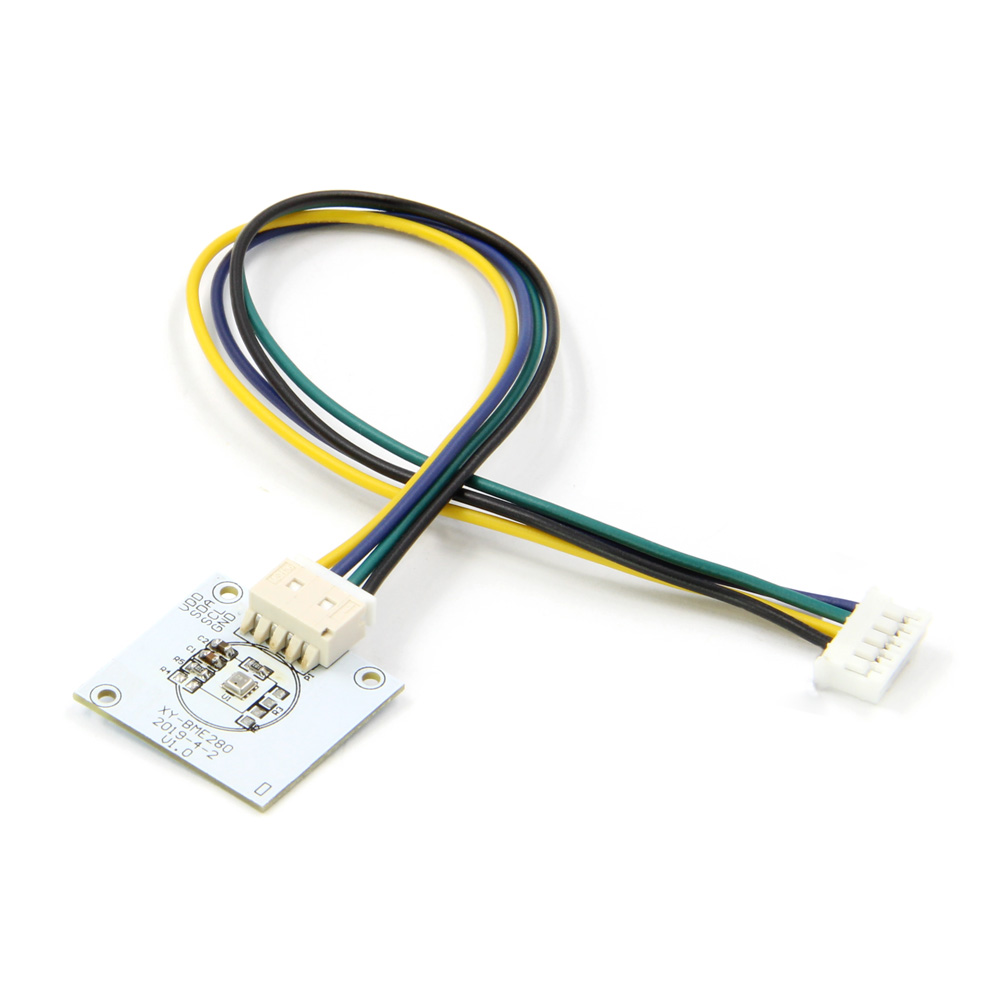

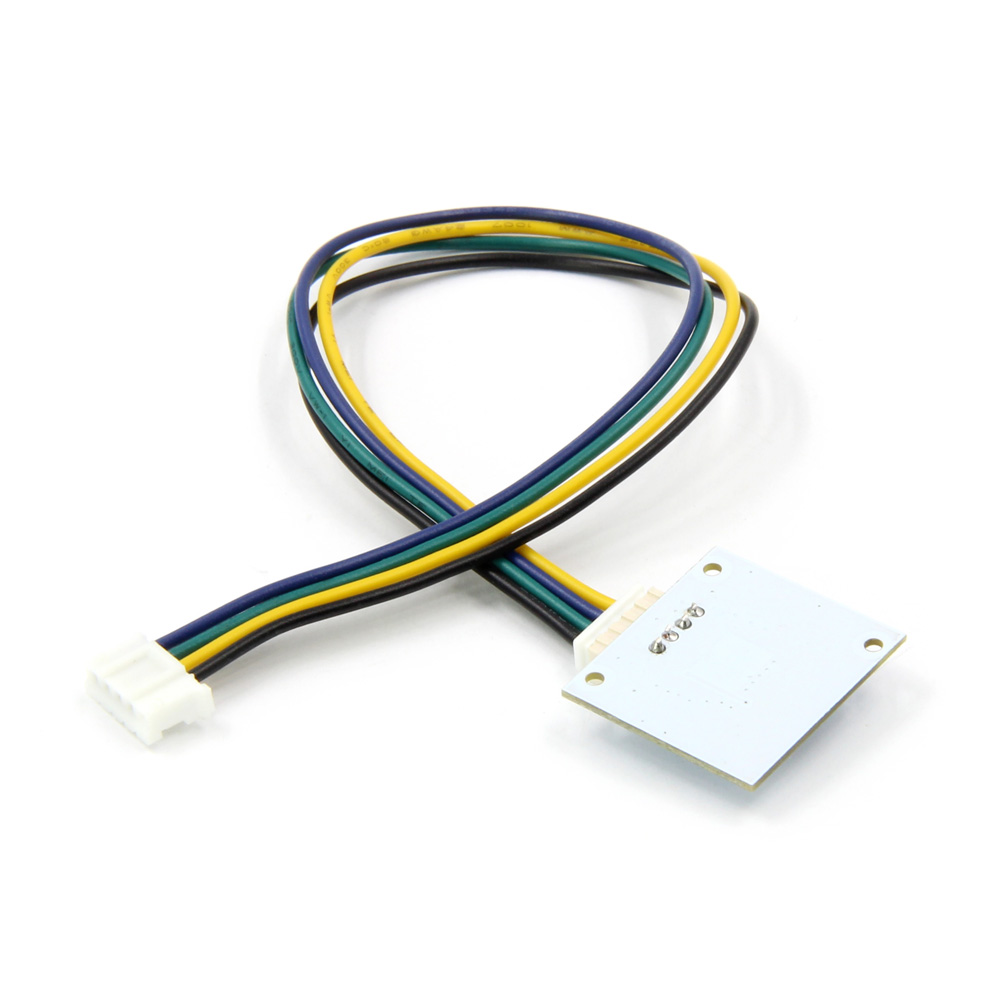

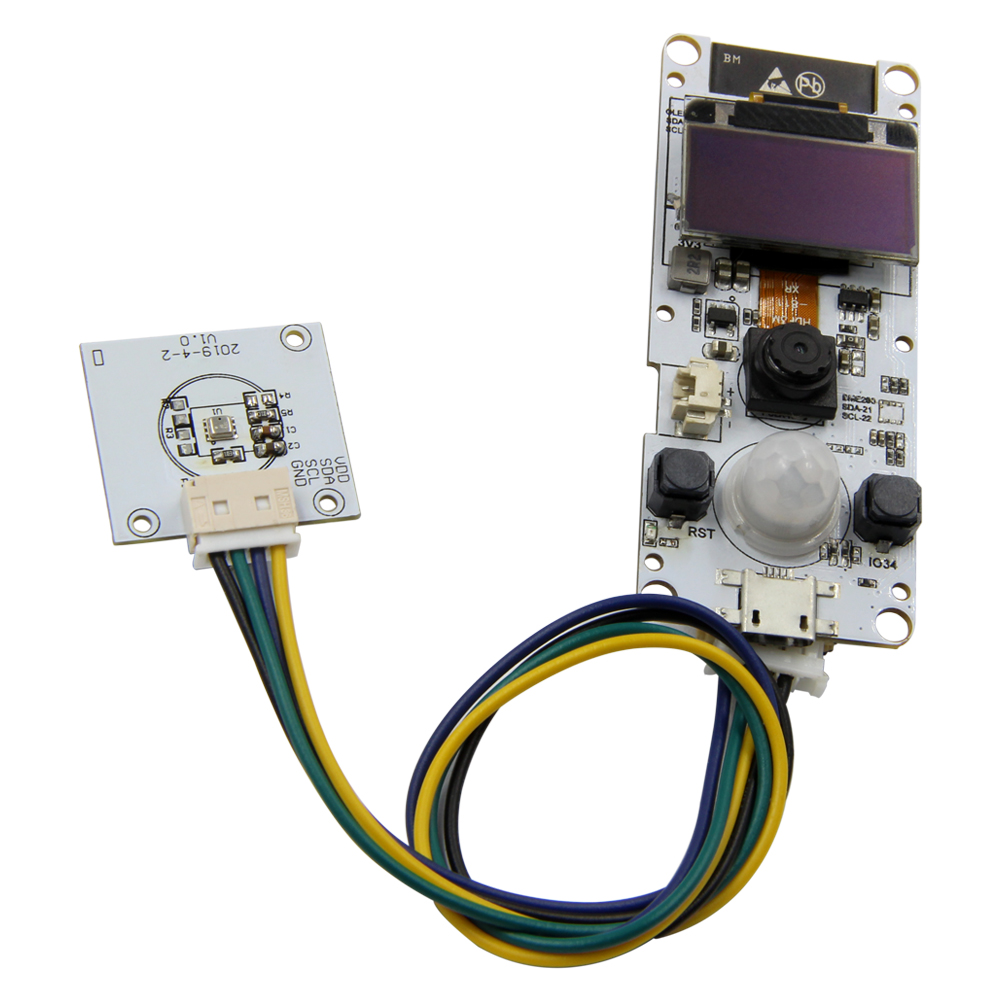

3.BME280 Module can be used with T-Camera

Working voltage: 3.3~5V
Working current: 2mA
Working temperature: -40 ° C ~ +85 ° C
Temperature detection range: -40 ° C ~ +85 ° C, resolution 0.1 ° C, error ± 0.5 ° C
Humidity detection range: 0~100%RH, resolution 0.1%RH, error ±2%RH
Pressure detection range: 300~1100hPa
Humidity measurement response time: 1s
Module size: 22 * 25 mm
Mounting hole size: inner diameter 3.1mm / outer diameter 6mm
Weight: 12g

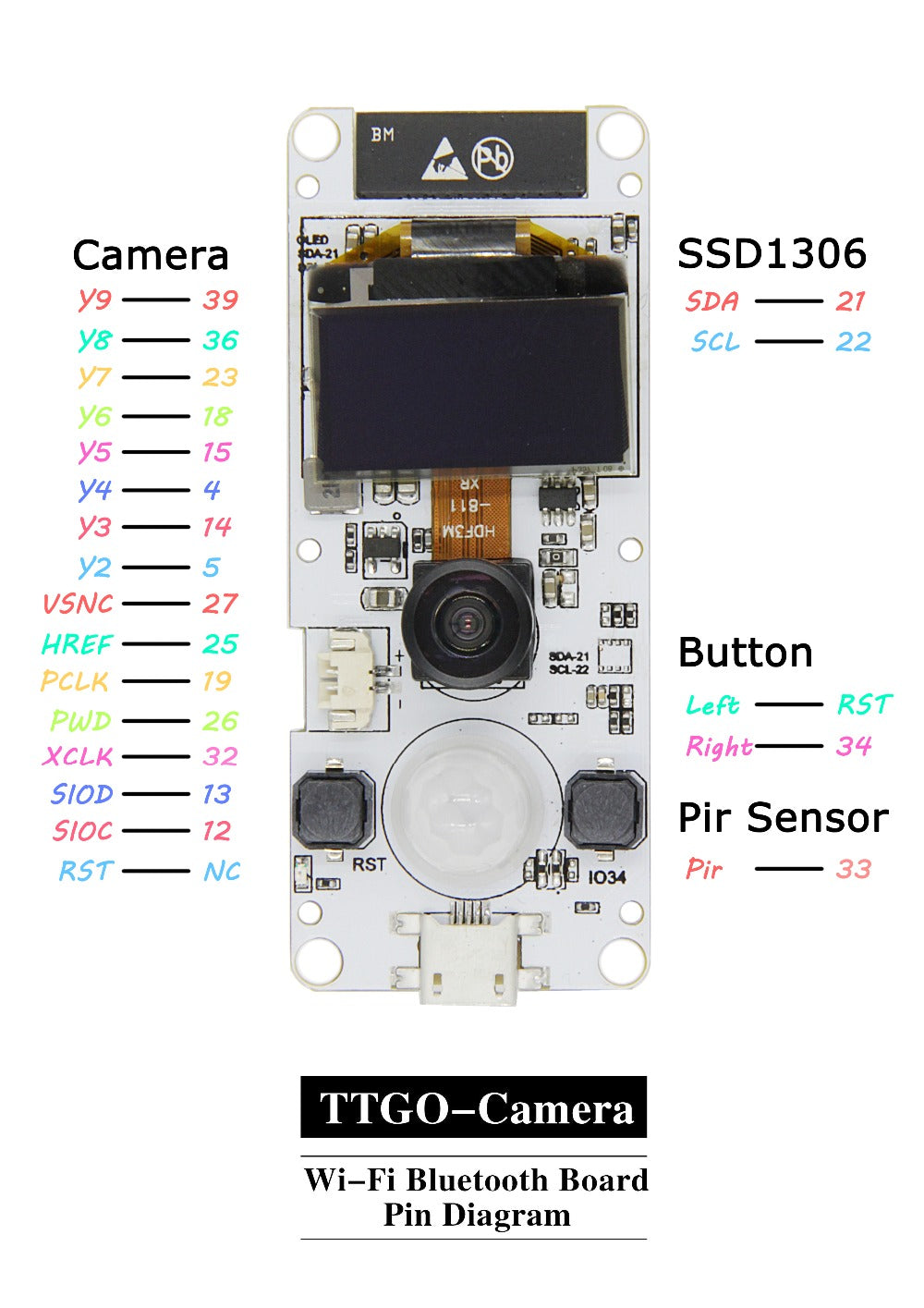

Product Pin Diagram

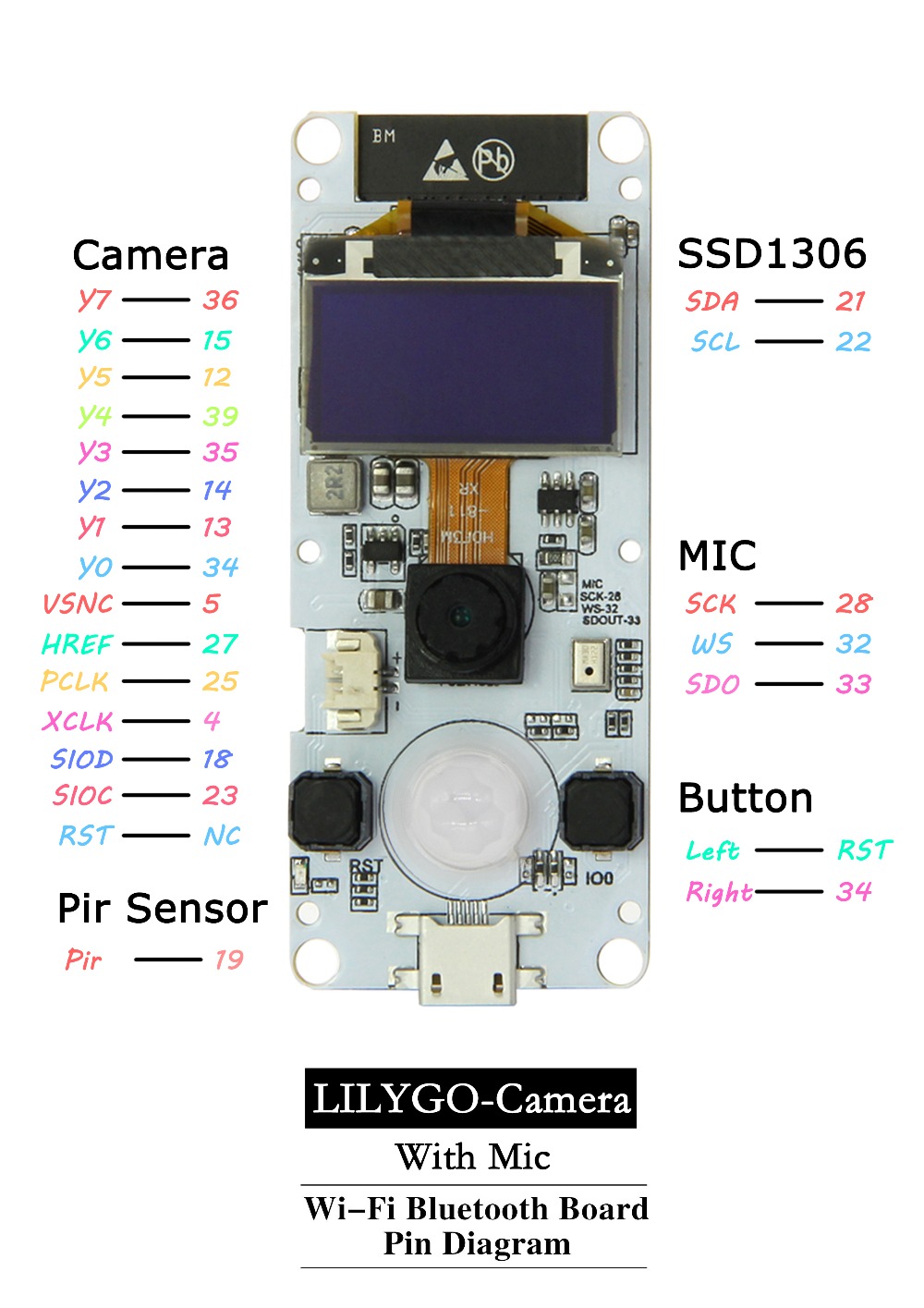

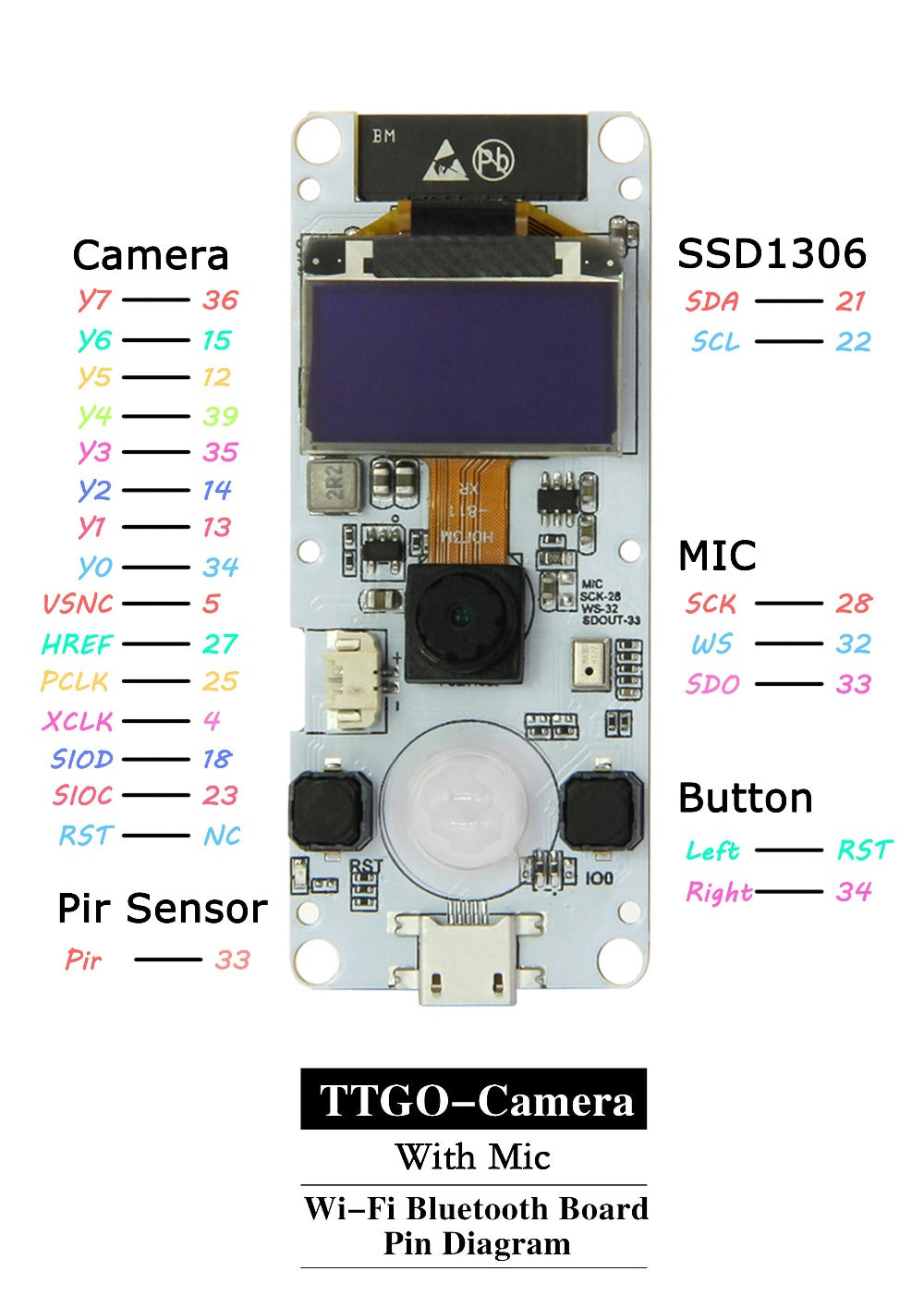

Product Pin Diagram(Mic)

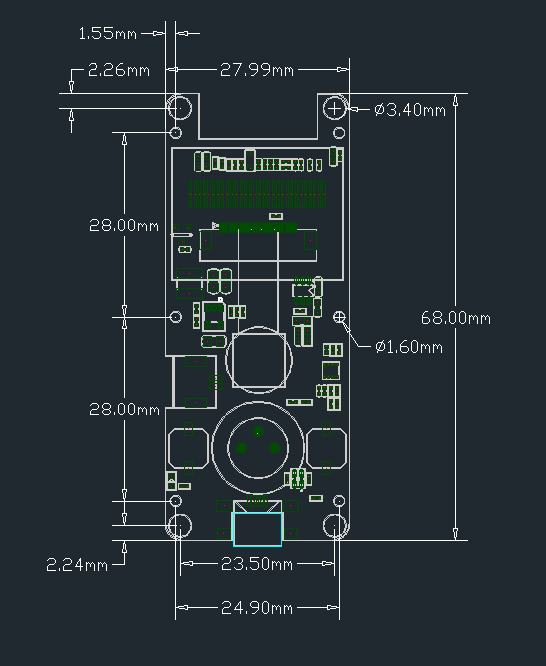

Product Size

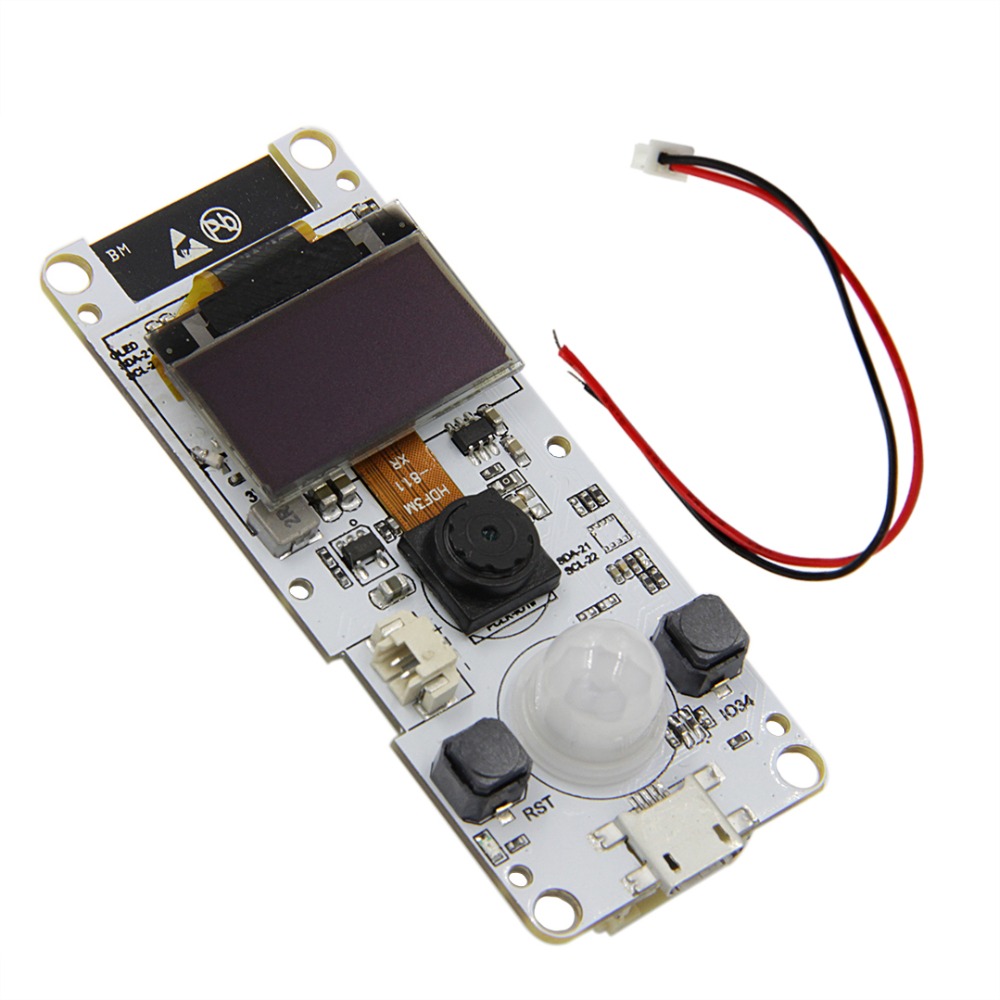

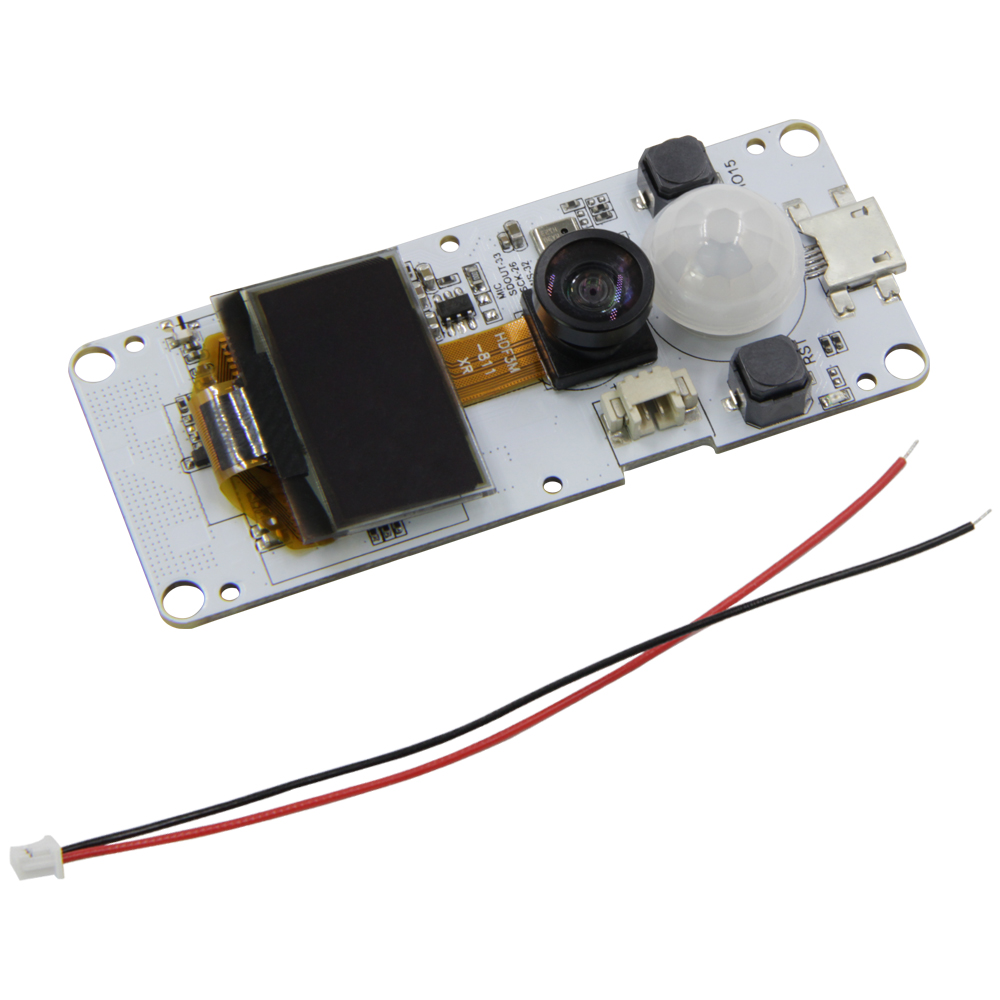

Shipping List(Normal T-Camera Or Fish-eye T-Camera,Depending On Your Choice)

1 X T-Camera Module

1 X Power Cable





Shipping List(Normal with mic T-Camera or Fish-eye with mic T-Camera,Depending on your choice)

1 X T-Camera Module(WIth MIC)

1 X Power Cable

Shipping List

1 X BME280 Module


 Welcome Customize Order!
