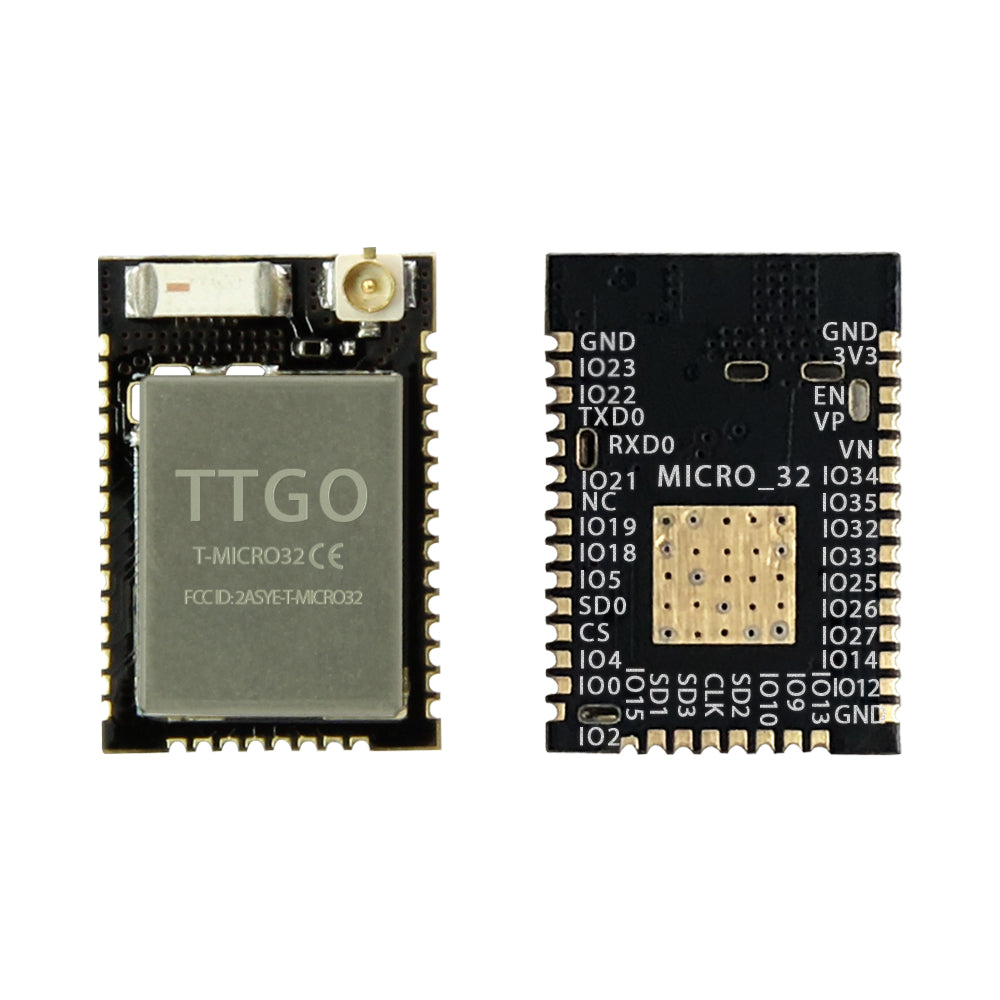

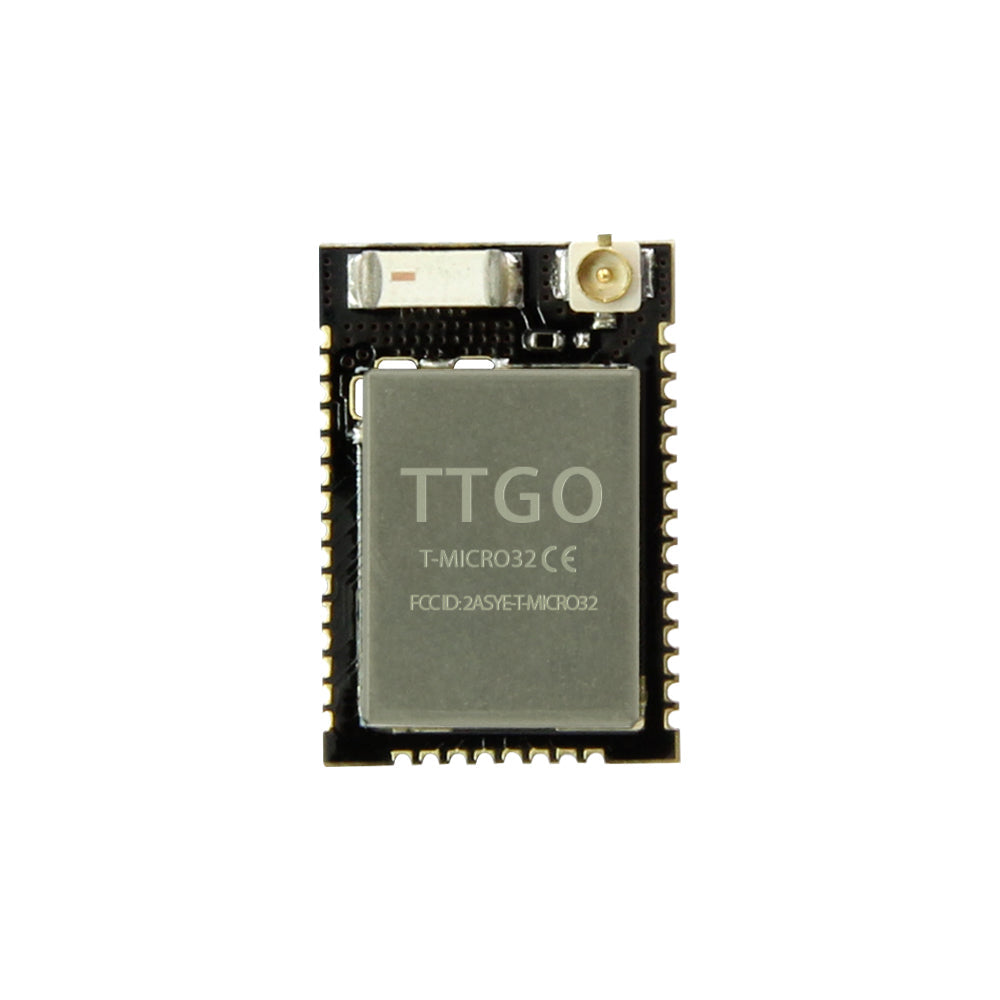

 TTGO Micro-32 V2.0  Wifi Wireless Blth Module ESP32 PICO-D4 IPEX ESP-32

For the embedded development board to be able to do smaller, we designed the Micro-32, use the same function as the normal ESP32 module, but the area is reduced by 45%*, which makes the product can be designed smaller, there is more space to add up some Module.

*Actual measurement data may be Deviation

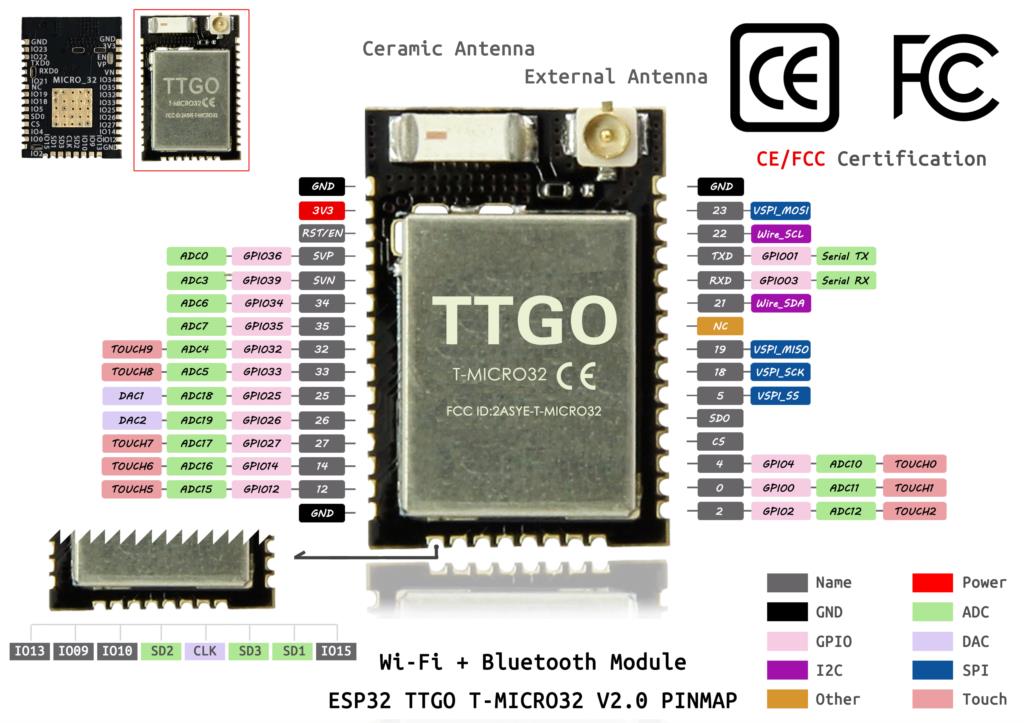

Pin Schematic

CE / FCC Certification:

http://210.83.236.131:8008/downfile.php?file_id=34392&file_key=UuQ58JZq

This product can be assembled for use in TTGO VGA32 V1.1 Controller and TTGO ESP32-Micro ESP-32-PICO WIFI Wireless Module Blth ESP32-PICO-D4 Development Board,example:

TTGO VGA32 V1.1 Controller

TTGO ESP32-Micro ESP-32-PICO WIFI Wireless Module Blth ESP32-PICO-D4 Development Board

Shipping List:

1 x TTGO Micro-32 V2.0
