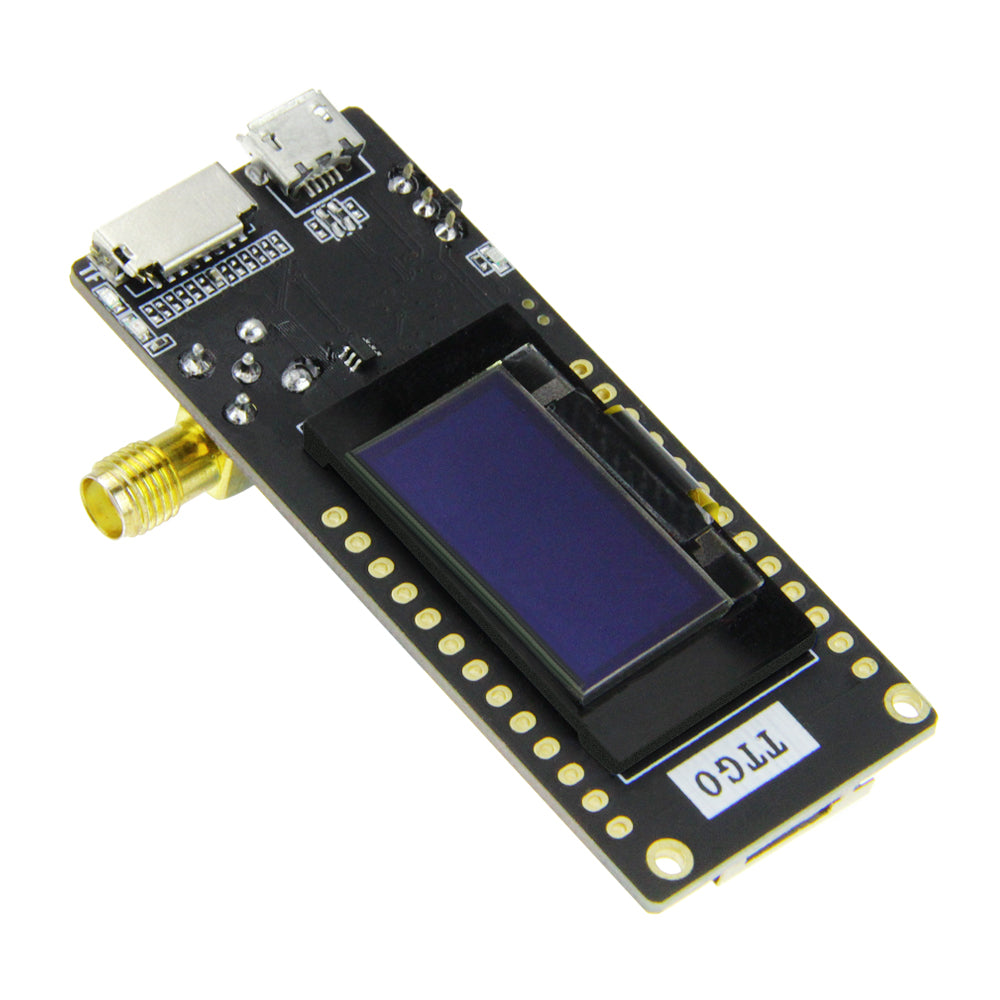

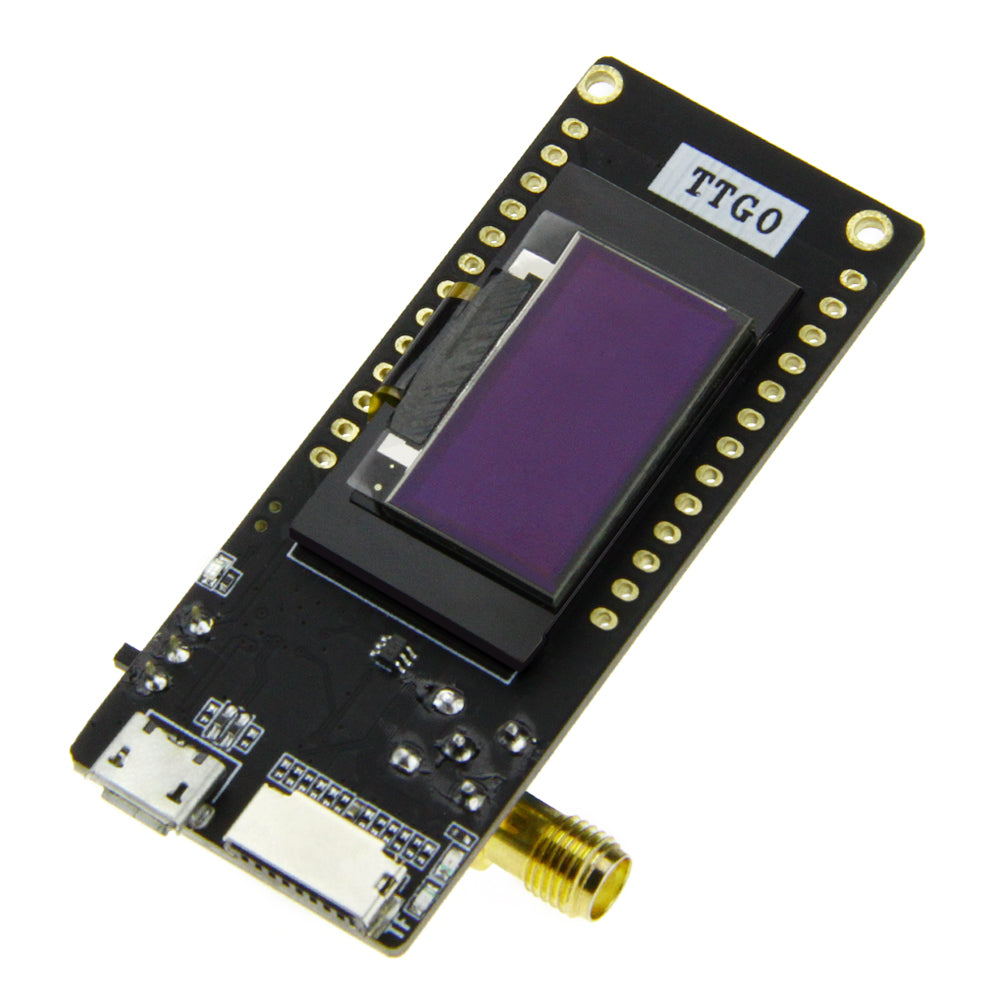

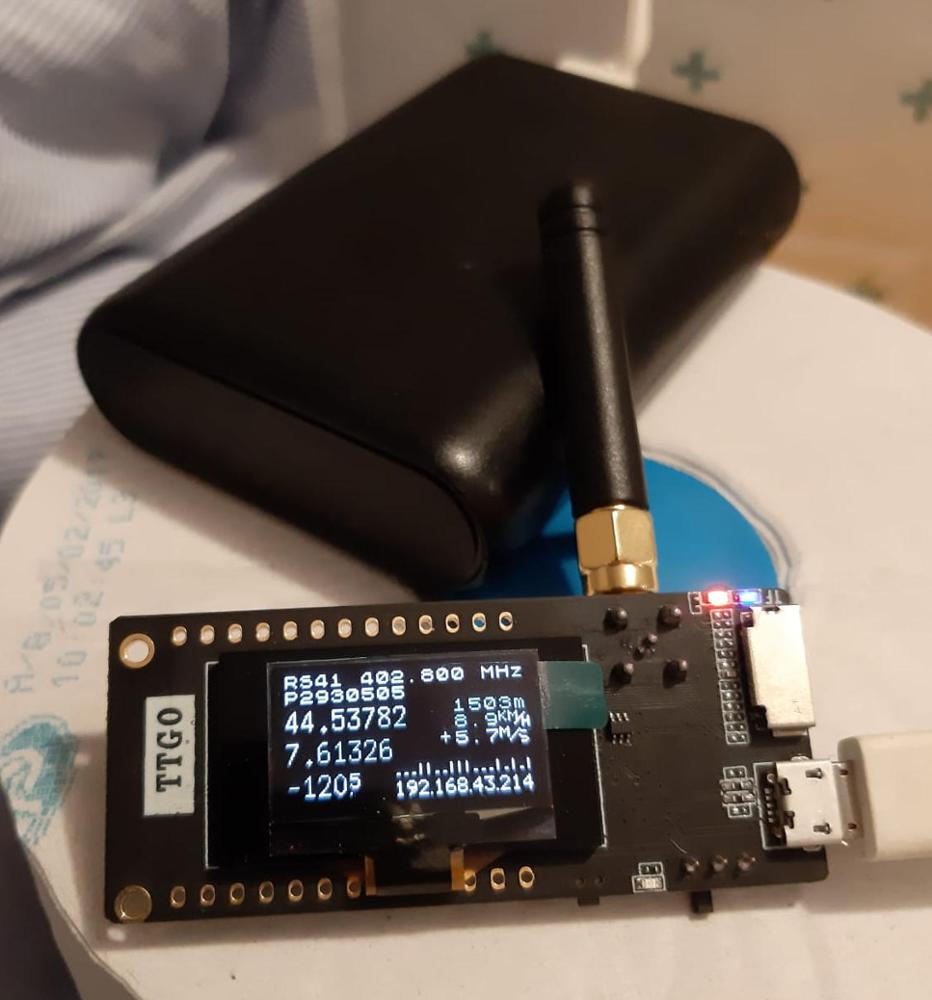

TTGO LoRa32 V2.1_1.6 Version 433/868/915Mhz ESP32 LoRa OLED 0.96 Inch SD Card WIFI Wireless Module ESP-32 SMA Custom PCB oem customize

TTGO LoRa32 V2.1_1.6 Version 433/868/915Mhz ESP32 LoRa OLED 0.96 Inch SD Card WIFI Wireless Module ESP-32 SMA Custom PCB oem customize

Regular price $24.92 USD
Regular price $64.92 USD Sale price $24.92 USD
Sale Sold out



TTGO LoRa32 V2.1_1.6 version 433/868/915Mhz ESP32 LoRa OLED 0.96 Inch SD Card Bth WIFI wireless Module ESP-32 SMA







Product Description

Working voltage: 1.8~3.7v

Acceptable current:10~14mA

Transmit current: 120mA@+20dBm

                              90mA@+17dBm

                              29mA@+13dBm

Operating frequency: 868M/915MHz

Transmit power: +20dBm

Receive sensitivity :-139dBm@LoRa &62.5Khz&SF=12&146bps

          -136dBm@LoRa &125Khz&SF=12&293bps

          -118dBm@LoRa &125Khz&SF=6&9380bps

          -123dBm@FSK&5Khz&1.2Kbps

Frequency error:+/-15KHz

FIFO space :64Byte

Data rate :1.2K~300Kbps@FSK

                   0.018K~37.5Kbps@LoRa

Modulation Mode :FSK,GFSK,MSK,GMSK,LoRa TM,OOK

Interface form :SPI

Sleep current :0.2uA@SLEEP

                           1.5uA@IDLE

Operating temperature :-40℃- +85℃

Digital RSSI function

Automatic frequency correction

Automatic gain control

Fast wake-up and frequency hopping

Highly configurable data packet handler

SMA Antenna

TP4054

Data download link

https://github.com/Xinyuan-LilyGo/TTGO-LoRa-Series

https://github.com/LilyGO/ESP32-Paxcounter



  LORA_1.5 version: LORA_1.6 version:
LED: IO23 IO25
LORA pin: IO18=NSS/SEL IO18=NSS/SEL
  IO5=SCK IO5=SCK
  IO27=MOSI/SDI IO27=MOSI/SDI
  IO19=MISO/SDO IO19=MISO/SDO
  IO26=DI0/IO0 IO26=DI0/IO0
  IO12=IRQ/RESET IO23=IRQ/RESET

SD card: SD3-CS-IO13 SD3-CS-IO13
  CMD-MOS1-IO15 CMD-MOS1-IO15
  CLK-SCK-IO14 CLK-SCK-IO14
  SD0-MISO-IO2 SD0-MISO-IO2
    DATA2:IO12
    DATA2:IO4








TTGO LoRa32 V2.1_1.6 version Structure diagram



Pin Schematic

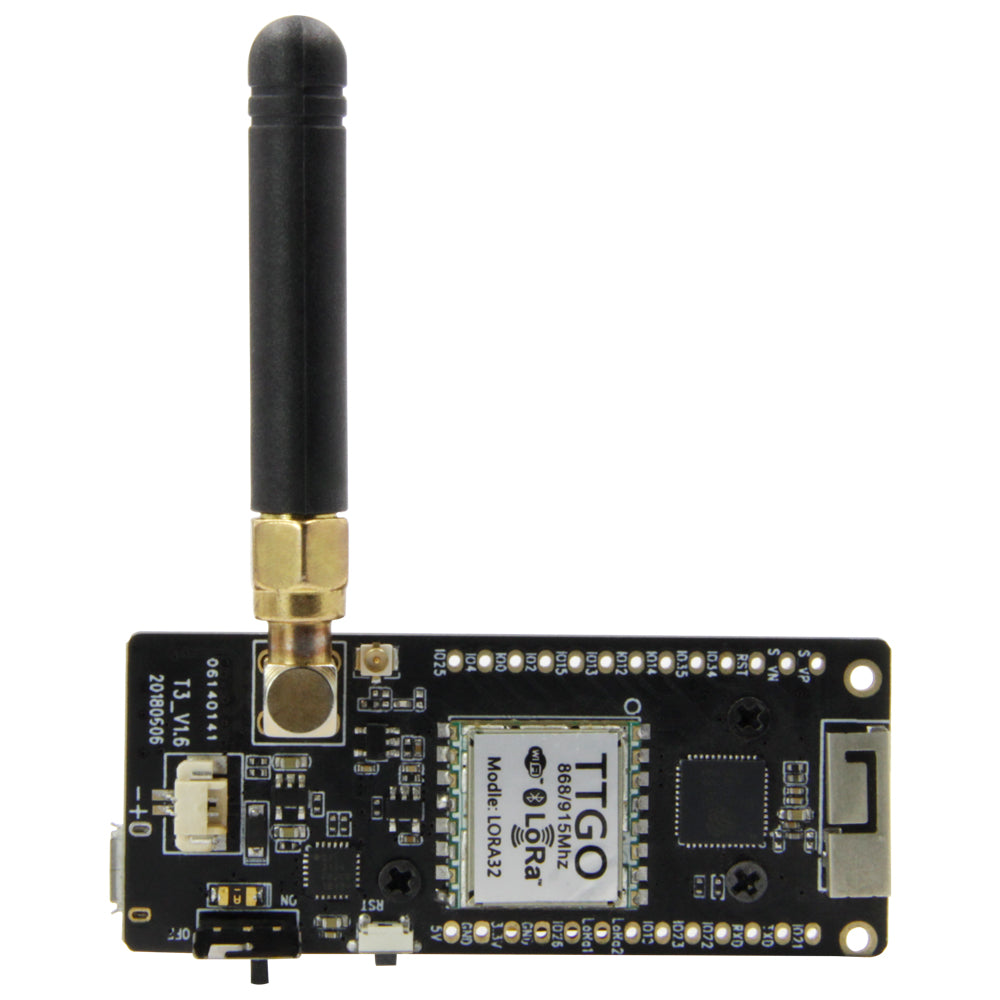

At the TTGO LoRa V2.1_1.6 ,we add the SMA and TP4054 to the board,which make it can do more things.In terms of the power switch, we have changed the switching interaction mode. The added SMA antenna can enhance signal transmission.



(Notice:The shipping list does not include battery and SD card)

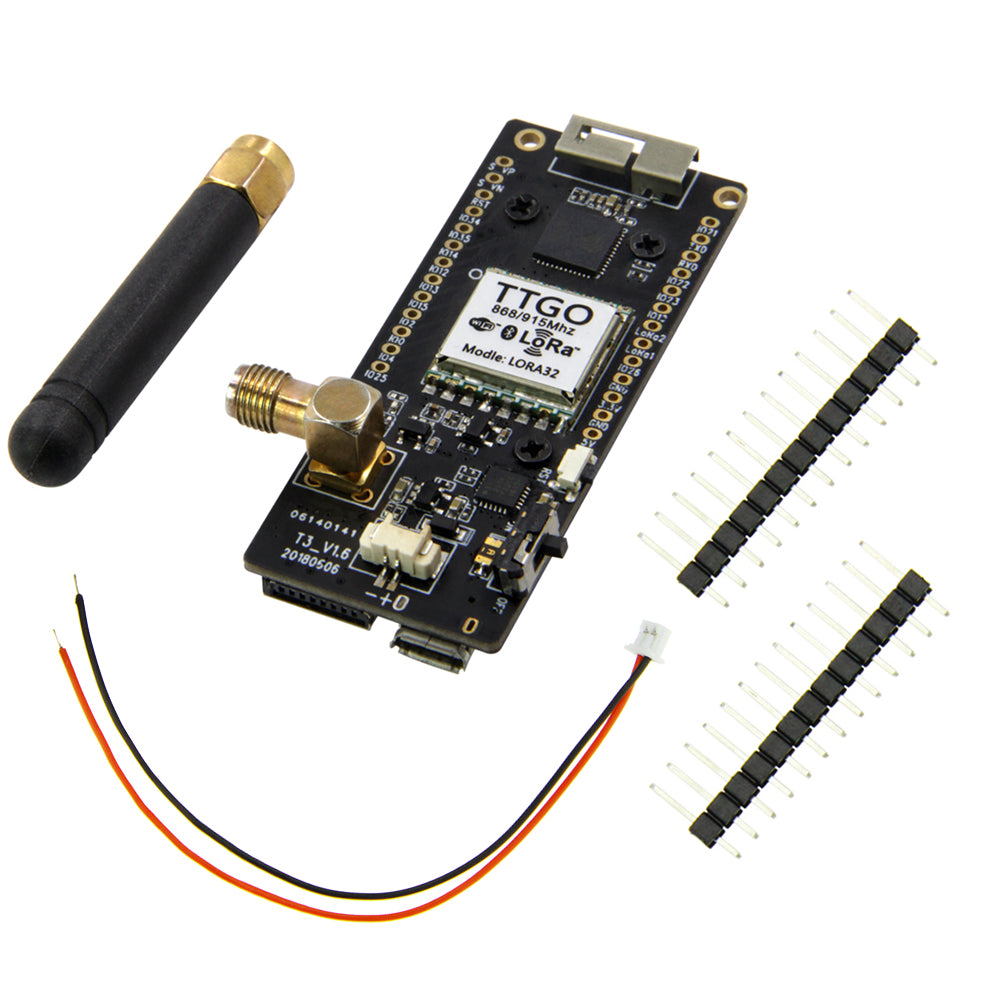

Shipping List

1 X TTGO LoRa32 V2.1 433/868/915 Module

2 X Pin

1 X Antenna

1 X Power Cable

1 X Free Box
