TTGO LORA32 V2.0 868/433Mhz ESP32 LoRa 0.96 Inch SD Card WIFI ESP32 ESP-32 Module With Antenna wireless doorbell board pcba customize



TTGO LORA32 V2.0 433MHz/868/915Mhz ESP32 LoRa OLED 0.96 Inch SD Card Display Blth WIFI ESP32 ESP-32 Module With Antenna





Product Description

Working voltage: 1.8~3.7v

Acceptable current:10~14mA

Transmit current: 120mA@+20dBm

                              90mA@+17dBm

                              29mA@+13dBm

Operating frequency: 433/470MHz(433HMz version) /868M/915M(868MHz version)

Transmit power: +20dBm

Receive sensitivity :-139dBm@LoRa &62.5Khz&SF=12&146bps

-136dBm@LoRa &125Khz&SF=12&293bps

-118dBm@LoRa &125Khz&SF=6&9380bps

-123dBm@FSK&5Khz&1.2Kbps

Frequency error:+/-15KHz

FIFO space :     64Byte

Data rate :1.2K~300Kbps@FSK

                   0.018K~37.5Kbps@LoRa

Modulation Mode :FSK,GFSK,MSK,GMSK,LoRa TM,OOK

Interface form : SPI

Sleep current :0.2uA@SLEEP

                           1.5uA@IDLE

Operating temperature :-40℃- +85℃

Digital RSSI function

Automatic frequency correction

Automatic gain control

RF wake-up function

Fast wake-up and frequency hopping

Highly configurable data packet handler







Compared with LORA32 v1.0

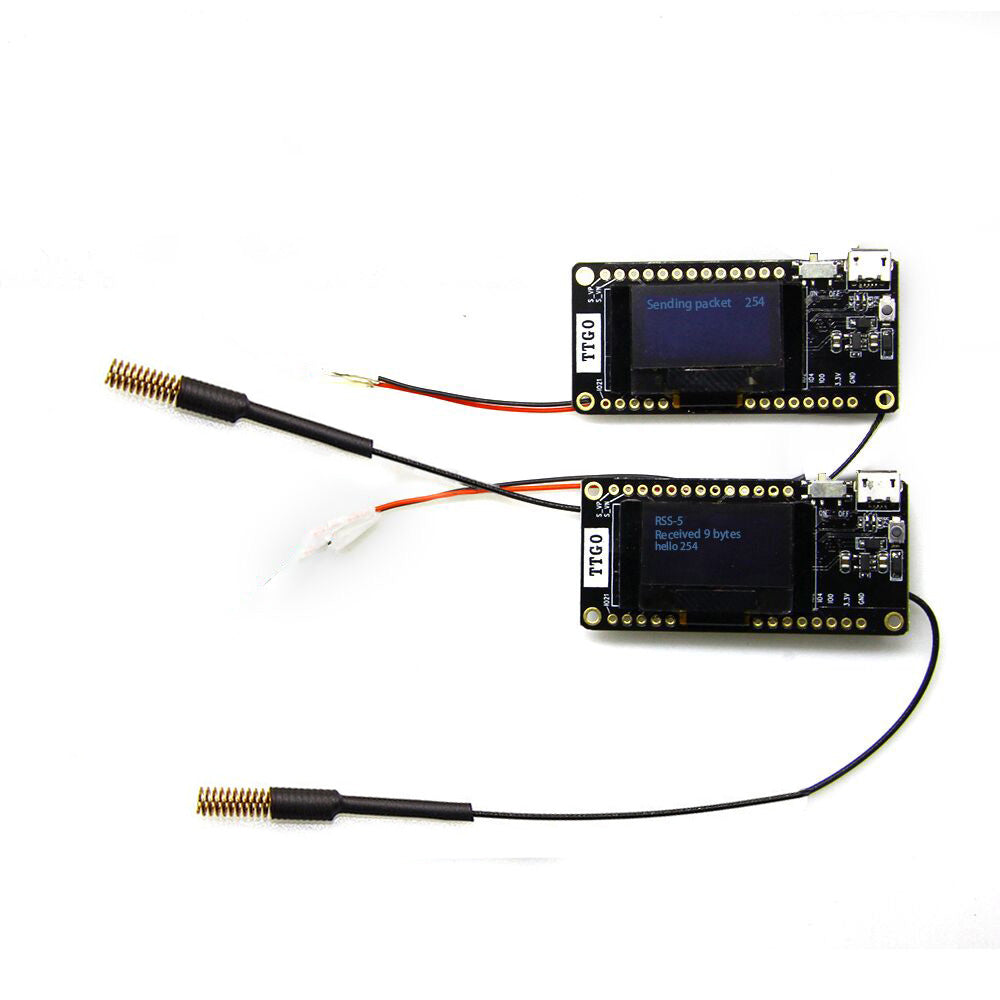

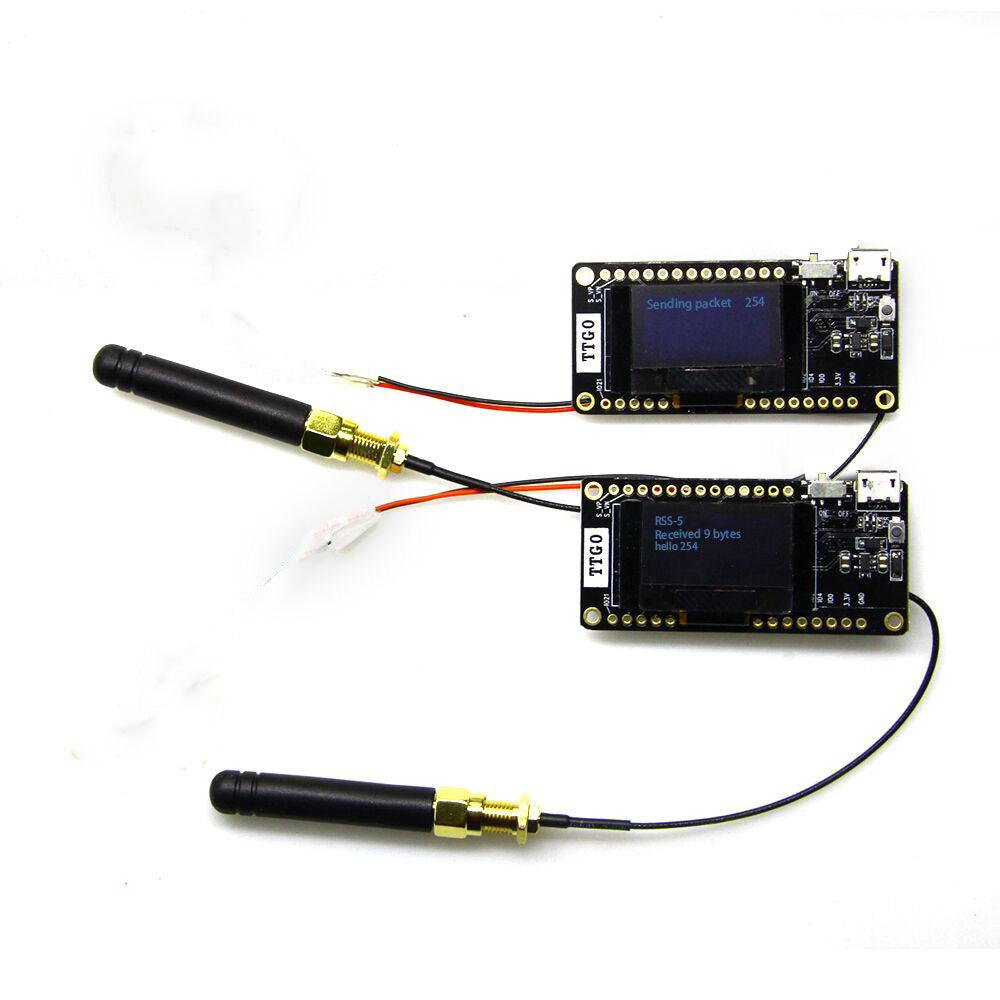

Product Using

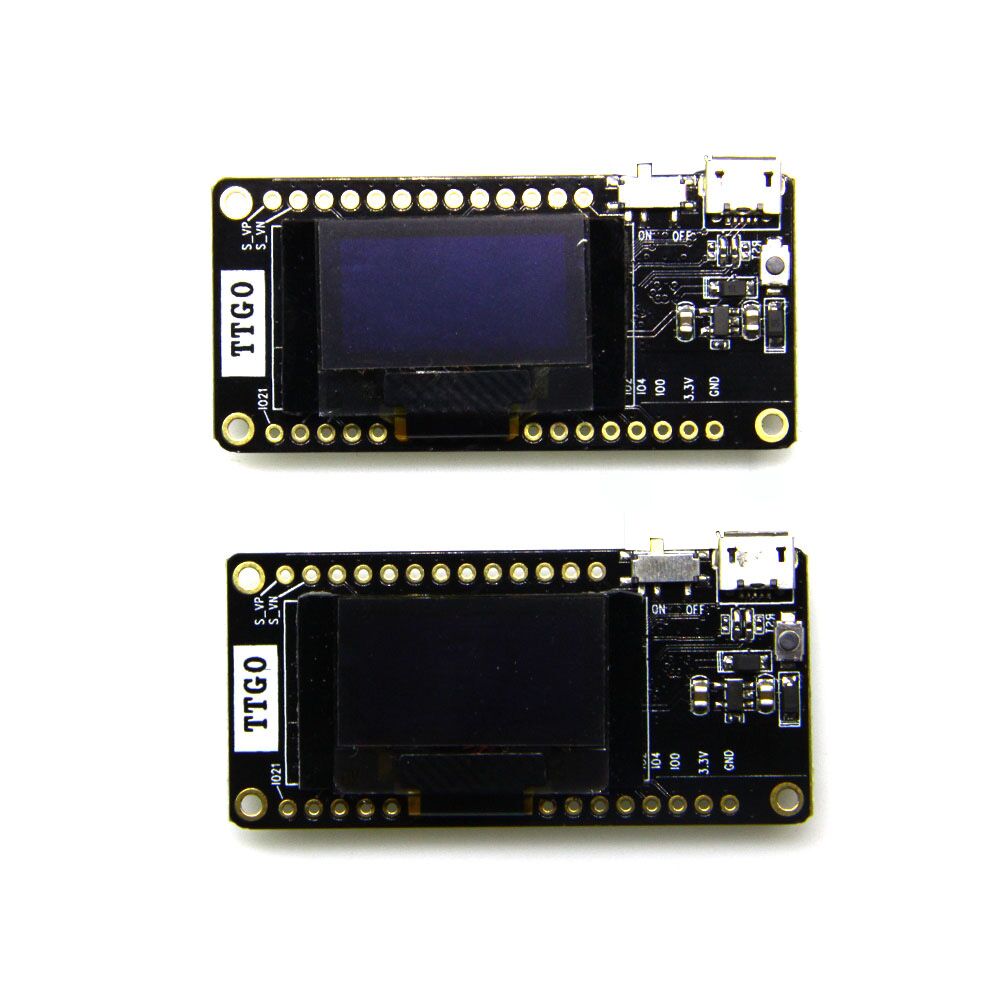

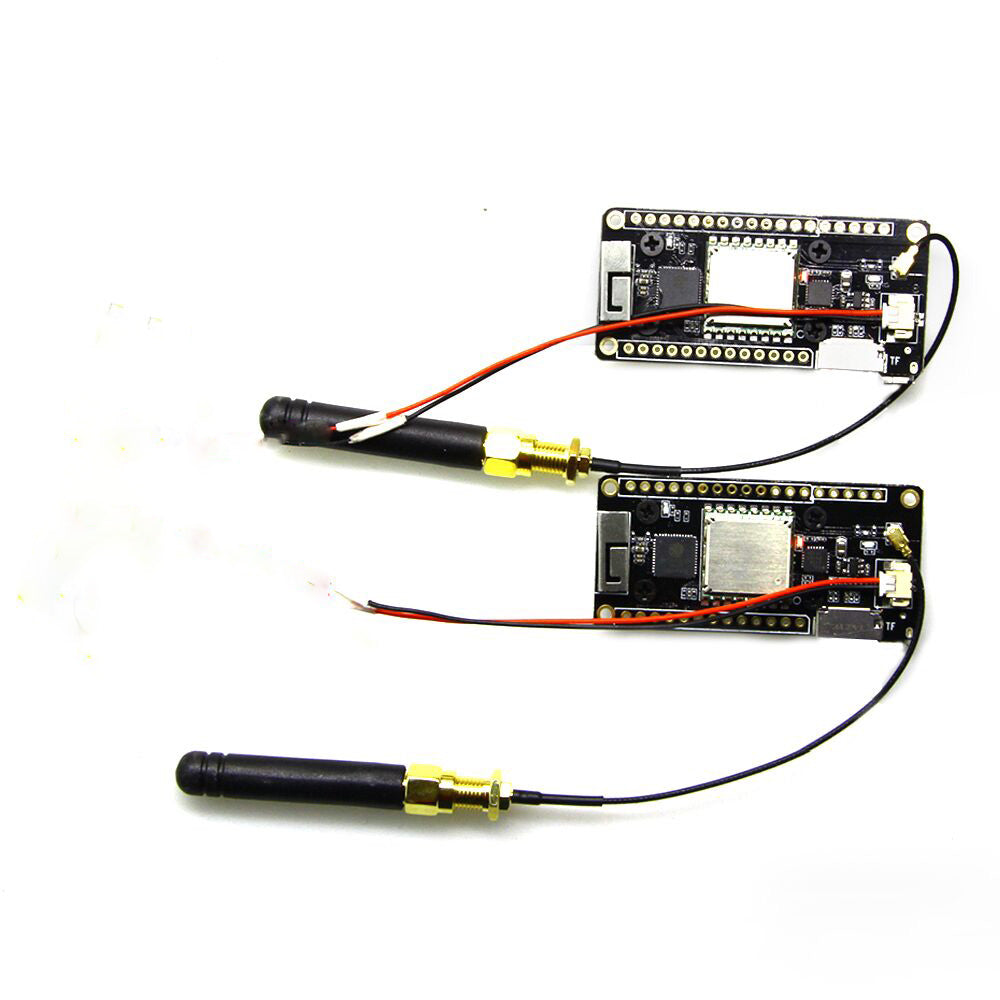

Product Details

(Notice:The shipping list does not include battery and SD card)



868/915MHz Shipping List

2 X TTGO lora32 V2.0 868/915MHz Module

2 X Antenna

2 X Power Cable

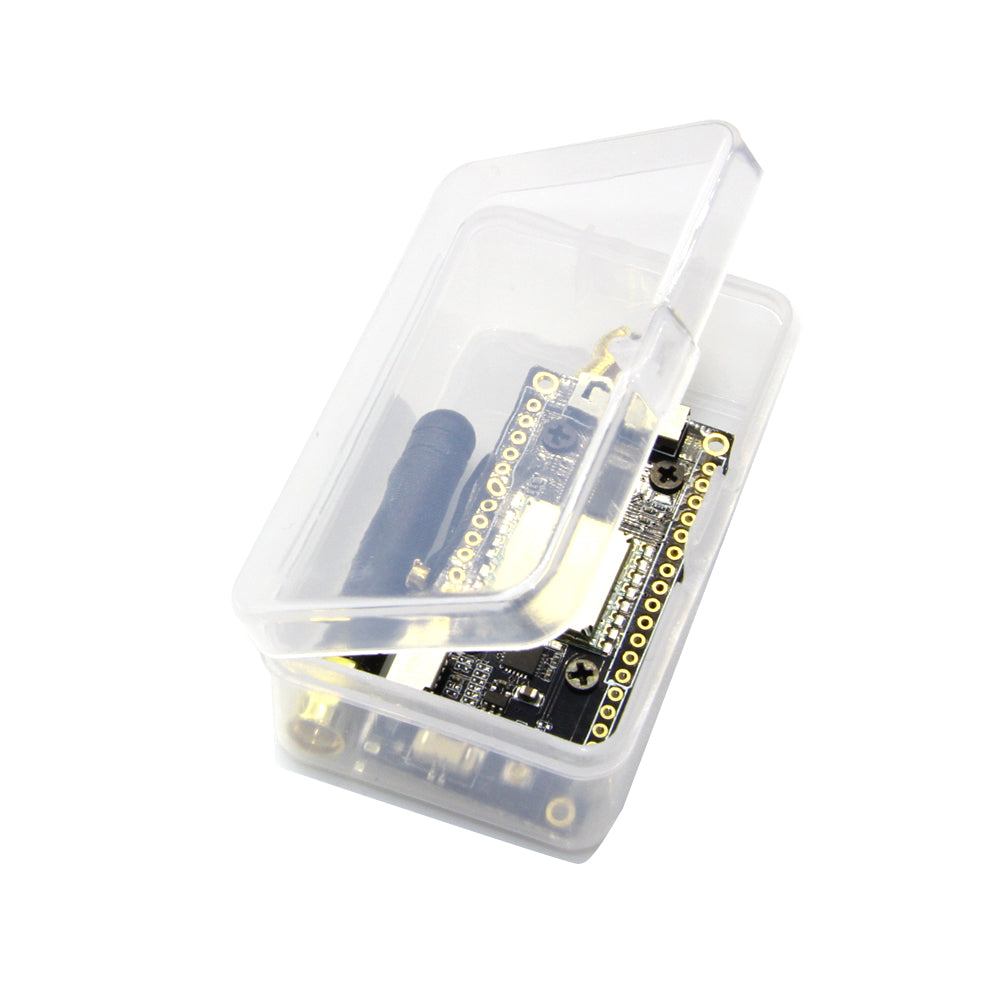

2 X Free Box





433MHz Shipping List

2 X TTGO lora32 V2.0 433MHz Module

2 X Antenna

2 X Power Cable

2 X Free Box
