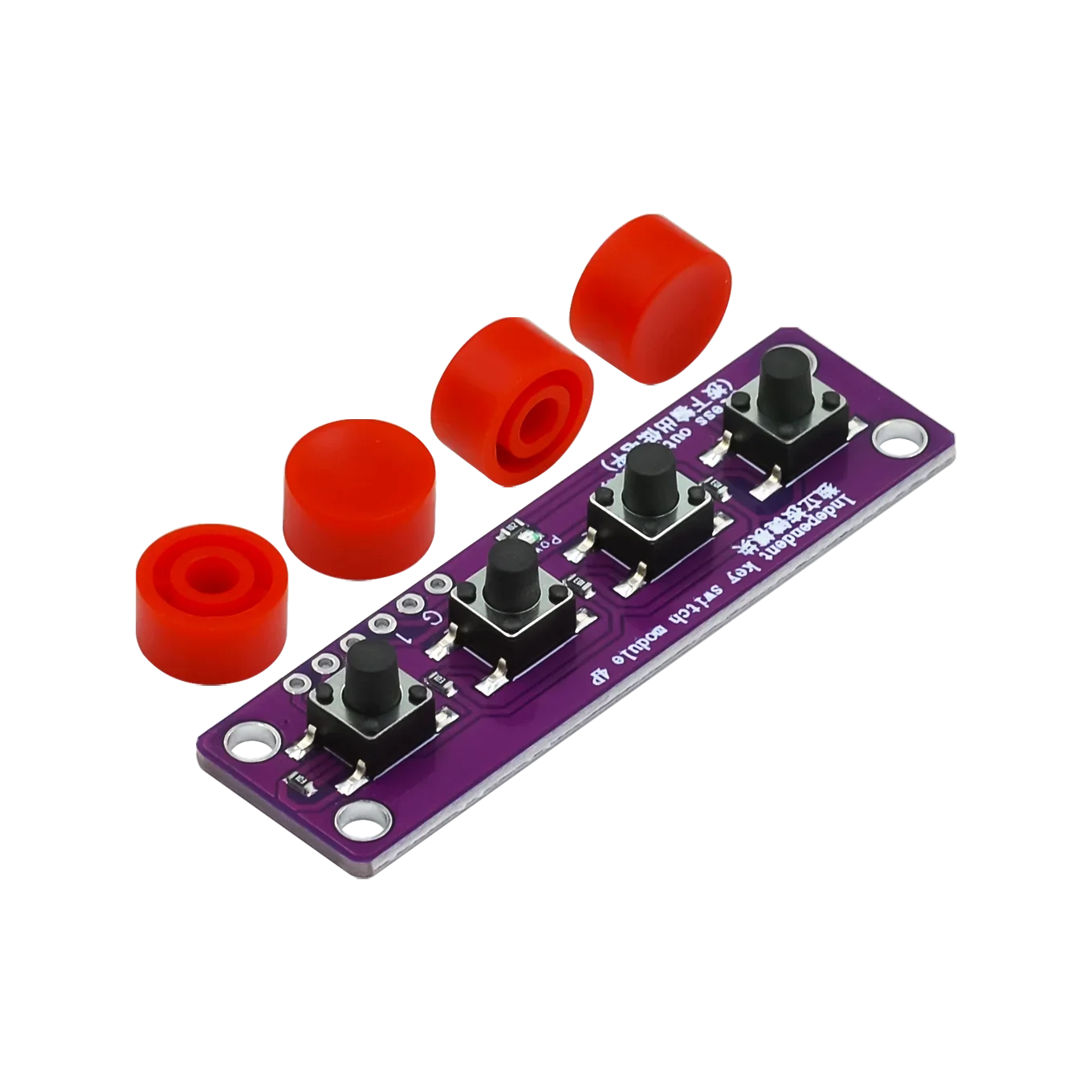

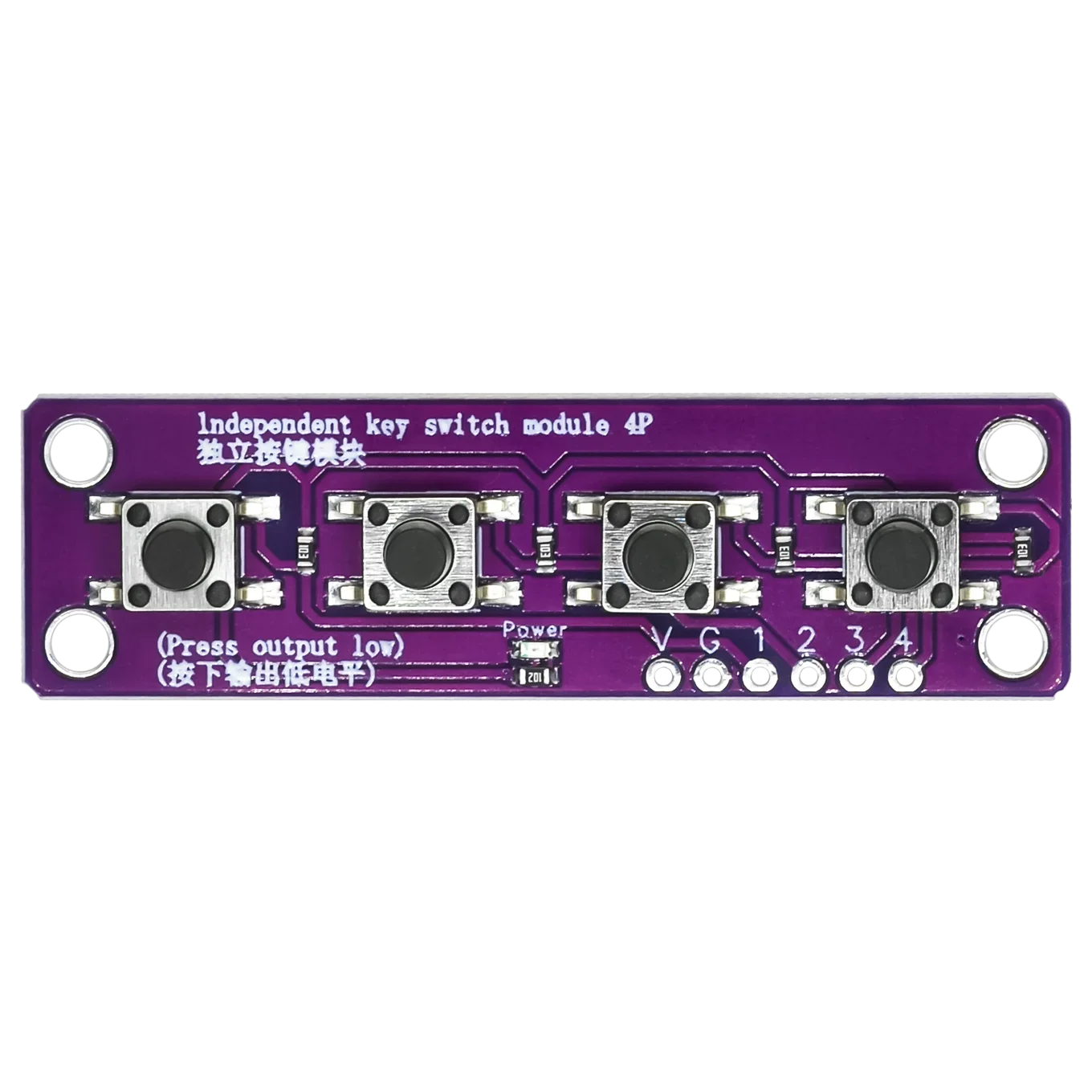

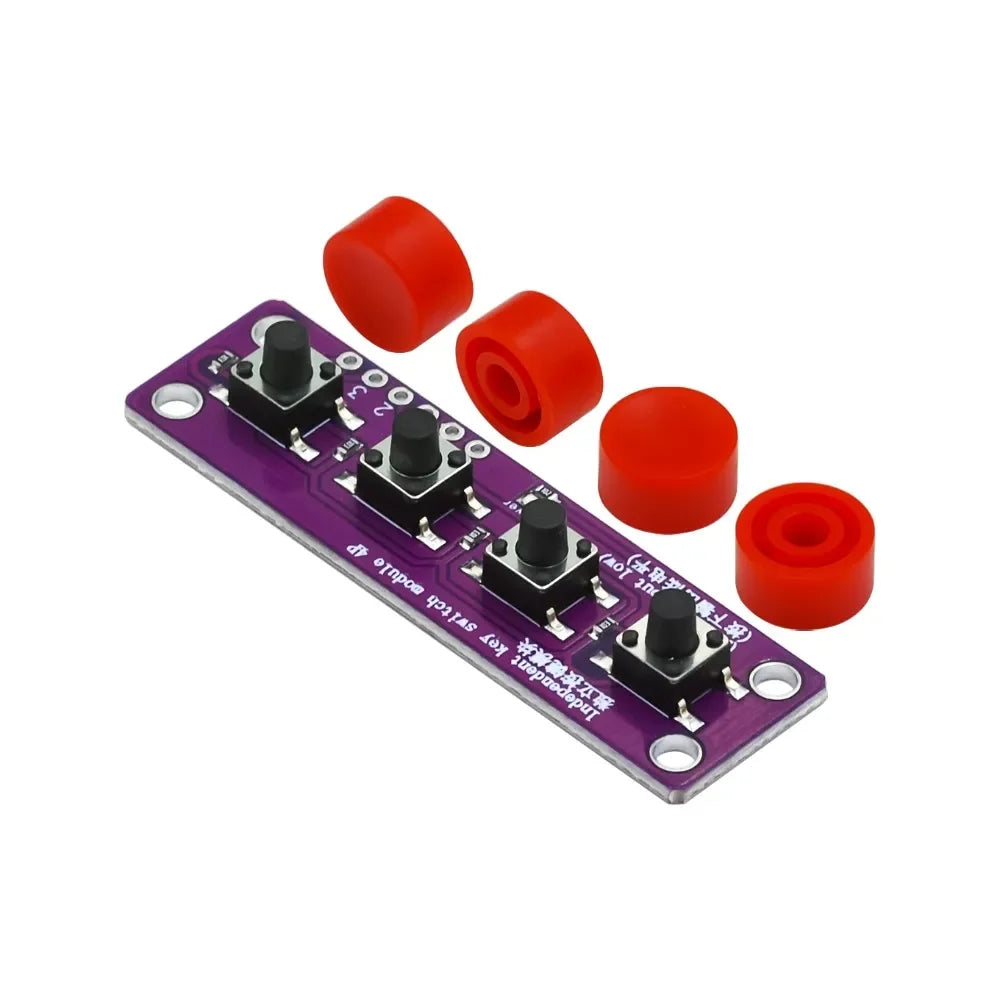

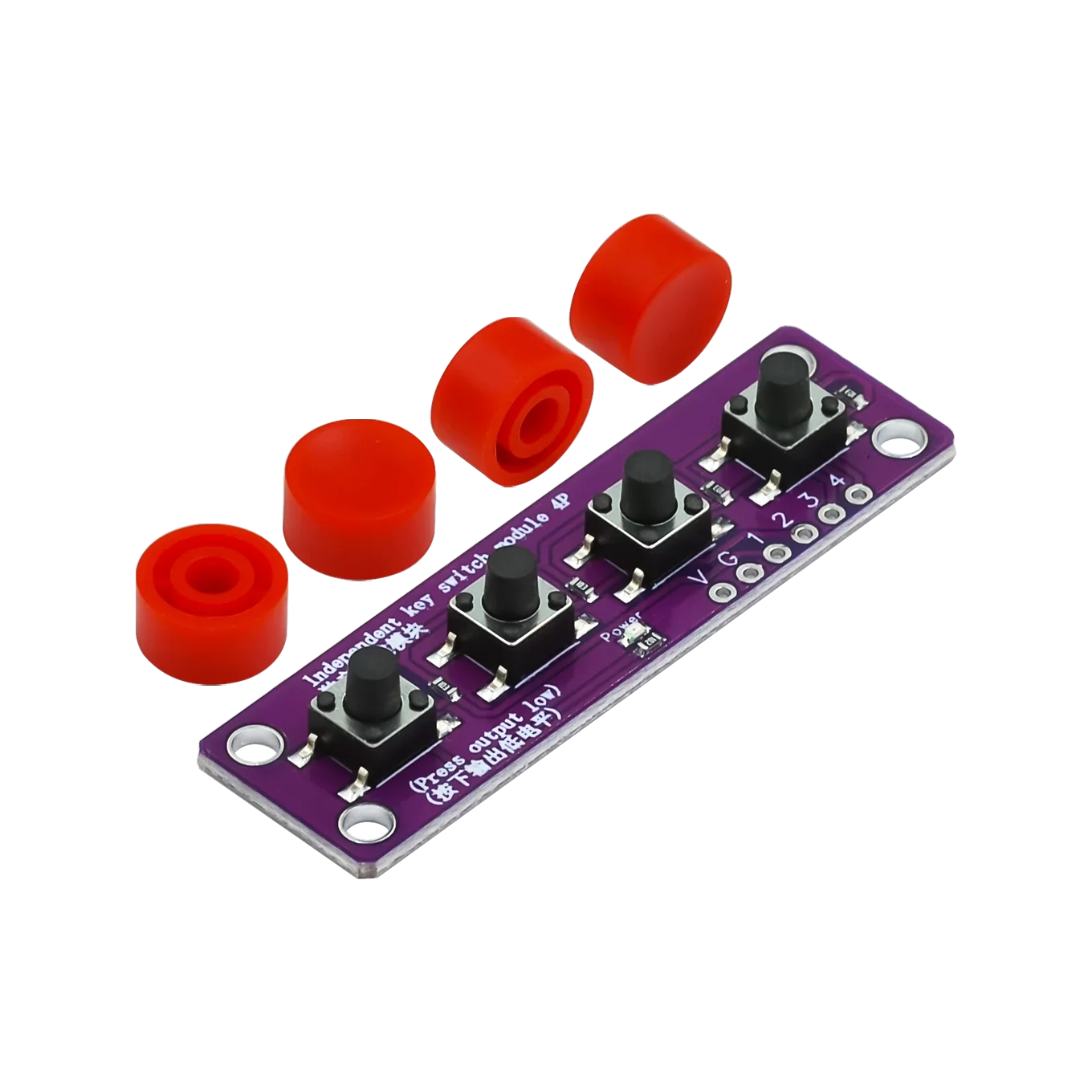

Touch four button switch module compatible with Arduino development board sensor Raspberry PI 51 MCU suite Customize
Touch four button switch module compatible with Arduino development board sensor Raspberry PI 51 MCU suite Customize
Couldn't load pickup availability
| Since 2014, Lonten Technology Co.,ltd specializing in R&D, producing, distribution of lOT smart lifeproducts, such as smart wall switch/breaker (light,Curtain door), security electronic products (motionsensor, opening, flooding), wireless controller, Smart bulb, Smart lock, Smart Garage Door Openerand so on. Local in Shenzhen Longgang district have 4000 square meters manufacturing workshop and officespace, equipped with 4 lines manufacturing machinery and test machinery.Providing OEM & ODM service and Regularly developing new products to lead in marketing treadsand demand. And With several certification(CE, ROHS, SGS, BV, FCC and SAA) and cooperated withsupermarket brands with high quality guarantee. |
Product details
The independent button is also called the tap switch, which is used to pressure the operating direction of the switch to meet the conditions of the operating force, and the switch is closed and connected. When the pressure is withdrawn, the switch is disconnected, and its internal structure is realized by the force change of the metal shrapnel. We can clearly find in the following four-pin circuit diagram that under normal circumstances, the 1 and 2, 3 and 4 pins of the key are connected; When we press the button, the four feet connect with each other; When the key is released, the normal state is restored. Key control can be realized by using digital I/O. The meaning of digital I/O port is INPUT and OUTPUT interfaces. Now let's try to use the INPUT function of I/O in Arduino, that is, the function is to read output values from external devices in this experiment. We used buttons and LED lights to complete the experiment using INPUT and OUTPUT as a combination. Our key module outputs a low level when the key is pressed and a high level when the key is released.
Pin name description
G GND (Power input negative)
V VCC (Power input positive)
1 Digital signal pin
2 Digital signal pins
3 Digital signal pins
4 Digital signal pins
Module parameter
Supply voltage: 3.3V/5V
Connection mode: 2.54mm pin row
Installation method: Double screws fixed
