Custom Synchron Geared Motor TYC-50 220V AC 0.083RPM-0.1RPM CCW 2PCS Mini Gearbox Electric Motor Low Speed Mini Gearbox Manufacturer

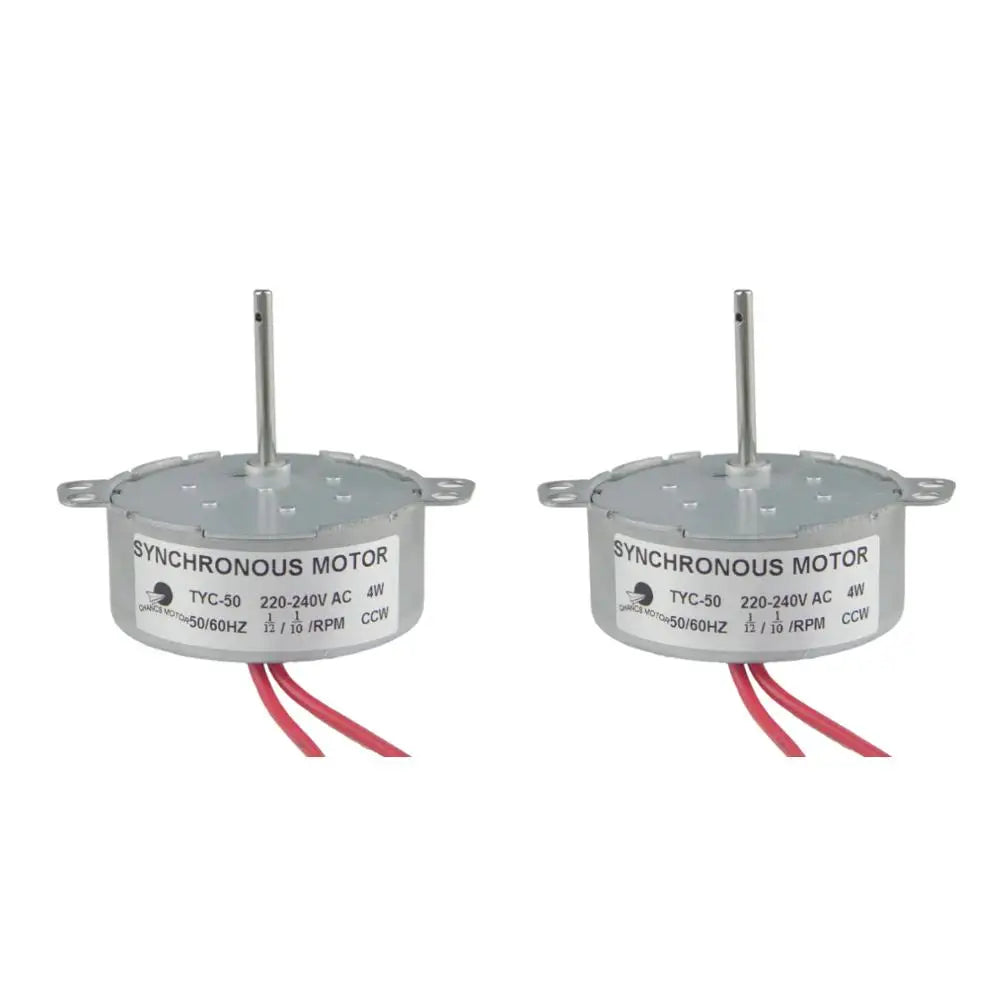

This is a TYC-50 AC 220V 0.083RPM-0.1RPM CCW synchronous motor,small power consumption, low noise, small size, light weight, easy to use. The reduction gear is combination of metal/plastic to ensure the gear working continuously and quietly.

This 0.083RPM-0.1RPM synchronous motor suit for air medical bed.

It drive a air pump in air bed. Shaft, length of wire, RPM,voltage can be designed as per client's requirements.

We promise we will tested ever motor before shipment.

Package content: 2 x Motors

Product Name : Synchronous Motor

Model : TYC-50

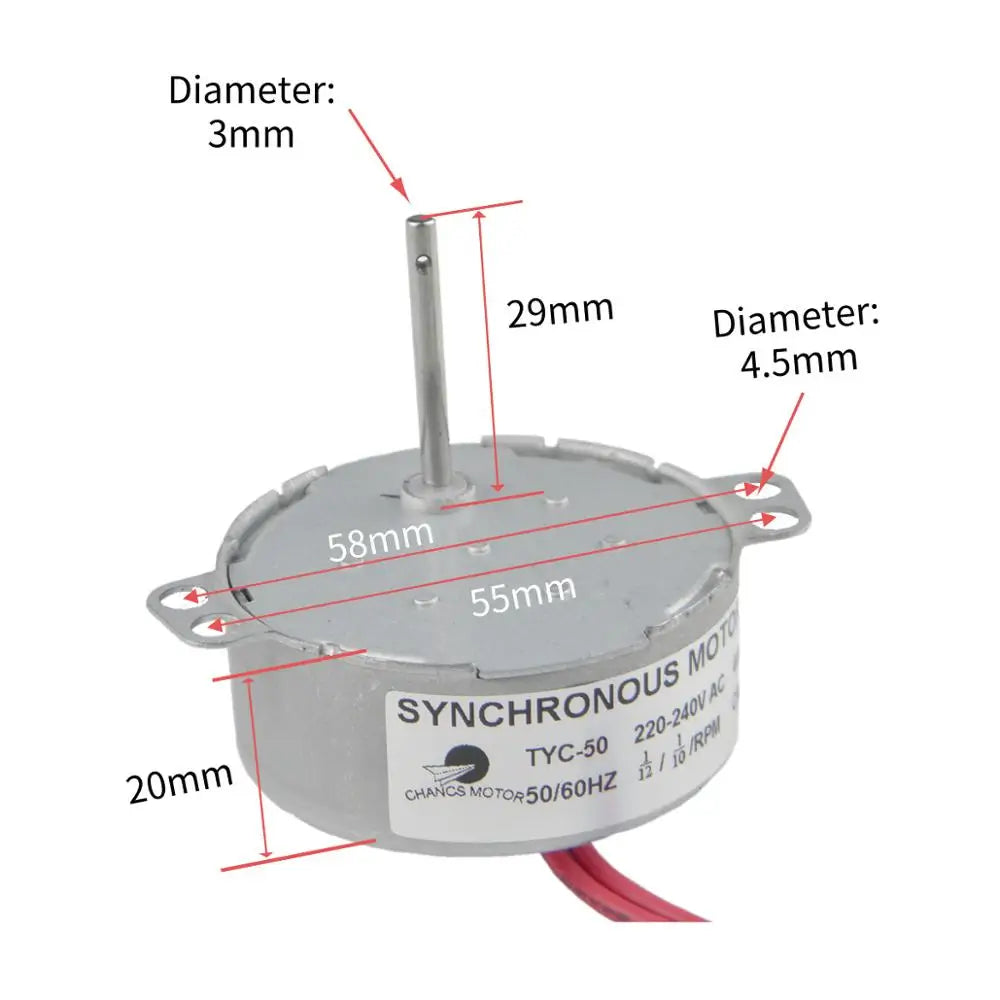

Shaft Diameter: 3mm(0.12")

Shaft Length: 30.5mm(1.2")

Direction : CCW

Voltage : AC 220V

Speed : 1/12-1/10r/min (0.083RPM-0.1RPM)

Power : 4W

Max Torque:≤14kgf*cm.

Frequency : 50/ 60Hz

1.The applicable voltage of this motor is AC 220V, too high voltage will burn the motor.

2.The motor speed is NOT an accurate value, the speed will change with the frequency. For example, the speed is 0.8-1RPM, at 50Hz, the speed is 0.8RPM; at 60Hz, the speed is 1RPM.
