Description

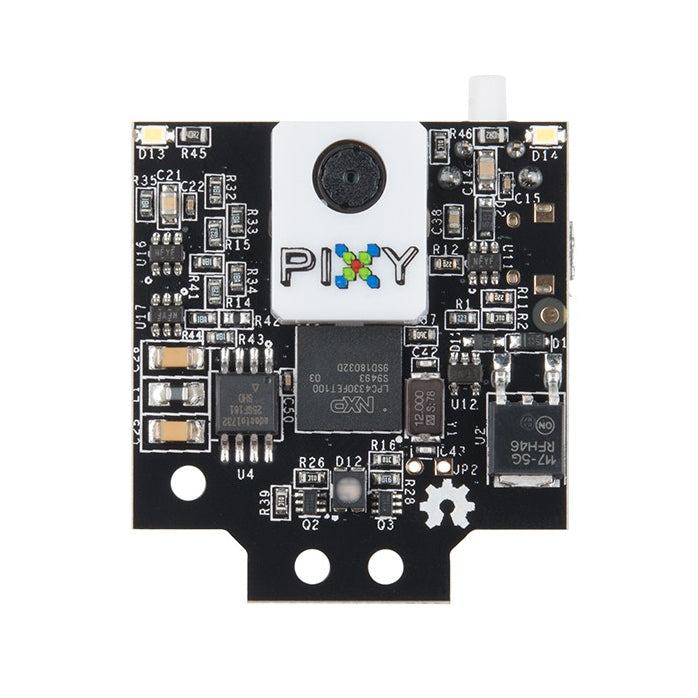

The Pixy2 CMUcam5 is the second version of Pixy. It's faster, smaller, and more capable than the original Pixy, adding line tracking/following algorithms as well as other features.  Pixy2 CMUcam5 can detect lines, intersections and small barcodes, intended for line-following robots.

Here's what we've added to Pixy2 CMUcam5:

• Improved framerate – 60 frames-per-second with Pixy2.

• Tracking algorithms have been added to color-based object detection

• Improved and simplified libraries for Arduino, Raspberry Pi, and other controllers

• Integrated light source



• The small, fast, easy-to-use, low-cost, readily-available vision system

• Able to learn to detect objects that you teach it.

• Compatible with Arduino using the included cable. Also works with Raspberry Pi, BeagleBone and similar controllers

• All libraries for Arduino, Raspberry Pi, etc. are provided

• C/C++ and Python are supported

• Communicates via one of several interfaces: SPI, I2C, UART, USB or analog/digital output

• Configuration utility runs on Windows, macOS, and Linux

• All software/firmware is open-source GNU-licensed

• All hardware documentation including schematics, bill of materials, PCB layout, etc. are provided

Features

• Seven color signatures

• Hundreds of objects

• Teach it the objects you’re interested in

• Pixy2 "tracks" each object it detects

• color code

• Detecting and tracking lines

• Detecting Intersections and "branching"

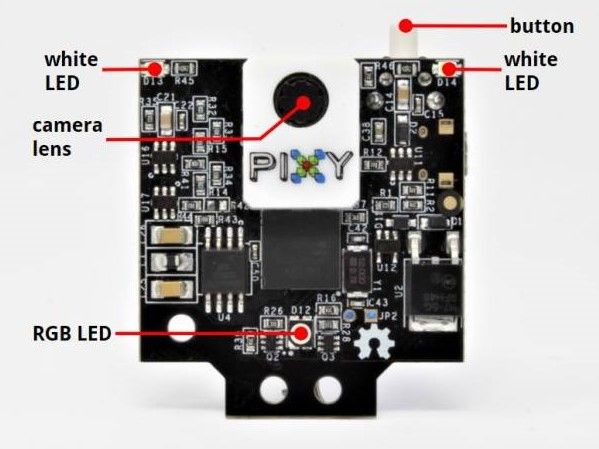

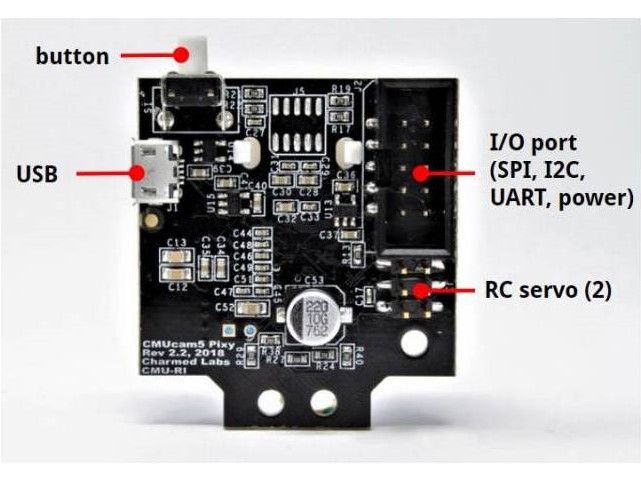

Hardware Overview

Technical details

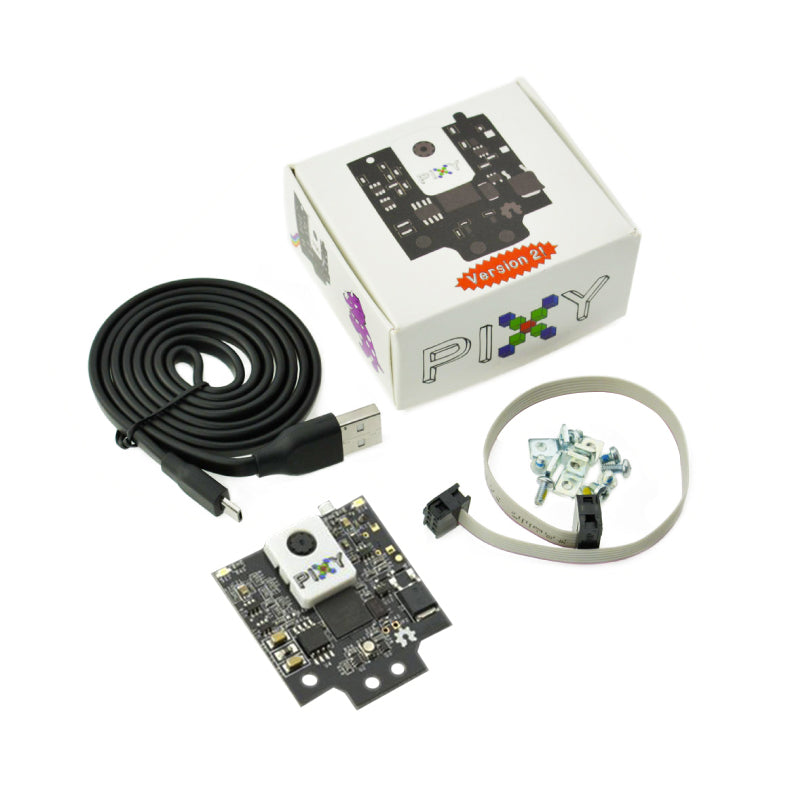

Part List
