Smart Turtle Robot Car Wireless Control Learning Kit for Arduino Support Tracking/Ultrasonic Obstacle Avoidance customize
Smart Turtle Robot Car Wireless Control Learning Kit for Arduino Support Tracking/Ultrasonic Obstacle Avoidance customize
Regular price
$75.84 USD
Regular price
$85.22 USD
Sale price
$75.84 USD
Unit price
per
Couldn't load pickup availability
Descriptions:
● Smart turtle car kit is a single-chip learning application development system, with the MCU series atmega-328p as the core,
complete the functions of the hunt, obstacle avoidance, infrared remote control, and Bluetooth remote control.
● The kit also includes a large number of fun programs and can be extended with external circuit modules to increase the use of
the car.
● This is designed to allow users to get rid of the boring theoretical knowledge while learning the microcontroller, and to
acquire the ability to develop the microcontroller system in play.
File reference:
1. Arduino-Development-Software
2. Bluetooth APP
3. Manual reference (for reference only)
Features:

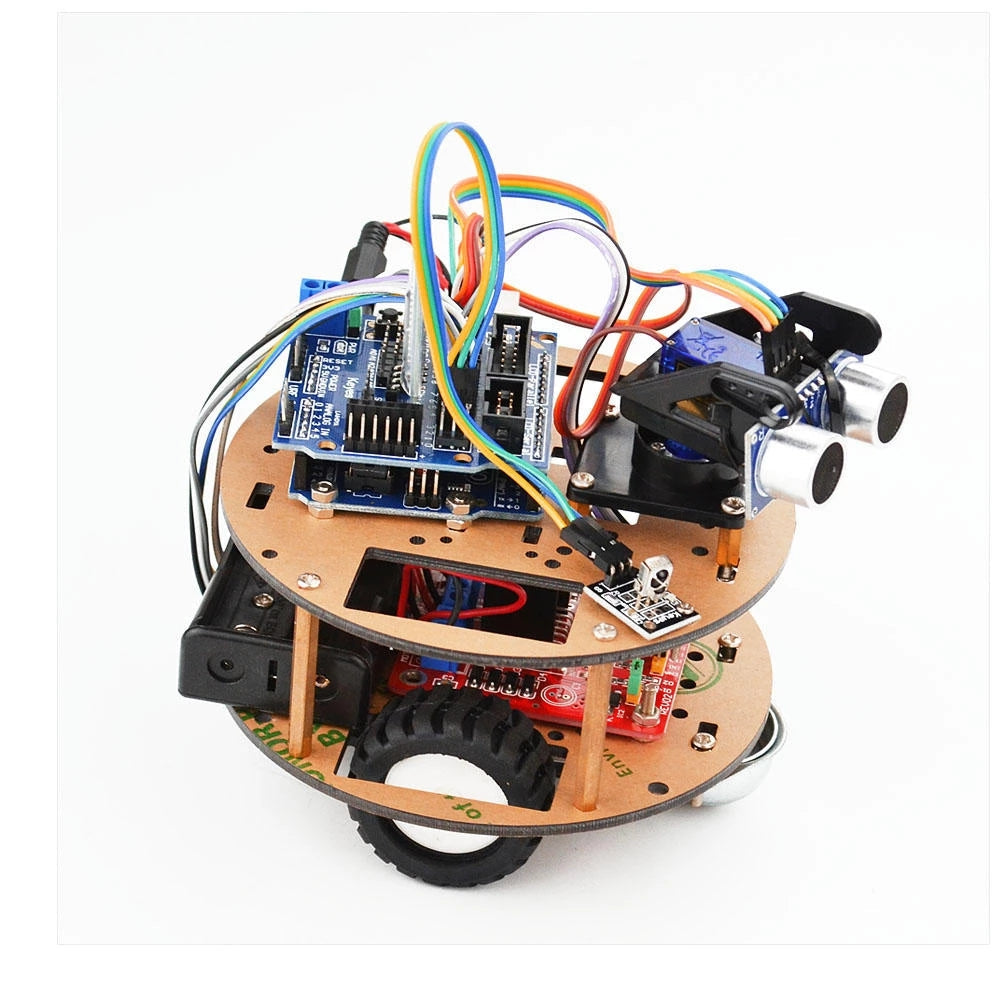

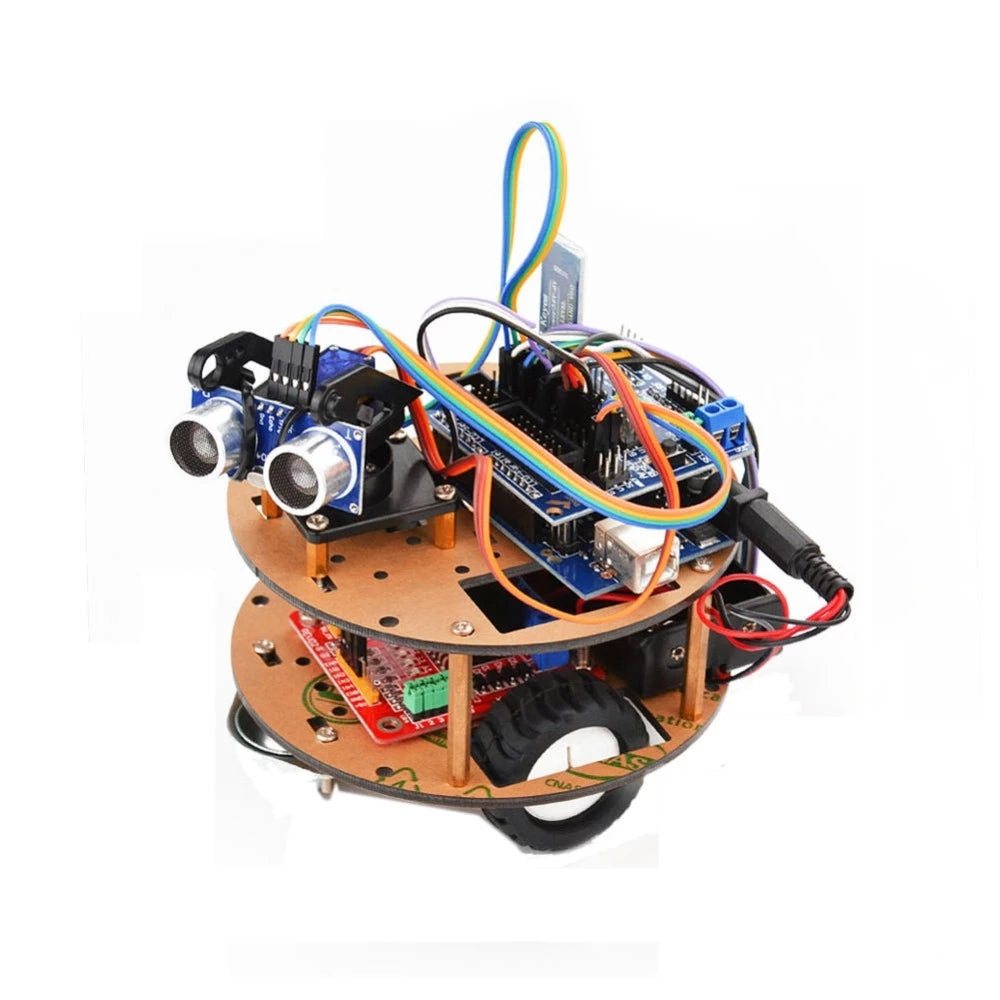

● Ultrasonic obstacle avoidance. Through the ultrasonic obstacle avoidance and the connection of the steering gear, the trolley
smoothly
tests the distances of the obstacles on the front, left and right. And control the rotation, successfully achieve the obstacle
avoidance effect.
●Bluetooth communication. The kit includes a Bluetooth module. It needs to pair Bluetooth on the phone. The verification code is
1234. You can directly enter the APP to control the car after the pairing is successful.

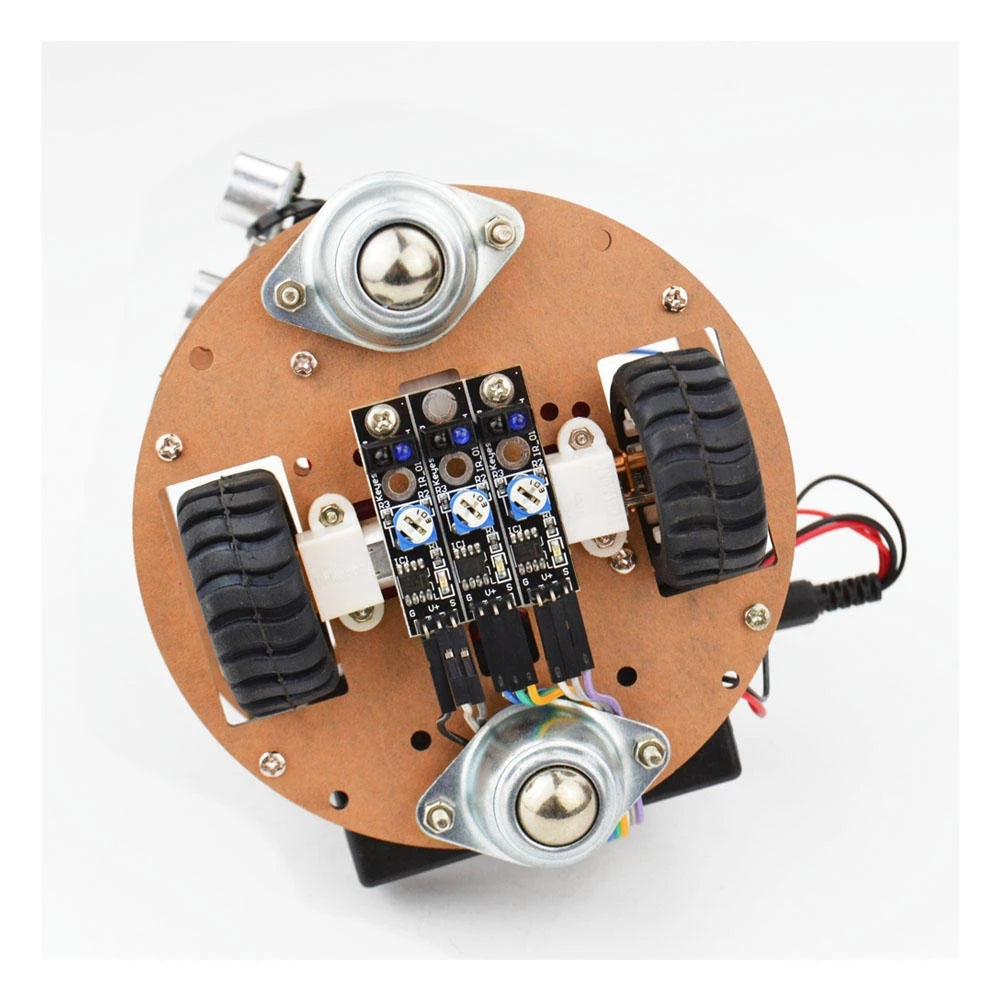

●Three ways of tracking. Three groups of hunt modules, detecting black and white lines, with higher precision, can also be used
with anti-drop control.When the route is detected, the three-way tracking module controls the movement of the smart car according
to the detected result and realizes the intelligent tracking function.
● With Infrared remote control. You can use the infrared remote control controller and infrared module to realize long-distance
remote control car movement.
Parameters:
1. N20Motor parameters: voltage range: 1.5-12V, motor shaft length: 10mm, 6.0V 50, 100rpm/min.

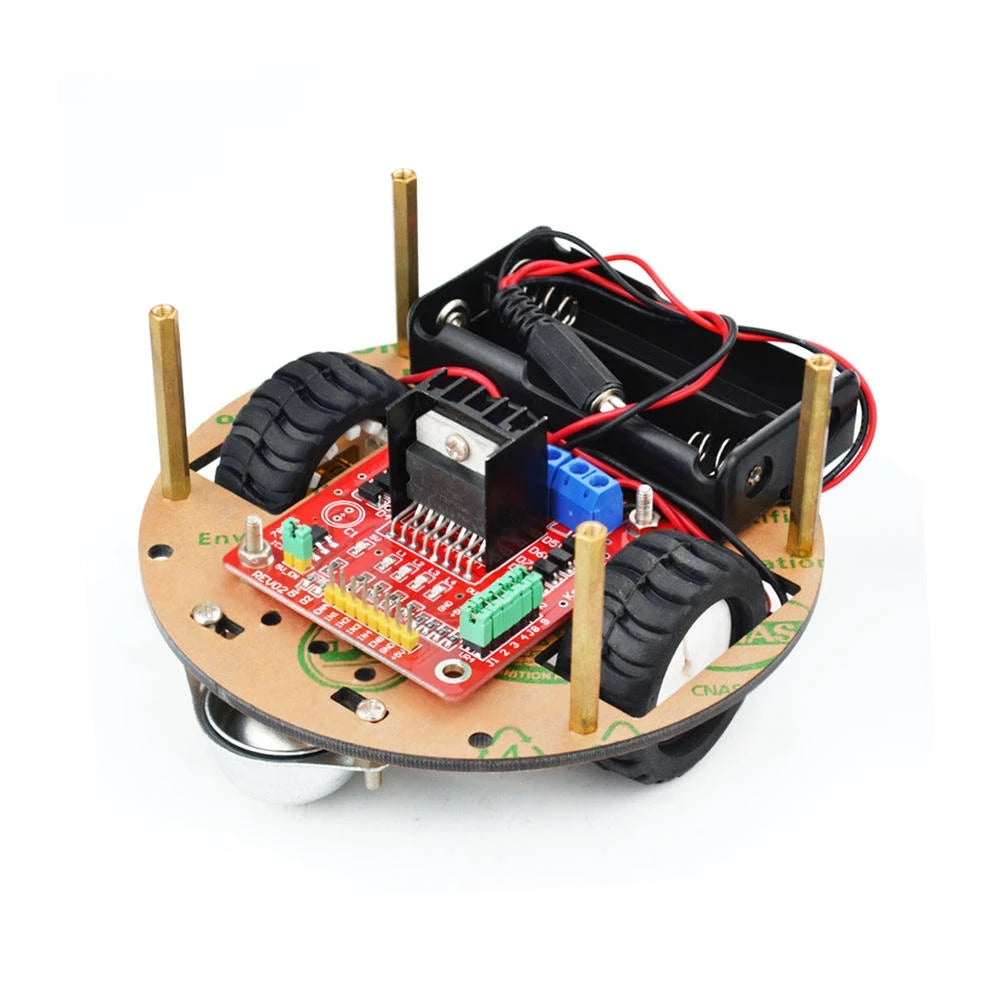

2. Control motor selects L298N drive module
3. Can be connected to the external 7~12V voltage. And can carry a variety of sensor modules
4. Support 2000MA 18650 rechargeable battery: 2pcs
Packag List:
Metal geared motor x 2
Wheels x 2
Motor fixing parts x 2
Universal wheel x 4
Robot chassis x 2
L298N motor drive board x 1
UNO328 control panel x 1
One sensor expansion board (with Bluetooth jack) x 1
Bluetooth slave x 1
Servo x 1
Ultrasonic modules x 1
Three sets of hunt modules x 1
Infrared receiving sensor x 1
Single-chip remote control x 1
18650 battery box x 1
DuPont Line
Screw nut Several
