Sipeed MAix: AI at the edge

AI is pervasive today, from consumer to enterprise applications. With the explosive growth of connected devices, combined with a demand for privacy/confidentiality, low latency and bandwidth constraints, AI models trained in the cloud increasingly need to be run at the edge.

MAIX is Sipeed’s purpose-built module designed to run AI at the edge, we called it AIoT. It delivers high performance in a small physical and power footprint, enabling the deployment of high-accuracy AI at the edge, and the competitive price make it possible embed to any IoT devices. As you see, Sipeed MAIX is quite like Google edge TPU, but it act as master controller, not an accelerator like edge TPU, so it is more low cost and low power than AP+edge TPU solution.

MAix's Advantage and Usage Scenarios:

  • MAIX is not only hardware, but also provide an end-to-end, hardware + software infrastructure for facilitating the deployment of customers' AI-based solutions.

  • Thanks to its performance, small footprint, low power, and low cost, MAIX enables the broad deployment of high-quality AI at the edge.

  • MAIX isn't just a hardware solution, it combines custom hardware, open software, and state-of-the-art AI algorithms to provide high-quality, easy to deploy AI solutions for the edge.

  • MAIX can be used for a growing number of industrial use-cases such as predictive maintenance, anomaly detection, machine vision, robotics, voice recognition, and many more. It can be used in manufacturing, on-premise, healthcare, retail, smart spaces, transportation, etc.

Sipeed MAix BiT development board

As many DIYer want build their own work with breadboard, Sipeed newly provide breadboard-friendly board for you, it called MAix BiT

Features

  • It is twice of M1 size, 1x2 inch size, breadboard-friendly, and also SMT-able

  • It integrate USB2UART chip, auto download circuit, RGB LED, DVP Camera FPC connector(support small FPC camera and standard M12 camera), MCU LCD FPC connector(support our 2.4 inch QVGA LCD), TF card solt.

  • MAix BiT is able to adjust core voltage! you can adjust from 0.8V~1.2V, overclock to 800MHz!

Specification

CPU : RISC-V Dual Core 64bit, 400MHz adjustable

Powerful dual-core 64-bit open architecture-based processor with rich community resources

Debugging Support

High-speed UART and JTAG interface for debugging

GPIO interface

All GPIOs connected to header 2*20 2.54mm

Micro SD card(TF card) slot

Support Self-elastic card holder

One-click Download circuit

Just connect the USB typeC cable to complete the download
Onborad CH340, which support 2Mbps baudrate

DVP Camera connector

24P 0.5mm FPC connector

LCD connector

8bit MCU LCD 24P 0.5mm FPC connector

Button

RST button and USR button



MAix's CPU

  • In hardware, MAIX have powerful KPU K210 inside, it offers many excited features:

  • 1st competitive RISC-V chip, also 1st competitive AI chip, newly release in Sep. 2018

  • 28nm process, dual-core RISC-V 64bit IMAFDC, on-chip huge 8MB high-speed SRAM (not for XMR :D), 400MHz frequency (able to 800MHz)

  • KPU (Neural Network Processor) inside, 64 KPU which is 576bit width, support convolution kernels, any form of activation function. It offers 0.25TOPS 0.3W,400MHz, when overclock to 800MHz, it offers 0.5TOPS. It means you can do object recognition 60fps VGA

  • APU (Audio Processor) inside, support 8mics, up to 192KHz sample rate, hardcore FFT unit inside, easy to make a Mic Array (MAIX offer it too)

  • Flexible FPIOA (Field Programmable IO Array), you can map 255 functions to all 48 GPIOs on the chip

  • DVP camera and MCU LCD interface, you can connect an DVP camera, run your algorithm, and display on LCD

  • Many other accelerators and peripherals: AES Accelerator, SHA256 Accelerator, FFT Accelerator (not APU's one), OTP, UART, WDT, IIC, SPI, I2S, TIMER, RTC, PWM, etc.

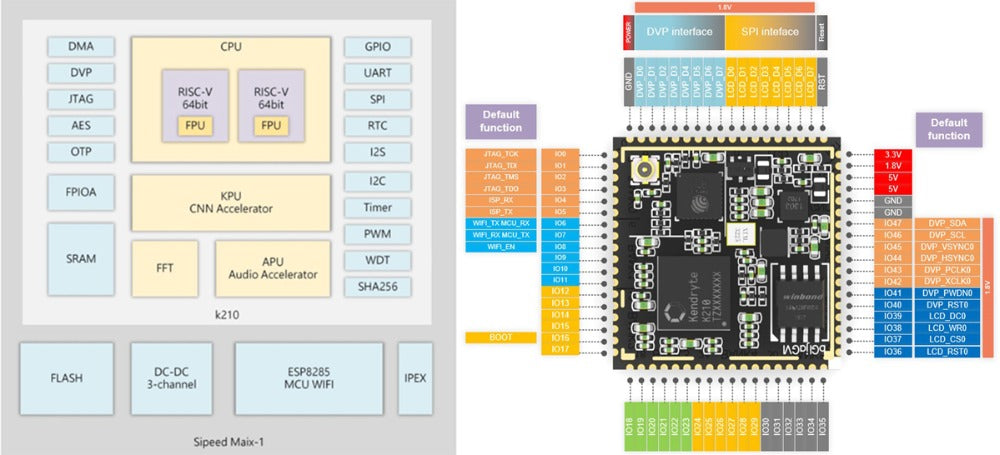

MAix's Module

Inherit the advantage of K210's small footprint, Sipeed MAIX-I module, or called M1, integrate K210, 3-channel DC-DC power, 8MB/16MB/128MB Flash (M1w module add wifi chip esp8285 on it) into Square Inch Module. All usable IO breaks out as 1.27mm(50mil) pins, and pin's voltage is selectable from 3.3V and 1.8V.

MAix's Deep learning

MAIX support fixed-point model that the mainstream training framework trains, according to specific restriction rules, and have model compiler to compile models to its own model format.
It support tiny-yolo, mobilenet-v1, and, TensorFlow Lite! Many TensorFlow Lite model can be compiled and run on MAIX! And We will soon release model shop, you can trade your model on it.



SOFTWARE FEATURES

FreeRtos & Standard SDK

Support FreeRtos and Standrad development kit.

MicroPython Support

Support MicroPython on M1

Machine vision

Machine vision based on convolutional neural network

Machine hearing

High performance microphone array processor

ELECTRICAL SPEC

Supply voltage of external power supply

4.8V ~ 5.2V

Supply current of external power supply

>600mA

Temperature rise

<30K

Range of working temperature

-30℃ ~ 85℃

Part List 1

Sipeed MAix Bit x 1



Part List 2

Sipeed MAix Bit x 1

M12 Camera

2.4 Inch Display
