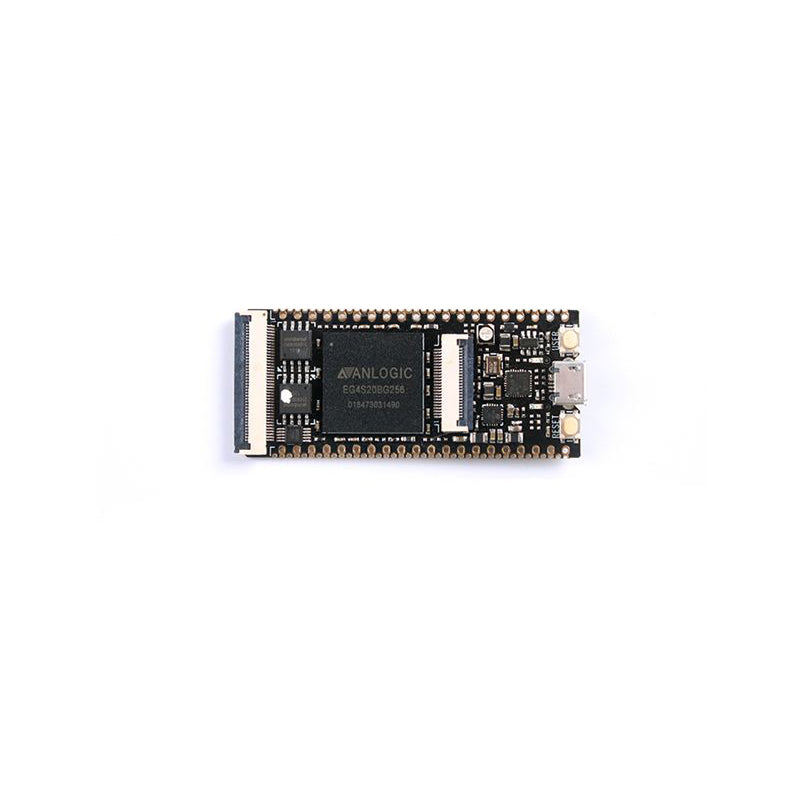

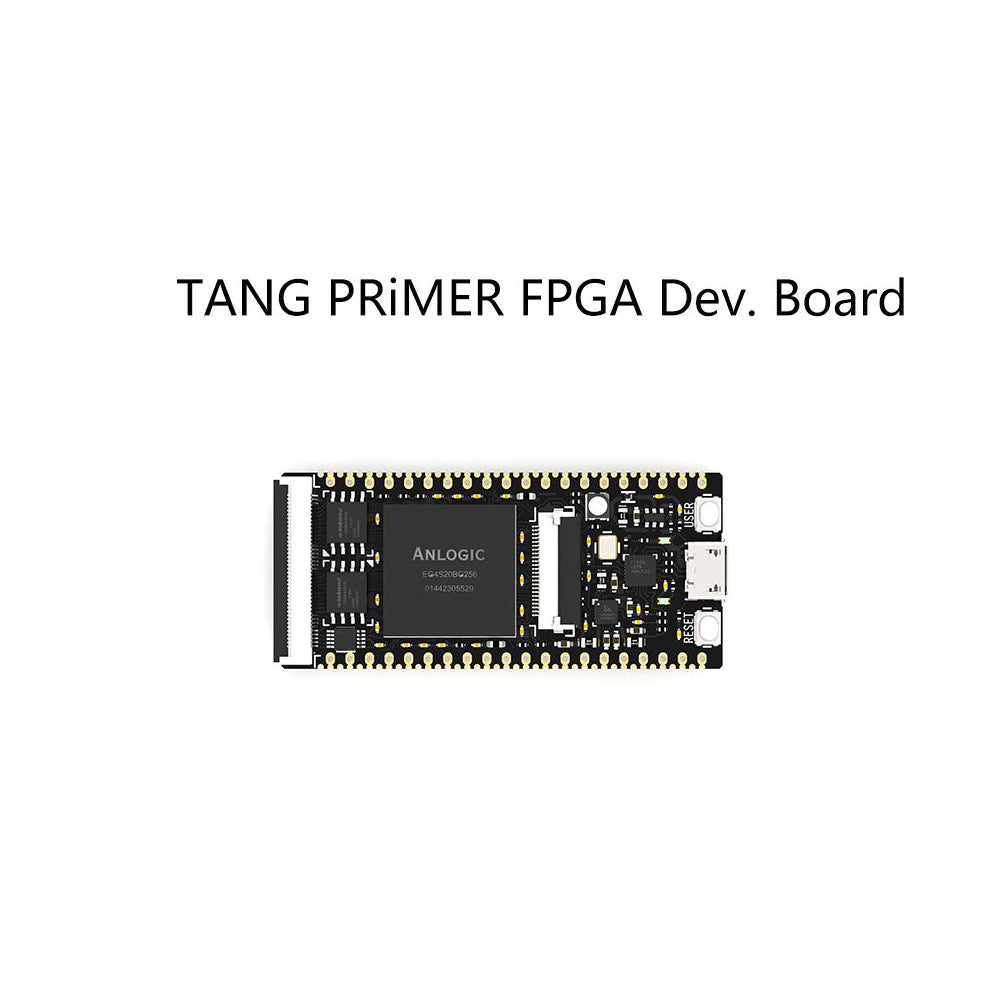

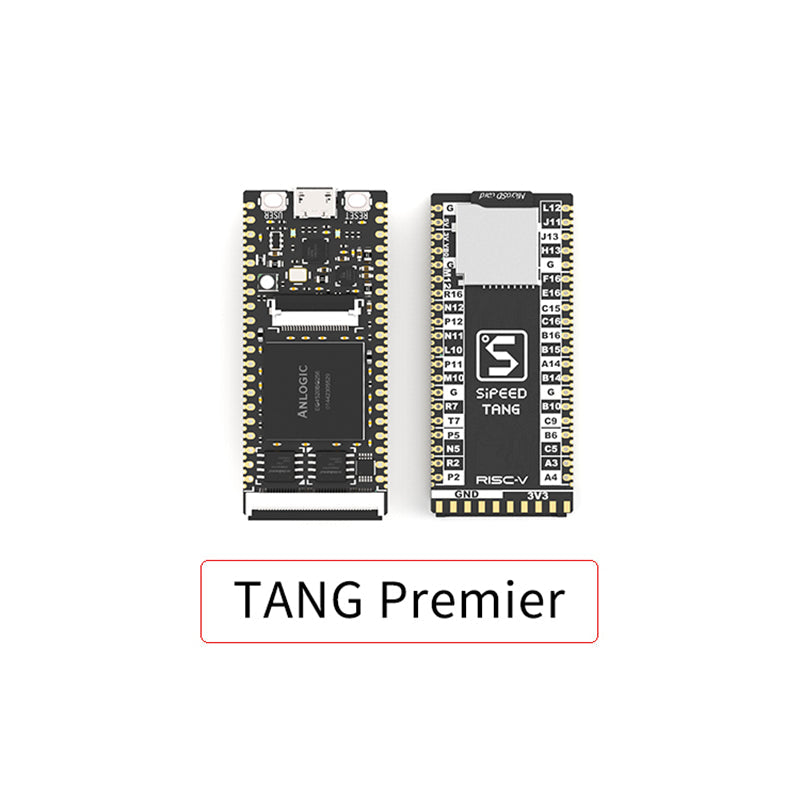

Sipeed Lichee TANG Premier Anlogic EG4s20 FPGA Development Board And Kits Custom PCB dth pcba line pcba customize

Tang features Anlogic EG4S20 FPGA – unrelated to Amlogic – which run a RISC-V softcore,  and all is packaged in a small small form factor

Specifications:

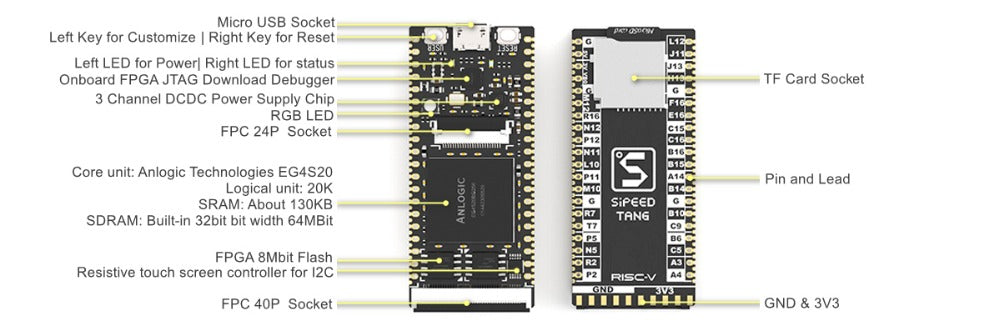

• Core unit: Anlogic Technologies EG4S20

• Logical unit: 20K (LUT4/LUT5 hybrid architecture)

• SRAM: About 130KB

• SDRAM: Built-in 32bit bit width 64MBit

• Flash: FPGA configuration Flash, 8Mbit User Flash, nor/nand optional

• Download and debug: Onboard FPGA JTAG Download Debugger, RV debugger can debug hummingbird core

• Interface:

- FPC40P socket, can be connected to RGB LCD, VGA adapter board
- FPC24P socket, can be connected to DVP camera, high speed ADC module
- Resistive touch screen controller for I2C interface, used with RGB LCD

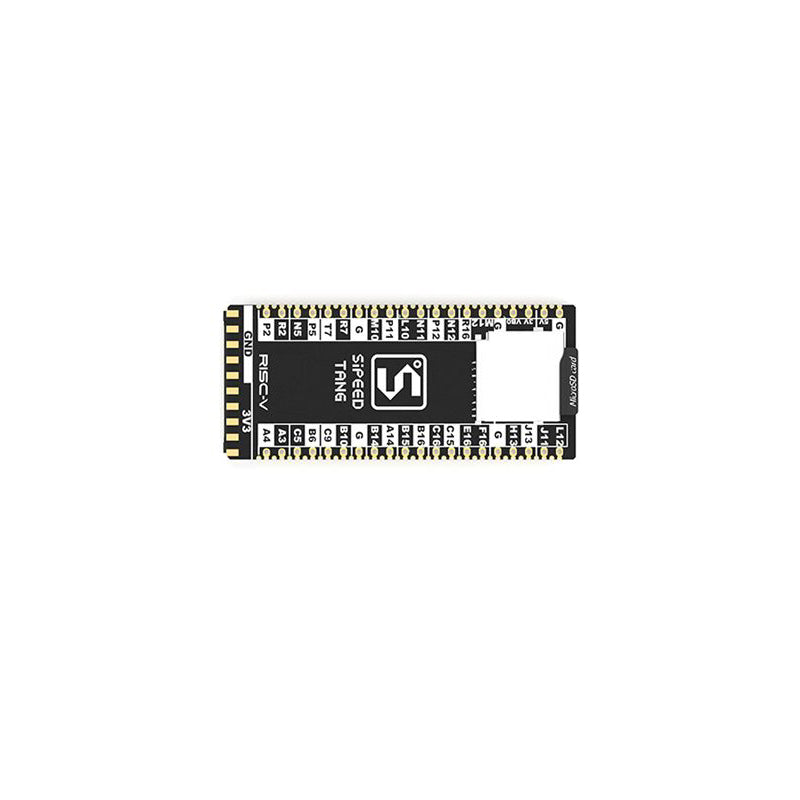

• Pin and lead:

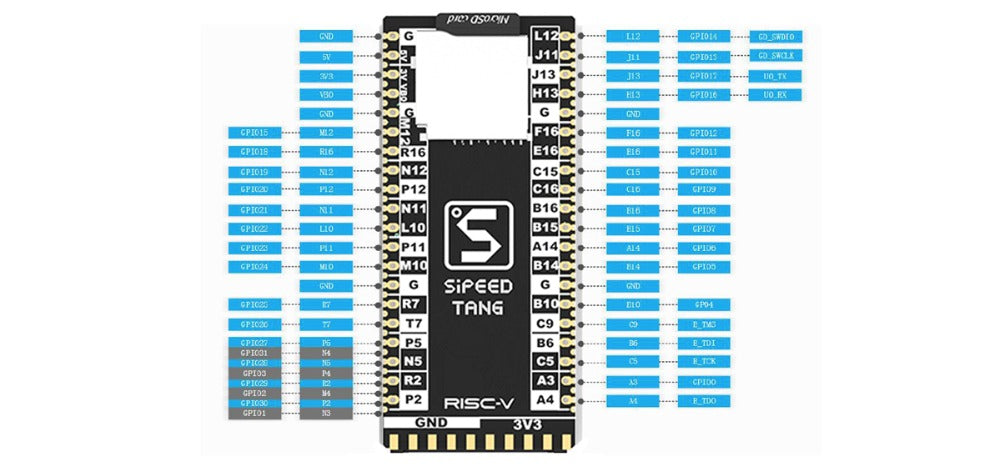

- The adjacent pins LVDS are drawn in the same length, leading out 8 GCLKs, and all 8 ADCs are taken out.
- Double row pin spacing 900mil, compatible with breadboard development
- Half hole leads to an extra 40 IO, and the whole board leads to 130+ IO

• Electrical characteristics:

- Micro USB 5V power supply; 2.54mm pin
- 3.3V~5V power supply; 1.27mm stamp hole power supply
- 3-channel DCDC power supply chip, stable and efficient power supply
- independent adjustment of Bank0 IO level
