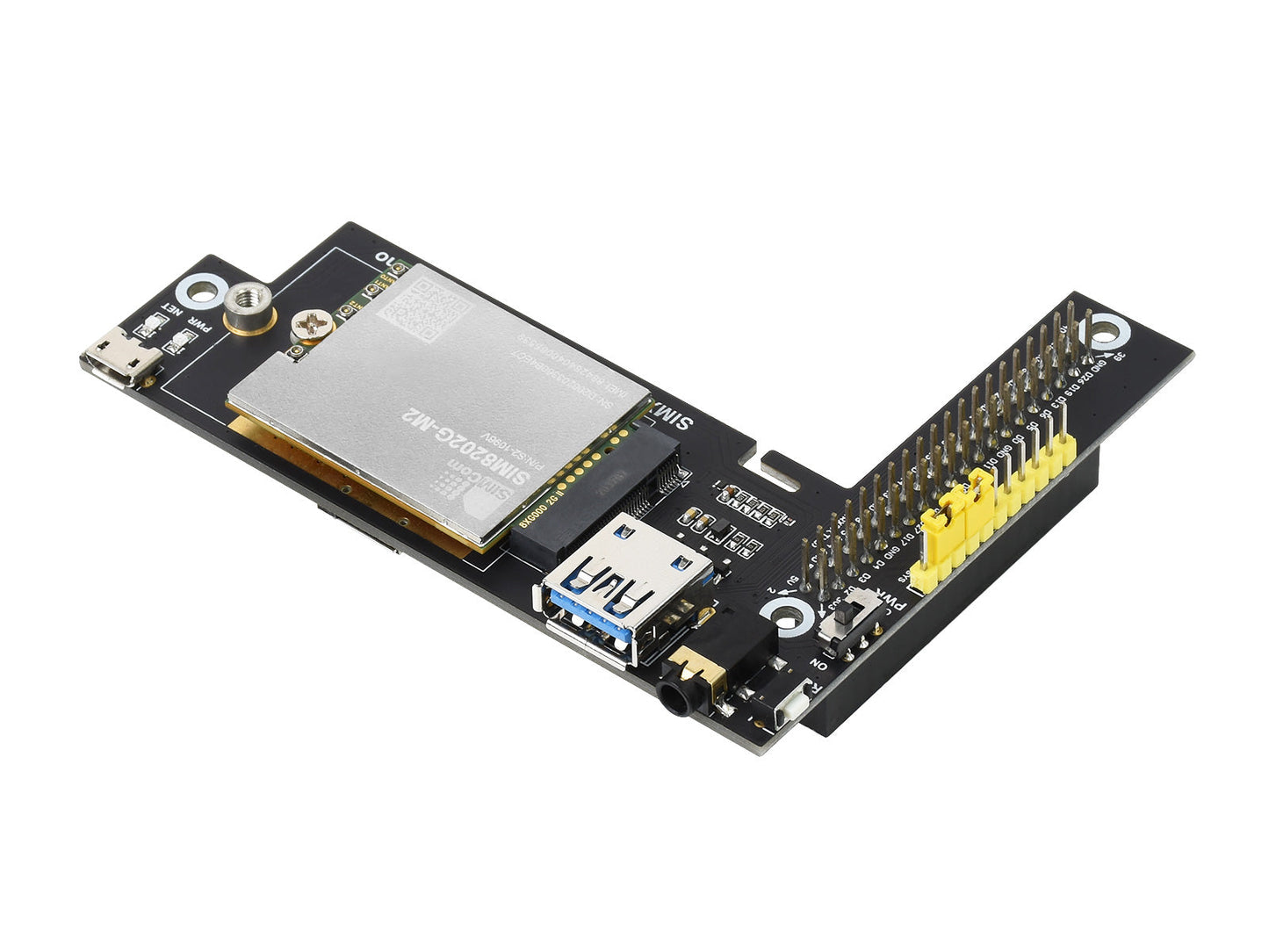

SIM8202G-M2 5G Module Designed For Jetson Nano, 5G/4G/3G Support, Snapdragon X55 Onboard, Multi Mode Multi Band, Applicable For Regions With 5G Sub-6G Signal Coverage
SIM8202G-M2 5G MODULE   FOR JETSON NANO

Comes With SIM8202G-M2, Supports 5G/4G/3G, Supports 5G SA And NSA,
Multi Mode Multi Band, Applicable For Regions With 5G Sub-6G Signal Coverage

This 5G/4G/3G Jetson Nano communication module adopts SIMCom 5G module SIM8202G-M2, supports 5G NSA and SA networking, providing data rate up to 2.4 Gbps (DL)  /  500 Mbps (UL).

The base board features standard M2 connector, allows connecting with different 4G or 5G communication module in M2 package. There are also onboard interfaces like USB3.1 port, audio jack, SIM card slot, etc. Combined with our configuration script and development resources, it is easy to enable 5G high speed communication for the Jetson Nano or computer. This 5G module is ideal for fast evaluating 5G modules, as well as being integrated into sorts of applications where 5G connection is required.

Features At A Glance
  • Standard 40PIN GPIO extension header, supports direct attaching to Jetson Nano
  • Comes with SIM8202G-M2 core module, based on Qualcomm snapdragon X55 platform, with multi mode multi band support
  • 5G/4G/3G communication, supports functions like phone call, SMS, cloud communication, etc.
  • USB3.1 port for testing AT commands, sending messages, cloud communication, making phone call, getting GNSS positioning data, etc.
  • SIM card slot, supports 1.8V / 3V SIM card
  • 2x LED indicators, easy to monitor the working status
  • AT command support, based on 3GPP TS 27.007, 27.005 and V.25TER command set
  • Onboard audio jack and audio decoder, allows audio operation like making phone call
  • Multi-constellation dual-band positioning: GPS, GLONASS, Beidou, Galileo, and QZSS
  • Operating system support: Windows/Linux/Android
Specifications
  SIM8200EA-M2 SIM8202G-M2
Frequency band
Sub-6G (SA) n1, n2, n3, n5, n7, n8, n12, n20, n28, n38, n40, n41, n48, n66, n71, n77, n78, n79 (n79 is only available for SIM8202G-M2)
Sub-6G (NSA) n41, n77, n78, n79 (n79 is only available for SIM8202G-M2)
LTE-FDD B1, B2, B3, B4, B5, B7, B8, B12, B13, B14, B17, B18, B19, B20, B25, B26, B28, B29, B30, B32, B66, B71
LTE-TDD B34, B38, B39, B40, B41, B42, B43, B48
WCDMA B1, B2, B3, B4, B5, B8
GNSS GPS, GLONASS, Beidou, Galileo, and QZSS
Data rate
Sub-6G 2.4 Gbps (DL)  /  500 Mbps (UL)
LTE 1 Gbps (DL)  /  200 Mbps (UL)
HSPA 42 Mbps (DL)  /  5.76 Mbps (UL)
Software functions
Operating systems Windows/Linux/Android
Communication protocols TCP/IP, IPV4, IPV6, Multi-PDP, FTP, FTPS, HTTP, HTTPS, MQTTS, DNS, SSL3.0
SMS Supports MT, MO, CB, Text, PDU
Firmware upgrade Supports firmware upgrade via USB port
Hardware info
SIM card 1.8V/3.0V
Power supply 5V 3A
Antenna connector 6x IPEX-4 connector 4x IPEX-4 connector
Module dimensions 52.0×30.0×2.3mm 42.0×30.0×2.3mm
Applications
Applicable regions Regions with 5G Sub-6G signal coverage including China, US, Japan, South Korea, Europe, the Middle East, Latin America, etc.
Application examples CPE, Smart gateway, Drone, Live streaming, Remote medical treatment, Intelligent security
5G Module Comparison

Compatible Hardware Interface, Identical Software Function

SIM8200EA-M2 the 6x antennas version (left), SIM8202G-M2 the 4x antennas version (right)

Multi Mode Multi Band

Applicable For Most Of The Countries And Regions

Based on Qualcomm snapdragon X55 platform with multi mode multi band support.
Applicable for regions with 5G Sub-6G signal coverage including China, US, Japan, South Korea, Europe, the Middle East, Latin America...
Supports 5G NSA (4G+5G common networking) and SA (5G standalone networking), compatible with 4G/3G network.



* the frequency band diagram above is for reference only, please confirm the supported bands according to your local service provider.

Multi System Support

Supports Windows/Android/Linux

Just plug it into USB port, go through some driver installation and simple configuration, the high speed 5G network connection would be ready to use

Multi Host Support

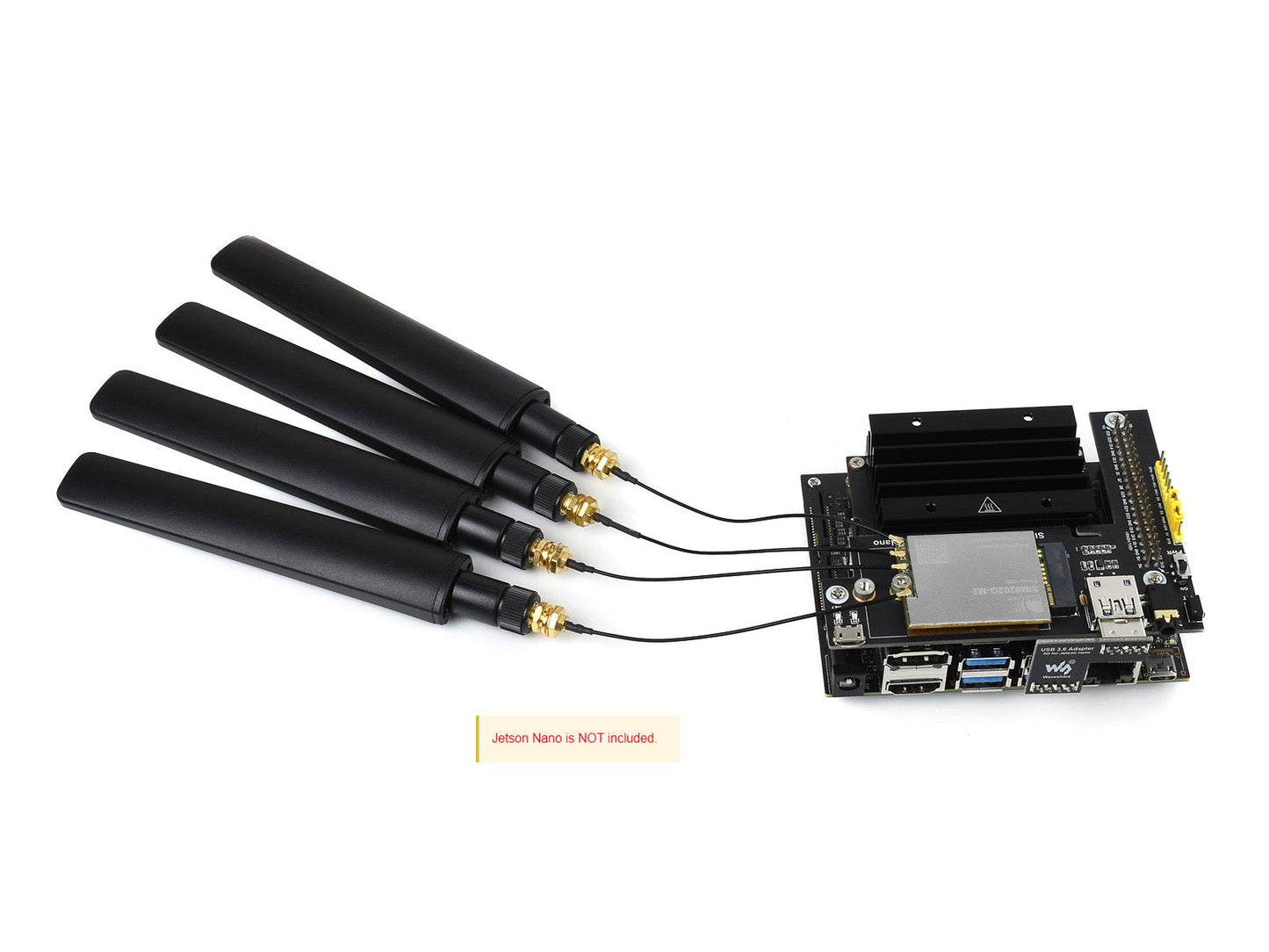

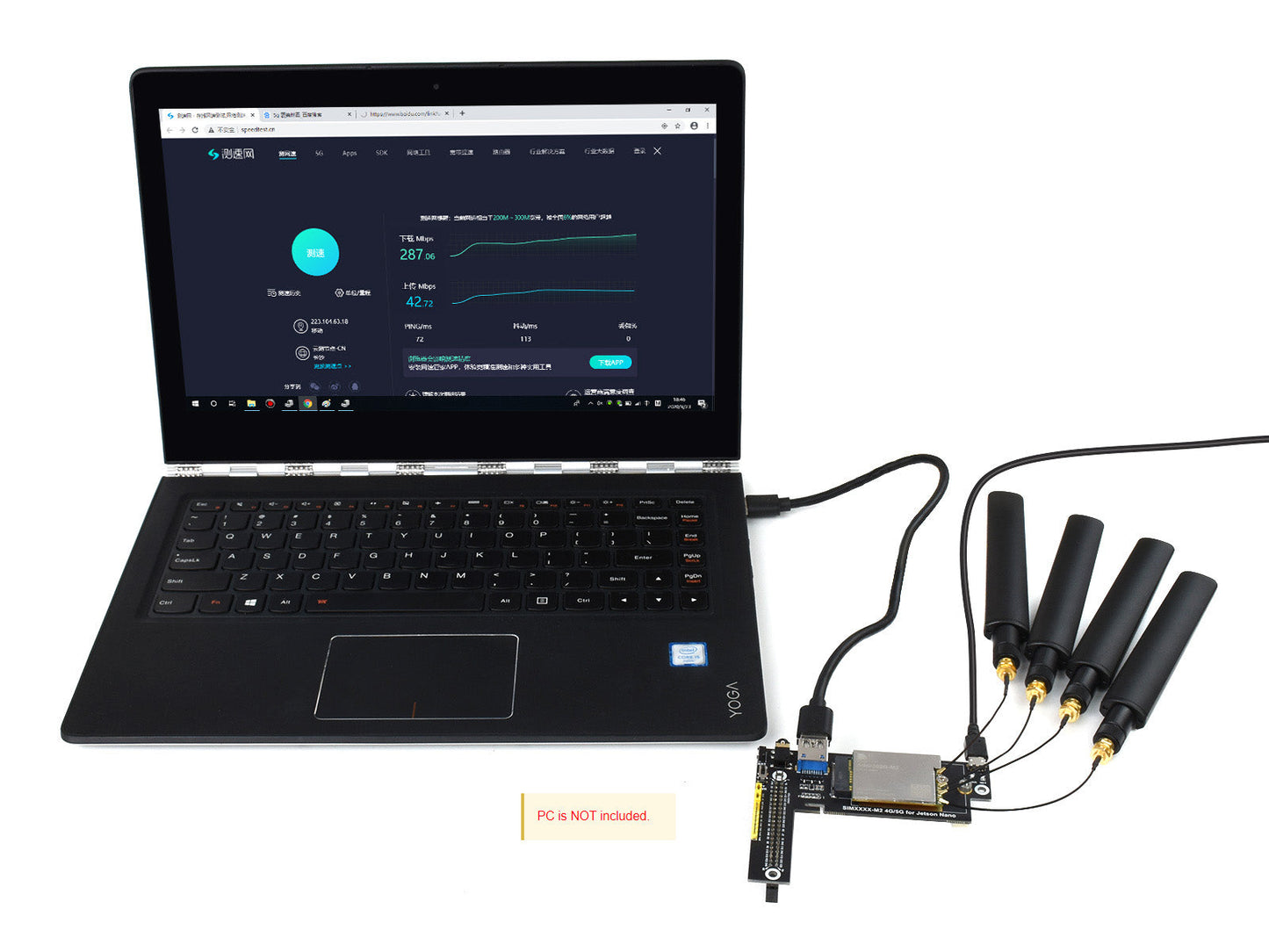

Enabling 5G High Speed Connection For Jetson Nano And Windows Computer

Sub-6G:   up to 4 Gbps (downlink) / up to 500 Mbps (uplink)*
LET:   up to 2 Gbps (downlink) / up to 200 Mbps (uplink)*
HSPA+:   up to 42 Mbps (downlink) / up to 5.76 Mbps (uplink)*


* stands for idealized data rate, the actual data rate depends on factors like network coverage, traffic congestion, base station condition, etc.

Cloud Communication

Supported Communication Protocols:
TCP / IP / IPV4 / IPV6 / Multi-PDP / FTP / FTPS / HTTP / HTTPS / MQTTS / DNS / SSL3.0

Phone Call & SMS Support

Allows Using AT Commands To Make Phone Call Or Send SMS

Application Examples

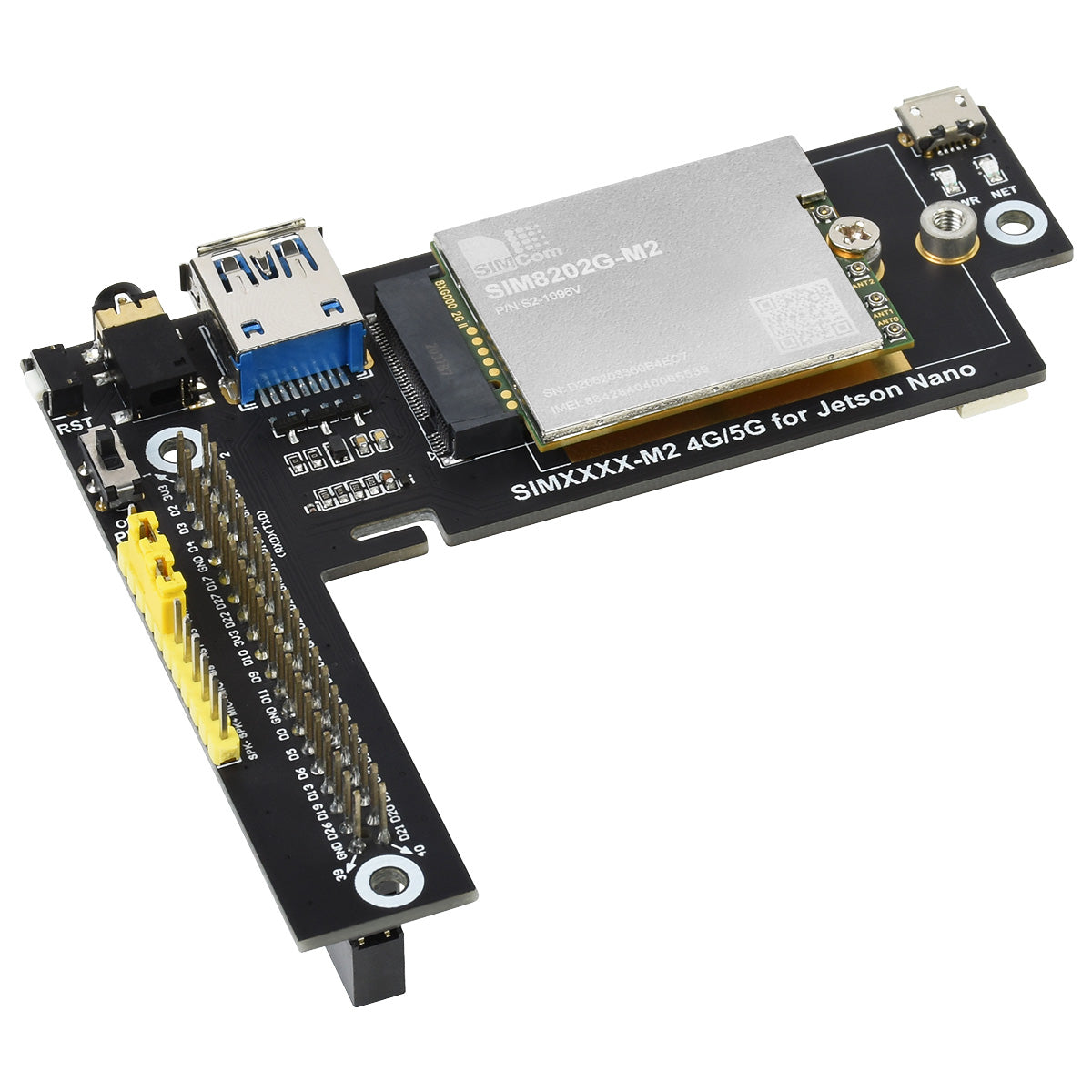

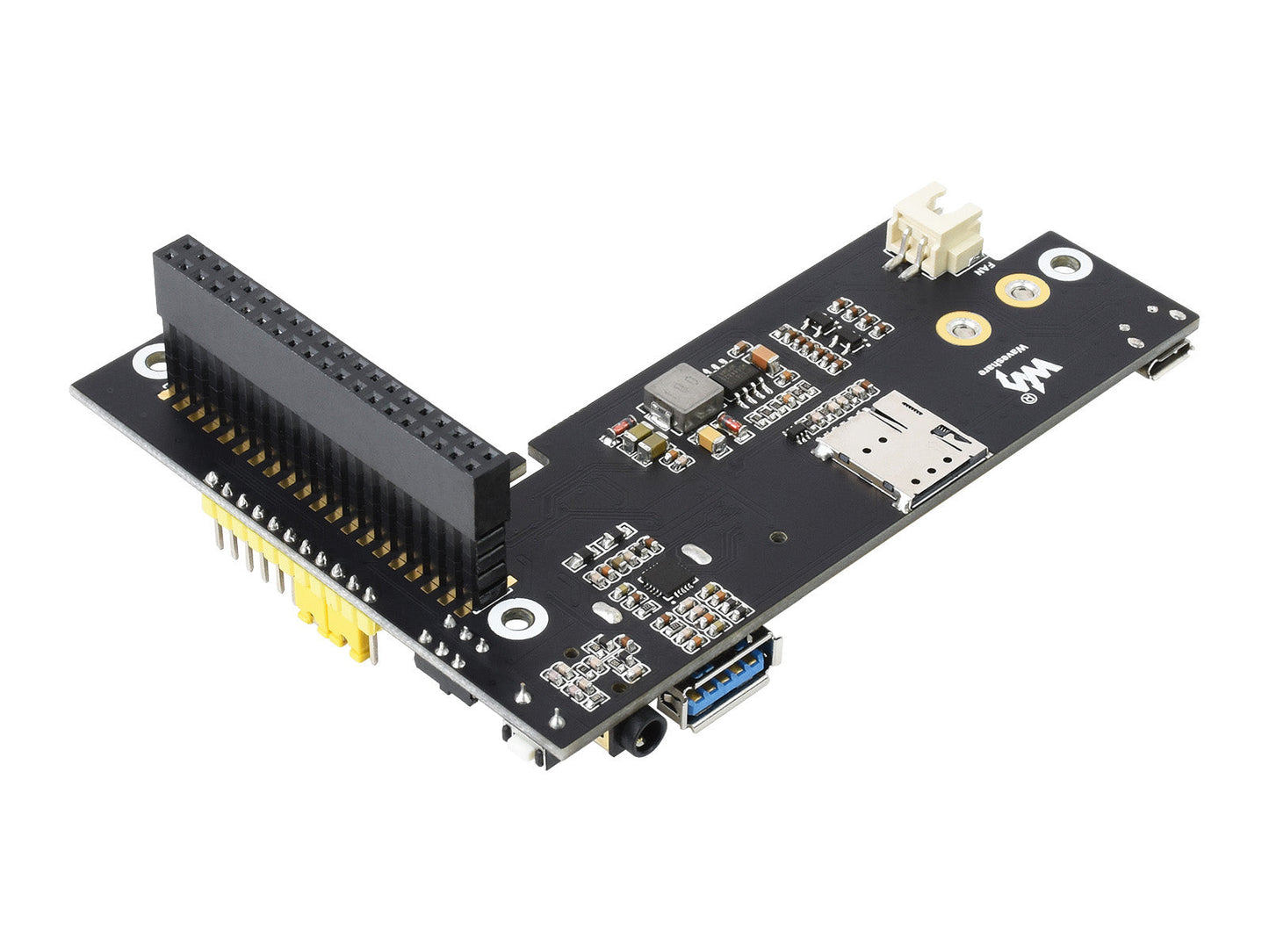

What's On Board
  1. M.2 connector
    compatible with different 5G/4G modules
  2. USB3.1 port
    for connecting with computer or Jetson Nano
  3. 3.5mm headphone/microphone jack
  4. 40PIN GPIO header
    for connecting with Jetson Nano
  5. Fan header
    for 5V cooling fan
  6. nano SIM card slot
    supports 1.8V / 3V SIM card
  7. 5V 3A power input
  8. Network indicator
  9. Power indicator
  10. Reset
  11. Power switch

  1. Power supply circuit
  2. Audio drive circuit
  3. Power supply selection jumper
    5V - SYS: powered by Jetson Nano 40PIN GPIO
    5V - USB: powered by external 5V 3A power adapter
  4. Module on/off control pin enable jumper
    PWR - D5: enabled by default, Jetson Nano D5 pin can be used to turn on/off the module
  5. Module reset pin enable jumper
    RST - D6: enabled by default, Jetson Nano D6 pin can be used to reset the module
  6. Audio input/output
    MIC+/MIC-: for external microphone
    SPK+/SPK-: for external speaker
Outline Dimensions
Resources & Services
Wiki: www.waveshare.com/wiki/SIM8202G-M2_5G_for_Jetson_Nano

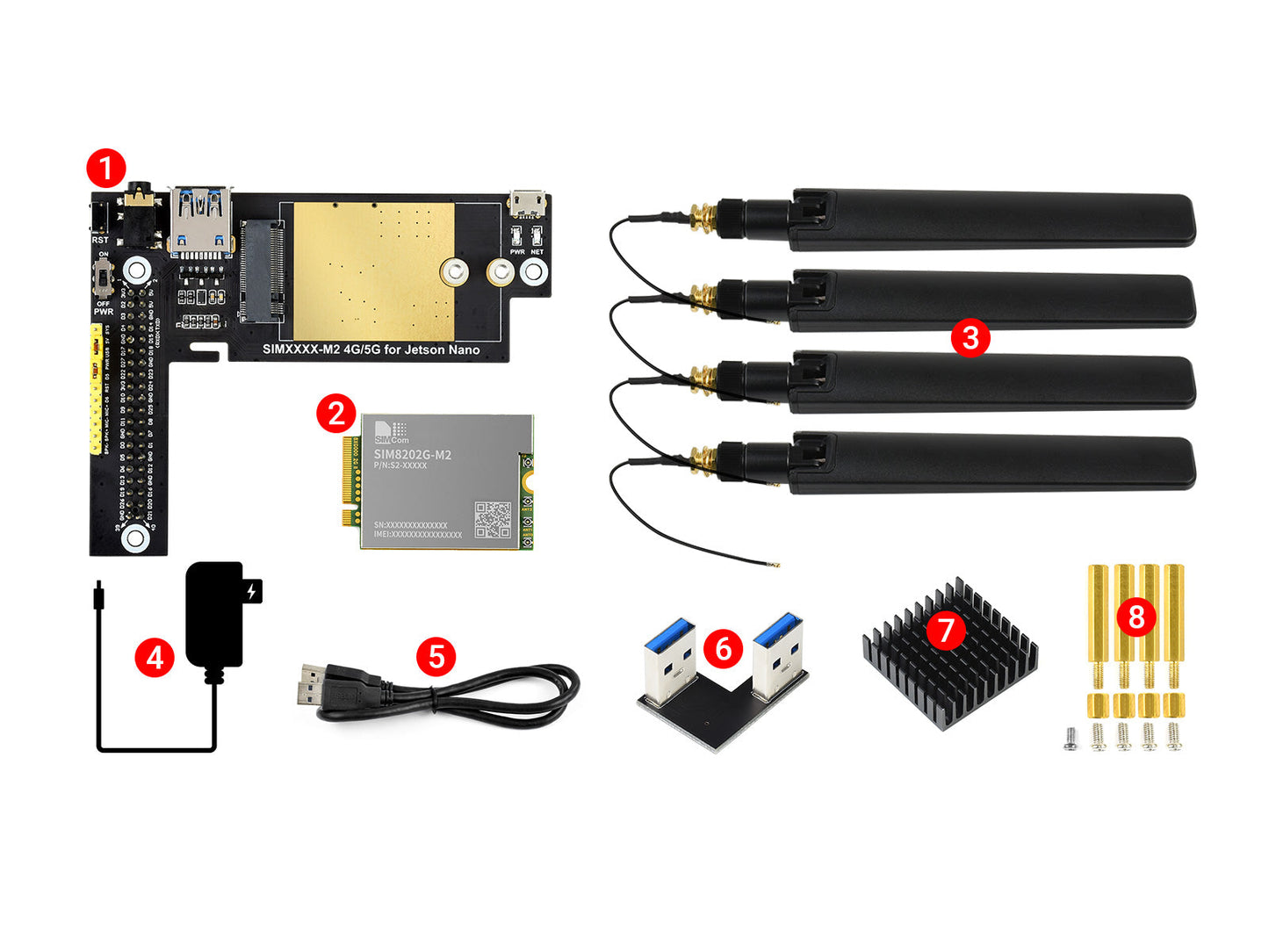

PACKAGE CONTENT

Weight: 0.296 kg

  1. SIMXXXX-M2 4G/5G module base x1
  2. SIM8202G-M2 x1
  3. 5G External Antenna x4
  4. OPTIONS  Power adapter 5V 3A x1
  5. USB3.0 dual plug cable x1
  6. USB 3.0 Adapter (C) x1
  7. Heatsink x1
  8. Screws pack x1
