SIM8200EA-M2 5G Module Designed For Jetson Nano, 5G/4G/3G Support, Snapdragon X55 Onboard Multi Mode Multi Band Custom PCB customize

SIM8200EA-M2 5G Module Designed For Jetson Nano, 5G/4G/3G Support, Snapdragon X55 Onboard Multi Mode Multi Band Custom PCB customize

Regular price $450.00 USD
Regular price $490.00 USD Sale price $450.00 USD
Sale Sold out


SIM8200EA-M2 5G Module Designed For Jetson Nano, 5G/4G/3G Support, Snapdragon X55 Onboard, Multi Mode Multi Band, Applicable For Regions With 5G Sub-6G Signal Coverage

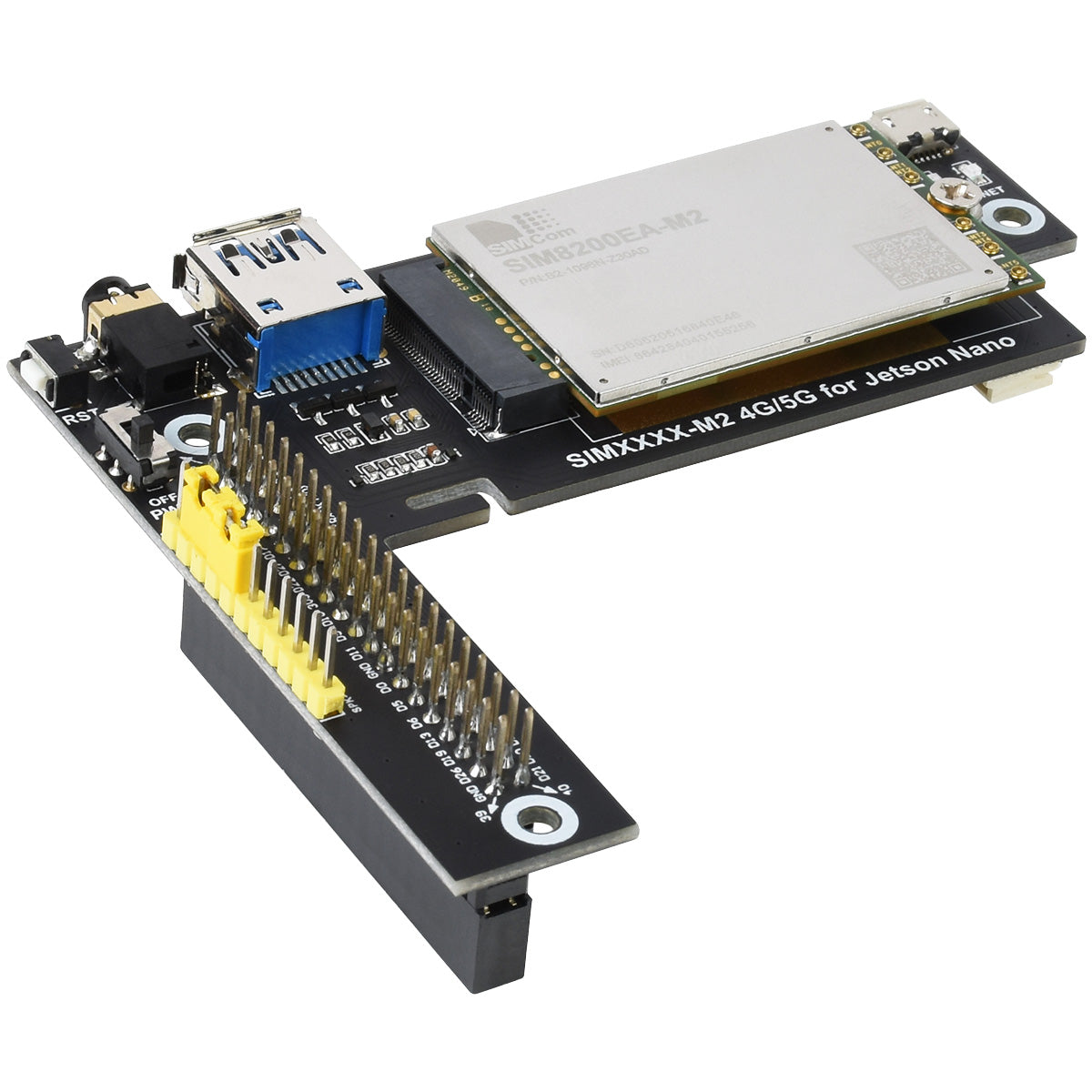

SIM8200EA-M2 5G MODULE   FOR JETSON NANO

Comes With SIM8200EA-M2, Supports 5G/4G/3G, Supports 5G SA And NSA,
Multi Mode Multi Band, Applicable For Regions With 5G Sub-6G Signal Coverage

Features At A Glance
  • Standard 40PIN GPIO extension header, supports direct attaching to Jetson Nano
  • Comes with SIM8200EA-M2 core module, based on Qualcomm snapdragon X55 platform, with multi mode multi band support
  • 5G/4G/3G communication, supports functions like phone call, SMS, cloud communication, etc.
  • USB3.1 port for testing AT commands, sending messages, cloud communication, making phone call, getting GNSS positioning data, etc.
  • SIM card slot, supports 1.8V / 3V SIM card
  • 2x LED indicators, easy to monitor the working status
  • AT command support, based on 3GPP TS 27.007, 27.005 and V.25TER command set
  • Onboard audio jack and audio decoder, allows audio operation like making phone call
  • Multi-constellation dual-band positioning: GPS, GLONASS, Beidou, Galileo, and QZSS
  • Operating system support: Windows/Linux/Android

5G Module Comparison

Compatible Hardware Interface, Identical Software Function

SIM8200EA-M2 the 6x antennas version (left), SIM8202G-M2 the 4x antennas version (right)

Multi Mode Multi Band

Applicable For Most Of The Countries And Regions

Based on Qualcomm snapdragon X55 platform with multi mode multi band support.
Applicable for regions with 5G Sub-6G signal coverage including China, US, Japan, South Korea, Europe, the Middle East, Latin America...
Supports 5G NSA (4G+5G common networking) and SA (5G standalone networking), compatible with 4G/3G network.





Multi Host Support

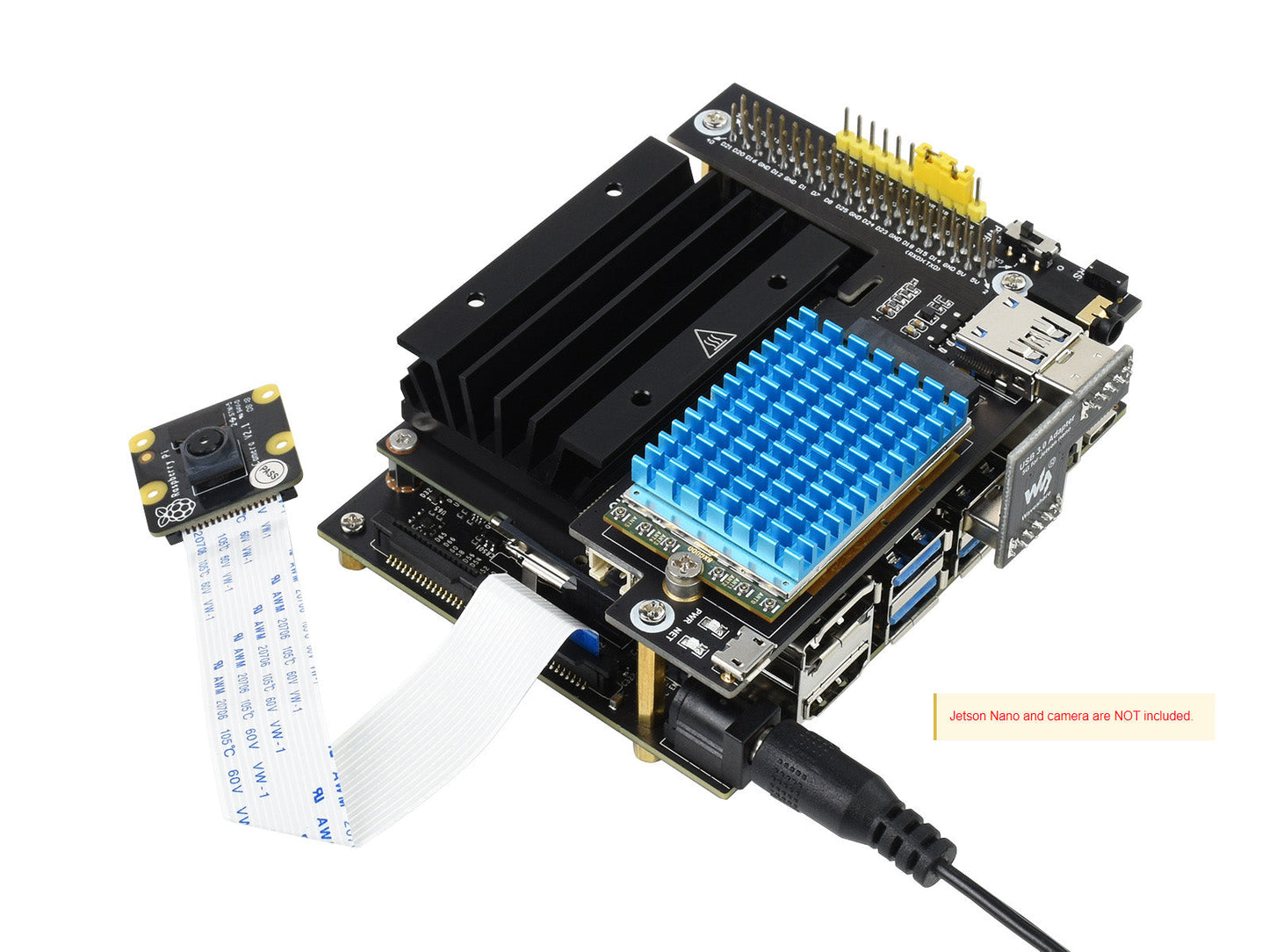

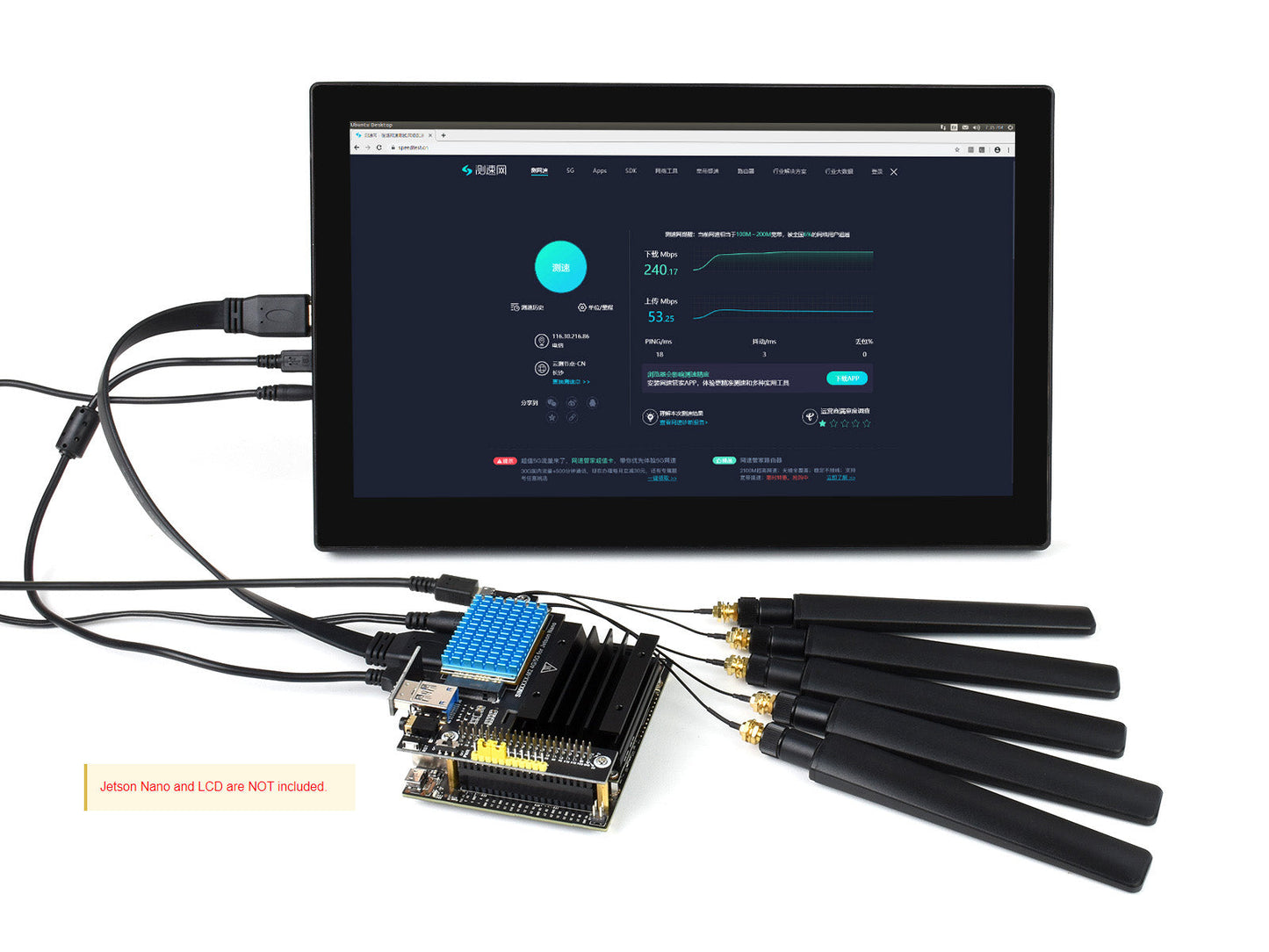

Enabling 5G High Speed Connection For Jetson Nano And Windows Computer

Sub-6G:   up to 2.4 Gbps (downlink) / up to 500 Mbps (uplink)*
LET:   up to 1 Gbps (downlink) / up to 200 Mbps (uplink)*
HSPA+:   up to 42 Mbps (downlink) / up to 5.76 Mbps (uplink)*


* stands for idealized data rate, the actual data rate depends on factors like network coverage, traffic congestion, base station condition, etc.

Cloud Communication

Supported Communication Protocols:
TCP / IP / IPV4 / IPV6 / Multi-PDP / FTP / FTPS / HTTP / HTTPS / MQTTS / DNS / SSL3.0

Phone Call & SMS Support

Allows Using AT Commands To Make Phone Call Or Send SMS

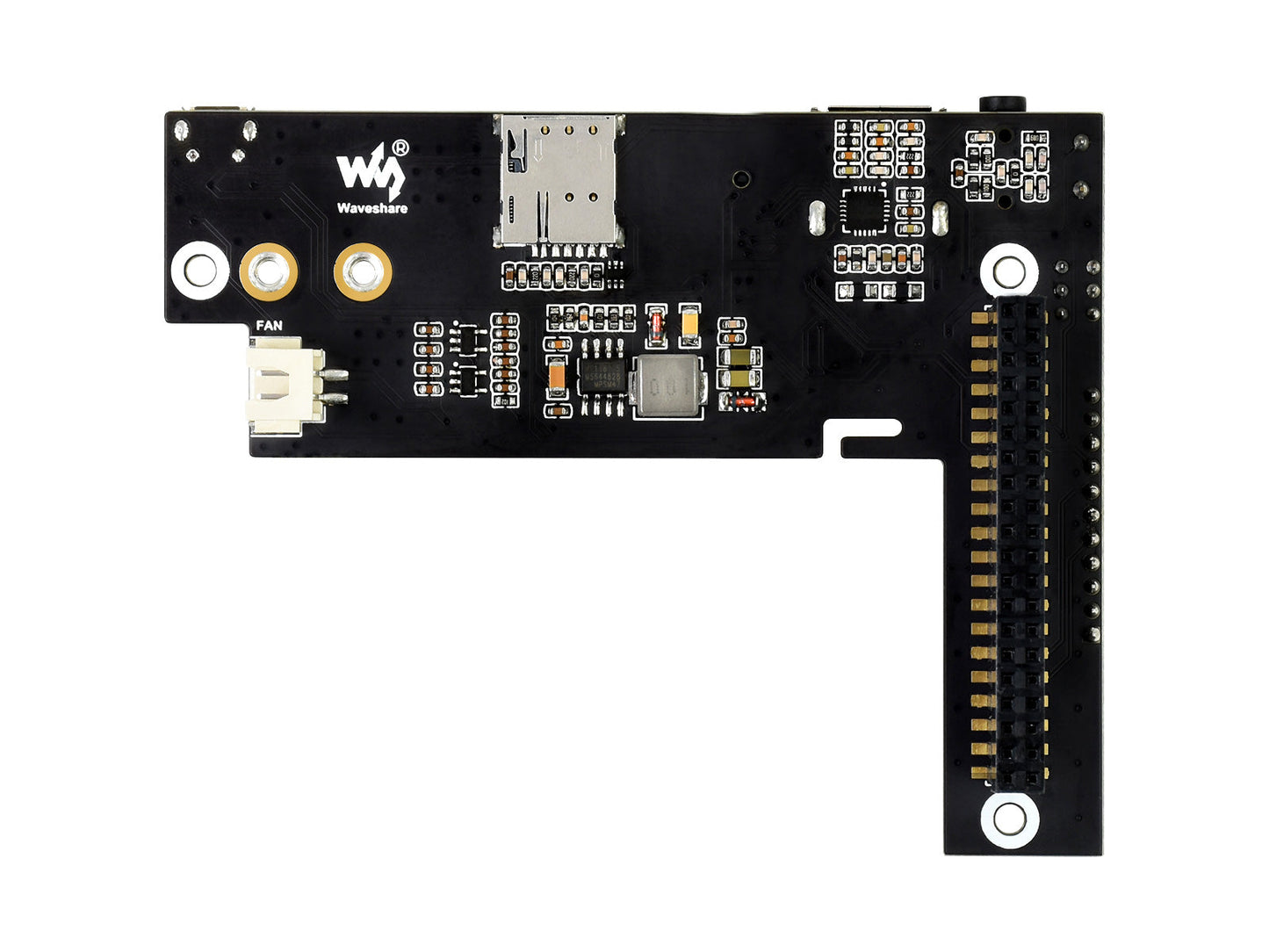

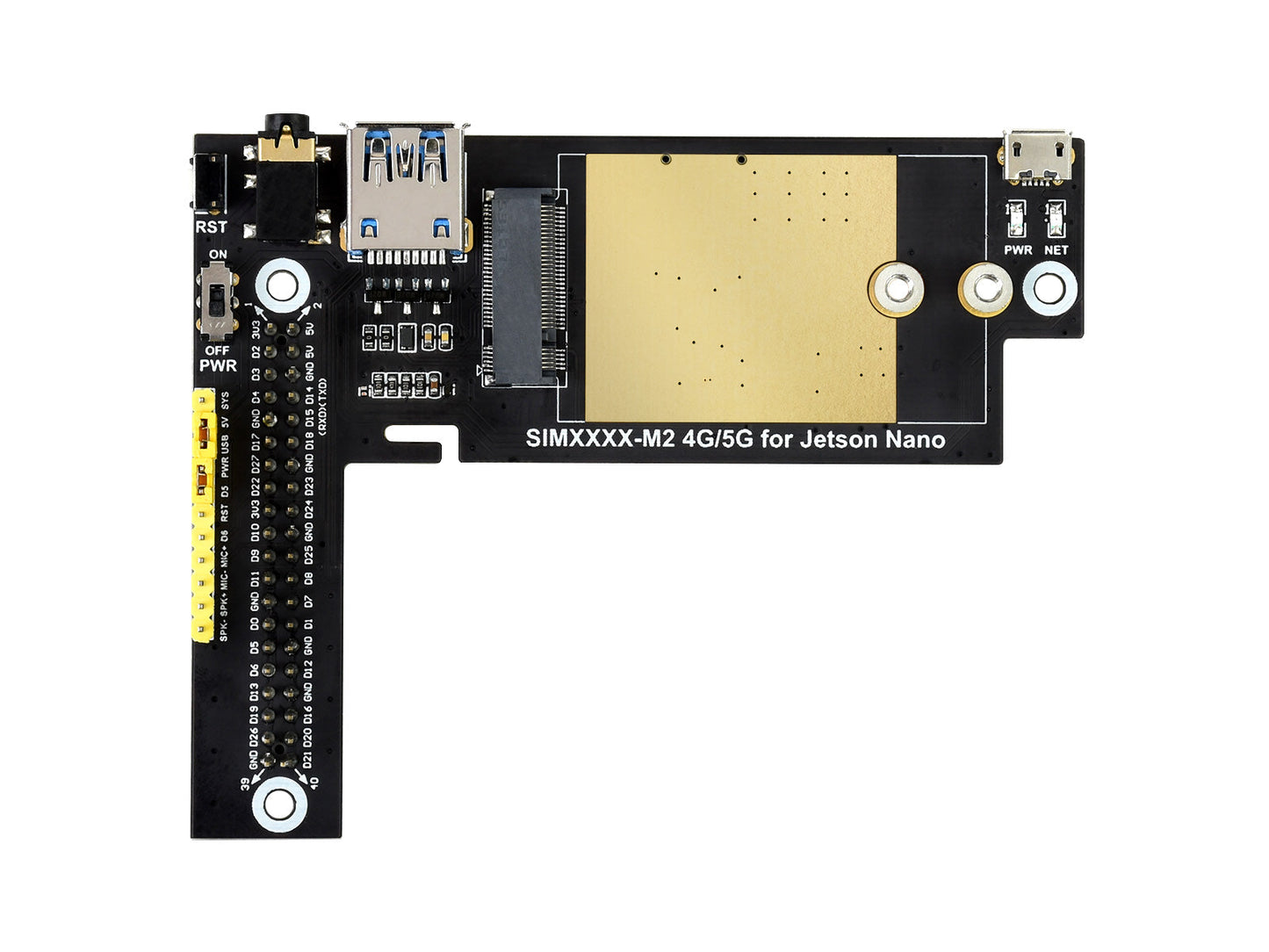

What's On Board

Outline Dimensions

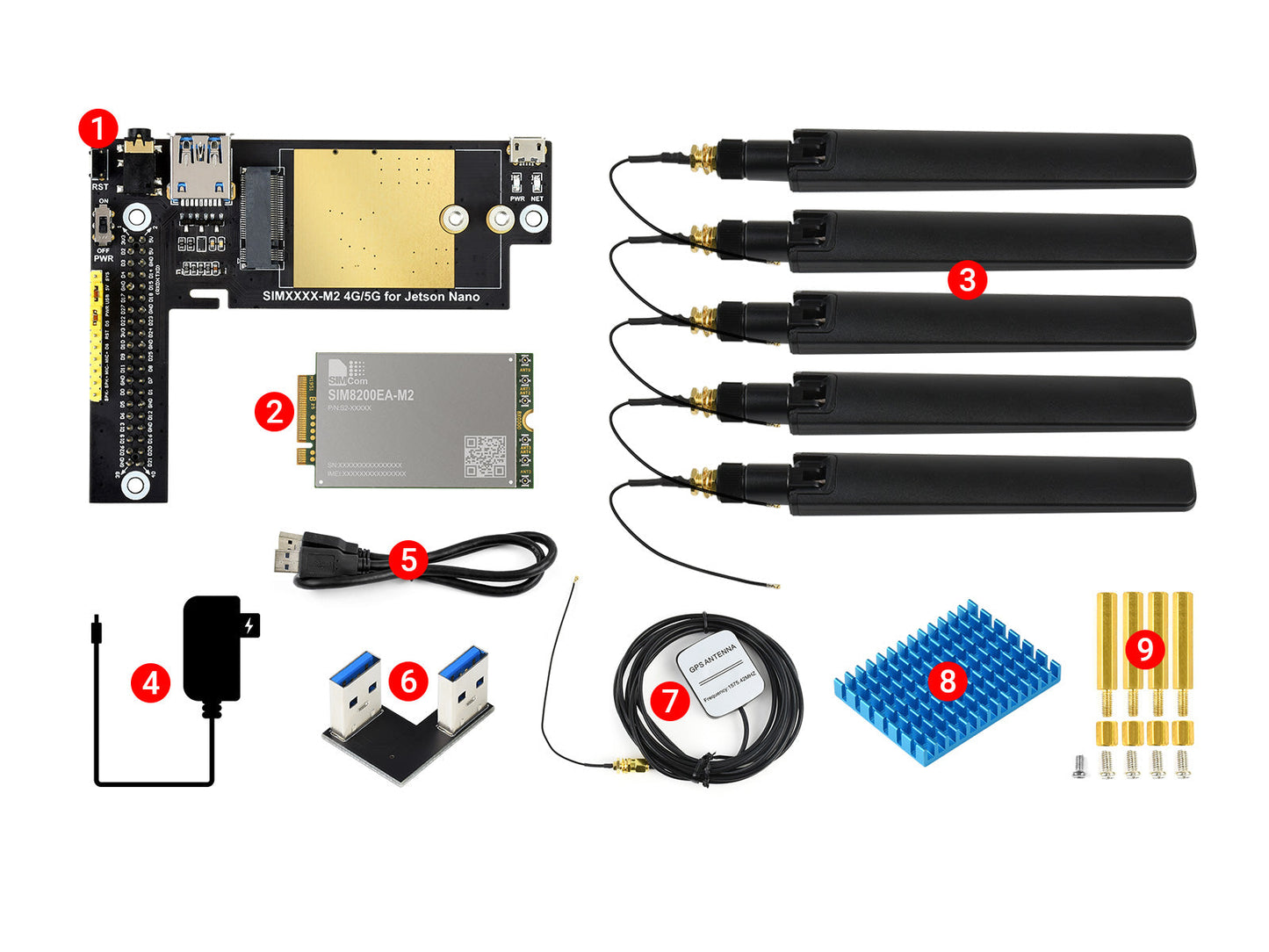

  1. SIMXXXX-M2 4G/5G module base x1
  2. SIM8200EA-M2 x1
  3. 5G External Antenna x5
  4. OPTIONS Power adapter 5V 3A x1
  5. USB3.0 dual plug cable x1
  6. USB 3.0 Adapter (C) x1
  7. GPS antenna x1
  8. Heatsink x1
  9. Screws pack x1







 Welcome Customize Order!
