SIM7600E LTE Cat-1 HAT for Raspberry Pi 3G / 2G / GNSS as well for Southeast Asia West Asia, Europe Africa Custom PCB customize
SIM7600E LTE Cat-1 HAT for Raspberry Pi 3G / 2G / GNSS as well for Southeast Asia West Asia, Europe Africa Custom PCB customize
Regular price
$68.00 USD
Regular price
$108.00 USD
Sale price
$68.00 USD
Unit price
per
Couldn't load pickup availability
DESCRIPTION
Prohibited by the module manufacturer SIMCOM, we're not allowed to ship this product, or to provide any tech support, to the following countries/regions: Iran, North Korea, Cuba, Sudan, Syrian.
SIM7600E LTE Cat-1 HAT For Raspberry Pi, Supports 3G / 2G, And GNSS Positioning As Well
For different regions, we provide multiple 4G HATs to choose from:
- SIM7600A-H 4G HAT: mainly applicable in North America (US, CA)
- SIM7600E-H 4G HAT, SIM7600E LTE Cat-1 HAT: mainly applicable in Europe, Southeast Asia, West Asia, Africa, China, South Korea
- SIM7600CE 4G HAT: mainly applicable in China
- SIM7600G-H 4G HAT: the global version
Please check the supported bands according to your local service provider, select the proper one when placing order.
LTE CAT-1 HAT FOR RASPBERRY PI
Enabling LTE Cat-1/3G/2G Communication & GNSS Positioning
Based on SIM7600E
Features At A Glance
- Supports dial-up, telephone call, SMS, TCP, UDP, DTMF, HTTP, FTP, etc.
- Supports GPS, BeiDou, Glonass, LBS base station positioning
- Onboard USB interface, to test AT Commands, get GPS positioning data, and so on
- Onboard CP2102 USB to UART converter, for serial debugging
- Breakout UART control pins, to connect with host boards like Ard/STM32
- SIM card slot, supports 1.8V/3V SIM card
- TF card slot for storing data like files, messages, etc.
- Onboard audio jack and audio decoder for making telephone call
- 2x LED indicators, easy to monitor the working status
- Onboard voltage translator, operating voltage can be configured to 3.3V or 5V via jumper
- Baudrate: 300bps ~ 4Mbps (default: 115200bps)
- Autobauding baudrate: 9600bps ~ 115200bps
- Control via AT commands (3GPP TS 27.007, 27.005, and V.25TER command set)
- Supports SIM application toolkit: SAT Class 3, GSM 11.14 Release 99, USAT
Specifications
| LTE CAT-1/3G/2G | |
|---|---|
| LTE Cat-1 | LTE-TDD: B38 / B40 / B41 |
| LTE-FDD: B1 / B3 / B5 / B7 / B8 / B20 | |
| 3G | UMTS / HSPA +: B1 / B5 / B8 |
| 2G | GSM / GPRS / EDGE: 900 / 1800 MHz |
| GNSS | |
| Receiver type | 16-channel |
| C/A Code | |
| Sensitivity | -159 dBm (GPS) / -158 dBm (GLONASS) / -159dBm (BeiDou) |
| Cold starts: -148 dBm | |
| Time-To-First-Fix (open air) | Cold starts: <35s |
| Hot starts: <1s | |
| SMS AND AUDIO | |
| SMS | Supported types: MT, MO, CB, Text, PDU |
| Storage: USIM card and ME (default) | |
| Audio feature | Supports echo cancellation |
| Supports noise reduction | |
| OTHER | |
| Power supply | 5V |
| Operating voltage | 5V / 3.3V (configured via jumper) |
| Operating temperature | -30°C ~ 80°C |
| Storage temperature | -45°C ~ 90°C |
| Dimensions | 56.21mm × 65.15mm |
Standard Raspberry Pi 40PIN GPIO
Compatible With Raspberry Pi Series Boards, Jetson Nano
Dial-Up On Windows/Linux
LTE Cat-1: Up To 5Mbps (Uplink) / Up To 10Mbps (Downlink) *
3G (HSPA+): Up To 5.76Mbps (Uplink) / Up To 42Mbps (Downlink) *
* stands for idealized data rate, the actual data rate depends on factors like network coverage, traffic congestion, base station condition, etc.
Cloud Communication
Supports Communication Protocols Including TCP/UDP/FTP/FTPS/HTTP/HTTPS
GNSS Positioning
Supports GPS, BeiDou, Glonass, LBS Base Station Positioning
Telephoto Call & SMS Support
Making Telephoto Call Or Sending SMS By AT Commands, With Onboard Audio Jack

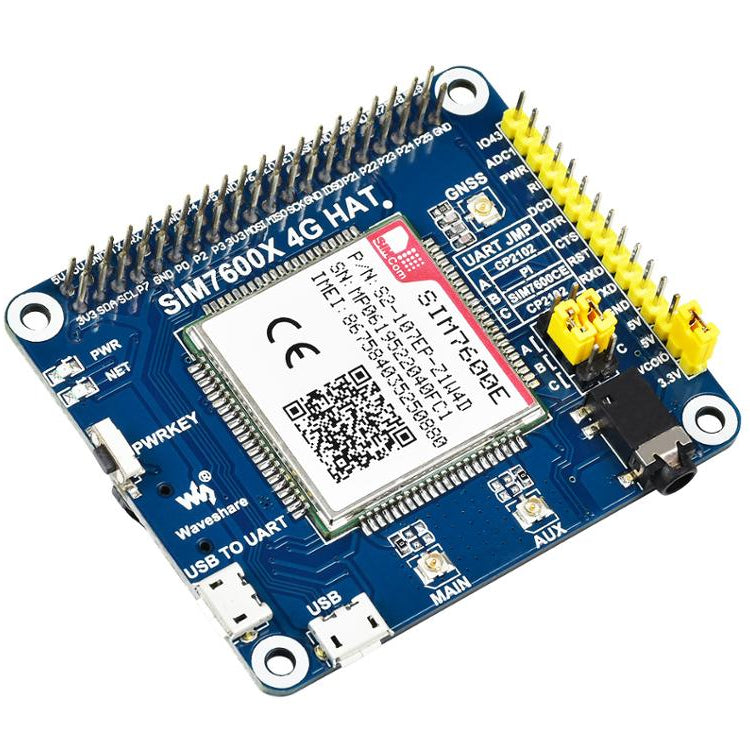

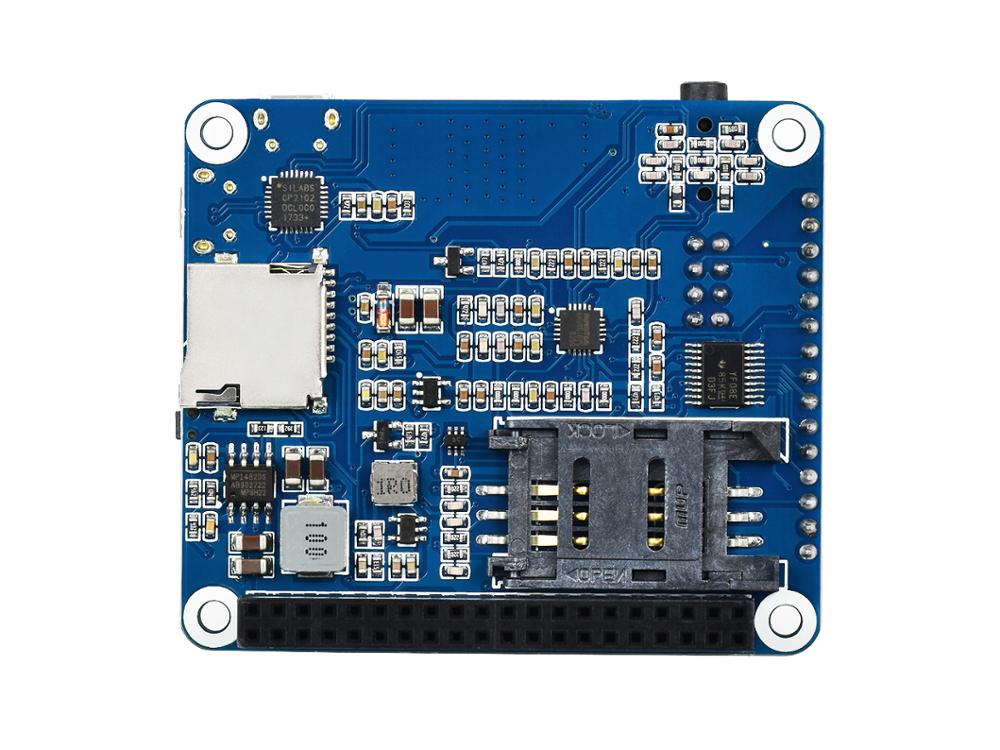

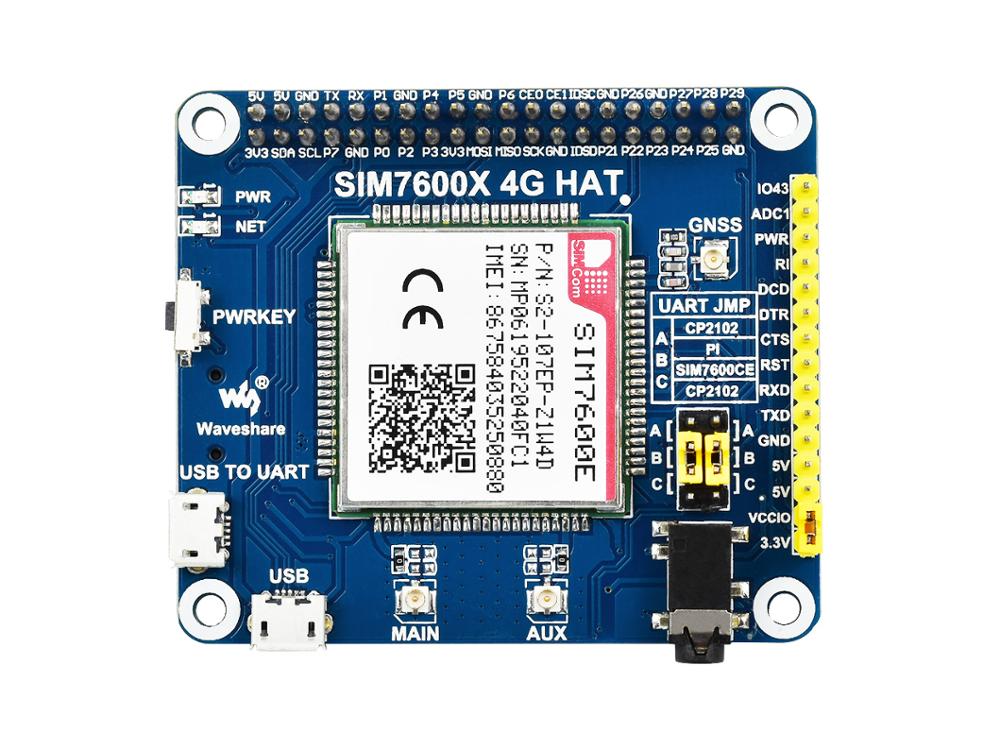

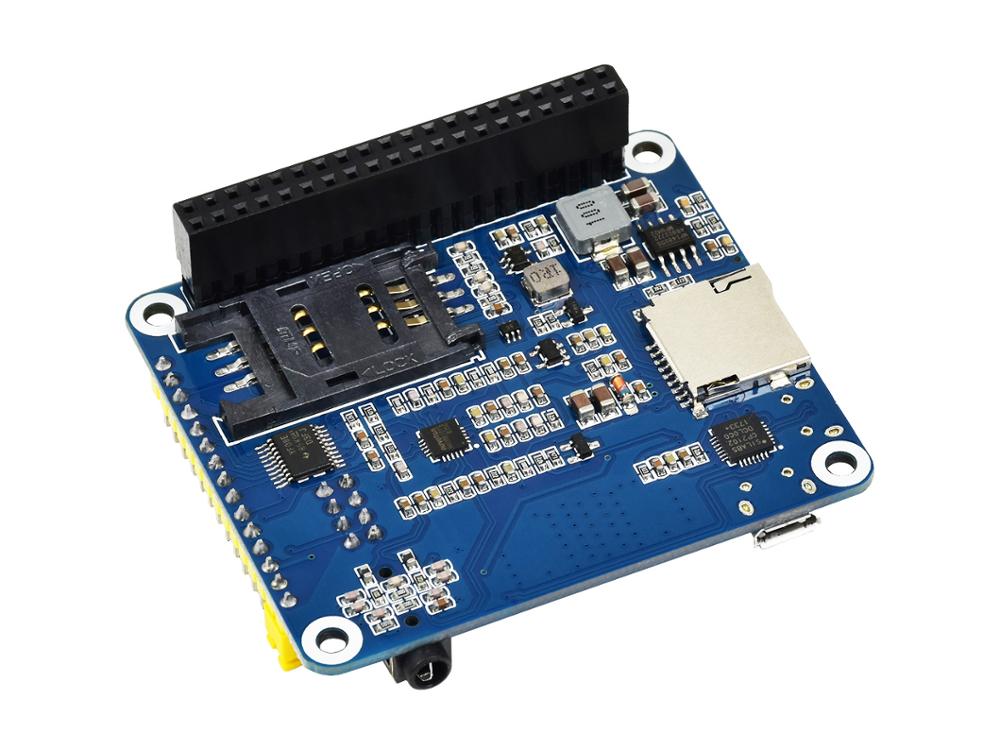

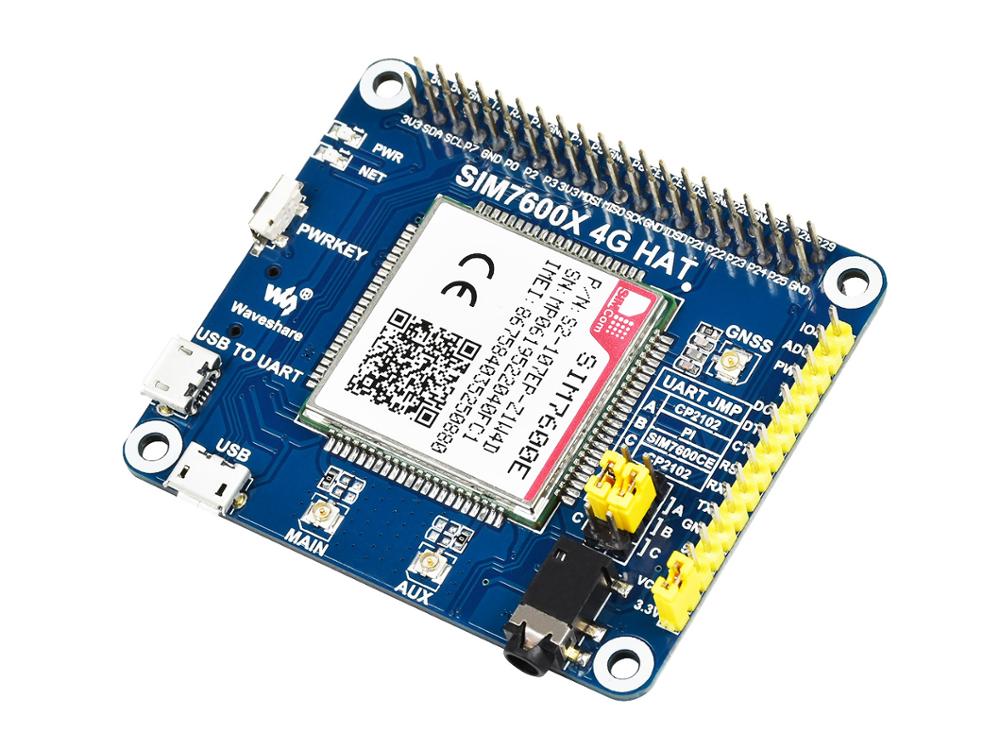

What's On Board
- SIM7600E
- CP2102 USB to UART converter
- NAU8810 audio decoder
- TXS0108EPWR voltage translator
- translates 3.3V/5V into 1.8V
- MP2128DT power chip
- MP1482 power chip
- Raspberry Pi GPIO header
- for connecting with Raspberry Pi
- SIM7600 control interface
- for connecting with host boards like Ard/STM32
- SIM card slot
- supports 1.8V/3V SIM card
- TF card slot
- for storing data like files, messages, etc.
- 3.5mm earphone/mic jack
- for audio actions like making telephoto call
- USB interface
- for testing AT Commands, getting GPS positioning data, etc.
- USB TO UART interface
- for serial debugging, or login to Raspberry Pi
- MAIN antenna connector
- AUX antenna connector
- GNSS antenna connector
- Module power switch
- Network status indicator
- Power indicator
- Operating voltage selection jumper
- VCCIO - 3.3V: set operating voltage as 3.3V
- VCCIO - 5V: set operating voltage as 5V
- UART selection jumper
- A: access Raspberry Pi via USB to UART
- B: control the SIM7600 by Raspberry Pi
- C: control the SIM7600 via USB to UART
Pinout Definition
Outline Dimensions
Selection Guide
| SIM7600CE-CNSE* | SIM7600CE-T | SIM7600E | SIM7600E-H | SIM7600A-H | SIM7600G-H | ||
|---|---|---|---|---|---|---|---|
| Applicable regions | China | Europe/Southeast Asia/West Asia/Africa/China/South Korea | North America | Global | |||
| Band | |||||||
| LTE Cat-4 /LTE Cat-1 | LTE-TDD B38/B39/B40/B41 LTE-FDD B1/B3/B8 | LTE-FDD B1/B3/B5/B7/B8/B20 LTE-TDD B38/B40/B41 | LTE-FDD B2/B4/B12 | LTE-TDD B34/B38 /B39/B40/B41 LTE-FDD B1/B2/B3/B4/B5/B7 /B8/B12/B13/B18/B19 /B20/B25/B26/B28/B66 | |||
| 3G | UMTS/HSDPA/HSPA+ B1/B8 TD-SCDMA B34/B39 | UMTS/HSPA+ B1/B5/B8 | UMTS/HSPA+ B2/B5 | UMTS/HSDPA/HSPA+ B1/B2/B4/B5/B6/B8/B19 | |||
| 2G | GSM/GPRS/EDGE 900/1800 MHz | N/A | GSM/GPRS/EDGE 850/900/1800/1900MHz | ||||
| GNSS | N/A | GPS/Beidou/GLONASS | |||||
| Data Rate | |||||||
| LTE Cat-4 | 150Mbps(DL)/50Mbps(UL) | N/A | 150Mbps(DL)/50Mbps(UL) | ||||
| LTE Cat-1 | N/A | 10Mbps(DL) /5Mbps(UL) | N/A | ||||
| 3G (HSPA+) | 42Mbps(DL)/5.76Mbps(UL) | ||||||
| 2G (EDGE) | 236.8Kbps(DL)/236.8Kbps(UL) | N/A | 236.8Kbps(DL)/236.8Kbps(UL) | ||||
| 2G (GPRS) | 85.6Kbps(DL)/85.6Kbps(UL) | N/A | 85.6Kbps(DL)/85.6Kbps(UL) | ||||
| Software Features | |||||||
| Network protocol | TCP/IP/IPV4/IPV6/Multi-PDP/FTP/FTPS/HTTP/HTTPS/DNS | ||||||
| Dial-up protocol | PPP/NDIS/RNDIS | ||||||
| USB driver | Windows XP/7/8/10, Linux (driver free for Raspbian) | ||||||
| Hardware Interfaces | |||||||
| SIM card slot | Compatible with 1.8V and 3V SIM card | ||||||
| UART | Supports AT commands through UART, compatible with 3.3V/5V operating voltage | ||||||
| USB port | Supports AT commands testing, GPS positioning, firmware upgrading, etc. | ||||||
| USB to UART | Supports serial debugging, or login to Raspberry Pi | ||||||
| Audio jack | Supports audio actions like making telephoto call | ||||||
| TF card slot | Yes, for storing data like files, messages, etc. | N/A | Yes | ||||
| Antenna connector | LTE main antenna | LTE main antenna + LTE diversity antenna + GNSS antenna | |||||
| Applications | |||||||
| Examples | Healthcare, smart payment, Internet talk, environmental monitoring, energy monitoring, fleet management, smart industry, intelligent agriculture, etc. | ||||||
* coming soon, not available for the moment.
PACKAGE CONTENT
Weight: 0.25 kg
- SIM7600E LTE Cat-1 HAT x1
- LTE Antenna x1
- GPS External Antenna (B) x1
- USB-A to Micro-B cable x2
- RPi screws pack (2pcs) x1
