SIM7600CE-CNSE 4G HAT For Raspberry Pi, Supports 4G / 3G / 2G Communication, Also LBS Positioning
For different regions, we provide multiple LTE Cat-4/Cat-1 HATs to choose from:
- SIM7600A-H 4G HAT: mainly applicable in North America (US, CA)
- SIM7600E-H 4G HAT, SIM7600E LTE Cat-1 HAT: mainly applicable in Europe, Southeast Asia, West Asia, Africa, China, North Korea
- SIM7600SA-H 4G HAT: mainly applicable in Australia, New Zealand, Taiwan, Latin America
- SIM7600CE 4G HAT, SIM7600CE-CNSE 4G HAT: mainly applicable in China, and some Southeast Asia countries
- SIM7600G-H 4G HAT: the global version
Please check the supported bands according to your local service provider, select the proper one when placing order.
4G HAT FOR RASPBERRY PI
Enabling 4G / 3G / 2G Communication & LBS Positioning
Based on SIM7600CE-CNSE
Features At A Glance
- Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards, Jetson Nano
- Supports dial-up, telephone call, SMS, TCP, UDP, DTMF, HTTP, FTP, etc.
- Supports LBS base station positioning
- Onboard USB interface, for testing AT Commands, establishing network connection, and so on
- Onboard CP2102 USB to UART converter, for serial debugging
- Breakout UART control pins, to connect with host boards like Ard/STM32
- SIM card slot, supports 1.8V/3V SIM card
- TF card slot for storing data like files, messages, etc.
- Onboard audio jack and audio decoder for making telephone call
- 2x LED indicators, easy to monitor the working status
- Onboard voltage translator, operating voltage can be configured to 3.3V or 5V via jumper
- Baudrate: 300bps ~ 4Mbps (default: 115200bps)
- Autobauding baudrate: 9600bps ~ 115200bps
- Control via AT commands (3GPP TS 27.007, 27.005, and V.25TER command set)
- Supports SIM application toolkit: SAT Class 3, GSM 11.14 Release 99, USAT
- Comes with development resources and manual (examples for Raspberry Pi/Jetson Nano/Ard/STM32)
Specifications
| FREQUENCY BAND | |
|---|---|
| LTE Cat-4 | LTE-FDD: B1/B3/B5/B8 |
| LTE-TDD: B38/B39/B40/B41 | |
| 3G | UMTS/HSDPA/HSPA+: B1/B8 |
| 2G | GSM/GPRS/EDGE: 900/1800 MHz |
| SMS AND AUDIO | |
| SMS | Supported types: MT, MO, CB, Text, PDU |
| Storage: USIM card and ME (default) | |
| Audio feature | Supports echo cancellation |
| Supports noise reduction | |
| OTHERS | |
| Power supply | 5V |
| Operating voltage | 5V / 3.3V (configured via jumper) |
| Operating temperature | -30°C ~ 80°C |
| Storage temperature | -45°C ~ 90°C |
| Dimensions | 56.01mm × 65.00mm |

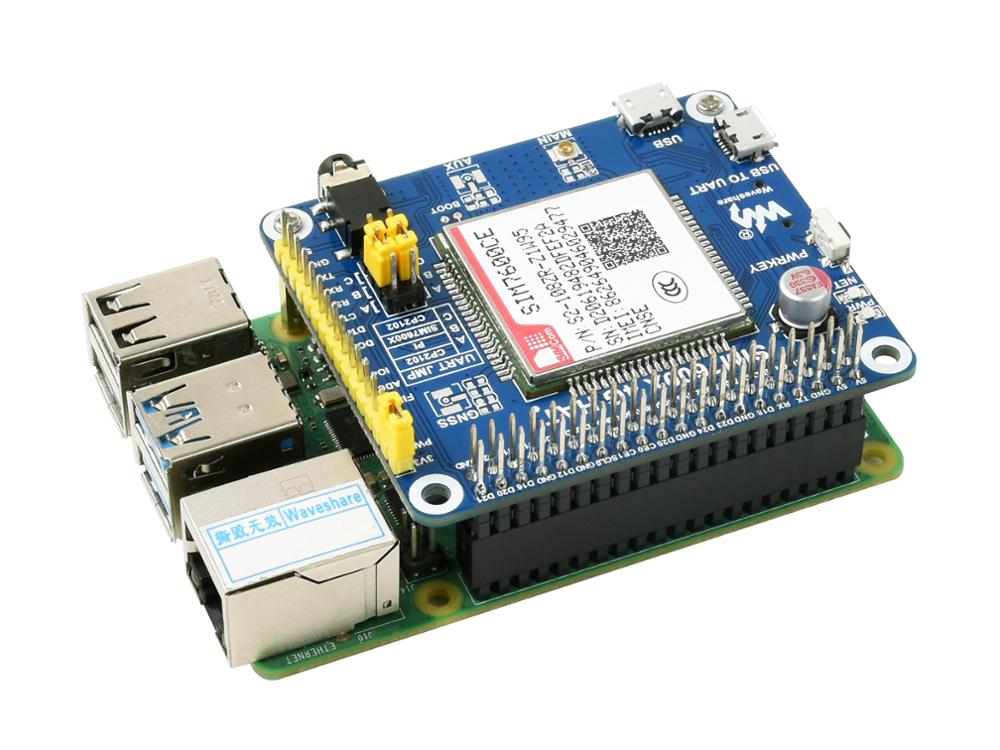

Standard Raspberry Pi 40PIN GPIO
Compatible With Raspberry Pi Series Boards, Jetson Nano

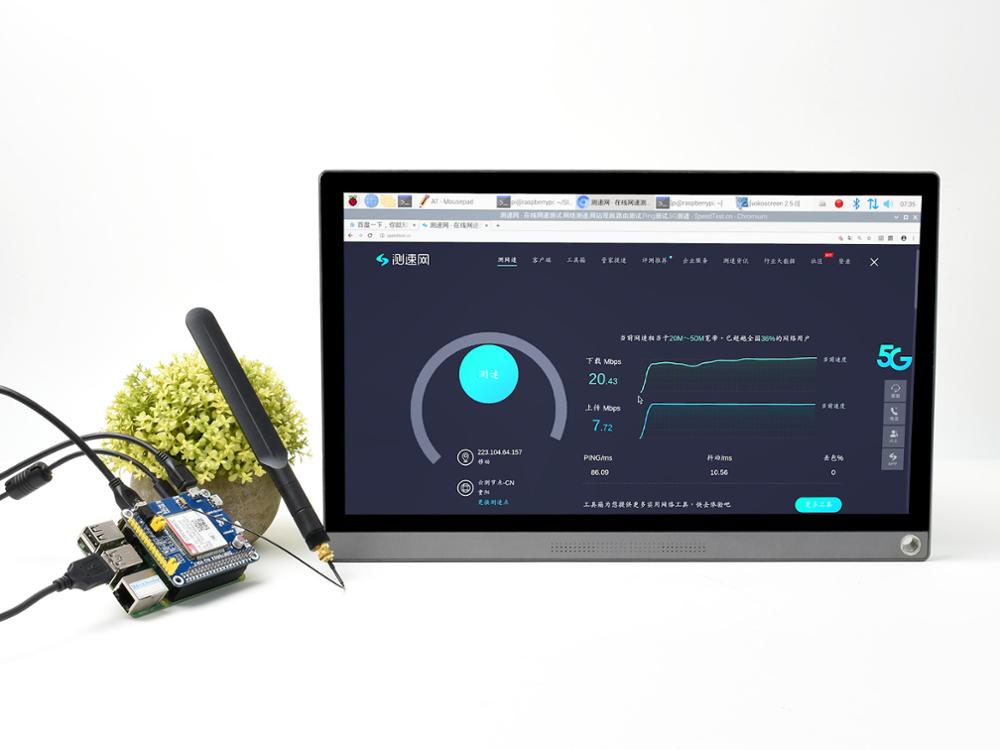

Dial-Up On Windows/Linux
LTE Cat-4: Up To 50Mbps (Uplink) / Up To 150Mbps (Downlink) *
3G (HSPA+): Up To 5.76Mbps (Uplink) / Up To 42Mbps (Downlink) *
* stands for idealized data rate, the actual data rate depends on factors like network coverage, traffic congestion, base station condition, etc.
Cloud Communication
Supports Communication Protocols Including TCP/UDP/FTP/FTPS/HTTP/HTTPS
Telephoto Call & SMS Support
Making Telephoto Call Or Sending SMS By AT Commands, With Onboard Audio Jack

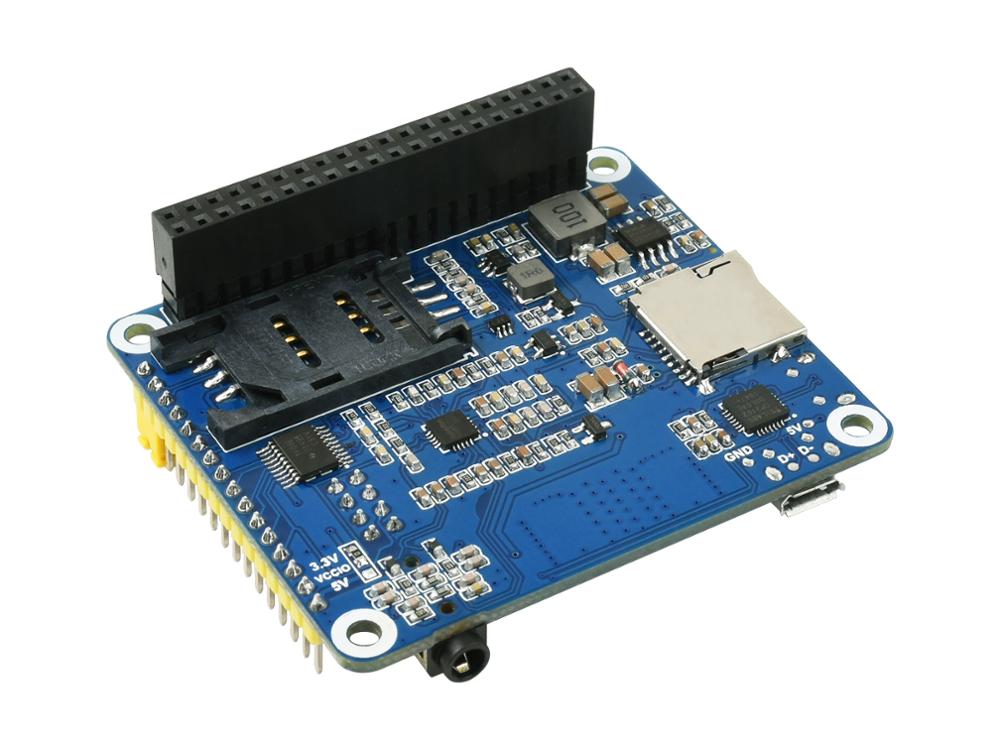

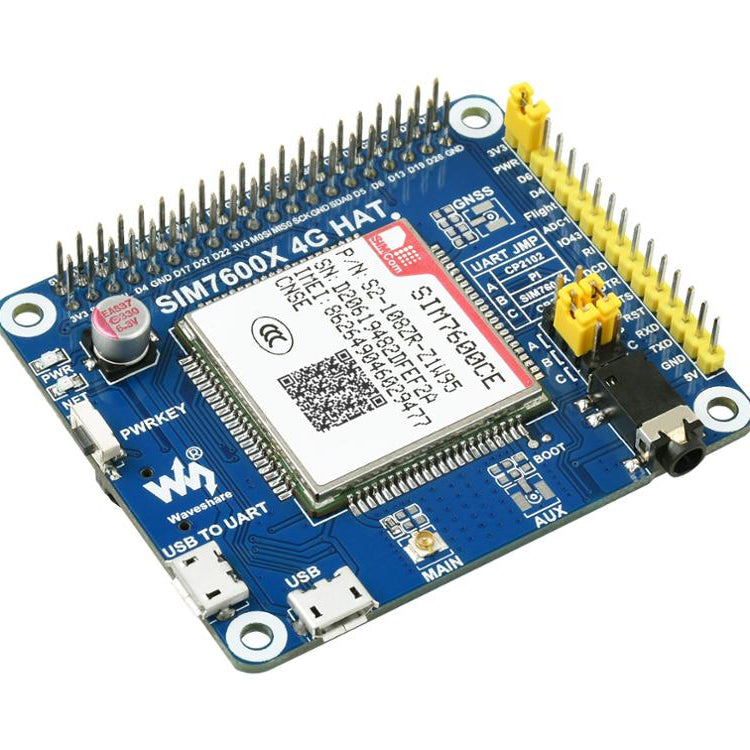

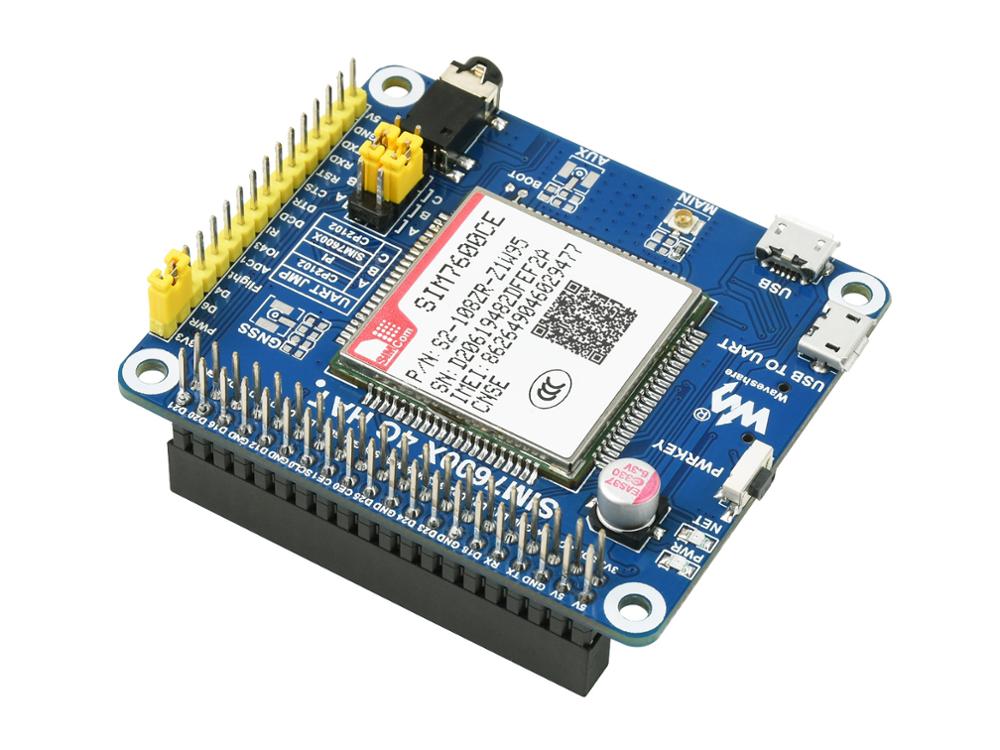

What's On Board
- SIM7600CE-CNSE
- CP2102 USB to UART converter
- NAU8810 audio decoder
- TXS0108EPWR voltage translator
- translates 3.3V/5V into 1.8V
- MP2128DT power chip
- MP1482 power chip
- Raspberry Pi GPIO header
- for connecting with Raspberry Pi
- SIM7600 control interface
- for connecting with host boards like Ard/STM32
- SIM card slot
- supports 1.8V/3V SIM card
- TF card slot
- for storing data like files, messages, etc.
- 3.5mm earphone/mic jack
- for audio actions like making telephoto call
- USB interface
- for testing AT Commands, and so on
- USB TO UART interface
- for serial debugging, or login to Raspberry Pi
- MAIN antenna connector
- Module power switch
- Network status indicator
- Power indicator
- UART selection jumper
- A: access Raspberry Pi via USB to UART
- B: control the SIM7600 by Raspberry Pi
- C: control the SIM7600 via USB to UART
- PWR selection jumper
- PWR - 3V3: auto startup on power-up
- PWR - D6: startup/shutdown by the Raspberry Pi D6 pin
- Flight mode selection jumper
- NC by default, no flight mode control pin
- Flight - D4: flight mode is controlled by the Raspberry Pi D4 pin
- Operating voltage selection jumper
- VCCIO - 3.3V: set operating voltage as 3.3V
- VCCIO - 5V: set operating voltage as 5V
- USB connector solder pads
- BOOT forced programming solder pads
Pinout Definition
Outline Dimensions
Selection Guide
| SIM7600CE-CNSE | SIM7600CE-T | SIM7600E | SIM7600E-H | SIM7600A-H | SIM7600G-H | ||
|---|---|---|---|---|---|---|---|
| Applicable regions | China | Europe/Southeast Asia/West Asia/Africa/China/South Korea | North America | Global | |||
| Band | |||||||
| LTE Cat-4 /LTE Cat-1 | LTE-TDD B38/B39/B40/B41 LTE-FDD B1/B3/B5/B8 | LTE-FDD B1/B3/B5/B7/B8/B20 LTE-TDD B38/B40/B41 | LTE-FDD B2/B4/B12 | LTE-TDD B34/B38 /B39/B40/B41 LTE-FDD B1/B2/B3/B4/B5/B7 /B8/B12/B13/B18/B19 /B20/B25/B26/B28/B66 | |||
| 3G | UMTS/HSDPA/HSPA+ B1/B8 TD-SCDMA B34/B39 | UMTS/HSPA+ B1/B5/B8 | UMTS/HSPA+ B2/B5 | UMTS/HSDPA/HSPA+ B1/B2/B4/B5/B6/B8/B19 | |||
| 2G | GSM/GPRS/EDGE 900/1800 MHz | N/A | GSM/GPRS/EDGE 850/900/1800/1900MHz | ||||
| GNSS | N/A | GPS/Beidou/GLONASS | |||||
| Data Rate | |||||||
| LTE Cat-4 | 150Mbps(DL)/50Mbps(UL) | N/A | 150Mbps(DL)/50Mbps(UL) | ||||
| LTE Cat-1 | N/A | 10Mbps(DL) /5Mbps(UL) | N/A | ||||
| 3G (HSPA+) | 42Mbps(DL)/5.76Mbps(UL) | ||||||
| 2G (EDGE) | 236.8Kbps(DL)/236.8Kbps(UL) | N/A | 236.8Kbps(DL)/236.8Kbps(UL) | ||||
| 2G (GPRS) | 85.6Kbps(DL)/85.6Kbps(UL) | N/A | 85.6Kbps(DL)/85.6Kbps(UL) | ||||
| Software Features | |||||||
| Network protocol | TCP/IP/IPV4/IPV6/Multi-PDP/FTP/FTPS/HTTP/HTTPS/DNS | ||||||
| Dial-up protocol | PPP/NDIS/RNDIS | ||||||
| USB driver | Windows XP/7/8/10, Linux (driver free for Raspbian) | ||||||
| Hardware Interfaces | |||||||
| SIM card slot | Compatible with 1.8V and 3V SIM card | ||||||
| UART | Supports AT commands through UART, compatible with 3.3V/5V operating voltage | ||||||
| USB port | Supports AT commands testing, GPS positioning, firmware upgrading, etc. | ||||||
| USB to UART | Supports serial debugging, or login to Raspberry Pi | ||||||
| Audio jack | Supports audio actions like making telephoto call | ||||||
| TF card slot | Yes, for storing data like files, messages, etc. | N/A | Yes | ||||
| Antenna connector | LTE main antenna | LTE main antenna + LTE diversity antenna + GNSS antenna | |||||
| Applications | |||||||
| Examples | Healthcare, smart payment, Internet talk, environmental monitoring, energy monitoring, fleet management, smart industry, intelligent agriculture, etc. | ||||||
PACKAGE CONTENT
Weight: 0.187 kg
- SIM7600CE-CNSE 4G HAT x1

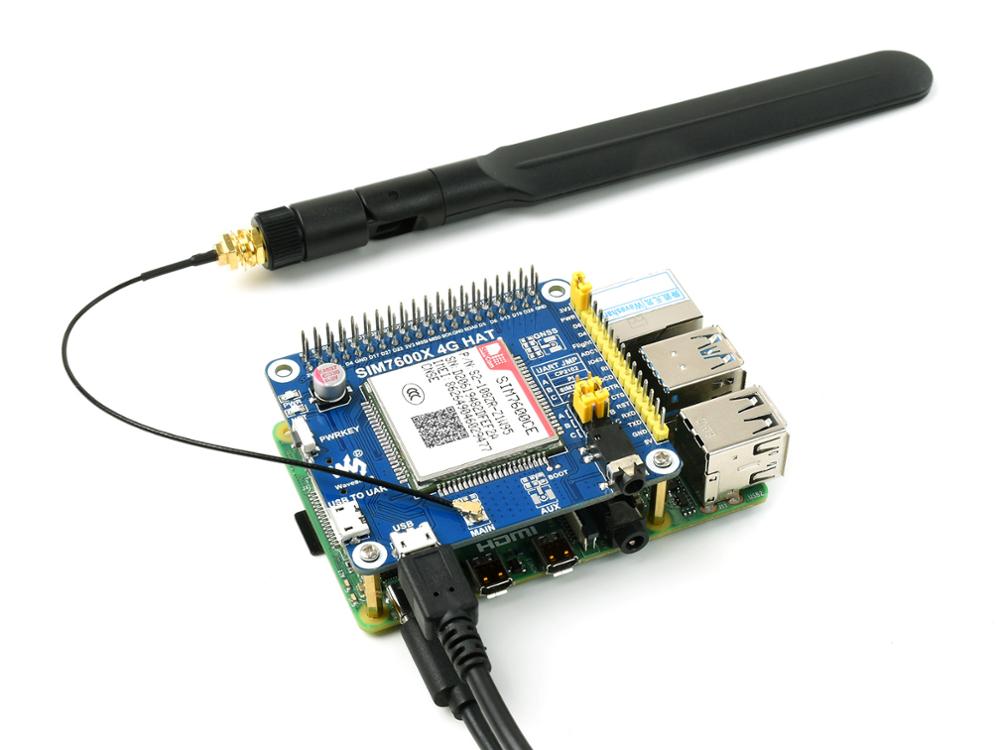

- LTE Antenna x1
- USB-A to Micro-B cable x2
- RPi screws pack (2pcs) x1
