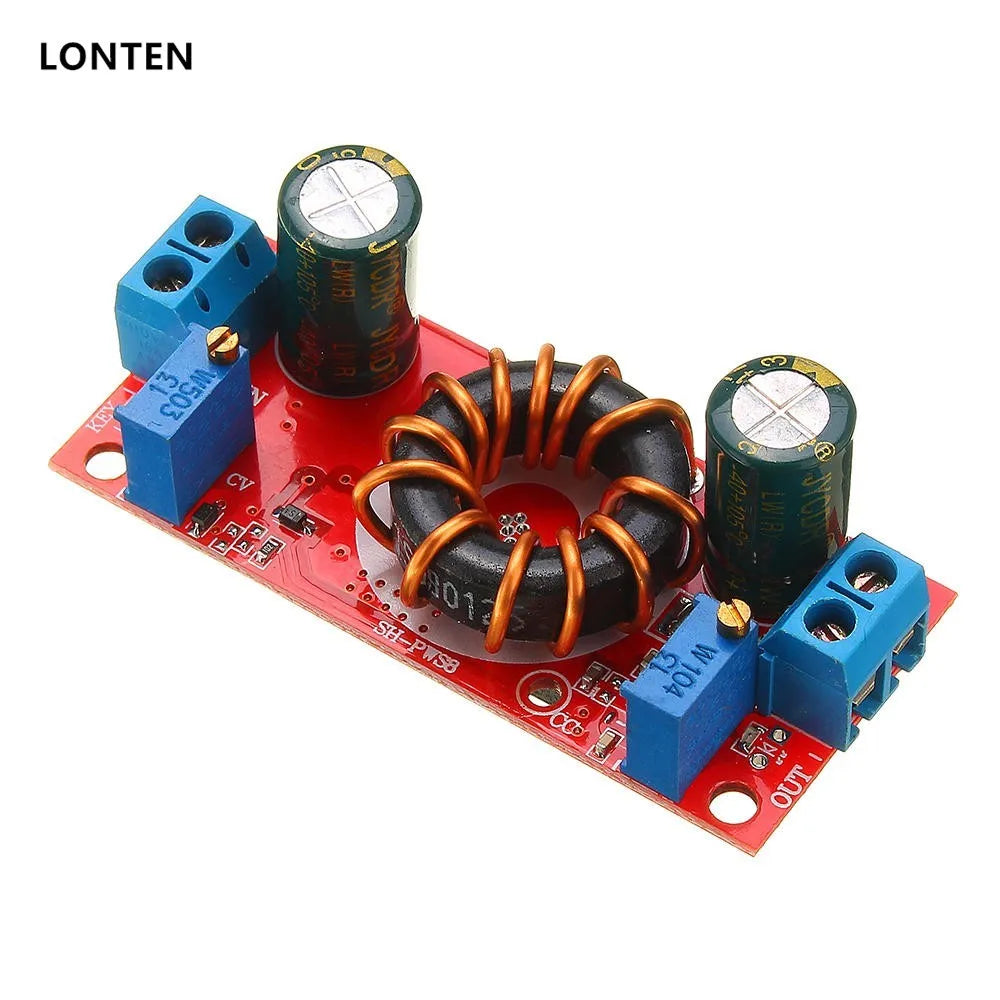

Custom Shenzhen Assembly PCB Electronic Board Manufacturer PCBA Service High Power 10A DC-DC Step Down Power Supply Module Manufacturer

Description:

Module Name: 10A Pressure Reduction Constant Pressure Constant Current
Modular nature: synchronous rectification of non-isolated buck module (BUCK)
Input voltage: 4-32V (limit 36V), please reserve the voltage margin.
Output voltage: 1.2-32V continuously adjustable (default output 5V, if you need other voltage please explain to the palm. )
Default shipment is adjustable output, (5V/6A when shipment)
Minimum differential pressure: 1V
Output current: 0.4-10A long time natural heat dissipation within 6A, temperature does not exceed 60 degrees. When the ambient
temperature is high, please reduce the amount of use.
Output constant current range: 0.3-10A
Working temperature: - 40 ~+85 degrees
Working frequency: 150 KHz
Conversion efficiency: up to 98% (efficiency is related to input, output voltage, current and voltage difference)
Short-circuit protection: with (current limiting constant current value)
Over-temperature protection: there is (automatic reduction of output current after over-temperature)
Input Reverse Connection Protection: No (If necessary, enter diode in series in input)
Output Back Irrigation Protection: No (If needed, please connect the output diode in series, add the anti-back diode between the
module output and the battery when charging application, otherwise the module will be damaged.)
Installation: 4 3mm screws

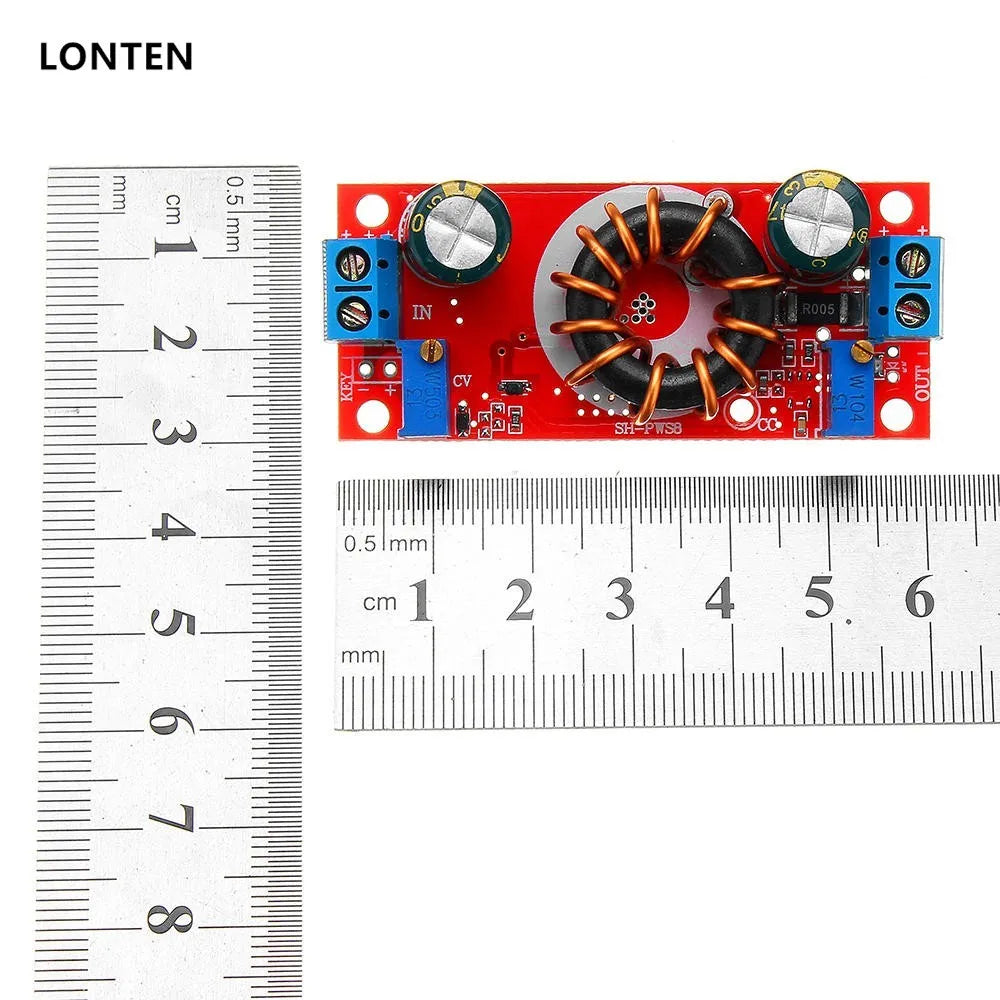

Module size: 60 mm long, 26 mm wide and 20 mm high
Module weight: about 26G
Connection mode: terminal, welding-, IN as input, OUT as output.
