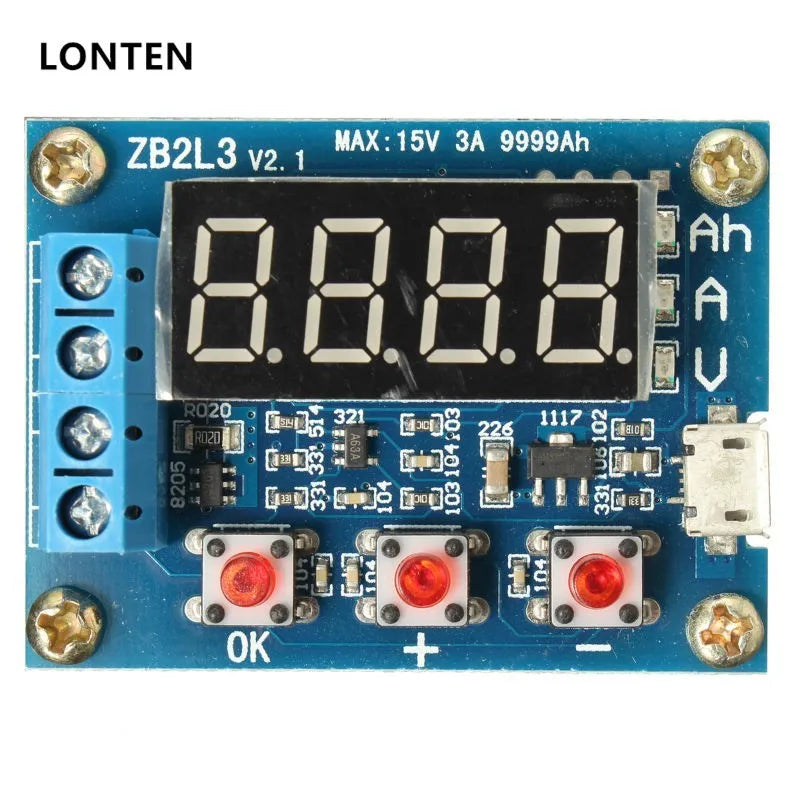

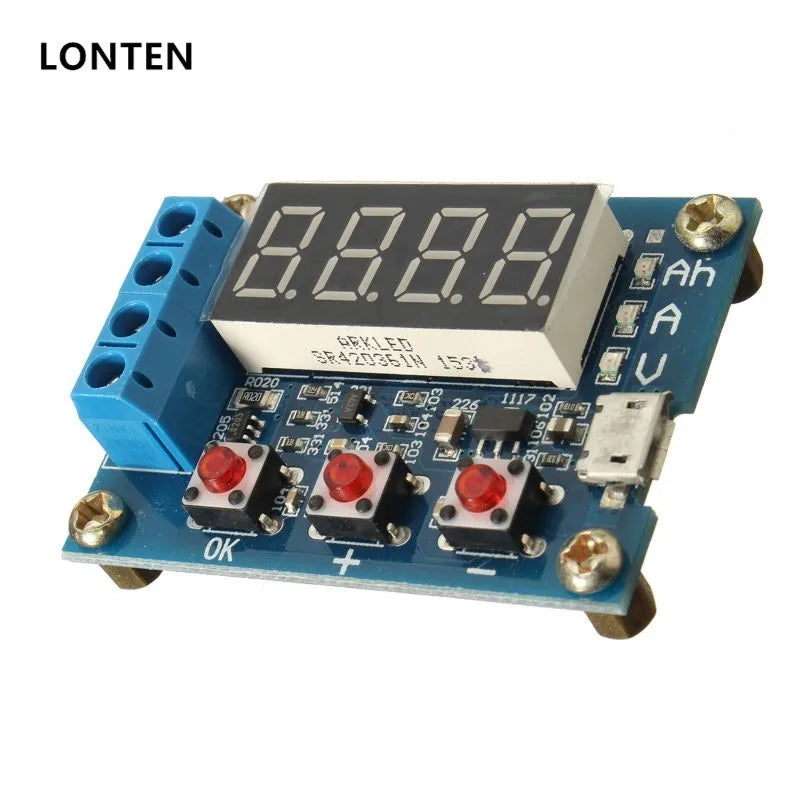

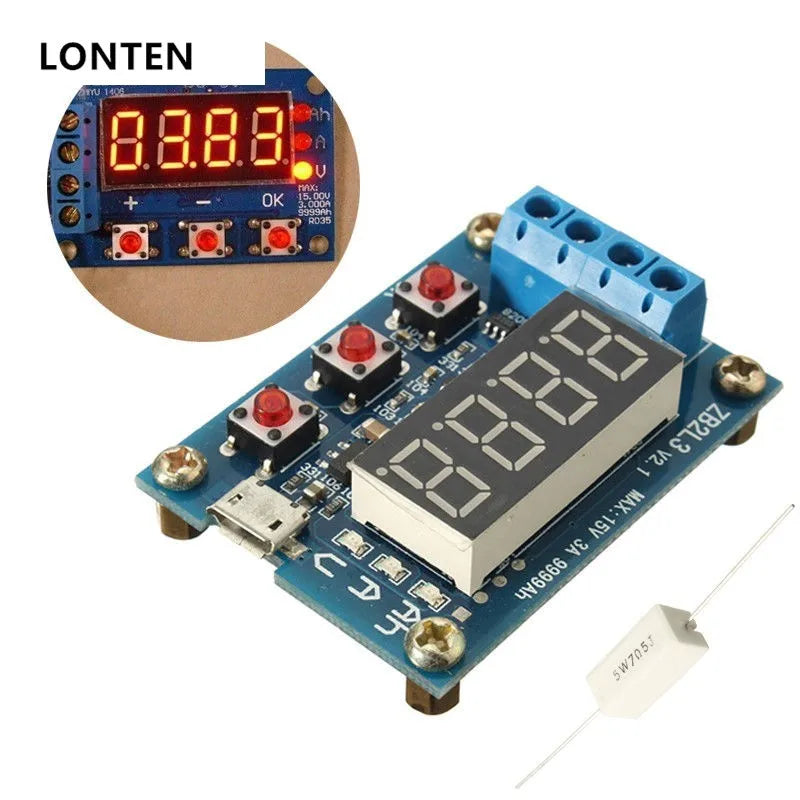

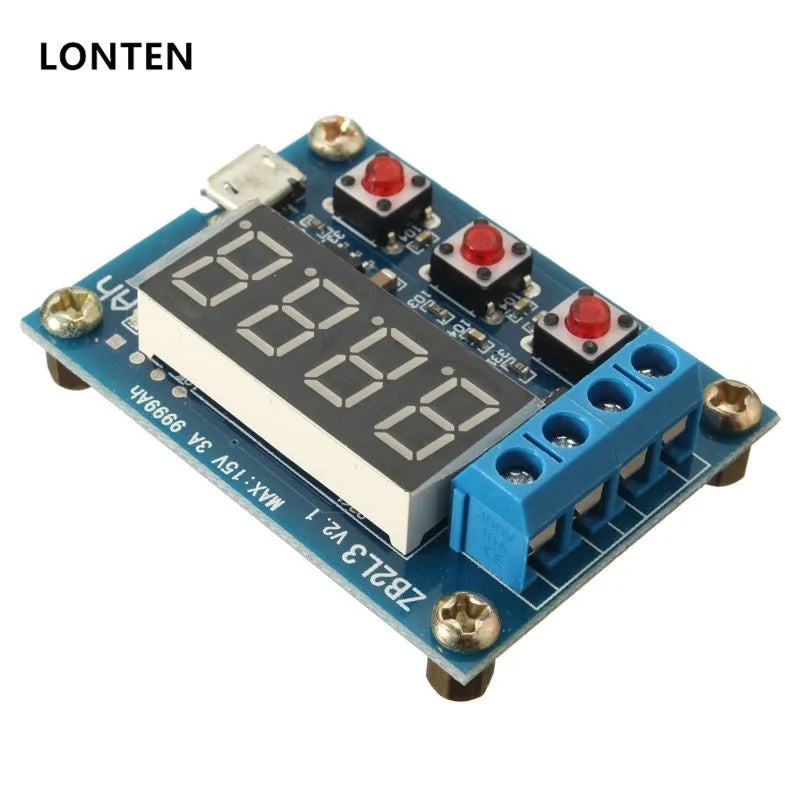

Custom Ru 94v0 Double Layer Bare PCB Printed Circuit Board in FR4 ZB2L3 Battery Capacity Tester External Load Discharge Type Module Manufacturer

Specification:

Power supply voltage: DC4.5-6V (micro USB connector)
Operating current: Less than 70mA
Discharge voltage: 1.00V-15.00V, 0.01V resolution
Termination voltage range: 0.5-11.0V
Supported current: Maximum 3.000A, 0.001A resolution
Maximum voltage measurement error: 1% + 0.02V
Maximum current measurement error: 1.5% ± 0.008A
Maximum battery capacity range: 9999Ah (1Ah = 1000mAh) greater value is switched by shifting the decimal point, when it is less
than 10Ah will display X.XXX, up to 10Ah or more will display XX.XX, and so on.
Board size: 50 x 37mm
Finished size: 50 x 37 x 17mm (L x W x H maximum position size, contains copper foot height)

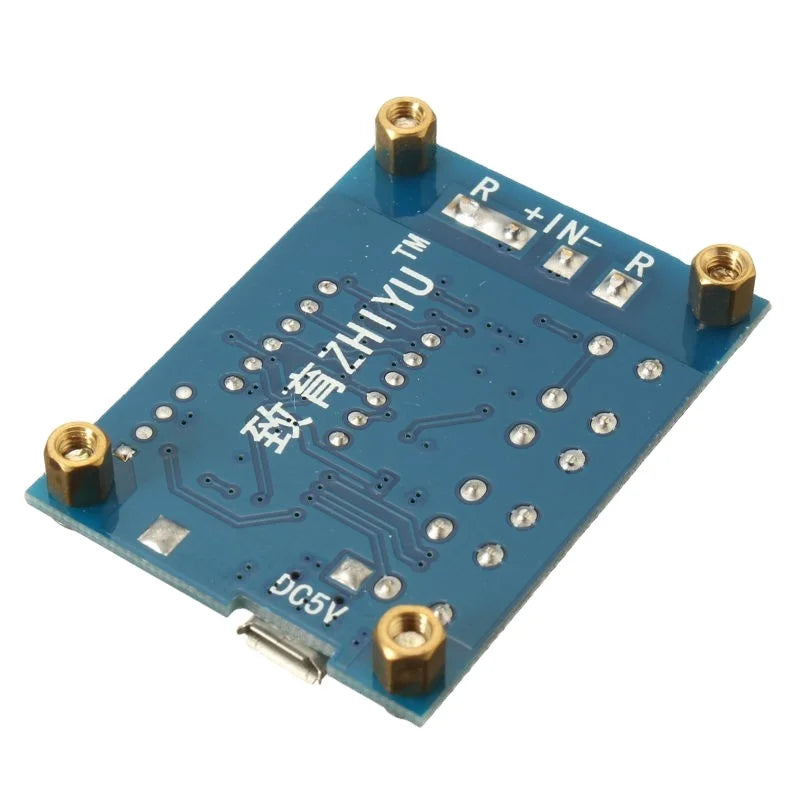

Board net weight: 28g (including pillars)

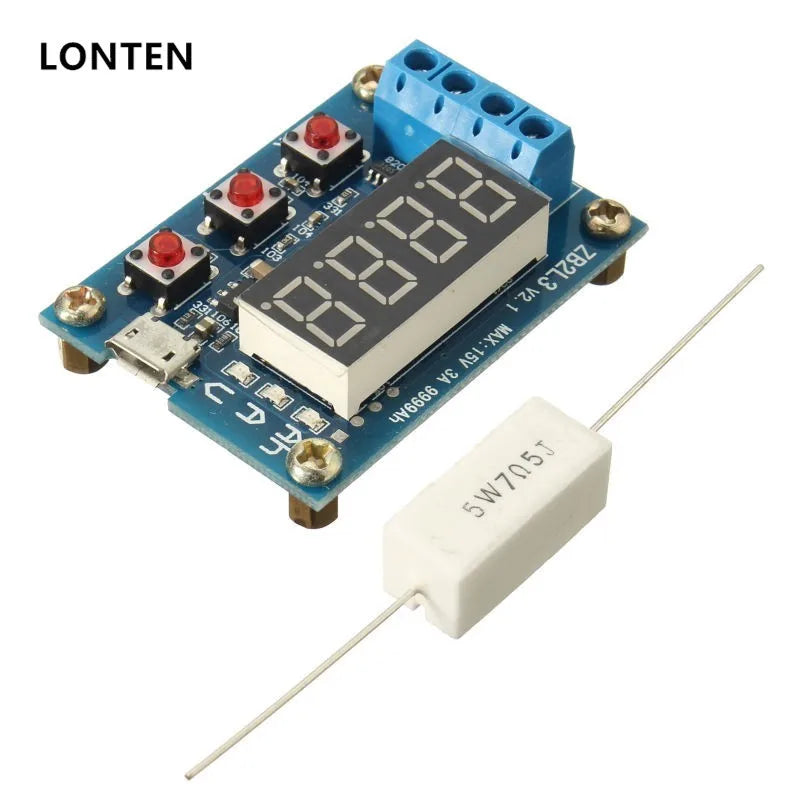

Resistor weight: about 27g (including cable)
