Lonten Tech

Custom RPI Industrial IoT Mini-Computer Based On Raspberry Pi Compute Module 4(NOT Included),PoE,5G/4G,Metal Case,Cooling Fan Manufacturer

Name: Custom RPI Industrial IoT Mini-Computer Based On Raspberry Pi Compute Module 4(NOT Included),PoE,5G/4G,Metal Case,Cooling Fan Manufacturer
Brand: Lonten Tech
Price: 127.29 USD
Availability: InStock

$127.29 USD

~~$127.29 USD~~ $127.29 USD

Sale Sold out

Quantity

DESCRIPTION

Industrial IoT Mini-Computer Based On Raspberry Pi Compute Module 4 (NOT Included), PoE, 5G/4G, Metal Case, With Cooling Fan

Industrial IoT Mini-Computer Based On CM4

Designed For Raspberry Pi Compute Module 4

Waveshare CM4 Industrial IoT Board Inside, Fast And Easy To Build A Mini-Computer

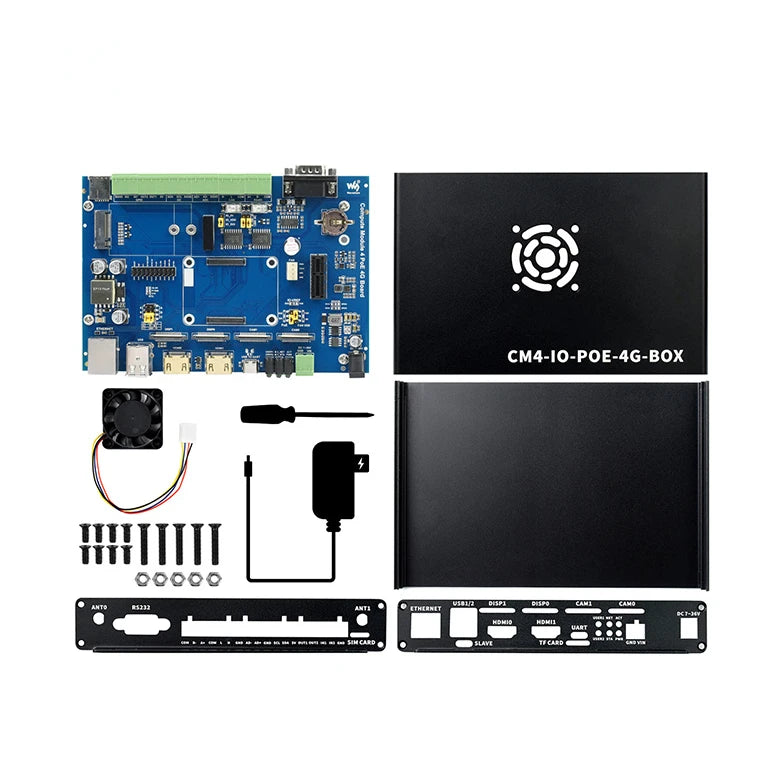

Part List Comparison

	RAW BASE BOARD	MINI-COMPUTER KIT
CM4 Industrial IoT Board	√	√
Metal case		√
5000rpm cooling fan		√
12V 2A power adapter		√
Screwdriver and screws		√

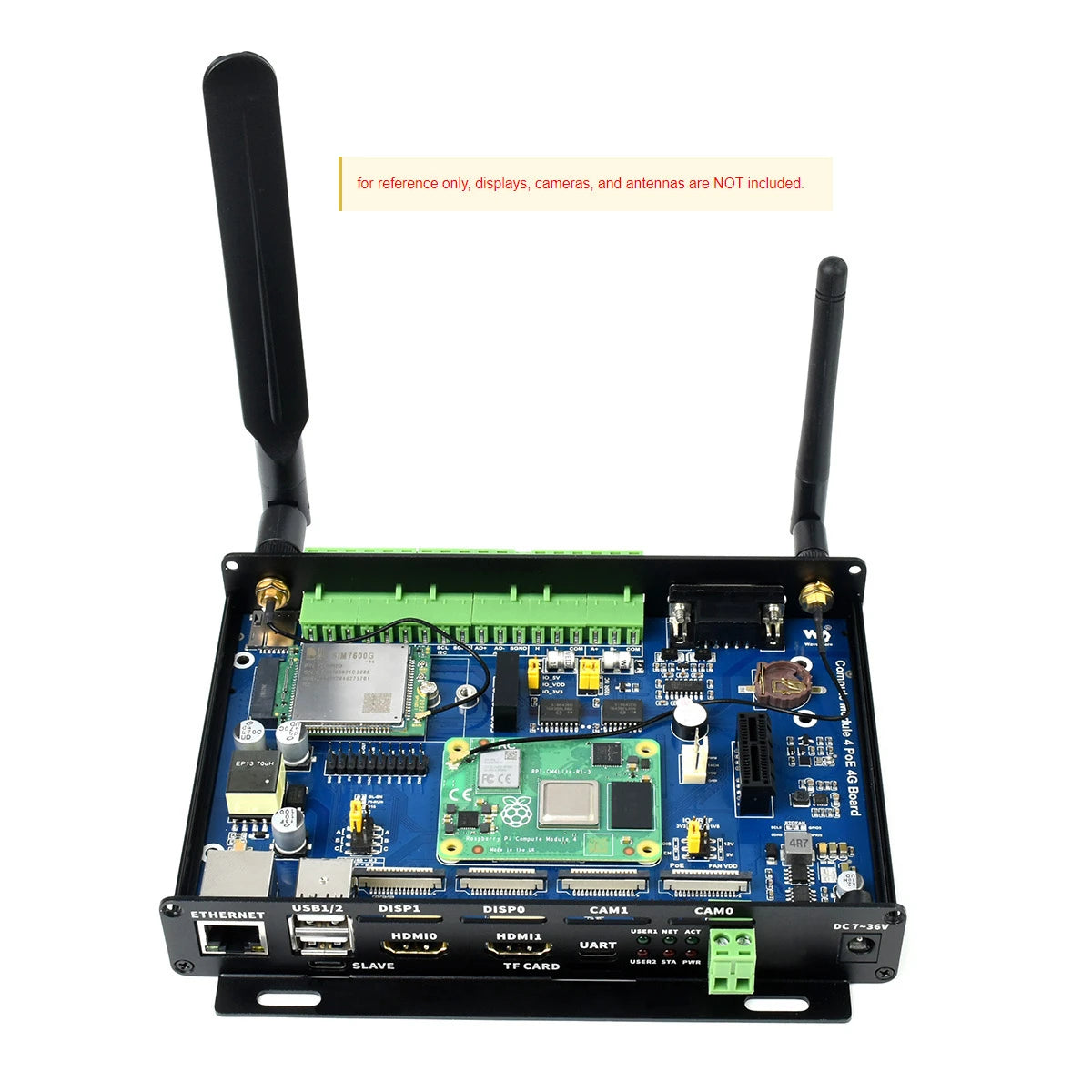

Waveshare CM4 Industrial IoT Board Inside

Make It Easy To Build Your Own Raspberry Pi CM4 Mini PC

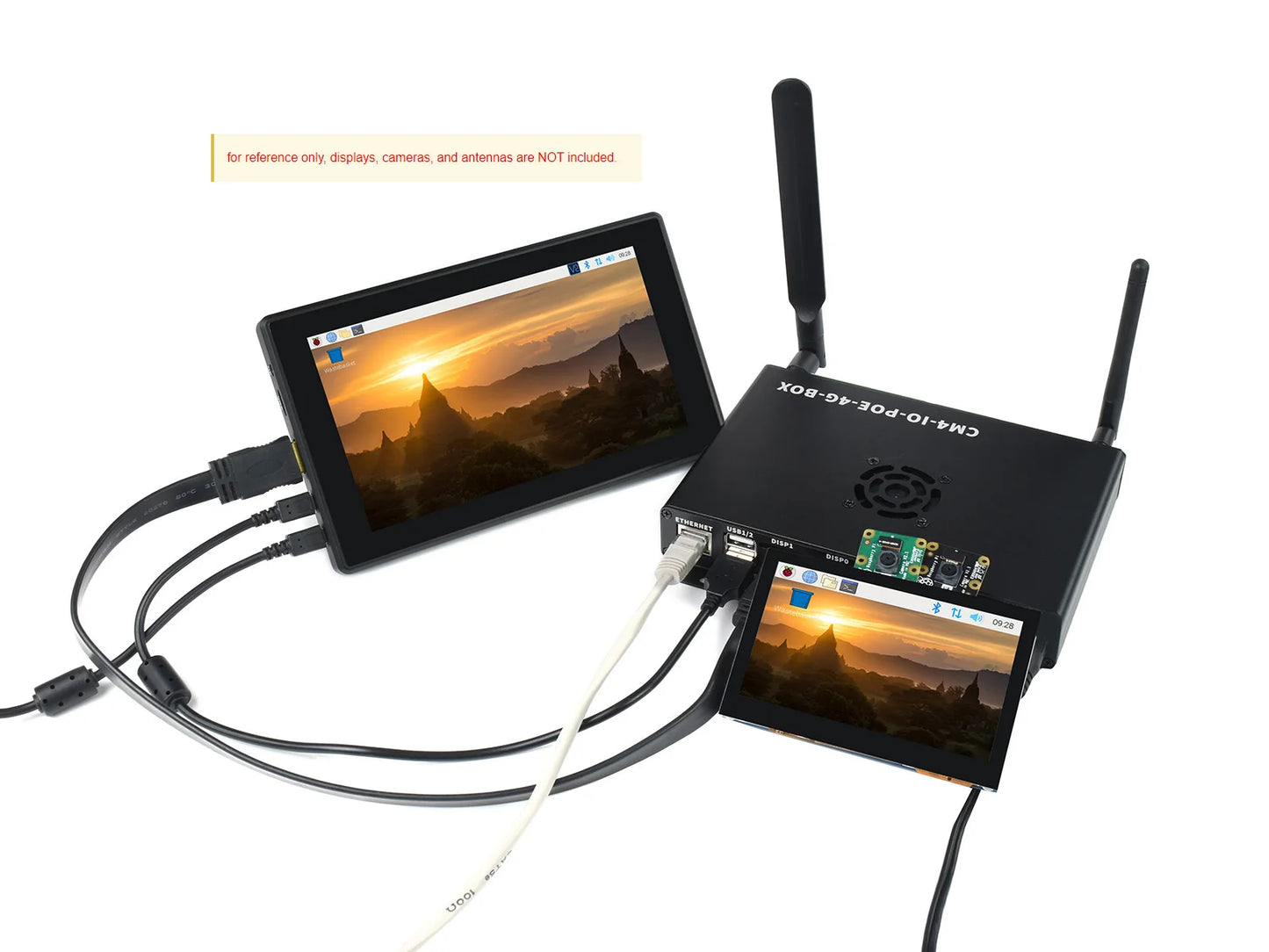

for reference only, CM4, 4G module, and antenna are NOT included.

Base Board Specifications

CM4 SOCKET	suitable for all variants of Compute Module 4
NETWORKING	Gigabit Ethernet RJ45 connector, integrates 802.3af-compliant PoE circuit (5V/2.5A)
	M.2 B KEY, supports 5G / 4G module
	SIM card slot, supports standard SIM card for 5G/4G/3G/2G communication
CONNECTOR	Isolated RS485, Isolated RS232, PCIe Gen 2 x1, I2C, ADC, GPIO
USB	Dual USB 2.0 Type A
DISPLAY	Dual MIPI DSI display ports (15pin 1.0mm FPC connector)
CAMERA	Dual MIPI CSI-2 camera ports (15pin 1.0mm FPC connector)
VIDEO	Dual HDMI ports, supports 4K 30fps output
RTC	Real-time clock with battery socket and ability to wake Compute Module 4
STORAGE	MicroSD card socket for Compute Module 4 Lite (without eMMC) variants
FAN HEADER	allows speed adjustment and measurement, 5V / 12V input
POWER INPUT	7V~36V wide range
DIMENSIONS	160 × 114mm
