Rock Pi E Rockchip RK3328 1GB DDR3 SBC/Single Board Computer support Debian/Ubuntu/OpenWRT Custom PCB mini pcba customize

Name: Rock Pi E Rockchip RK3328 1GB DDR3 SBC/Single Board Computer support Debian/Ubuntu/OpenWRT Custom PCB mini pcba customize
Brand: Lonten Technology
Price: 62.00 USD
Availability: InStock

$62.00 USD

~~$102.00 USD~~ $62.00 USD

Sale Sold out

Quantity

Intruduction

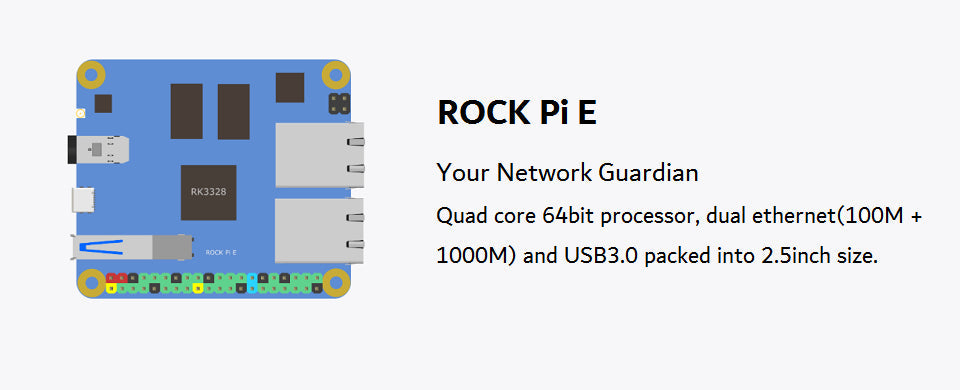

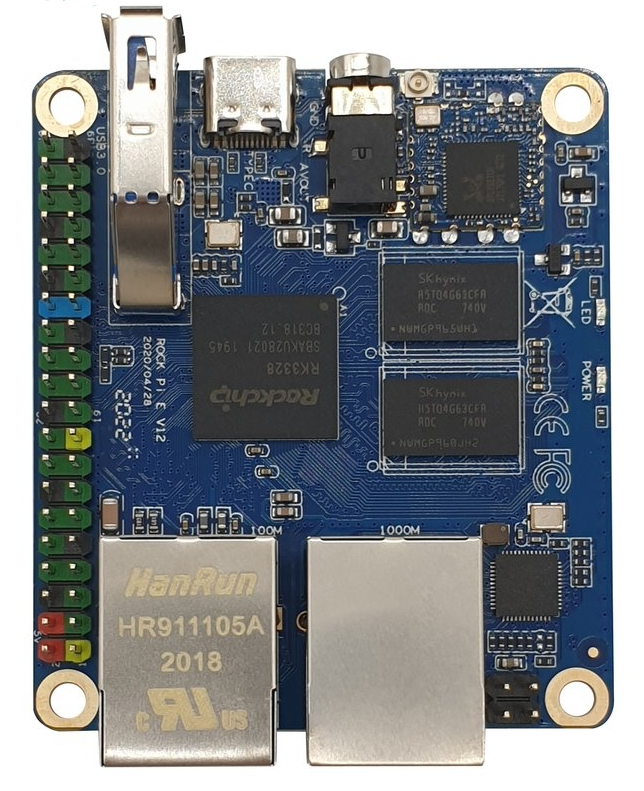

ROCK Pi E is a Rockchip RK3328 based SBC(Single Board Computer) by Radxa. It equips a 64bits quad core processor, USB 3.0, dual ethernets, wireless connectivity at the size of 2.5x2.2 inch(56x65mm), making it perfect for IoT and network applications. ROCK Pi E comes in various ram sizes from 512MB to 4GB DDR3, and uses uSD card for OS and storage as well as supporting eMMC module. Optionally, ROCK Pi E supports PoE, additional HAT is required.

Specification

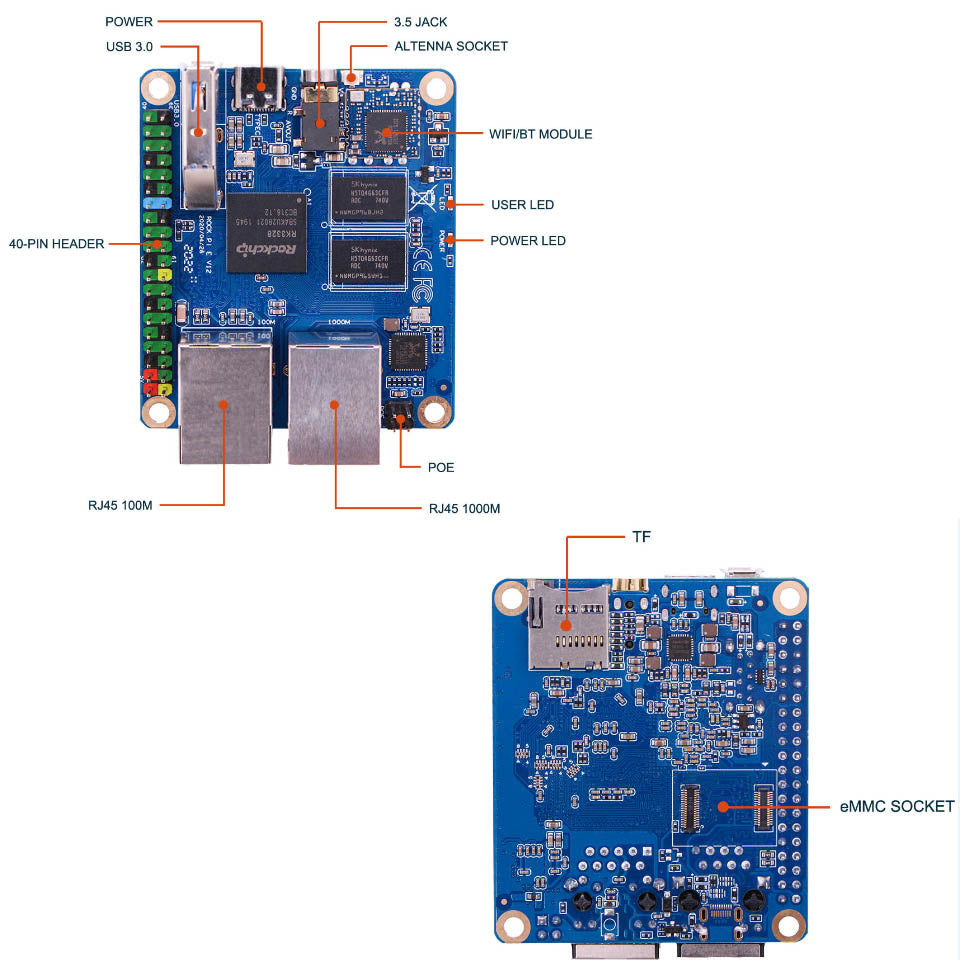

Model	ROCK Pi E
Processor	SoC RK3328 Quad Cortex-A53 ARM 64bits processor frequency up to 1.3GHz
Memory	256MB / 512MB / 1GB / 2GB DDR3
Storage	MicroSD(TF) up to 128GB High performance eMMC module 16GB / 32GB / 64GB / 128GB
Wireless	802.11 b/g/n wifi Blth 4.0(rtl8723du/rtl8821cu) external antenna
USB	USB3.0 Type-A HOST x1
Key	Reset key x1 Maskrom key x1
Ethernet	1x 1000Mbit ethernet, optional PoE(additional HAT required) 1x 100Mbit ethernet
IO	40-pin expansion header USB 2.0 x1 I2C x1 SPI x1 UART x2 I2S x1 5V DC power in x2 3.3V DC power in x2
Others	LEDs
Power	USB Type-C DC 5V
Size	2.5x2.2 inch(56x65mm)

Welcome Customize Order!
