Lonten Technology

Red Pitaya STEMlab 125-14 Starter Kit Custom PCB 857d smd rework station pcba mxm 3.0 pcba android 5.1 customize

Red Pitaya STEMlab 125-14 Starter Kit Custom PCB 857d smd rework station pcba mxm 3.0 pcba android 5.1 customize

Regular price $420.00 USD
Regular price $460.00 USD Sale price $420.00 USD
Sale Sold out




PRODUCT DETAILS

Features

  • Flexible Development Opportunities: Explore limitless FPGA Applications like oscilloscopes, spectrum analyzers and more

  • Versatile Compute & FPGA with the STEMLAB125-14 Main Board

    • Dual-Core ARM Cortex-A9 MPCore

    • Xilinx Zynq 7010 FPGA

    • 512MB RAM, MicroSD Storage (Up to 32GB)

    • Ethernet, USB, WiFi (Dongle required, not included)

  • Basic Accessories for Getting Started: 16GB, Class 10 SD Card, 1m Ethernet Cable, 5V2A Power Supply

  • Ready for Deployment: CE, FCC Certified

Description

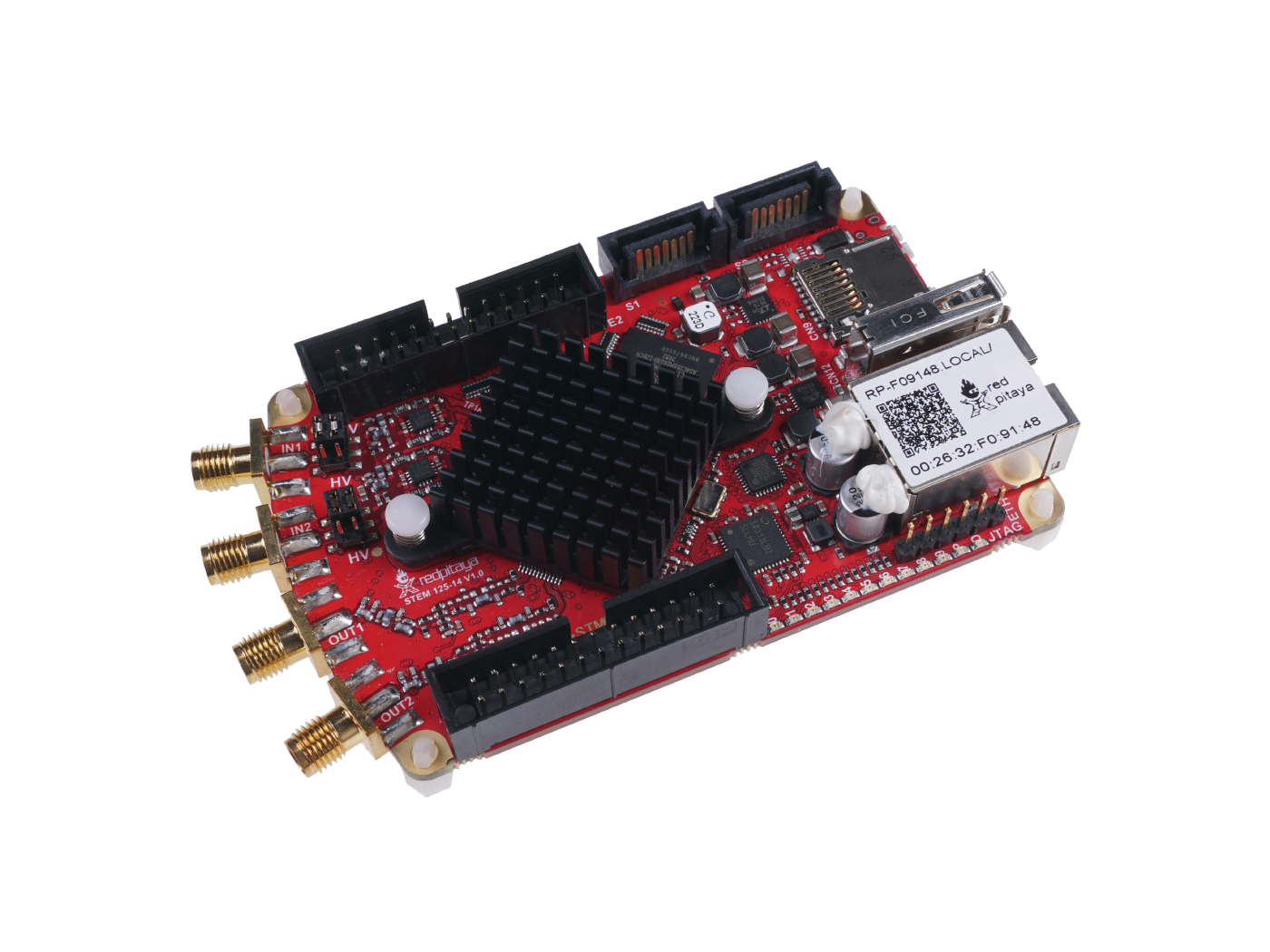

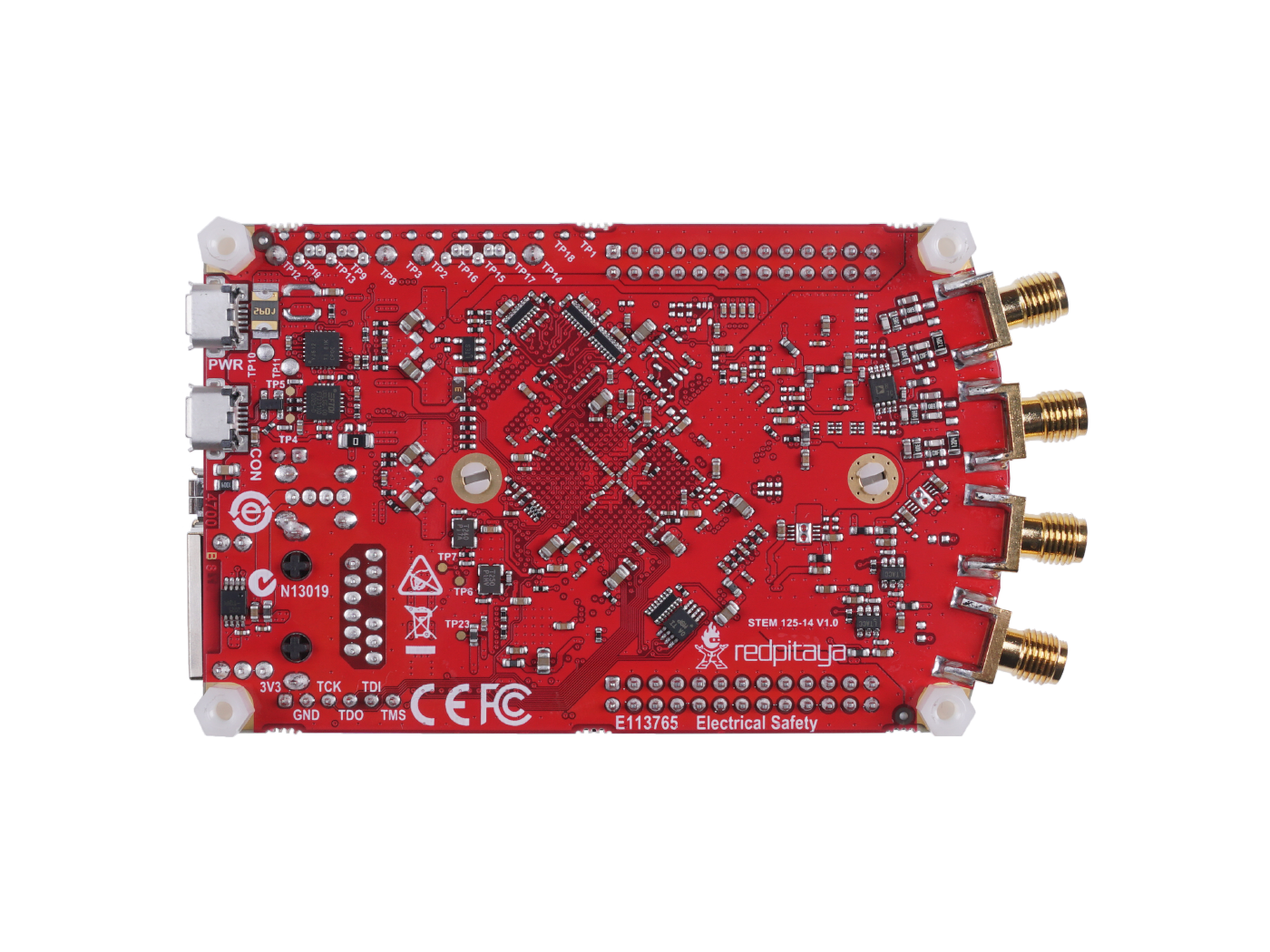

The Red Pitaya STEMLab 125-14 Starter Kit contains a basic set of tools to start developing with the included Red Pitaya STEMLab 125-14 board. The board features a dual-core ARM® Cortex® A9 and Xilinx Zynq 7010 FPGA MCU, offering both fast and slow analog I/O. The STEMLab 125-14 has 14-bit input/ output channels for highly accurate measurement results, and is suitable for use in professional environments such as industrial control systems or smart city controllers. It can be used as desired for various electronics applications as an oscilloscope, spectrum analyzer, LCR Meter, and more. In addition, you can explore free, open-source applications contributed by the community on theRed Pitaya Marketplace.

Applications

  • Oscilloscope

  • Industrial PID Controller

  • Signal Generator

  • Spectrum Analyzer

  • Bode Analyzer

  • LCR Meter

Specifications

Specification

Details

Processor

Dual-Core ARM Cortex-A9 MPCore

FPGA

Xilinx Zynq 7010

RAM

512MB

System Memory

MicroSD up to 32GB

Connectivity

Gigabit Ethernet
USB 2.0
WiFi (Dongle required, not included)

RF Inputs

Channels

2

Sample Rate

125MS/s

ADC Resolution

14 bit

Full Scale Voltage Range

± 1V / ± 20V

Input Coupling

DC

Bandwidth

DC- 60MHz

Input Impedance

1 MΩ

RF Outputs

Channels

2

Sample Rate

125MS/s

ADC Resolution

14 bit

Full Scale Voltage Range

± 1V

Load Impedance

50Ω

Shortcut Protection

Yes

Typical Raising / Falling Time

2V / 10ns

Bandwidth

DC - 60MHz

Peripherals

Digital IOs

16

Analog Inputs

4 Channels, 0-3.5V 12 bit

Analog Outputs

4 Channels, 0-1.8V 12 bit

Communication Interfaces

I2C, UART, SPI

Available Voltages

+5V, +3.3V, -4V

Synchronization

Trigger input through extension connector
Daisy chain connection over SATA

Part List

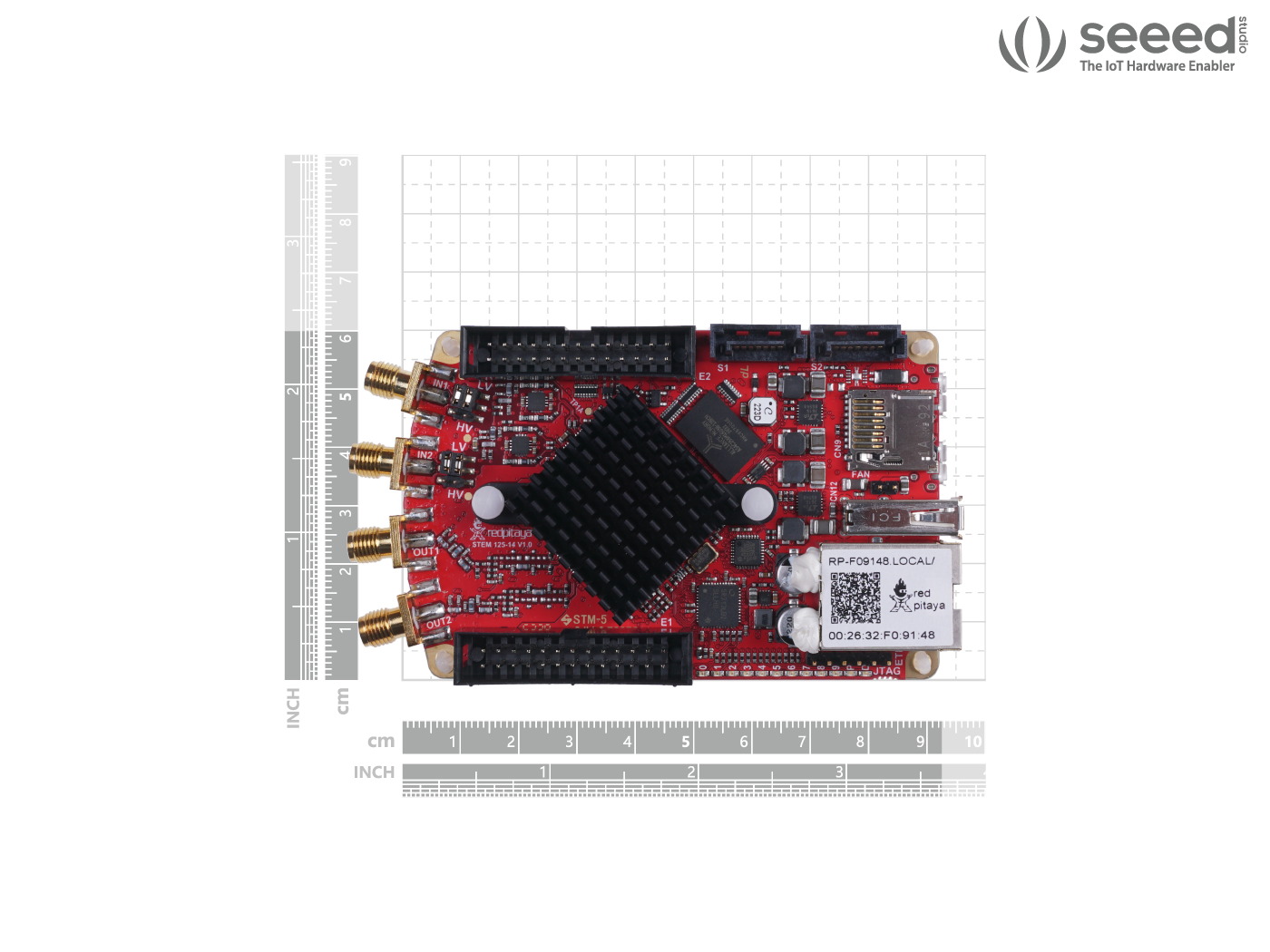

  • 1 x Red Pitaya STEMlab 125-14 board

  • 1 x Micro-SD Card (16GB, class 10)

  • 1 x Micro-SD Card Adapter

  • 1 x Ethernet cable (1m)

  • 1 x International Power Adapter (5V, 2A)



With more than ten years of robot development experience, we have developed a series of intelligent education products. For the production of robots to make starters and robots to make sensors, for the production of robots to make control panels. Our products are sold in large quantities to global buyers. Get praise from customers. At the same time, we are also committed to the development of robot education in China. Turn the advanced technology into a text and make it an easy topic to learn. Advanced technology will be integrated into the activities of young people to stimulate their practical ability, logic and creativity. We uphold the "integrity, integrity, innovation" spirit of enterprise, to maintain high quality and all-round service.
 Welcome Customize Order!
