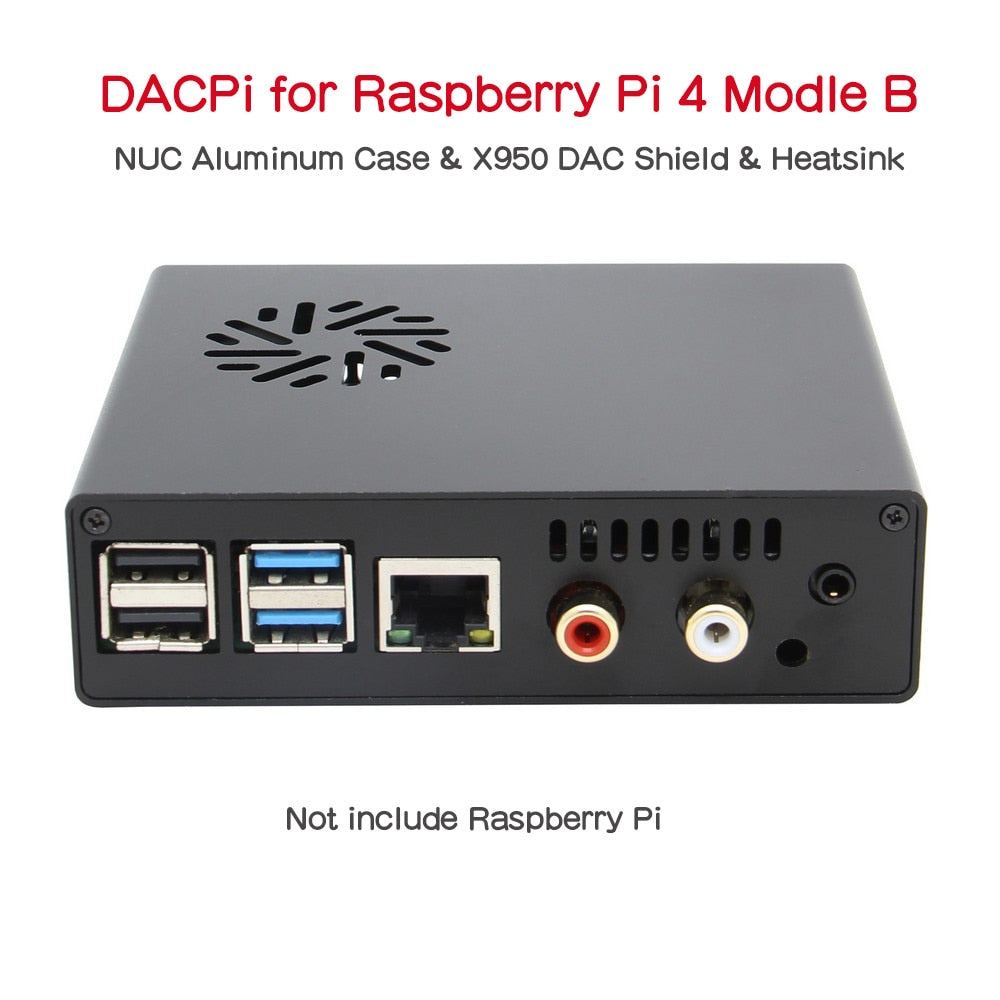

Raspberry Pi4 DAC board Kit, DACPi NUC Aluminum Case with X950 DAC Shield & Heatsink for Raspberry Pi 4 Modle B customize

Note:
The DACPi kit does not include the Raspberry Pi 4 Board.

Overview:

• DACPi is a desktop ultra-thin DAC kit based on the latest raspberry pi 4;

• We know that there are many DAC expansion boards released on the market, but they have a common shortcoming that they are too thick.

• We redesigned the DAC expansion board (X950) and tried our best to make this DAC the thinnest and matched a NUC style aluminum alloy shell, the final thickness of DACPi is only 31mm, I hope you can like it.

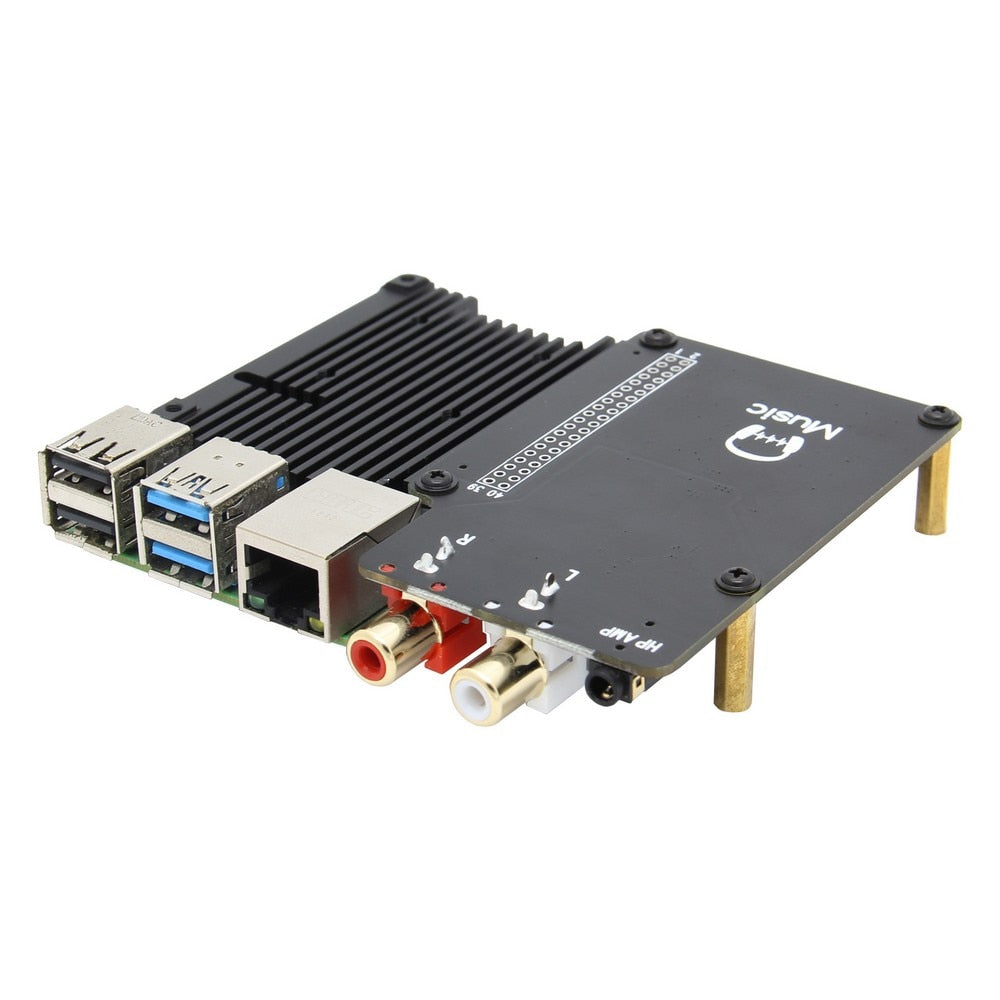

• DACPi adopts modular design, it composed of three parts: X950 DAC Shield, cooling system (P165-B embedded heatsink), and a NUC style aluminum case;Just simply assemble them with the Raspberry Pi 4 motherboard.

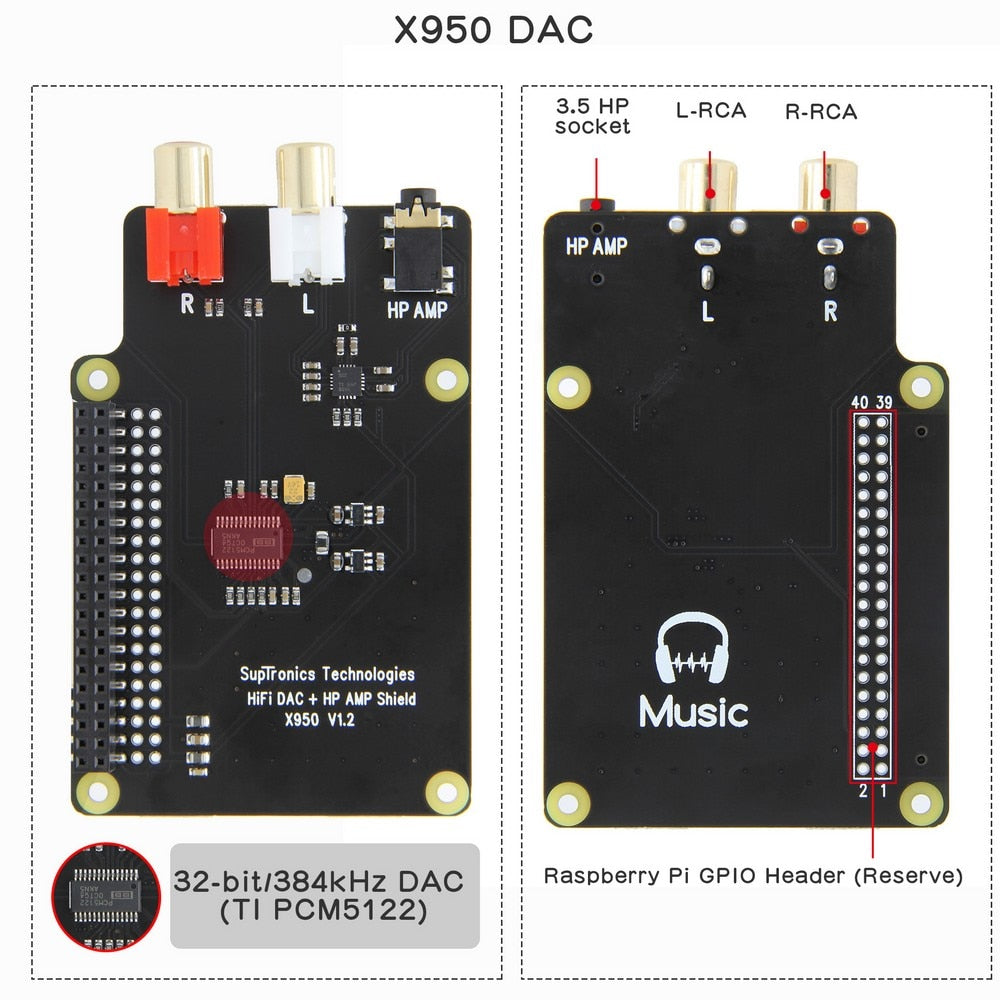

• X950 shield can turn your Raspberry pi 4 into a ready-to-play High Resolution Network Music Player.

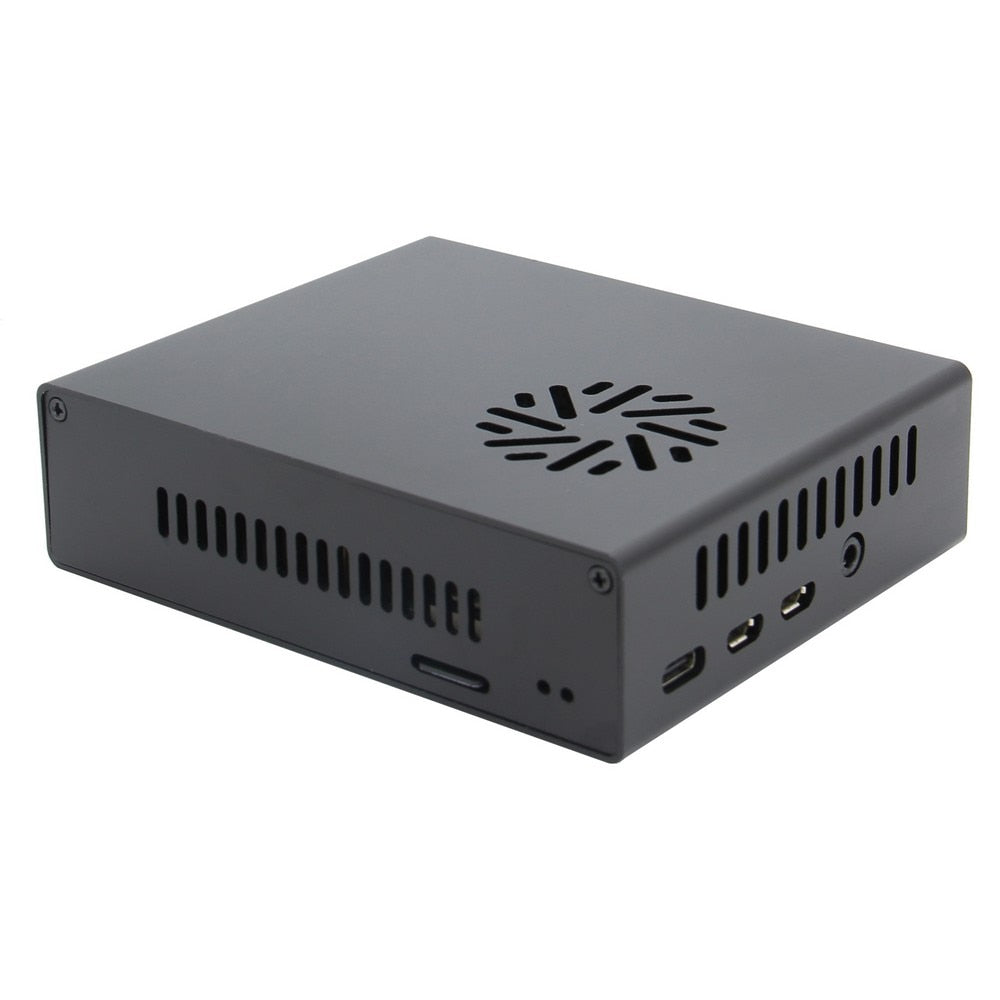

• The shell is made of all aluminum alloy, CNC processing method, surface anodizing treatment.

• For the cooling solution, considering that the cooling fan will interfere with the sound quality, we abandoned the X823-A3 active cooling solution in NASPi, and we only use P165-B to dissipate heat, which can provide enough heat dissipation if there is no overclocking, but P165-B may be a slight impact on WIFI. You can remove the heatsink also.

• Power Supply Requirement:

• Power supply: 5Vdc +/-5% , ≥3A (Via Type-C port of Raspberry pi 4) (Strongly recommended to use Raspberry Pi official 5V 3A type-C power adapter.)

Operating System:

• Moode Audio Player

• OSMC

• Openelec Raspbian Jessie

• Volumio

• Pi Core Player

For Use With:

• Raspberry Pi 4 Model B Only

• User

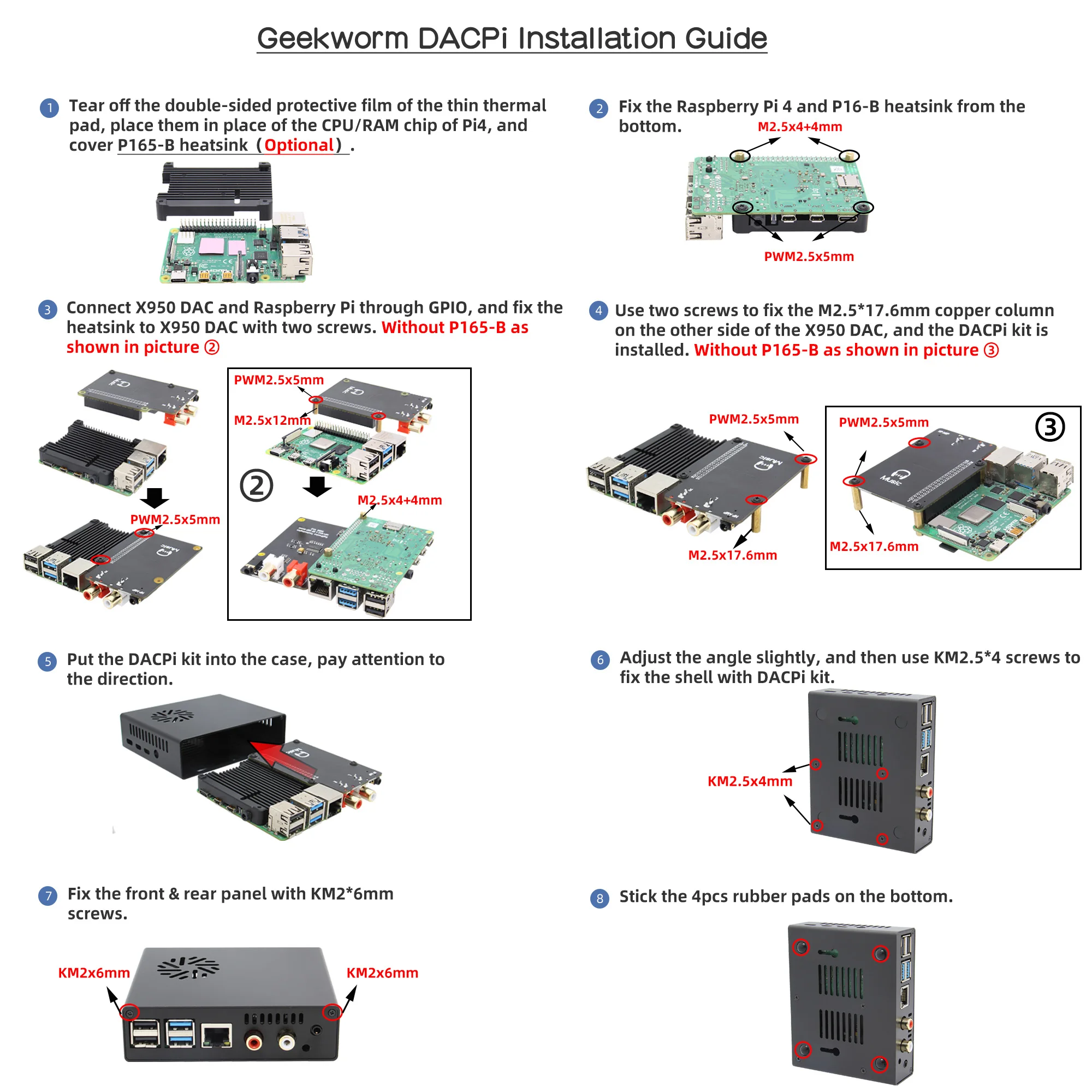

  Manual] :wiki.geekworm.com/DACPi

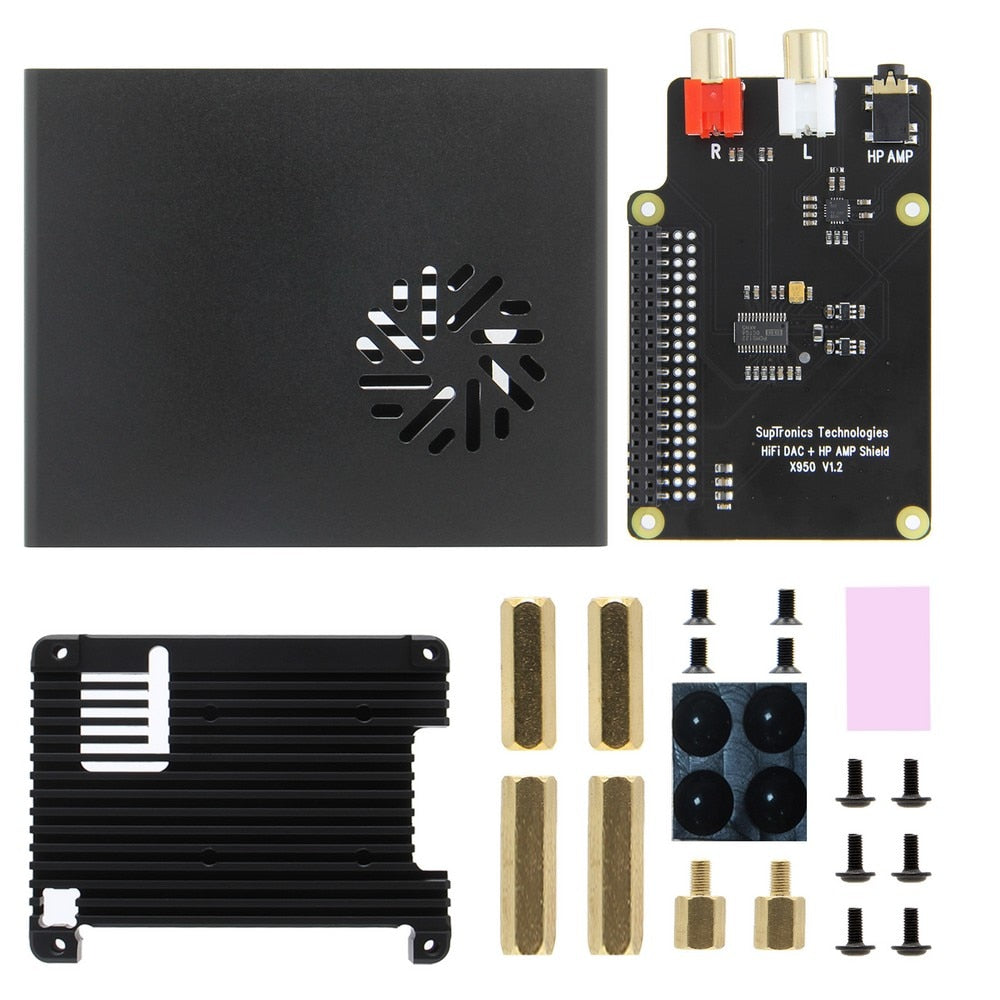

Packing List:

• 1 x DACPiAluminum alloy Case

• 1 x X950 DAC Shield

• 1 x P165-B embedded heatsink

• 1 x screws pack

 Welcome Customize Order!
