Raspberry Pi X862 V1.0 M.2 NGFF 2280 SATA SSD Storage Expansion Board / Shield for Raspberry Pi 4 Model B customize

X862 V1.0 M.2 NGFF 2280 SATA SSD Storage Expansion Board for Raspberry Pi 4 Model B

NOTES:

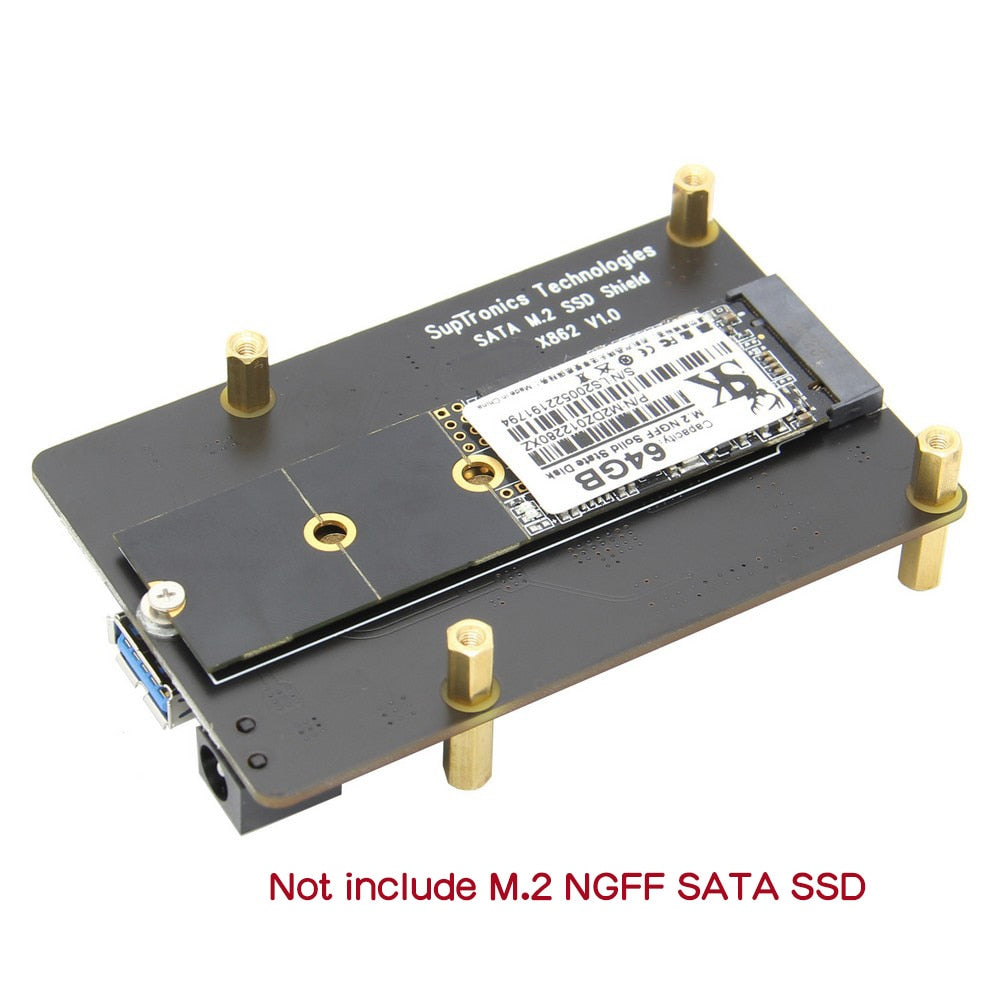

• Not include Raspberry Pi 4 & M.2 Key-B SSD

• Compatible with M.2 NGFF SATA SSD only, not compatible with NVMe M.2 SSD

• As with all SSDs, new media must be formatted before use

• SSDs use exceptionally high performance storage media that will run hot when under load

• Older SSD drives with less efficient flash media may not perform as well as newer drives

Matching Metal Case:

If you use X857-C1 metal case, it will not support 2.4GHz, please try using the 5GHz band instead. The X857-C3 case does not support X862 V1.0

Operating System：

All Raspberry Pi operating systems

Key Features：

• Ideal storage solution for Raspberry Pi 4 - M.2 NGFF SATA SSD Shield

• Supports up to 2TB M.2 NGFF SSD solid-state drive

• UASP supported for Raspberry Pi 4

• Integrated USB 3.1 Gen1 to SATA 6Gb/s bridge controller

• Integrated high efficiency step-Down Converter, 3.3V max 4A to power the SSD

• USB3.1 Gen1 5Gb/s connectivity offers plug-and-play functionality on your Raspberry Pi 4

• Allows booting OS from your HDD/SSD for faster app opens, web serving and file copying (see note 2)

• LED blue indicator indicates drive status

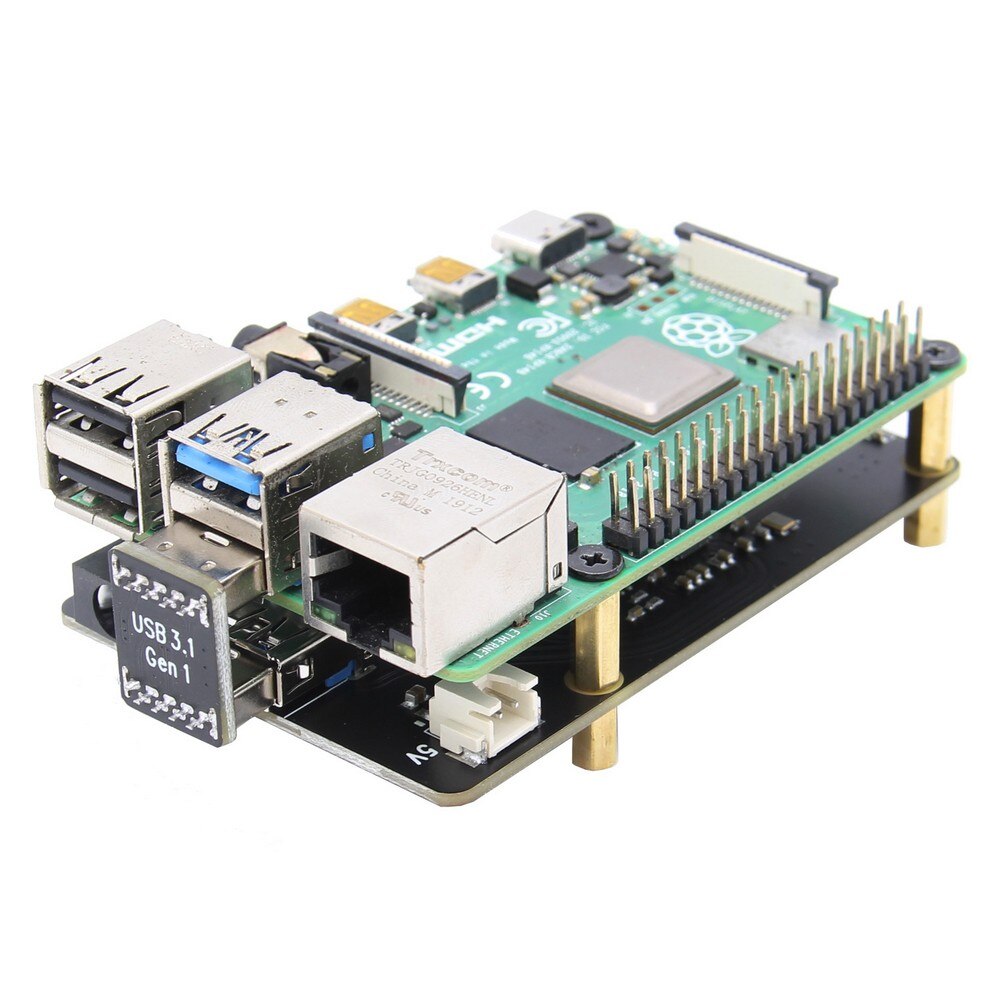

• Specially-made USB3.1 jumper to connect with Raspberry Pi - no cabling required!

• Fully compatible with X735 for intelligent power management and cooling your Raspberry Pi

• Fully compatible with X710 for wide input voltage (6~36V) and intelligent power management

• Fully compatible with X765 for powering over Ethernet (POE, 5V 5A)

• Fully compatible with X728 for uninterruptible power supply (18650 UPS, 5.1V 8A, smart power mgmt)

Specification：

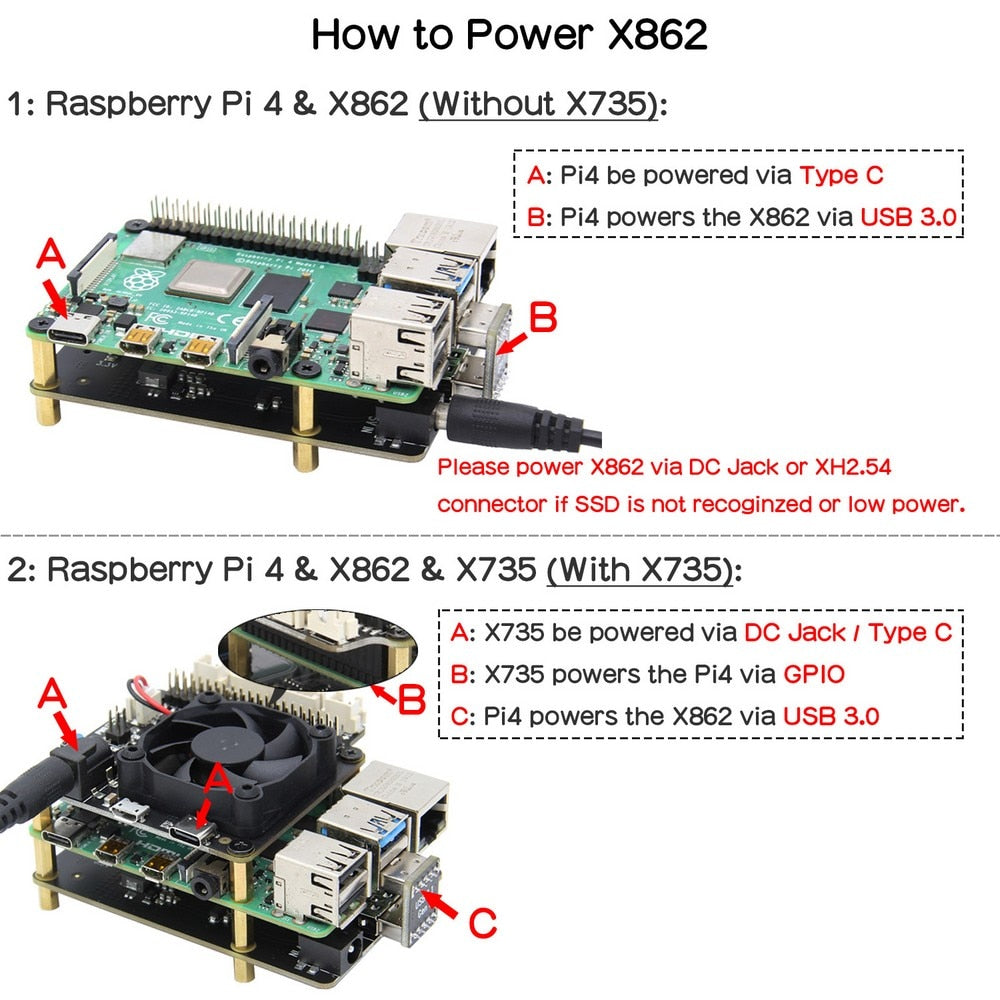

• Power supply:5Vdc +/-5% , Powered via USB port by Raspberry Pi 4

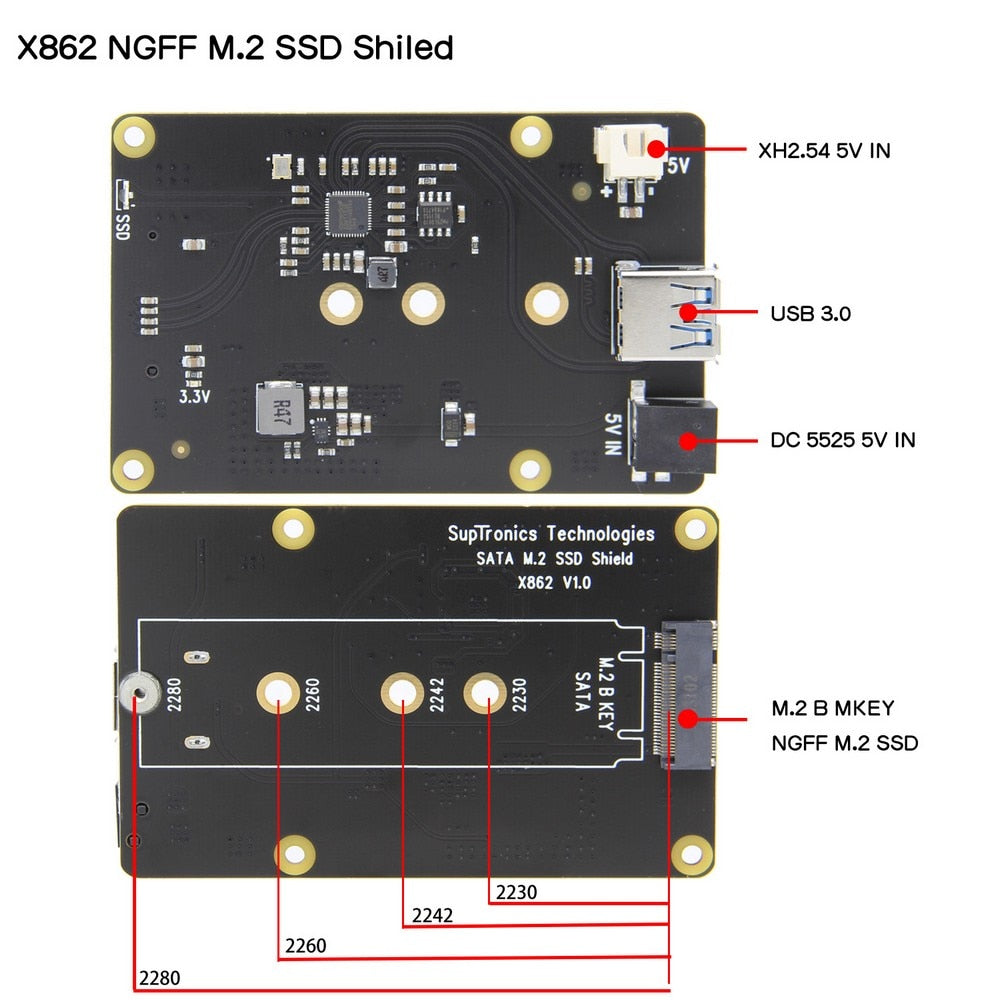

Ports & Connectors：

• USB socket - USB 3.0 type A x1

• 67Pin M.2 connector P=0.5mm, H3.2mm, Key B x1

• PCB Size 87mm x 56mm

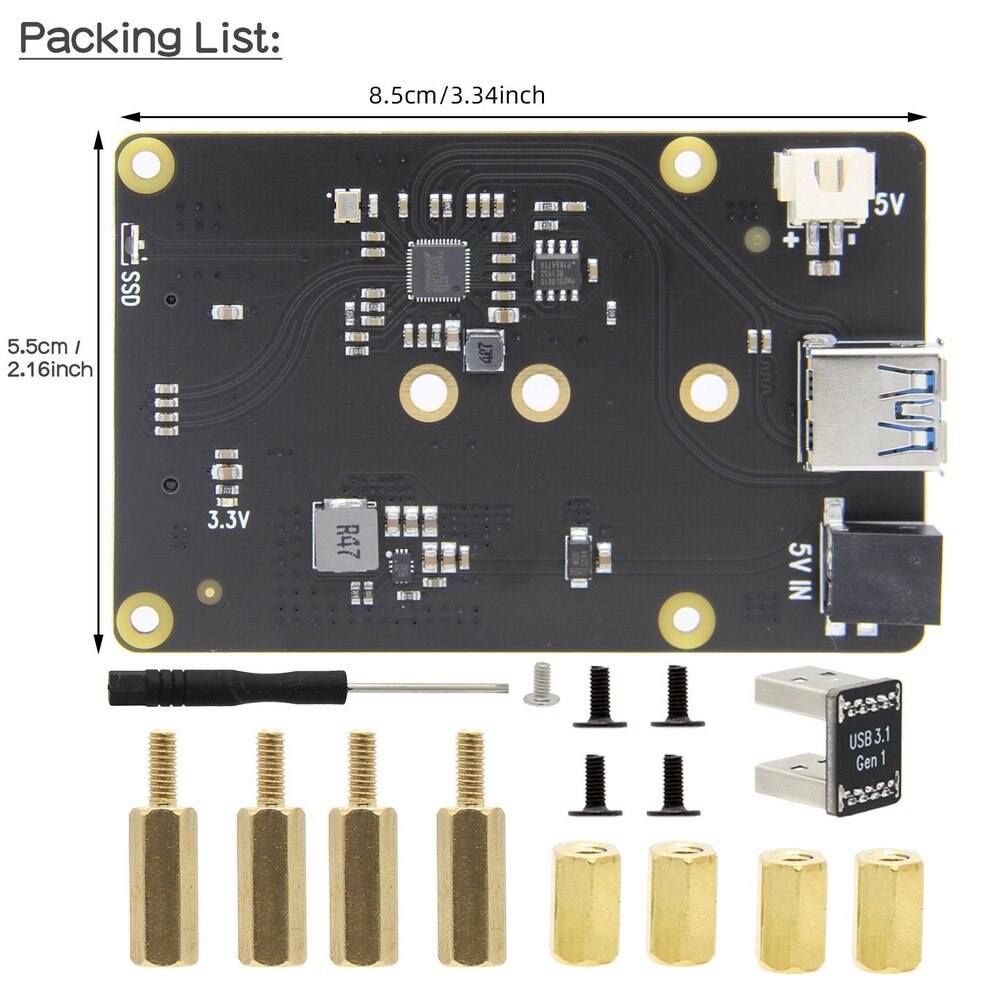

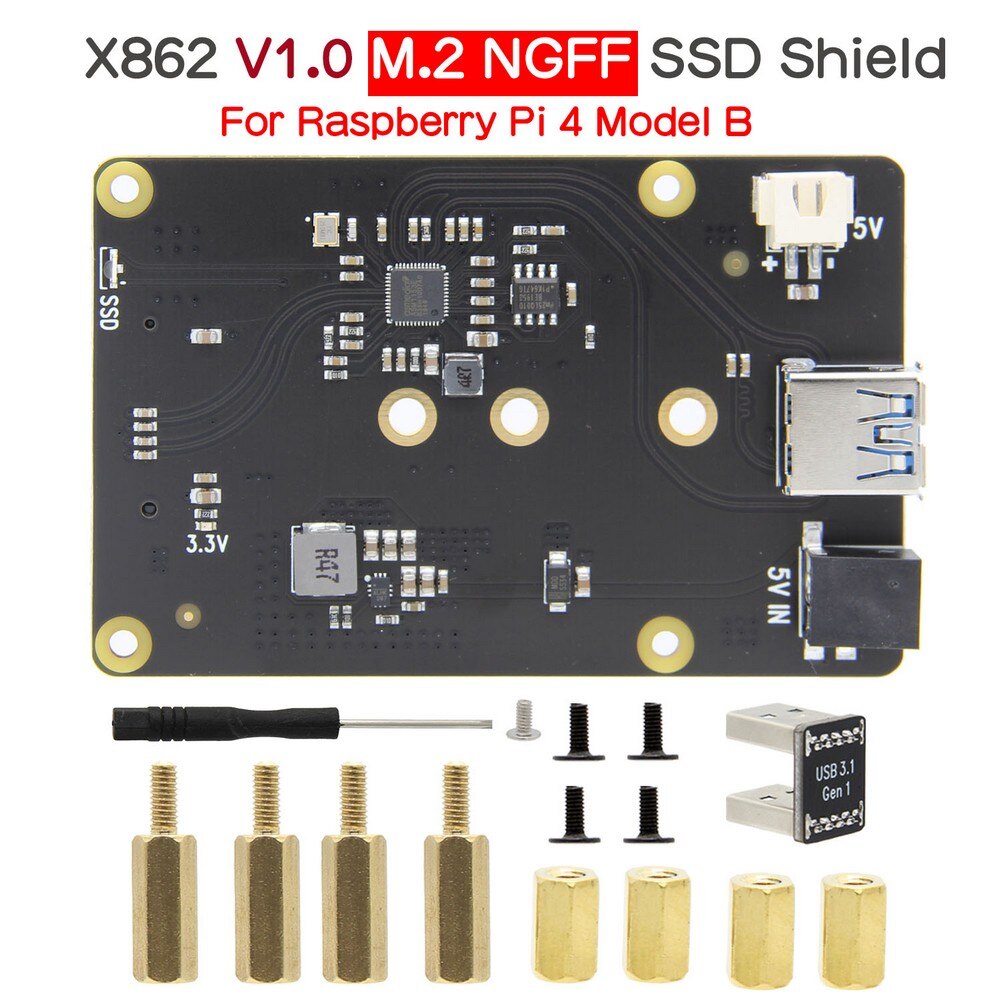

Packing List：

X862 V1.0 M.2 NGFF SATA SSD Shield x 1

USB3.1 jumper x 1

Screw M2.5 *6mm x 4

Spacer M/F M2.5 *12mm x 4

Spacer F/F M2.5 *8mm x 4

Screw driver x 1

Screw M2 *4mm x 1

 Welcome Customize Order!
