Raspberry Pi Case-LTRIG

Raspberry Pi X857-C3 Matching Metal Case / Enclosure for Raspberry Pi 4B & X857 V2.0/ X862 V2.0 & X735 customize

Raspberry Pi X857-C3 Matching Metal Case / Enclosure for Raspberry Pi 4B & X857 V2.0/ X862 V2.0 & X735 customize

Regular price $24.59 USD
Regular price $0.00 USD Sale price $24.59 USD
Sale Sold out
Color

Overview

Due to X857 V1.2 X862 V1.0 X872 are be upgraded to new version, so we must also upgraded the matching metal case.
This case is only support X862 V2.0 / X857 V2.0 ;not support X857 V1.2 / X862 V1.0 / X872 V1.1 / X873 .
Some changes:
  1. We reduced the height of the case by 3mm;
  2. We adjusted the position of SSD led;
  3. No more

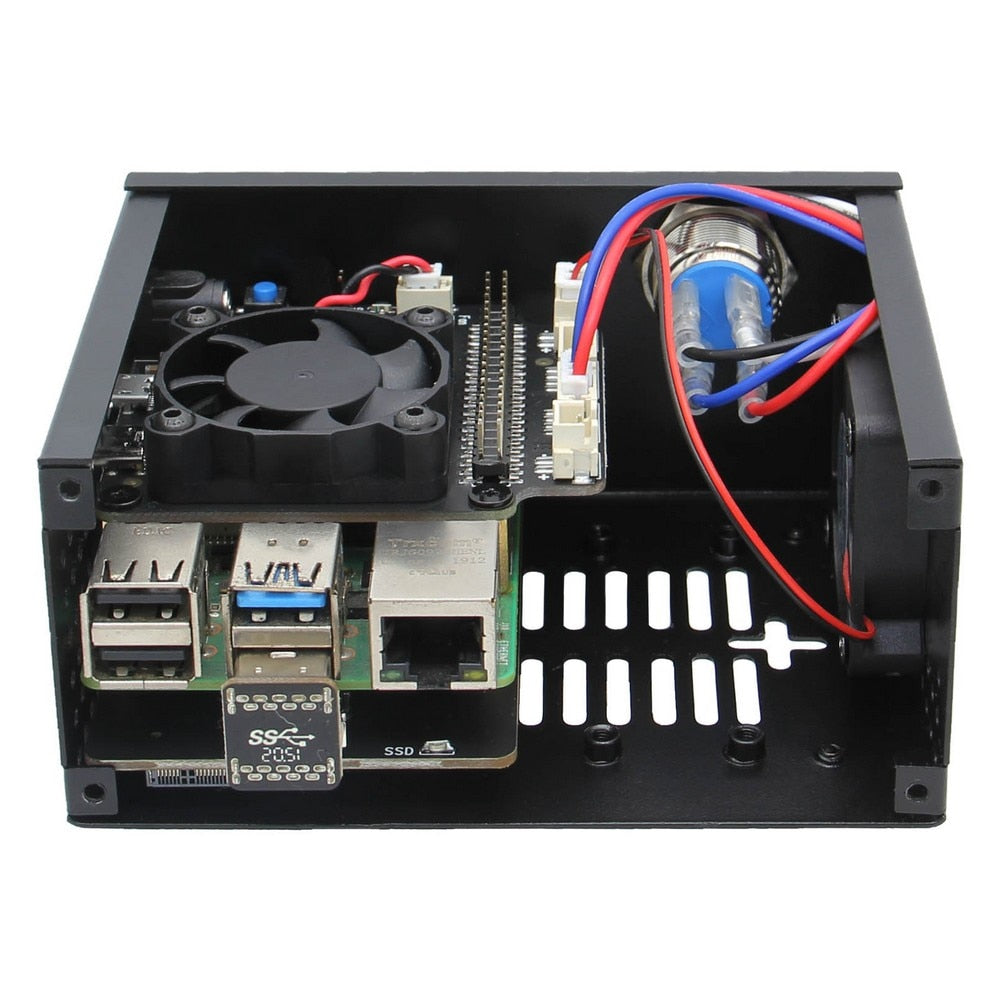

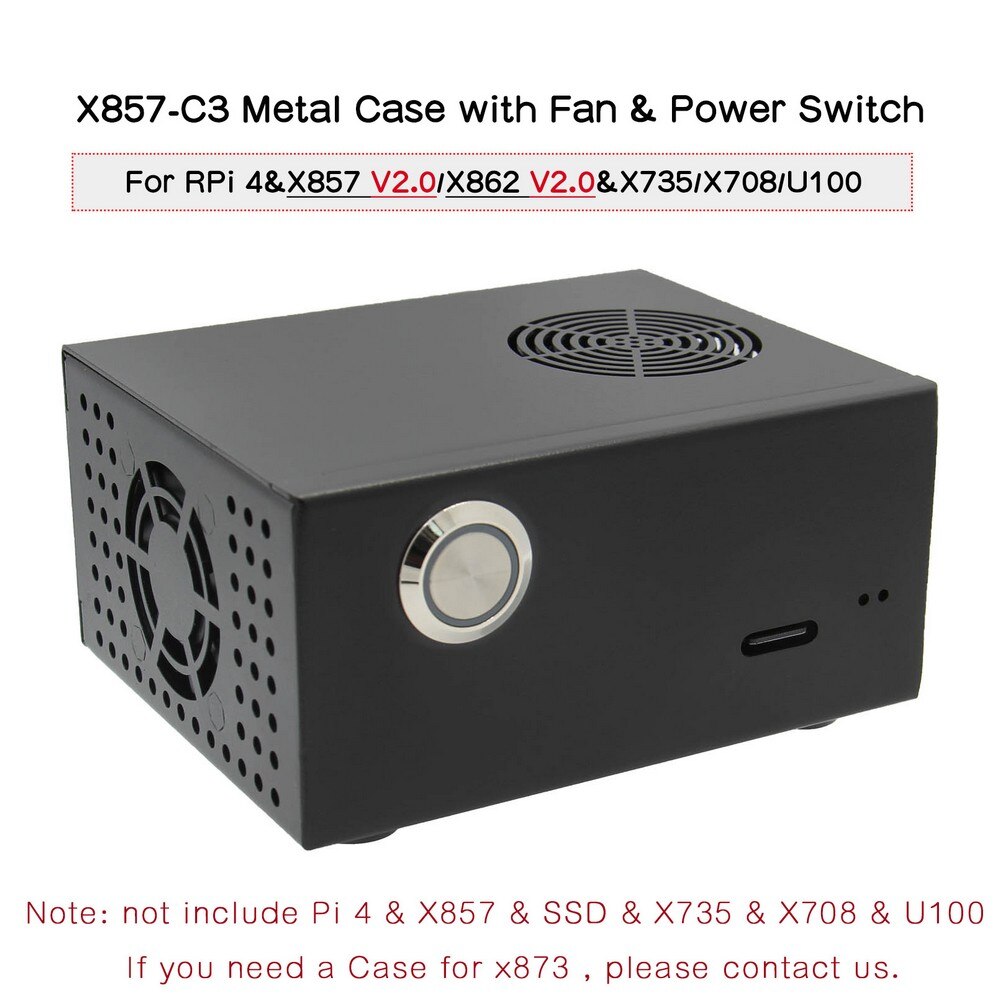

  • This is new version X857-C3 metal case with power control switch and super mute cooling fan designed for Raspberry Pi 4 Model B and X857 V2.0 mSATA SSD Shield/ X862 V2.0 M.2 NGFF Shield/ X873 NVME M.2 Shield.
  • Please note that the X857-C3 case DON'T SUPPORT X857 V1.2 / X862 V1.0 / X872 V1.1 / X873.
  • It supports X735 installation for intelligent power management and cooling your Raspberry Pi, also supports X708/U100 UPS with battery holder installation for UPS function. The equipped cooling fan is installed on the side of the battery holder to provide better heat dissipation.
Features
  • High quality metal material with surface galvanized process
  • Equipped with super mute cooling fan
  • Equipped with power switch with beautiful LED indicator to control the power of X857 V2.0/X862 V2.0/X873 and the Raspberry Pi 4; (LED indicator can be disable)

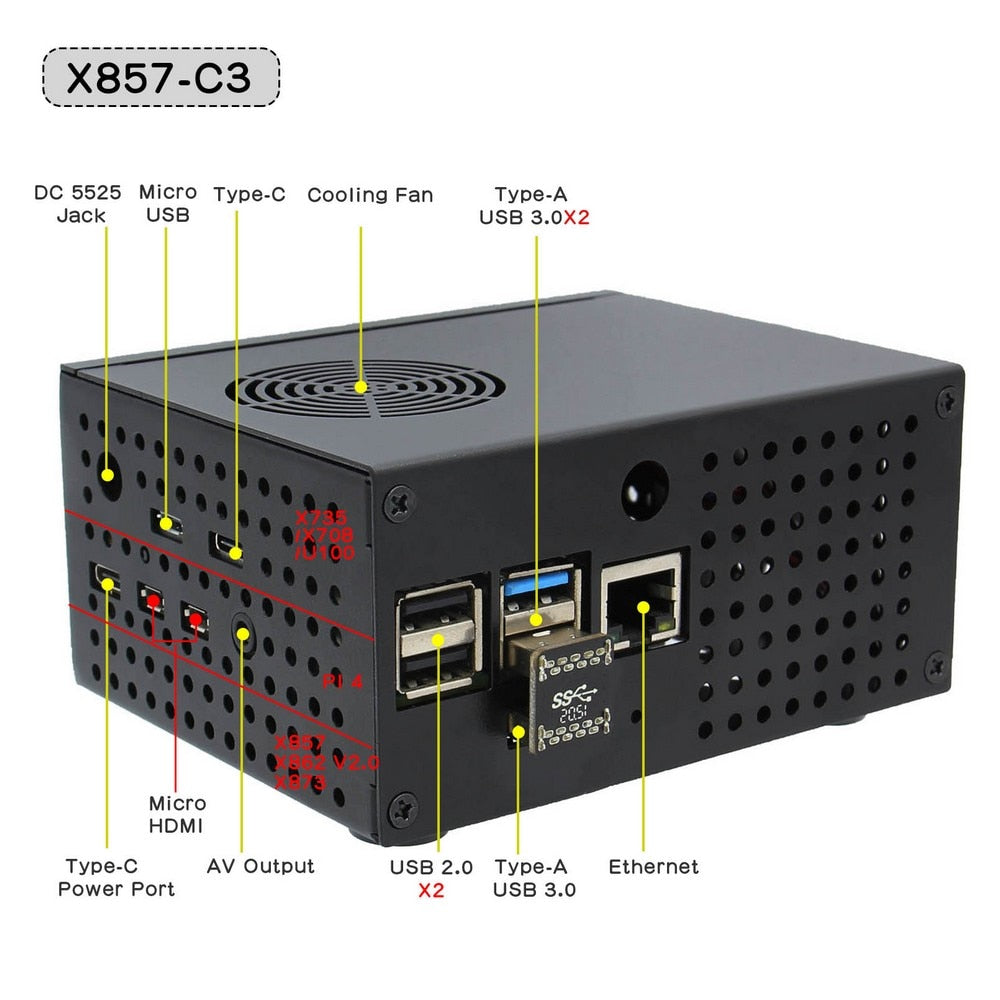

  • Easy to install, all main connectors are easily access to use;

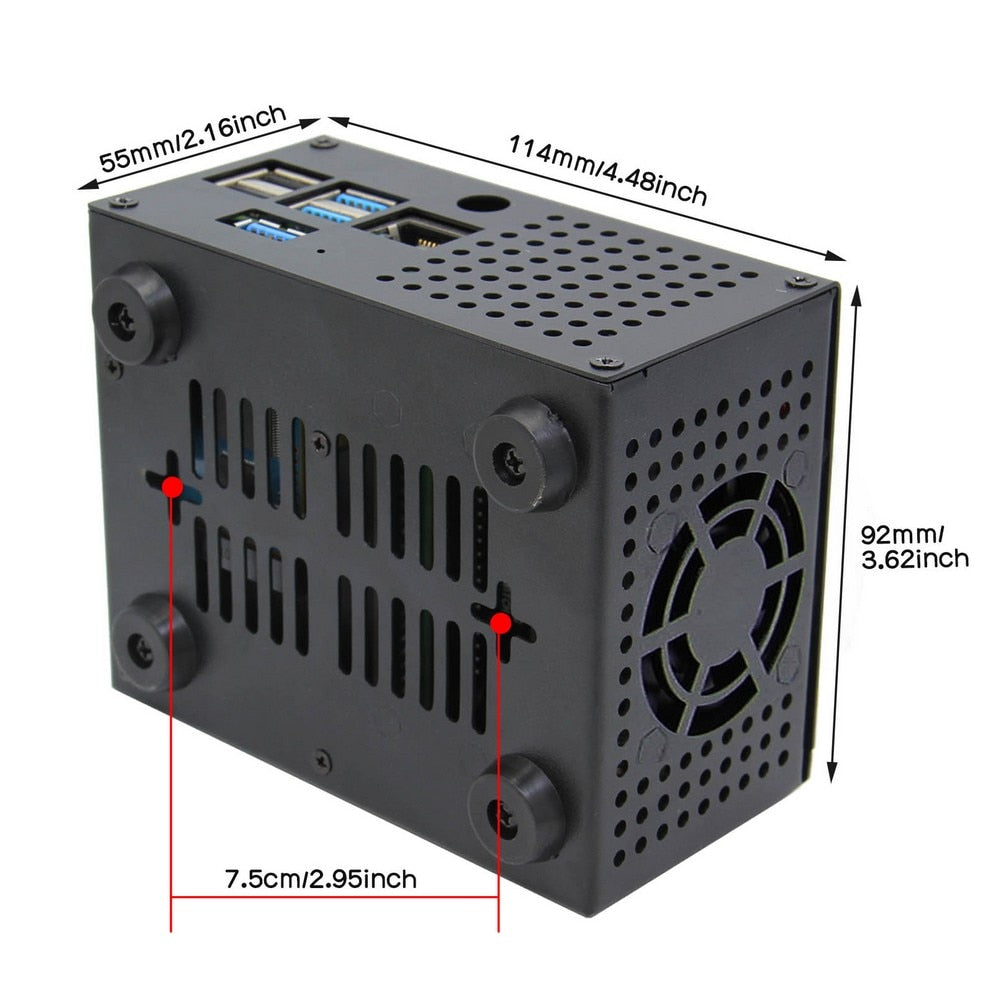

  • Case Size(Installation): 11.4cm x9.5cm x 5.5cm / 4.48inch x 3.74inch x 2.16inch
  • Supports X735 installation for intelligent power management and cooling your Raspberry Pi
  • Supports X708/U100 UPS with battery holder installation for UPS function
  • Supports battery holder installation for UPS function

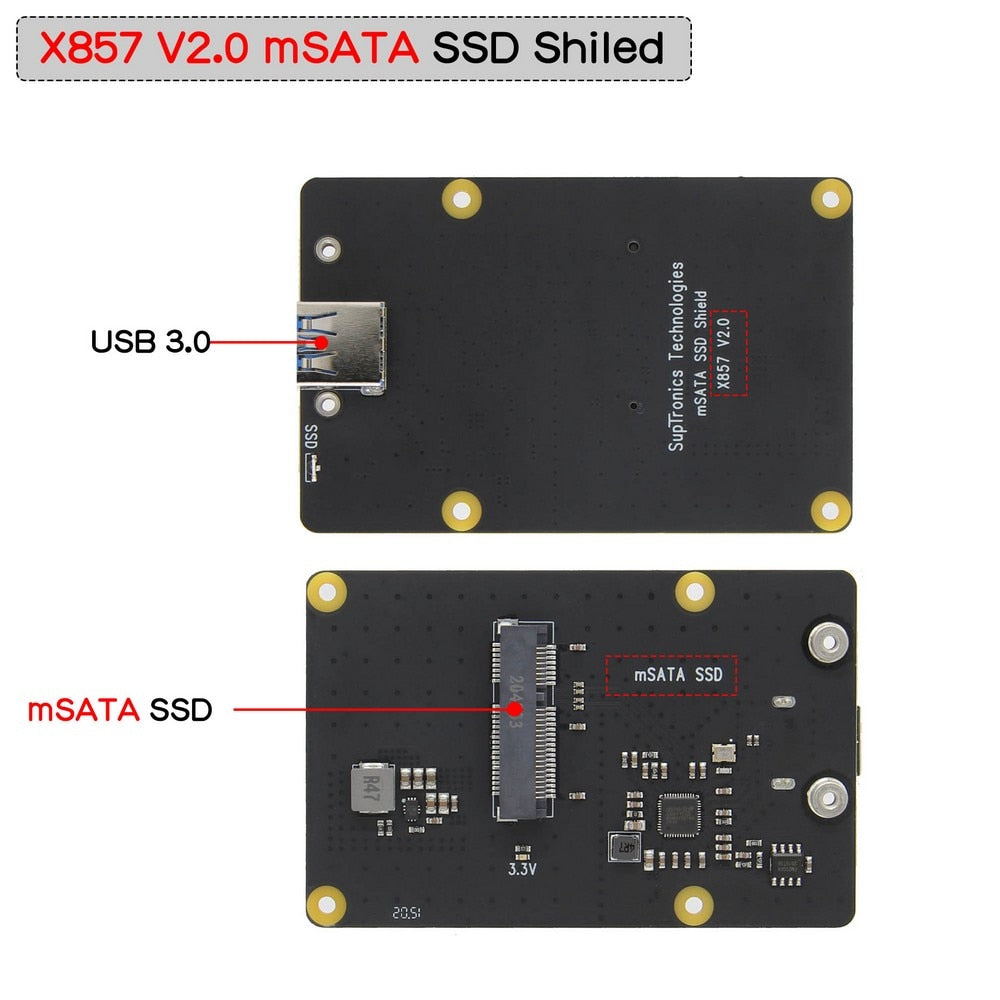

X857 V2.0 mSATA SSD Expansion Board

  • Ideal storage solution for Raspberry Pi 4 - mSATA SSD Shield

  • Supports up to 2TB mSATA solid-state drive (SSD)

  • Integrated USB 3.1 Gen1 to SATA 6Gb/s bridge controller

  • Allows booting OS from your HDD/SSD for faster app opens, web serving and file copying (see notes)

  • LED blue indicator indicates drive status

  • PCB Size 85mm x 56mm

  • X857 V2.0 version supports UASP but not TRIM.

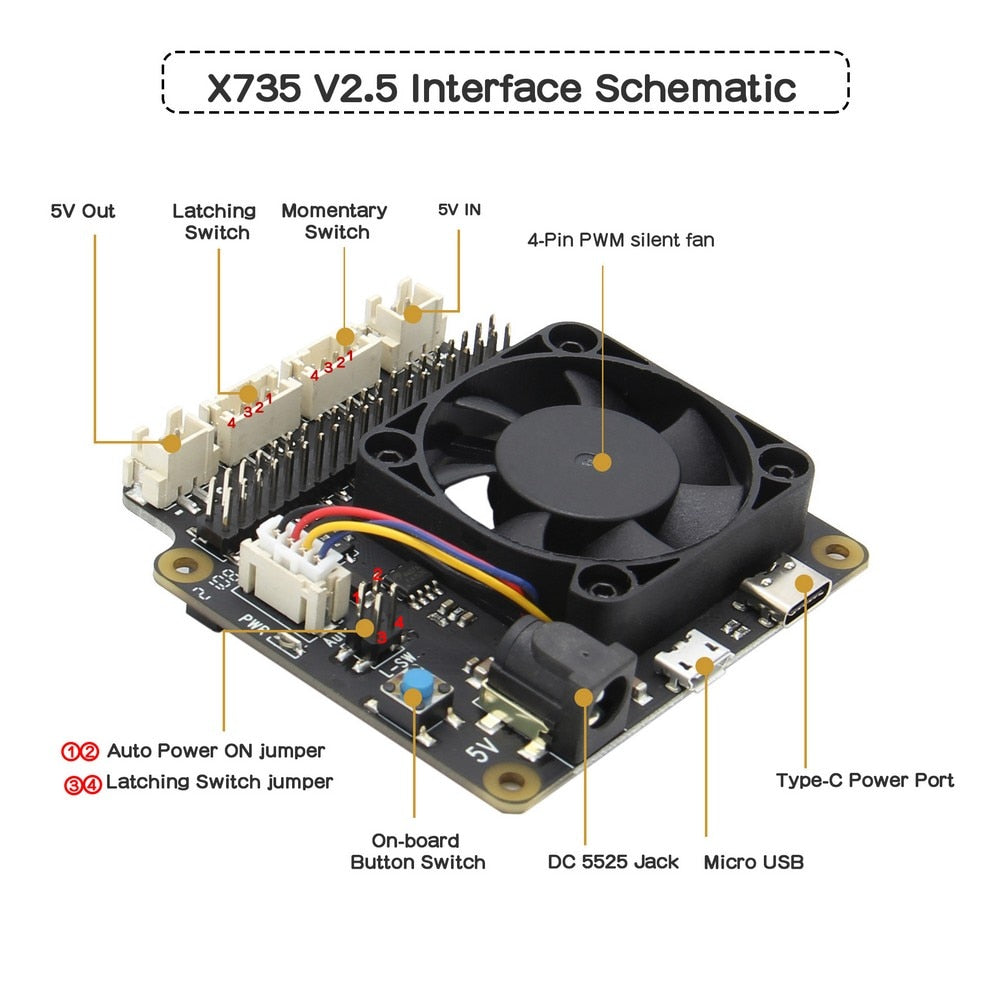

X735 Key Features

Intelligent and safe power management

  • Equipped with both momentary button and latching switch for easy power control

  • Press the momentary button or external momentary power switch to turn on

  • Press the momentary button or external momentary power switch and hold for 1~2seconds to reboot

  • Press the momentary button or external momentary power switch and hold for 3~7seconds to implement safe shutdown

  • Press the momentary button or external momentary power switch and hold for more than 8 seconds to force shutdown

  • Supports safe shutdown and full poweroff through software

  • On-board switch convenient to select latching or momentary power control switches

  • Press the latching power switch once to turn on and again to implement safe shutdown

  • On-board LED shows the status of power on, reboot and shutdown

  • On-board PH2.0 connectors allows to use external latching switch or momentary button

  • Powers the Raspberry Pi via the 40-pin header - no additional cabling required

  • Allows power input via DC jack or Micro-USB socket or XH2.54 connector

  • Allows power output via XH2.54 socket and or the 40-pin header




Auto cooling function

  • Dual trip point temperature controlled cooling fan

  • Auto-Control the fan for Cooling / quiet Operation

  • Board temperature ≤34C - Fan running at low speed

  • Board temperature ≥34C - Fan running at medium speed

  • Board temperature ≥45C - Fan running at full speed

  • On-board LEDs show the status of fan running low and high

  • No driver and additional setting required for the cooling fan

Others

  • Reserved 40-pin stackable Header for Add-On Boards

  • Works with all current models of the Raspberry Pi using a 40 pin header

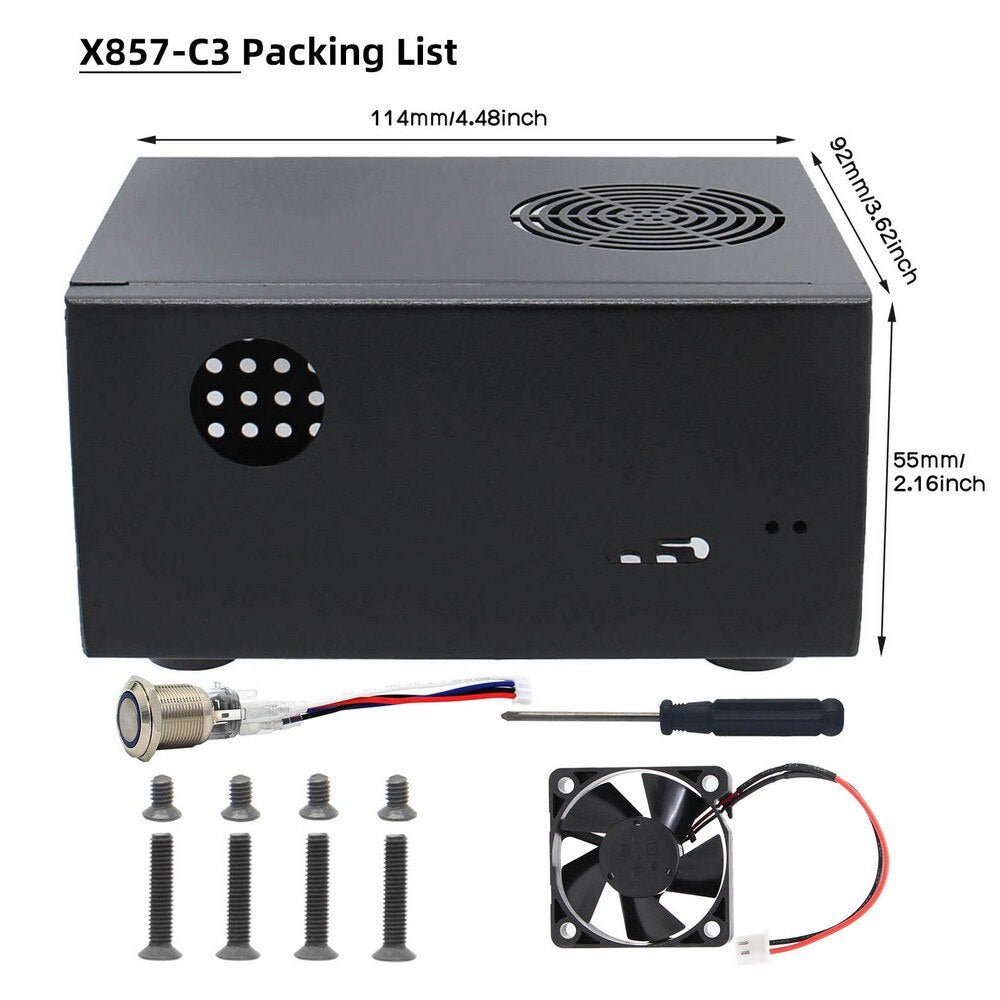

Packing List:

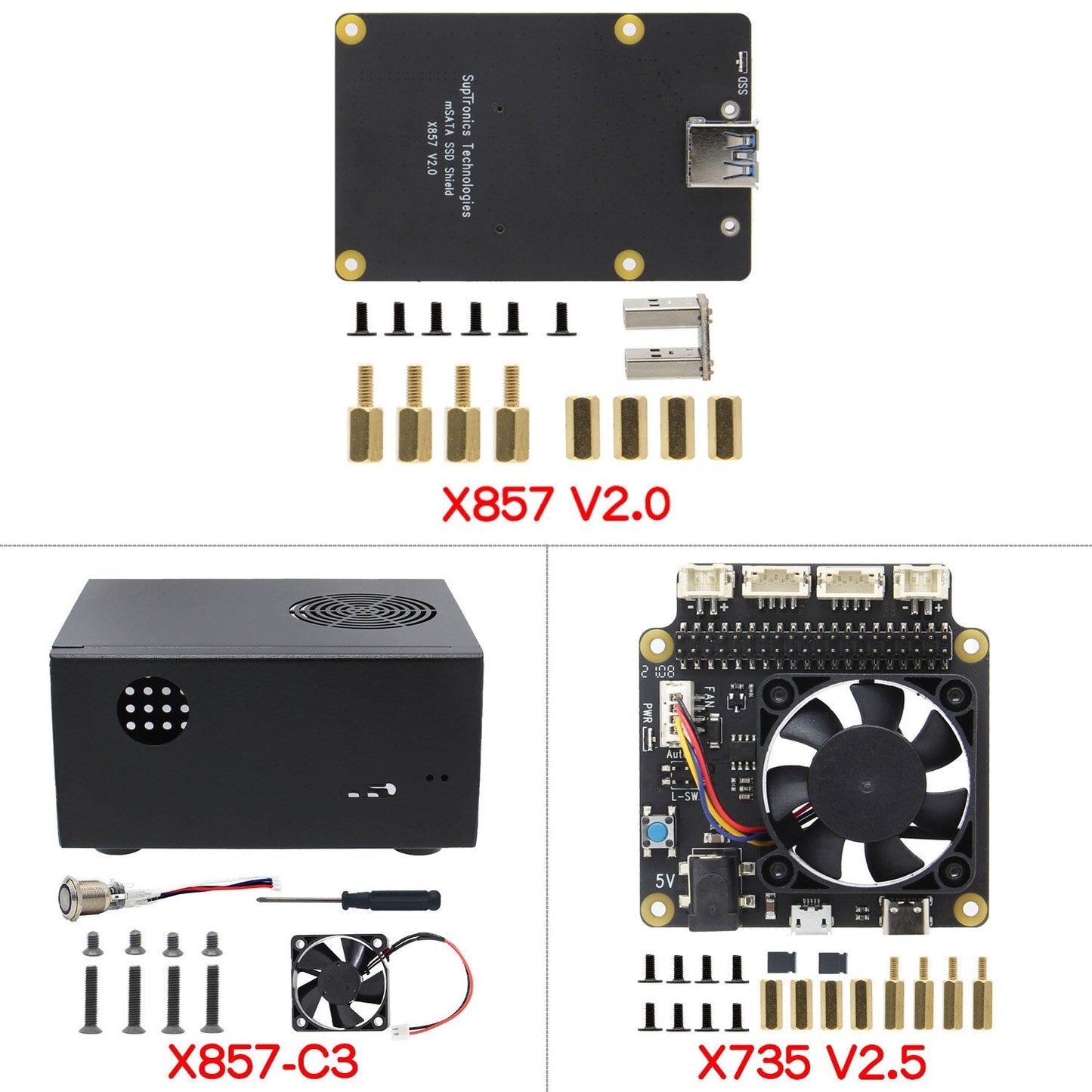

Bundle1: X857-C3 Case
  • 1 x X857-C3 Metal Case

  • 1 x Cooling Fan(4010)

  • 1 x Power Control Switch

  • 1 x Screws Pack

  • 1 x Screw Drive

Bundle2:
  • Bundle1+X857 V2.0 Board + X735 V2.5 Board

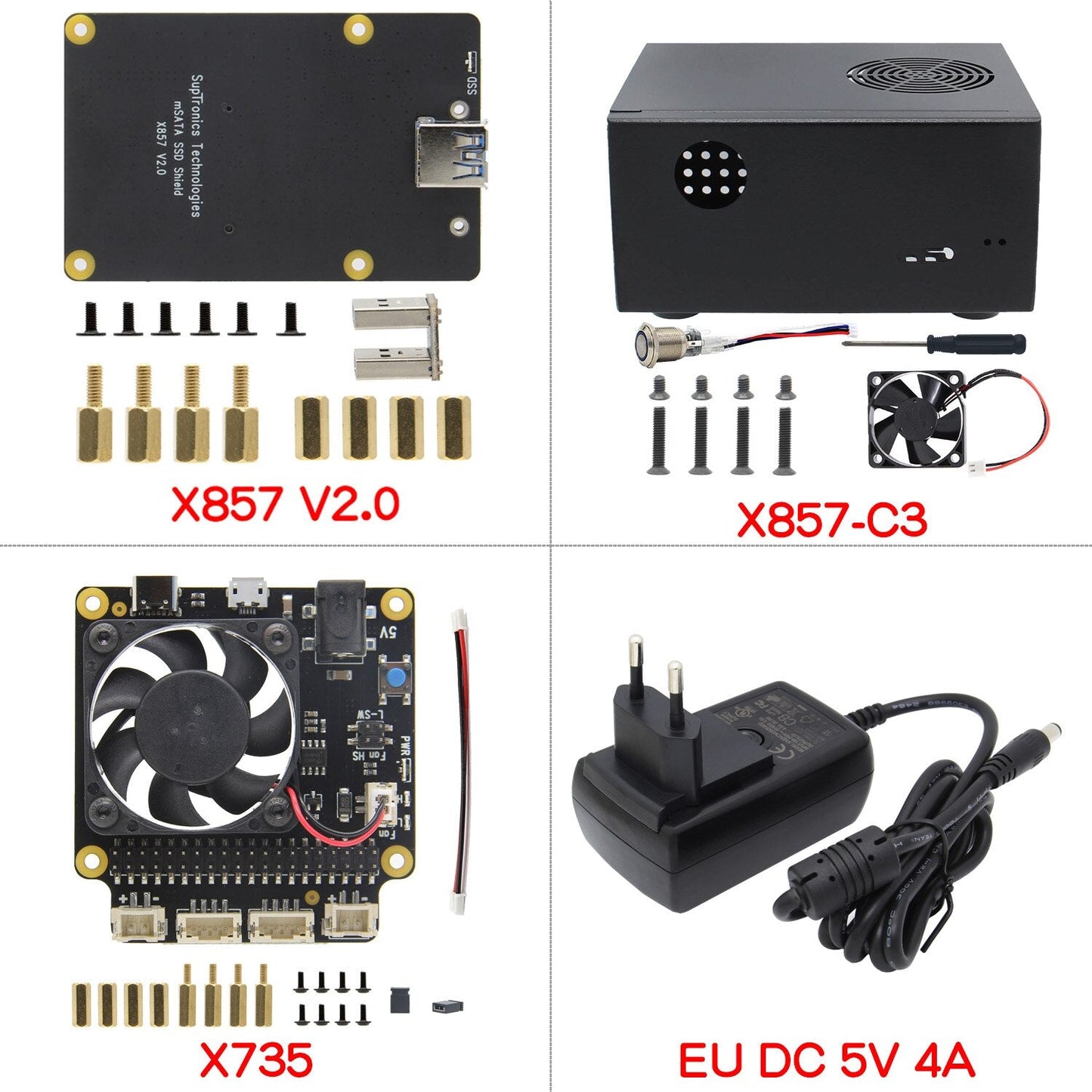

Bundle3:
  • Bundle2+ DC 5V 4A Power Suplly(EU)

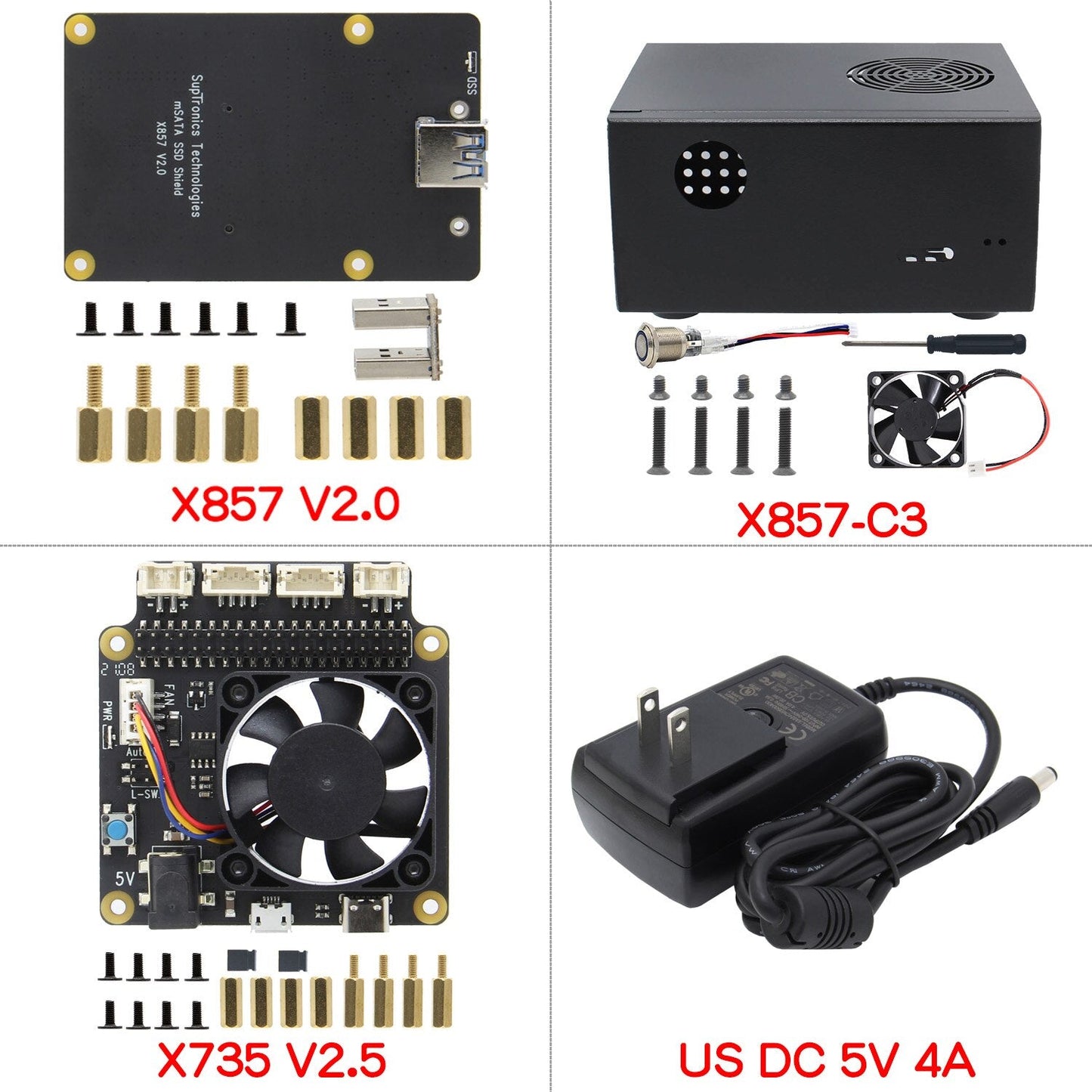

Bundle4:
  • Bundle2+ DC 5V 4A Power Suplly (US)if you need a UK plug ,please leave us a message .




















 Welcome Customize Order!
