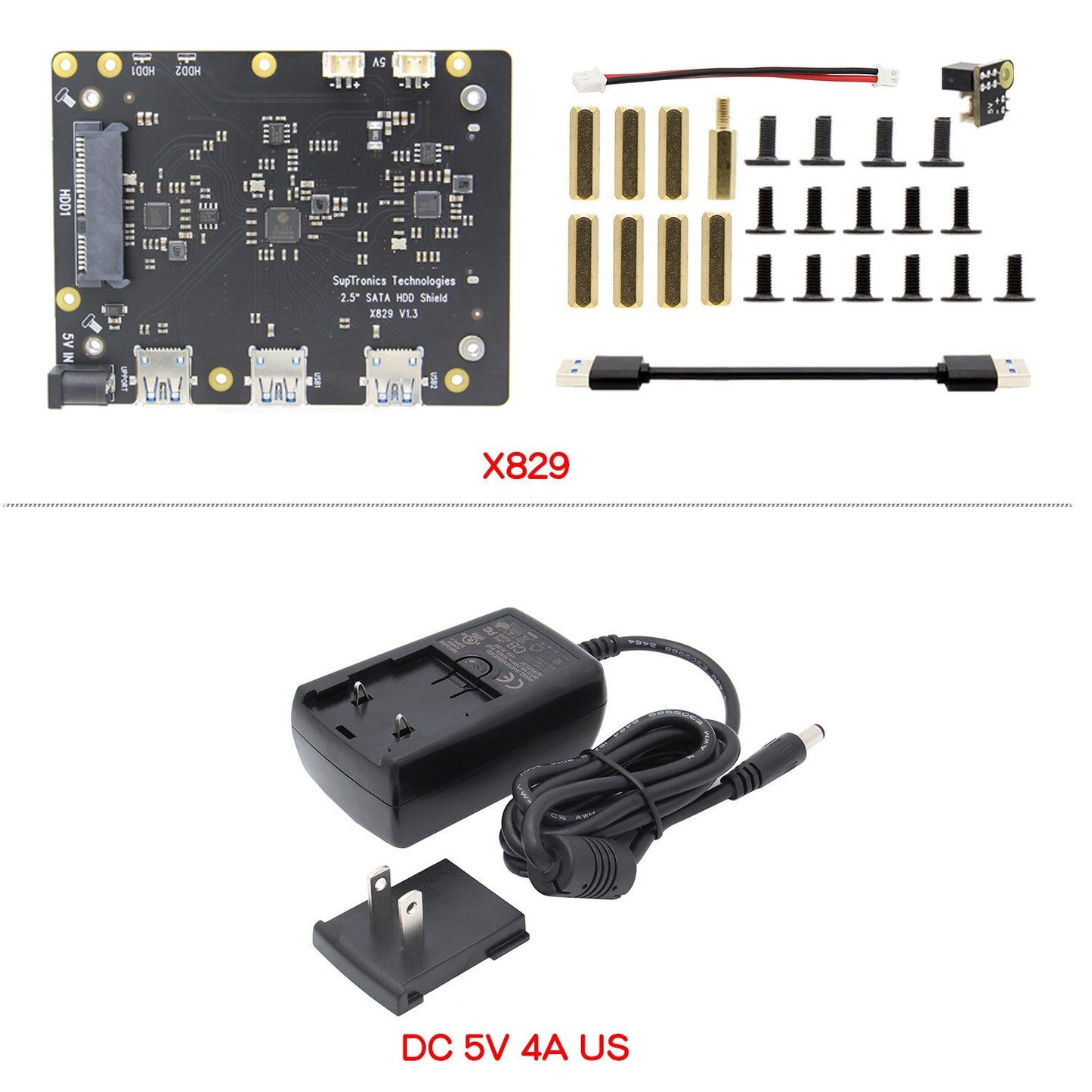

Raspberry Pi X829 Dual 2.5" SATA HDD/SSD Storage Expansion Board with USB 3.0 Cable for Raspberry Pi 4 Model B customize

$45.04 USD

~~$0.00 USD~~ $45.04 USD

Sale Sold out

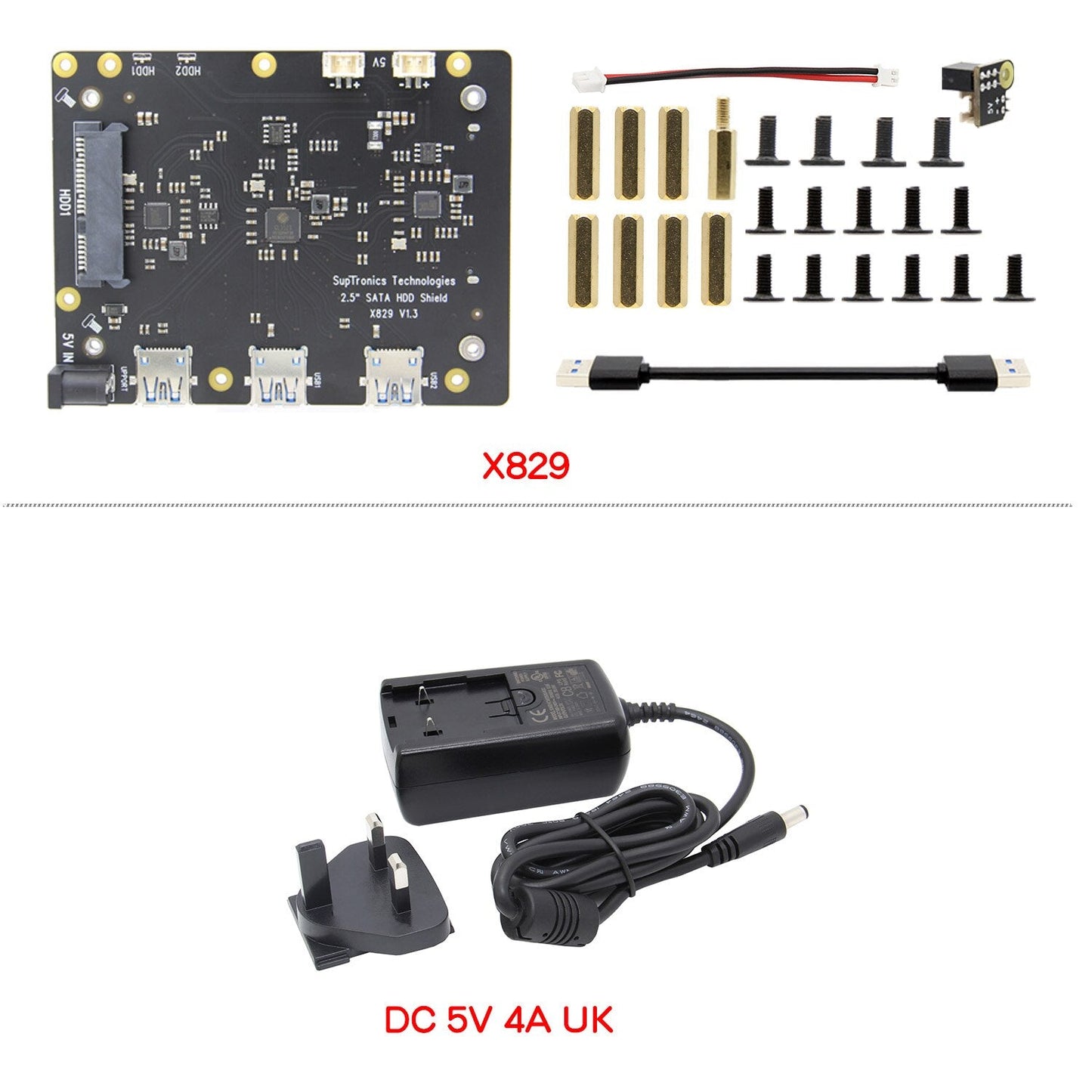

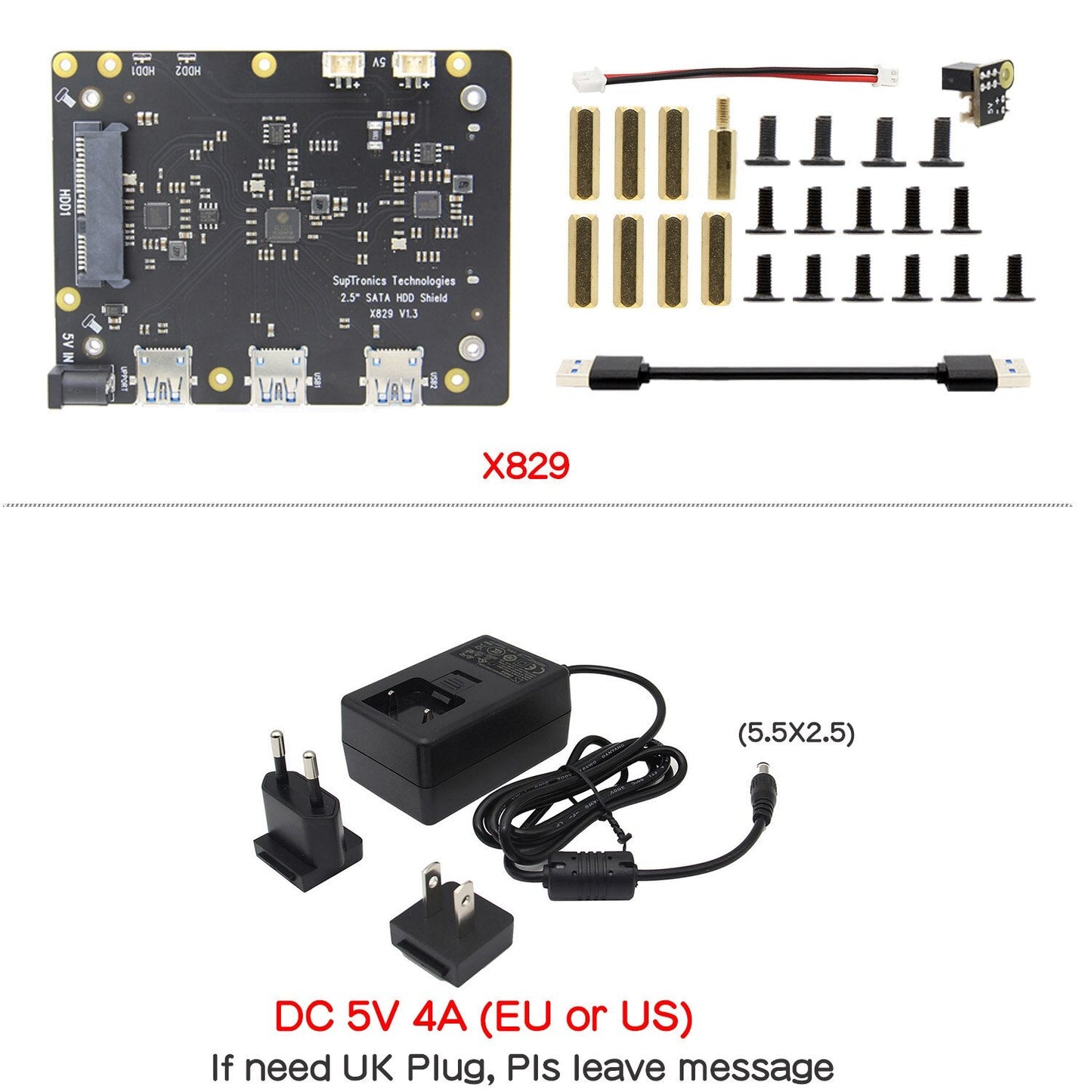

Color Bundle1 Bundle2 Bundle3 Bundle4

Quantity

NOTES

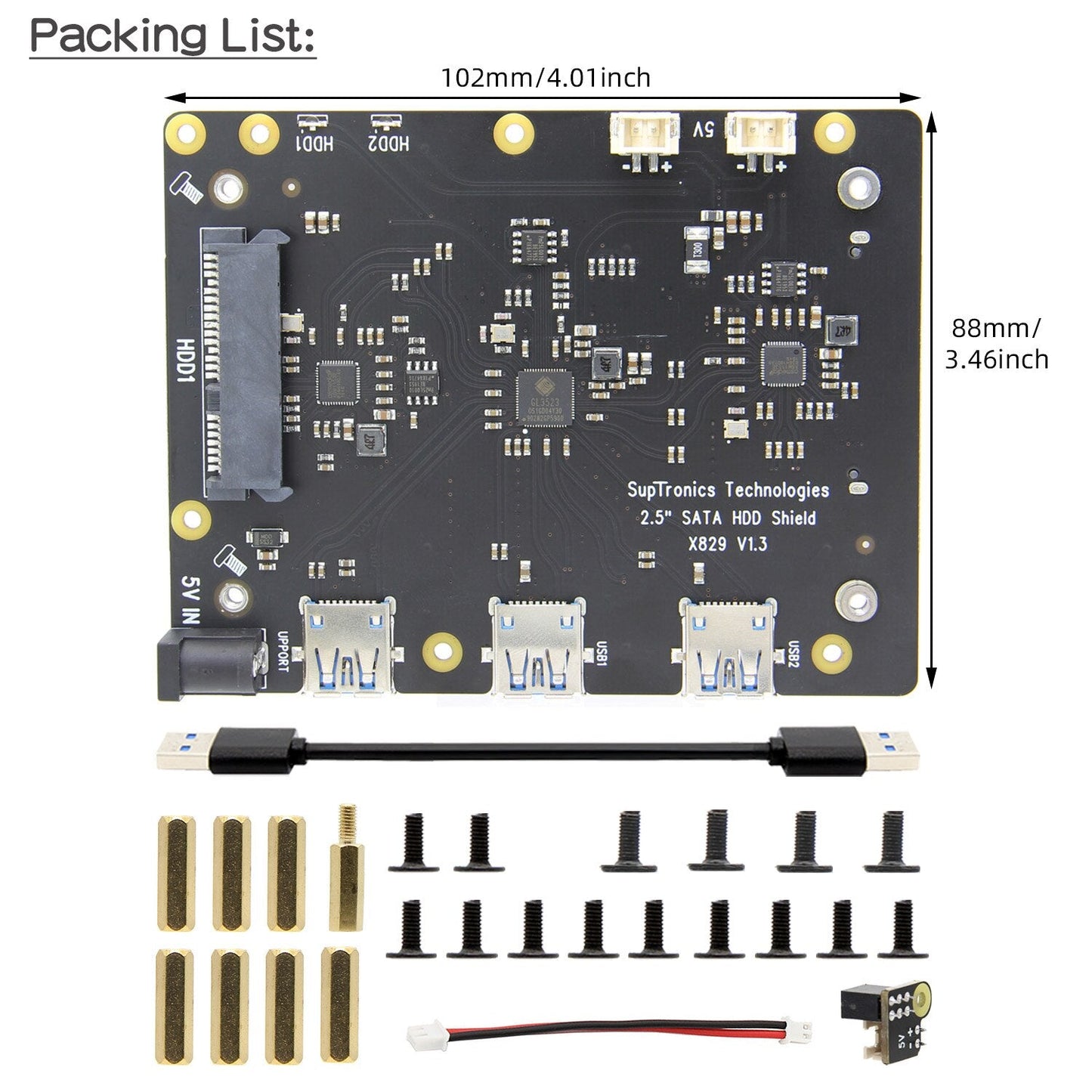

Not include Raspberry Pi 4B & 2.5" SATA HDD & X735board.
A microSD card is required for forceing the Raspbian OS to use the HDD/SSD for its "root" partition
Additional USB3.0 A Male to A Male cable is required (not supplied)

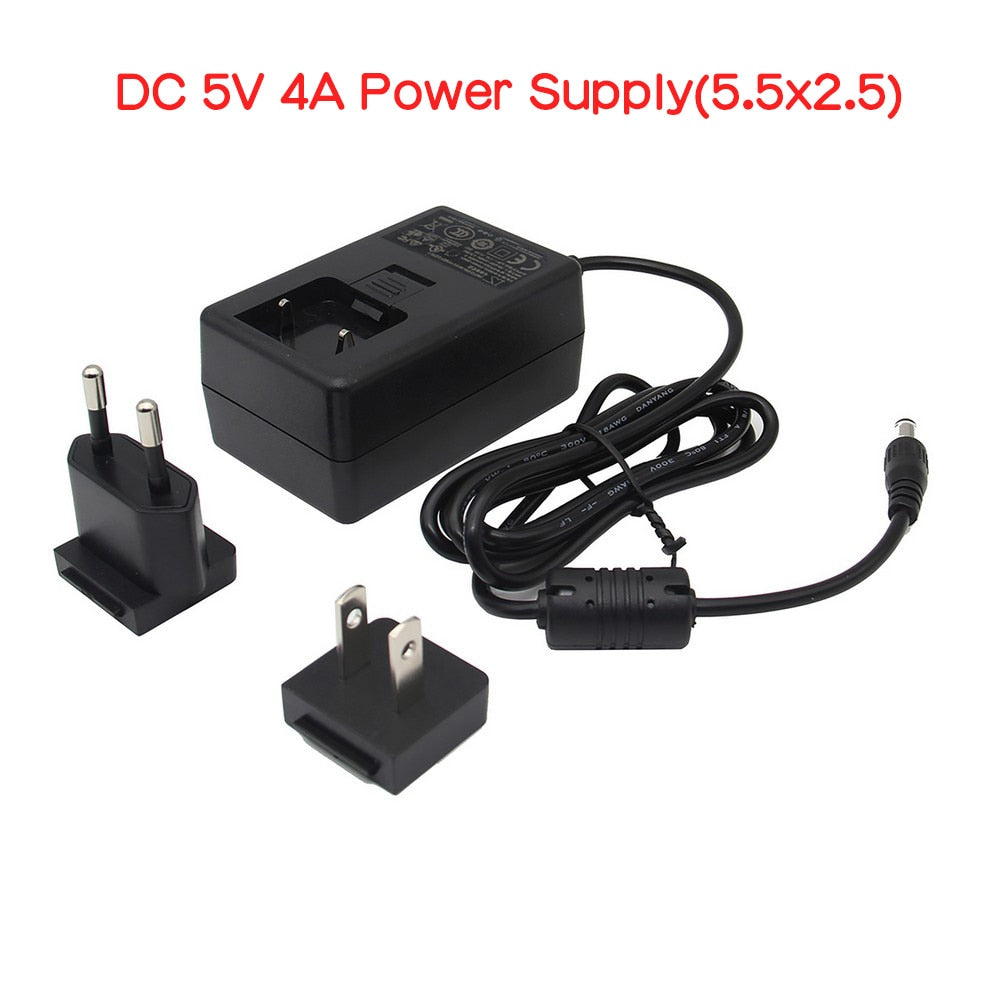

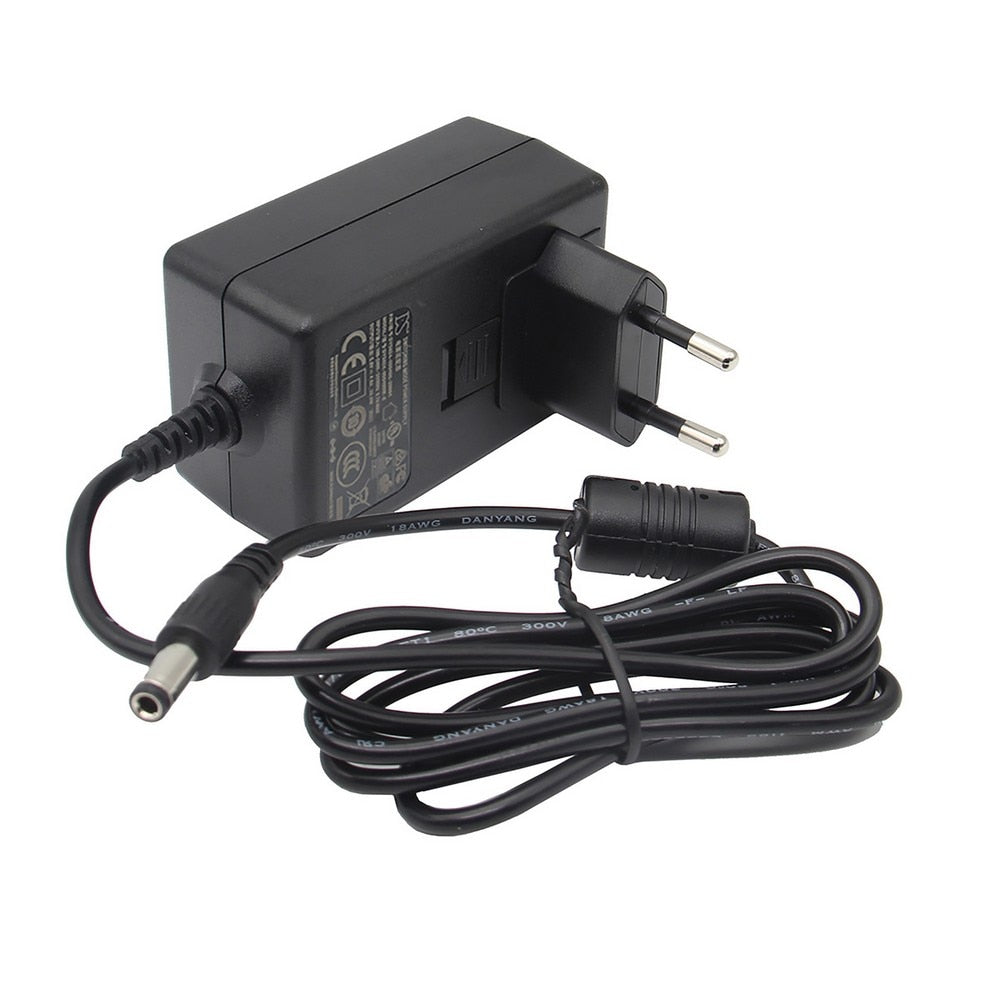

For use with original power supply unit only
Do not power your Raspberry Pi via the Pi's 40-pin header and Type-C USB socket at the same time
We do not recommend using Samsung hard drives,Please use hard drives of other brands
Please try to use WIFI 5G AP if you find the 2.4G signal is unstable, because we found that USB 3.0 high-speed transmission will interfere with the Raspberry Pi's 2.4G wifi signal. We think this is caused by the unreliability of the Raspberry Pi's wifi design. If the Raspberry Pi Foundation reserves the SMA IPEX antenna interface, everything will become easier.

Overview:

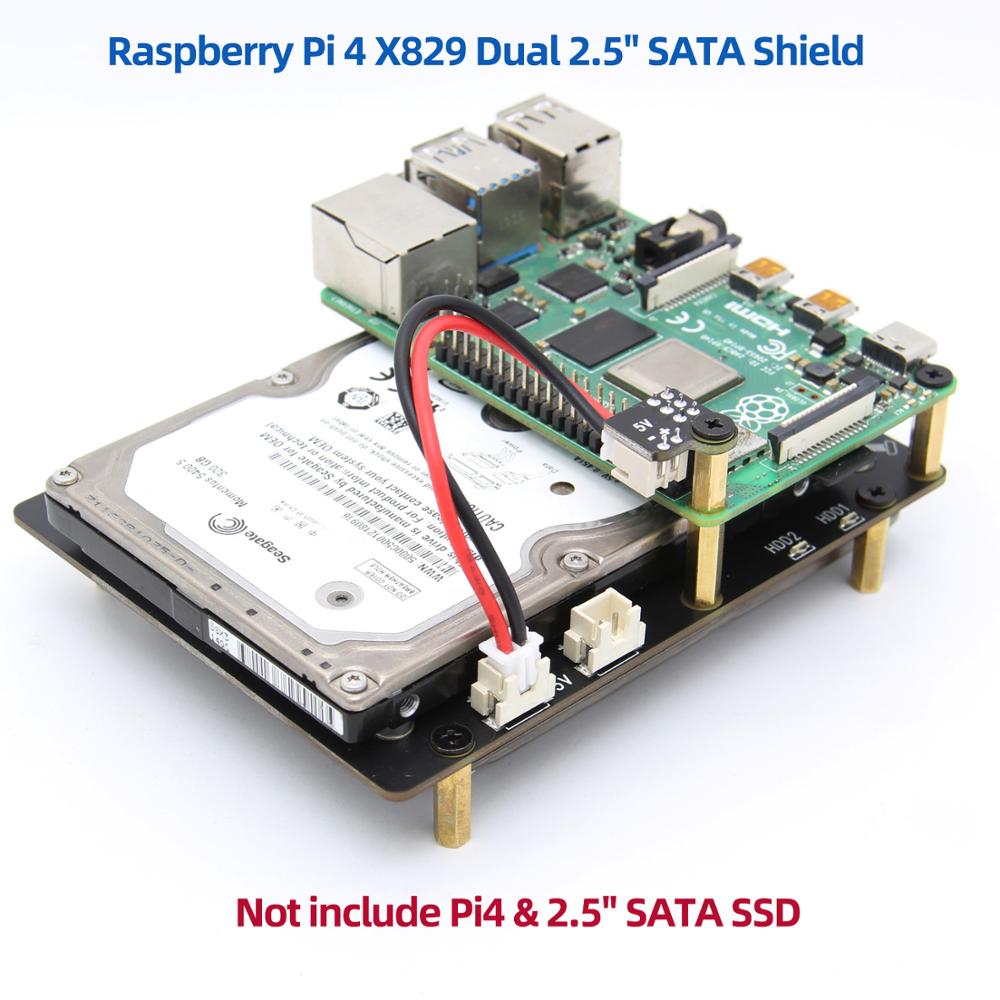

The X829 dual 2.5" SATA HDD expansion board, offering an easy and fast way to create bigger storage solution for your Raspberry Pi 4B. Its elegant and ultra-compact design allows two 2.5" HDD/SSD to be conveniently attached to Raspberry Pi 4. The SuperSpeed USB 3.0 port delivers a blistering data transfer rate of up to 5Gbps, letting you transfer a large amount of data in seconds. The mounting holes and standoffs help protect the hard disk drives, while effectively drawing the heat away from the drive for reliable performance. The built-in LED light indicates the reading or writing status – no more guesswork again.
The X829 can be the perfect storage solution for your home media center and building Network-attached storage (NAS) for storing and streaming your own videos, music, and digital photos around the house and even across the world.
Please refer to X822 or X828 if you need dual SATA board for raspberry pi 3.

Features:

FOR USE WITH:

Operating System:

KEY FEATURES:

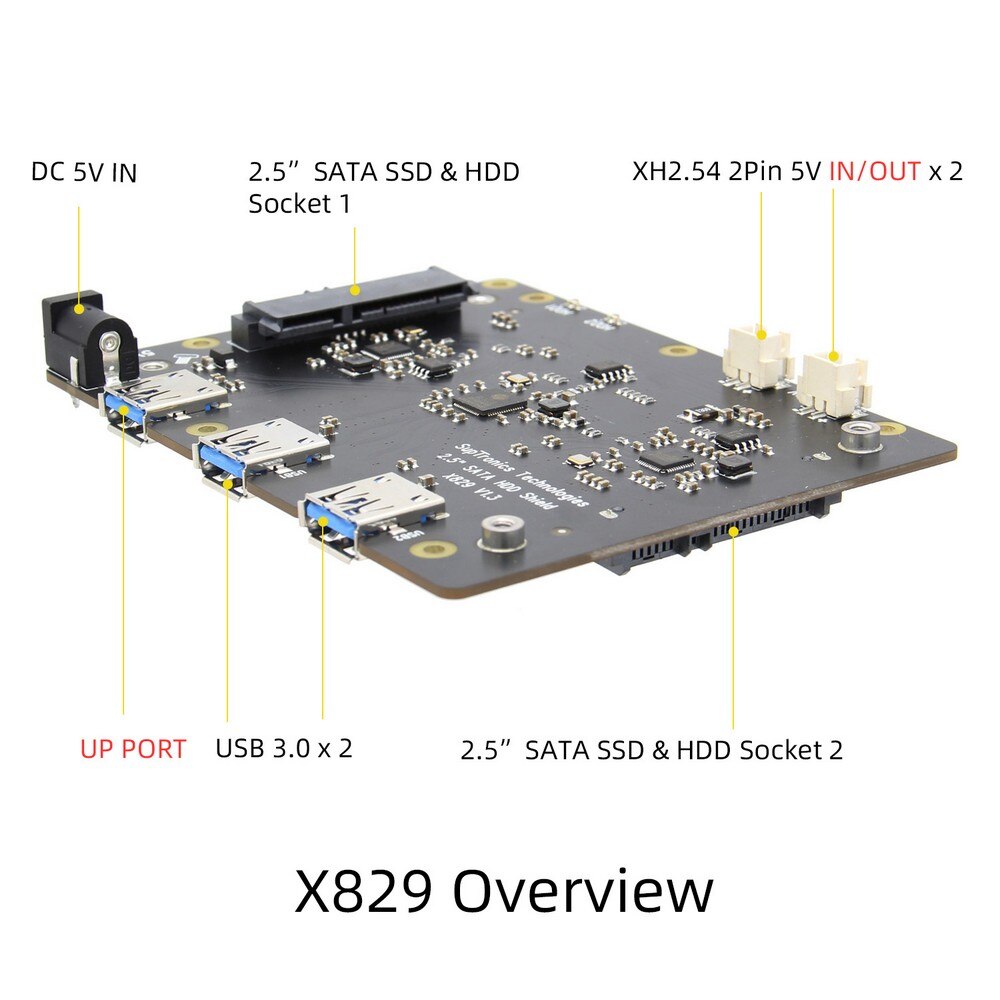

Ideal storage solution for Raspberry Pi 4 - Dual 2.5" SATA HDD/SSD Shield

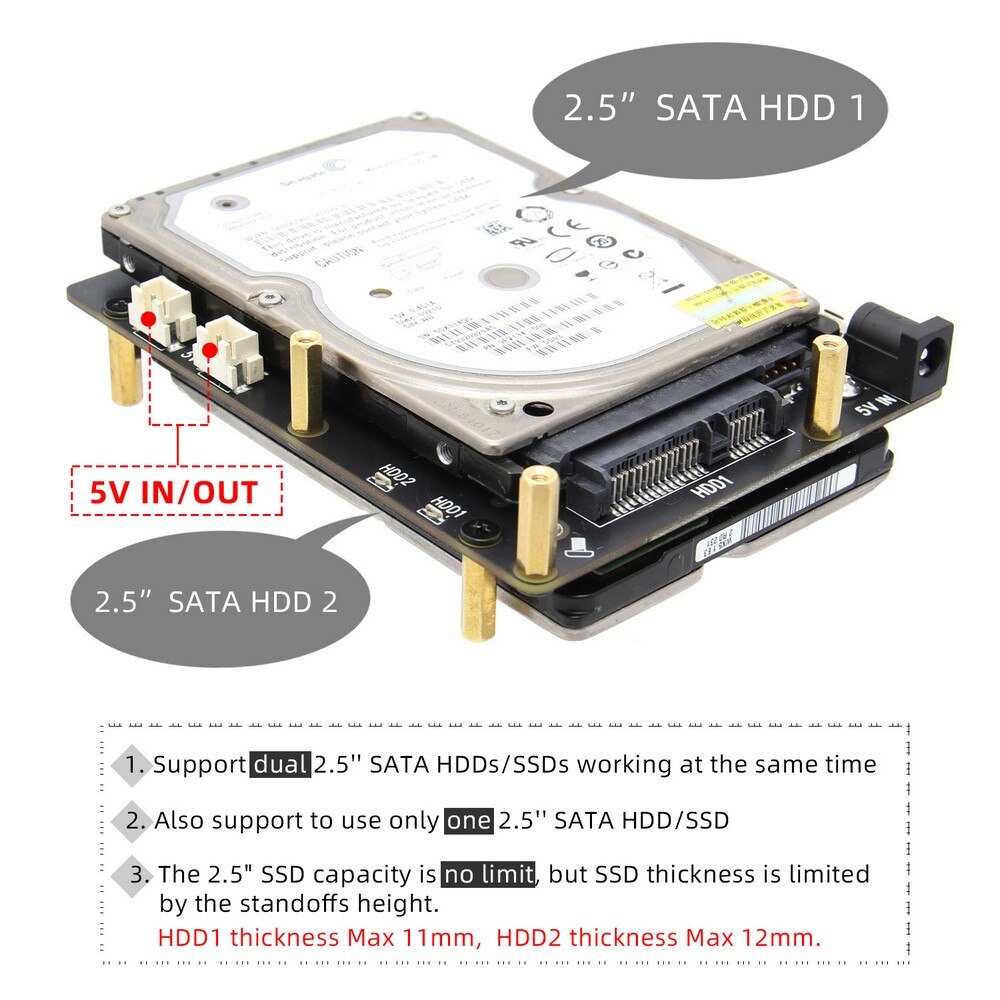

Supports dual 2.5 SATA HDDs/SSDs working at the same time
Allows booting OS from your HDD/SSD for faster app opens, web serving and file copying(see note1)
Provides additional 2 USB3.1 Gen1 ports for Raspberry Pi
Function to power the RPI via XH2.54 only needing a single power supply
Integrated USB 3.1 Gen1 to SATA 6Gb/s bridge controllers
Integrated USB 3.1 Gen 1 Hub Controller
USB3.1 Gen1 5Gb/s connectivity offers plug-and-play functionality on your Raspberry Pi 4
Quick file transfer with high-speed USB3.1 5Gb/s connectivity from a PC or a Mac(see note2)
Specially-made USB3.1 jumper to connect with Raspberry Pi - no additional cables needed
Ultra-compact design allows for ease of use two HDD/SSD with Raspberry Pi 4
LED blue indicator indicates each drive status
Fully compatible with X735 for intelligent power management and cooling your Raspberry Pi
Fully compatible with X710 for wide input voltage (6~36V) and intelligent power management
Fully compatible with X765 for powering over Ethernet (POE, 5V 5A)
Fully compatible with X728 for uninterruptible power supply (18650 UPS, 5.1V 8A, smart power mgmt)
