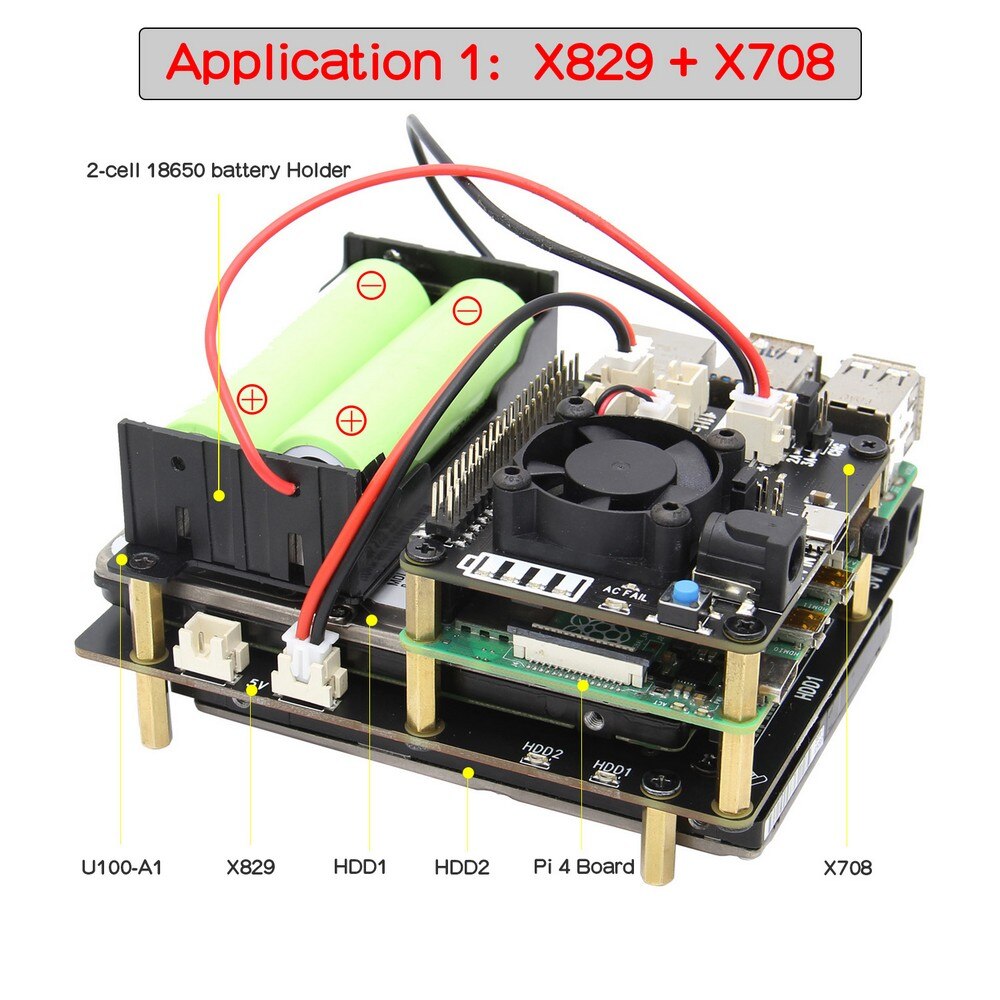

Raspberry Pi X829 Dual 2.5" SATA HDD/SSD Shield + X708 UPS HAT & Power Management Board for Raspberry Pi 4 Model B customize

$84.99 USD

~~$0.00 USD~~ $84.99 USD

Sale Sold out

Color Bundle1 Bundle2 Bundle3 Bundle4

Quantity

NOTES

Not include Raspberry Pi 4B .
A microSD card is required for forceing the Raspbian OS to use the HDD/SSD for its "root" partition
For use with original power supply unit only
Do not power your Raspberry Pi via the Pi's 40-pin header and Type-C USB socket at the same time
We do not recommend using Samsung hard drives,Please use hard drives of other brands

Overview:

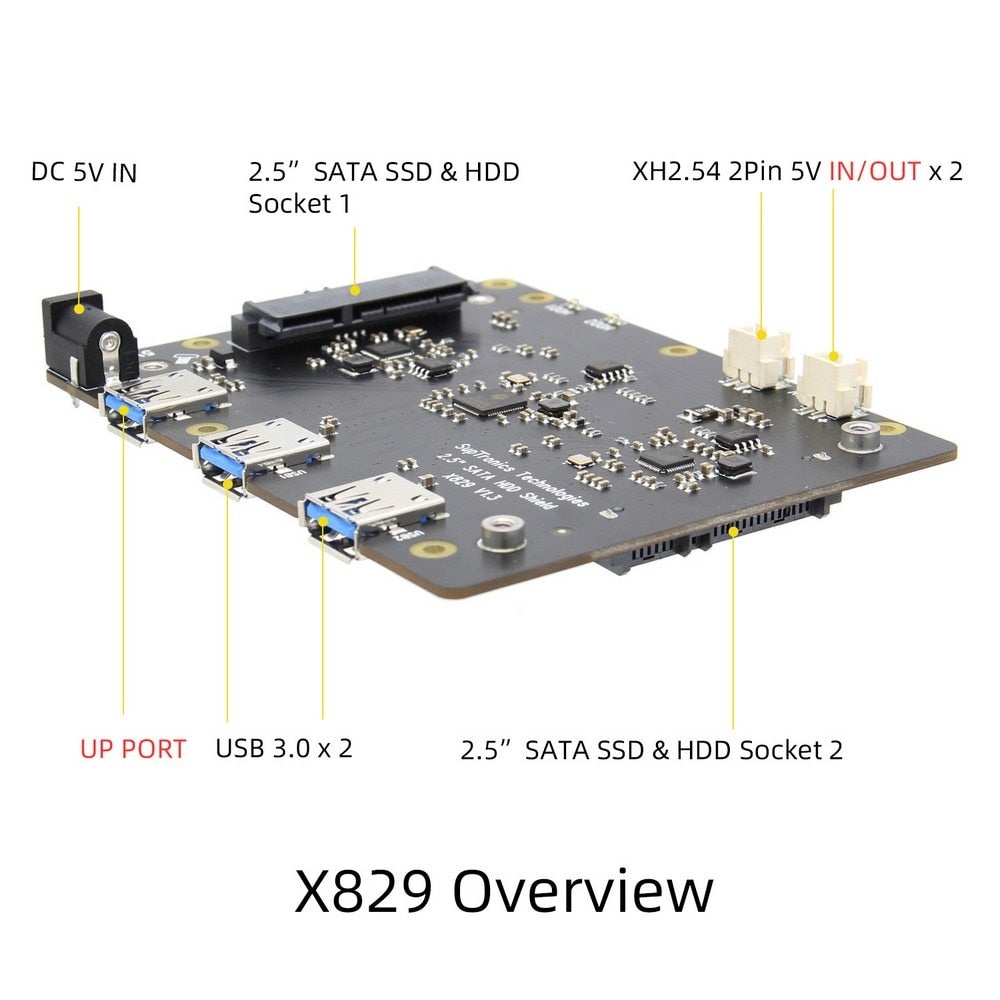

The X829 dual 2.5" SATA HDD expansion board, offering an easy and fast way to create bigger storage solution for your Raspberry Pi 4B. Its elegant and ultra-compact design allows two 2.5" HDD/SSD to be conveniently attached to Raspberry Pi 4. The SuperSpeed USB 3.0 port delivers a blistering data transfer rate of up to 5Gbps, letting you transfer a large amount of data in seconds. The mounting holes and standoffs help protect the hard disk drives, while effectively drawing the heat away from the drive for reliable performance. The built-in LED light indicates the reading or writing status – no more guesswork again.
The X829 can be the perfect storage solution for your home media center and building Network-attached storage (NAS) for storing and streaming your own videos, music, and digital photos around the house and even across the world.

FOR USE WITH:

Operating System:

KEY FEATURES:

Ideal storage solution for Raspberry Pi 4 - Dual 2.5" SATA HDD/SSD Shield

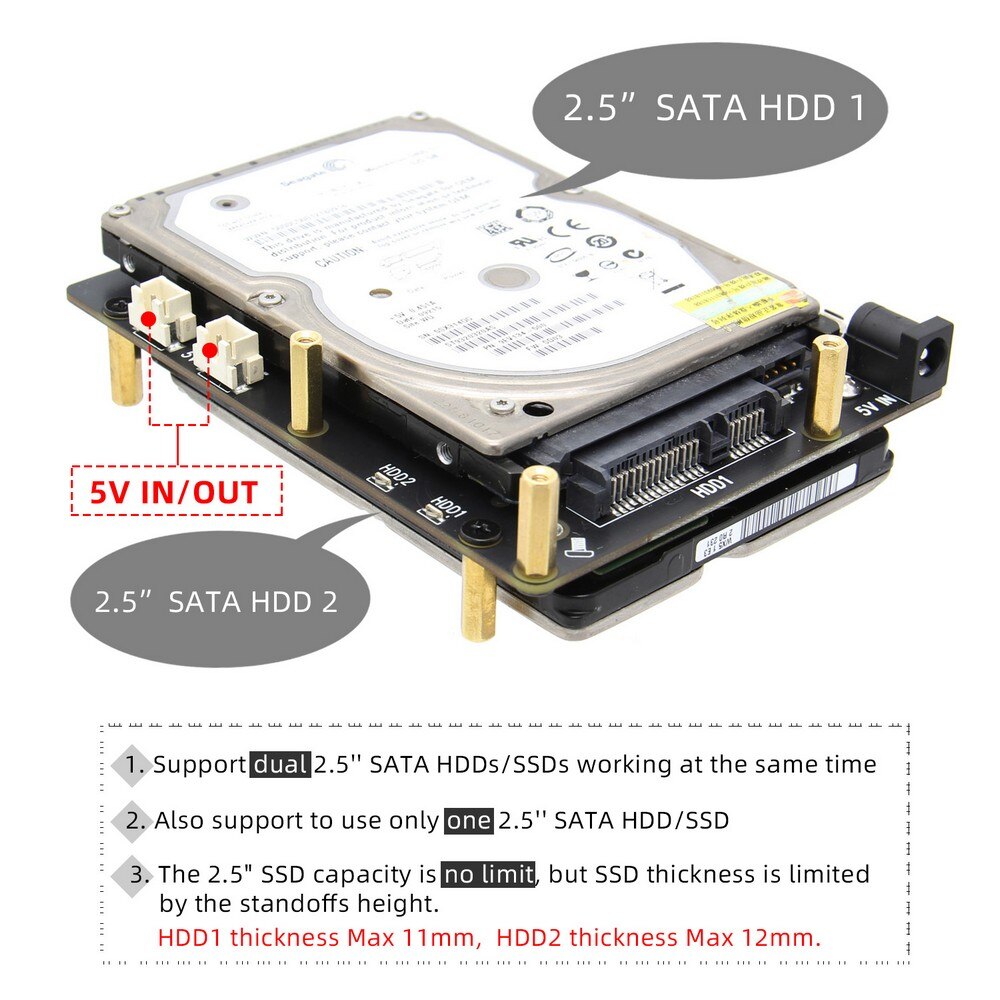

Supports dual 2.5 SATA HDDs/SSDs working at the same time
The 2.5'' SSD capacity is no limit，but SSD thickness is limited.
Allows booting OS from your HDD/SSD for faster app opens, web serving and file copying(see note1)
Function to power the RPI via XH2.54 only needing a single power supply
Integrated USB 3.1 Gen1 to SATA 6Gb/s bridge controllers
Integrated USB 3.1 Gen 1 Hub Controller
USB3.1 Gen1 5Gb/s connectivity offers plug-and-play functionality on your Raspberry Pi 4
Quick file transfer with high-speed USB3.1 5Gb/s connectivity from a PC or a Mac(see note2)
Specially-made USB3.1 jumper to connect with Raspberry Pi - no additional cables needed
Ultra-compact design allows for ease of use two HDD/SSD with Raspberry Pi 4
LED blue indicator indicates each drive status
Fully compatible with X735 for intelligent power management and cooling your Raspberry Pi
Fully compatible with X710 for wide input voltage (6~36V) and intelligent power management
Fully compatible with X765 for powering over Ethernet (POE, 5V 5A)
Fully compatible with X728 for uninterruptible power supply (18650 UPS, 5.1V 8A, smart power mgmt)

SPECIFICATION:

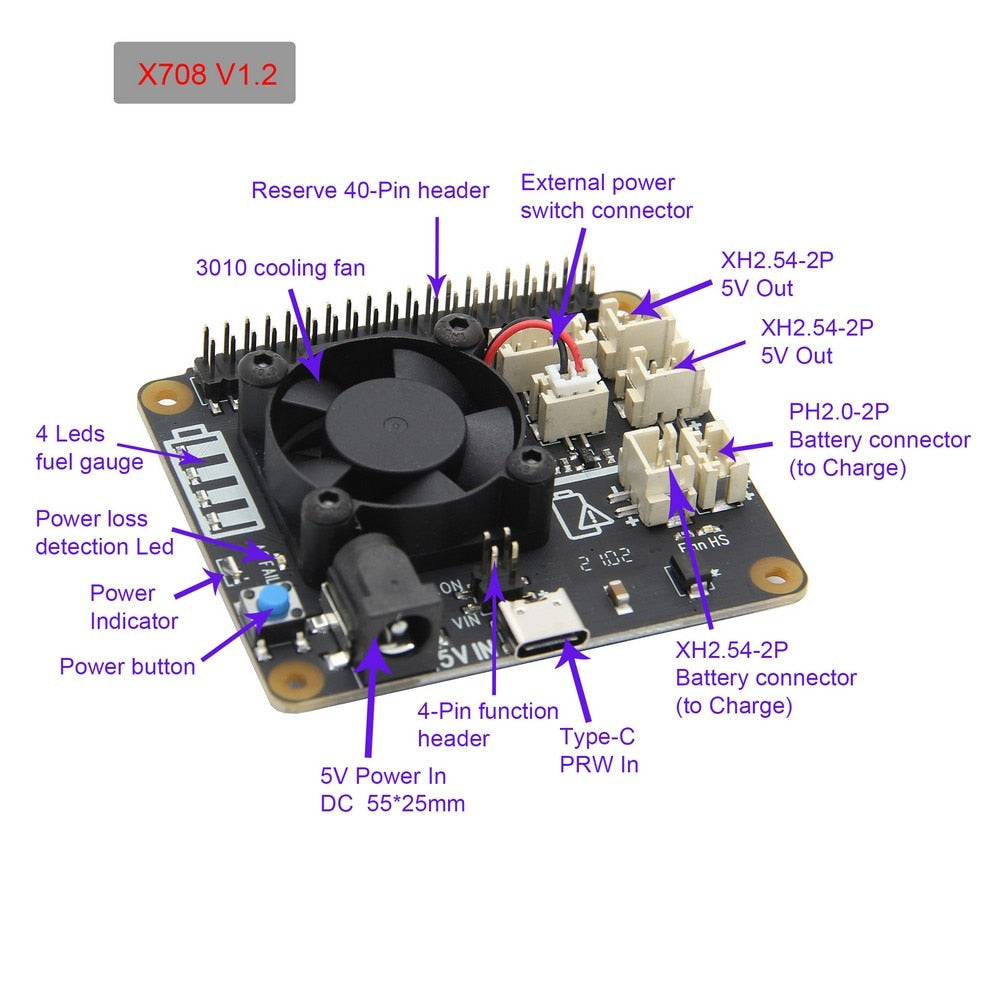

X708 V1.2 Some changes:

Remove the ASD function but you can achieve this function through software programming. Please refer toX708-Software
Added voltage surge protection circuit

Overview

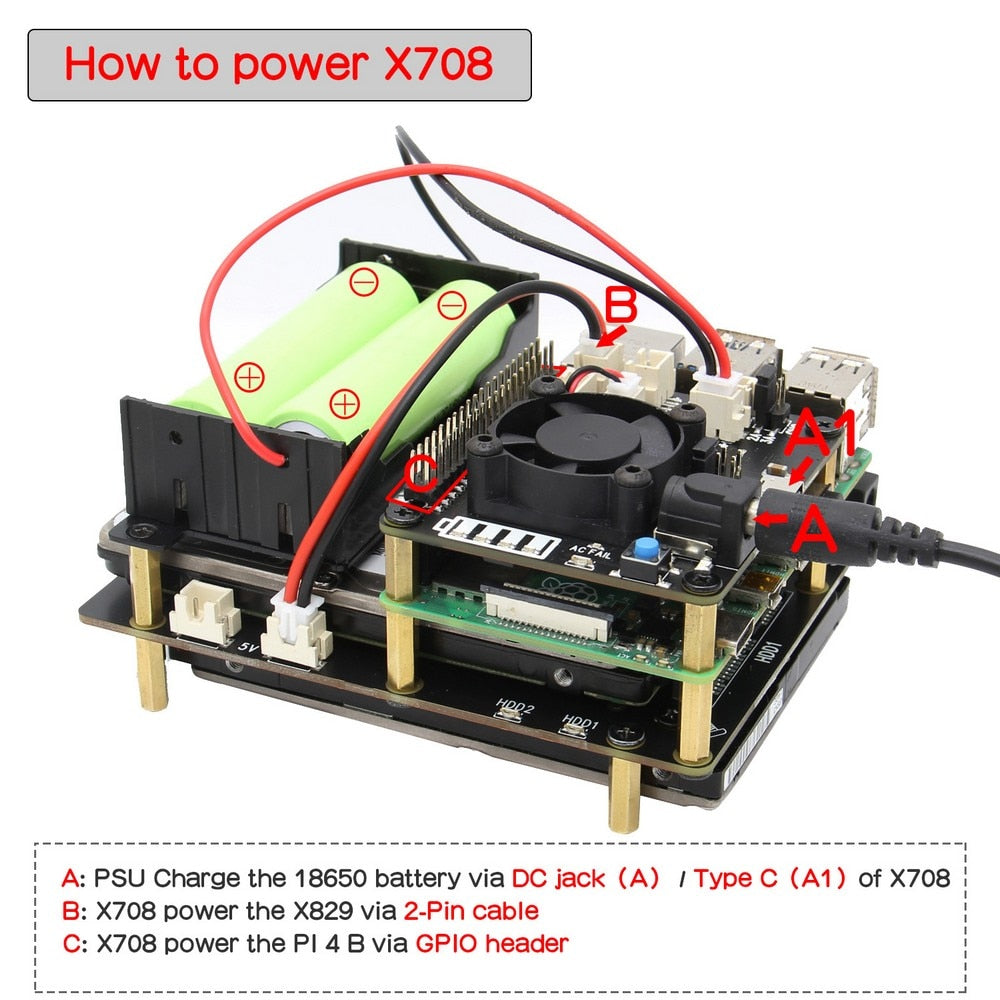

The X708 is an advanced uninterruptible power supply expansion board for all current models of the Raspberry Pi using a 40 pin header. It provides 5.1V Max. 8000mA Power Backup for even the most demanding Raspberry Pi set ups, intelligent and safe power management, safe shutdown，AC power loss/ power adapter failure detection , auto power-on, full poweroff from software, and a cooling fan.

Some key features:

Excellent UPS function such as Power Loss Detection(PLD), Automatic Safe Shutdown(ASD), Auto Power On(AON) etc., DC 5V Max. 8A output;
With cooling fan, no extra cooling solution.
HAT size. Separate the battery from the expansion board, which can save a lot of space, which will bring more flexibility.

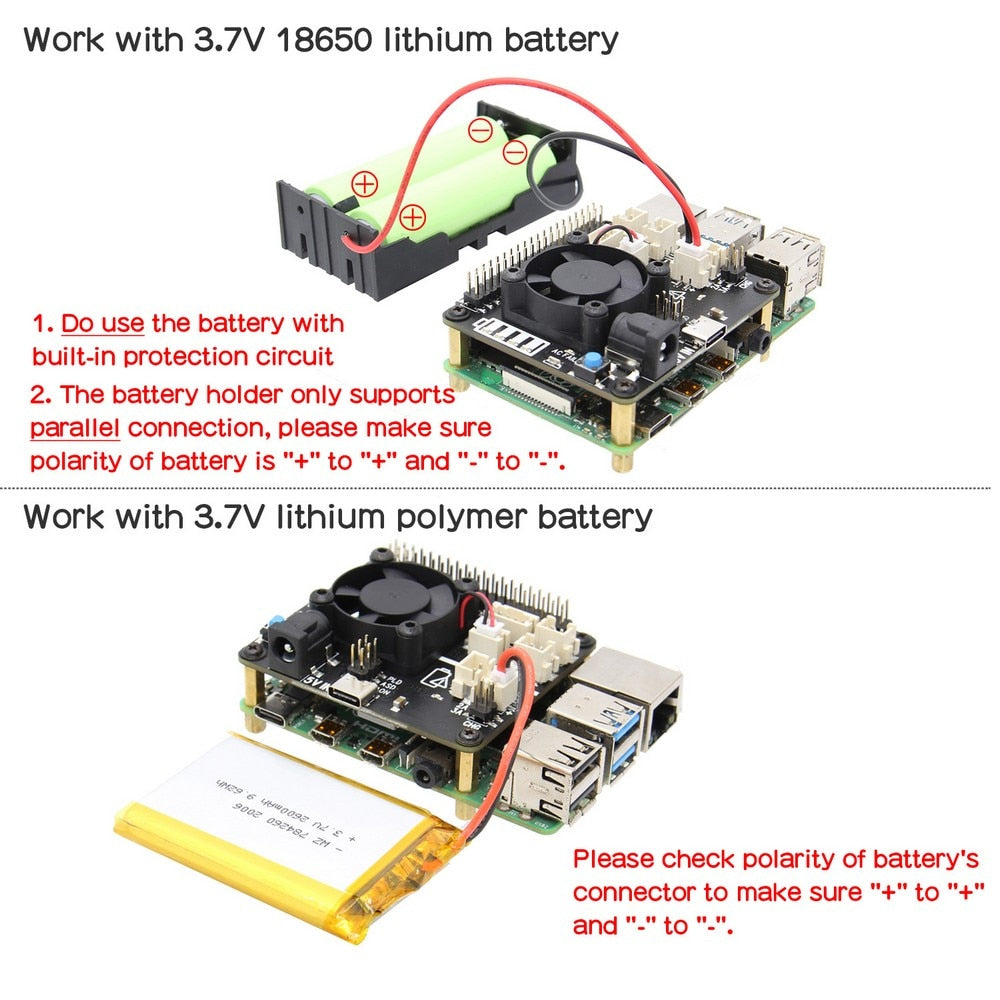

Reserved two kind battery port (XH2.54 and PH2.0), supports 3.7V 18650 lithium battery and 3.7V lithium polymer battery, No capacity limit, only request 3.7V lithium battery (No include lithium battery)
