Raspberry Pi X825-C6 / X825-C8 Metal Case with power switch & cooling fan for Raspberry Pi 4 Model B & X825 Board & X735 customize

Note：

• Not include Raspberry Pi 4 Model B & X825 V1.5 Board / X825 V2.0 Board & X735 board & SSD.

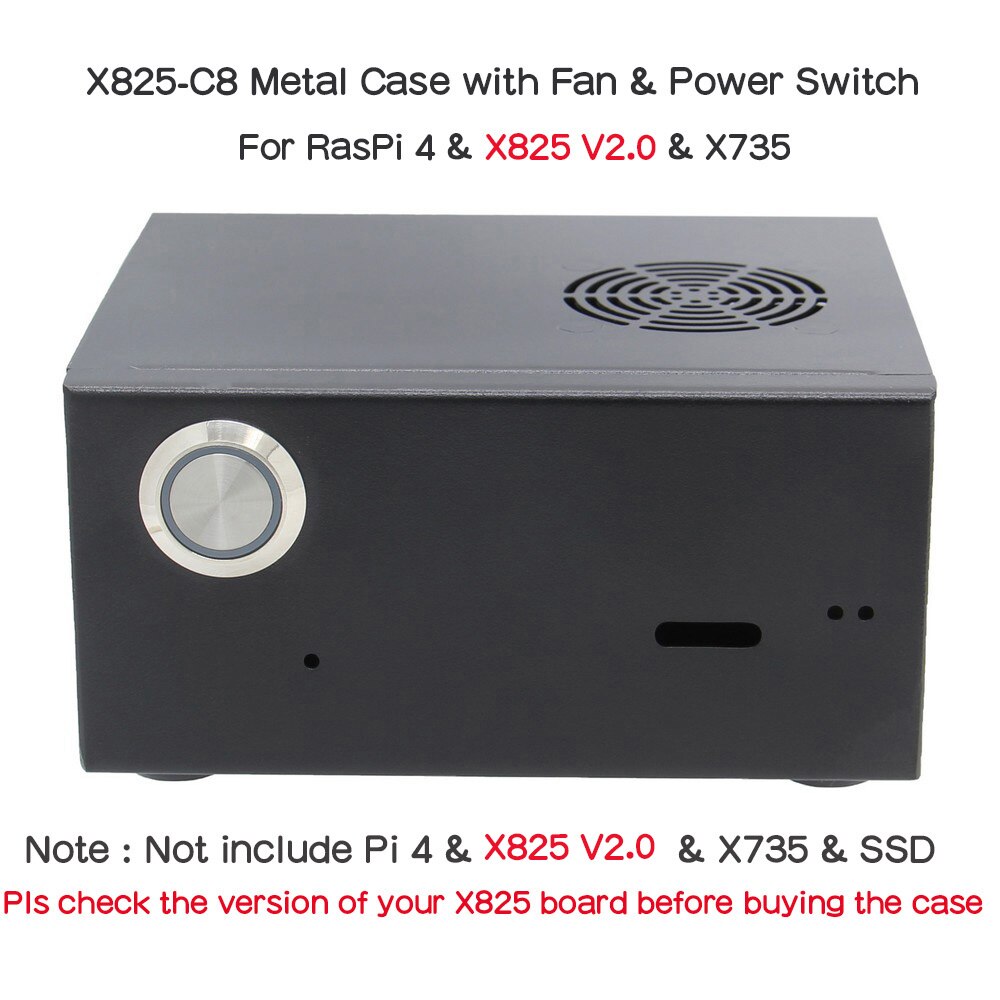

• X825-C6 supports X825 V1.5 Board；X825-C8 supports X825 V2.0 Board.

• To avoid buying the wrong Case, please check the version of your X825 board before buying the metal case.

• There is no switch interface on X825 V2.0 board. Switch with metal case must be connected to X735 for use, and there is no on-board switch.

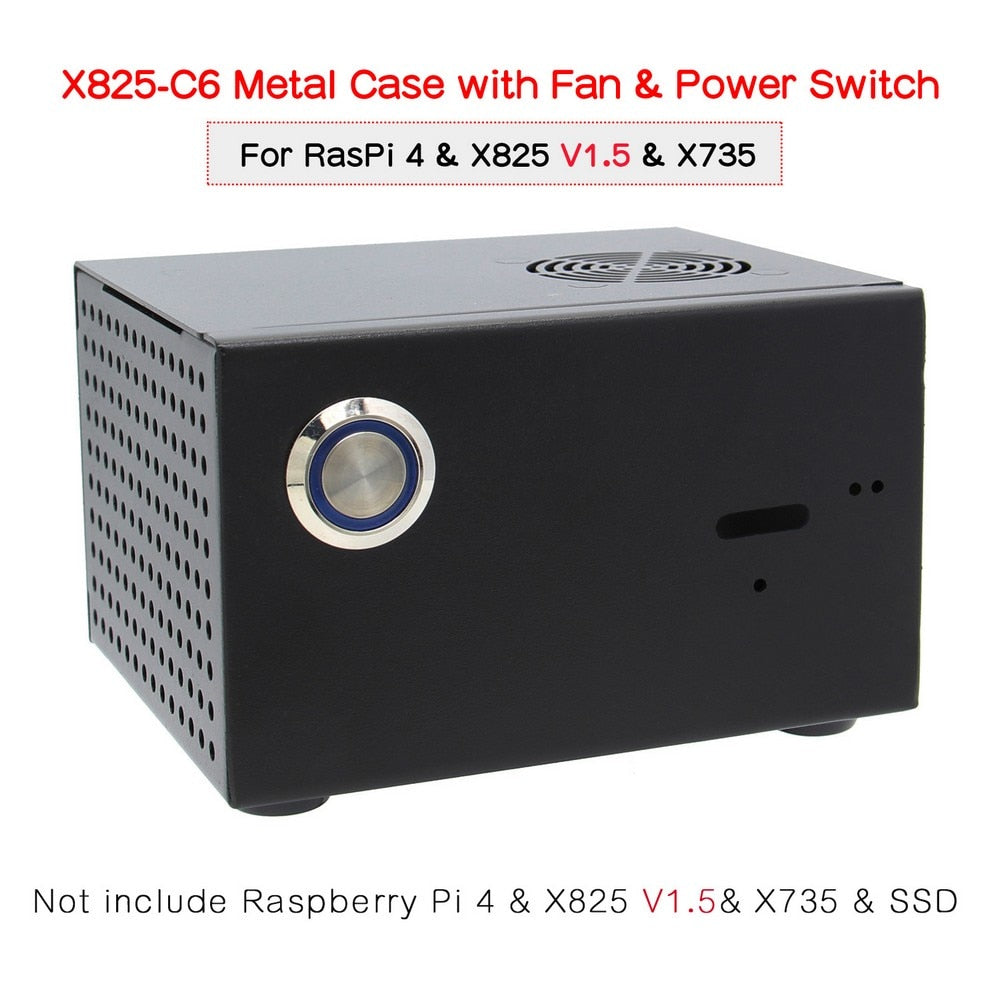

X825-C6 Metal Case

Overview

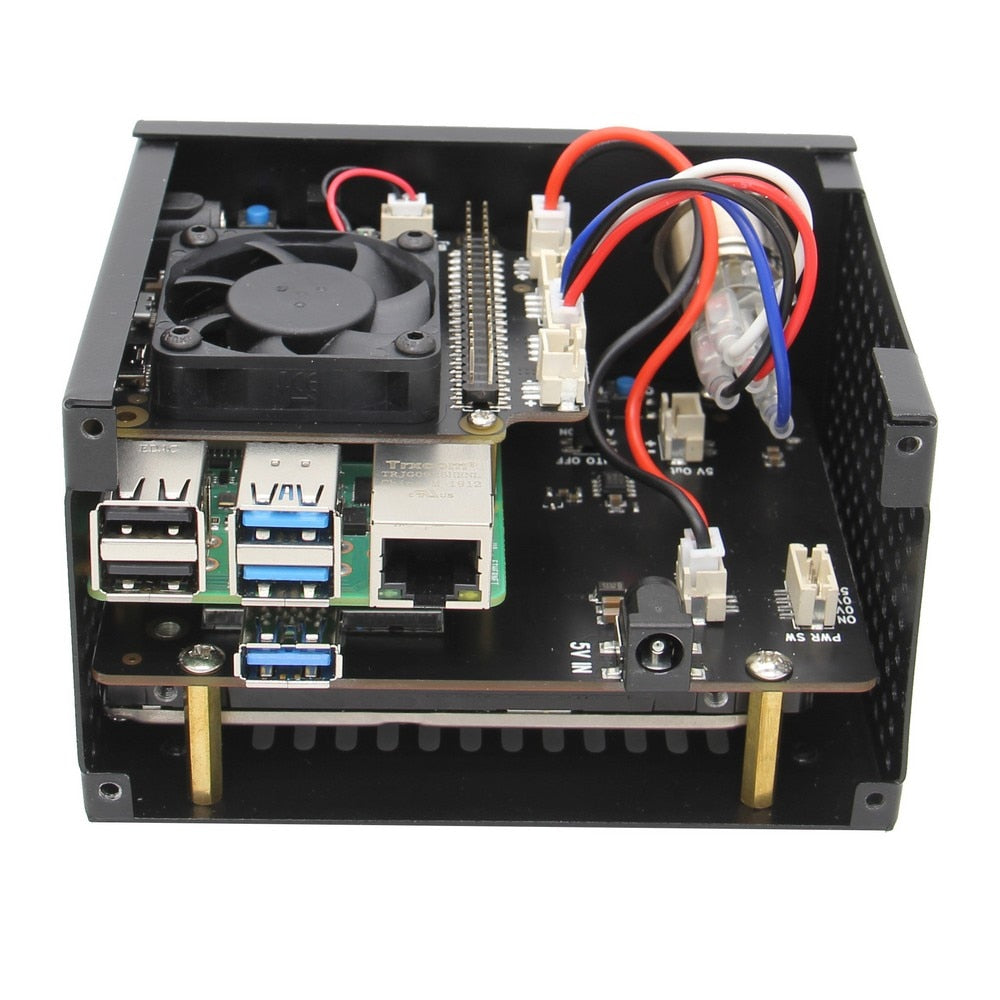

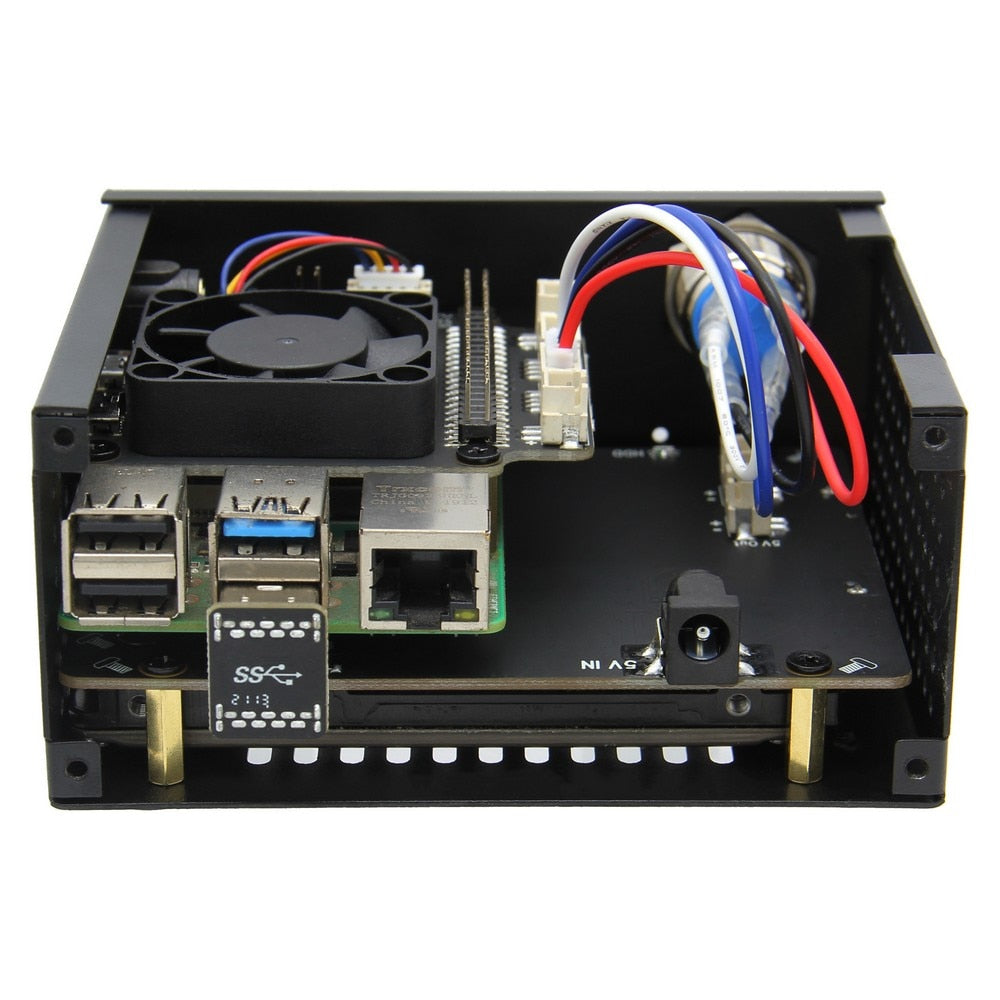

• This is a metal case with power control switch and super mute cooling fan, it is a perfect choice for X825 V1.5 SSD/HDD storage board user. It also support to install the X735 Auto Cooling & safe shutdown board over Raspberry Pi.

• Note: Because we found that USB 3.0 high-speed transmission will interfere with the Raspberry Pi's 2.4G wifi signal. So if you find the 2.4G signal is unstable, please try to use WIFI 5G AP. (Please refer to: raspberrypiwiki.com/X825#Document) We think this is caused by the unreliability of the Raspberry Pi's wifi design. If the Raspberry Pi Foundation reserves the SMA IPEX antenna interface, everything will become easier. We will also struggle to solve this issue in the future.

Features

• Power switch with beautiful LED indicator to control the power of X825 V1.2 and the Raspberry pi 4 Model B;

• Support super mute cooling fan, hundreds of round cooling holes on both side of the case, provides good heat dissipation, bluetooth and WIFI signal;

• Reserved Side Slot(Interface) for GPIO/FFC Cable

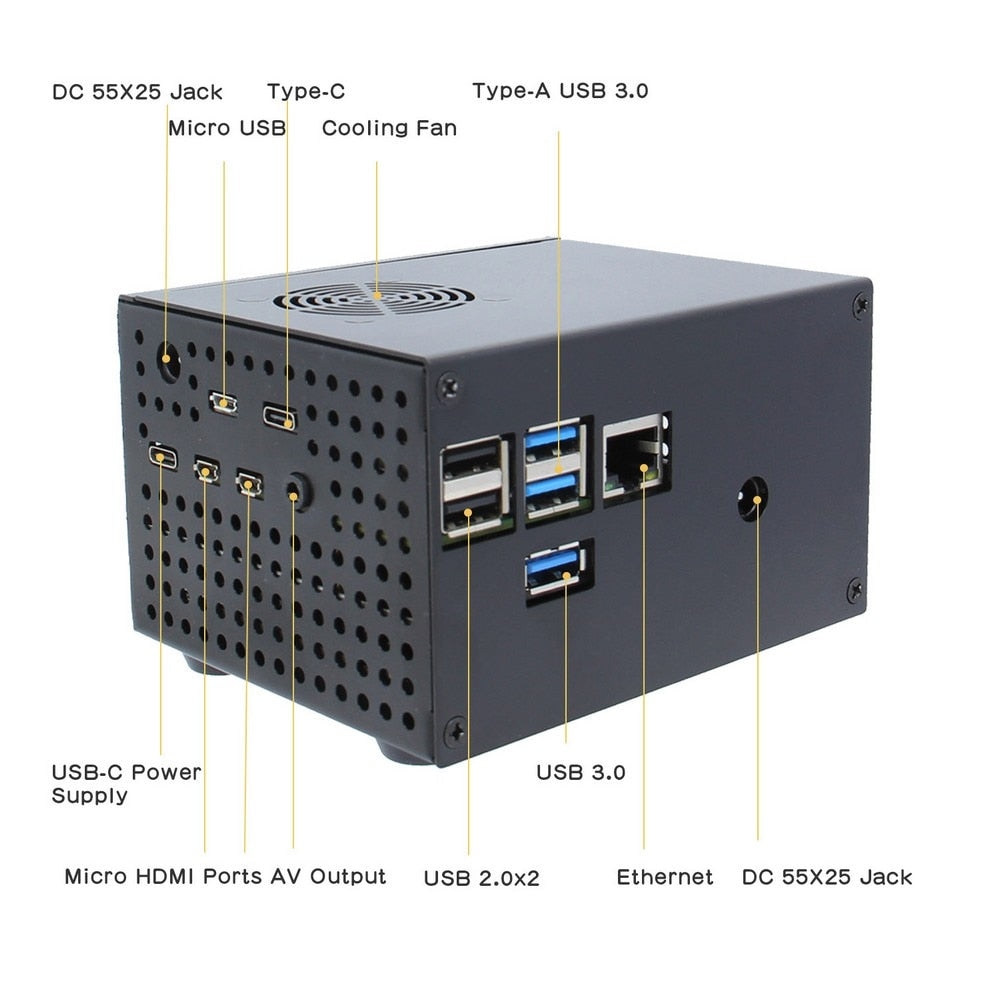

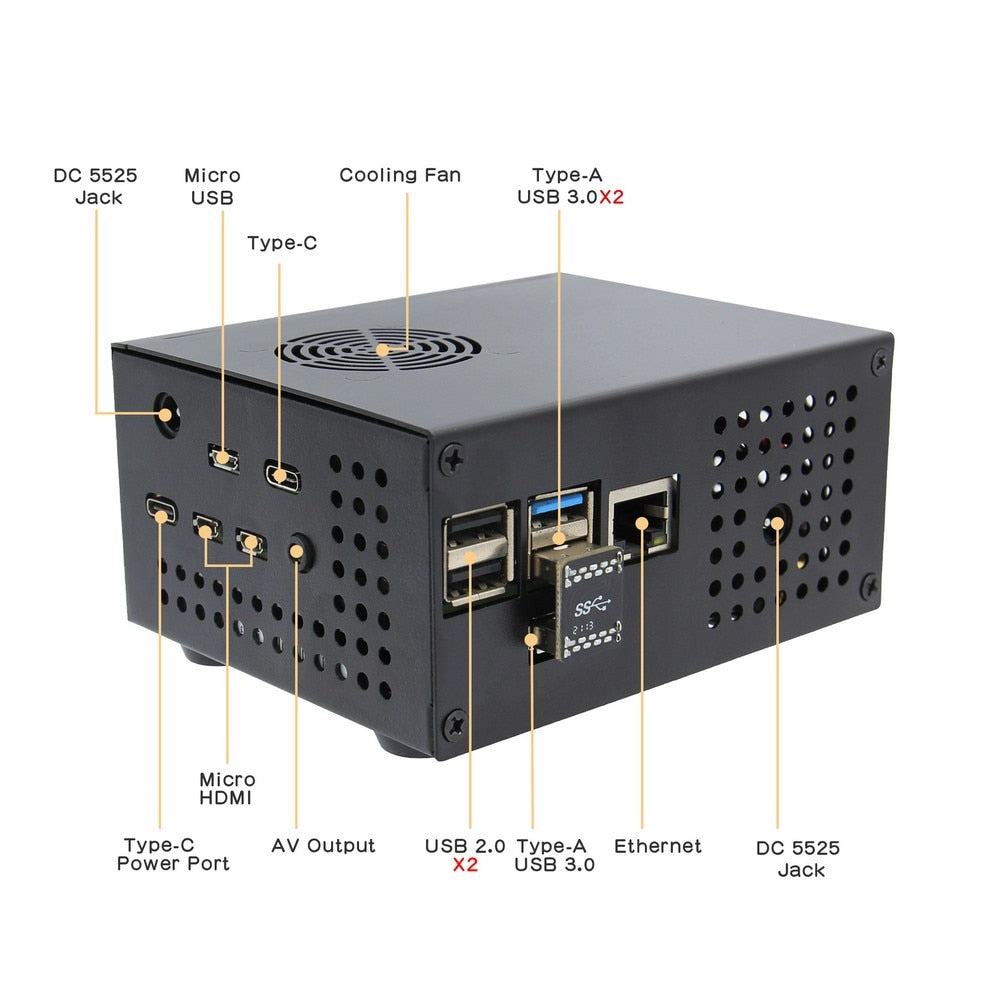

• Reserved Slot for X735 DC power Port, microusb port and Type-C Power Port

• Case Size(Installation): 11.3cm x 9.4cm x 6.7cm / 4.44inch x 3.7inch x 2.67inch;

• High quality metal material with surface galvanized process;

• Support super mute cooling fan;

4010 Fan

• Bearing: Sleeve

• Voltage: 5V DC

• Working Current: 0.06A

• Noise Level: 23.1dBA-26.1dBA

• Speed: 4200 RPM

• Dimensions:40x40x10mm

• Cable length: 11cm/4.33inch

• Net Weight:13g

• Temperature range: -10+80°C

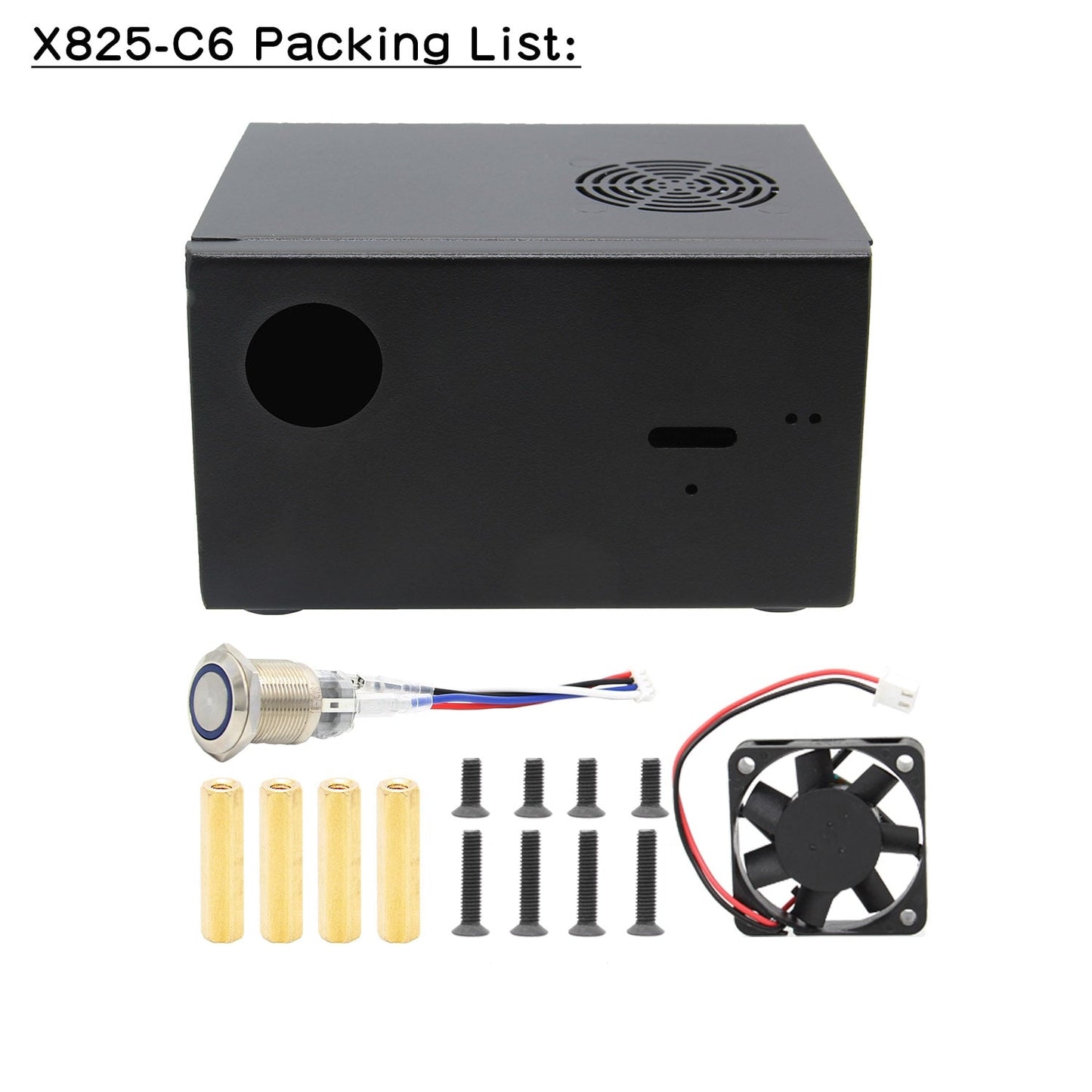

Packing List

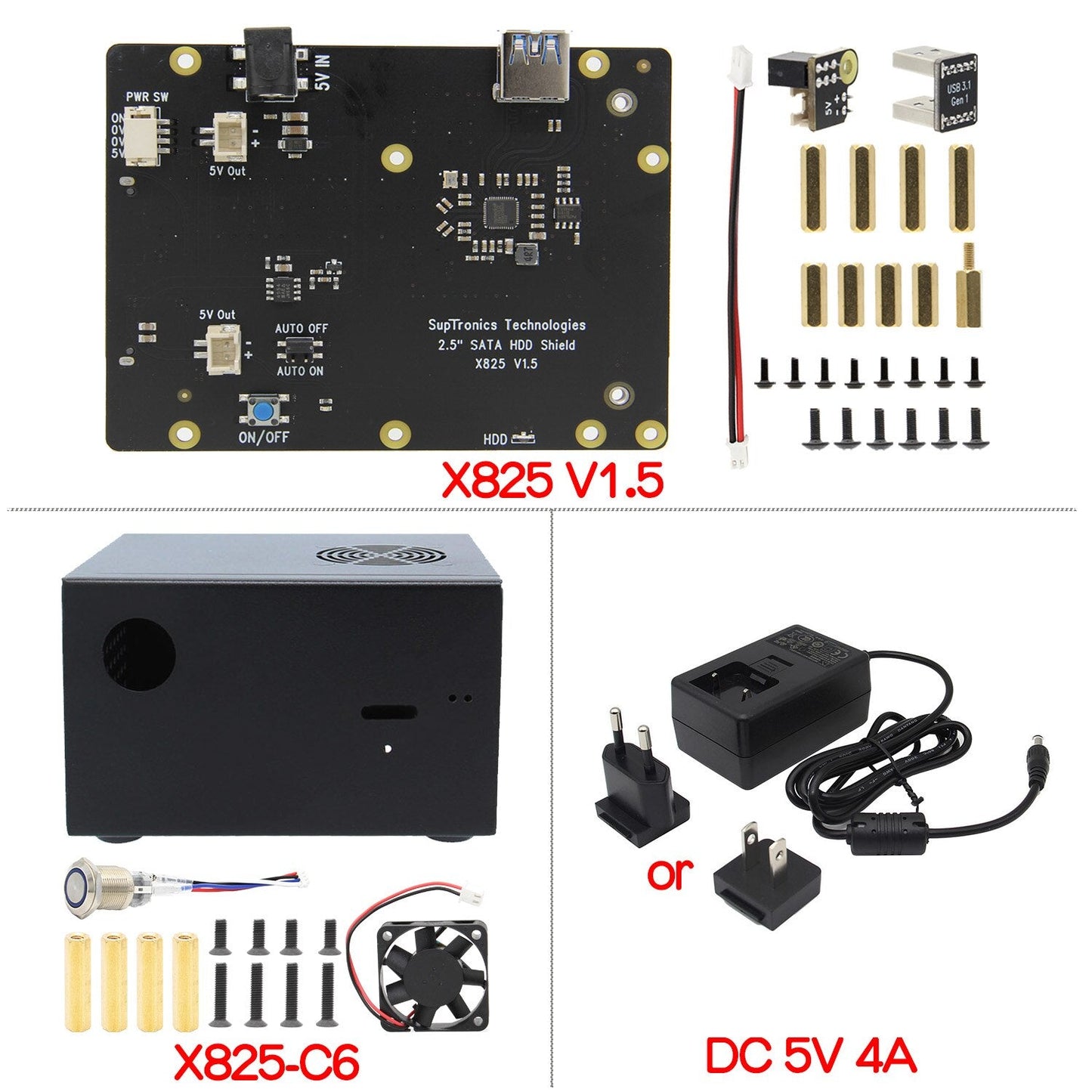

Bundle1：X825-C6 Metal Case

• 1 x X825-C6 Metal Case (not include Pi4 &x825 V1.5& X735 board & SSD)

• 1 x Power Control Switch

• 1 x Mini Fan(with 4 pieces of screws)

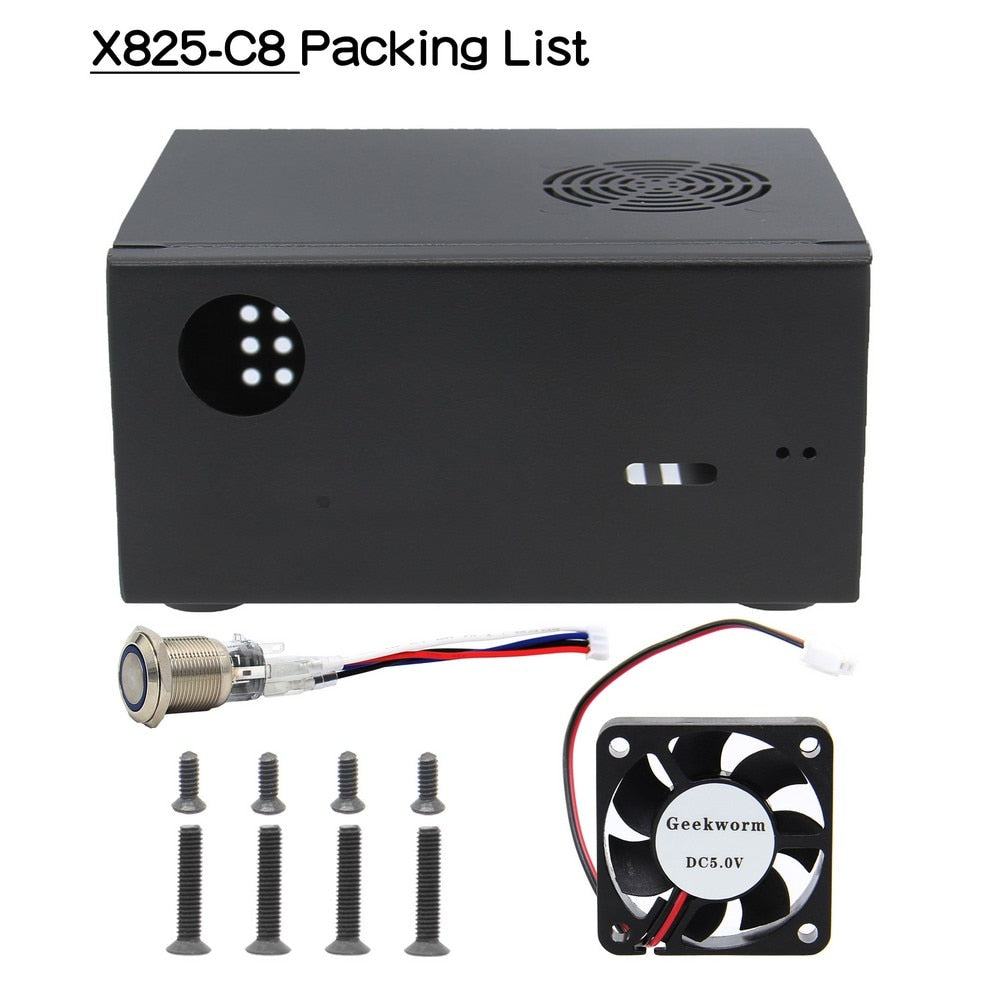

Bundle2：X825-C8 Metal Case

• 1 x X825-C8 Metal Case (not include Pi4 &x825 V2.0& X735 board & SSD)

• 1 x Power Control Switch

• 1 x Mini Fan(with 4 pieces of screws)
