Raspberry Pi X820 V3.0 Expansion Board Supports 4TB 2.5-inch SATA USB 3.0 For Raspberry Pi 3 Model B+, 3B, 2B, B+ customize

Raspberry Pi X820 V3.0 Expansion Board Supports 4TB 2.5-inch SATA USB 3.0 For Raspberry Pi 3 Model B+, 3B, 2B, B+ customize

$29.99 USD
$0.00 USD $29.99 USD
Sale Sold out
Color

What do you need to use Raspberry Pi X820 V3.0 2.5 inch SATA Storage Board?

  1. A Raspberry Pi board(Pi 3B+, 3B, 2B, B+)
  4. A 2.5 inch SATA hard disk drives (HDD) or solid-state drive (SSD)

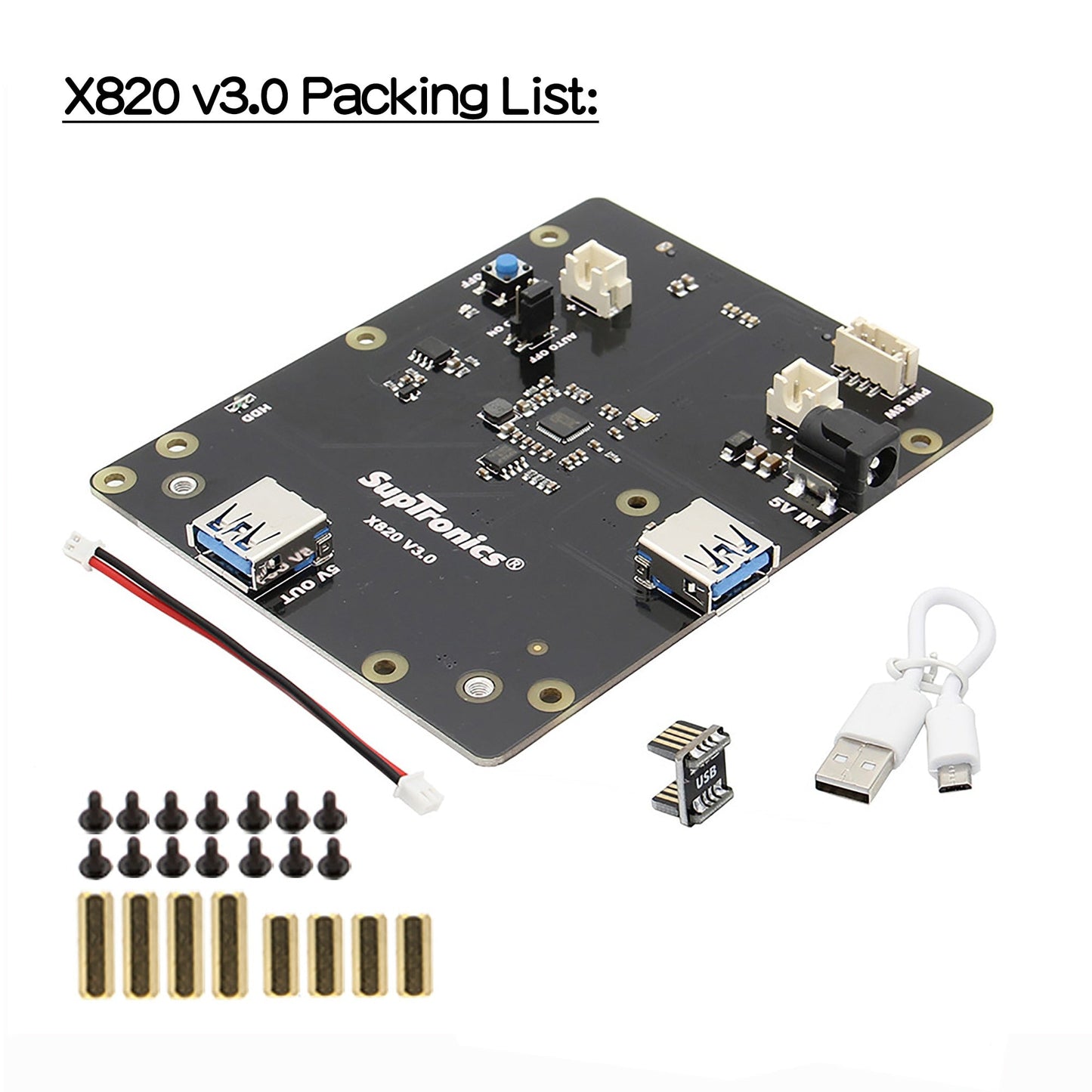

Packing List:

Bundle1:

  • 1 x X820 V3.0 Expansion Board

  • 1 x USB to Micro USB Power Cable

  • 1 x USB connector

  • 1 x 2 Pin Power Connection cable

  • 1 x Install Screws pack

Bundle2:

  • 1 x X820 V3.0 Expansion Board

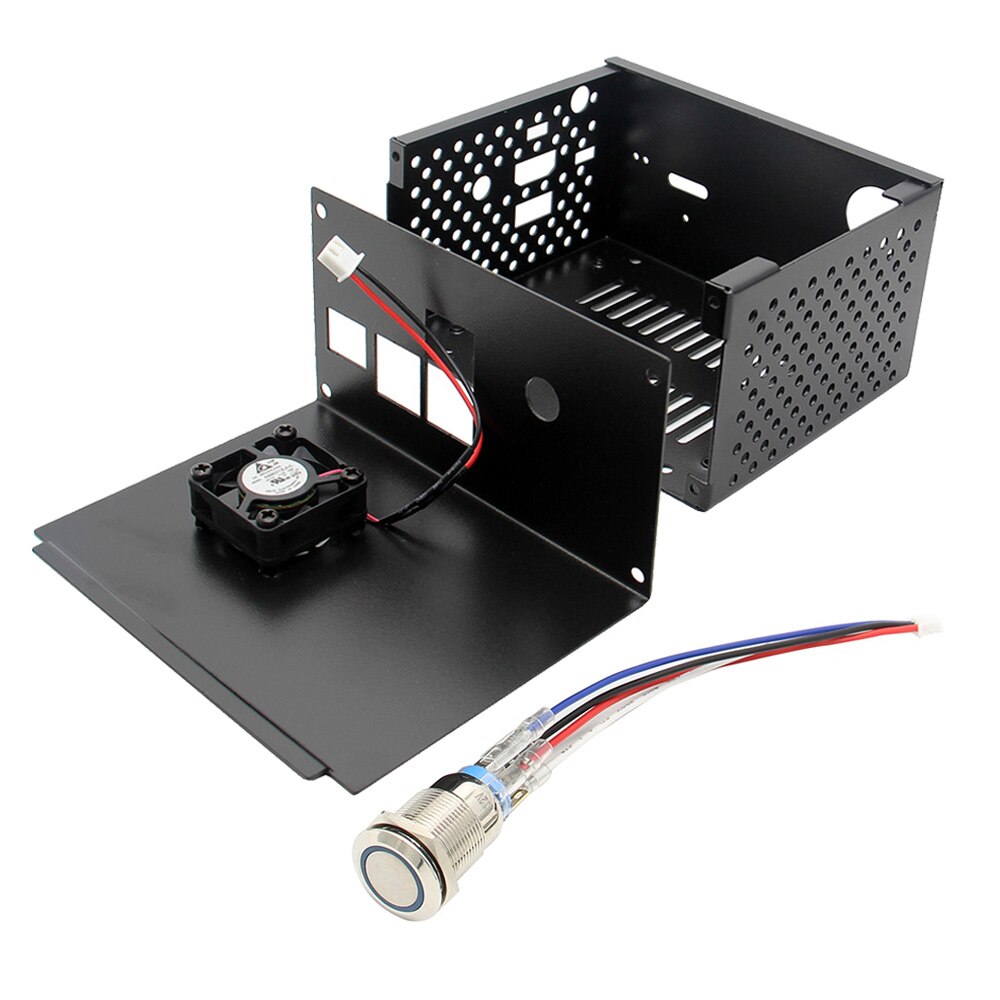

  • 1 x X820 V3.0 Metal Case

  • 1 x Cooling Fan

  • 1 x Power Switch



Note: The raspberry pi and the 2.5"  SSD are both not included.



For Use With:

  • Raspberry Pi 3 Model B+(plus) / 3B/2B

  • Rock64(same dimesion as the raspberry pi)

  • Thinker Board

  • PC / Mac



Features:

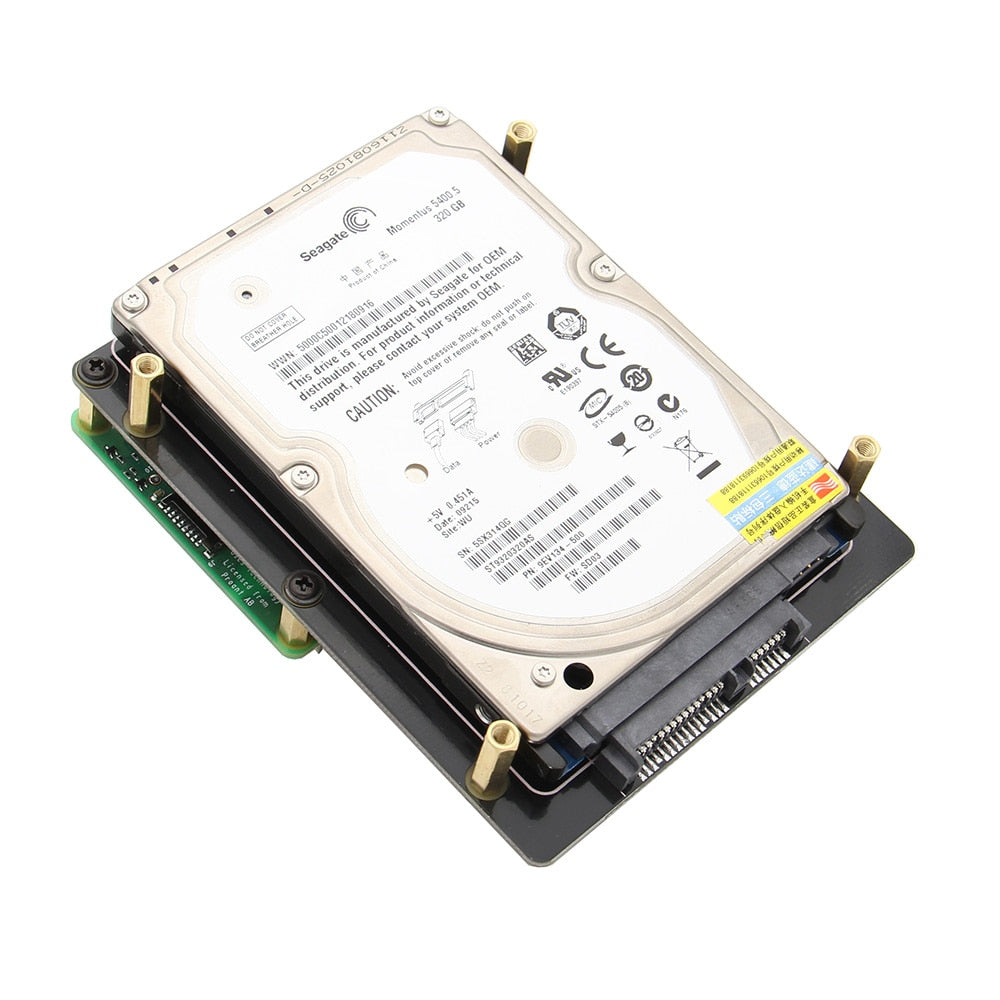

  • Supports up to 4TB 2.5-inch SATA hard disk drives (HDD) / solid-state drive (SSD)

  • Supports USB booting from your HDD/SSD

  • On-board push button to control power on /off

  • (Press-ON, Hold the button pressed at least 2s -OFF)

  • Powers the Raspberry Pi via Pi's 40-pin header or Micro USB socket

  • On-board XH2.54 connector and USB power socket to power other devices

  • Ideal storage solution for Raspberry Pi

  • USB 3.1 Gen1 to SATA 6Gb/s bridge controller

  • USB 2.0 connectivity offers plug-and-play functionality on your Raspberry Pi

  • Quick file transfer with high-speed USB 3.0 connectivity  from a PC or a Mac

  • External Self-Powered or USB bus-powered

  • LED red indicator indicates powered status and blue indicator indicates drive status

  • Easy DIY with Raspberry P



Power Supply Unit: (Optional Accessories):

  • AC 100 - 240V input ~50 / 60Hz, 5Vdc 4A output

  • With 2 snap-in plugs for North America (US) and Europe (EU)

  • DC Power Plug Size : 5.5*2.5m



Specification:

  • Power supply: 5Vdc +/-5% , 4A

  • Ports & Connectors:

  • DC jack - 5.5x2.5mm, USB socket - USB 3.0 type A,

  • Power output connector - XH2.54 2-pin

  • Power switch connector -PH2.0 4-pin

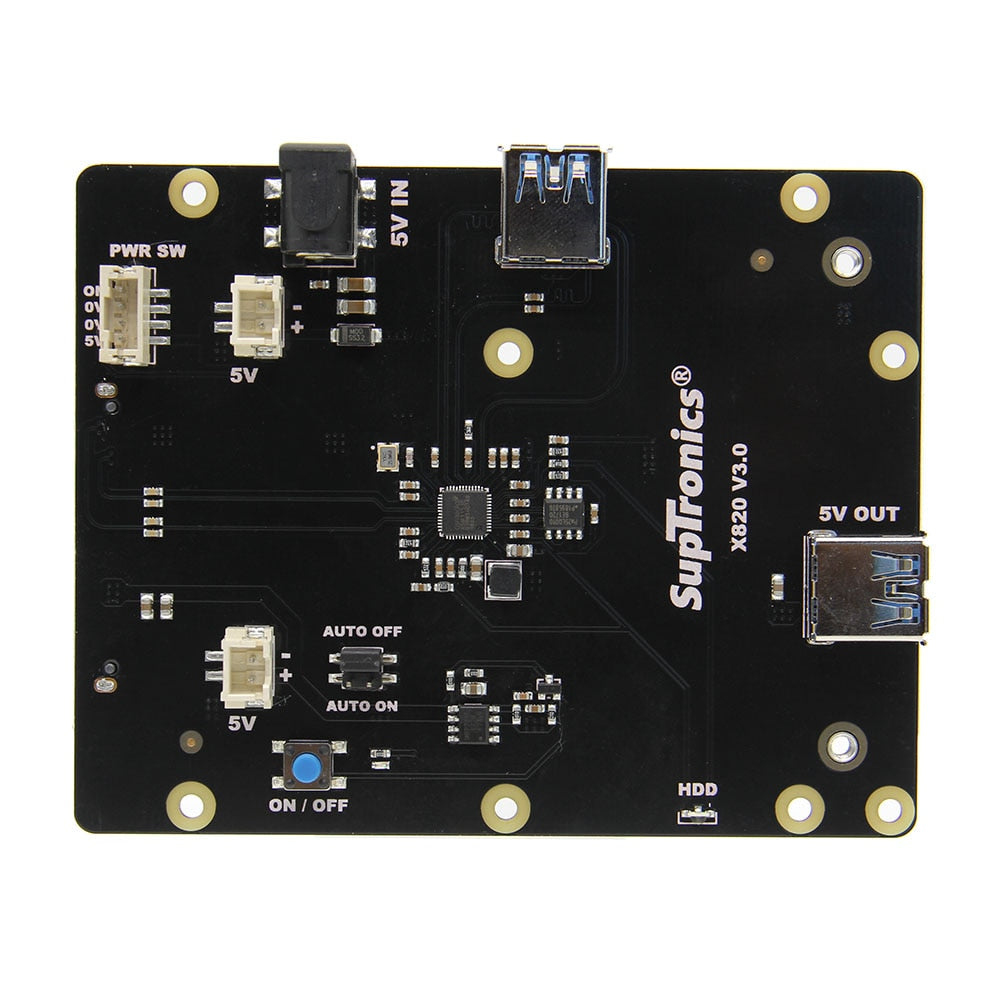

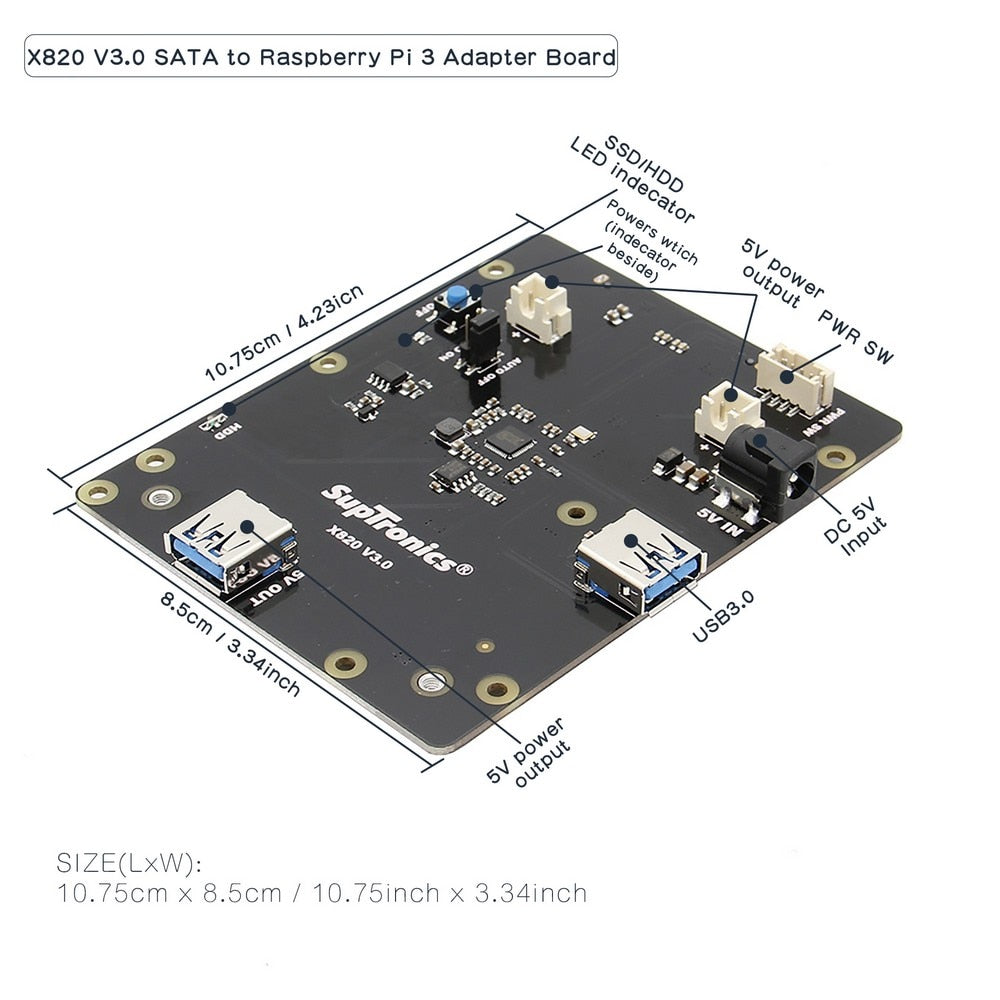

  • PCB Size 107.5mm x 85mm

The raspberry pi and the 2.5" SATA SSD are not included.



WARNING:
Do not power your Raspberry Pi via the Pi's 40-pin header and micro-USB socket at the same time.

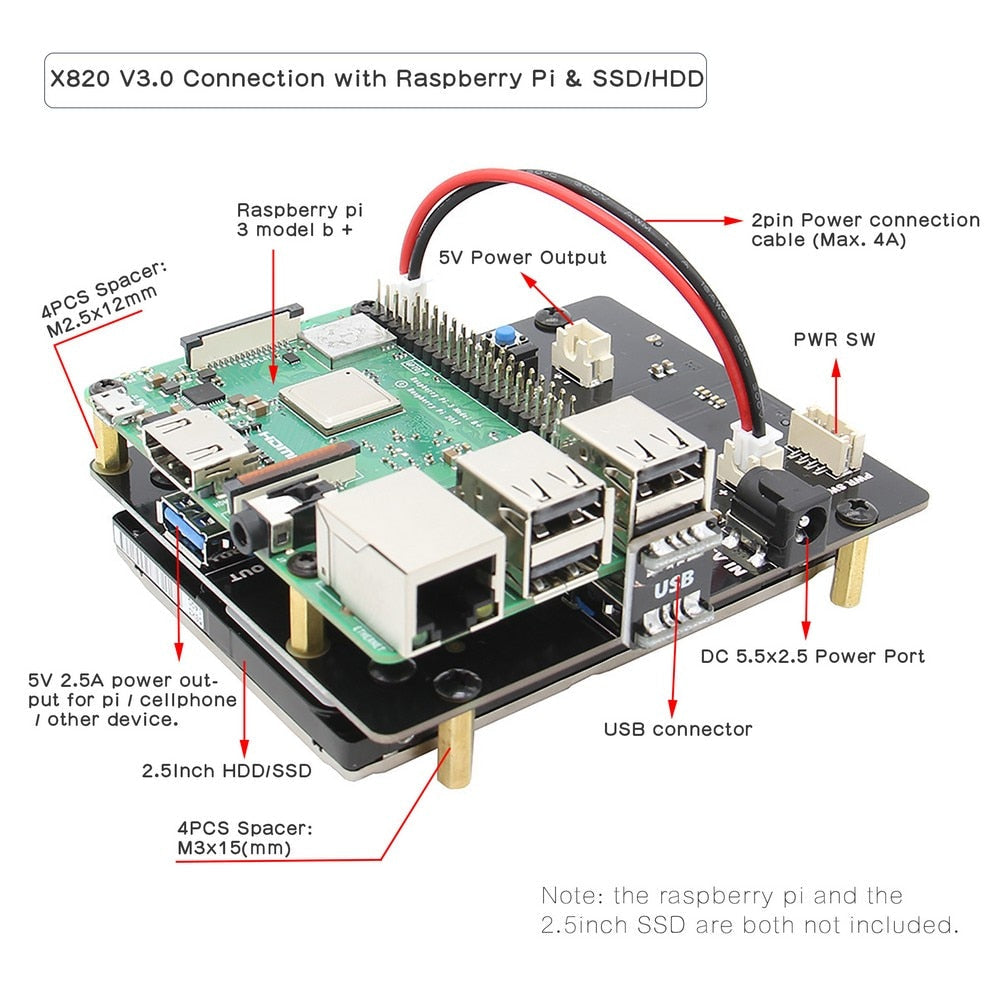

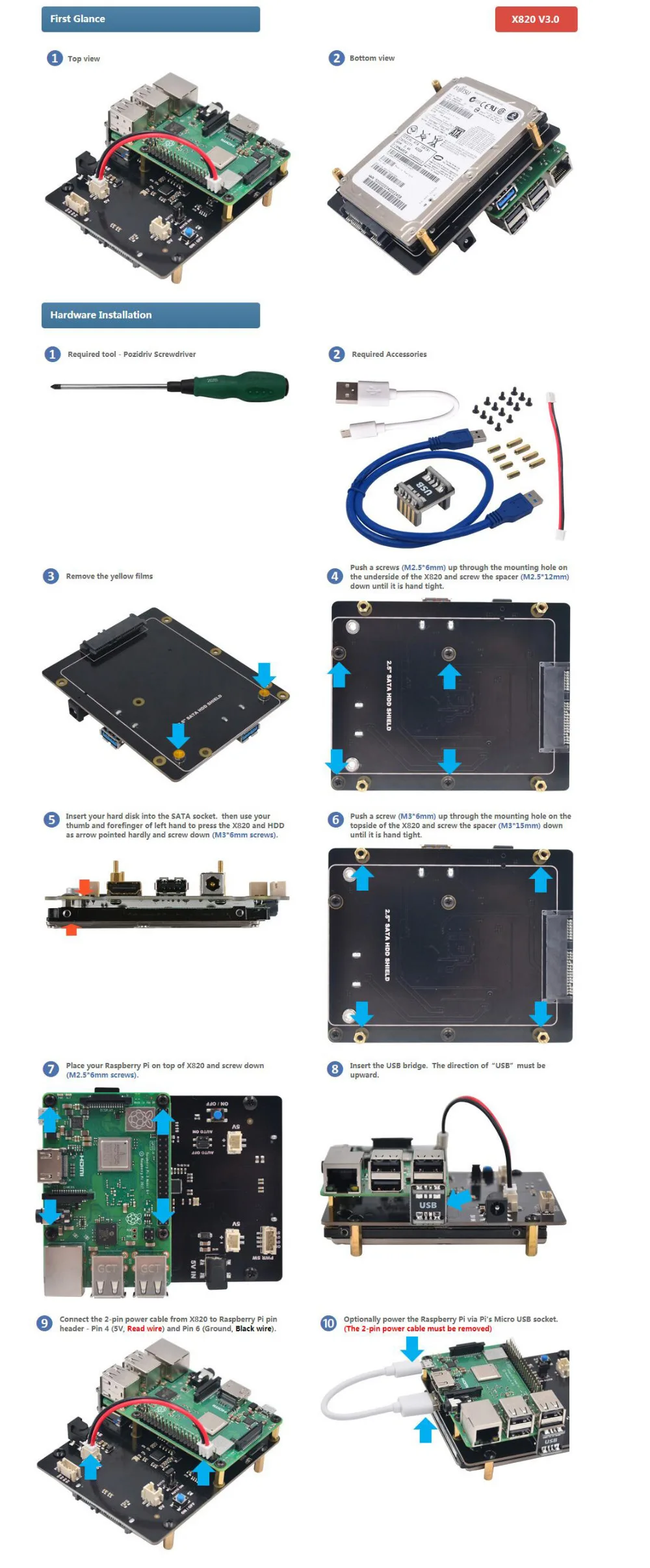

How To Install:

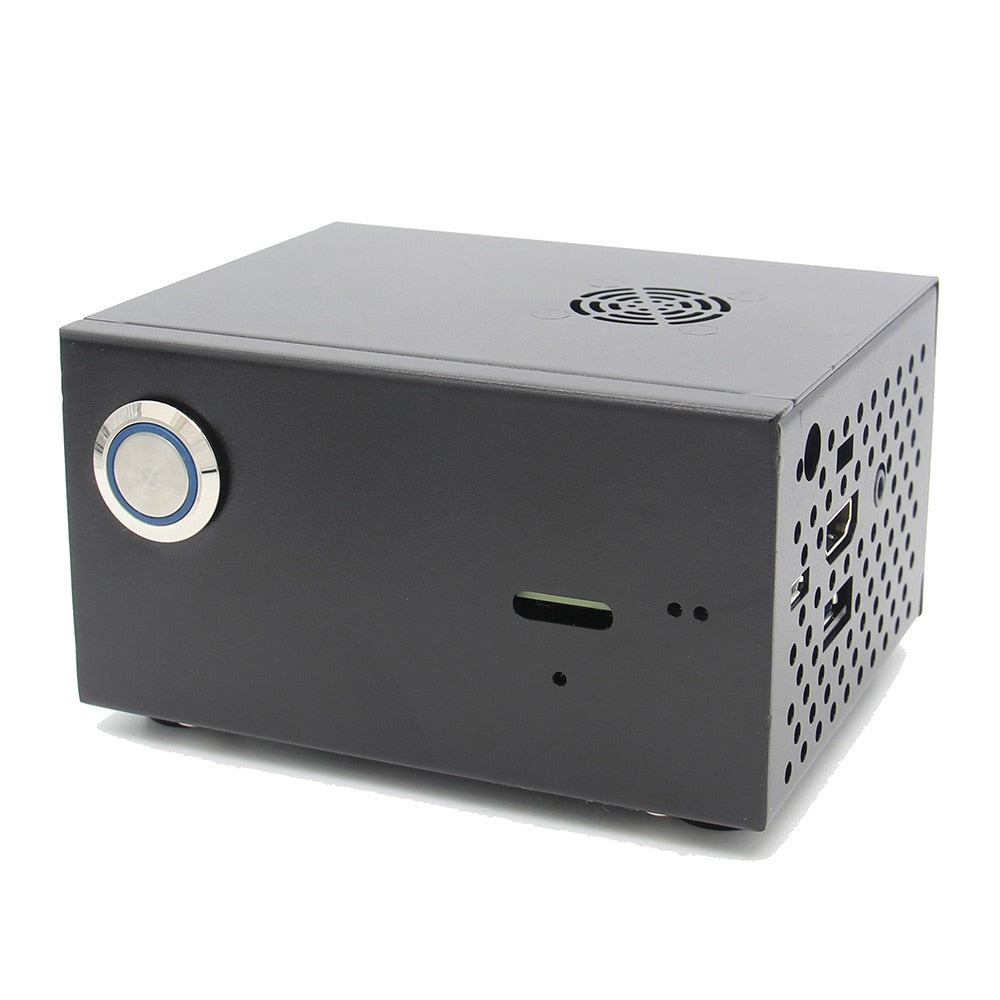

X820 V3.0 Metal Case:

  • This is a metal case with a super quiet fan assembly, High quality with good lacquer.

  • Easy to install, protect your X820 board and Raspberry pi board better.

  • Updated GPIO/FFC Cable Side Slot on the case

  • Updated Slot for   X735 DC power Port and X735 microusb port

  • Compatible with Raspberry Pi 3 Model B+(plus)/3B/2B/B+

  • Installation guide, please refer to: http://www.raspberrypiwiki.com/index.php/X820


Note:

  • The Max. compatible thickness of the 2.5" SATA SSD/HDD is 10.4mm/0.41inch. (The stander 2.5" SATA SSD/HDD is 9.2mm/0.36inch)

  • Please remove the Jumber cap when you use the power swtich to control the power of raspberry pi and X820 storage board
