Raspberry Pi X715 Power Management Expansion Board with Wide Voltage Input(6V~60V) & PWM Fan for Raspberry Pi 4 B / 3B+ / 3B customize

Raspberry Pi X715 Power Management Expansion Board with Wide Voltage Input(6V~60V) & PWM Fan for Raspberry Pi 4 B / 3B+ / 3B customize

Regular price $27.43 USD
Regular price $0.00 USD Sale price $27.43 USD
Sale Sold out
Color
Note
1. Don't connect any 5V-powered device to XH2.54 power input connector.
2. Do not apply power to your Raspberry Pi via the Pi's Micro-USB socket or type C socket
3. Please note that there is no mach case for X715. X715 is not fit for X820 case, X850 case and X825 case.

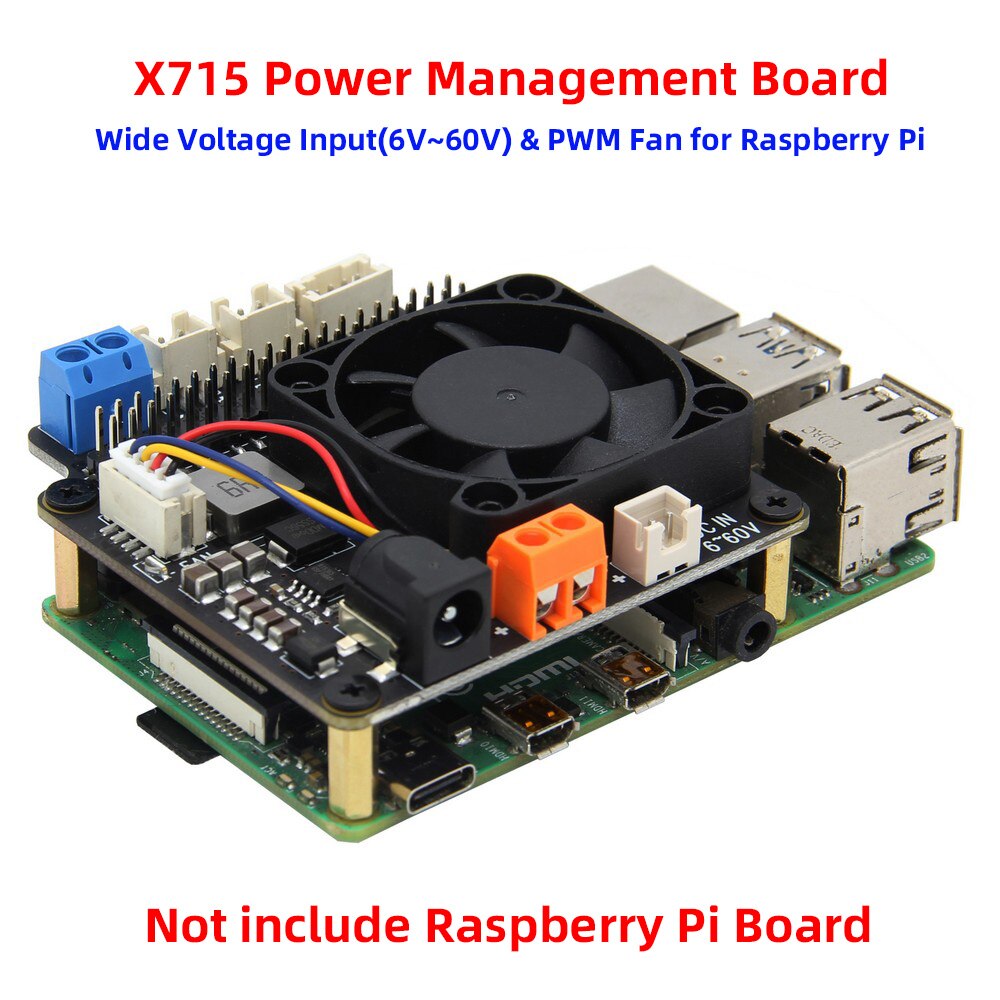

4. The Raspberry Pi 4 Board is not included in the packing list.



The X715 is the updated version from X710.
Some new features of X715(Updated on May 25th 2021)
  1. With more wide range voltage input from 6V to 60V;
  2. With 4-Pin PWR port to use external latching power switch, only supports latching switch, DON'T support Momentary switch
  3. Supports 3 kind power in connectors: DC 55*21 Jack, terminals and XH2.54;
  4. Supports 2 kind 5V power out connectors: XH2.54 and terminals;
  5. Use the silent PWM cooling fan, and support fan speed is control by script, support read fan speed, and we provide sample python code.
  6. Remove safe shutdown function of X710;

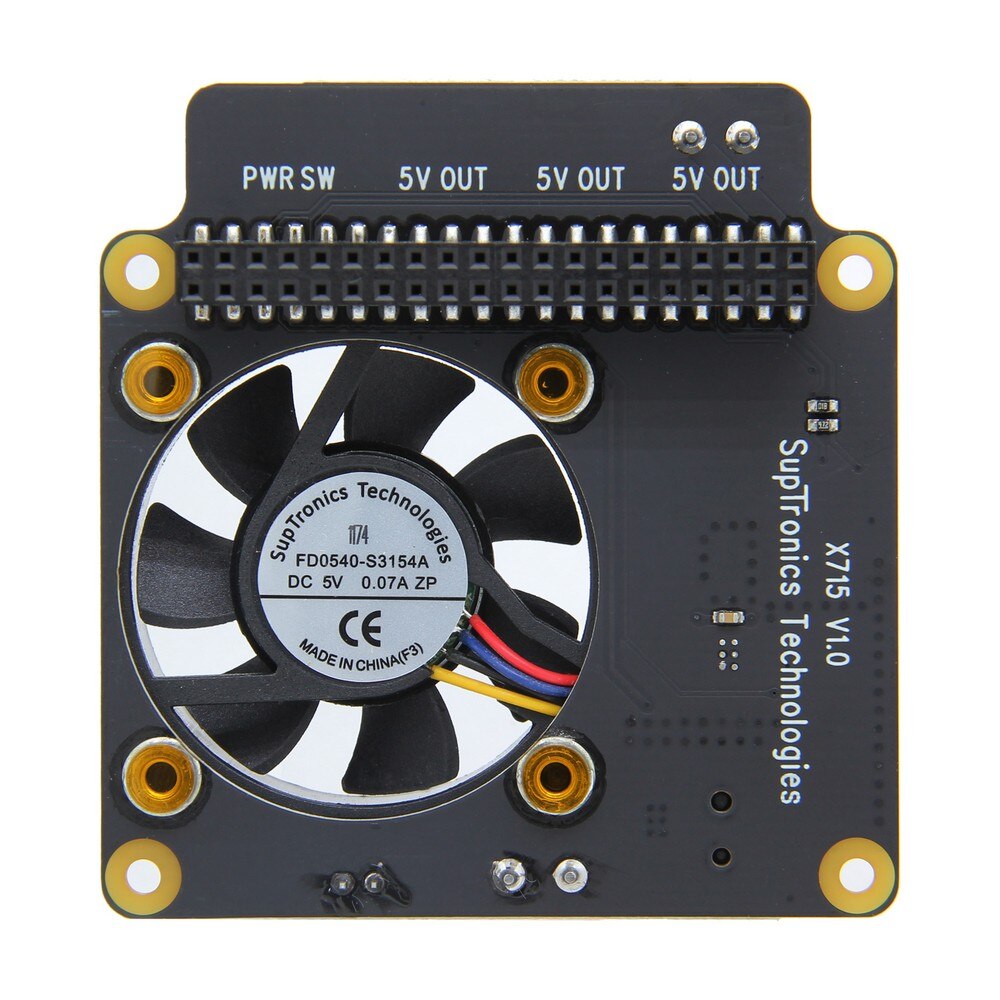

Overview:

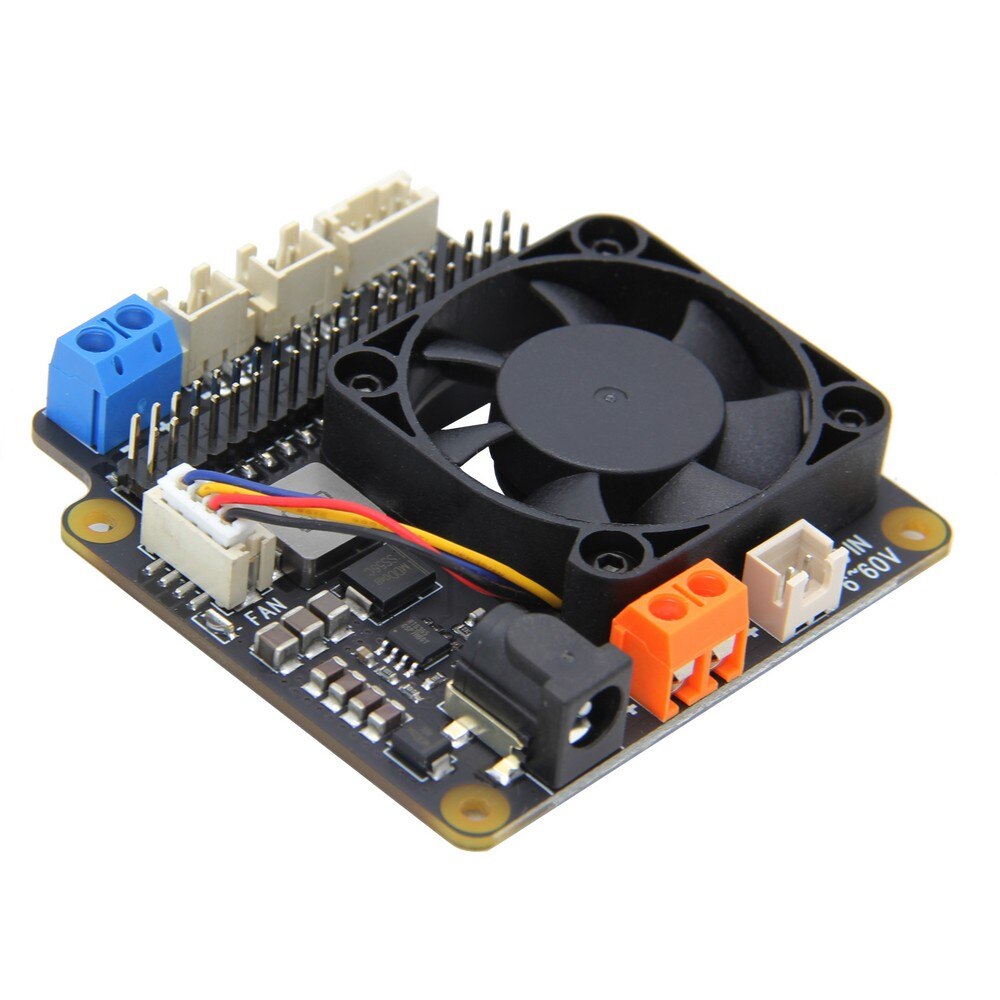

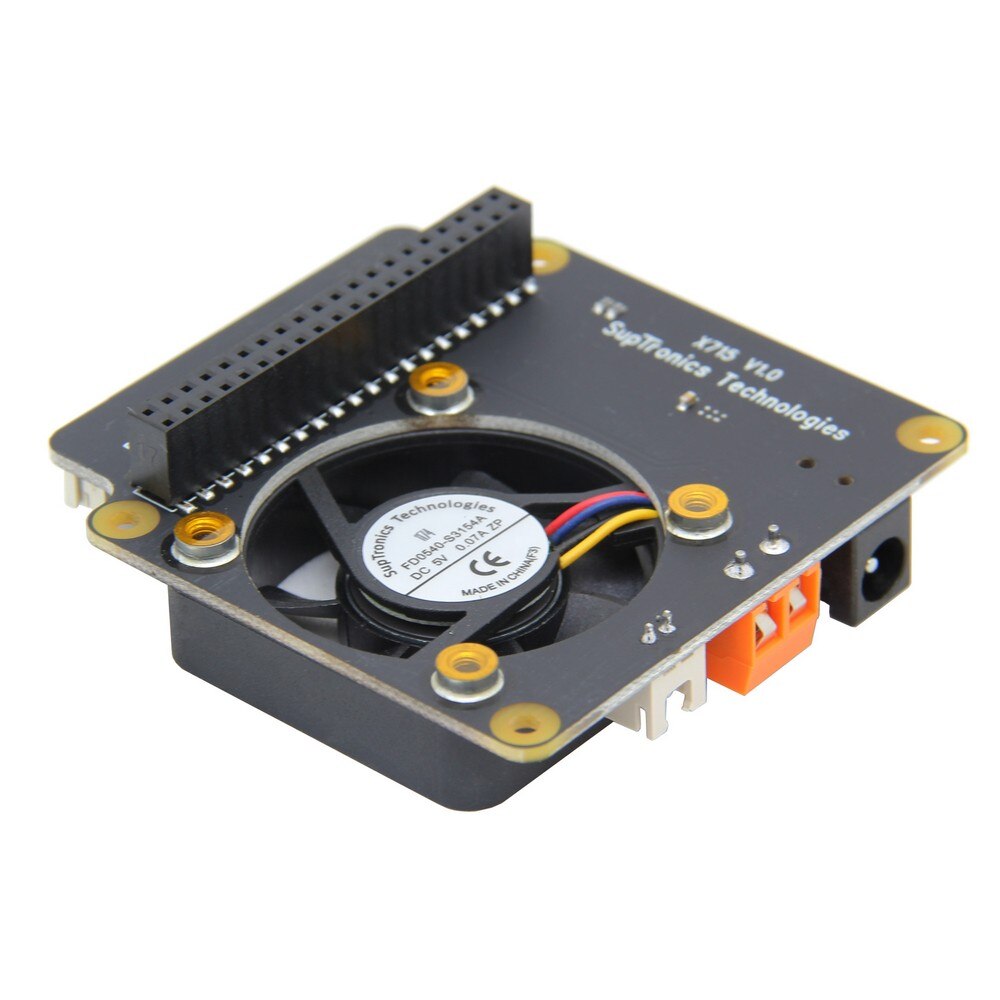

  • The X715 is a power management expansion board for all current models of the Raspberry Pi using a 40-pin header. It provides 5A of continuousoutput current over a wide 6V to 60V operating input range with excellent load and line regulation,intelligent and safe power management and asilent PWM cooling fan which enables the use of the Raspberry Pi in extreme conditions including very high temperature environments. The X715 alsoreserves the 40-pin header that can be stacked with other Raspberry Pi accessory boards for enhanced applications.

For Use with:

  • Raspberry Pi 4 Model B / 3 B+ / 3 B / 2 B

Operating System:

  • Raspbian Stretch

Features
- Ultra-wide input range power supply for Raspberry Pi
- Integrated high-efficiency step-down DC-DC converter
- Wide 6V to 60V operating input range
- 5A continuous output current
- High efficiency up to 90%

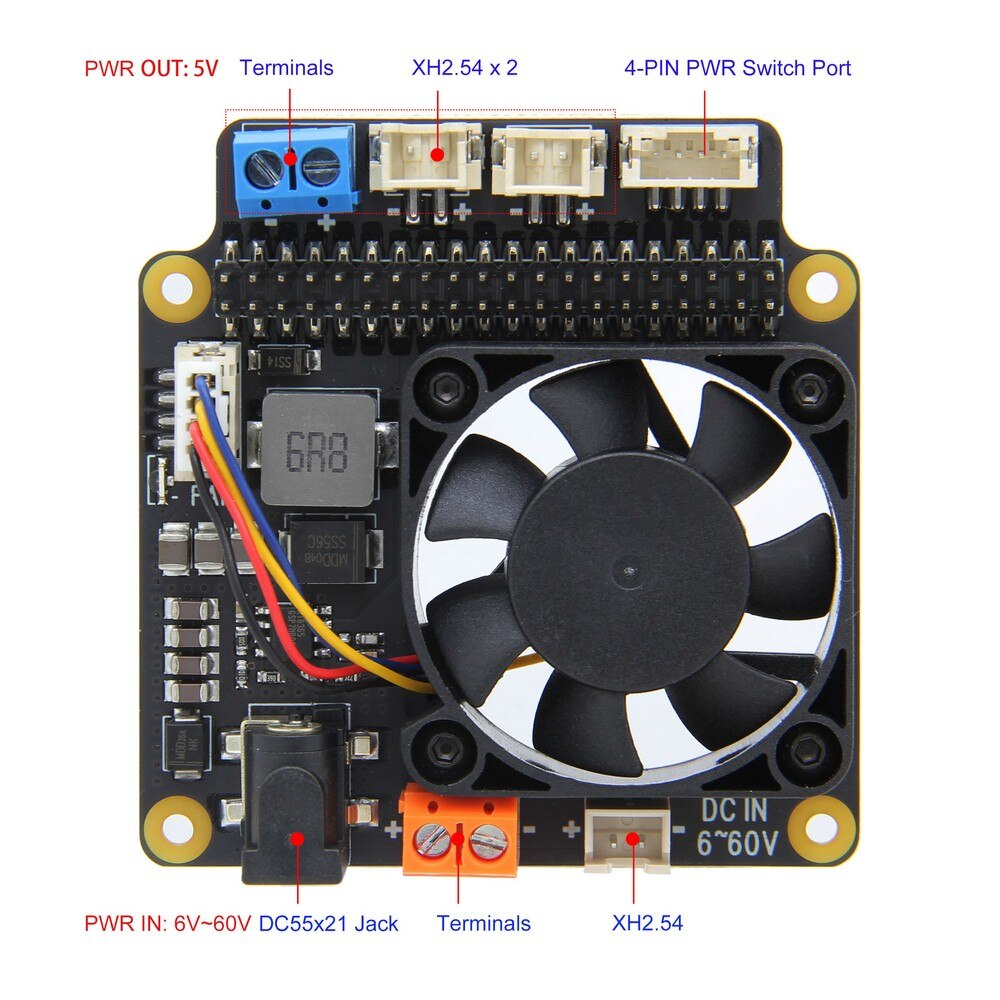

- Convenient power input via DC jack/screw terminal/XH2.54 connector
- Convenient Power output via screw terminal, XH2.54 connector and the 40-pin header
- On-board blue LED shows the status of power on/off
- With 4-Pin PWR port to use external latching power switch, only supports latching switch, DON'T support Momentary switch
- Powers the Raspberry Pi via the 40-pin header - no additional cabling required
- Use the silent PWM cooling fan, and support fan speed is control by script, support read fan speed, and we provide sample python code
- Reserved 40-pin stackable Header for Add-On Boards
- Works with all current models of the Raspberry Pi using a 40 pin header
- Fully compatible with X820,X850, X860, X870, X822, X852, X825, X828, X855, X856, X857, but there is no match metal case for them

Power Supply Requirement
  • Power supply: 6~60Vdc ≥ 2A
  • Output: 5V 5%, Max 5A
  • DC power jack : 5.5*2.1mm, Positive Tip
  • Board size: 65 x 68mm

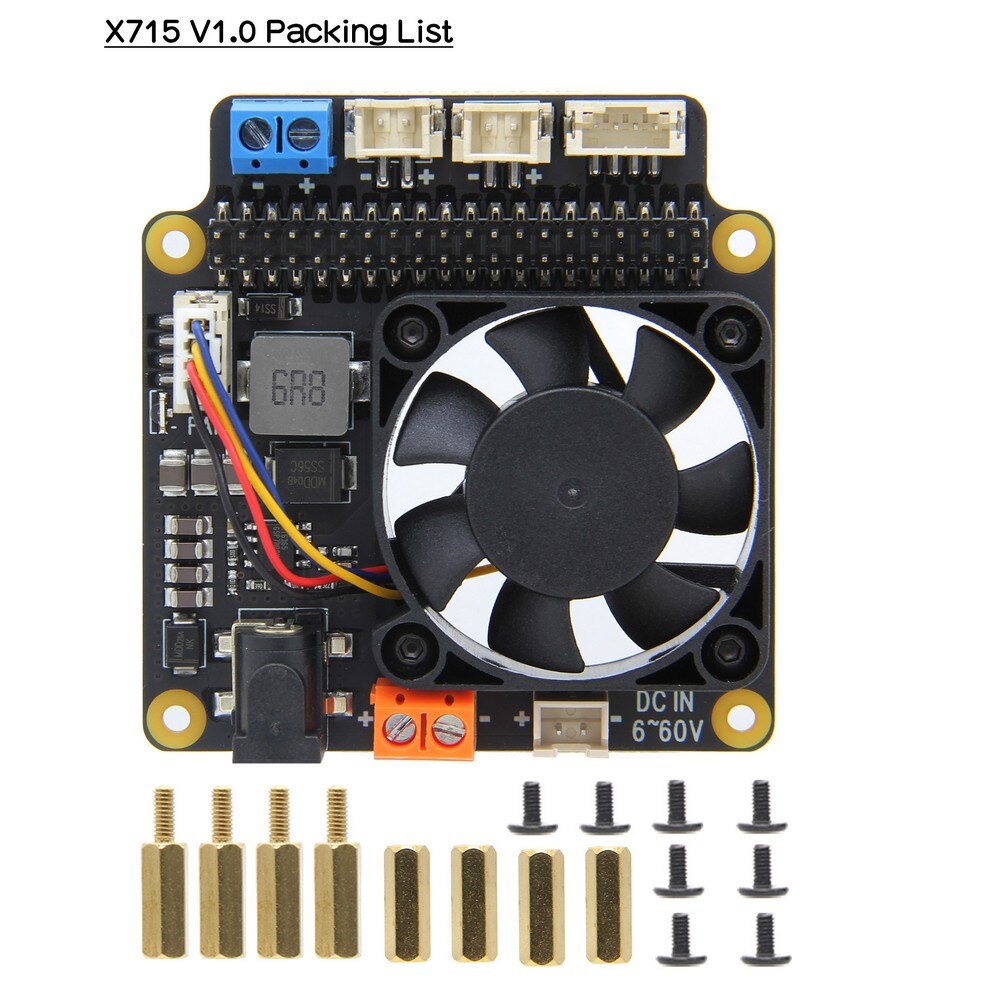

Packing List

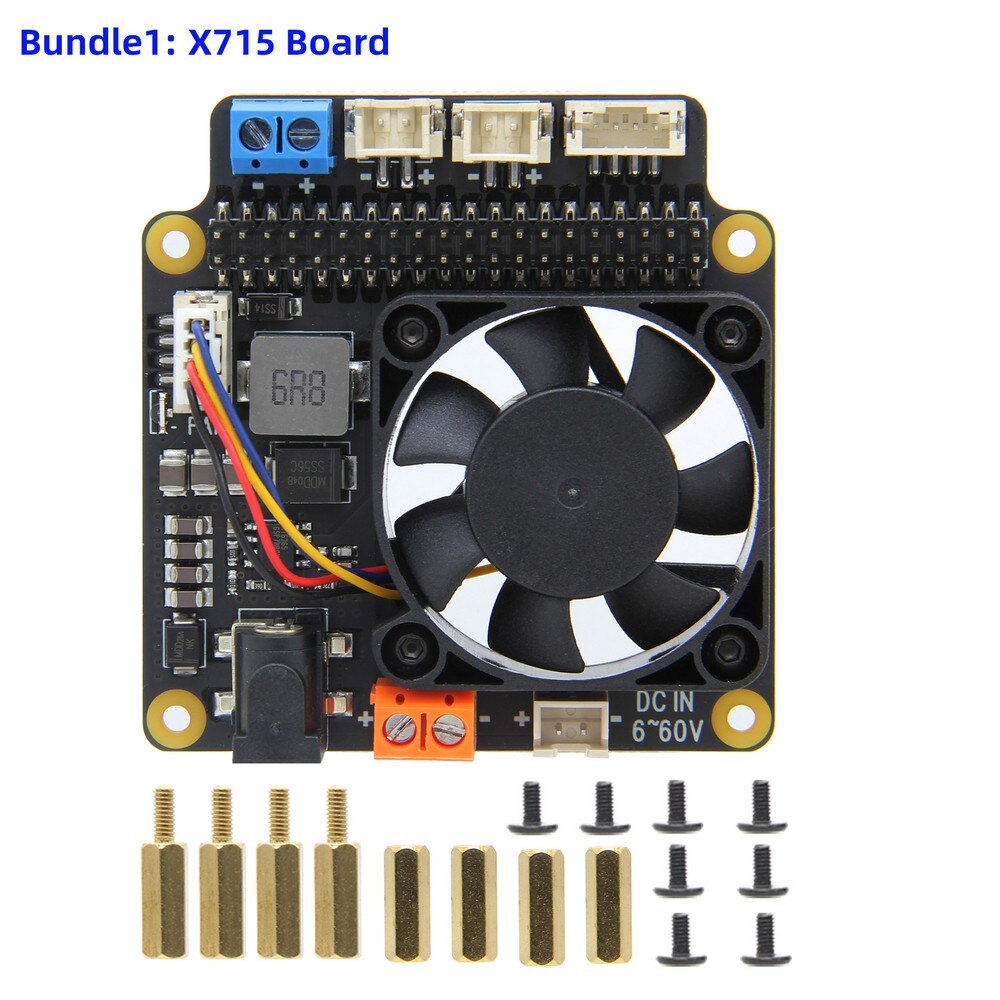

Bundle1:

  • 1 x X715 V1.0 Power Management Expansion Board
  • 8 x M2.5 *5mm Screws
  • 4 x M2.5 *12+6mm Spacers
  • 4 x M2.5 *12mm Spacers

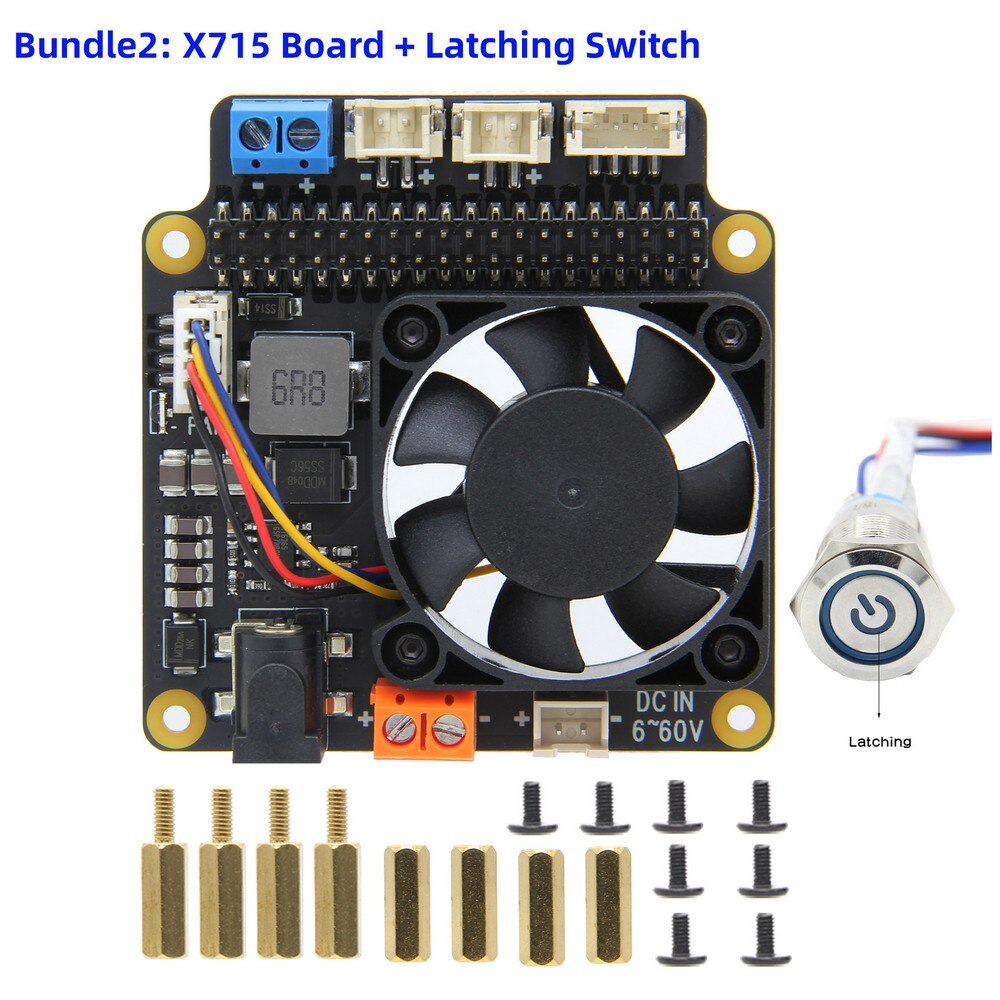

Bundle2:

  • Bundle1 +latching switch









 Welcome Customize Order!
