Raspberry Pi X708 UPS HAT & Power Management Board with Cooling Fan ,AC Power Loss Detection, Auto On & Safe Shutdown Function customize
Raspberry Pi X708 UPS HAT & Power Management Board with Cooling Fan ,AC Power Loss Detection, Auto On & Safe Shutdown Function customize
-

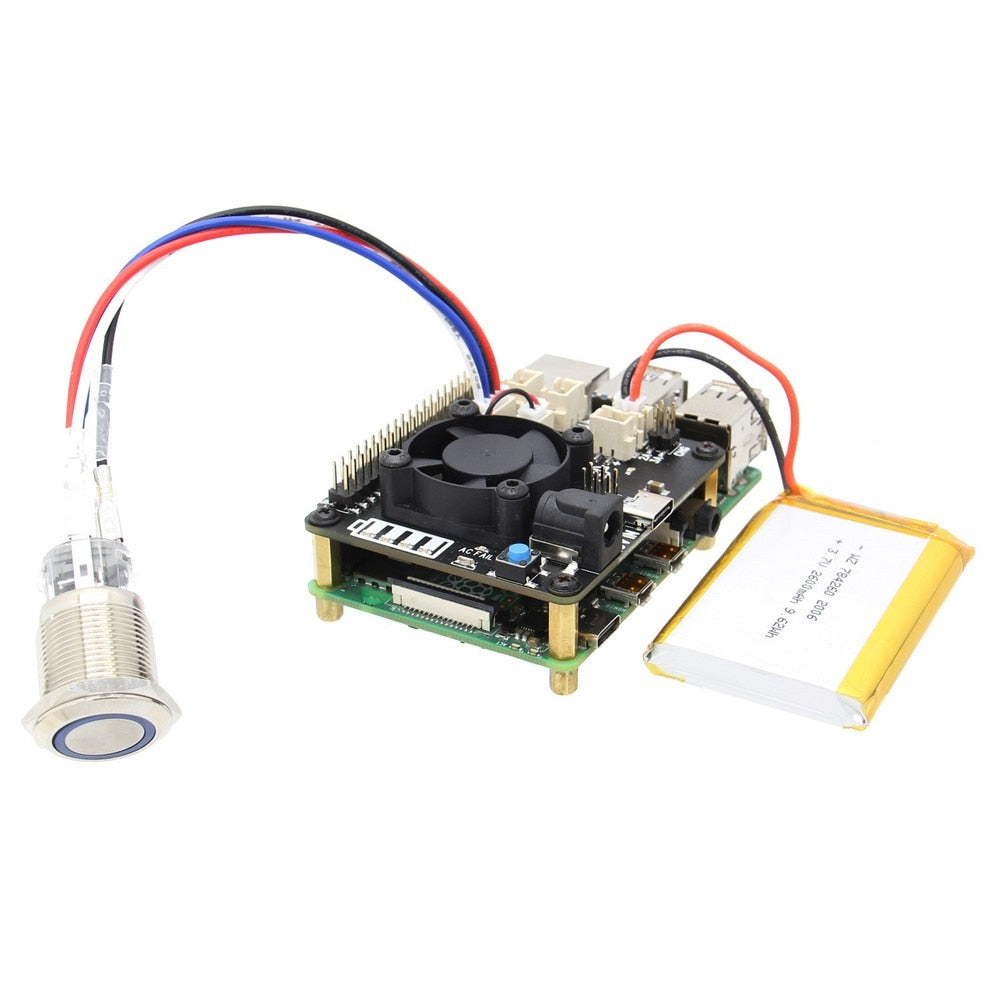

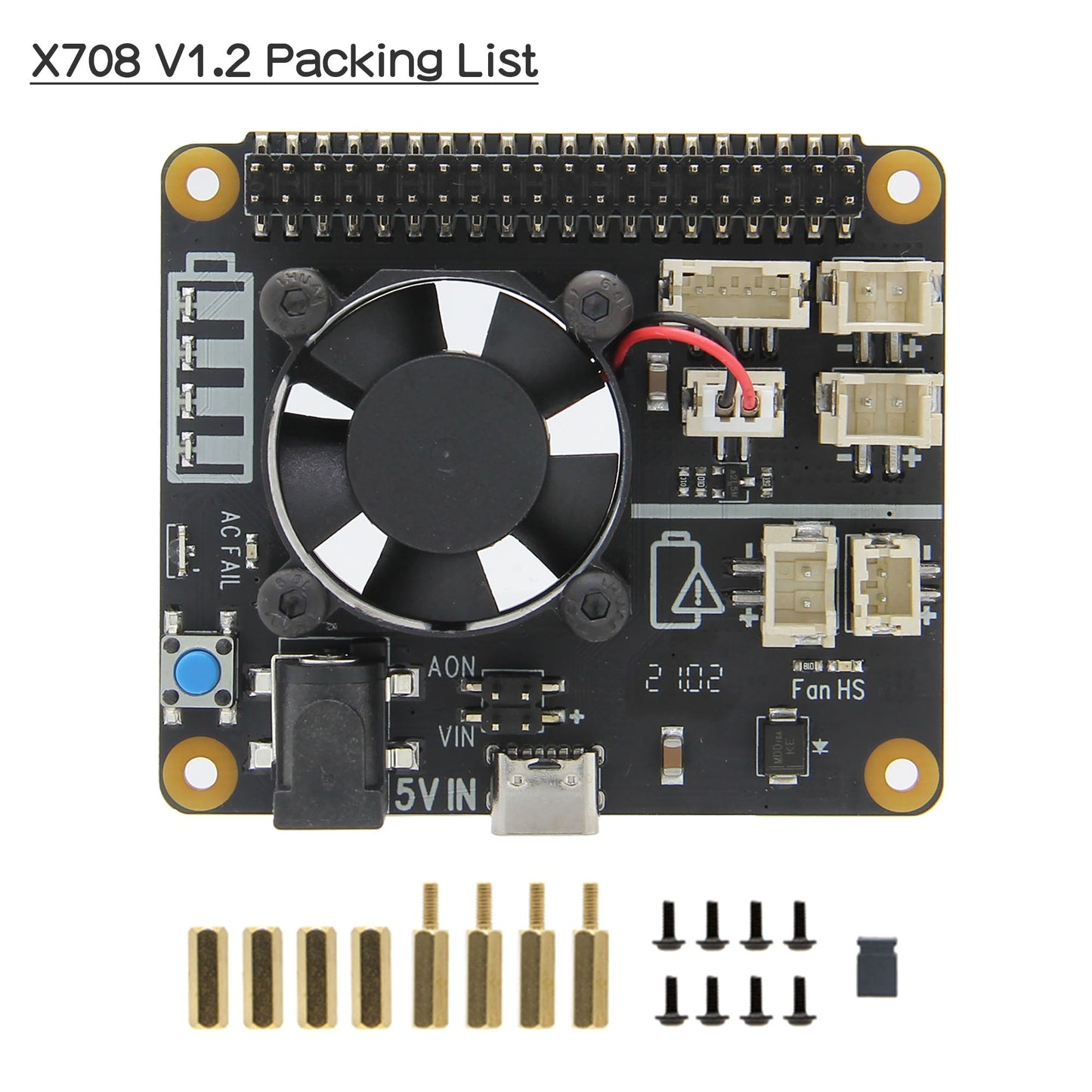

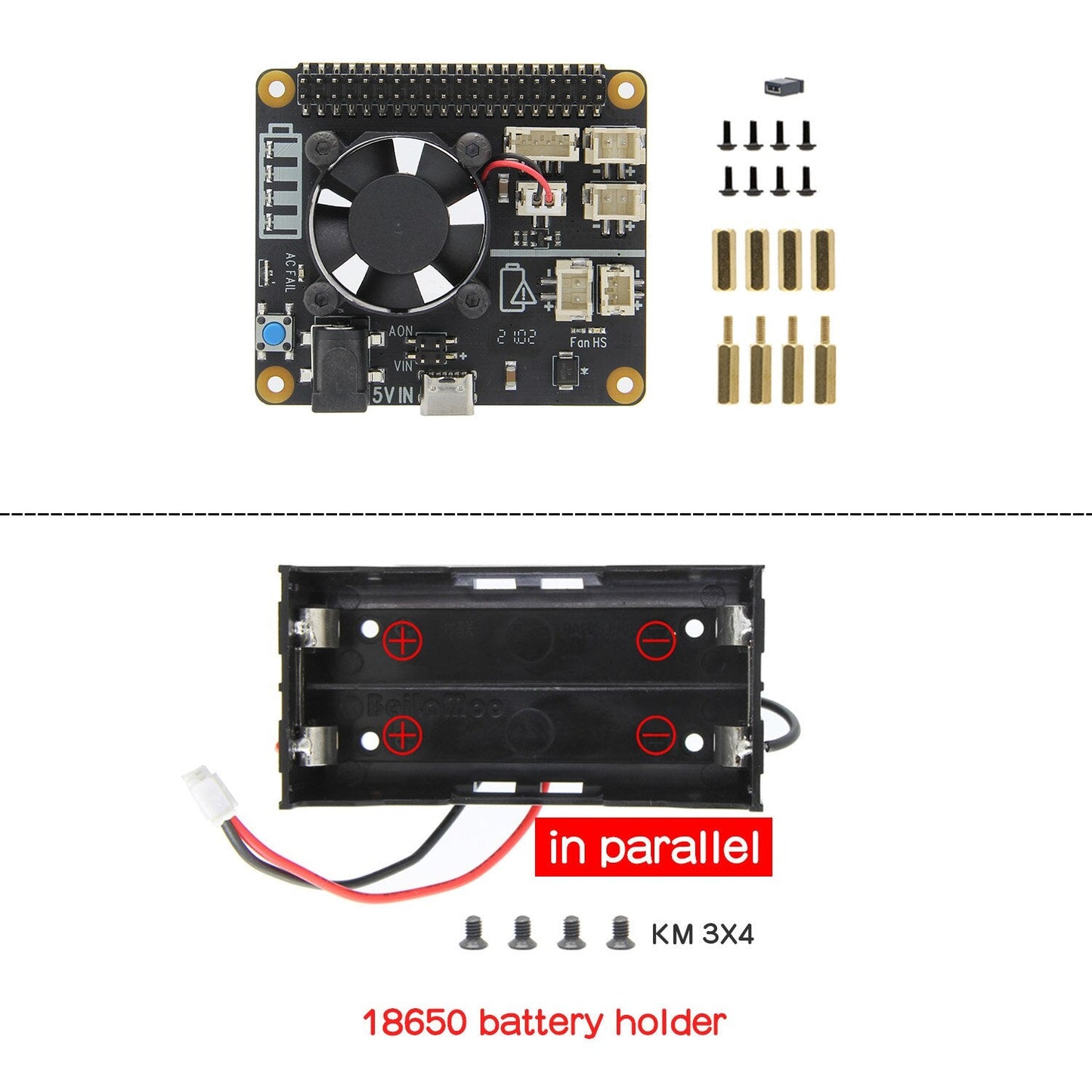

1x X708 Expansion Board
-
8x M2.5 *5mm Screws
-
4x M2.5 *12+6mm Spacers
-
4x M2.5 *12mm Spacers
-
1x Jumper link Pitch 2.54mm
-

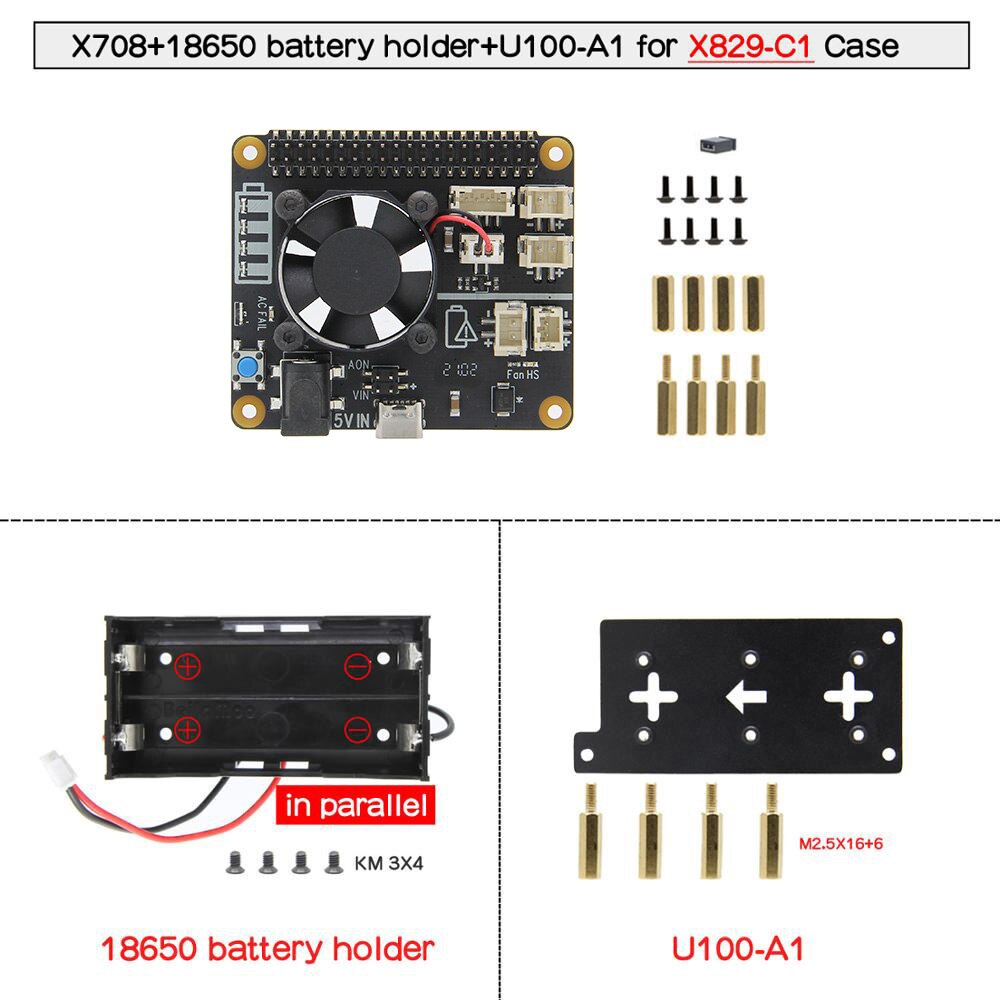

Our original intention of designing X708 is to match with NAS shell (such as X829-C1, X857-C1, X825-C7) to provide a storage solution with UPS function. In order to save space, we must separate the battery from the UPS expansion board when designing . This is also the biggest difference between X708 and X728;
-

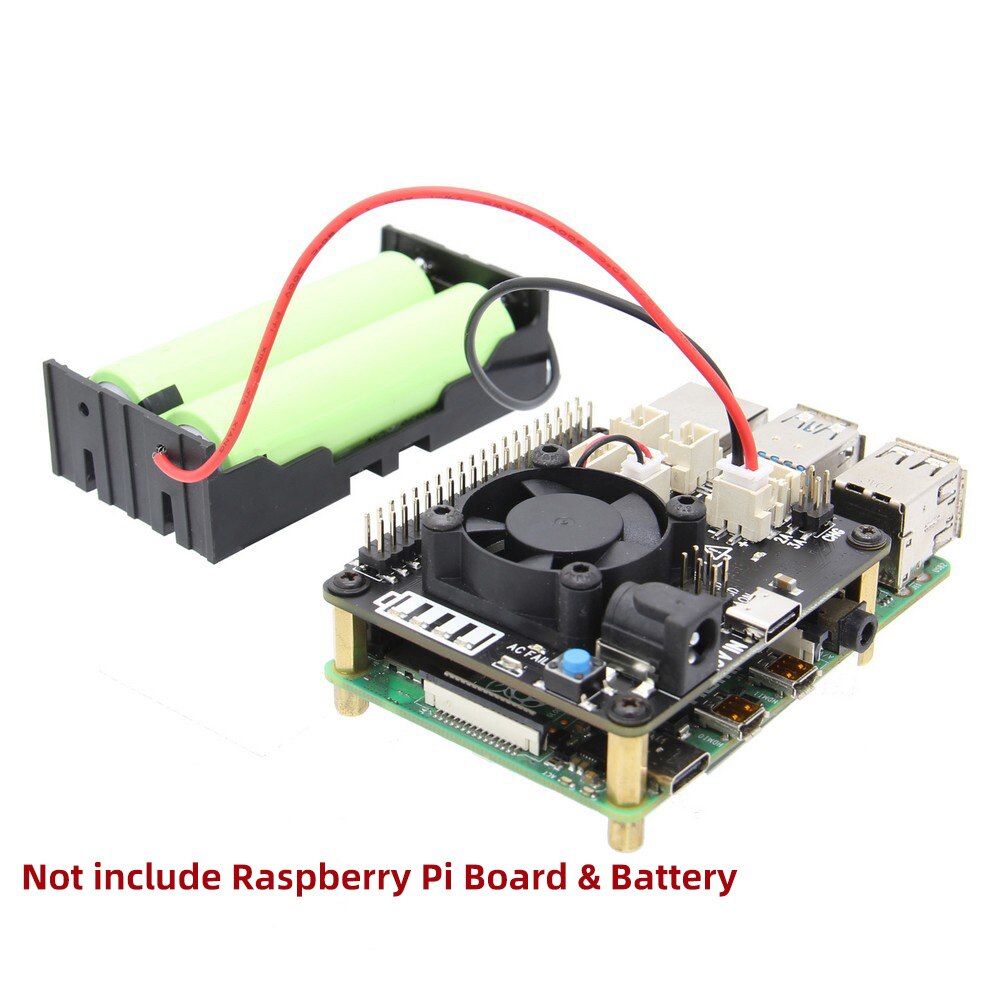

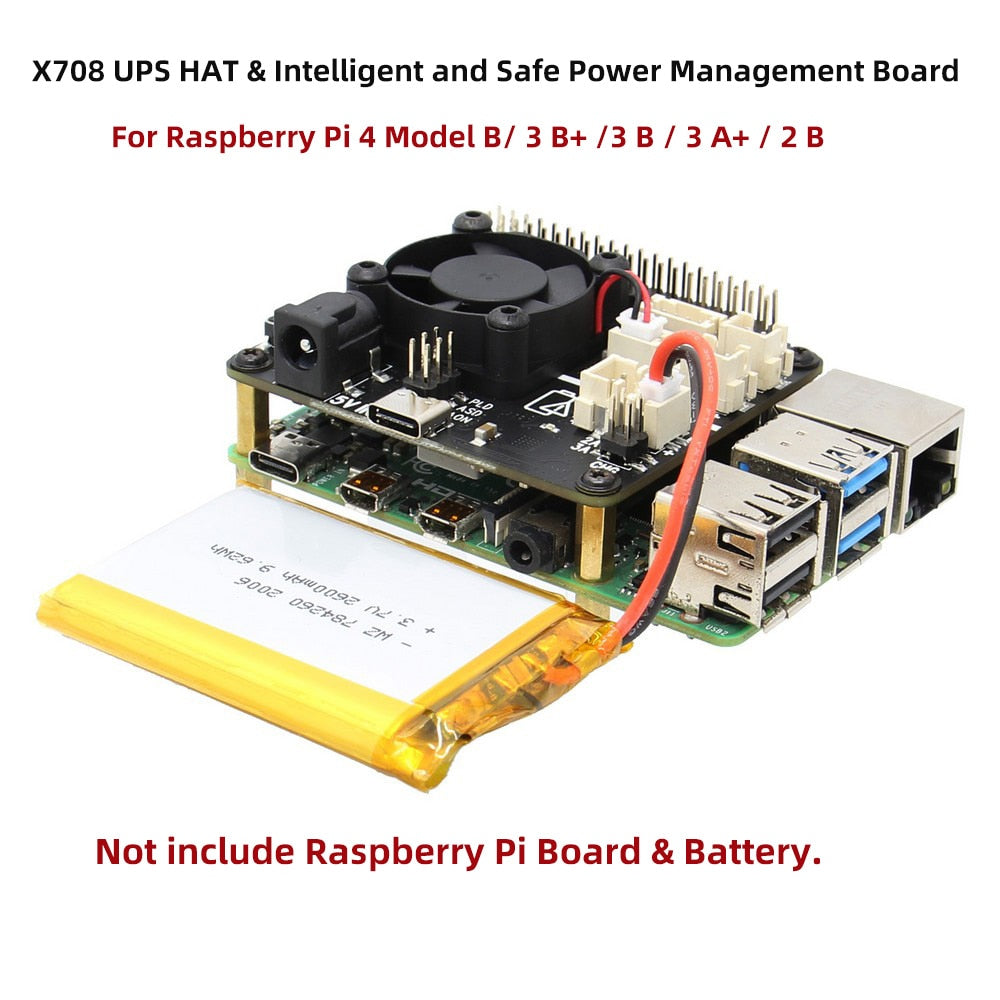

The X708 is an advanced uninterruptible power supply expansion board for all current models of the Raspberry Pi using a 40 pin header. It provides 5.1V Max. 8000mA Power Backup for even the most demanding Raspberry Pi set ups, intelligent and safe power management, safe shutdown,AC power loss/ power adapter failure detection , auto power-on, full poweroff from software, and a cooling fan.
-
The X708 reserves the 40-pin header that can be stacked with other Raspberry Pi accessory boards for enhanced applications. The X708 can also be used with the X825/X828/X829 (2.5" HDD/SSD Shield) and X857/X862/X872(MSATA/M.2 SSD shield) for safe data backup.
-
Raspbian Stretch
-
Safe shutdown function tested for Raspbian, other operating systems to be tested and advised
-
Provides continuous operations for up to 10~30hours (depending on battery type and qty used)
-
Max 5.1V 8000mA Power Backup for even the most demanding RPi set ups
-
Supports 2A/3A fast battery charging
-
Integrated over current protection and over voltage protection
-
Integrated Maxim's fuel-gauge systems (Reading battery voltage and percentage via i2c)
-
Integrated 10-A fully-integrated synchronous boost converter
-
Intelligent automatic charging and discharging
-
Operate in both charge mode and boost mode to allow full system management and battery power mgt
-
Integrated IN-to-SYS pass-through path to pass the input voltage to the system
-
Advanced system power-path management avoids batteries frequent charging and discharging
-
Advanced system power-path management allows 3A fast charging and powering Raspberry Pi at the same time
-
On-board 4 green LEDs indicate battery charging and discharging levels of 25%, 50% , 75% and 100%
-

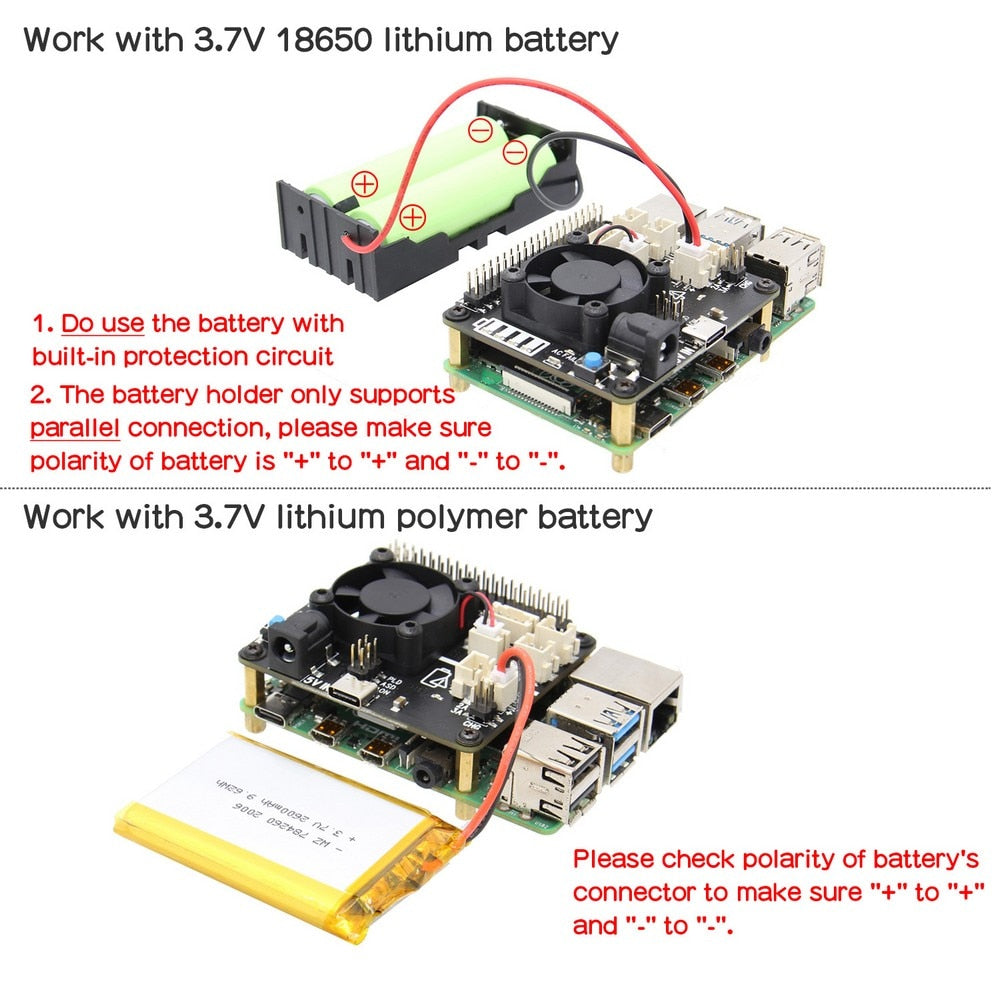

Batteries attach via PH2.0-2P or XH2.54-2P
-
Intelligent and safe power management
-
Press the button to turn on
-
Press the button and hold for 1~2seconds to reboot
-
Press the button and hold for 3~7seconds to implement safe shutdown
-
Press the button and hold for >8seconds to force shutdown
-
Supports safe shutdown and full poweroff from software
-
On-board blue LED shows the status of power on, reboot and shutdown
-
AC power loss or power adapter failure detection (LED and GPIO indication)
-
Optional to enable Auto power on when power applied or restored
-
Automatic safe shutdown when battery low (voltage <3.0V)
-
Ultra-low standby power consumption to maximize battery life
Integrated cooling fan that allows the heat from your Raspberry Pi to dissipate!
-
Completely solve the overheating problem of your Raspberry Pi
-
Efficient drop temp of Raspberry Pi CPU
-
Powers the Raspberry Pi via the 40-pin header - no additional cabling required
-
Standard Raspberry Pi extension interface, compatible with other expansion boards
-
DC power jack (5.5*2.5mm) and Type-C socket convenient for power input
-

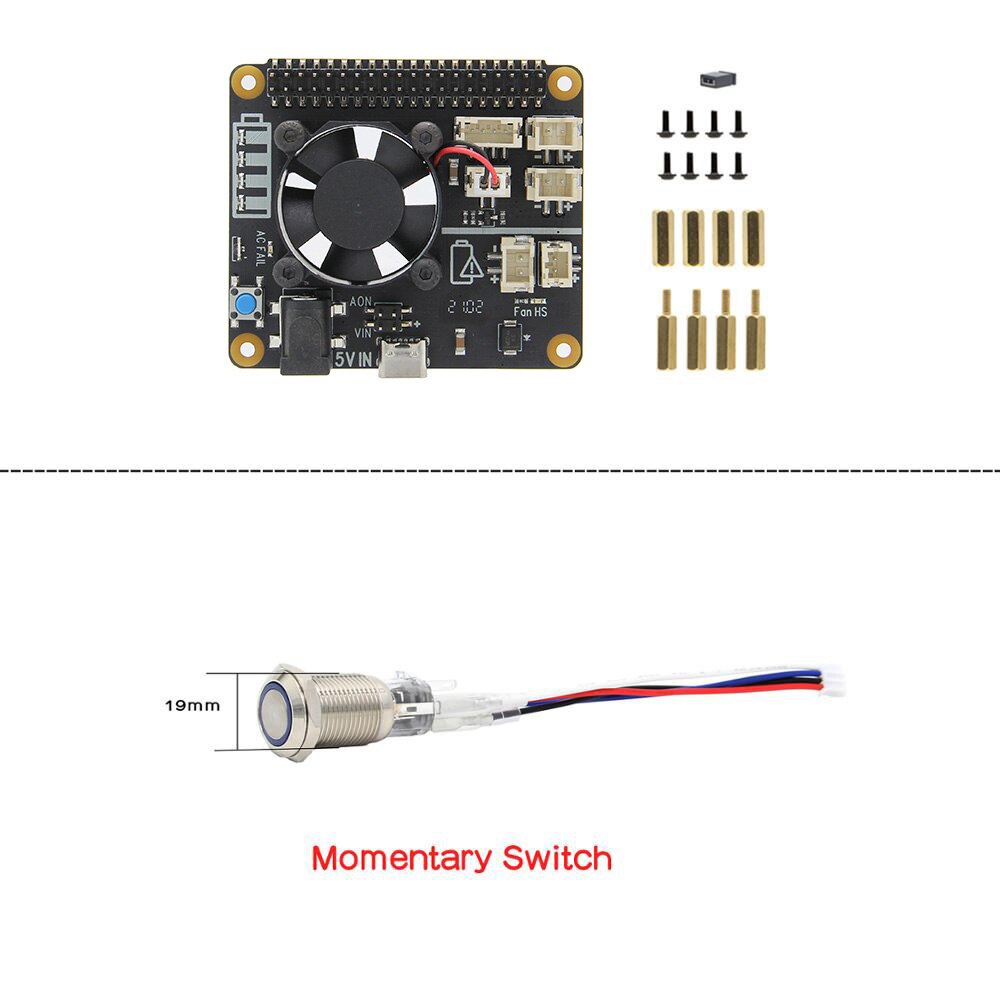

On-board PH2.0 connector allows to connect external power switch and DIY your perfect case
-
On-board XH2.54 power output connector allows to power other devices
-
Mounting holes and standoffs provide mechanical stability of the Raspberry Pi and X708 assembly
-
Power supply via Type-C socket: 5Vdc ±5%, ≥3A; Via DC power jack: 5Vdc ±5%, ≥4A
-
UPS output : 5.1V ±5% Max 8A
-
UPS charging current: 1.8~2.2A / 2.3~3.2A
-
Terminal Battery Voltage : 4.24V
-
Recharge Threshold : 4.1V
-
Battery: 3.7 Lithium Battery
