Raspberry Pi Case-LTRIG

Raspberry Pi Power over Ethernet (PoE) Power Supply Module,X765 802.3at POE HAT Expansion Board for Raspberry Pi 4 Model B / 3B+ customize

Raspberry Pi Power over Ethernet (PoE) Power Supply Module,X765 802.3at POE HAT Expansion Board for Raspberry Pi 4 Model B / 3B+ customize

Regular price $32.77 USD
Regular price $0.00 USD Sale price $32.77 USD
Sale Sold out
Color
Note:
  • The raspberry pi board is not included in the packing list.

  • Don't not apply power to Raspberry Pi the Pi's Micro USB or Type-C power socket.

  • The P165-B heatsink only cmpatible with Pi4

Overview:
  • X765 Power over Ethernet (PoE) expansion board can make your project wiring a breeze - and best of all they work to connect any 802.3at/802.3af-capable router to your Raspberry Pi 3 model B+ and 4 model B. You can now power your Raspberry Pi and other devices in any location with just a single cable. Perfect for removing the clutter of wires and for reliable use in remote locations.

  • This is an economical, practical, high-performance, and reliable Isolated 5V 5000mA PoE+ expansion board with a variety of power output connectors based on IEEE 802.3at standard. It can divide power from a network cable, and can be used with any PoE/POE+ injector that is compatible with IEEE 802.3at /802.3af, and supply power for Raspberry Pi and other non-PoE network equipment.

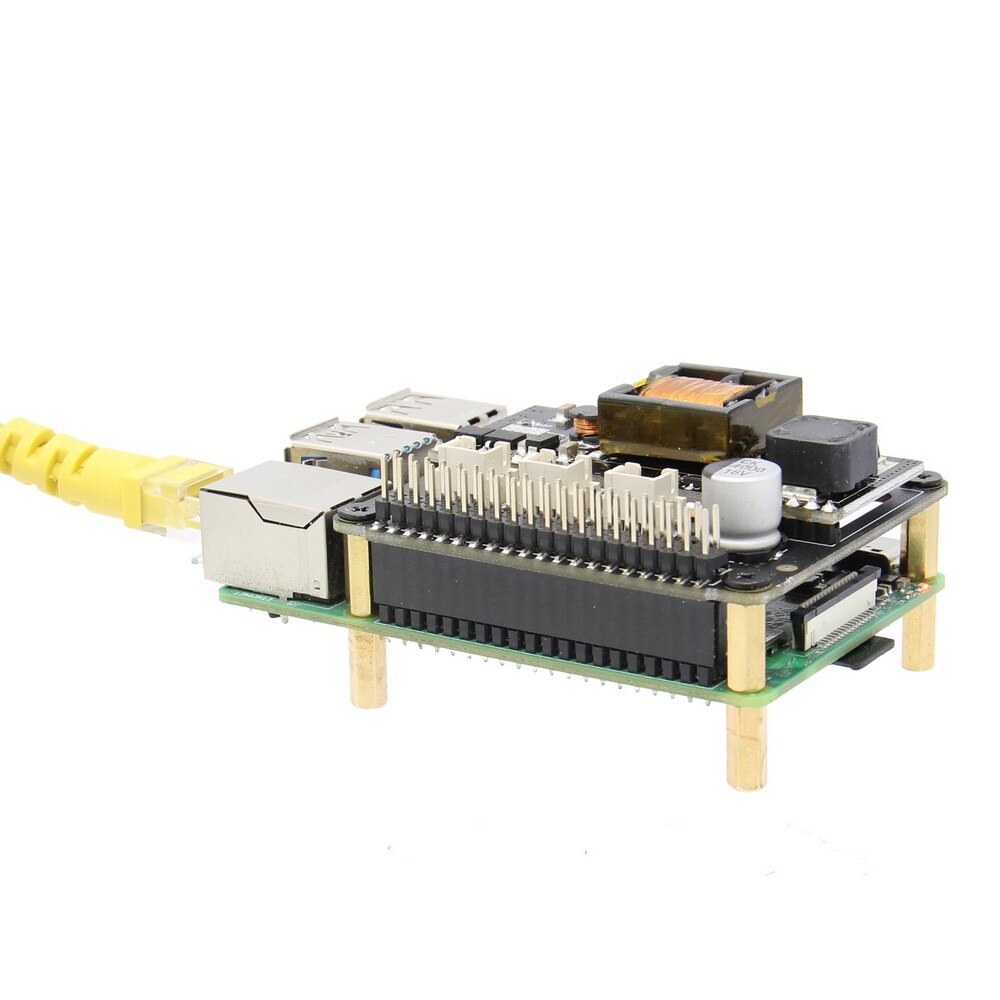

  • Simply attach the standoffs in the four fixed holes of the expansion board, then connect to the Raspberry Pi's pin header using the specially-made daughter board. Once the board is connected, you can power your Pi through the RJ-45 network connector.

  • The X765 board is directly connected on top of the Raspberry Pi using the board GPIO header pins, and no wiring nor soldering is required, and duplicated the 40-pin header of the R-Pi in order to support existing expansion boards. X765 is fully compatible with Raspberry Pi 3B+ and Pi 4 B.

For Use with:
  • Raspberry Pi 4 Model B

  • Raspberry Pi 3 Model B+

OPERATING SYSTEM:
  • All Raspberry Pi operating systems

Key Features:
  • IEEE802.3 AT Standard (backward compliant with 802.3af)

  • Power Output: 5Vdc Max 5A

  • Fully isolated switched-mode power supply

  • Uses Texas Instruments' high-power, high-efficiency PoE interface PD and PWM controller

  • Integrated Short Circuit Protection and Output Over Voltage Protection

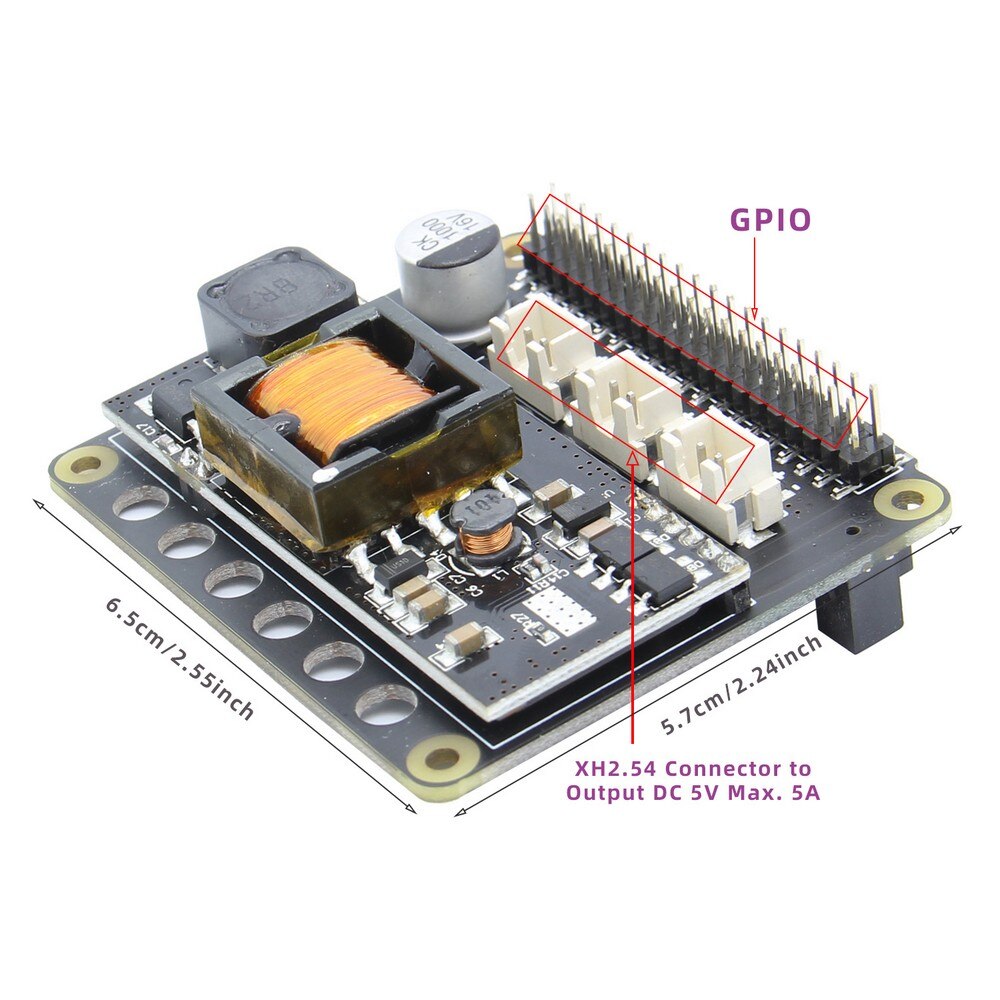

  • Supplies total 5 Amps regulated DC power and output via 3 XH2.54 connectors and 40-pin header

  • Powers the Raspberry Pi via the 40-pin header - no additional cabling required

  • Reserved 40-pin stackable Header for Add-On Boards

  • Fully compatible with X820, X850, X860, X870, X822, X852, X825, X828, X855, X856, X857

  • Mounting holes and standoffs provide mechanical stability of the RPi and X765 assembly

Technical Specification:

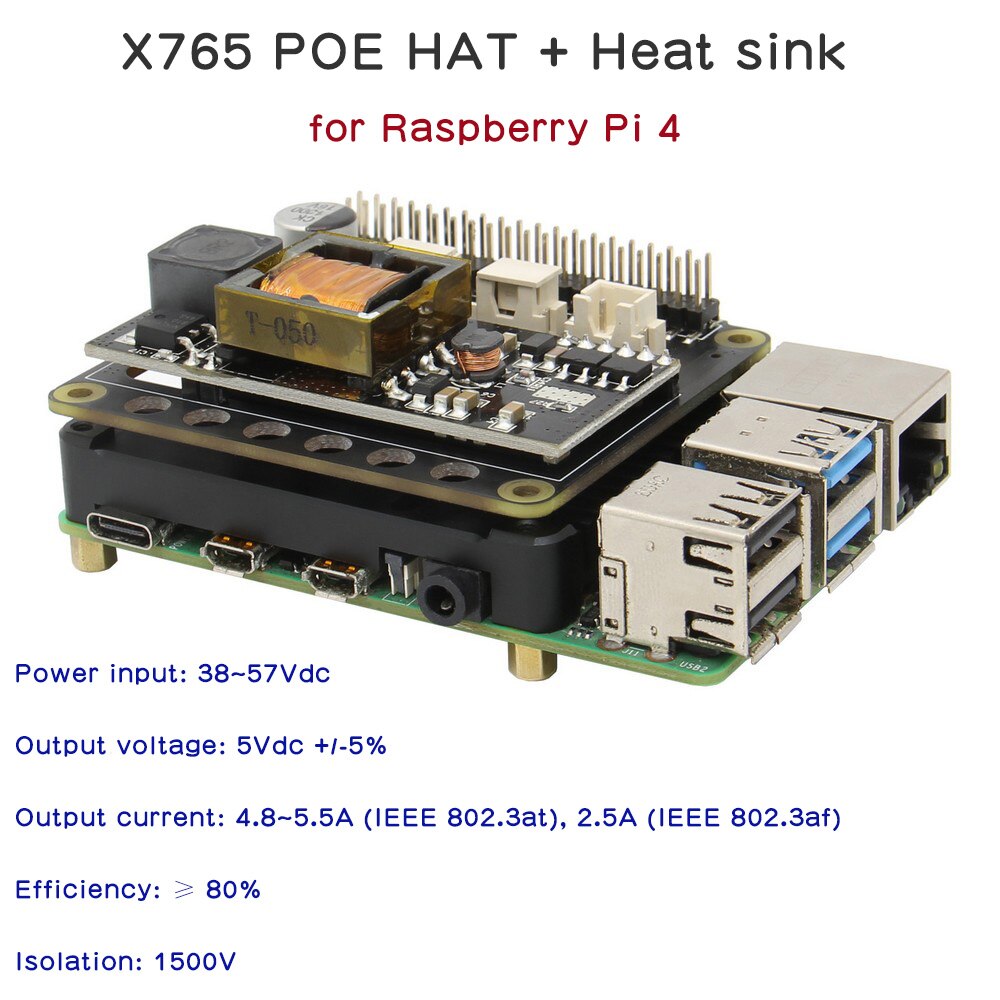

  • Power input: 38~57Vdc

  • Output voltage: 5Vdc +/-5%

  • Output current: 4.8~5.5A (IEEE 802.3at), 2.5A (IEEE 802.3af)

  • Efficiency: ≥ 80%

  • Isolation: 1500V

  • NOTE: - Don't not apply power to Raspberry Pi the Pi's Micro USB or Type-C power socket.

Packing List:

Bundle1:

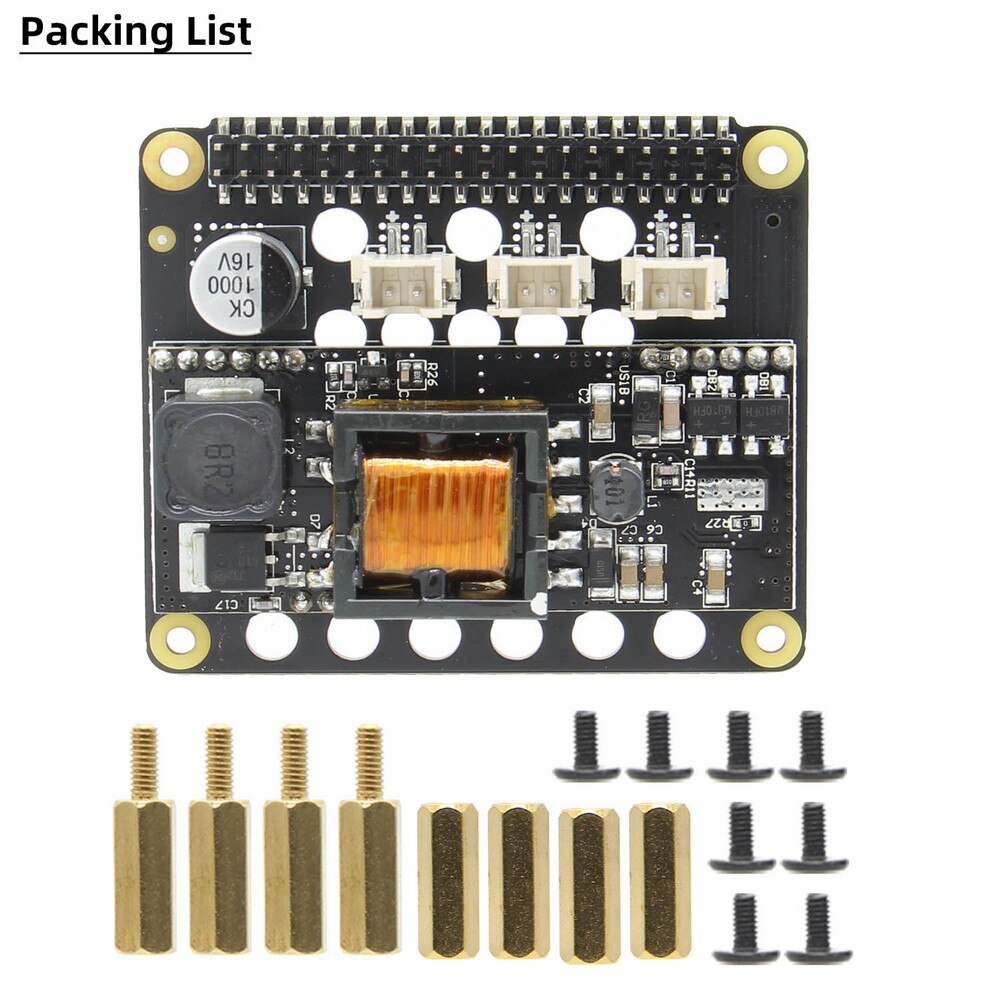

  • X765 POE+ Board x 1

  • Screw M2.5 *6mm x 8

  • Spacer M/F M2.5*12mm x 4

  • Spacer F/F M2.5*12mm x 4

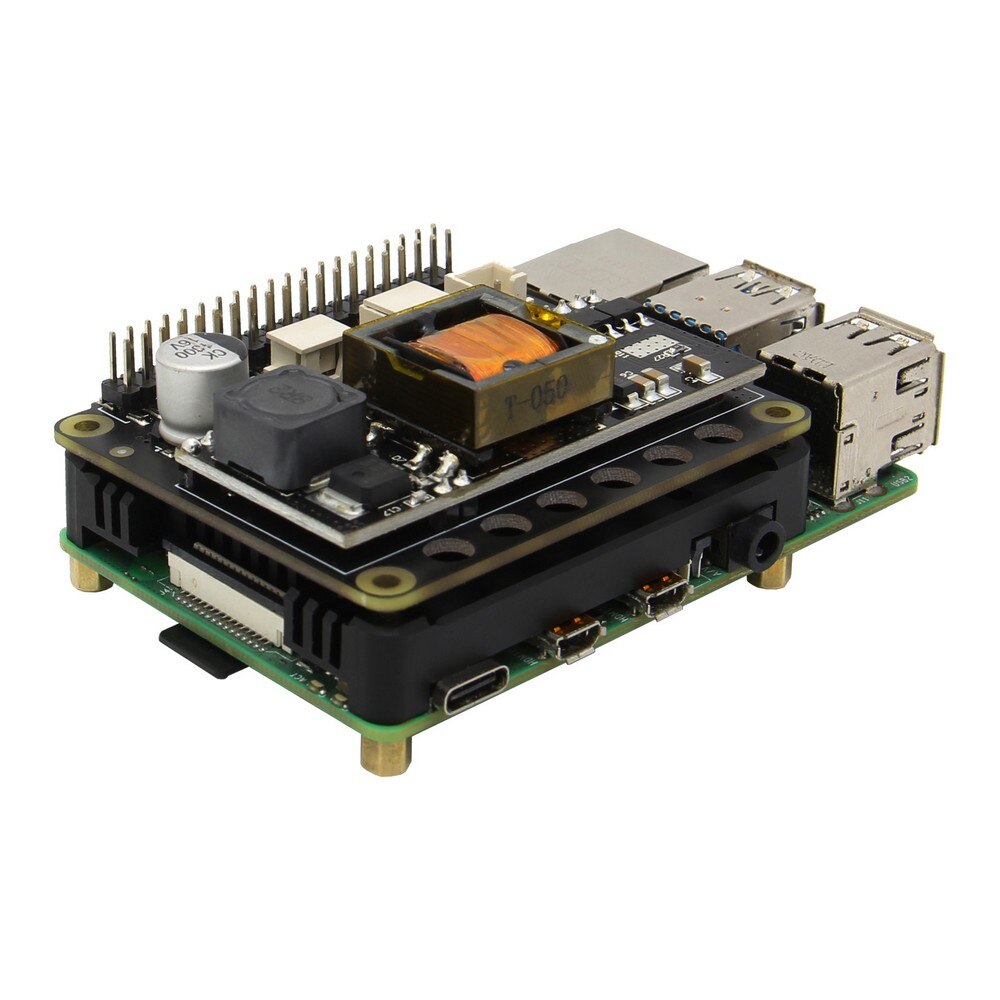

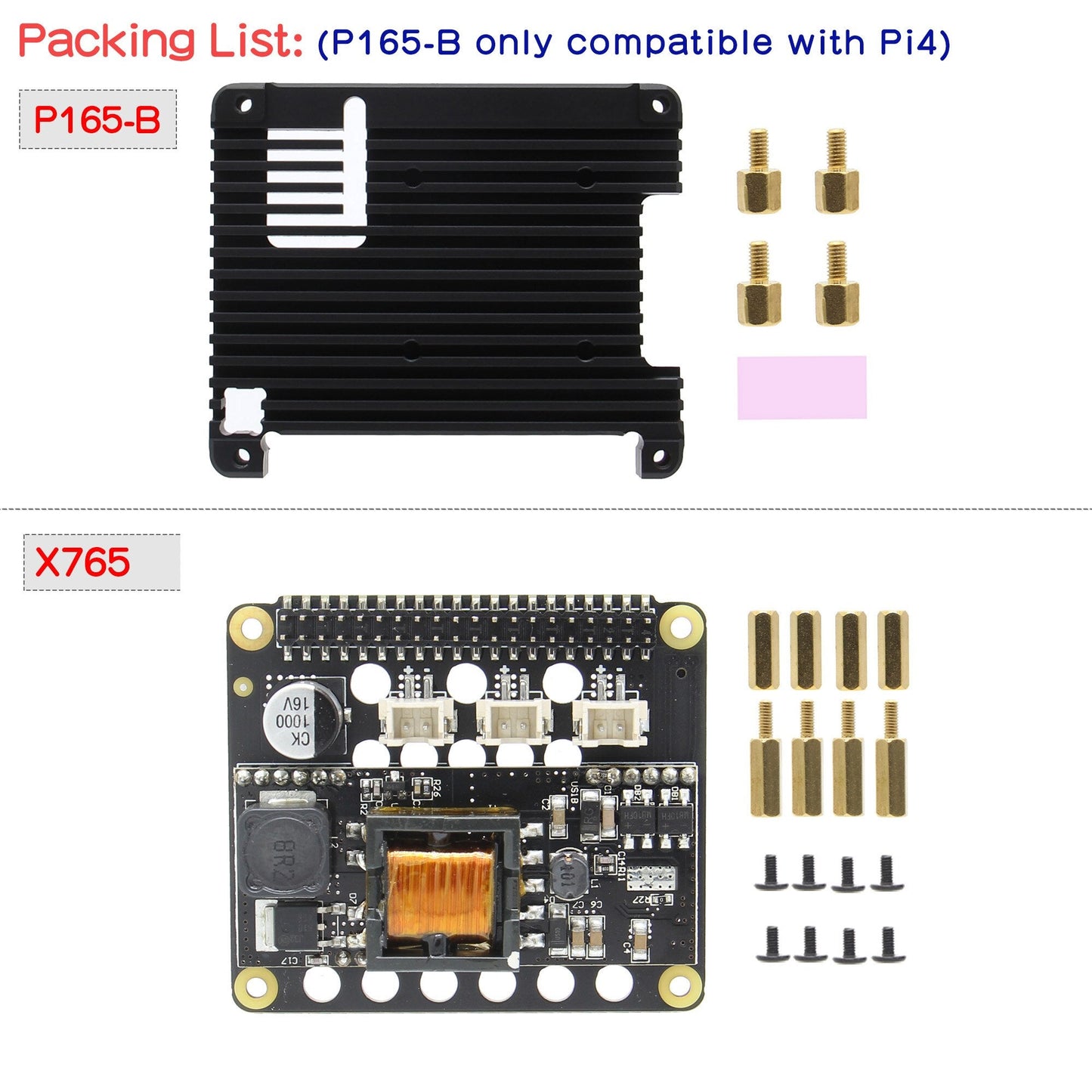

Bundle2:Bundle1 + P165-B Hestsink



 Welcome Customize Order!
