Raspberry Pi M.2 KEY-B 2280 SATA SSD Shield, X862 V2.0 Storage Expansion Board for Raspberry Pi 4 Model B customize

NOTES:

• Not include Raspberry Pi 4 & M.2 Key-B SSD

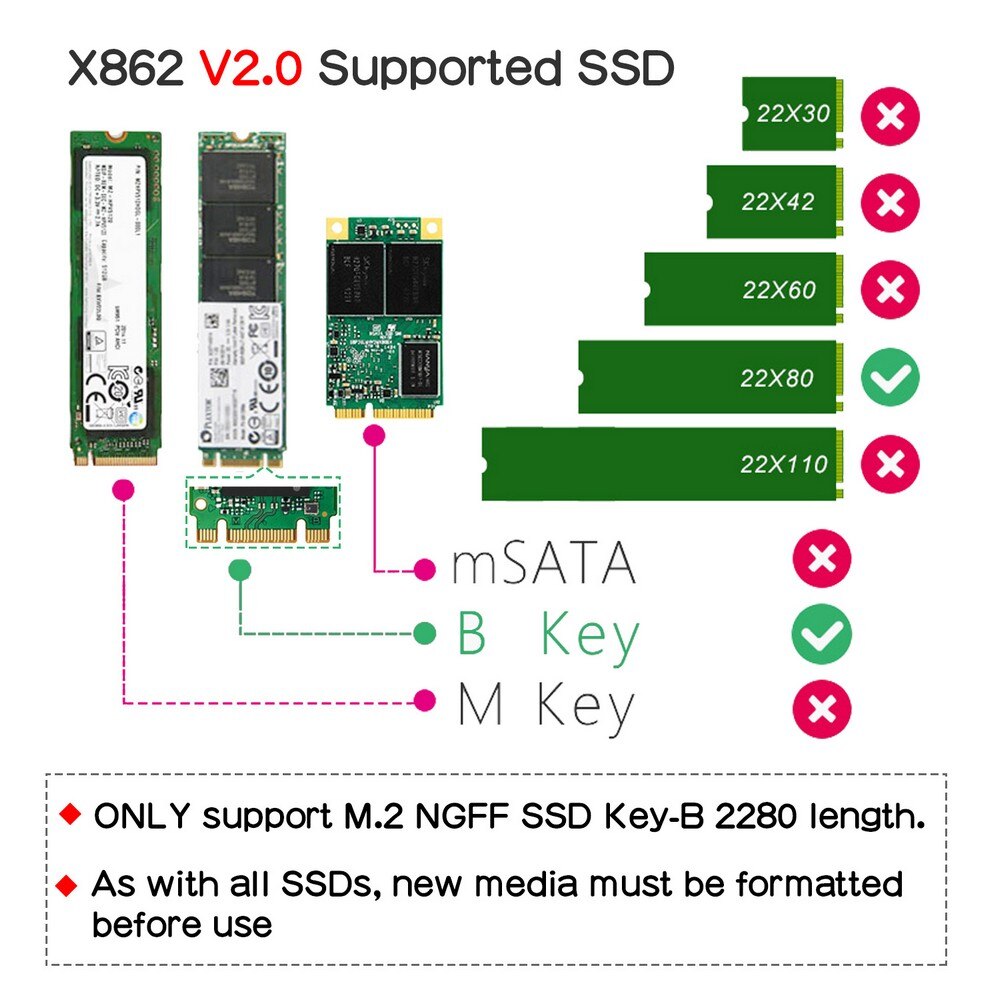

• Only compatible with Key-B SSD length 2280

• Compatible with M.2 NGFF SATA SSDs only, not compatible with NVMe M.2 SSDs

• As with all SSDs, new media must be formatted before use

• SSDs use exceptionally high performance storage media that will run hot when under load

• Older SSD drives with less efficient flash media may not perform as well as newer drives

Matching Metal Case:

• Matching metal case for X862 V2.0 & Raspberry Pi 4B will be released in the near future.The X857-C1 case does not support X862 V2.0.

Overview:

• This is new updated X862 V2.0 version from X862 V1.0. We solve the EMC interference issue between Raspberry Pi 4 and USB3.0 device.

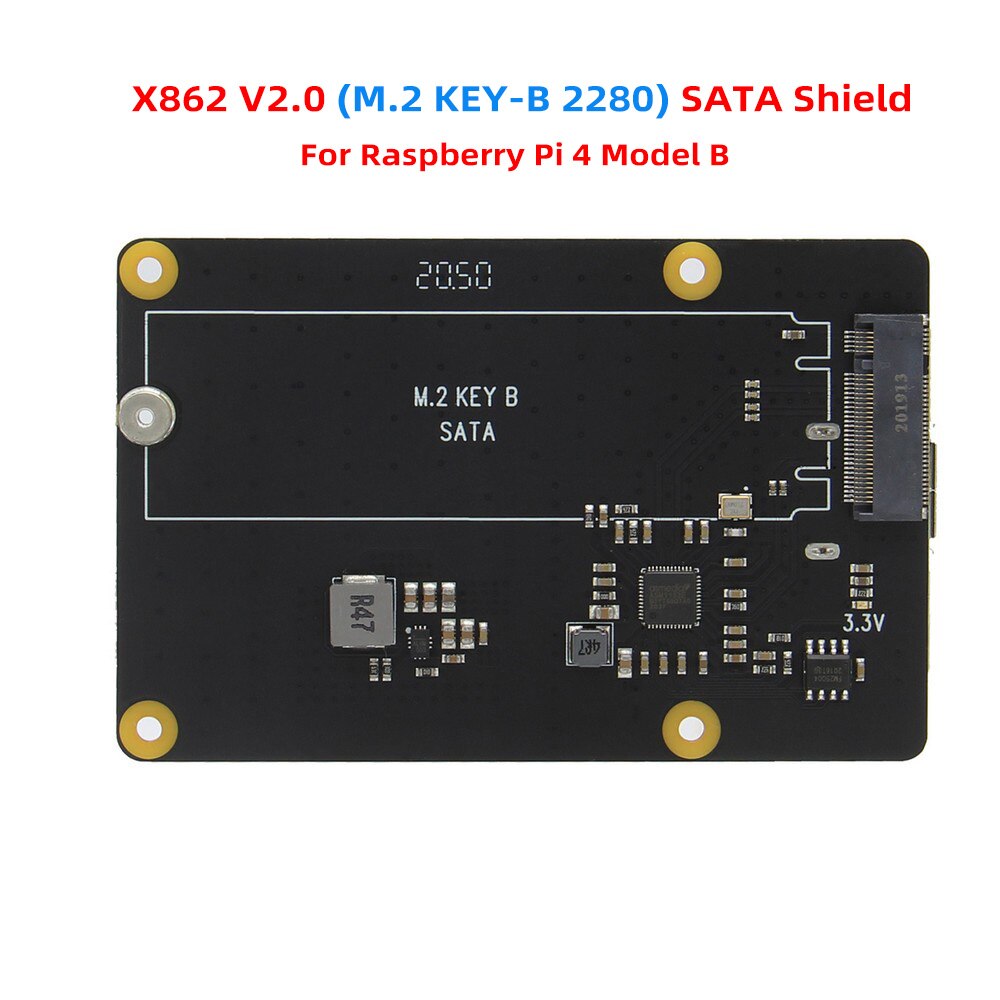

• The X862 V2.0 M.2 NGFF SATA SSD Shield is designed for Raspberry Pi 4 model B, it provides a complete storage solution for Raspberry Pi 4. New X862 V2.0 ONLY support M.2 NGFF SSD Key-B 2280 length. The X860 V2.0 support UASP.

Wiki:

• raspberrypiwiki.com/X862 V2.0

• raspberrypiwiki.com/X708

• raspberrypiwiki.com/X857-C3

For Use With：Raspberry Pi 4 Model B

Operating System：All Raspberry Pi operating systems

Key Features：

• Ideal storage solution for Raspberry Pi 4 - M.2 NGFF SATA SSD Shield

• Supports up to 2TB M.2 NGFF SSD solid-state drive

• Only supports M.2 NGFF SSD 2280 length

• UASP supported for Raspberry Pi 4

• Integrated USB 3.1 Gen1 to SATA 6Gb/s bridge controller

• Integrated high efficiency step-Down Converter, 3.3V max 4A to power the SSD

• USB3.1 Gen1 5Gb/s connectivity offers plug-and-play functionality on your Raspberry Pi 4

• Allows booting OS from your HDD/SSD for faster app opens, web serving and file copying (see note 2)

• LED blue indicator indicates drive status

• Specially-made USB3.1 jumper to connect with Raspberry Pi - no cabling required!

• Fully compatible with X735 for intelligent power management and cooling your Raspberry Pi

• Fully compatible with X710 for wide input voltage (6~36V) and intelligent power management

• Fully compatible with X765 for powering over Ethernet (POE, 5V 5A)

• Fully compatible with X728 for uninterruptible power supply (18650 UPS, 5.1V 8A, smart power mgmt)

Specification：

• Power supply: 5Vdc +/-5% , Powered via USB port by Raspberry Pi 4

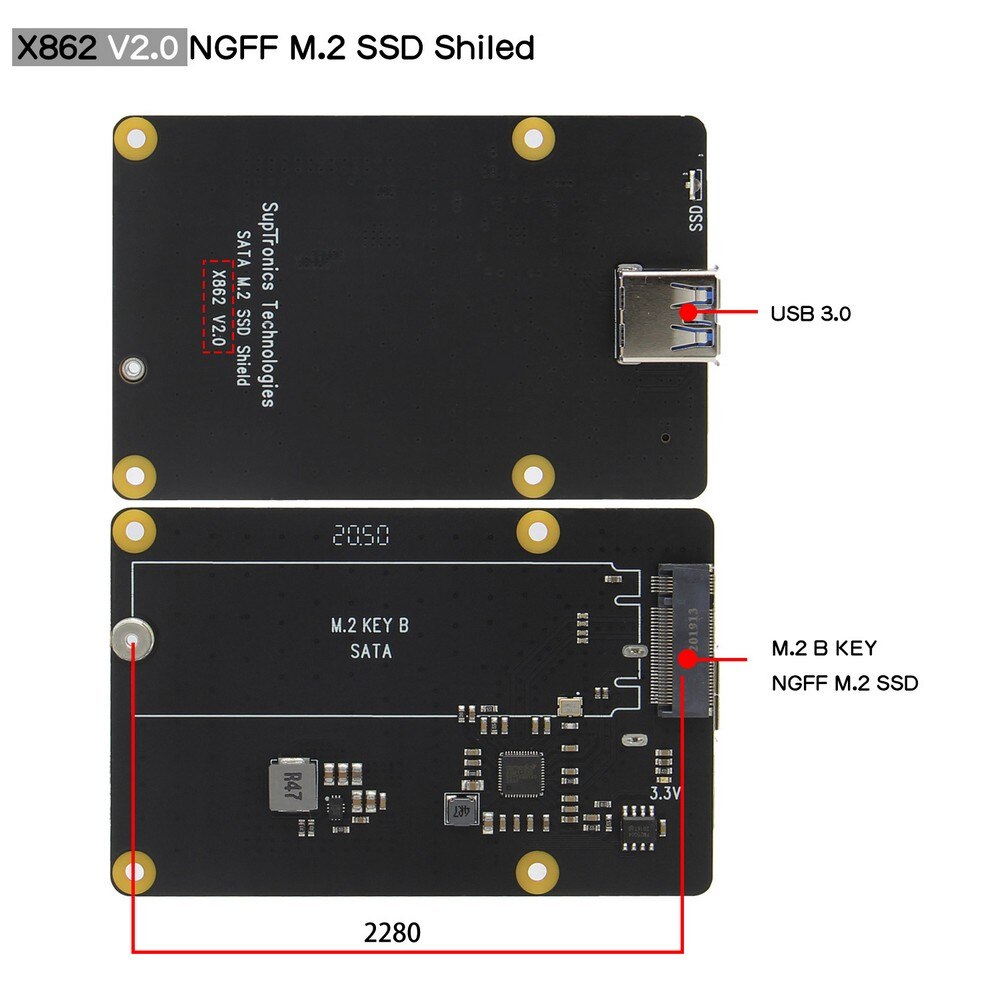

Ports & Connectors：

• USB socket - USB 3.0 type A x1

• 67Pin M.2 connector P=0.5mm, H3.2mm, Key B x1

PCB Size 87mm x 56mm

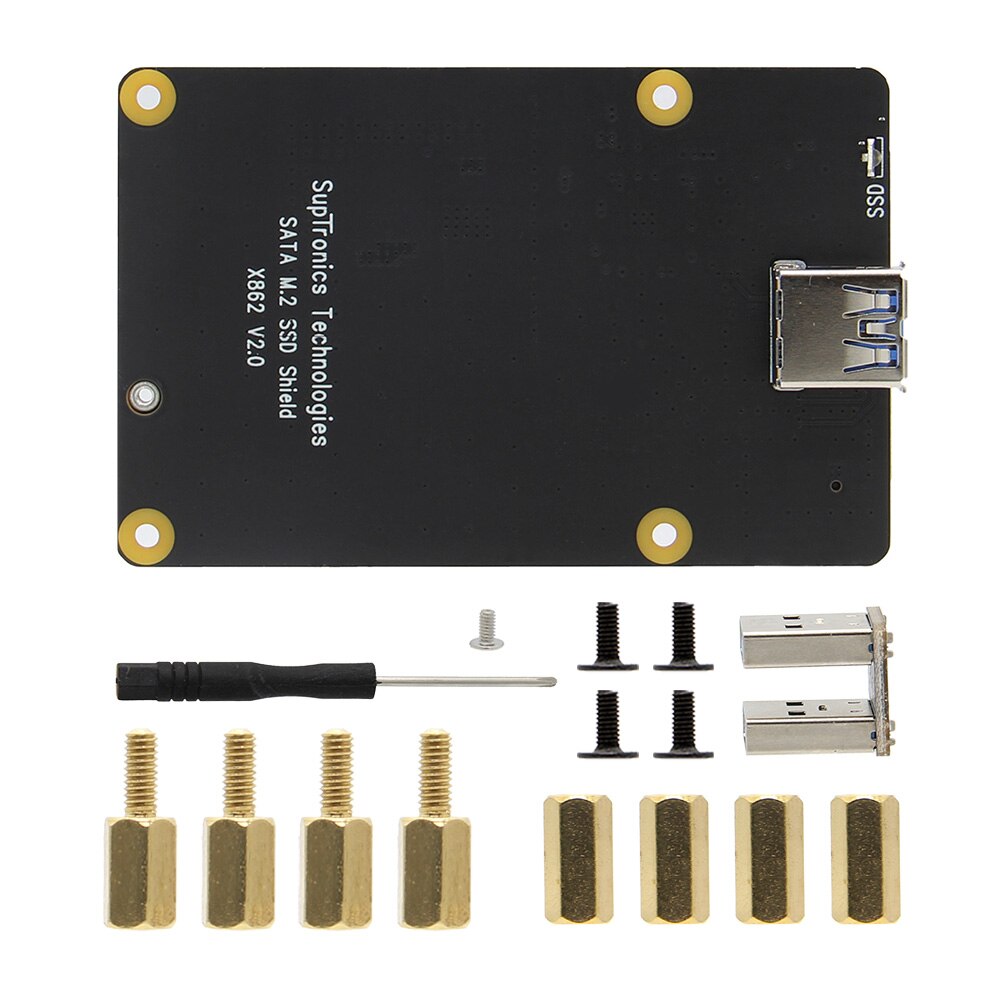

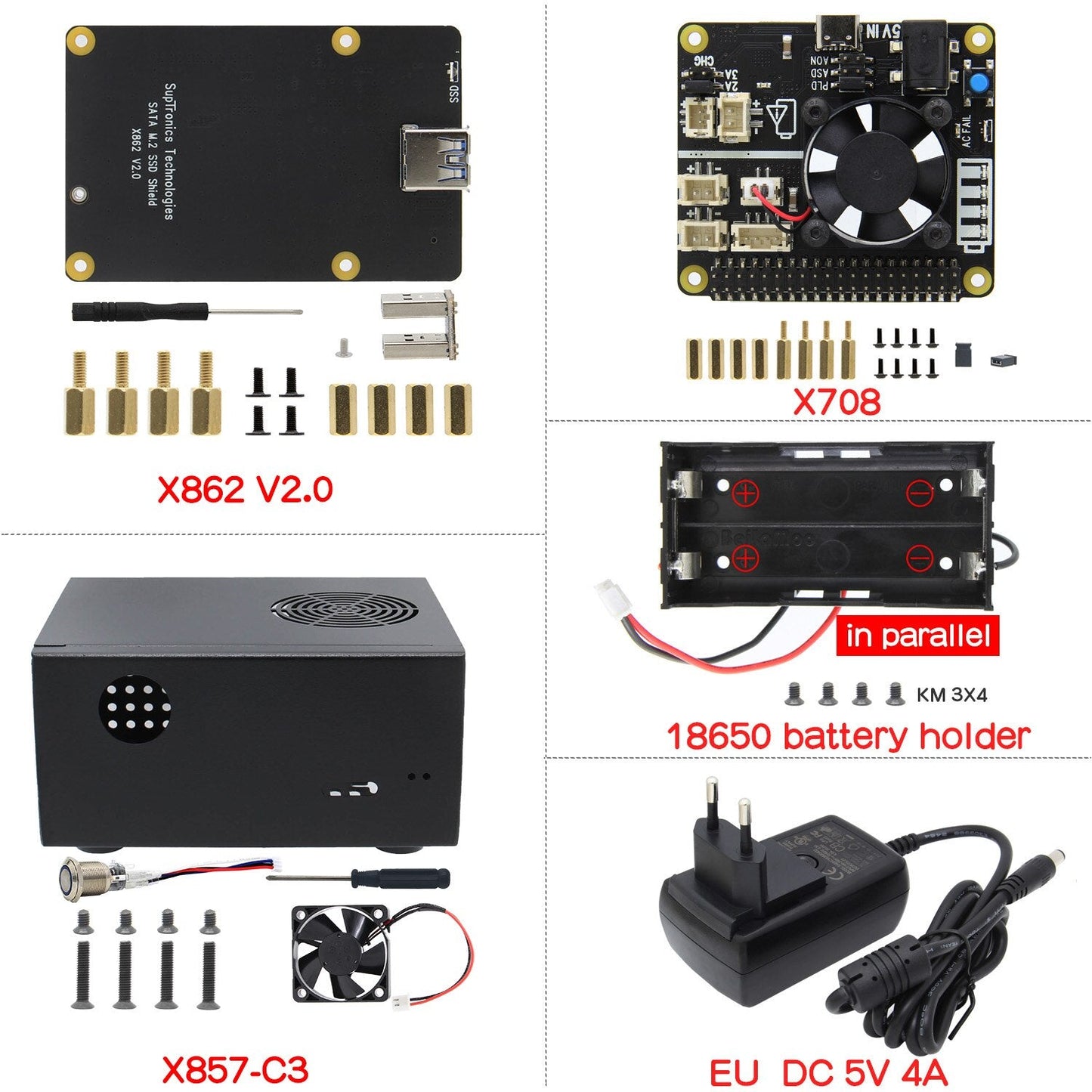

Packing List：

Bundle1：

• 1x X862 M.2 NGFF SATA SSD Shield

• 1x USB3.1 jumper

• 4x Screw M2.5 *6mm

• 4x Spacer M/F M2.5 *7+6mm

• 4x Spacer F/F M2.5 *9.5mm

• 1x Screw driver

• 1x Screw M2 *4mm

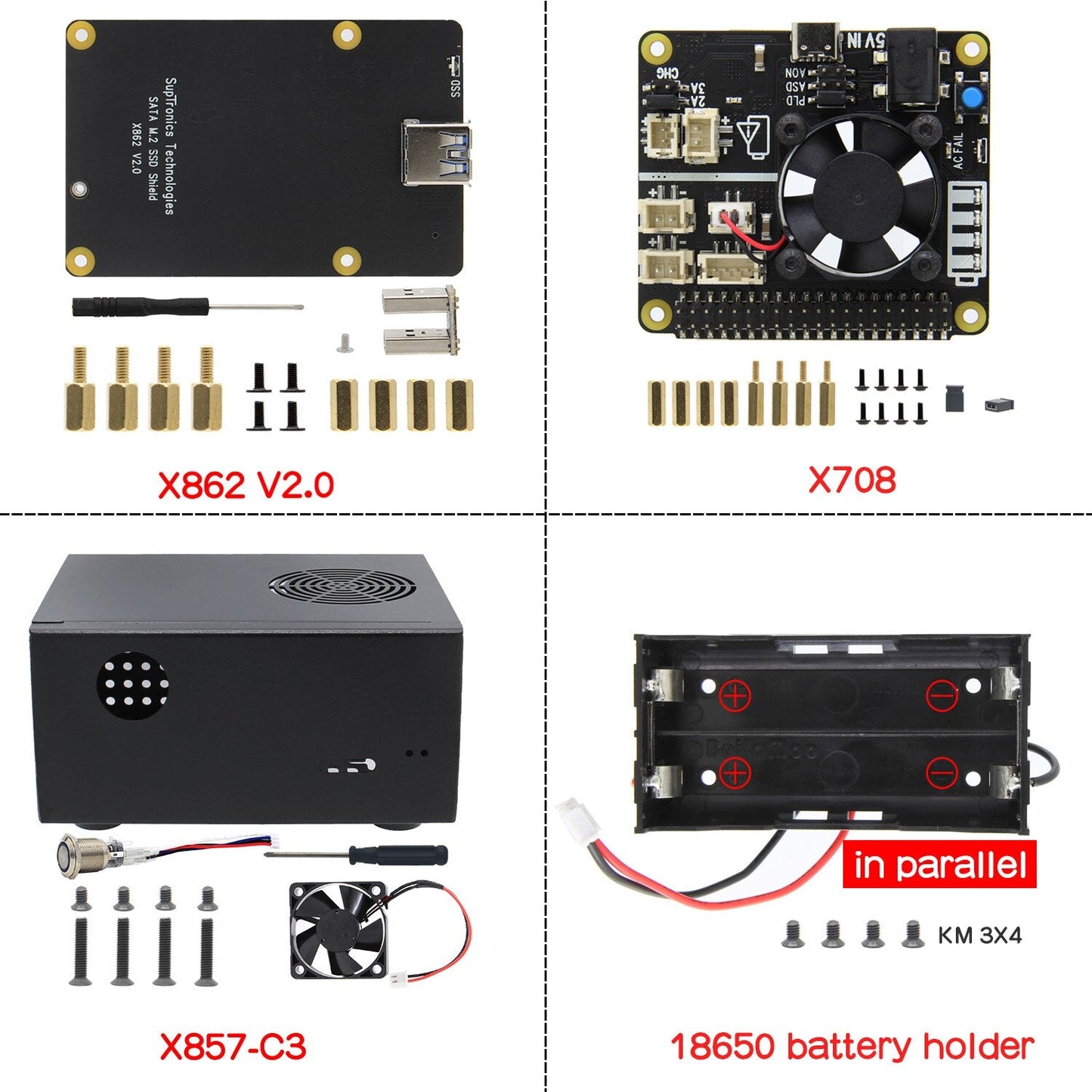

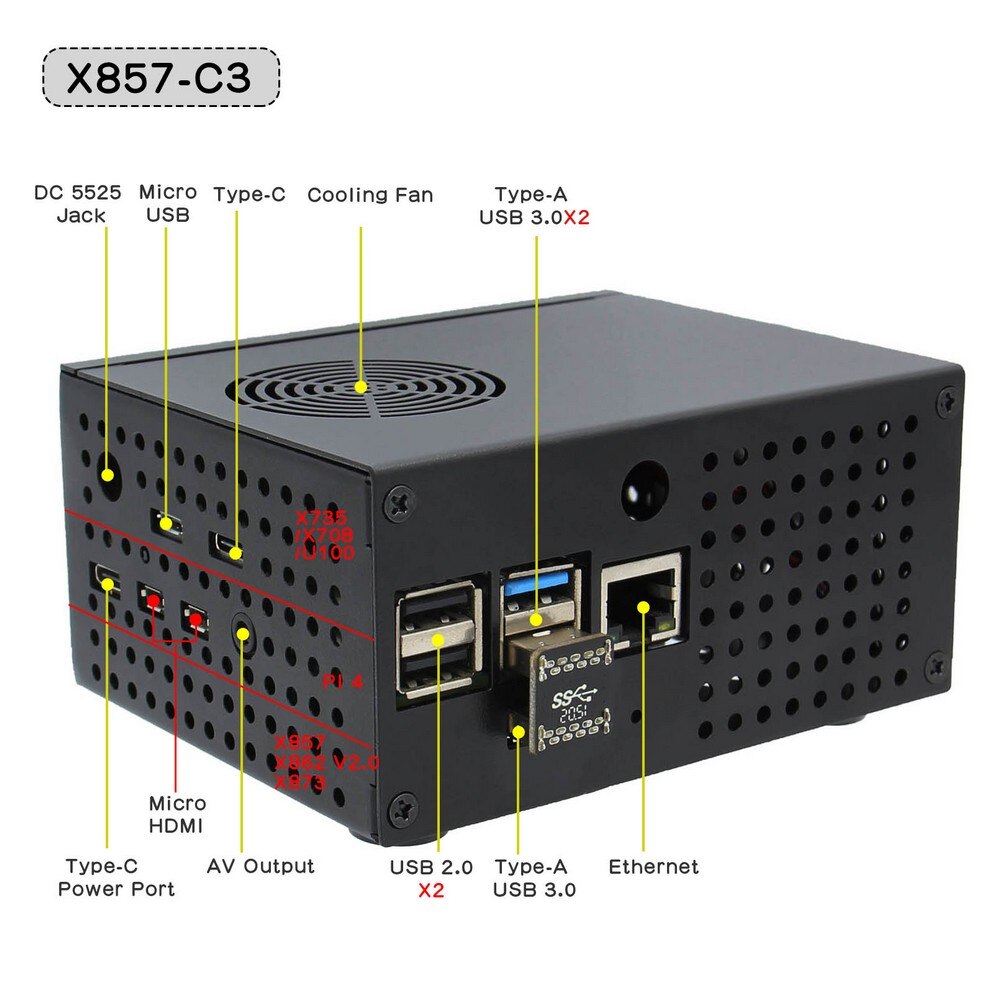

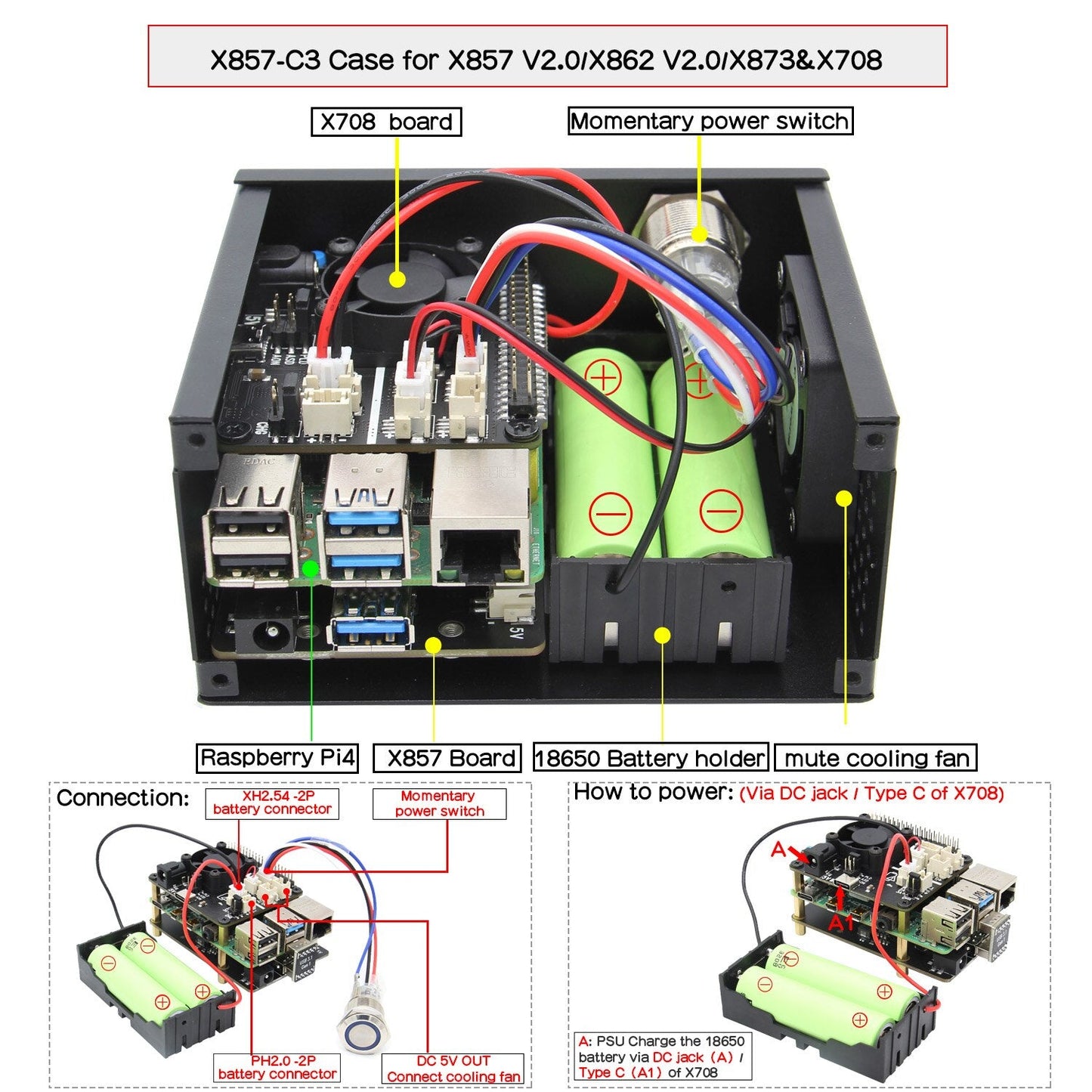

Bundle2： Bundle1 + X857-C3 Metal Case +X708 UPS Board + Battery holder

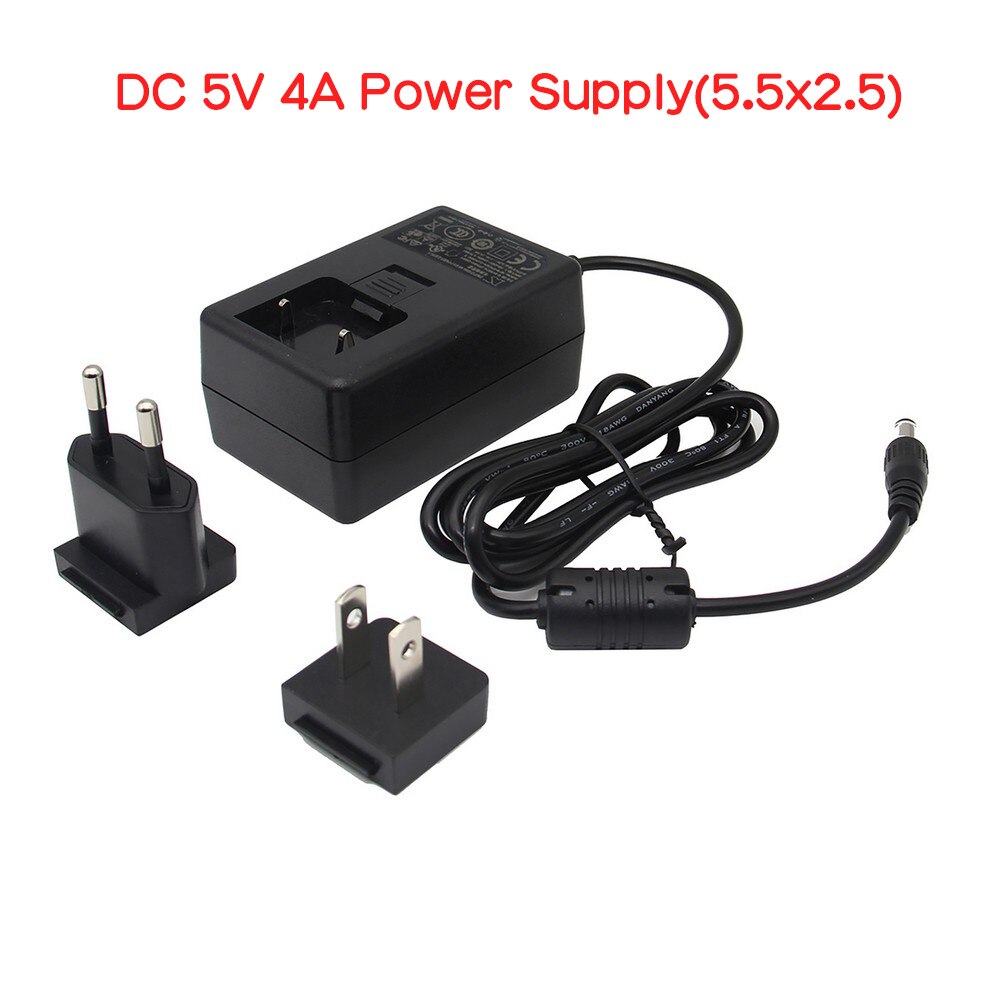

Bundle3： Bundle2 + DC 5V 4A Power supply（EU）

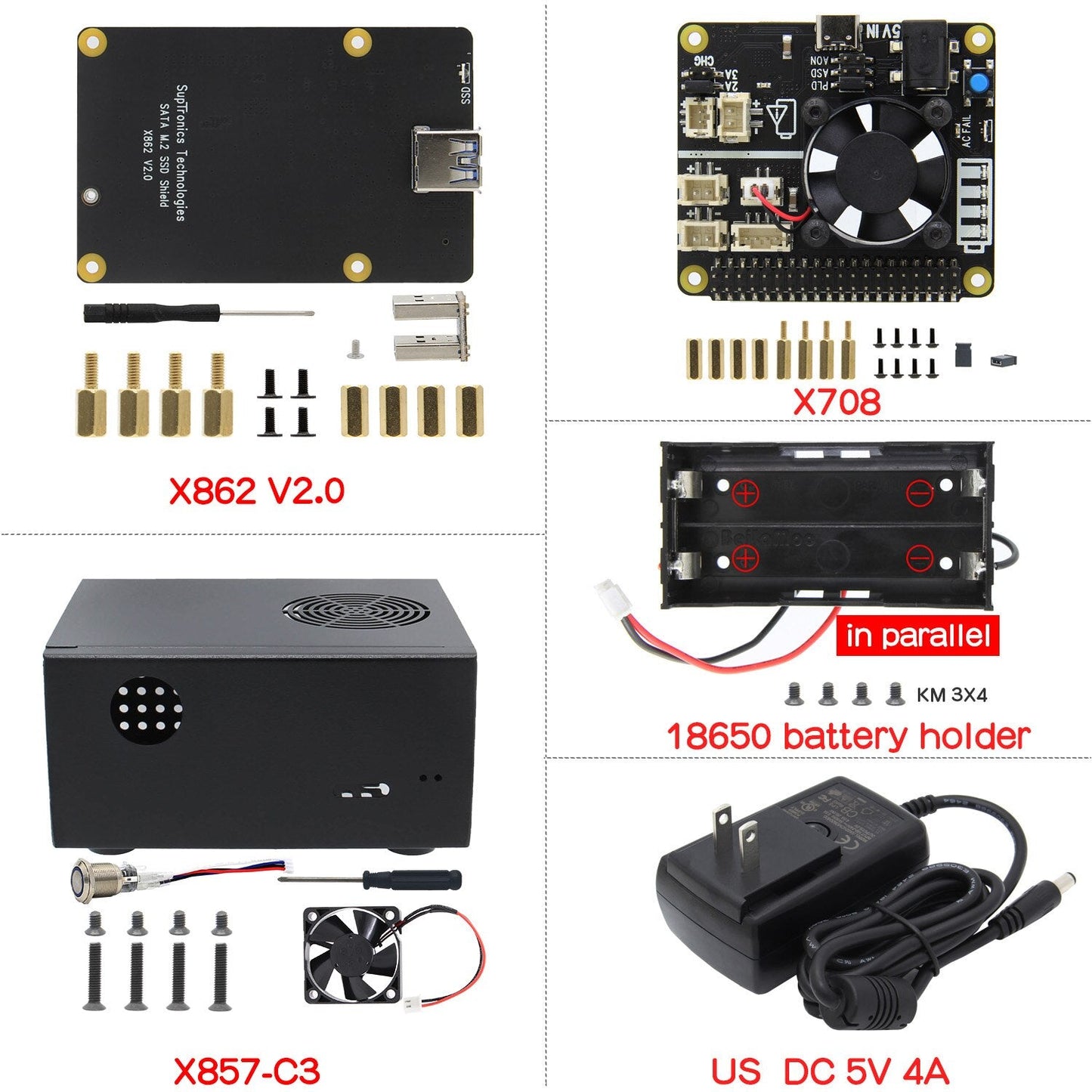

Bundle4： Bundle2 + DC 5V 4A Power supply（US）

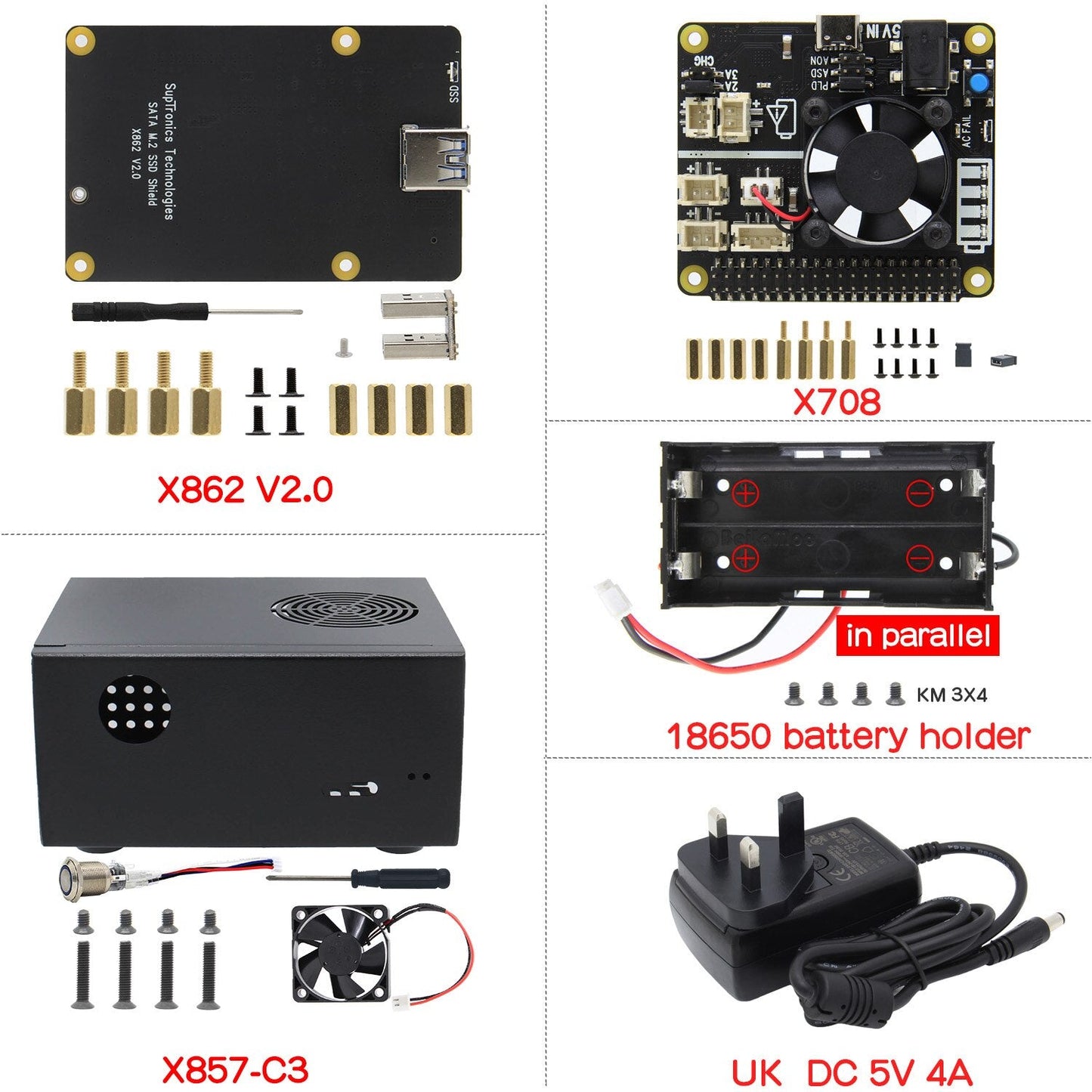

Bundle4： Bundle2 + DC 5V 4A Power supply（UK）
