Custom Raspberry pi e 2 Raspberry Pi 7 inches of liquid crystal display suite N070ICG LD1/LD4 IPS HD + VGA + 2 av 1280 x800 car DIY Manufacturer

A: power solutions

1.1:5 v and 24 v electric power supply is suitable for wide used car environment

2.1:5 v2a power supply available computer USB power supply directly,

2: shipping list:

2.1: N070ICG - LD1 LCD screen 1 piece

2.2: HD astern priority driver board 1 piece

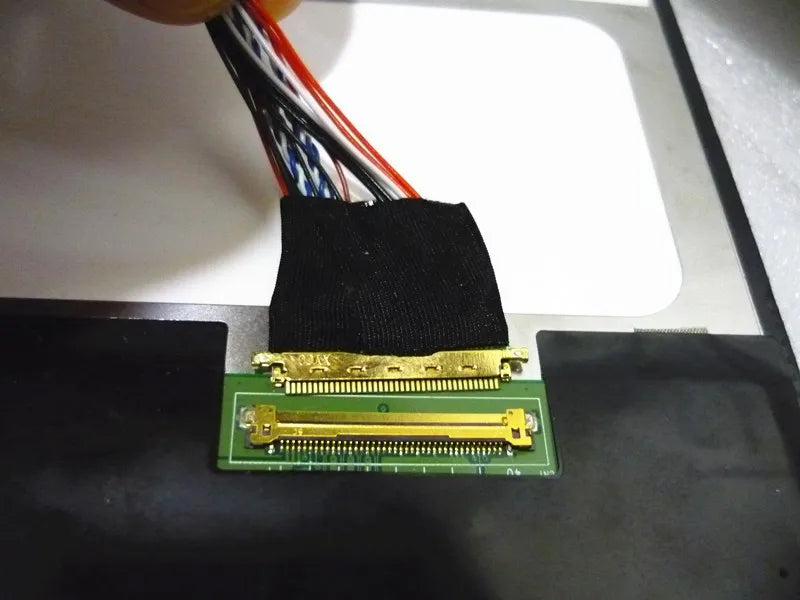

Article 2.3: an LVDS line 1

2.4: AV2 reversing video connector 1; Priority control line 1 the backing out

1 2.5: the five key press the keypad, remote control one

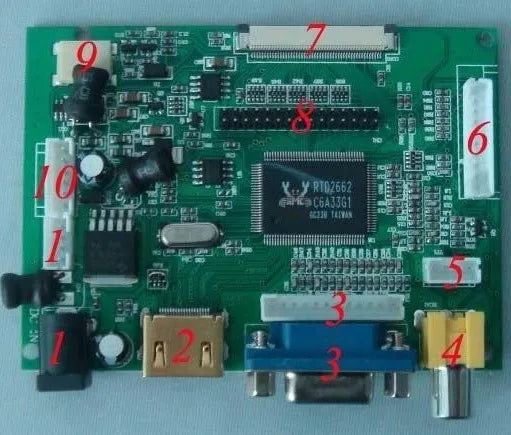

Driver board:

1: an LVDS interface LCD panel for 3.3 V voltage.

2: the driving belt VGA (computer), AV1 (video input), AV2 reversing video priority function, HDMI (support 1080 p), the basic functions.

3: to support the resolution 1920 x and below; The p

hysical resolution of 1280 x800

PANEL DETAIL

Panel Size :

7.0 inch

Panel Type :

a-Si TFT-LCD

Composition :

Panel

Resolution :

1280×800

Mode :

IPS, Normally Black, Transmissive

Surface :

Glare (Haze 0%), Hard coating (3H)

Brightness :

400 cd/m2 (Typ.)

Contrast Ratio :

800:1 (Typ.)

Display Color :

16.7M

Viewing Angle :

89/89/89/89 (Typ.)(CR≥10)

Frequency :

60Hz

Lamp Type :

9S2P WLED

Signal Type :

LVDS (1 ch, 8-bit)

RoHS Compliance :



Application :

MID UMPC, P
