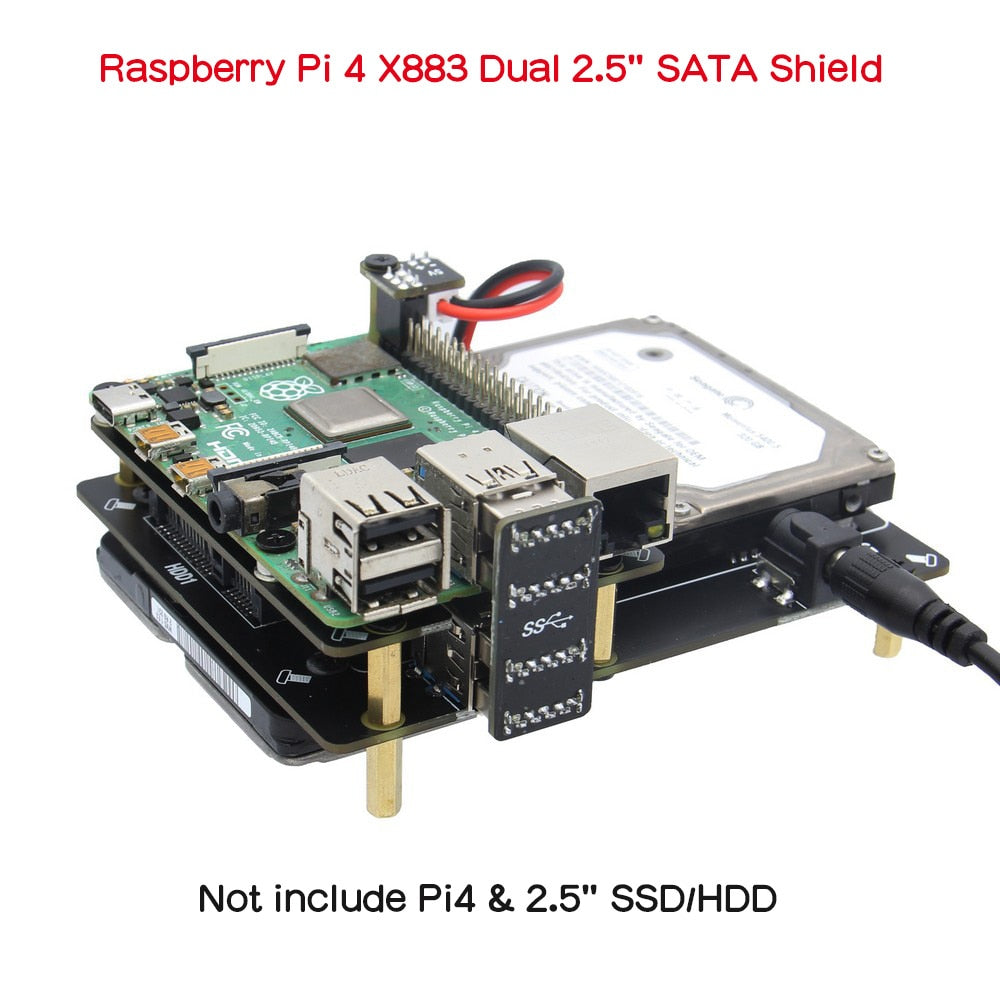

Raspberry Pi Dual 2.5inch SATA HDD/SSD Storage Expansion Board,X883 Shield with USB 3-D Connector for Raspberry Pi 4 Model B customize

Overview

• This is an ultra-compact raspberry pi 4 dual 2.5 inch sata hdd/ssd storage board X883, it allows two 2.5" HDD/SSD to working at the same time with your Raspberry Pi 4. The SuperSpeed USB 3.0 port delivers a blistering data transfer rate of up to 5Gbps, letting you transfer a large amount of data in seconds.

• The built-in LED light indicates the reading or writing status – no more guesswork again.



Note:

• Raspberry pi, 2.5" SATA SSDs/HDDs, power adapter are all not included

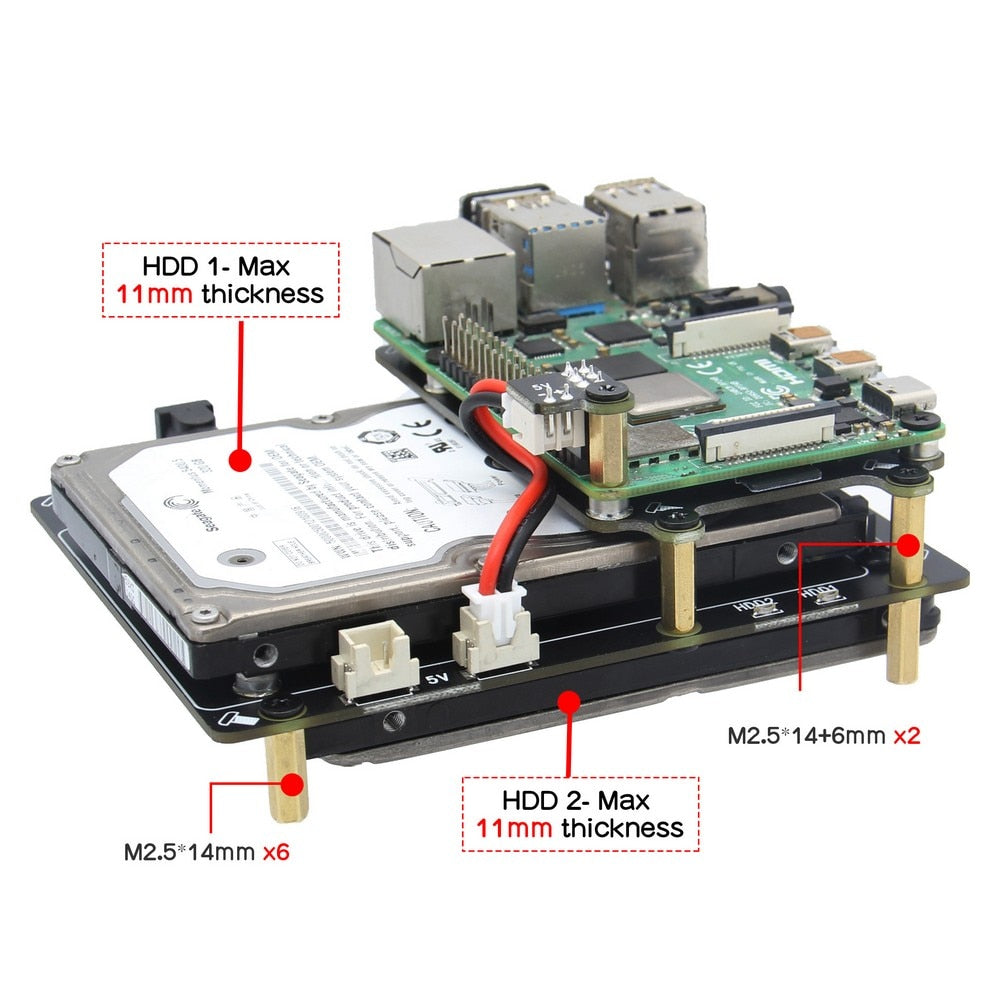

• Due to installation restrictions, please pay attention to the thickness of the hard drive

• As with all SSDs, new media must be formatted before use

• Older SSD drives with less efficient flash media may not perform as well as newer drives

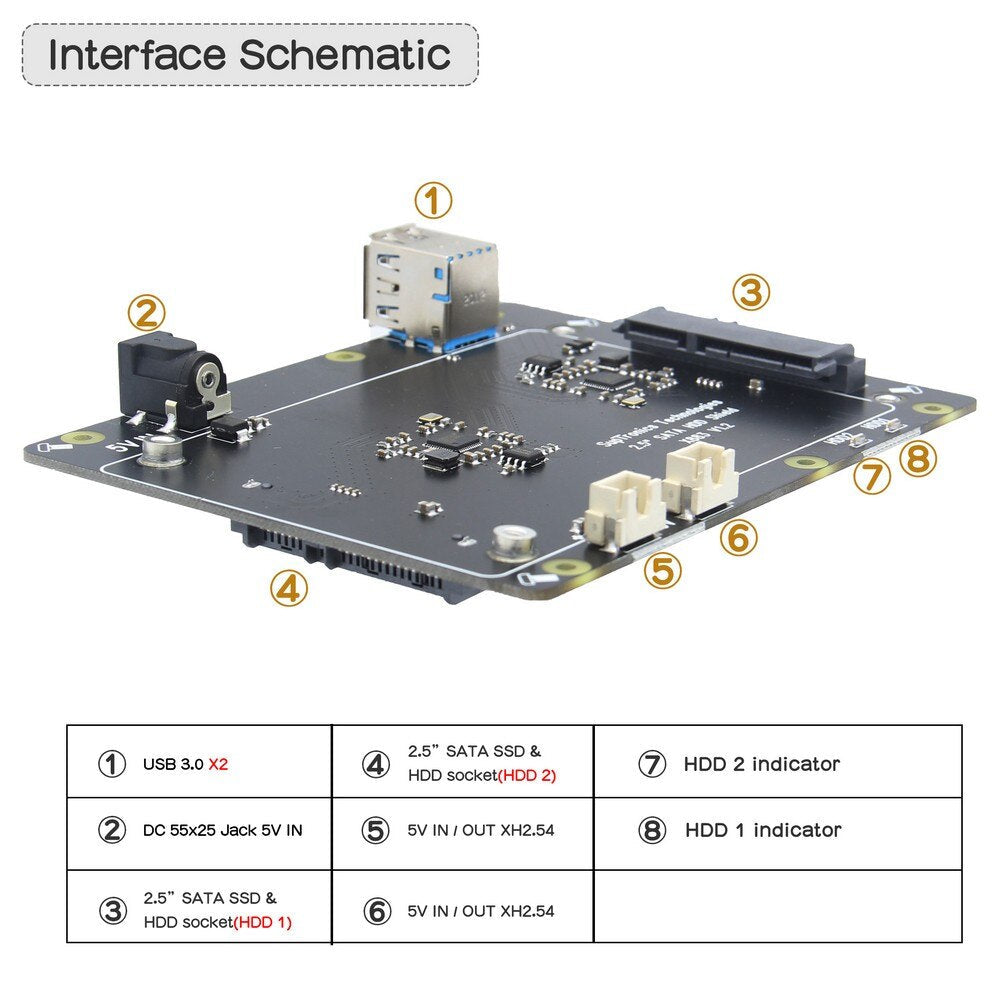

Features

• Ultra-compact storage solution for Raspberry Pi 4 - Dual 2.5" SATA HDD/SSD Shield

• Supports dual 2.5 SATA HDDs/SSDs working at the same time

• Allows booting OS from your HDD/SSD for faster app opens, web serving and file copying

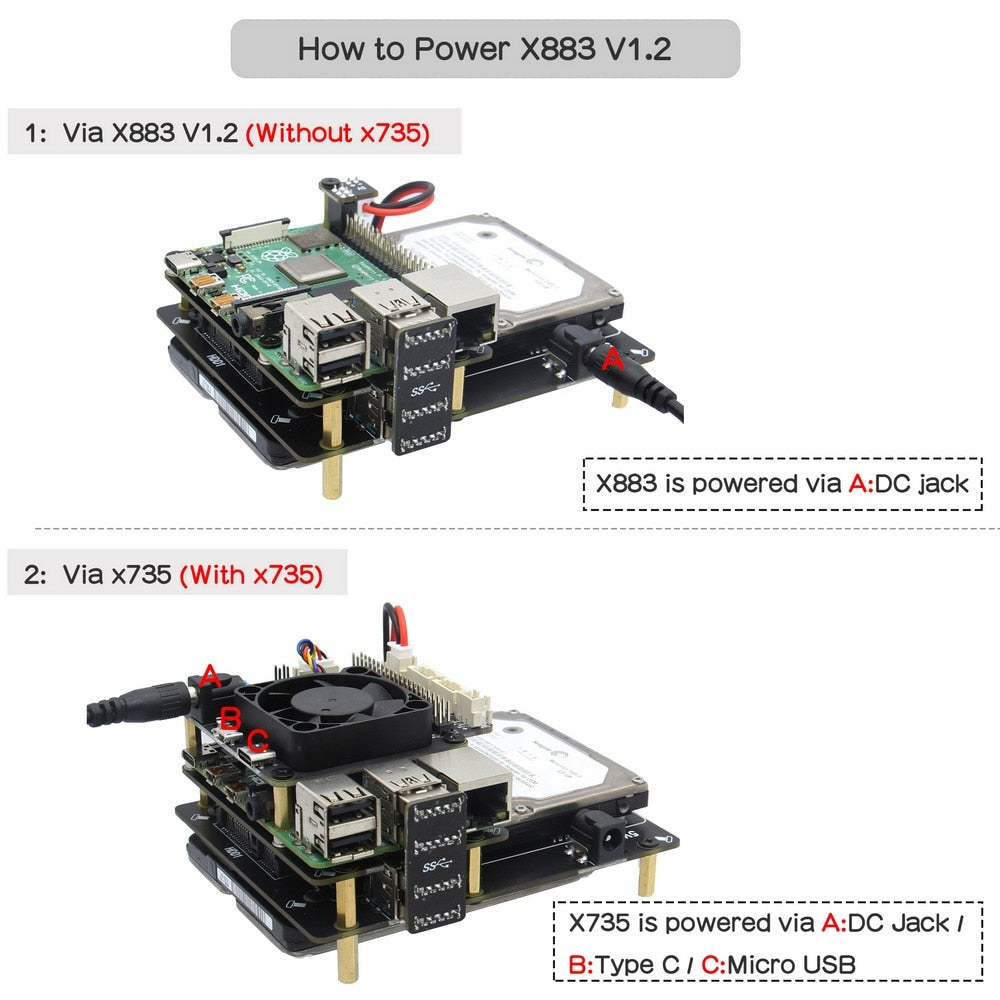

• Function to power the RPI via XH2.54 only needing a single power supply

• Integrated USB 3.1 Gen1 to SATA 6Gb/s bridge controllers

• Quick file transfer with high-speed USB3.1 5Gb/s connectivity from a PC or a Mac

• LED blue indicator indicates each drive status

• Fully compatible with X735 for intelligent power management and cooling your Raspberry Pi

• Fully compatible with X765 for powering over Ethernet (POE, 5V 5A)

• Fully compatible with X728 for uninterruptible power supply (18650 UPS, 5.1V 8A, smart power mgmt)



Power Supply Requirement

• Power supply: 5Vdc +/-5% , ≥4A

• Ports & Connectors: DC jack - 5.5x2.5mm

• Pls use high quality power adapter, or the HDD/SSD may cannot be recognized.

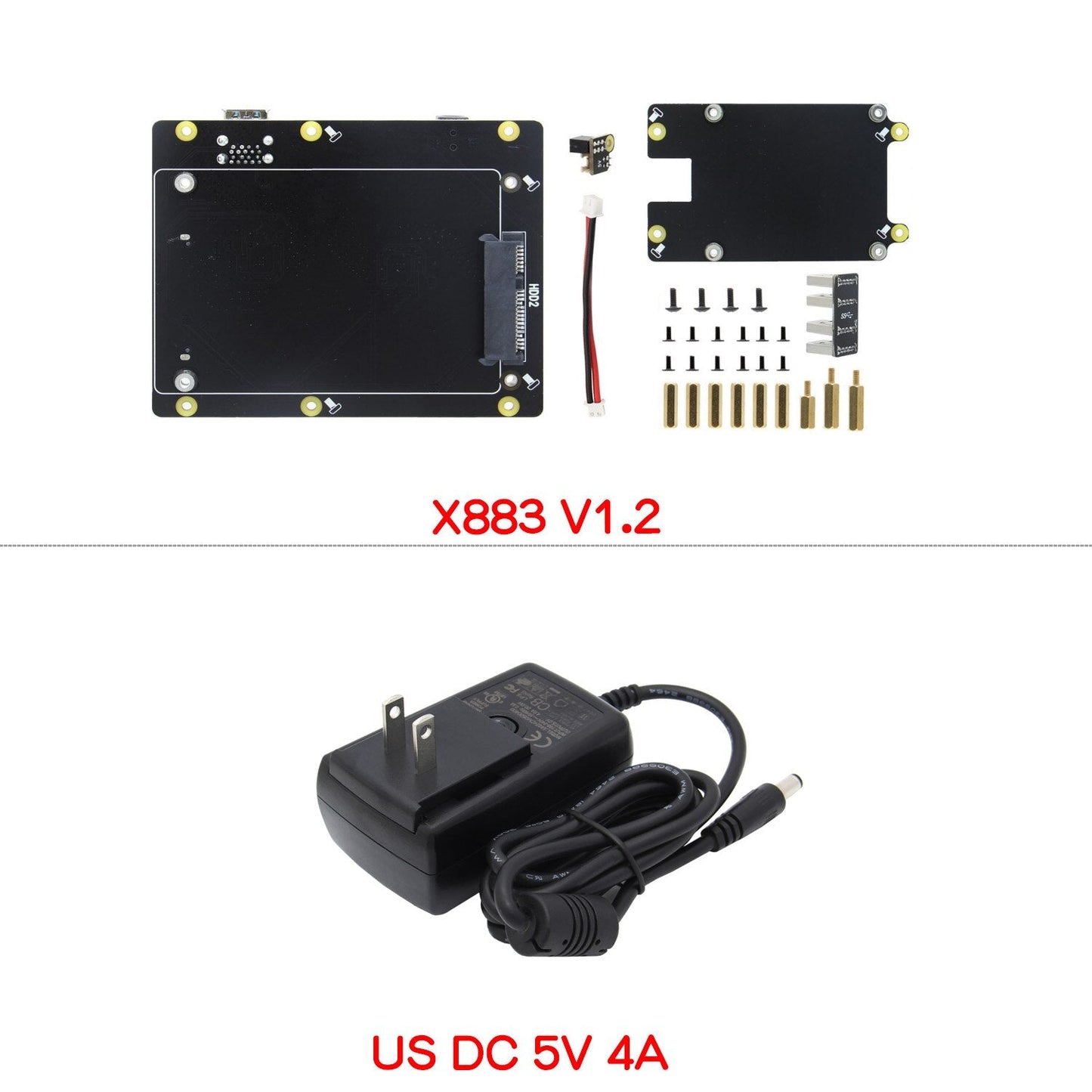

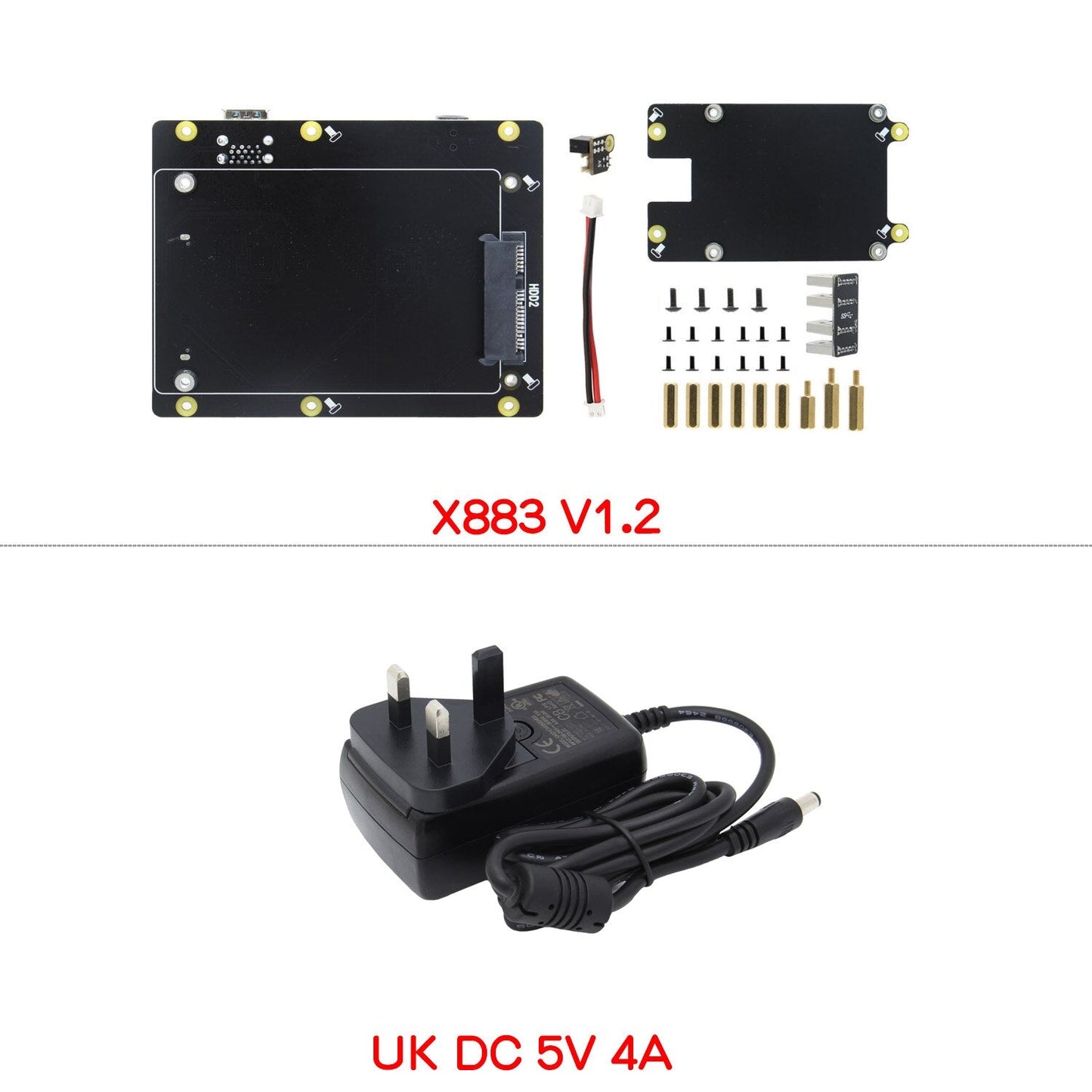

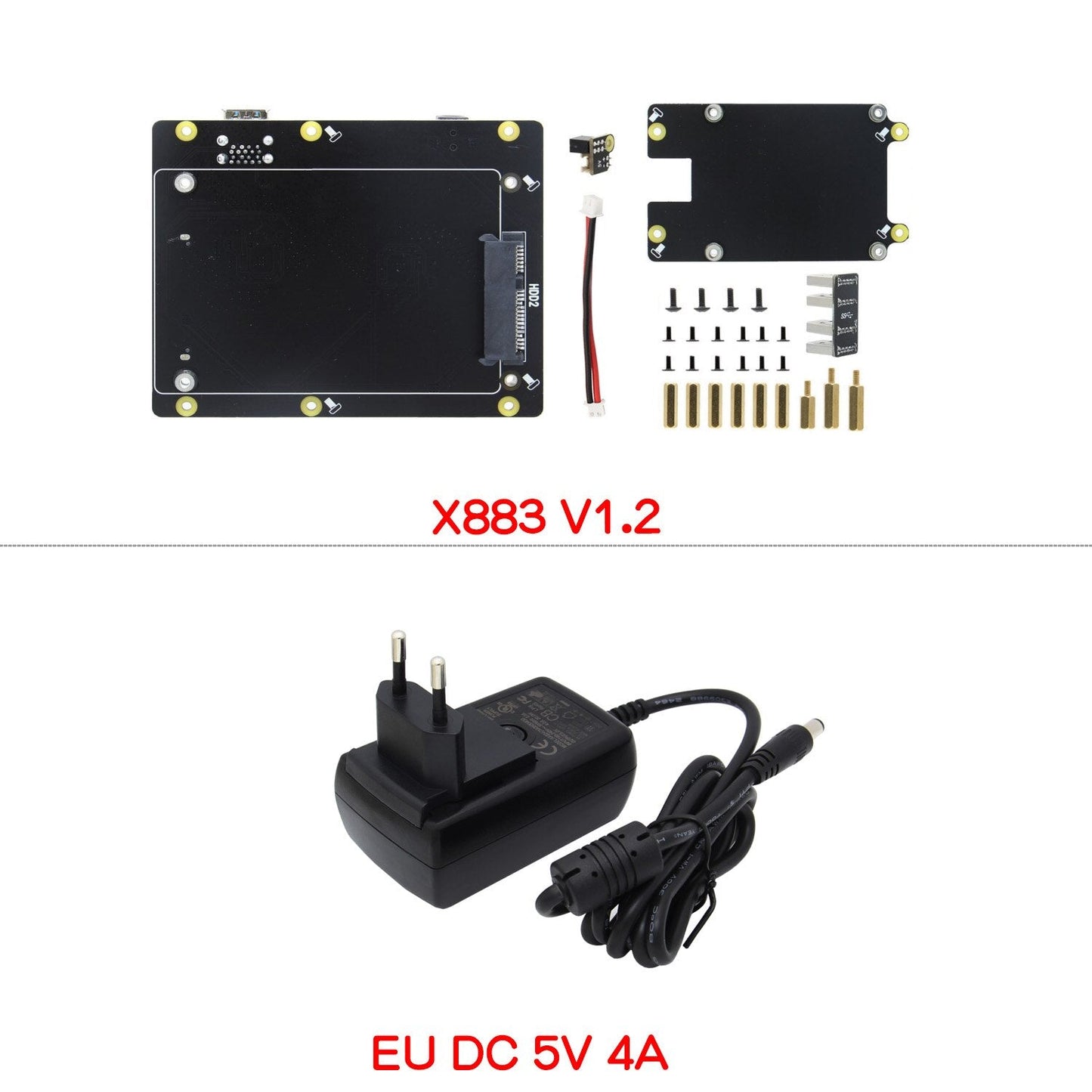

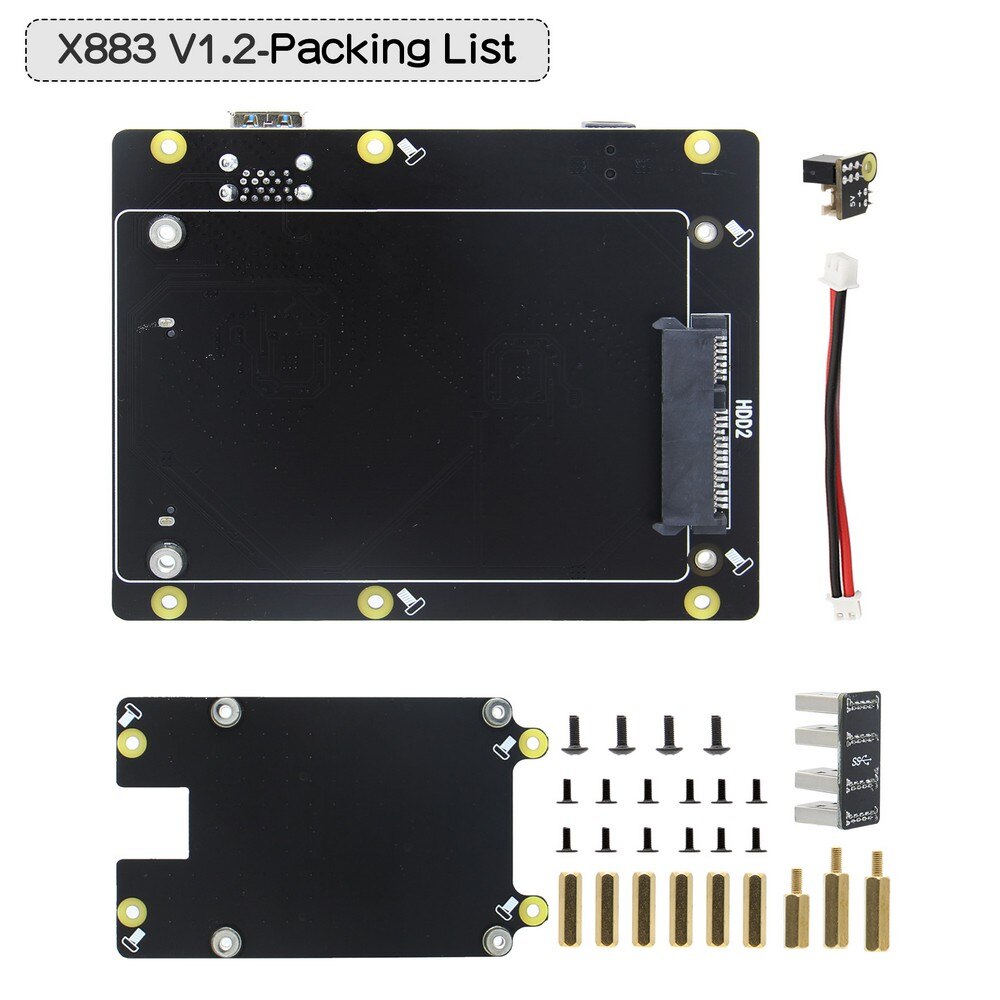

Packing List

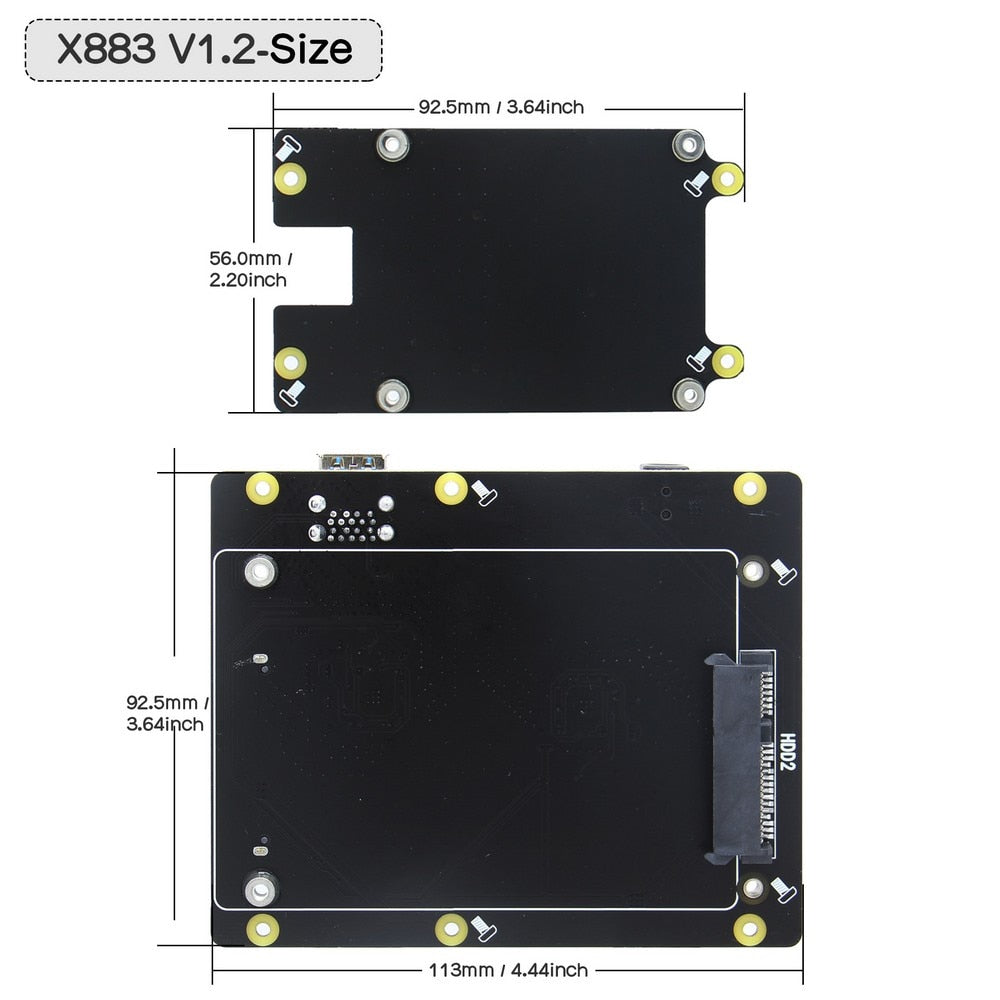

• 1 x X883 Shield (Support Dual 2.5 inch SATA HDD/SSD)

• 1 x Carrier Board (To mount raspberry pi on X883)

• 1 x USB 3-D Connector

• 1 x 2-Pin Power Connection Wire

• 6 x Spacer F/F M2.5 x 14mm

• 2 x Spacer M/F M2.5 x 14+5mm

• 12 x Screw M2.5 x5mm

• 4 x Screw M3 x 6mm



 Welcome Customize Order!
