Lonten Tech

Custom Raspberry Pi Compute Module 4 IO Board Manufacturer

Custom Raspberry Pi Compute Module 4 IO Board Manufacturer

$100.00 USD
$0.00 USD $100.00 USD
Sale Sold out



Do not include Raspberry Pi and CM.



Features

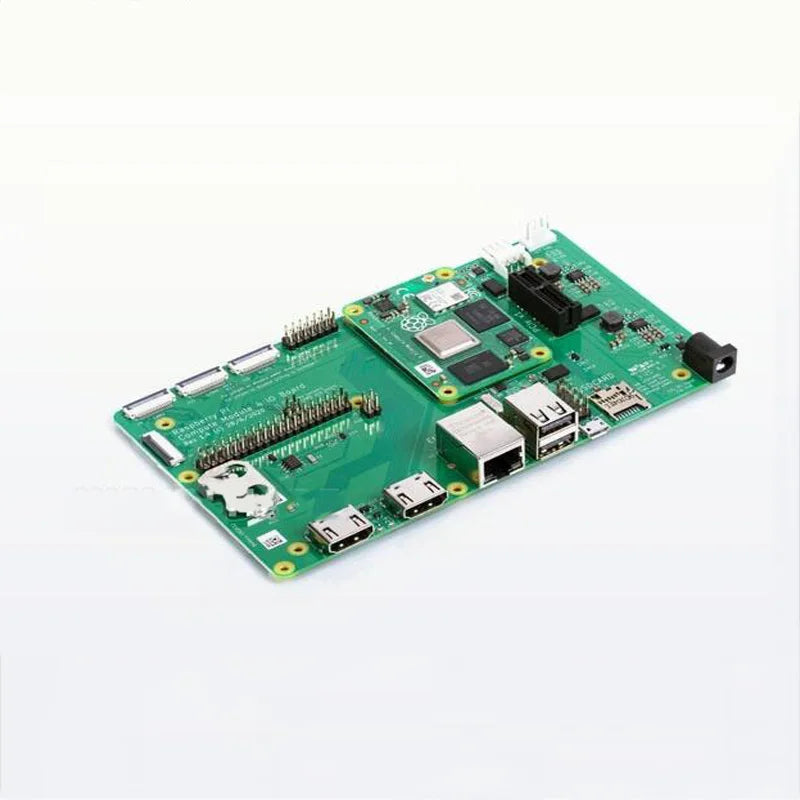

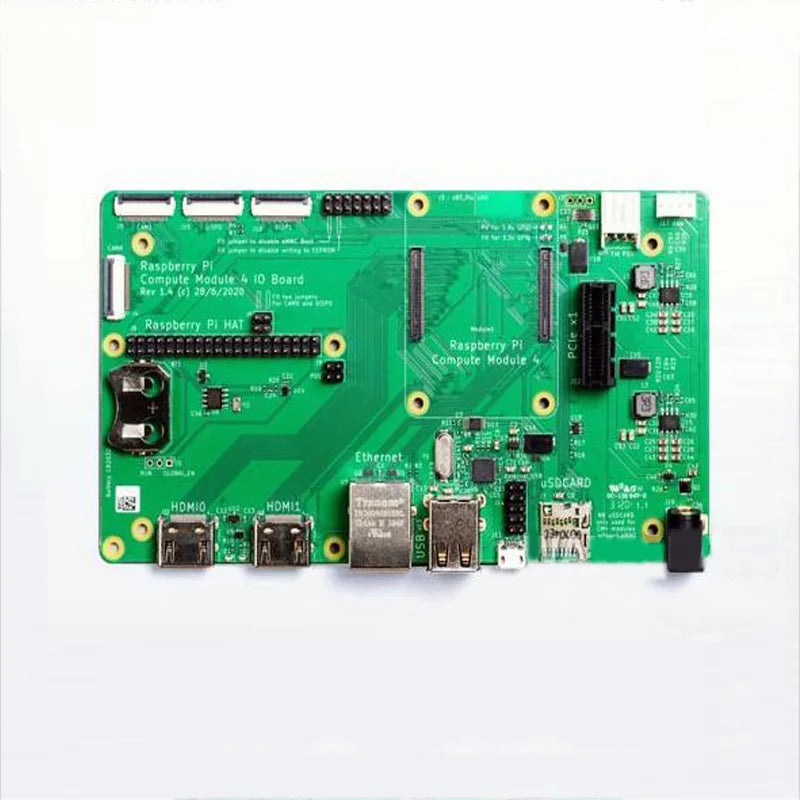

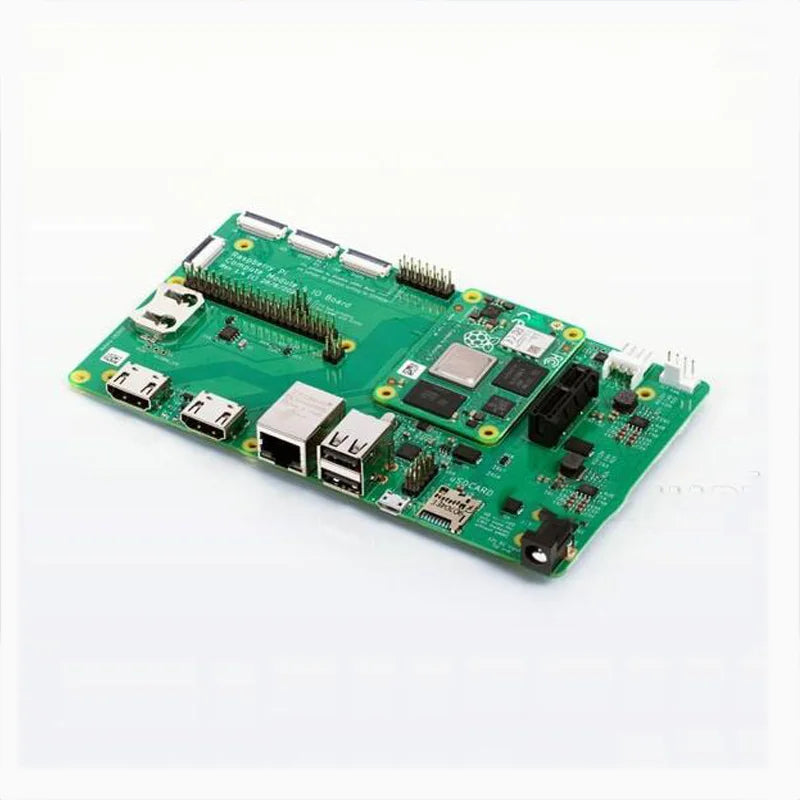

TheCompute Module 4 IO Boardis a companion board for Raspberry Pi Compute Module 4 (supplied separately). It is designed for use both as a development system for Compute Module 4 and as an embedded board integrated into end products.

The IO board is designed to allow you to create systems quickly using off-theshelf parts such as HATs and PCIe cards, which might include NVMe, SATA, networking, or USB. The major user connectors are located along one side to make enclosures simple.

Compute Module 4 IO Boardalso provides an excellent way to prototype systems using the Compute Module 4.

Interfaces Introduction


Specifications

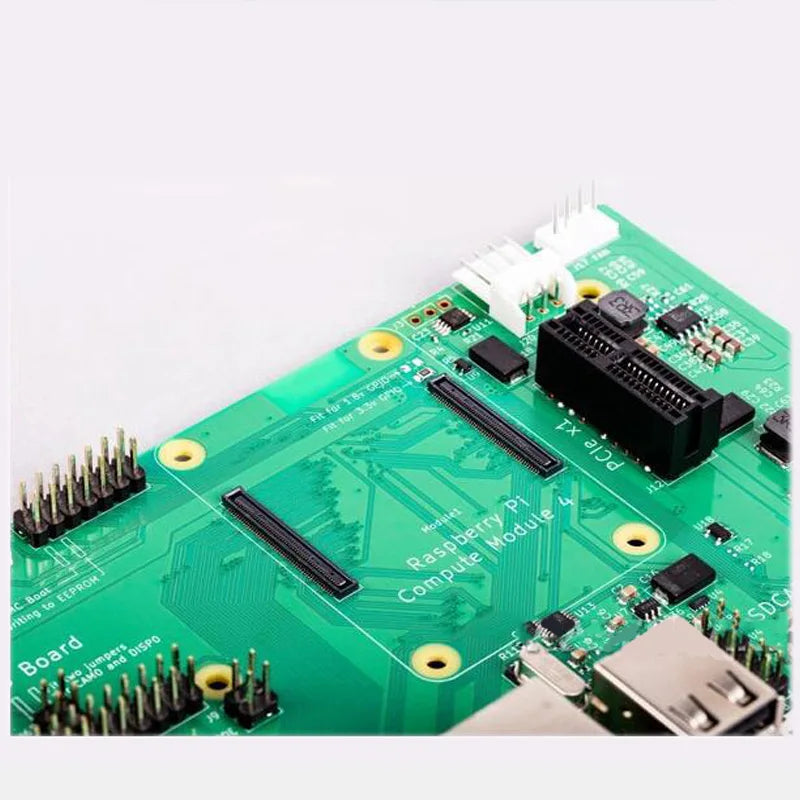

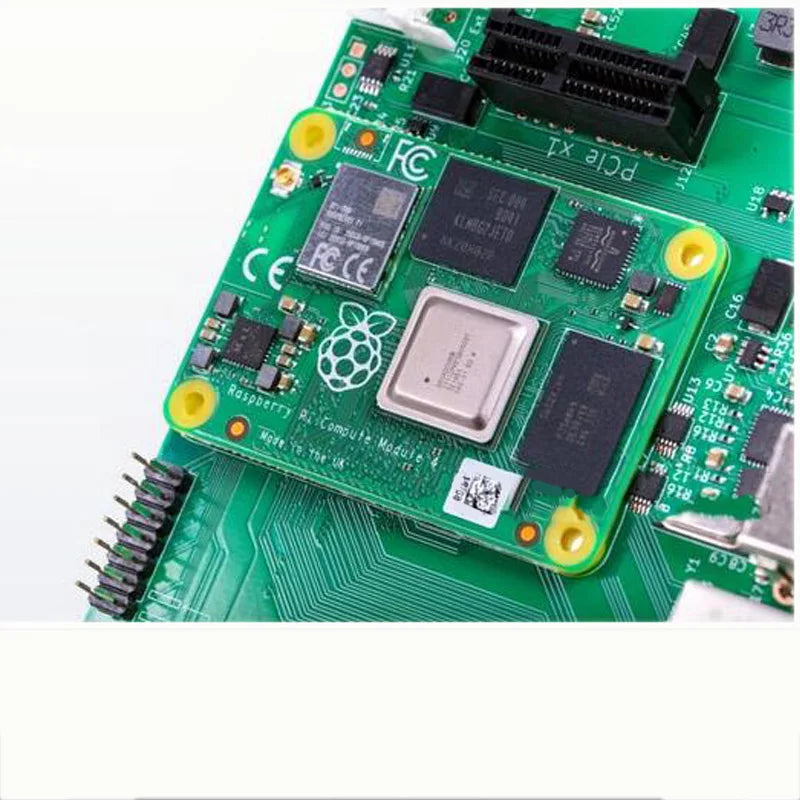

CM4 SOCKET

suitable for all variants of Compute Module 4

CONNECTORS

Standard Raspberry Pi HAT connectors with PoE support
Standard PCIe Gen 2 x1 socket
Various jumpers to disable specific features, e.g. wireless connectivity, EEPROM writing

RTC

Real-time clock with battery socket and ability to wake Compute Module 4

VIDEO

2 x MIPI DSI display FPC connectors (22-pin 0.5 mm pitch cable)

CAMERA

2 x MIPI CSI-2 camera FPC connectors (22-pin 0.5 mm pitch cable)

USB

2 x USB 2.0 connectors
Micro USB socket for updating Compute Module 4

ETHERNET

Gigabit Ethernet RJ45 with PoE support

STORAGE SOCKET

MicroSD card socket for Compute Module 4 Lite (without eMMC) variants

FAN

Standard fan connector

POWER INPUT

12V / 5V

DIMENSIONS

160 × 90mm

Package Content

  1. Board x1
